DIN 2514 Flanges Product Overview

Size in Ready Stock:	1/2″ To 48″ \|DN10 – DN2000
Thread :	MPT/ BSPT (Female), BSPP (Male & female), NPT, FPT, BSP, MNPT (Male)
Approval :	RINA, ADNOC, BAPCO, SABIC, KNPC, KOC, Saudi Aramco, Q CHEM, MA’ADEN, KPI, EIL
Suited for:	High Pressure, High Temperature, Seawater
Standards:	DIN 2514, EN 1092-1, ISO 7005-1
Raw Material Origin:	USA, Canada, European, German, UK, Indian, Korean, Japanese, Russia
Pressure Class:	PN10, PN16, PN25, PN40
Types of Faces :	T/G (Tongue And Groove ), RF (Raised Face), M/F (Male And Female),FF (Flat Face), RTJ (Ring Type Joint)
Test Certificates :	MTC EN 10204/3.1B 100% Radiography Test Report Raw Materials Certificate Fumigation Certificates Third Party Inspection Report
Brands :	Genoyer Group Companies, Forgerossi SAS, Officine, Ringmill SpA, Viraj Forgings Ltd, Hans Van Triel, Ulma Forja
Verified Viraj Forgings Ltd DIN 2514 Flanges Dealers and Distributors in UAE	Steeloid Industrial Supplies LLC, Ajman Mogul Electromech LLC, Dubai Oman Ocean Trdg LLC, Dubai
Shipping Country :	Russia : 20 Days Bahrain : 7 to 10 Days Kenya : 15 to 20 Days
What’s New :	GCC region procurement teams use the platform to ensure the correct material grade is selected for each specific pipeline application.
MTC:	EN 10204/3.1B and 3.2
RFQ:	support@pipingmaterial.ae

Table of Content

DIN 2514 Flanges Specification
DIN 2514 Flanges Manufacturing Process
DIN 2514 PN25 Blind Flange Materials & Grades
What Gasket Types Are Used With DIN 2514 Flat Face Flanges ?
DIN 2514 PN25 Groove Flanges Features
DIN 2514 PN10 Flange Weight Chart
Technical Details Of DIN 2514 Flanges
DIN 2514 PN10 Flanges Supporting Materials
How Do You Test DIN 2514 Groove Flanges?
Why Post-weld Inspection Of DIN 2514 PN10 Flanges Is Important ?
DIN 2514 Flange Dimensions
Temperature Chart of DIN 2514 Flanges (PN10 To PN40)
DIN 2514 Flanges Applications Industry

DIN 2514 PN10 Groove Flange And DIN 2514 PN25 Flanges Suppliers In UAE

DIN 2514 Flanges Specification

Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000

Maximum Size: DN2000

Coatings: Oil Black Paint, Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized

Bolts Hole Number: 4 To 48

Flanges Types: Groove Flange, Threaded, Blind, Slip On, Weld Neck, Long Weld Neck, Lap Joint

Surface Finish: Concentric Serrated, Stock Finish, Smooth Finish, Spiral Serrated Finish

Application: Nuclear power, Petrochemicals and acids, Heavy oil refineries, Marine applications

Testing: Impact Testing, Tensile Test, Hardness Testing, PMI Test, Pressure Shell Test

Documentation: Material Test Certificates (MTC), Certificate of Origin, NABL Laboratory Reports

Packaging: Plastic Bag, Carton Box, Wooden Case, Custom

Value Added Services: Threading, Casting, Cutting, Polishing, Machining

Equipments: Sand-blasting Machine, Press Machine, Pushing Machine, Electric Bevelling Machine

Get Quote Directly From DIN 2514 Flanges Suppliers in UAE

100% Tested DIN 2514 PN25 Groove Flanges With MTC EN 10204 3.1/3.2

Before You Buy DIN 2514 Groove Flanges In Dubai Check The Manufacturing Process

DIN 2514 Flanges Manufacturing Process

Material Selection
Forging
Heat Treatment
Casting
Cutting
Machining
Surface finishing
Marking

DIN 2514 PN25 Blind Flange Materials & Grades

Contact No. B2B Directory For DIN 2514 Flanges Suppliers in UAE Provides Various Materials

Stainless Steel	ASTM /ASME A/SA 182 – 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L , SMO 254.
Nickel Alloys	ASTM SB 366 – UNS N04400, N08020, N06625, N07718, N08800, N08825, N06600, N06601, N06022, UNS N02200, UNS 2201.
Duplex Steel	ASTM/ASME A/SA 182 – F44, F51, F53, F60, F61.
Alloys Steel	ASTM /ASME A/SA 182, A387 – F5,F9,F11,F12,F22,F91.
Hastelloy	ASTM B564 Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G.

What Gasket Types Are Used With DIN 2514 Flat Face Flanges ?

Choose Among The Verified Suppliers Of DIN 2514 PN25 Groove Flanges In Dubai, Compare The Price Lists And Quality

DIN 2514 PN25 Groove Flanges Features

Durability
High Standard Material
Excellent resistance

DIN 2514 PN10 Flange Weight Chart

Nominal Diameter (DN)	Pressure Rating (PN)	Approximate Weight (kg)
15	PN10	0.50
20	PN10	0.70
25	PN10	0.90
32	PN10	1.20
40	PN10	1.60
50	PN10	2.20
65	PN10	3.00
80	PN10	4.00
100	PN10	5.50
300	PN10	31.00
350	PN10	44.00
125	PN10	7.00
150	PN10	9.00
200	PN10	14.00
250	PN10	22.00
400	PN10	59.00
450	PN10	78.00
500	PN10	100.00
600	PN10	150.00
700	PN10	210.00
800	PN10	280.00
900	PN10	370.00
1000	PN10	440.00

There Is No Need To Spend More; Instead, Meet DIN 2514 PN25 Groove Flanges Manufacturers In Sharjah, Get Best Pricing In The Middle East And India

Technical Details Of DIN 2514 Flanges

Standard	Nominal pressure	Size
DIN 2514	PN10 PN16 PN25 PN40	DN10 – DN2000
Type	Coating	Type Of Seal
Groove Flanges	Anti-rust Paint Oil Black Paint Zinc Plated	Rubber Seal Ring
Manufacturing Process Types	Material Specification Of (DIN 2514 forged flange)	(DIN 2514 plate flange) Specification Material
Casting Plate Forged Stamped	Titanium (Ti): ASTM B381 F2/ F3/ F5/ F12 LTCS (Low Temp Carbon Steel): ASTM A350 Grade LF2/ LF3/ LF6 Nickel alloy: B564 Nickel 200/201 Stainless Steel (SS): ASTM A182 F304, 304L, F316, 316L, F310, F310S, F316Ti, F317L, F321, 321H, F347, F347H, F904L Hastelloy: C-276, C-2000, C, C-4, C-22, C-22HS, B-2, B, B-3, G-35, G-30, G-3, N, S, W, X Duplex & Super duplex: F44 (UNS S31254), F51 (UNS S31803), F61 (UNS S32550), F60 (UNS S32205), ASME SA182 F53 (UNS S32750), F55 (UNS S32760), CU Ni (Copper nickel) (for sea water): Copper nickel 70/30 ASME/ ASTM B151 Copper Nickel 90/10, C7060T, EEMUA 234/3-6, WL 2.1972, CW352H, C70620 Carbon steel : ASTM A105 ASME SA181 Class 60, and 70 ASTM A694 F42/ F46/ F52/ F56/ F60/ F65/ F70 Alloy Steel : ASME SA182 (most selling F1, F5, F9, F11), F12, F22, F91 Incoloy: Alloy 800, 800H, 800HT, 803, 825, 832, 908, A-286, 27-7MO, 864, 890, 903, 907, 028, 020, 945, 925, 926, 330, 25-6HN, DS, 909, 945X, MA956 Inconel: 600, 601, 617, 625, 625LCF, 686, 690, 601GC, 602CA, 603XL, 693, 740H, MA754, 751, 725, 706, 718, 718SPF, MA758, 783, X-750 Monel: Alloy 400/401, 404, R-405, 502, K-500	Low Temp Carbon Steel : ASTM A516 Gr 60/ 65/ 70 SS (Stainless steel): ASME SA240 F304/ F304L/ F310S/ F316/ F316L/ F316Ti/ F310/ F317L/ F347/ F347H/ F321/ F321H/ F904L Super duplex & Duplex : F53 (UNS S32750), F51 (UNS S31803), F55 (UNS S32760), F61 (UNS S32550), ASTM A240 F44 (UNS S31254), F60 (UNS S32205)
Meet genuine and expertized suppliers in UAE offering DIN 2514 flanges	Export Packaging	Logistics
Aging Treatment / Solution Treatment Design / Modify Drawings for Free Lowest price in UAE Quick Response within 24 Hours Quotation with Valuable Data Sheet Ship with MTC Acc. to EN 10204/3.1	Wooden Case Plastic Bag Or custom as required	By Air (for urgent demand) By Sea

DIN 2514 PN10 Flanges Supporting Materials

Get Connected With DIN 2514 Flanges Suppliers in UAE Provides Supporting Materials

Flange Bolts
Gasket
Ring Joint

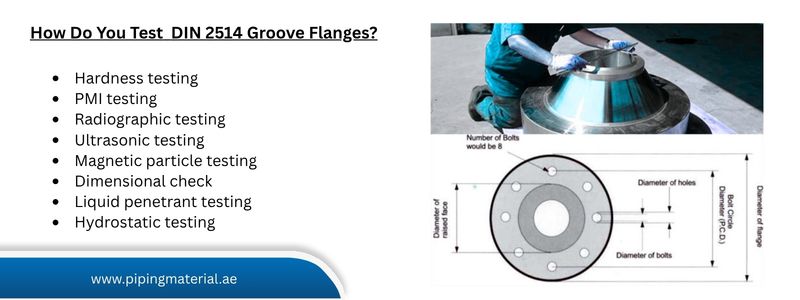

How Do You Test DIN 2514 Groove Flanges?

Why Post-weld Inspection Of DIN 2514 PN10 Flanges Is Important ?

Verify weld quality
Detect welding defects
Ensure joint strength
Prevent leakage failures
Check structural integrity
Reduce repair costs

Get Benefits Of The Lowest Price & Custom Sizes When Buying From Verified DIN 2514 PN10 Flanges Manufacturers & Suppliers In Bahrain, Check Temperature & Dimensions In MM

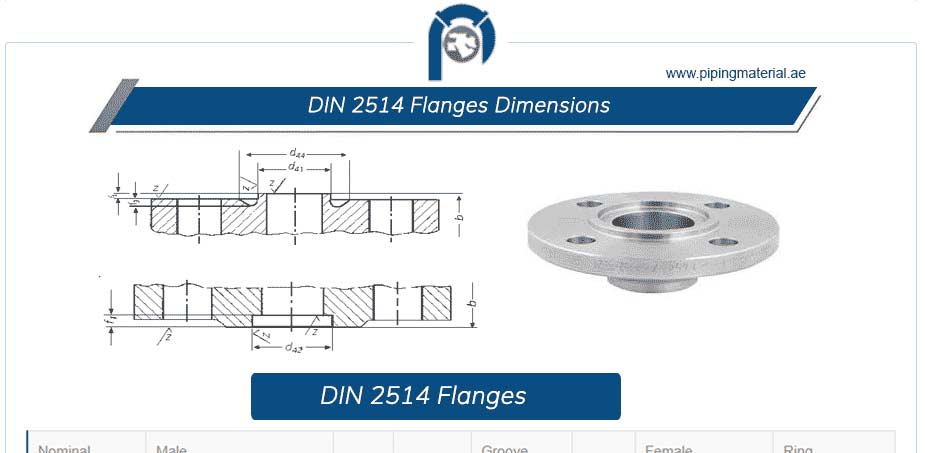

DIN 2514 Flange Dimensions

Nominal	Male		Groove			Female		Ring (DIN 2693)
Nominal	d41	f2	d44	f3	α	d42	f1	Ring (DIN 2693)
10	23	–	35	–	64°	24	3.5	5
15	28	–	40	–	64°	29	–	–
20	35	–	51	–	41°	36	–	–
25	42	–	58	–	41°	43	–	–
32	50	–	66	4	41°	51	–	–
40	60	–	76	–	41°	61	–	–
50	72	–	88	–	41°	73	–	–
65	94	–	110	–	41°	95	–	–
80	105	–	121	–	41°	106	–	–
100	128	–	150	–	32°	129	4	6
125	154	–	176	–	32°	155	–	–
150	182	–	204	–	32°	183	–	–
175	212	–	234	2.5	32°	213	4.5	–
200	238	–	260	–	32°	239	–	–
250	291	–	313	–	32°	292	–	–
300	342	–	364	–	32°	343	–	–
350	394	–	422	–	27°	395	4.5	7
400	446	–	474	–	27°	447	–	–
500	548	–	576	–	27°	549	–	–
600	648	–	676	3	27°	649	5	–
700	750	–	778	–	27°	751	–	–
800	855	–	883	–	27°	856	–	–
900	960	–	988	–	27°	961	–	–
1000	1060	–	1092	–	28°	1061	5.5	8
1200	1260	–	1292	–	28°	1262	–	–
1400	1460	–	1492	–	28°	1462	–	–
1600	1660	–	1692	–	28°	1662	–	–
1800	1860	–	1892	–	28°	1862	–	–
2000	2060	–	2092	4	28°	2062	6	–
2200	2260	–	2292	–	28°	2262	–	–
2400	2460	–	2492	–	28°	2462	–	–
2600	2660	–	2692	–	28°	2662	–	–
2800	2860	–	2892	–	28°	2862	–	–
3000	3060	–	3092	–	28°	3062	–	–

Temperature Chart of DIN 2514 Flanges (PN10 To PN40)

Temperature	WNR 1.4571 (SUS 316Ti)	WNR 1.4462 (2205 Duplex)	WNR 1.4307 (SUS 304L)	WNR 1.4541 (SUS 321)	WNR 1.4404 (SUS 316L)
Room Temperature in Celsius	10,0 (bar)	10,0 (bar)	10,0 (bar)	10,0 (bar)	10,0 (bar)
100	10,0	10,0	8,6	9,9	9,4
150	9,8	10,0	7,7	9,3	9,4
200	9,3	10,0	7,0	8,8	7,9
250	8,3	–	6,5	7,9	6,9
300	7,8	–	6,0	7,6	6,6
350	7,6	–	5,7	7,6	6,4
400	7,6	–	5,5	7,2	6,2
450	7,6	–	5,3	7,2	6,2
500	7,5	–	5,1	7,0	6,0
550	7,4	–	4,3*	6,7*	–
560	7,4	–	4,0*	6,1*	–
570	7,3*	–	3,7*	5,6*	–
580	6,7*	–	3,4*	5,1*	–
590	6,0*	–	3,0*	4,5*	–
600	5,5*	–	2,8*	4,0*	–

PN16 :

Temperature & Pressure / Material	1.4541 (Gr F321)	1.4404 (Gr F316L)	1.4571 (Gr F316Ti)	1.4462 (UNS S31803)	1.4307 (Gr F304L)
temperature of room in celsius	16,0 bar	16,0 bar	16,0 bar	16,0 bar	16,0 bar
100 °C	15,8	15,1	16,0	16,0	13,7
150 °C	14,9	13,7	15,6	16,0	12,3
200 °C	14,1	12,7	14,9	16,0	11,2
250 °C	13,4	11,9	14,1	16,0	10,4
300 °C	12,7	11,0	13,3	–	9,6
350 °C	12,2	10,5	12,8	–	9,2
400 °C	11,8	10,2	12,4	–	8,8
450 °C	11,6	10,0	12,2	–	8,5
500 °C	11,3	9,7	12,0	–	8,3
550 °C	10,8*	–	11,9	–	7,0*
560 °C	9,8*	–	11,8	–	6,4*
570 °C	8,9*	–	11,7*	–	5,9*
580 °C	8,1*	–	10,7*	–	5,4*
590 °C	7,3*	–	9,7*	–	4,9*
600 °C	6,5*	–	8,8*	–	4,4*

PN25 :

Temperature	WNR 1.4307 (ASME SA182 F304L)	WNR 1.4541 (ASME SA182 F321)	WNR 1.4404 (ASME SA182 F316L)	WNR 1.4571 (ASME SA182 F316Ti)	(WNR 1.4462 / UNS S31803)
Temperature of Room in °C	25,0 bar	25,0 bar	25,0 bar	25,0 bar	25,0 bar
100	21,5	24,7	23,6	25,0	25,0
150	19,2	23,3	21,5	24,5	25,0
200	27,5	22,1	19,8	23,3	25,0
250	16,3	21,0	18,6	22,1	25,0
300	15,1	19,8	17,2	20,8	–
350	14,4	19,1	16,5	20,1	–
400	13,8	18,5	16,0	19,5	–
450	13,3	18,1	15,6	19,1	–
500	12,9	17,7	15,2	18,8	–
550	10,9*	16,9*	–	18,6	–
560	10,1*	15,3*	–	18,5	–
570	9,2*	14,0*	–	18,3*	–
580	8,5*	12,7*	–	16,7*	–
590	7,7*	11,4*	–	15,2*	–
600	7,0*	10,2*	–	13,8*	–

PN25 :

Temperature	(SA182 Grade F316L)	(SA182 Grade F304L)	(SA182 Grade F316Ti)	(UNS S31803)	(SA182 Grade F321)
temperature of room in °C	40,0 ((bar))	40,0 (bar)	40,0 (bar)	40,0 (bar)	40,0 (bar)
100	37,9	34,4	40,0	40,0	39,6
150	34,4	30,8	39,2	40,0	37,3
200	31,8	28,0	37,3	40,0	35,4
250	29,9	26,0	35,4	40,0	33,7
300	27,6	24,1	33,3	–	31,8
350	26,4	23,0	32,1	–	30,6
400	25,7	22,0	31,2	–	29,7
450	25,0	21,4	30,6	–	29,0
500	24,3	20,7	30,0	–	28,3
550	–	17,5*	22,9	–	27,0*
560	–	16,1*	29,6	–	24,5*
570	–	14,8*	29,3*	–	22,4*
580	–	13,7*	26,8*	–	20,3*
590	–	12,3*	24,3*	–	18,2*
600	–	11,2*	22,0*	–	16,3*

DIN 2514 Flanges Applications Industry

Oil and Gas Industry
Nuclear Power Pants
Pulp & Paper Industry
Sugar Industry
Automotive Industry
Pharmaceuticals Industry
Refining Industry

Shipping time and import price variations for DIN 2514 flanges:

	Cambodia	Thailand	Russia
Estimated Shipping	9 days	7 days	20 days
Extra cost	5%	5%	5%
	Australia	Kenya	Sri lanka
Estimated Shipping	21 days	19 days	6 days
Extra cost	5%	5%	5%
Note: Get online price list from the genuine DIN 2514 flanges stockist, suppliers and manufacturers listed on pipingmaterial.ae
