DIN 2561 PN16 Flange Highlights

Size in Ready Stock:	1/2″ to 48″ \| DN10 – DN2000
Thread :	MPT/ BSPT (Female), NPT, MNPT (Male), BSPP (Male & female), FPT, BSP
Approval :	Saudi Aramco, Q CHEM, MA’ADEN, RINA, ADNOC, BAPCO, KPI, EIL, SABIC, KNPC, KOC
Suited for:	Oil & Gas Pipelines, Water Treatment Systems, Petrochemical Plants
Standards:	DIN 2561, EN 1092-1, ISO 7005-1
Raw Material Origin:	Korean, UK, European, Japanese, German, Indian
Pressure Ratings:	PN6, PN10, PN16, PN25, PN40, PN64, PN100
Types of Faces :	RTJ (Ring Type Joint), RF (Raised Face), FF (Flat Face), T/G (Tongue & Groove), M/F (Male & Female)
Test Certificates :	100% Radiography Test Report MTC EN 10204/3.1B Raw Materials Certificate Fumigation Certificates Third Party Inspection Report
Brands :	Officine, Ulma Forja, Viraj Forgings Ltd, Hans Van Triel, Genoyer Group Companies, Forgerossi SAS
Verified Viraj Forgings Ltd Forja DIN 2561 PN16 Flanges Dealers and Distributors in UAE	Steeloid Industrial Supplies LLC, Ajman Oman Ocean Trdg LLC, Dubai Burj Al Noor Trading Co LLC, Dubai Steel R US for Pipes & Fittings, Mussafah
Shipping Country :	Europe : 25 to 45 Days Bahrain : 7 to 10 Days US : 30 to 40 Days
What’s New :	Pipingmaterial.ae helps importers across MENA countries access ready-stock materials along with complete documentation and origin certificates.
MTC:	EN 10204/3.1 and 3.2
RFQ:	support@pipingmaterial.ae

Table of Content

DIN 2561 PN16 Flange Specification
DIN 2561 PN16 Weld Neck Flange Size Chart
DIN 2561 PN16 Flange Dimensions & Weight
DIN 2561 PN16 Blind Flange Tolerance
What Are The Surface Finish Of DIN 2561 PN16 Slip On Flange ?
How DIN 2561 PN16 Flanges Are Manufactured ?
DIN 2561 PN16 Large Diameter Flanges Applications
DIN 2561 PN16 Flange Technical Data
Inspection Test Of DIN 2561 PN16 Blind Flange
Which Documents Should Be Verify When Buying DIN 2561 PN16 Socket Weld Flanges ?
List Of Material For DIN 2561 PN16 Flange For Piping Connection
DIN 2561 PN16 Threaded Flanges Gasket Types
DIN 2561 PN16 Flanges Common Welding Defects
DIN 2561 PN16 Oval Flanges Pressure And Temperature Classifications According To EN 1092-1
DIN 2561 PN16 Large Diameter Flanges Testing Methods

DIN 2561 PN16 Oval Flanges And DIN 2561 PN16 Weld Neck Flanges Suppliers In UAE

DIN 2561 PN16 Flange Specification

Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000

Maximum Size: DN2000

Coatings: Yellow Transparent, Oil Black Paint, Zinc Plated, Cold Water

Bolts Hole Number: 4 To 48

Flanges Types: Plate Flange, Slip On, Lap Joint, Threaded, Blind

Surface Finish: Smooth Finish, Concentric Serrated, Spiral Serrated Finish, Stock Finish

Application: Oil & Gas Industries, Water Treatment Systems, Petrochemicals and acids

Testing: Hardness Testing, Tensile Test, Pressure Shell Test, PMI Test

Documentation: Certificate of Origin, Material Test Certificates (MTC)

Packaging: Plastic Bag, Wooden Case, Carton Box, Custom

Value Added Services: Machining, Cutting, Threading, Casting, Polishing

Equipments: Pushing Machine, Press Machine, Sand-blasting Machine, Electric Bevelling Machine

Get Quote Directly From DIN 2561 PN16 Flanges Suppliers in UAE

100% Tested DIN 2561 PN16 Plate Flanges With MTC EN 10204 3.1/3.2

Many Of The Listed Suppliers Can Supply DIN 2561 PN16 Blind Flange At Dealer Price In Dubai, Check Sizes

DIN 2561 PN16 Weld Neck Flange Size Chart

Size in Inch	Size in mm	Outer Diam	Thickness	Weld Neck OD	Diam Of RF	Length	PCD	RF Height	Face Of Weld
Size in Inch	Size in mm	A	B	D	G	E	I	H	J
1	25	110	12.7	33.4	50.8	54	79.4	2	1.6
3/4	20	100	11.2	26.7	42.9	51	69.9	2	1.6
1 1/4	32	115	14.3	42.2	63.5	56	88.9	2	1.6
2	50	150	17.5	60.3	92.1	62	120.7	2	1.6
3	80	190	22.3	88.9	127	68	152.4	2	1.6
1 1/2	40	125	15.9	48.3	73	60	98.4	2	1.6
2 1/2	65	180	20.7	73	104.8	68	139.7	2	1.6
3 1/2	90	215	22.3	101.6	139.7	70	177.8	2	1.6
4	100	230	22.3	114.3	157.2	75	190.5	2	1.6
10	250	405	28.6	273	323.8	100	362	2	1.6
14	350	535	33.4	355.6	412.8	125	476.3	2	1.6
18	450	635	38.1	457.2	533.4	138	577.9	2	1.6
24	600	815	46.1	610	692.2	151	749.3	2	1.6
1/2	15	90	9.6	21.3	34.9	46	60.3	2	1.6
6	150	280	23.9	168.3	215.9	87	241.3	2	1.6
5	125	255	22.3	141.3	185.7	87	215.9	2	1.6
8	200	345	27	219.1	269.9	100	298.5	2	1.6
12	300	485	30.2	323.8	381	113	431.8	2	1.6
16	400	595	35	406.4	469.9	125	539.8	2	1.6
20	500	700	41.3	508	584.2	143	635	2	1.6

See Where You Can Find Material Ex Stock

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Check DIn 2561 PN16 Threaded Flanges And DIN 2561 PN16 Slip On Flange Tolerance, Weight And Dimension

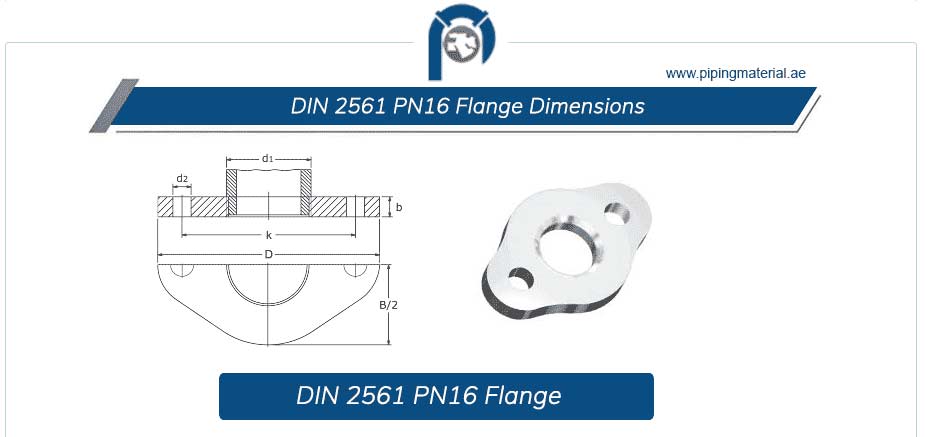

DIN 2561 PN16 Flange Dimensions & Weight

DN	d1	Thread	A	B	b	k	R	r	h1	d3	d4	f	Thread	d2	KG
6	10.2	R 1/8	75	40	12	50	20	12	18	20	32	2	M10	11	0.172
8	13.5	R 1/4	80	45	12	55	22,5	13	18	25	38	2	M10	11	0.21
10	17.2	R 3/8	90	50	14	60	25	15	20	30	40	2	M12	14	0.295
15	21.3	R 1/2	100	56	14	65	28	16	20	35	45	2	M12	14	0.365
20	26.9	R 3/4	105	75	16	75	37,5	21	24	45	58	2	M12	14	0.622
25	33.7	R 1	118	85	16	85	42,5	22	24	52	68	2	M12	14	0.777
32	42.4	R 1-1/4	140	100	16	100	50	28	26	60	78	2	M16	18	1.07
40	48.3	R 1-1/2	150	112	16	110	56	30	26	70	88	3	M16	18	1.26

DIN 2561 PN16 Blind Flange Tolerance

DIN 2561 Flange	Type Of Daimeter	Tolerance
A	Outside Dia	Outside Diam is 24 Inch or less: ±1/16″
A	Outside Dia	Outside Diam is over 24″: ±1/8″
B	Contact Face	1/16″ : ±1/32″
B	Contact Face	1/4″, Tongue & Groove: ±1/64″
D	Inside Dia	10 Inch and smaller: ±1/32″
		12 Inch thru 18″: +1/8″
		20 Inch and larger: -1/16″
J	Hub At Base Dai	Hub Base is 24 inch or smaller: ±1/16″
J	Hub At Base Dai	Hub Base is over 24″: ±1/8″
P	Drilling	Bolt circle: ±1/16″
P	Drilling	Bolt hole spacing: ±1/32″
C	Wall Thickness	18 inch and smaller: ±1/8″, -0″
C	Wall Thickness	20 inch and larger: ±3/16″, -0″
H	Diam of Hub At Point	5 inch and smaller: +3/32″, -1/32″
H	Diam of Hub At Point	6 inch and larger: +5/32″, -1/32
	Eccentricity	2 1/2″ and smaller ±1/32″ max
	Eccentricity	3″ and larger ±1/16″ max
K	Hub Length	10 Inch and smaller: ±1/16″
K	Hub Length	12 Inch and larger: ±1/8″

What Are The Surface Finish Of DIN 2561 PN16 Slip On Flange ?

Serrated finish
Mirror finish
Spiral/Concentric
Smooth
Cold water

Weekly Shipment To Below Locations

MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

How DIN 2561 PN16 Flanges Are Manufactured ?

View DIN 2561 PN16 Large Diameter Flanges Applications And DIN 2561 PN16 Oval Flange Torque, Pressure Rating, And Price List.

DIN 2561 PN16 Large Diameter Flanges Applications

Get ADNOC Approved DIN 2561 PN16 Flanges Suppliers in UAE Who Supplied To Various Industries

Water treatment plants
Oil and gas industry
Petrochemical industry
Chemical processing plants
Power generation plants
HVAC piping systems
Wastewater treatment systems
Pharmaceutical industry

Explore Nearby Locations For The Quickest Delivery Options

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

DIN 2561 PN16 Flange Technical Data

Type	Face	Hole
Oval Flanges with Neck Threaded	sealing face	2 hole
Standard	Nominal pressure	Size
DIN 2561	PN16	DN10 – DN2000
Process	Material Specification (DIN 2561 PN16 forged flange)	Material Specification (DIN 2561 PN16 plate flange)
Stamped Casting Forged Plate	Carbon steel : ASTM A105 ASTM A181 CL 60, CL 70 SA A694 Grade F42, F46, F52, F56, Grade F60, Grade F65, F70 Stainless steel : ASME A182 F304, F304L, F316, F316L, F316Ti, F310, F310S, F321, F321H, F347, F347H, F317L, F904L Duplex & super duplex: ASME A182 F44 (UNS S31254), F51 (UNS S31803), F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550) Alloy steel : ASTM A182 F1, F5, F9, F11 (most selling grade), F12, F22, F91 Titanium : ASTM B381 F2, F3, F5, F12 Nickel alloy: ASTM B564, Alloy 200, 201 LTCS (low temp carbon steel): ASTM A350 LF2, LF3 & LF6 Copper nickel (for sea water): ASTM B151 CuNi 90/10, CW352H, WL 2.1972, EEMUA 234/3-6, C70620, C7060T CuNi 70/30 Hastelloy: B, B-2, B-3, C, C-4, C-22, C-22HS, C-276, C-2000, G-3, G-30, G-35, N, S, W, X Incoloy: 800, 800H, 800HT, 803, 825, 832, 864, 890, 903, 907, 908, 909, 925, 926, 945, 945X, MA956, A-286, 020, 028, DS, 330, 25-6HN, 27-7MO Inconel: 600, 601, 601GC, 602CA, 603XL, 617, 625, 625LCF, 686, 690, 693, 706, 718, 718SPF, 725, 740H, X-750, 751, MA754, MA758, 783 Monel: 400, 401, 404, R-405, K-500, 502	LTCS (low temp carbon steel): ASME A516 Gr 70, Gr 65, Grade 60 Stainless steel : ASTM A240 F304, F304L, F316, F316L, F316Ti, F310, F310S, F321, F321H, F347, F347H, F317L, F904L Duplex & super duplex: ASTM A240 F44 (UNS S31254), F51 (UNS S31803), F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550)
All listed Din 2561 Pn16 Flange manufacturers at pipingmaterial.ae offers	Export Packaging	Logistics
Solution Treatment / Aging Treatment Design / Modify Drawings for Free Quotation with Valuable Data Sheet Ship with MTC Acc. to EN 10204/3.1 Quick Response within 24 Hours	Plastic Bag Wooden Case Or custom as required	By Air (for urgent demand) By Sea

Inspection Test Of DIN 2561 PN16 Blind Flange

Find TRusted DIN 2561 PN16 Flanges Suppliers in UAE Who Provides Complete Testing

PMI testing
Hydrostatic testing
Radiographic testing
Ultrasonic testing
Dimensional check
Hardness testing

Not Finding A Specific Size With Your Current Stockists? Check A List Of Very Few But Verified Suppliers And Get The Perfect DIN 2561 PN16 Socket Weld Flange At The Best Price In The Middle East And Africa

Which Documents Should Be Verify When Buying DIN 2561 PN16 Socket Weld Flanges ?

List Of Material For DIN 2561 PN16 Flange For Piping Connection

Grade of Din 2561 PN16 Flange	Valve	Nut & Bolt	Fittings	Pipes
ASTM A105	A216 Grade WCB	A194 Gr 2H & A193 Gr B7	A234 WPB/ WPC/ WPA	A106 Gr A/ B/ C
ASTM A182 F1, F5, F9, F11, F12, F22, F91	A217 Grade WC1, WC6, WC9, C5, C12	A194 Gr 2H & A193 Gr B7	A234 Gr WP1, WP5, WP9, WP11, WP12, WP22, WP91	A335 P1, P5, P9, P11, P12, P22, P91
A350 Gr LF2, LF3	A352 Gr. LCB, LC3	A194 Gr 7 & A320 Gr L7	A420 Gr WPL6, WPL 3	A333 Grade 6, Grade 3
ASTM A182 Gr F304, F316, F321, F321H, F347	ASTM A182 Gr F304, F316, F321, F321H, F347	A194 Gr 8 & A193 Gr B8	A403 Gr WP304, WP316, WP321, WP321H, WP347	A312 Gr TP304, TP316, TP321, TP321H, TP347
EEMUA 234/3-6	Cu-ni 90/10	Cu-ni 90/10	EEMUA 234/7-13	EEMUA 234/1-2
Din 2561 Pn16 Flange grade	Valve	Nut & Bolt	Fittings	Pipes

DIN 2561 PN16 Threaded Flanges Gasket Types

Ring joint gasket
PTFE gasket
Rubber gasket
Metal jacketed gasket

Material Inspection Facilities In The Following Countries

Fujairah	Umm Al Quwain	Sharjah	Doha
Ras Al Khaimah	Muscat	Dubai	Riyadh
Saudi Arabia	Abu Dhabi	Ajman	Al Jubail

DIN 2561 PN16 Flanges Common Welding Defects

Surface Cracks
Poor Weld Quality
Porosity
Incorrect Dimensions
Corrosion
Inconsistent Hardness

DIN 2561 PN16 Oval Flanges Pressure And Temperature Classifications According To EN 1092-1

Temperature & Pressure / Material	1.4462 (Duplex 2205/ UNS S31803)	1.4307 (Grade 304L)	1.4541 (Grade 321)	1.4404 (Grade 316L)	1.4571 (Grade 316Ti)
temperature of room in celsius	16,0 bar	16,0 bar	16,0 bar	16,0 bar	16,0 bar
100 °C	16,0	13,7	15,8	15,1	16,0
150 °C	16,0	12,3	14,9	13,7	15,6
200 °C	16,0	11,2	14,1	12,7	14,9
250 °C	16,0	10,4	13,4	11,9	14,1
300 °C	–	9,6	12,7	11,0	13,3
350 °C	–	9,2	12,2	10,5	12,8
400 °C	–	8,8	11,8	10,2	12,4
450 °C	–	8,5	11,6	10,0	12,2
500 °C	–	8,3	11,3	9,7	12,0
550 °C	–	7,0*	10,8*	–	11,9
560 °C	–	6,4*	9,8*	–	11,8
570 °C	–	5,9*	8,9*	–	11,7*
580 °C	–	5,4*	8,1*	–	10,7*
590 °C	–	4,9*	7,3*	–	9,7*
600 °C	–	4,4*	6,5*	–	8,8*

DIN 2561 PN16 Large Diameter Flanges Testing Methods

Visual inspection
Hydrostatic testing
Dimensional inspection
Ultrasonic testing
Radiographic testing
Magnetic particle testing
Hardness testing
PMI testing

Import Price And Shipping Time Variations For DIN 2561 PN16 Flange

France	Italy	Malaysia
Estimated Shipping: 30 days	Estimated Shipping: 30 days	Estimated Shipping: 10 days
If import 5% extra on the actual product value	5% extra	5% extra
Australia	Kenya	Philippines
Estimated Shipping: 21 days	Estimated Shipping: 19 days	Estimated Shipping: 14 days
Price: 5% extra	Price: 5% extra	Price: 5% extra
Note: Get updated price list from the verified DIN 2561 PN16 Flange suppliers, stockist and manufacturers listed on pipingmaterial.ae
