DIN 2566 PN16 Flange Highlights

Size in Ready Stock:	1/2″ to 48″ \| DN10 – DN2000
Thread :	MPT/ BSPT (Female), MNPT (Male), NPT, BSP, FPT, BSPP (Male & female)
Approval :	EIL, KOC, MA’ADEN, Q CHEM, RINA, KPI, BAPCO, KNPC, SABIC, ADNOC, Saudi Aramco
Suited for:	Power Plants, Oil & Gas Pipelines, Water Treatment Plants
Standards:	DIN 2566, EN 1092-1, ISO 7005-1
Raw Material Origin:	Japanese, Indian, Korean, German, European, UK
Pressure	PN 16 , Class 150 To 2500
Types of Faces :	M/F (Male & Female), RTJ (Ring Type Joint), T/G (Tongue & Groove), FF (Flat Face), RF (Raised Face)
Test Certificates :	MTC EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Fumigation Certificates Third Party Inspection Report
Brands :	Genoyer Group Companies, Officine, Ulma Forja, Hans Van Triel, Viraj Forgings Ltd
Verified Viraj Dealers and Distributors Of DIN 2566 PN16 Flange in UAE	Ali Yaqoob Trading Co LLC, Dubai Eurotech Global Pipes & Fittings Trading, Dubai Mabrook Hardware Trading LLC, Ajman
Shipping Country :	Egypt : 15 to 20 Days Oman : 7 to 20 Days Nigeria : 25 to 30 Days
What’s New :	With a management team boasting 26 years of experience connecting buyers with manufacturers, Pipingmaterial.ae stands as an indispensable B2B resource for the piping and steel industry in the GCC region.
MTC:	EN 10204/3.1 and 3.2
RFQ:	support@pipingmaterial.ae

Table of Content

DIN 2566 PN16 Flange Specification
DIN 2566 PN16 BSPT Threaded Flanges Surface Finish
Test Certifications of DIN 2566 PN16 Standards Screwed Flanges
DIN 2567 PN25 Raised Face Flange Material & Grades
DIN 2566 PN16 Threaded Pipe Flange Applications
DIN 2567 PN25 Threaded Flange Weight Chart
Can Suppliers Provide NDT Tested DIN 2566 PN16 Flange ?
DIN 2566 PN16 Standards Screwed Flange Manufacturing Process
Additional Information Of DIN 2566 PN16 Flange
Are DIN 2566 PN16 Flange Available With Coating or Anti-rust Finish ?
DIN 2566 PN16 Flange Dimensions
Temperature And Pressure Of DIN 2566 PN16 Flange According To EN 1092-1
Are DIN 2566 PN16 Threaded Flange Suitable For Power Plant Applications ?
What Logistics Is Used By Suppliers For Fast Delivery Service?

DIN 2566 PN16 Threaded And Forged Flanges Suppliers In UAE

DIN 2566 PN16 Flange Specification

Size In Ready Stock: 1/2″ to 48″ | DN10 – DN2000

Maximum Size: DN 2000 As Per DIN 2566 Standard

Types: Threaded, Screwed, Plate, Forged

Bolts Hole Number: 4 To 48

Production Technique: Forging, Heat Treatment, Forming, Machining

Surface Finish: Stock Finish, Smooth Finish, Serrated

Application: Power Plants, Oil & Gas Industry, Marine & Offshore

Testing: PMI Test, NDT, Hydrostatic testing machine, UI trasonic flaw detector

Documentation: MTC EN 10204/3.1B, Raw Material Test Reports, Third Party Inspection

Packaging: Wooden Case, Plastic Bag, Carton Box, Custom

Value Added Services: Welding, Threading, Cutting, Polishing, Casting

Equipments: Press machine, Pushing Machine, Electric bevelling machine, Bending machine

Get Quote Directly From DIN 2566 PN16 Flange Suppliers in UAE

100% Tested DIN 2566 PN16 Flange Weld Flanges With MTC EN 10204 3.1/3.2

Leading Trader Of DIN 2566 PN16 Standards Screwed Flanges In Dubai Offers Mirror And Polished Surface Finish And Mill TC At The Cheapest Price

DIN 2566 PN16 BSPT Threaded Flanges Surface Finish

Spiral serrated finish
Concrete serrated
Smooth
Cold water, and much more

Test Certifications of DIN 2566 PN16 Standards Screwed Flanges

Get ADNOC Approved DIN 2566 PN16 Flange Suppliers in UAE Who Provides Complete Test Reports

DIN 2567 PN25 Raised Face Flange Material & Grades

Materials	Grades
Stainless Steel (SS)	ASTM A182 Gr. F304, F304L, F316, F316L, F316Ti, F310, F310S, F347H, F317L, F904L
Ti (Titanium)	B381 Gr F2, F3, Grade F5, F12
Hastelloy	Alloy C-22, C-276, C-22HS, N, S, W, X, C-2000, C, C-4, B, B-2, B-3, G-35
Inconel	600, 601, 625, 718, 617, 601GC, 602CA
Carbon Steel	SA694 F42, F46, F52, F56, F60, F65, F70 ASME/ASTM A181,ASTM A105
Copper Nickel	C70620, CW352H, Copper Nickel 90/10, EEMUA 234/3-6, WL 2.1972, CU-Ni 70/30
Monel	Alloy 400, 401, 404, K-500, R-405, 502
Super Duplex and Duplex	F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550)

Material Inspection Facilities In The Following Countries

Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria
MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine

Select Your Size Of DIN 2566 PN16 Threaded Pipe Flange, Prior To Supplying, And As Per The Client’s Individual Needs.

DIN 2566 PN16 Threaded Pipe Flange Applications

Oil and Gas Industry
Pharmaceutical
Power Generation
Food Processing
Water treatment plants
Chemical Processing

DIN 2567 PN25 Threaded Flange Weight Chart

Rated Diameter	O.D. Of Pipe	KG/PCS
6	10.2	0.388
8	13.5	0.45
10	17.2	0.63
15	21.3	0.71
20	26.9	1.03
40	48.3	2.14
50	60.3	2.85
65	76.1	3.85
80	88.9	4.8
25	33.7	1.28
32	42.4	1.87
100	114.3	6.43
125	139.7	8.77
150	165.1	10.5

Can Suppliers Provide NDT Tested DIN 2566 PN16 Flange ?

Yes, DIN 2566 PN16 Flange Suppliers in UAE Provides Various Testing As Follows :

Tensile Testing
PMI Test
Hardness Testing
Impact Test

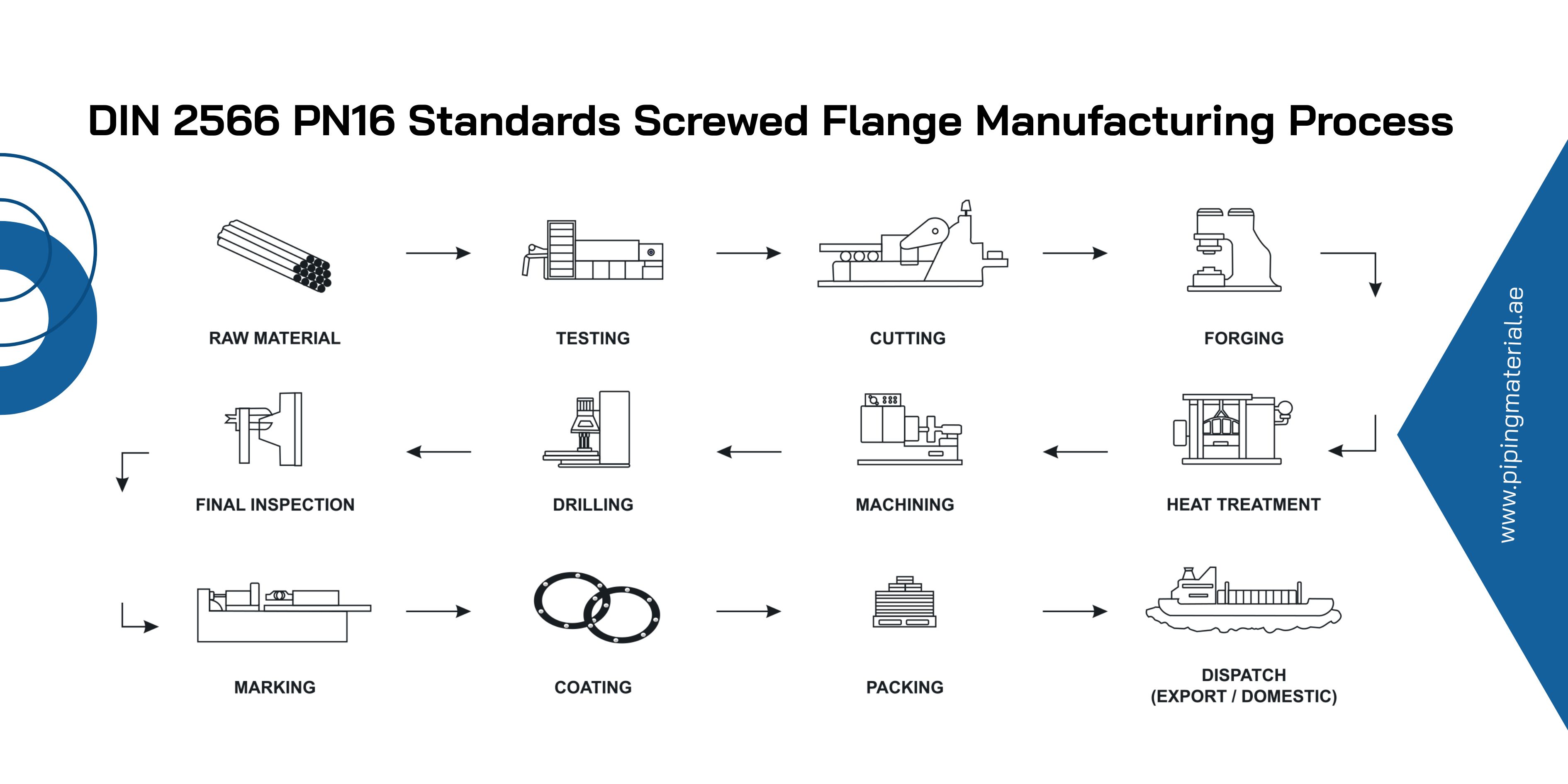

DIN 2566 PN16 Standards Screwed Flange Manufacturing Process

Sales Representatives Are Available To Provide Prompt Quotes

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Do You Have Trouble Finding DIN 2566 PN16 BSPT Threaded Flanges In Unusual Sizes? Get Connected With Verified And Audited Suppliers Of DIN 2566 PN16 Standards Screwed Flanges In The Middle East and India

Additional Information Of DIN 2566 PN16 Flange

Standard	Thread types	Size
DIN 2566	BSW, BSF, BSP-BSPT	DN10 – DN2000
Type	Sealing Face	Nominal pressure
Threaded Flange	RF	PN16
Process	Specification Material (DIN 2566 PN16 forged flange)	Specification Material (DIN 2566 PN16 plate flange)
Casting Forged Stamped Plate	Stainless steel : SA182 F304, F304L, F316, F316L, F316Ti, F310, F310S, F321, F321H, F347, F347H, F317L, F904L Carbon steel : ASTM/ ASME A105 ASTM A181 Class 60, CL 70 SA A694 Gr F42, F46, F52, F56, Gr. F60, Grade F65, F70 Alloy steel : ASTM A182 Grade F1, F5, F9, F11 (most selling grade), F12, F22, F91 Nickel alloy: B564, Alloy 200, 201 Duplex & super duplex: ASTM A182 F44 (UNS S31254), F51 (UNS S31803), F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550) Titanium : ASME B381 F2, F3, F5, F12 Copper nickel (for sea water): ASTM B151 Copper Nickel 90/10, CW352H, WL 2.1972, EEMUA 234/3-6, C70620, C7060T CuNi 70/30 Low temp carbon steel (LTCS): ASTM A350 LF2, LF3 & LF6 Hastelloy: B, B-2, B-3, C, C-4, C-22, C-22HS, C-276, C-2000, G-3, G-30, G-35, N, S, W, X Incoloy: 800, 800H, 800HT, 803, 825, 832, 864, 890, 903, 907, 908, 909, 925, 926, 945, 945X, MA956, A-286, 020, 028, DS, 330, 25-6HN, 27-7MO Inconel: 600, 601, 601GC, 602CA, 603XL, 617, 625, 625LCF, 686, 690, 693, 706, 718, 718SPF, 725, 740H, X-750, 751, MA754, MA758, 783 Monel: 400, 401, 404, R-405, K-500, 502	Duplex & super duplex: ASTM/ ASME 240 F44 (UNS S31254), F51 (UNS S31803), F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550) Stainless steel : ASTM A240 F304, F304L, F316, F316L, F316Ti, F310, F310S, F321, F321H, F347, F347H, F317L, F904L Low temp carbon steel (LTCS): ASME A516 Gr 70, Gr 65, Grade 60
All listed DIN 2566 PN16 Flange manufacturers at pipingmaterial.ae offers	Export Packaging	Logistics
Ship with MTC Acc. to EN 10204/3.1 Quick Response within 24 Hours Solution Treatment / Aging Treatment Design / Modify Drawings for Free Quotation with Valuable Data Sheet	Plastic Bag Wooden Case Or custom as required	By Air (for urgent demand) By Sea

Are DIN 2566 PN16 Flange Available With Coating or Anti-rust Finish ?

Yes, Suppliers Provide Custom Coatings And Finishes For Rust Protection. Some Of The Available Coatings Include :

Oil Black Paint
Yellow Transparent
Cold Water
Zinc Plated

Associate Traders And Importers Available In Below Locations For Quick Deliveries

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Not Finding A Specific Size With Your Current Stockists? Check The List Of Very Few But Verified Suppliers And Get The Perfect Stainless Steel DIN 2566 PN16 Threaded Flanges At The Best Price In Sharjah

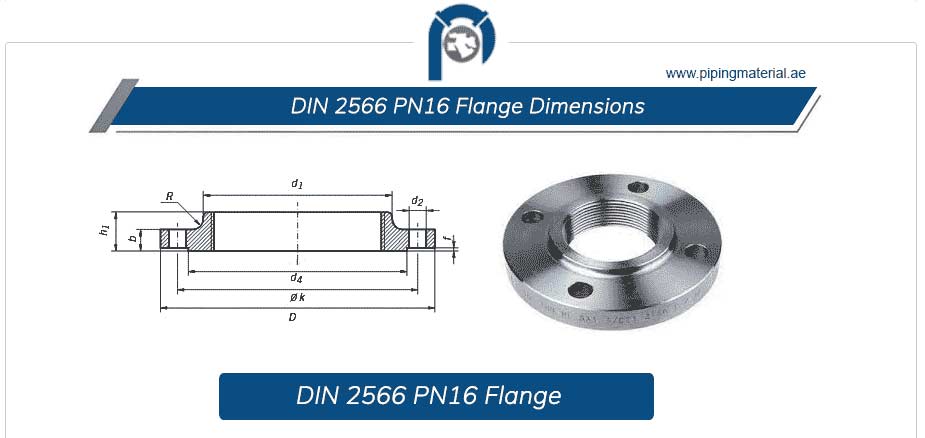

DIN 2566 PN16 Flange Dimensions
