DIN 2569 PN100 Flange Abstract

Size in Ready Stock:	1/2″ to 48″ \| DN10 – DN2000
Thread :	MNPT (Male), NPT, BSP, MPT/ BSPT (Female), FPT, BSPP (Male & female)
Approval :	EIL, KOC, MA’ADEN, ADNOC, Saudi Aramco, Q CHEM, RINA, KPI, BAPCO, KNPC, SABIC
Suited for:	Water Treatment Plants, Petrochemical, Oil & Gas Pipelines
Standards:	DIN 2569, EN 1092-1, ISO 7005-1
Raw Material Origin:	Korean, German, Japanese, Indian, European, UK
Pressure	PN 100 (100 bar / 1450 psi), Class 150 To 2500
Types of Faces :	RTJ (Ring Type Joint), RF (Raised Face), T/G (Tongue & Groove), M/F (Male & Female), FF (Flat Face)
Test Certificates :	MTC EN 10204/3.1B Third Party Inspection Report Raw Materials Certificate 100% Radiography Test Report Fumigation Certificates
Brands :	Viraj Forgings Ltd, Genoyer Group Companies, Officine, Ulma Forja, Hans Van Triel
Verified ULMA Dealers and Distributors Of DIN 2569 PN100 Flange in UAE	Intech Trading LLC, Dubai Tech Hard Oilfield Supplies FZE, Jebel Ali MSG Oilfield Equipment Trading LLC , Dubai
Shipping Country :	Bahrain : 7 to 10 Days Poland : 40 Days Oman : 7 to 20 Days
What’s New :	Explore Middle East FZE, incorporated in the UAE in 2016, draws on its management’s 26 years of experience to ensure Pipingmaterial.ae remains the most reliable and information-rich B2B platform for the steel and piping sector.
MTC:	EN 10204/3.1 and 3.2
RFQ:	support@pipingmaterial.ae

Table of Content

Specification Of DIN 2569 PN100 Flange
DIN 2569 PN100 Plate Flange Material & Grades
Surface Finish Of DIN 2569 PN100 Screwed Flanges
DIN 2569 PN100 Screwed Flanges Applications Industry
SS DIN 2569 PN100 Flange Manufacturing Methods
What Is The Pressure Rating of DIN 2569 PN100 SORF Flanges ?
Temperature And Pressure Of DIN 2569 PN100 Flange According To EN 1092-1
DIN 2569 PN100 BSPT Screwed Flanges Verified Documents
DIN 2569 PN100 Weld Neck Flange Testing Methods
Technical Data Of DIN 2569 PN100 Flange
Are DIN 2569 PN100 Screwed Flange Available With Anti-corrosion Coatings?
DIN 2569 PN100 Flange Dimensions
DIN 2569 PN100 Standards Screwed Flanges Weight Chart
Do Your Suppliers Offer Customized Drilling And Thickness for DIN 2569 PN100 Flanges?

DIN 2569 PN100 BSPT Threaded Flanges Suppliers In UAE

Specification Of DIN 2569 PN100 Flange

Size In Ready Stock: 1/2″ to 48″ | DN10 to DN2000

Maximum Size: DN2000 As Per DIN 2569 Standard

Manufacturing Way: Forged, casting, CNC Machined, Heat Treated

Bolts Hole Number: 4 To 48 As Per DIN 2569

Coatings: Epoxy Coated, Zinc Coated, Black Paint, Anti-rust Oil

Surface Finish: Stock Finish, Serrated Finish, Smooth, Machined Finish

Application: Oil & Gas Industry, Industrial Piping Systems, Chemical Plants, Petrochemical Industry

Testing: Hardness Test, Hydrostatic Test, PMI Test, Dimensional Inspection

Documentation: MTC EN 10204 3.1, Raw Material Certificate, Inspection Report

Packaging: Bubble Wrap, Pallets, Export Packing, Wooden Cases

Value Added Services: Welding, Marking, Drilling, Machining, Beveling

Equipments: Beveling Machines, Press Machines, CNC Machines, Drilling Machines

Get Quote Directly From DIN 2569 PN100 Flange Suppliers in UAE

100% Tested DIN 2569 PN100 Threaded Flange With EN 10204 3.1 Certification

Have Direct Contact With The Verified DIN 2569 PN100 Screwed Flanges Suppliers In Dubai For Quality Material And Timely Delivery In GCC Countries

DIN 2569 PN100 Plate Flange Material & Grades

Materials	Grades
Stainless Steel (SS)	ASTM A182 Gr. F304, F304L, F316, F316L, F316Ti, F310, F310S, F347H, F317L, F904L
Hastelloy	Alloy C-22, C-276, C-22HS, N, S, W, X, C-2000, C, C-4, B, B-2, B-3, G-35
Carbon Steel	SA694 F42, F46, F52, F56, F60, F65, F70 ASME/ASTM A181,ASTM A105
Ti (Titanium)	B381 Gr F2, F3, Grade F5, F12
Monel	Alloy 400, 401, 404, K-500, R-405, 502
Inconel	600, 601, 625, 718, 617, 601GC, 602CA
Copper Nickel	C70620, CW352H, Copper Nickel 90/10, EEMUA 234/3-6, WL 2.1972, CU-Ni 70/30
Low Temperature Carbon Steel	ASTM A350 LTCS Gr LF2, LF3, LF6
Super Duplex and Duplex	F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550)

Surface Finish Of DIN 2569 PN100 Screwed Flanges

Spiral serrated finish
Concrete serrated
Smooth
Cold water, and much more

Sales Representative Available To Provide Quick Quote

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

DIN 2569 PN100 Screwed Flanges Applications Industry

Get ADNOC Approved DIN 2569 PN100 Flange Suppliers in UAE Who Supply To Various Industries

Buy DIN 2569 PN100 Threaded Flange As Per International Standards, Check Manufacturing Methods, Specifications, And Pressure Rating

SS DIN 2569 PN100 Flange Manufacturing Methods

Material Selection
Forging
Casting
Cutting
Finishing
Marking

What Is The Pressure Rating of DIN 2569 PN100 SORF Flanges ?

PN 100 (100 bar / 1450 psi), Specifically Made for High-pressure Systems

Temperature And Pressure Of DIN 2569 PN100 Flange According To EN 1092-1

Temperature	1.4541 (A182 grade F321)	1.4404 (A182 grade F316L)	1.4571 (A182 grade F316Ti)	1.4307 (A182 gr F304L)	1.4462 (UNS S31803 / Duplex 2205)
room temperature	100,0 (bar)	100,0 (bar)	100,0 (bar)	100,0 (bar)	100,0 (bar)
100 °C	99,0	94,7	100,0	86,1	100,0
150 °C	93,3	86,1	98,0	77,1	100,0
200 °C	88,5	79,5	93,3	70,0	100,0
250 °C	84,2	74,7	88,5	65,2	100,0
300 °C	79,5	69,0	83,3	60,4	–
350 °C	76,6	66,1	80,4	57,6	–
400 °C	74,2	64,2	78,0	55,2	–
450 °C	72,6	62,6	76,6	53,5	–
500 °C	70,9	60,9	75,2	51,9	–
550 °C	67,6*	–	74,7	–	43,8*
560 °C	61,4*	–	74,0	–	40,4*
570 °C	56,1*	–	73,3*	37,1*	–
580 °C	50,9*	–	67,1*	–	34,2*
590 °C	45,7*	–	60,9*	–	30,9*
600 °C	40,9*	–	55,2*	–	28,0*

Is Your Existing Supplier Increasing Prices? Find Trustworthy & Verified DIN 2569 PN100 BSPT Screwed Flanges Suppliers In The Middle East And South Korea

DIN 2569 PN100 BSPT Screwed Flanges Verified Documents

Material Traceability Records
Raw Material Test Reports
Quality Assurance Plan (QAP)
Certificate of Origin
Commercial Invoice which includes HS Code
NABL Laboratory Reports
Test Certificates certifying NACE MR0175, NACE MR0103

DIN 2569 PN100 Weld Neck Flange Testing Methods

Find Trusted & Genuine DIN 2569 PN100 Flange Suppliers in UAE Provides Different Testing

Check Out Your Nearby Locations For Fastest Deliveries

MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Technical Data Of DIN 2569 PN100 Flange

Nominal pressure	DIN standard	Available size
PN100	DIN 2569	DN10 – DN2000
Type	Thread types	Sealing face
Threaded Flanges with Neck	BSPT, NPT, BSP	RF & RTJ
Manufacturing Method	(DIN 2569 PN100 forged flange) Specification Material	Material Specification (DIN 2569 PN100 plate flange)
Forged Plate Casting Stamped	Hastelloy: Top selling Gr Alloy C-22, C-276, C-22HS, N, S, W, X, C-2000, C, C-4, B, B-2, B-3, G-35, G-3, G-30 Alloy Steel (AS) : ASME SA182 Grade F1/ F5/ F9/ F11/ F12/ F22/ F91 Ni (Nickel alloy): ASTM B564 Grade 200, Ni 201 Carbon steel : SA694 F42/ 46/ 52/ 56/ 60/ 65/ 70 ASME/ ASTM A181 Gr CL 60 and CL 70 ASME/ ASTM A105 Ti (Titanium): B381 Gr F2/ F3/ and Grade F5/ F12 Monel: Alloy 400, 401, 404, K-500, R-405, 502 Inconel: (best selling 600, 601, 625, 718 grade), (617, 601GC, 602CA, 690, 693, 625LCF, 603XL, 686,) 706, 718SPF, 725, 740H, X-750, 751, MA754, MA758, 783 Copper nickel (for sea water): C70620, CW352H, Copper nickel 90/10, EEMUA 234/3-6, WL 2.1972, C7060T ASME SB151 CU-Ni 70/30 Incoloy: Alloy 800/ 800H/ 800HT, 803, 825, 832, 864, 890, 330, A-286, 27-7MO, 903, 907, 908, 909, 925, 926, 945, 945X, 020, 028, 25-6HN, MA956, DS Low temperature carbon steel : ASTM A350 LTCS Gr LF2/ LF3/ LF6 Super Duplex and Duplex: F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550), ASME SA182 Grade F44 (UNS S31254), F51 (UNS S31803) Stainless Steel (SS) : ASTM A182 Gr. F304/ F304L, F316/ F316L, F316Ti/ F310/ F310S, F321/ F321H, F347 & F347H, F317L/ F904L	Super Duplex (SDSS) and Duplex (DSS): ASTM A240 F53 (UNS S32750) and F55 (UNS S32760), F60 (UNS S32205) and F61 (UNS S32550), F44 (UNS S31254), F51 (UNS S31803) Stainless Steel : ASME SA240 F304, F304L, F316, F316L, F316Ti, F310, F310S, F317L, F321, F321H, F347, F347H, F904L Low Temperature Carbon Steel (LTCS): A516 70/, Gr. 65, Grade 60
Get connected verified DIN 2569 PN100 Flange suppliers, they offers	Export Packaging	Logistics
Quotation with Valuable Data Sheet Aging Treatment / Solution Treatment Design / Modify Drawings for Free Lowest price in UAE Ship with MTC Acc. to EN 10204/3.1 Quick Response within 24 Hours	Plastic Bag Wooden Case Or custom as required	By Sea By Air (for urgent demand)

Material Inspection Facility In Following Locations

Umm Al Quwain	Doha	Sharjah	Fujairah
Ras Al Khaimah	Muscat	Dubai	Riyadh
Saudi Arabia	Ajman	Abu Dhabi	Al Jubail

Are DIN 2569 PN100 Screwed Flange Available With Anti-corrosion Coatings?

Yes, DIN 2569 PN100 Screwed Flange Suppliers Provides Various Coatings As Mentioned Below :

Epoxy
Yellow Transparent
Zinc Plated
Oil Black Pain
Cold Water

Check DIN 2569 PN100 CS Threaded Flange, And DIN 2569 PN100 Standards Screwed Flanges Dimensions In MM, Weight, And Sizes

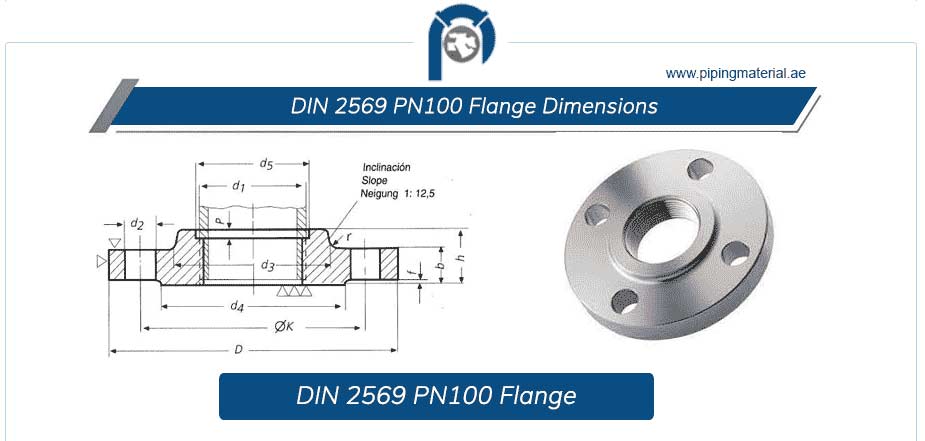

DIN 2569 PN100 Flange Dimensions
