Din 2573 flange
DIN 2573 Flange Overview
| Size in Ready Stock: | 1/2″ to 48″ | DN10 – DN2000 |
|---|---|
| Thread : | NPT, BSP, MPT/ BSPT (Female), FPT, BSPP (Male & female), MNPT (Male) |
| Approval : | ADNOC, Saudi Aramco, Q CHEM, RINA, KPI, BAPCO, EIL, KOC, MA’ADEN, KNPC, SABIC |
| Suited for: | Petrochemical, Oil & Gas Pipelines, Power Industry |
| Standards: | DIN 2573, EN 1092-1, ISO 7005-1 |
| Raw Material Origin: | German, Korean, Japanese, UK, Indian, European |
| Pressure | PN 10, Class 150 To 2500 |
| Types of Faces : | M/F (Male & Female), FF (Flat Face), RF (Raised Face),T/G (Tongue & Groove) |
| Test Certificates : |
|
| Brands : | Viraj Forgings Ltd, Genoyer Group Companies, Officine, Ulma Forja, Hans Van Triel |
| Verified Viraj Dealers and Distributors of DIN 2573 Flange in UAE |
|
| Shipping Country : |
|
| What’s New : | Whether you are a first-time buyer or an experienced trader, Pipingmaterial.ae built by Explore Middle East FZE with 26 years of industry knowledge is the platform you must visit before making any piping material purchase in the Middle East. |
| MTC: | EN 10204/3.1 and 3.2 |
| RFQ: | support@pipingmaterial.ae |
DIN 2573 PN6 Flanges And DIN 2573 Slip On Flanges Suppliers In UAE
Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000
Maximum Size: DN2000
Coatings: Yellow Transparent, Oil Black Pain, Epoxy, Zinc Plated, Cold Water
Bolts Hole Number: 4 To 20
Flanges Types: Blind, Socket Weld, Weld Neck, Lap Joint, Slip On, Plate Flange
Surface Finish: Stock Finish, Concentric Serrated, Smooth, Spiral Serrated Finish
Application: Chemical industry, Petrochemicals, Oil & gas industry, Power industry
Testing: Tensile Test, PMI Test, NDT, Hydro Test, Hardness Testing
Documentation: Certificates Of Origin, Material Test Certificates (MTC)
Packaging: Plastic Wrap, Carton Box, Wooden Case, Custom
Value Added Services: Polishing, Threading, Casting, Welding, Machining, Cutting
Equipments: Electric Pushing Machine, Press Machine, Sand-blasting Machine, Bevelling Machine
Get Quote Directly From DIN 2573 Flange Suppliers in UAE
100% Tested DIN 2573 PN6 Raised Face Flange With MTC EN 10204 3.1/3.2
Finding Special Sizes Of DIN 2573 Stainless Steel Flange? Get Reasonable Prices From Verified DIN 2573 PN6 Plate Flanges Stockist In Dubai

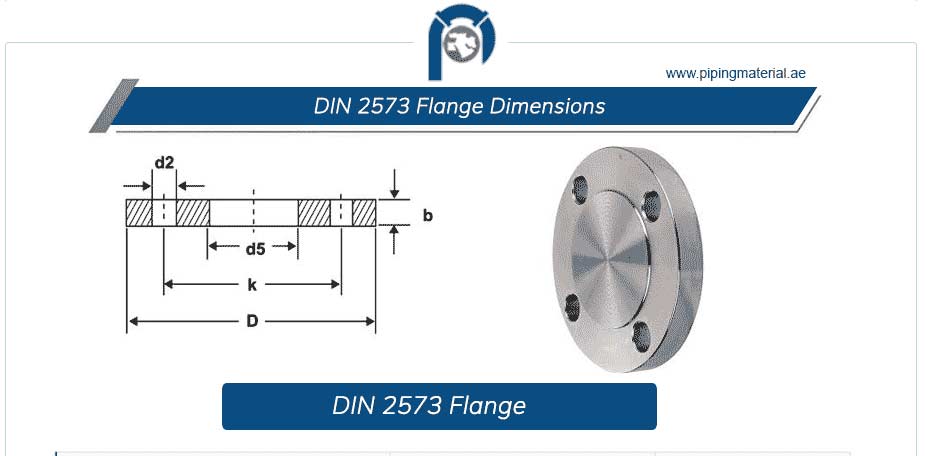

| Rated Diam. | d1 | d5 | D | b | c | k | Holes | thread | d2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| ISO Series 1 | DIN Series 2 | |||||||||
| 15 | – | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 |
| – | 21,3 | – | 22 | – | – | – | – | – | – | – |
| 20 | – | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 |
| – | 26,9 | – | 27,6 | – | – | – | – | – | – | – |
| 25 | – | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 |
| – | 33,7 | – | 34,4 | – | – | – | – | – | – | – |
| 32 | – | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 |
| – | 42,4 | – | 43,1 | – | – | – | – | – | – | – |
| 40 | – | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 |
| – | 48,3 | – | 49 | – | – | – | – | – | – | – |
| 50 | – | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 |
| – | 60,3 | – | 61,1 | – | – | – | – | – | – | – |
| 65 | 76,1 | – | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 |
| 80 | 88,9 | – | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 |
| 100 | – | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 |
| – | 114,3 | – | 115,9 | – | – | – | – | – | – | – |
| 125 | – | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 |
| – | 139,7 | – | 141,6 | – | – | – | – | – | – | – |
| 150 | – | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 |
| – | 168,3 | – | 170,5 | – | – | – | – | – | – | – |
| 200 | 219,1 | – | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 |
| 250 | – | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 |
| – | 273 | – | 276,2 | – | – | – | – | – | – | – |
| 300 | 323,9 | – | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 |
| 350 | 355,6 | – | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 |
| – | – | 368 | 372,2 | – | – | – | – | – | – | – |
| 400 | 406,4 | – | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 |
| – | – | 419 | 423,7 | – | – | – | – | – | – | – |
| (450)* | 457 | – | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 |
| 500 | 508 | – | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 |
Supported Documents For DIN 2573 WNRF Flange
- Raw Material Test Reports
- Certificate of Origin
- Material Test Certificates (MTC)
- NABL Laboratory Reports
- Quality Assurance Plan (QAP)
Warehouse Locations Of Partner Suppliers
| MENA | Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine |
|---|---|
| Middle East Countries | Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen |
| Africa | South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria |
DIN 2573 Stainless Steel Flange Surface Finish
- Stock finish
- Spiral serrated finish
- Cold water, and much more
- Smooth
- Concrete serrated
Before You Buy DIN 2573 PN6 DN100 SORF Flange In The Middle East And India Check The Test Reports And Manufacturing Origin
Test Reports For DIN 2573 PN6 DN100 SORF Flange
Get ADNOC Approved DIN 2573 Flange Suppliers in UAE With Complete Documentations
CS DIN 2573 Flange Manufacturing Process
- Forging
- Casting
- Cutting
- Finishing
Sales Representative Available To Provide Quick Quote
| Sharjah | Fujairah | Doha | Riyadh |
|---|---|---|---|
| Dubai | Umm Al Quwain | Ras Al Khaimah | Muscat |
| Ajman | Saudi Arabia | Abu Dhabi | Al Jubail |
Can DIN 2573 PN6 Flange Be Supplied in Customized Thickness?
Yes, DIN 2573 PN6 Flange Provided With Customized Thickness By Cutting Process
Cut Out All Materials And Direct Buy From Manufacturers Of DIN 2573 Plate Flange To Save Up To 40%.
DIN 2573 Plate Flange Materials & Grades
Find DIN 2573 Flange Suppliers in UAE Who Provides Differents Materials For Flanges
| Material | Grades |
|---|---|
| Titanium | ASTM B381 F2, F3, F5, F12 |
| Alloy Steel (AS) | SA182 F1, F5, F9, F12, F22, F91 |
| Stainless Steel | A182 F304, 304L, F316, 316L, F310, F310S, F316Ti, F317L, F347L |
| Nickel Alloy | ASME SB564, Ni 200, Ni 201 |
| Carbon Steel | ASTM A105, SA181 Class 60, Class 70, A694 F42, F46, F56, F60, F65, F70 |
| Duplex & Super Duplex | F51 (UNS S31803), F44 (UNS S31254), F60 (UNS S32205), F61 (UNS S32550),ASME SA182 F53 (UNS S32750) |
| Hastelloy | B-2, B, B-3, C-276, C-2000, C, C-4, C-22, G-3, N, S, W, X |
| Inconel | 600, 601, 617, 625, 625LCF, 686, 690, 601GC, 602CA, 603XL, 718, 718SPF, 740H, MA754, MA758, 783, X-750 |
| Incoloy | 800, 800H, 800HT, 803, 825, 832, 908, A-286, 27-7MO, 864, 890, 020, 925, 926, 945, 945X, MA956 |
| Copper Nickel (CU-NI) | 70/30 CuNi, ASME B151, 90/10 CuNi, WL 2.1972, C7060T, EEMUA 234/3-6, C70620 |
| Monel | 400, 401, 404, R-405, 502, K-500 |
DIN 2573 Flanges
DIN 2573 PN6 Flange
DIN 2573 Plate Flanges
DIN 2573 PN6 Slip On Flange
DIN 2573 PN6 DN 100 SORF Flange
DIN 2573 PN6 Plate Flanges
DIN Stainless Steel 2573 PN6 Flange
DIN 2573 Carbon Steel PN6 Flanges
DIN 2573 SORF Flange
DIN 2573 Flange Technical Data
| Fcae type | Type | Temperature |
|---|---|---|
| FF | Slip On/ Plate Flange | 100°C to 600°C |
| Nominal pressure | DIN standard | Available size |
| PN6 | DIN 2573 | DN10 – DN2000 |
| Manufacturing Process | Material Specification of (DIN 2573 PN6 forged flange) | (DIN 2573 PN6 plate flange) Specification Material |
|
|
|
| Listed manufacturers offering DIN 2573 flange at pipingmaterial.ae | Export Packaging | Logistics |
|
|
|
See Where You Can Find Material Ex Stock
| Country | Cities |
|---|---|
| Netherlands | Amsterdam |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Seraing |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | Rotterdam |
| Belgium | Leuven |
| Belgium | Westerlo |
| Belgium | Antwerp |
Can DIN 2573 PN10 Blind Flanges Be Supplied With Custom Marking?
Yes, Suppliers Listed Here Are Provides Custom Marking Including the Following Marking :
- Sizes
- Face Type
- Grades & Standard
- Manufacturer’s name
- Logo
Tired Of Buying Costly DIN 2573 Carbon Steel PN6 Flange From Stockists? Contact Leading DIN 2573 Plate Flange Manufacturers.
DIN 2573 Flange PN6 Temperature And Pressure According To EN 1092-1
| Temperature of DIN 2573 flange | 1.4307 (AISI 304L) |
1.4404 (AISI 316L) |
1.4462 (Duplex 2205 Steel) |
1.4571 (AISI 316Ti) |
1.4541 (AISI 321) |
|---|---|---|---|---|---|
| room temperature | 6.0 bars | 6.0 bars | 6.0 bars | 6.0 bars | 6.0 bars |
| 100ºC | 5.1 | 5.6 | 6.0 | 6.0 | 5.9 |
| 150℃ | 4.6 | 5.1 | 6.0 | 5.8 | 5.6 |
| 200ºC | 4.2 | 4.7 | 6.0 | 5.6 | 5.3 |
| 250ºC | 3.9 | 4.4 | 6.0 | 5.3 | 5.0 |
| 300ºC | 3.6 | 4.1 | – | 5.0 | 4.7 |
| 350ºC | 5.4 | 3.9 | – | 4.8 | 4.6 |
| 400ºC | 3.3 | 3.8 | – | 4.6 | 4.4 |
| 450ºC | 3.2 | 3.7 | – | 4.6 | 4.3 |
| 500ºC | 3.1 | 3.6 | – | 4.5 | 4.2 |
| 550ºC | 2.6* | – | – | 4.4 | 4.0* |
| 560ºC | 2.4* | – | – | 4.4 | 3.6* |
| 570ºC | 2.2* | – | – | 4.4* | 3.3* |
| 580ºC | 2.0* | – | – | 4.0* | 3.0* |
| 590ºC | 1.8* | – | – | 3.6* | 2.7* |
| 600ºC | 1.6* | – | – | 3.3* | 2.4* |
DIN 2573 Carbon Steel PN6 Flange Applications
Are DIN 2573 PN6 SORF Flanges Available in Anti-corrosion Coating?
Yes, DIN 2573 PN6 SORF Flanges Available With Coatings As Mentioned Below :
- Oil Black Pain
- Zinc Plated
- Yellow Transparent,
- Cold Water
- Epoxy
Material Inspection Facilities In The Following Countries
| Region | City | Country |
|---|---|---|
| Middle East | Dubai | United Arab Emirates |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Dammam | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Doha | Qatar |
| Middle East | Jeddah | Saudi Arabia |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| MENA | Cairo | Egypt |
| Africa | Cape Town | South Africa |
| Africa | Johannesburg | South Africa |
| Africa | Lagos | Nigeria |
Import Price And Shipping Time Variations For DIN 2573 Flange
| Malaysia | Indonesia | Thailand | |
|---|---|---|---|
| Estimated Shipping | 7 days | 7 days | 7 days |
| Extra cost | 5% | 5% | 5% |
| Vietnam | South Korea | Japan | |
| Estimated Shipping | 14 days | 7 days | 7 days |
| Extra cost | 5% | 5% | 5% |
| Note: Refer updated online price list from the verified DIN 2573 flange manufacturers, stockist and suppliers listed on pipingmaterial.ae | |||
