Din 2576 pn10 flange

Home > Din 2576 pn10 flange

DIN 2576 PN10 Flange Highlight

Size in Ready Stock:	1/2″ to 48″ \| DN10 – DN2000
Thread :	MPT/ BSPT (Female), FPT, BSPP (Male & female), NPT, BSP, MNPT (Male)
Approval :	Saudi Aramco, Q CHEM, ADNOC, MA’ADEN, RINA, KPI, BAPCO, EIL, KOC, KNPC, SABIC
Suited for:	Chemical Plants, Oil & Gas Pipelines, Power Plant
Standards:	DIN 2576, EN 1092-1, ISO 7005-1
Raw Material Origin:	Korean, Japanese, UK, Indian, German, European
Pressure	PN 10, Class 150 To 2500
Types of Faces :	FF (Flat Face), RF (Raised Face), M/F (Male & Female), T/G (Tongue & Groove)
Test Certificates :	MTC EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Fumigation Certificates Third Party Inspection Report
Brands :	Viraj Forgings Ltd, Genoyer Group Companies, Officine, Ulma Forja, Hans Van Triel
Verified ULMA Dealers and Distributors DIN 2576 PN10 Flange in UAE	Bestway Oilfields & Gas Eqpt LLC, Sharjah MSG Oilfield Equipment Trading LLC, Dubai Tech Hard Oilfield Supplies FZE, Jebel Ali
Shipping Country :	Algeria : 45 Days Qatar : 7 to 12 Days Saudi Arabia : 7 to 10 Days
What’s New :	The platform eliminates costly middlemen, helping buyers save up to 20% on oil and gas piping material procurement
MTC:	EN 10204/3.1 and 3.2
RFQ:	support@pipingmaterial.ae

Who we are?

The credibility of Pipingmaterial.ae comes from Explore Middle East FZE’s 26-year legacy in the piping and steel trade, giving buyers and suppliers a trustworthy B2B environment rooted in real market knowledge.

Saves 20% Cost
Price Comparison
Verified Suppliers
Technical Knowledge
GCC Coverage
No Middlemen

Table of Content

DIN 2576 PN10 Flange Specification
DIN 2576 PN10 Raised Face Flange Surface Finish
Applications Of DIN 2576 PN10 DN 300 Threaded Flanges
DIN 2576 PN10 Flange Dimensions
Are DIN 2576 PN10 Blind Flange Suitable For Water Treatment Applications ?
Stainless Steel DIN 2576 PN10 Flange Supporting Items
DIN 2576 PN10 WNRF Flanges Pressure Rating
DIN 2576 PN10 Flange Technical Details
DIN 2572 PN10 Weld Neck Flange Welding Methods
Are DIN 2576 PN10 WNRF Flanges Available In Carbon Steel And Duplex Steel Materials?
Room Temperature Of DIN 2576 PN10 Flange As Per EN 1092-1
What Is The Delivery Time For DIN 2576 PN10 Flanges To Dammam Or UAE From India?

DIN 2576 PN10 Form B Slip On And Plate Flanges Suppliers In UAE

DIN 2576 PN10 Flange Specification

Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000

Maximum Size: DN2000

Coatings: Oil Black Pain, Epoxy, Zinc Plated, Yellow Transparent, Cold Water

Bolts Hole Number: 4 To 20

Flanges Types: Slip On, Plate Flange, Blind, Socket Weld, Weld Neck, Lap Joint

Surface Finish: Concentric Serrated, Smooth, Spiral Serrated Finish, Stock Finish

Application: Power industry, Chemical industry, Petrochemicals, Oil & gas industry

Testing: NDT, Hydro Test, Hardness Testing, Tensile Test, PMI Test

Documentation: Material Test Certificates (MTC), Raw Material Test Reports

Packaging: Carton Box, Wooden Case, Plastic Wrap, Custom

Value Added Services: Threading, Casting, Welding, Polishing, Machining, Cutting

Equipments: Press Machine, Sand-blasting Machine, Electric Pushing Machine, Bevelling Machine

Get Quote Directly From DIN 2576 PN10 Flange Suppliers in UAE

100% Tested DIN 2576 PN10 Raised Face Flange With MTC EN 10204 3.1/3.2

DIN 2576 PN10 DN 600 Flanges In Stock/ Serrated Finish, Check DIN 2576 PN10 Raised Face Flanges Sizes And Dimensions

DIN 2576 PN10 Raised Face Flange Surface Finish

Spiral serrated finish
Concrete serrated
Smooth
Cold water, and much more

Applications Of DIN 2576 PN10 DN 300 Threaded Flanges

Weekly Shipment To Below Locations

Fujairah	Doha	Umm Al Quwain	Sharjah
Dubai	Muscat	Ras Al Khaimah	Riyadh
Abu Dhabi	Ajman	Saudi Arabia	Al Jubail

Get Benefits Of The Lowest Price & Custom Sizes When Buying From Verified DIN 2576 PN10 Blind Flange Manufacturers & Suppliers In UAE, Check Astm Specification & Dimensions In MM

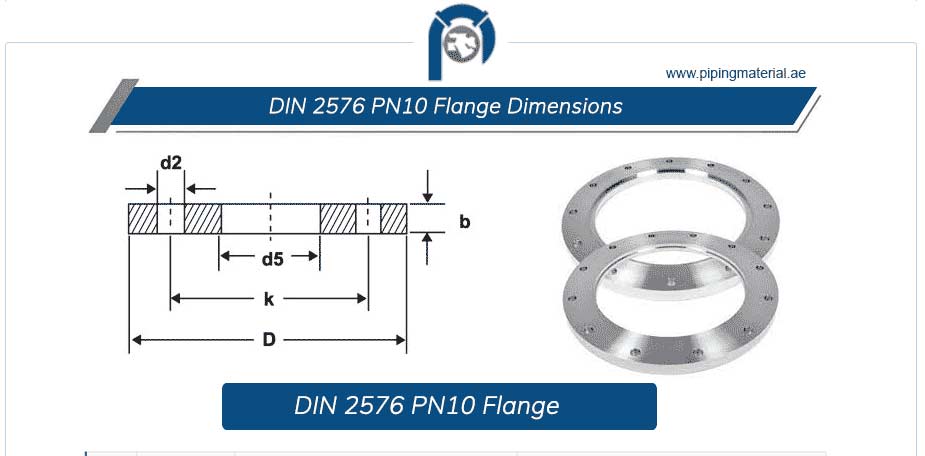

DIN 2576 PN10 Flange Dimensions

NPS	Diam. of Pipe		Flanges I.D	Flanges Dia	Thickness of Flanges	Diameter of Bolt Circle	Number of Holes	Diameter of Bolt Holes
DN	ISO	DIN	d5	D	b	k	d2	KG/PCS
10	–	14	14.5	90	14	60	4	14
–	17.2	17.7	90	14	60	4	14	–
15	–	20	21	95	14	65	4	14
–	21.3	22	95	14	65	4	14	–
20	–	25	26	105	16	75	4	14
–	26.9	27.6	105	16	75	4	14	–
25	–	30	31	115	16	85	4	14
–	33.7	34.4	115	16	85	4	14	–
32	–	38	39	140	16	100	4	18
–	42.4	43.1	140	16	100	4	18	–
40	–	44.5	45.5	150	16	110	4	18
–	48.3	49	150	16	110	4	18	–
50	–	57	58.1	165	18	125	4	18
–	60.3	61.1	165	18	125	4	18	–
65	–	76.1	77.1	185	18	145	4	18
–	88.9	90.3	200	20	160	8	18	–
100	–	108	109.6	220	20	180	8	18
–	114.3	115.9	220	20	180	8	18	–
125	–	133	134.8	250	22	210	8	18
–	139.7	141.6	250	22	210	8	22	–
150	–	159	161.1	285	22	240	8	22
–	168.3	170.5	285	22	240	8	22	–
175	–	193.7	196.1	315	24	270	8	22
200	–	219.1	221.8	340	24	295	8	22
250	–	267	270.2	395	26	350	12	22
–	273	276.2	395	26	350	12	22	–
300	–	323.9	327.6	445	26	400	12	22
350	–	355.6	359.7	505	28	460	16	22
–	–	368	372.2	505	28	460	16	22
400	–	406.4	411	565	32	515	18	26
–	419	423.7	565	32	515	18	26	–
450	–	457	462.3	615	38	565	20	26
500	–	508	613.6	670	38	620	20	26
600	–	610	615.5	780	40	725	20	26

Are DIN 2576 PN10 Blind Flange Suitable For Water Treatment Applications ?

Yes, DIN 2576 PN10 Blind Flanges Are Suitable For Water Treatment Applications

Material Inspection Facilities In The Following Countries

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

Stainless Steel DIN 2576 PN10 Flange Supporting Items

Gasket
Flanges Bolts
Ring Join
Welding Consumable
Bolts and Nuts

Buy DIN 2576 PN10 Standard Flange From Authorized Suppliers In The Middle East And India. Check DIN 2576 PN10 WNRF Flanges Pressure Rating

DIN 2576 PN10 WNRF Flanges Pressure Rating

Pressure	-10°C to 200°C	250°C	300°C	350°C	400°C	425°C	450°C	475°C
6	6	5.5	5	–	–	–	–	–
10	10	9	8	7	6	–	–	–
25	25	24	21	17	14	12	9	6
40	40	38	33	28	23	20	15	10
16	16	15	13	11	9	–	–	–
64	64	61	53	44	36	32	24	16
100	100	95	83	70	57	50	37	25
160	160	152	132	112	92	80	60	40

DIN 2576 PN10 Flange Technical Details

Nominal pressure	DIN standard	Available size
PN10	DIN 2576	DN10 – DN2000
Fcae type	Type	Temperature
FF/ RF	Plate and Slip On Flange	Maximum allowable temperature is 600°C
Types of process	(DIN 2576 PN10 forged flange) Material Specification	Specification Material of (DIN 2576 PN10 plate flange)
Stamped Forged Casting Plate	CS (Carbon steel) : ASTM A181 Grade CL 60 and CL 70 ASTM CS A105 SA694 F42/46/52/56/60/65/70 Stainless Steel : ASTM A182 Grade F304/304L, F316/316L, F316Ti, F310/310S, F321/321H, F347/347H, F317L, F904L Inconel: ( important Nickel Alloy 600, 601, 625, 718 grade), 601GC, 602CA, 603XL, 686, 690, 693, 617, 625LCF, 706, 718SPF, 725, 740H, X-750, 751, MA754, MA758, 783 LTCS : ASME SA350 LTCS LF2/ LF3/ LF6 Alloy Steel : SA182 Gr. F1/ F5/ F9/ F11/ F12/ F22/ F91 Super Duplex and Duplex: F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550), ASME SA182 Grade F44 (UNS S31254), F51 (UNS S31803) Incoloy: 800/ 800H/800 HT, 803, 825, 832, 864, 890, 903, 907, 908, 909, 925, 926, 945, 945X, MA956, DS, 330, A-286, 27-7MO, 020, 028, 25-6HN Hastelloy: Nickel B, B-2, B-3, Alloy C-22, C-22HS, C-276, C-2000, C, C-4, N, S, W, X, G-35, G-3, G-30 Copper nickel (CU-Ni) (for sea water): CU-Ni 70/30 ASME SB151 Copper nickel 90/10, C70620, CW352H, EEMUA 234/3-6, WL 2.1972, C7060T Nickel alloy: ASME SB564 Ni 200, Ni 201 Titanium : ASME SB381 F2/3/5/12 Monel: (top selling Gr 400, K-500), 401, 404, R-405, 502	Super Duplex and Duplex: ASTM A240 F53 (UNS S32750) and F55 (UNS S32760), F60 (UNS S32205) and F61 (UNS S32550), F44 (UNS S31254), F51 (UNS S31803) (low temperature carbon steel): ASTM A516 Gr 70/ 65/ 60 Stainless Steel : ASME SA240 Gr F304, 304L, F316, 316L, F316Ti, F310, 310S, F321, 321H, F347, 347H, F317L, F904L
Connect with verified suppliers offering DIN 2576 PN10 flange	Export Packaging	Logistics
Quotation with Valuable Data Sheet Quick Response within 24 Hours Design / Modify Drawings for Free Lowest price in UAE Ship with MTC Acc. to EN 10204/3.1 Aging Treatment / Solution Treatment	Wooden Case Plastic Bag Or custom as required	By Sea By Air (for urgent demand)

See Where You Can Find Material Ex Stock

MENA	Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East Countries	Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

DIN 2572 PN10 Weld Neck Flange Welding Methods

Are DIN 2576 PN10 WNRF Flanges Available In Carbon Steel And Duplex Steel Materials?

Yes, Listed suppliers at pipingmaterial.ae Supply DIN 2576 PN10 WNRF Flanges in Materials As Mentioned Below

Carbon Steel
Duplex & super Duples
stainless Steel
Copper Nickel
Alloy
Incoloy & Hastelloy

Not Finding Specific Sizes With Your Current Importers? Check The List Of Very Few But Verified Suppliers And Get The Perfect DIN 2576 PN10 DN 300 Threaded Flanges At The Best Price In Dubai

Room Temperature Of DIN 2576 PN10 Flange As Per EN 1092-1

Temperature	WNR 1.4462 (2205 Duplex)	WNR 1.4307 (SUS 304L)	WNR 1.4541 (SUS 321)	WNR 1.4404 (SUS 316L)	WNR 1.4571 (SUS 316Ti)
Room Temperature in Celsius	10,0 (bar)	10,0 (bar)	10,0 (bar)	10,0 (bar)	10,0 (bar)
100	10,0	8,6	9,9	9,4	10,0
150	10,0	7,7	9,3	9,4	9,8
200	10,0	7,0	8,8	7,9	9,3
250	–	6,5	7,9	6,9	8,3
300	–	6,0	7,6	6,6	7,8
350	–	5,7	7,6	6,4	7,6
400	–	5,5	7,2	6,2	7,6
450	–	5,3	7,2	6,2	7,6
500	–	5,1	7,0	6,0	7,5
550	–	4,3*	6,7*	–	7,4
560	–	4,0*	6,1*	–	7,4
570	–	3,7*	5,6*	–	7,3*
580	–	3,4*	5,1*	–	6,7*
590	–	3,0*	4,5*	–	6,0*
600	–	2,8*	4,0*	–	5,5*

What Is The Delivery Time For DIN 2576 PN10 Flanges To Dammam Or UAE From India?

Delivery time for DIN 2576 PN10 Flange from India to Dammam or UAE is Generally Takes :

By Sea : 2 to 5 days
By Air : 10 to 25 Days

Warehouse Locations Of DIN 2576 PN10 Flange Suppliers in UAE

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

Import Price And Shipping Time Variations For DIN 2576 PN10 Flange

	Finland	Ireland	Croatia
Estimated Shipping	45-60 days	60 days	60 days
Extra cost	5%	5%	5%
	Slovenia	Malta	Singapore
Estimated Shipping	60 days	60 days	8 days
Extra cost	5%	5%	5%
Note: Check price list from the reliable stockist, manufacturers and DIN 2576 PN10 Flange Suppliers in UAE listed on pipingmaterial.ae
