DIN 2576 PN16 flange

DIN 2576 PN16 Flange Product Overview

Size in Ready Stock: 1/2″ to 48″ | DN10 – DN2000
Thread : FPT, BSPP (Male & female), NPT, BSP, MPT/ BSPT (Female), MNPT (Male)
Approval : Q CHEM, KNPC, SABIC, Saudi Aramco, ADNOC, MA’ADEN, RINA, KPI, BAPCO, EIL, KOC
Suited for: Oil & Gas Pipelines, Chemical Plants, Power Plant
Standards: DIN 2576, EN 1092-1, ISO 7005-1
Raw Material Origin: Japanese, UK, German, Korean, European, Indian
Pressure PN 16, Class 150 To 2500
Types of Faces : RF (Raised Face), M/F (Male & Female), T/G (Tongue & Groove), FF (Flat Face)
Test Certificates :
  • MTC EN 10204/3.1B
  • Third Party Inspection Report
  • 100% Radiography Test Report
  • Fumigation Certificates
  • Raw Materials Certificate
Brands : Viraj Forgings Ltd, Officine, Ulma Forja, Genoyer Group Companies, Hans Van Triel
Verified Viraj Dealers and Distributors of DIN 2576 PN16 Flanges in UAE
  • Oman Ocean Trdg LLC, Dubai
  • Eurotech Global Pipes and Fittings Trading Co LLC, Dubai
  • Kays Technical Trading LLC, Dubai
  • OGS & Chemicals FZC, Sharjah
Shipping Country :
  • Qatar : 7 to 12 Days
  • Nigeria : 25 to 30 Days
  • Russia : 10 to 20 Days
What’s New : Buyers across the GCC region trust Pipingmaterial.ae to connect them directly with genuine manufacturers and stockists
MTC: EN 10204/3.1 and 3.2
RFQ: support@pipingmaterial.ae



Why choose pipingmaterial.ae?

For any business in the MENA region looking for reliable piping material sources, Pipingmaterial.ae built by a UAE-registered firm with 26 years of industry experience is the platform you must explore.

  • Industry Expert Team
  • All In One Platform
  • Buyer Seller Connect
  • Steel Inspection Tips
  • Pre Purchase Guidance
  • One Stop Platform
Piping Material

Table of Content



DIN 2576 PN16 Slip On And Threaded Flange Suppliers In UAE

DIN 2576 PN16 Flange Specification


DIN 2576 PN16 Flange Specification



Size In Ready Stock

Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000

Maximum Size

Maximum Size: DN2000

Coating

Coatings: Zinc Plated, Oil Black Pain, Epoxy, Yellow Transparentt, Cold Water

Bolts Hole Number

Bolts Hole Number: 4 To 20

Types

Flanges Types: Blind, Socket Weld, Weld Neck, Slip On, Plate Flange, Lap Joint

Surface Finish

Surface Finish: Smooth, Spiral Serrated Finish, Concentric Serrated, Stock Finish

Application

Application: Oil & gas industry, Power industry, Chemical industry, Petrochemicals

Testing

Testing: Hardness Testing, NDT, Hydro Test, Tensile Test, PMI Test

Documentation

Documentation: Material Traceability Records, Material Test Certificates (MTC), Raw Material Test Reports

Packaging

Packaging: Plastic Wrap, Carton Box, Wooden Case, Custom

Value Added Services

Value Added Services: Welding, Polishing, Threading, Casting, Machining, Cutting

Equipments

Equipments: Bevelling Machine, Sand-blasting Machine, Electric Pushing Machine, Press Machine

Quote

Get Quote Directly From DIN 2576 PN16 Flange Suppliers in UAE

Tested

100% Tested DIN 2576 PN16 Weld Neck Flange With MTC EN 10204 3.1/3.2



Before You Buy DIN 2576 PN16 Standard Flange In The Middle East And Asia, Check The Manufacturing Origin

DIN 2576 PN16 Socket Weld Flange Manufacturing Process

  • Forging – Use die, a hammer or a press
  • Casting – Melting the metals
  • Cutting – Metal is flattened



DIN 2576 PN16 Standard Flange Applications Industry


DIN 2576 PN16 Standard Flange Applications Industry



Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below

MENA Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East Countries Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria



Choose Verified DIN 2576 PN16 Socket Weld Flange And DIN 2576 PN16 Pipe Flanges Suppliers In Bahrain And Minimize Risk In Quality And Delivery Time

Are DIN 2576 PN16 Blind Flanges Available With Ultrasonic Testing ?

Yes, You would get all the required testing as mentioned below :

  • Tensile Test
  • Hardness Test
  • PMI Test
  • Shell Pressure Test
  • Impact Test



Sales Agents In Following Locations

Region City Country
Middle East Dubai United Arab Emirates
Middle East Riyadh Saudi Arabia
Middle East Abu Dhabi United Arab Emirates
Middle East Dammam Saudi Arabia
Africa Abuja Nigeria
Middle East Doha Qatar
Middle East Jeddah Saudi Arabia
Middle East Kuwait City Kuwait
MENA Casablanca Morocco
MENA Cairo Egypt
Africa Cape Town South Africa
Africa Johannesburg South Africa
Africa Lagos Nigeria



Can DIN 2576 PN16 Flange Be Supplied With Mill Test Reports And Raw Material Certificates?

Yes, DIN 2576 PN16 Flange Suppliers in UAE Supply All Required Rest Reports As Follows :

  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report



Buy DIN 2576 PN16 Weld Neck Flange In Class 150 To 2500, Check DIN 2576 PN16 Ring Type Joint Flange Price Per Kg In Dubai

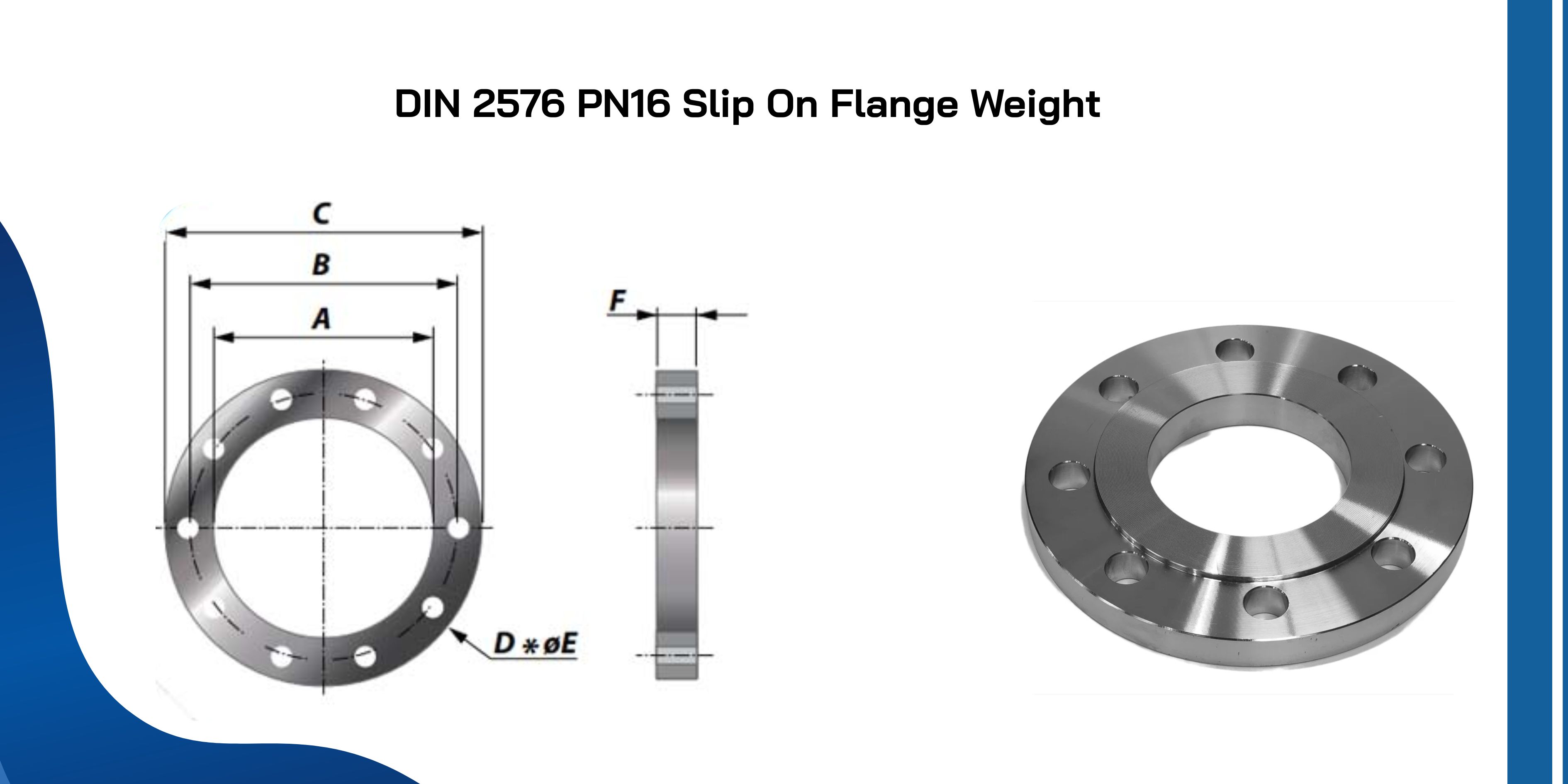

DIN 2576 PN16 Slip On Flange Weight Chart


DIN 2576 PN16 Slip On Flange Weight Chart

ize (imch) D (Number of holes) Pipe (mm) NB (mm) A (mm) B (mm) C (mm) F (mm) E Daimeter of holes (mm) Weight (kg)
1.25 4 42.2 32 43 100 140 12 18 1
1.5 4 48.3 40 49 110 150 12 18 1
2 4 60.3 50 61 125 165 12 18 2
2.5 4 76.1 65 73 145 185 12 18 2
3 4 88.9 80 90 160 200 12 18 2
4 4 114.3 100 116 180 220 12 18 2
5 8 139.7 125 142 210 250 16 18 4
6 8 168.3 150 171 240 285 16 22 4
8 8 219.1 200 222 295 340 16 22 5
10 12 273.0 250 276 350 395 16 22 6
12 12 323.9 300 327 400 445 16 22 8
14 12 355.6 350 360 460 505 16 22 10
16 16 406.4 400 411 515 565 16 26 11
18 16 457.2 450 461 565 615 16 26 13
20 20 508.0 500 512 620 670 16 26 14
24 20 609.6 600 614 725 780 20 30 22
28 24 711.2 700 716 840 895 20 30 25
32 24 812.8 800 818 950 1015 20 33 31
36 24 914.4 900 920 1050 1115 20 33 35
40 28 1016.0 1000 1022 1160 1230 20 36 38



DIN 2576 PN16 Flange Technical Data

DIN standard Nominal pressure Available size
DIN 2576 PN16 DN10 – DN2000
Surface treatment Sealing face Type
Transparent oil, Rust-proof black oil FF Slip On/ Plate Flanges
Manufacturing Process (DIN 2576 PN16 forged flange) Specification Material (DIN 2576 PN16 plate flange) Material Specification
  • Casting
  • Forged
  • Plate
  • Stamped
  • Copper nickel (CU-Ni) (for sea water):
    • ASTM/ASME B151
    • Copper Nickel (CU-Ni) 70/30
    • 90/10 Cu-Ni, WL 2.1972, CW352H, C70620, C7060T, EEMUA 234/3-6,
  • Alloy steel (AS) : ASME SA182 Grade F1, F5, F9, F11, F12, F22, F91
  • Stainless steel : SA182 Gr (most selling grade F304/L, F316/L, F316Ti), F310/S, F321/H, F347/H, F317L, F904L
  • Super Duplex and Duplex: F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550), ASME SA182 Grade F44 (UNS S31254), F51 (UNS S31803)
  • Carbon steel :
    • ASTM A181 Class 60, CL 70
    • SA694 CS F42/ F46/ F52/ F56/ F60/ F65/ F70
    • Carbon Steel ASTM A105
  • Monel: 400, K-500, 401, 404, R-405, 502
  • Titanium (Ti): B381 F2/3/5/12
  • Hastelloy: C-22, C-22HS, C-276, C-2000, G-3, Nickel B, B-2, B-3, C, C-4, G-35, N, S, W, X G-30
  • Incoloy: 800/H/HT, 803, 825, 832, 864, 890, 903, 907, 908, 909, 925, 926, 945, 945X, MA956, DS, 330, A-286, 27-7MO, 020, 028, 25-6HN
  • Inconel: important grade (Alloy 600, 601, 625, 718,) 601GC, 602CA, 603XL, 617, 625LCF, 686, 690, 693, 706, 718SPF, 725, 740H, X-750, 751, MA754, MA758, 783
  • low temp carbon steel : ASTM A350 Grade LF2, LF3, LF6
  • Nickel alloy: ASME SB564 Grade 200, 201
  • Super Duplex and Duplex: ASTM A240 F53 (UNS S32750) and F55 (UNS S32760), F60 (UNS S32205) and F61 (UNS S32550), F44 (UNS S31254), F51 (UNS S31803)
  • LTCS (Low temp carbon steel): ASTM A516 Grade 70, Grade 65, Grade 60
  • SS (Stainless Steel) : A240 F304/304L, F316/316L, F316Ti, F310/310S, F321/321H, F347/347H, F317L, F904L
Meet genuine and expertized DIN 2576 PN16 Flange Suppliers in UAE offering DIN 2576 flange Export Packing Logistics
  • Quotation with Valuable Data Sheet
  • Aging Treatment / Solution Treatment
  • Design / Modify Drawings for Free
  • Ship with MTC Acc. to EN 10204/3.1
  • Lowest price in UAE
  • Quick Response within 24 Hours
  • Plastic Bag
  • Wooden Case
  • Or custom as required
  • By Air (for urgent demand)
  • By Sea



Warehouse Locations Of Partner Suppliers

Country Cities
Netherlands Amsterdam
Netherlands The Hague
Belgium Brussels
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Seraing
Netherlands Eindhoven
Belgium Ghent
Netherlands Rotterdam
Belgium Leuven
Belgium Westerlo
Belgium Antwerp



Do Stockists Offer DIN 2576 PN16 Blind Flanges With Serrated Finish?

Yes, DIN 2576 PN16 Blind Flanges Comes Not Only With Serrated Finish But Also As Below Finish :

  • Smooth finisk
  • concentric serrated
  • Spiral serrated
  • stock finish



Check DIN 2576 PN16 Plate Flange Dimensions And DIN 2576 PN16 Forged Flanges Material Specification, Chemical Composition, And Equivalent

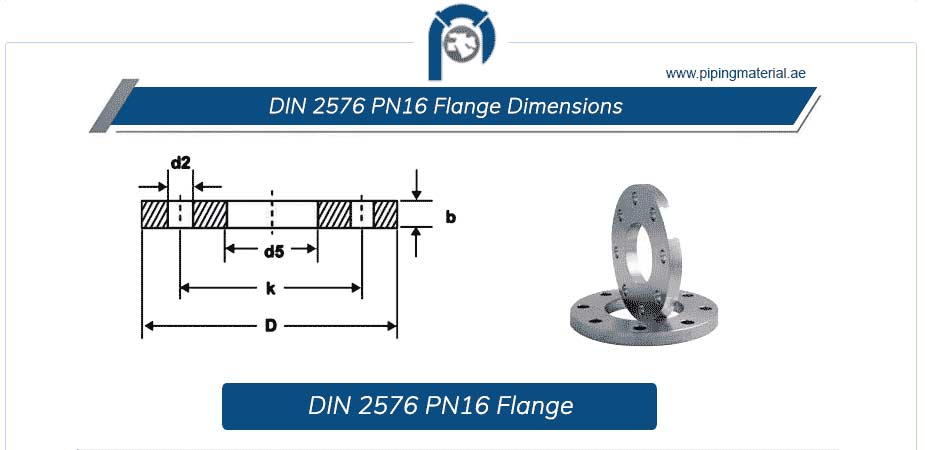

DIN 2576 PN16 Flange Dimensions


DIN 2576 PN16 Flange Dimensions

DN ISO DIN Flanges I.D Flanges Dia Thk of Flanges Dia of Bolt Circle Number of Holes Dia of Bolt Holes
10 – 14 14.5 90 14 60 4 14
17.2 17.7 90 14 60 4 14 – –
15 – 20 21 95 14 65 4 14
21.3 22 95 14 65 4 14 – –
20 – 25 26 105 16 75 4 14
26.9 27.6 105 16 75 4 14 – –
25 – 30 31 115 16 85 4 14
33.7 34.4 115 16 85 4 14 – –
32 – 38 39 140 16 100 4 18
42.4 43.1 140 16 100 4 18 – –
40 – 44.5 45.5 150 16 110 4 18
48.3 49 150 16 110 4 18 – –
50 – 57 58.1 165 18 125 4 18
60.3 61.1 165 18 125 4 18 – –
65 – 76.1 77.1 185 18 145 4 18
80 – 88.9 90.3 200 20 160 8 18
100 – 108 109.6 220 20 180 8 18
114.3 115.9 220 20 180 8 18 – –
125 – 133 134.8 250 22 210 8 18
139.7 141.6 250 22 210 8 18 – –
150 – 159 161.1 285 22 240 8 22
168.3 170.5 285 22 240 8 22 – –
175 – 193.7 196.1 315 24 270 8 22
200 – 219.1 221.8 340 24 295 8 22
250 – 267 270.2 395 26 350 12 22
273 276.2 395 26 350 12 22 – –
300 – 323.9 327.6 445 26 400 12 22
350 – 355.6 359.7 505 28 460 16 22
– 368 372.2 505 28 460 16 22 –
400 – 406.4 411 565 32 515 18 26
– 419 423.7 565 32 515 18 26 –
450 – 457 462.3 615 38 565 20 26
500 – 508 613.6 670 38 620 20 26
600 – 610 615.5 780 40 725 20 26



DIN 2576 PN16 Forged Flanges Material & Grades

Material Related Grades / Specifications
Stainless Steel SA182 Gr (most selling grade F304/L, F316/L, F316Ti),
F310/S, F321/H, F347/H
Copper Nickel (CU-Ni) (for sea water) ASTM/ASME B151,
Copper Nickel (CU-Ni) 70/30
90/10 Cu-Ni,CW352H, C70620
Alloy Steel (AS) ASME SA182 Grade F1, F5, F9, F11, F12, F22, F91
Super Duplex and Duplex F53 (UNS S32750),
F55 (UNS S32760),
F60 (UNS S32205),
F61 (UNS S32550),
ASME SA182 Grade F44 (UNS S31254),
F51 (UNS S31803)
Carbon Steel ASTM A181 Class 60, CL 70
SA694 CS F42 / F46 / F52 / F56 / F60 / F65 / F70
Carbon Steel ASTM A105
Nickel Alloy ASME SB564 Grade 200, 201
Titanium (Ti) B381 F2 / 3 / 5 / 12
Hastelloy C-22, C-22HS, C-276, C-2000, G-3,
Nickel B, B-2, B-3, C, C-4,
G-35, N, S, W, X, G-30
Incoloy 800/H/HT, 803, 825, 832, 864, 890,
903, 907, 908, 909, 925, 926,
945, 945X, MA956, DS, 330,
A-286, 27-7MO, 020, 028, 25-6HN
Inconel Important grade (Alloy 600, 601, 625, 718),
601GC, 602CA, 603XL, 617, 625LCF,
686, 690, 693, 706, 718SPF,
725, 740H, X-750, 751, MA754, MA758, 783
Monel 400, K-500, 401, 404, R-405, 502
Low Temp Carbon Steel ASTM A350 Grade LF2, LF3, LF6



DIN 2576 PN16 Weld Neck Flange Chemical Composition

Stainless Steel Grades C(Max) Si(Max) Mn(Max) P(Max) S(Max) Ni Cr N
304 0.08 0.75 2.00 0.045 0.03 8.0-10.5 18.0-20.0 0.1
304L 0.03 0.75 2.00 0.045 0.03 8.0-12.0 18.0-20.0 0.1



DIN 2576 PN16 Flange Temperature Classifications According To EN 1092-1

Temperature & Pressure / Material 1.4541

(INOX 321)

 1.4404

(INOX 316L)

 1.4571

(INOX 316Ti)

 1.4462

(Duplex 2205 Steel)

 1.4307

(INOX 304L)
temperature of room in celsius 16,0 bars 16,0 bars 16,0 bars 16,0 bars 16,0 bars
100 °C 15,8 15,1 16,0 16,0 13,7
150 °C 14,9 13,7 15,6 16,0 12,3
14,1 200 °C 12,7 14,9 16,0 11,2
13,4 250 °C 11,9 14,1 16,0 10,4
300 °C 9,6 12,7 11,0 13,3 –
350 °C 12,2 10,5 12,8 – 9,2
400 °C 11,8 10,2 12,4 – 8,8
450 °C 11,6 10,0 12,2 – 8,5
500 °C 11,3 9,7 12,0 – 8,3
550 °C 10,8* – 11,9 – 7,0*
560 °C 9,8* – 11,8 – 6,4*
570 °C 8,9* – 11,7* – 5,9*
580 °C 8,1* – 10,7* – 5,4*
590 °C 7,3* – 9,7* – 4,9*
600 °C 6,5* – 8,8* – 4,4*



Do Manufacturers Provide Supporting Material For DIN 2576 PN16 Socket Weld Flange?

Yes, Listed Suppliers at pipingmaterial.ae provides All Supporting Material As Follows :

  • Bolt
  • Gasket
  • ring Joints
  • Nut



Sales Representative Available To Provide Quick Quote

Fujairah Umm Al Quwain Sharjah Doha
Dubai Ras Al Khaimah Muscat Al Jubail
Ajman Saudi Arabia Riyadh Abu Dhabi



DIN 2576 PN16 Flange Estimated Import Price And Shipping Time Variations

Portugal Hungary Albania
Estimated Shipping 45 days 45 days 45 days
Extra cost 5% 5% 5%
Austria Switzerland Slovakia
Estimated Shipping 60 days 45-60 days 45-60 days
Extra cost 5% 5% 5%
Note: Get latest price list from the genuine and trusted DIN 2576 PN16 flange suppliers, stockist and manufacturers listed on pipingmaterial.ae



You May Also Need



Check Popular Product



Flanges

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
