DIN 2576 PN40 Flange Summary

Size in Ready Stock:	1/2″ to 48″ \| DN10 – DN2000
Thread :	BSPP (Male & female), NPT, BSP, FPT, MPT/ BSPT (Female), MNPT (Male)
Approval :	SABIC, Saudi Aramco, ADNOC, Q CHEM, KNPC, MA’ADEN, RINA, KPI, BAPCO, EIL, KOC
Suited for:	Petrochemical, Oil & Gas Pipelines, Chemical Plants, Power Plant
Standards:	DIN 2576, EN 1092-1, ISO 7005-1
Raw Material Origin:	German, Korean, European, Indian, Japanese, UK
Pressure	PN 40 (40 bar)
Types of Faces :	M/F (Male & Female), FF (Flat Face), RF (Raised Face), T/G (Tongue & Groove)
Test Certificates :	MTC EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Fumigation Certificates Third Party Inspection Report
Brands :	Ulma Forja, Viraj Forgings Ltd, Genoyer Group Companies, Officine, Forgerossi SAS, Hans Van Triel
Verified Ulma Dealers and Distributors of DIN 2576 PN40 Flanges in UAE	Tech Hard Oilfield Supplies FZE, Jebel Ali JSS Pipes & Fittings Trading LLC, Dubai Honesto International Trading Fze, Ajman
Shipping Country :	Saudi Arabia : 7 to 10 Days France : 28 Days Norway : 45 Days
What’s New :	Unlike traditional B2B directories, Pipingmaterial.ae offers deep technical knowledge alongside a verified supplier network.
MTC:	EN 10204/3.1 and 3.2
RFQ:	support@pipingmaterial.ae

Why is Pipingmaterial.ae better than other suppliers?

Pipingmaterial.ae is a must-bookmark platform for procurement managers, developed by a UAE company whose team has 26 years of firsthand experience in the global trade of piping and industrial steel products.

Raw Material Origin
Document Checklist Available
Buyer Certificate Tips
Compliance Documents Listed
Mill Test Certificates
Test Certificate Guide

Table of Content

DIN 2576 PN40 Flange Specification
DIN 2576 PN40 Blind Flange Cutting Methods
DIN 2576 Weld Neck Flange Benefits
DIN 2576 PN40 Weld Neck Flange Surface Finish
DIN 2576 PN40 Slip On Flange Applications
DIN 2576 PN40 Pipe Flange Weight Chart
What Is The Pressure Rating of DIN 2576 PN40 Weld Neck Flange ?
Technical Information DIN 2576 PN40 Flange
Do Suppliers Supply DIN 2576 PN40 WN Flange With Mill Test Certificates?
DIN 2576 PN40 Flange Dimensions
DIN 2576 PN40 Flange Room Temperature As Per EN 1092-1
Can Suppliers Provide DIN 2576 PN40 Flange With Hydro Test Reports?
Is Cutting Required For DIN 2576 PN40 Lapped Joint Flange Before Installation ?

DIN 2576 PN40 Slip On And Plate Flanges Suppliers In UAE

DIN 2576 PN40 Flange Specification

Size In Ready Stock: 1/2″ to 48″ |DN10 – DN2000

Maximum Size: DN2000

Coatings: Oil Black Pain, Cold Water, Epoxy, Zinc Plated, Yellow Transparentt

Bolts Hole Number: 4 To 20

Flanges Types: Weld Neck, Slip On, Blind, Socket Weld, Plate Flange, Lap Joint

Surface Finish: Concentric Serrated, Smooth, Spiral Serrated Finish, Stock Finish

Application: Water Treatment Systems, Chemical industry, Oil & gas industry, Petrochemicals

Testing: Hydro Test, Tensile Test, PMI Test, Hardness Testing, NDT

Documentation: Material Traceability Records, Raw Material Test Reports, Material Test Certificates (MTC)

Packaging: Wooden Case, Plastic Wrap, Carton Box, Custom

Value Added Services: Polishing, Machining, Welding, Threading, Casting, Cutting

Equipments: Sand-blasting Machine, Electric Pushing Machine, Bevelling Machine, Press Machine

Get Quote Directly From DIN 2576 PN40 Flange Suppliers in UAE

100% Tested DIN 2576 PN40 Weld Neck Flange With MTC EN 10204 3.1/3.2

Buy Factory Direct To Cutting Out The Middleman And Get 30%-40% Cost Benefit In DIN 2576 PN40 Blind Flange

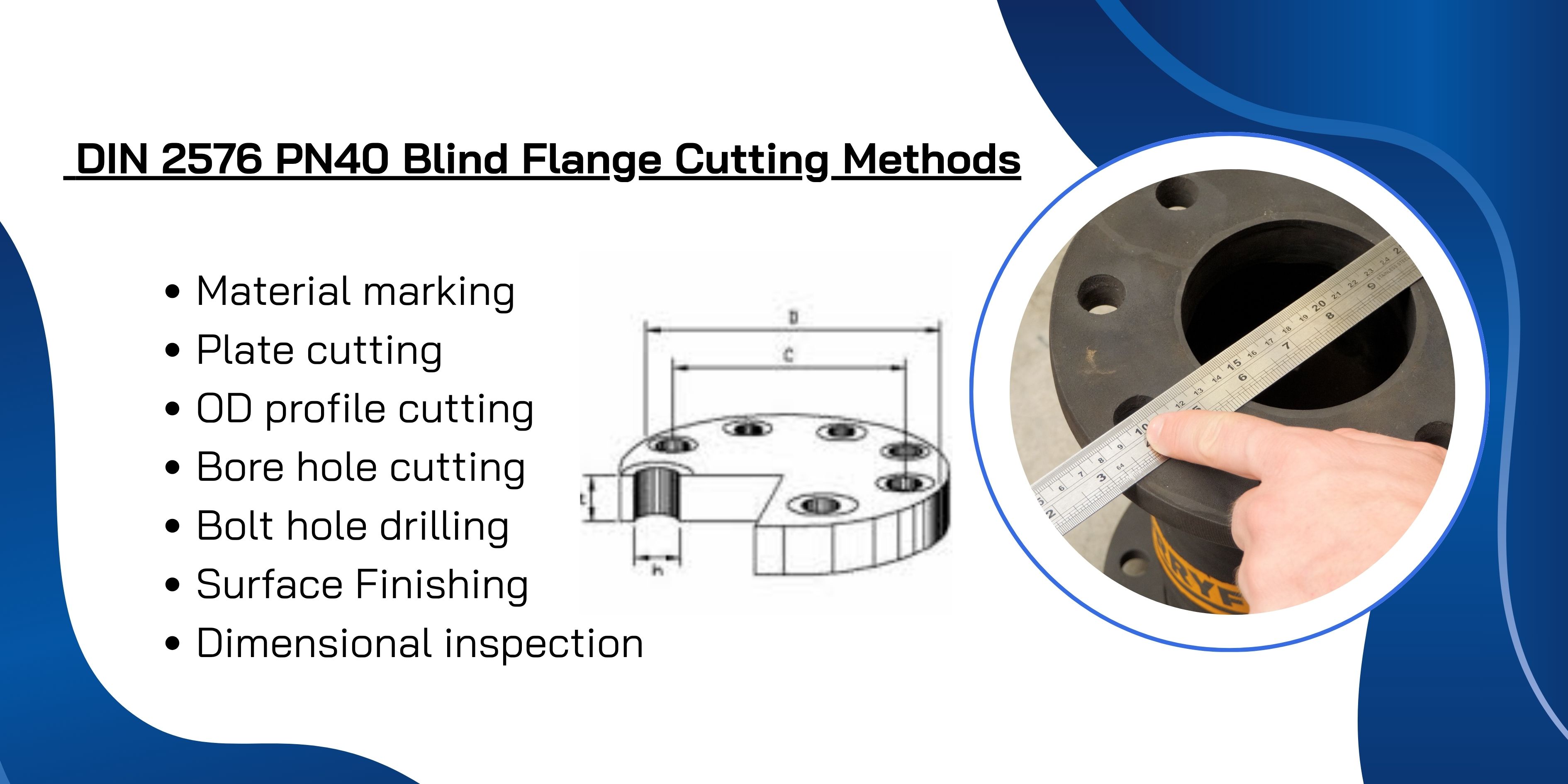

DIN 2576 PN40 Blind Flange Cutting Methods

DIN 2576 Weld Neck Flange Benefits

Secure Connection
Leak free performance
Durability

Explore Nearby Locations For The Quickest Delivery Options

Country	Cities
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp

DIN 2576 PN40 Weld Neck Flange Finish Includes Spiral /Serrated, And Smooth Face Finish As Per International Standards

DIN 2576 PN40 Weld Neck Flange Surface Finish

Spiral serrated finish
Concrete serrated
Smooth
Cold water, and much more

Material Inspection Facilities In The Following Countries

Region	City	Country
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
Middle East	Jeddah	Saudi Arabia
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco
MENA	Cairo	Egypt
Africa	Cape Town	South Africa
Africa	Johannesburg	South Africa
Africa	Lagos	Nigeria

DIN 2576 PN40 Slip On Flange Applications

Check The DIN 2576 PN40 Socket Weld Flange Pressure Rating Chart, Weight, And Price List, And Find Genuine Suppliers Of DIN 2576 PN40 Forged Flange In The Middle East And Africa

DIN 2576 PN40 Pipe Flange Weight Chart

NPS	Weight KG
DN10	0.61
DN20	0.94
DN15	0.67
DN25	1.13
DN40	1.89
DN32	1.66
DN50	2.5
DN80	3.61
DN250	12.36
DN65	2.99
DN100	4.17
DN200	9.28
DN150	6.97
DN350	20.35
DN300	13.61
DN400	27.52
DN500	40.2
DN450	35.11
DN600	51.87

What Is The Pressure Rating of DIN 2576 PN40 Weld Neck Flange ?

PN 40 (40 bar)

Technical Information DIN 2576 PN40 Flange

Type	Sealing Surface	Hole
Plate flange	FF	4 to 20
Nominal pressure	DIN standard	Available size
PN40	DIN 2576	DN10 – DN2000
Manufacturing Method	Specification Material of (DIN 2576 PN40 forged flange)	(DIN 2576 PN40 plate flange) Material Specification
Plate Forged Casting Stamped	Carbon steel : SA694 F42/F46/F52/F56/F60/F65/F70 ASME SA181 Gr Class 60 and Class 70 ASME SA105 Stainless Steel : ASTM A182 Grade F304 & F304L/ F316 & F316L/ F316Ti/ F310 & F310S/ F321 & F321H/ F347 & F347H/ F317L/ F904L Copper nickel (for sea water): C70620, CW352H, Copper nickel 90/10, EEMUA 234/3-6, WL 2.1972, C7060T ASME SB151 CU-Ni 70/30 Hastelloy: Top Grade Alloy C-22, C-276, C-22HS, B, B-2, B-3, N, S, W, X, C-2000, C, C-4, G-35, G-3, G-30 Nickel alloy (Ni): ASTM B564 200, Nickel 201 Monel: Grade 400, Gr 401, Gr 404, Gr K-500, R-405, 502 Inconel: (most selling Gr Inconel 600, 601, 625, 718), 617, 601GC, 602CA, 690, 693, 625LCF, 603XL, 686, 740H, X-750, 751, MA754, MA758, 706, 718SPF, 725, 783 Titanium (Ti): ASME B381 Grade F2, F3, and Grade F5, F12 Alloy Steel : SA182 Gr. F1, F5, F9, F11, F12, F22, F91 Super Duplex and Duplex: F53 (UNS S32750), F55 (UNS S32760), F60 (UNS S32205), F61 (UNS S32550), ASME SA182 Grade F44 (UNS S31254), F51 (UNS S31803) Incoloy: A-286, 27-7MO, 020, 800/H/HT, 803, 825, 832, 864, 890, 903, 907, 908, 909, 925, 926, 945, 945X, 25-6HN, MA956, DS, 330, 028 LTCS : ASTM A350 Grade LF2, LF3, LF6	Super Duplex and Duplex: ASTM A240 F53 (UNS S32750) and F55 (UNS S32760), F60 (UNS S32205) and F61 (UNS S32550), F44 (UNS S31254), F51 (UNS S31803) Stainless Steel : ASME SA240 F304, F304L, F316, F316L, F316Ti, F310, F310S, F317L, F321, F321H, F347, F347H, F904L Low Temperature Carbon Steel: A516 70/, Gr. 65, Grade 60
Get in touch with genuine suppliers of DIN 2576 PN40 flange in UAE	Export Packaging	Logistics
Lowest price in UAE Design / Modify Drawings for Free Quotation with Valuable Data Sheet Quick Response with in 24 Hours Ship with MTC Acc. to EN 10204/3.1 Aging Treatment / Solution Treatment	Wooden Case Or custom as required Plastic Bag	By Air (for urgent demand) By Sea

Sales Representatives Are Available To Provide Prompt Quotes

MENA	Algeria, Israel, Libya, Morocco, Tunisia, Egypt, Palestine
Middle East Countries	Lebanon, Qatar, Saudi, Iraq, Jordan, Bahrain, UAE, Kuwait,Iran, Syria, Yemen
Africa	Kenya, South Africa, Nigeria, Morocco, Tunisia, Egypt, Algeria

Do Suppliers Supply DIN 2576 PN40 WN Flange With Mill Test Certificates?

Yes, Listed Suppliers at pipingmaterial.ae Supply MTC EN 3.2 And Also provides :

EN 10204/3.1B
Third Party Inspection Report
100% Radiography Test Report
Tensile Test Report
Fumigation Certificates
Raw Materials Certificate

View DIN 2576 PN40 WNRF Flange Size And DIN 2576 PN40 Lapped Joint Flange Price List, Check DIN 2576 PN40 Pipe Flange Temperature And Specification

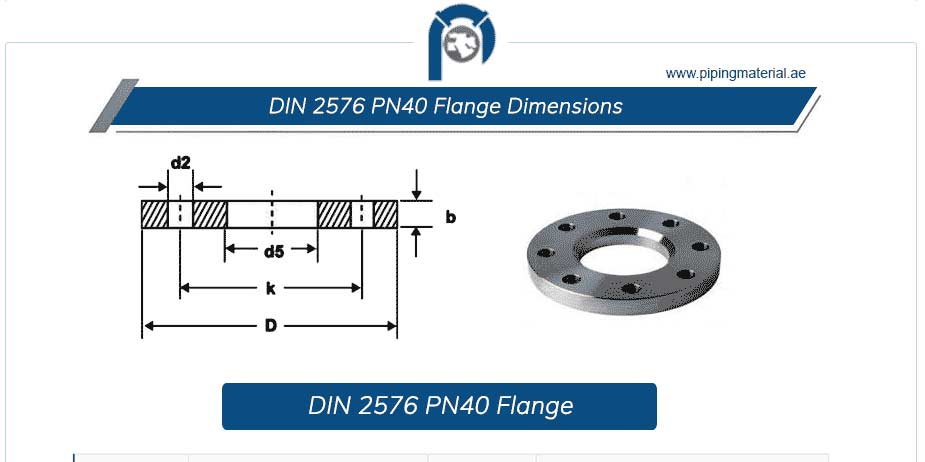

DIN 2576 PN40 Flange Dimensions

Nominal Pipe Size	Flange Dimension – Flange I.D	Flange Dimension – Flange Dia	Flange Dimension – Thk of Flange	Diameter of Pipe – ISO	Diameter of Pipe – DIN	Nuts & Bolts – Dia of Bolt Circle	Nuts & Bolts – No. of Holes	Nuts & Bolts – Dia of Bolt Holes
DN	d5	D	b	ISO	DIN	k	d2	KG /PCS
10	14.5	90	14	–	14	60	4	14
15	17.7	90	14	–	17.2	60	4	14
21	95	14	–	20	65	4	14	–
22	95	14	21.3	–	65	4	14	–
20	26	105	16	–	25	75	4	14
27.6	105	16	26.9	–	75	4	14	–
25	31	115	16	–	30	85	4	14
34.4	115	16	33.7	–	85	4	14	–
32	39	140	16	–	38	100	4	18
43.1	140	16	42.4	–	100	4	18	–
40	45.5	150	16	–	44.5	110	4	18
49	150	16	48.3	–	110	4	18	–
50	58.1	165	18	–	57	125	4	18
61.1	165	18	60.3	–	125	4	18	–
65	77.1	185	18	76.1	–	145	4	18
80	90.3	200	20	88.9	–	160	8	18
100	109.6	220	20	–	108	180	8	18
115.9	220	20	114.3	–	180	8	18	–
125	134.8	250	22	–	133	210	8	18
141.6	250	22	139.7	–	210	8	18	–
150	161.1	285	22	–	159	240	8	22
170.5	285	22	168.3	–	240	8	22	–
175	196.1	315	24	193.7	–	270	8	22
200	221.8	340	24	219.1	–	295	8	22
250	270.2	395	26	–	267	350	12	22
276.2	395	26	273	–	350	12	22	–
300	327.6	445	26	323.9	–	400	12	22
350	359.7	505	28	355.6	–	460	16	22
372.2	505	28	–	368	460	16	22	–
400	411	565	32	406.4	–	515	18	26
423.7	565	32	–	419	515	18	26	–
450	462.3	615	38	457	–	565	20	26
500	613.6	670	38	508	–	620	20	26
600	615.5	780	40	610	–	725	20	26

DIN 2576 PN40 Flange Room Temperature As Per EN 1092-1

Temperature	(SA182 Gr F316L)	(SA182 Gr F304L)	(SA182 Gr F316Ti)	(UNS S31803)	(SA182 Gr F321)
temperature of room in °C	40,0 ((bar))	40,0 (bar)	40,0 (bar)	40,0 (bar)	40,0 (bar)
100	37,9	34,4	40,0	40,0	39,6
150	34,4	30,8	39,2	40,0	37,3
200	31,8	28,0	37,3	40,0	35,4
250	29,9	26,0	35,4	40,0	33,7
300	27,6	24,1	33,3	–	31,8
350	26,4	23,0	32,1	–	30,6
400	25,7	22,0	31,2	–	29,7
450	25,0	21,4	30,6	–	29,0
500	24,3	20,7	30,0	–	28,3
550	–	17,5*	22,9	–	27,0*
560	–	16,1*	29,6	–	24,5*
570	–	14,8*	29,3*	–	22,4*
580	–	13,7*	26,8*	–	20,3*
590	–	12,3*	24,3*	–	18,2*
600	–	11,2*	22,0*	–	16,3*

Locate Available Material From Stock

Doha	Fujairah	Umm Al Quwain	Sharjah
Dubai	Ras Al Khaimah	Muscat	Riyadh
Abu Dhabi	Saudi Arabia	Ajman	Al Jubail

Can Suppliers Provide DIN 2576 PN40 Flange With Hydro Test Reports?

Yes, DIN 2576 PN40 Flange Suppliers in UAE also provides testing as mentioned below :

PMI Test
Hydrostatic Test
Tensile Test
Hardness Test
Impact Test

Is Cutting Required For DIN 2576 PN40 Lapped Joint Flange Before Installation ?

Yes, Pipe Ends Are Cut And Beveled Accurately To Match The Weld Preparation Of The Flange

Import Price And Shipping Time Variations For DIN 2576 PN40 Flange

	Spain	Ukraine	Netherland
Estimated Shipping	30 days	60 days	30 days
Extra cost	5%	5%	5%
	Belgium	Greece	Czech Republic
Estimated Shipping	40 days	45 days	45 days
Extra cost	5%	5%	5%
Note: View updated price list from the genuine manufacturers, stockist, And DIN 2576 PN40 Flange Suppliers in UAE listed on pipingmaterial.ae
