DIN 28115 PN10 long neck welding flanges

DIN 28115 PN10 Long Neck Welding Flanges Overview

Size in Ready Stock: 90 mm to 1230 mm OD | DN10 to DN1000
Thread : MPT/ BSPT (Female), NPT, MNPT (Male), BSPP (Male & female), FPT, BSP
Approval : RINA, MA’ADEN, BAPCO, Saudi Aramco, KPI, ADNOC, Q CHEM, SABIC, EIL, KNPC, KOC
Suited for: Chemical Processing, High Temperature Piping Systems
Standards: DIN 28115, EN 1092-1
Raw Material Origin: European, UK, German, Korean, Indian, Japanese
Pressure Ratings: PN10
Types of Faces : T/G (Tongue And Groove ), RF (Raised Face), RTJ (Ring Type Joint), M/F (Male And Female), FF (Flat Face)
Test Certificates :
  • Raw Material Test Certificate
  • MTC EN 10204 3.1
  • Dimensional Inspection Report
  • Hydrostatic Test Report
  • PMI Test Report
Brands : Ulma Forja, Viraj Forgings Ltd, Genoyer Group Companies, Officine, Ringmill SpA, Forgerossi SAS
Shipping Country :
  • Qatar : 7 to 12 Days
  • Oman : 8 to 10 Days
  • Kuwait : 10 to 14 Days
What’s New :

Middle East FZE is set to introduce a B2B platform. It is supported by a management team that has 26 years of experience in the field. Oil and gas piping materials continue to be their primary focus.

MTC: EN 10204/3.1B and 3.2
RFQ: support@pipingmaterial.ae



Piping Material

Table of Content



DIN 28115 PN10 Carbon Steel LWN Flange Suppliers In Dubai, UAE

DIN 28115 PN10 Long Neck Welding Flanges Specification


DIN 28115 PN10 Long Neck Welding Flanges Specification



Size In Ready Stock

Size In Ready Stock: DN10 to DN1000 | 90 mm to 1230 mm OD

Maximum Size

Maximum Size: DN1000 As Per DIN 28115 PN10 Standard

Manufacturing Way

Manufacturing Way: Forged, Heat Treated, CNC Machined

Bolts Hole Number

Bolts Hole Number: 4 To 28 As Per DIN 28115 PN10

Corrosion Resistance

Coatings: Anti-rust Oil, Black Paint, Zinc Coated, Epoxy Coated

Surface Finish

Surface Finish: Smooth Finish, Machined Finish, Serrated Finish

Application

Application: Pressure Vessels, Chemical Plants, Petrochemical Industry, Industrial Piping Systems

Testing

Testing: PMI Test, Hydrostatic Test, Hardness Test, Dimensional Inspection

Documentation

Documentation: EN 10204 3.1, MTC, Raw Material Certificate, Inspection Report

Packaging

Packaging: Wooden Cases, Pallets, Bubble Wrap, Export Packing

Value Added Services

Value Added Services: Machining, Custom Drilling, Beveling, Marking

Equipments

Equipments: CNC Machines, Drilling Machines, Press Machines, Beveling Machines

Quote

Get Quote Directly From DIN 28115 PN10 Long Neck Welding Flanges Suppliers in UAE

Tested

100% Tested DIN 28115 PN10 Long Neck Welding Flanges With EN 10204 3.1 Certification



Cut Out All Intermediaries And Direct Buy From Manufacturers Of DIN 28115 PN10 LWNRF Flange To Save Up To 40%. Check Pressure

DIN 28115 PN10 Long Neck Welding Pressure Rating

DN Service Pressure PN10
a s D j b h m r g f k No. of holes l Thread KG
25 8 Kg/cm²
200 °C		 38 7 115 24 16 120 50 8 68 2 85 4 14 M12(1/2″) 1.7
32 51 8 140 35 16 120 62 8 78 2 100 4 18 M16(5/8″) 2.8
40 57 8 150 41 16 120 70 8 88 3 110 4 18 M16(5/8″) 3.2
50 70 8 165 54 18 120 85 8 102 3 125 4 18 M16(5/8″) 4.2
65 89 8 185 73 18 170 104 8 122 3 145 4 18 M16(5/8″) 6.8
80 102 8 200 86 20 170 118 8 138 3 160 4 18 M16(5/8″) 7.8
100 121 10 220 101 20 170 138 8 158 3 180 8 18 M16(5/8″) 9.7
125 146 10 250 126 22 170 164 10 188 3 210 8 18 M16(5/8″) 11.6
150 171 10 285 151 22 170 188 10 212 3 240 8 23 M20(3/4″) 14
200 224 10 340 204 22 170 246 10 268 3 295 8 23 M20(3/4″) 20.4



Warehouse Locations Of Partner Suppliers

MENA Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine
Middle East Countries Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen
Africa South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria



How Is DIN 28115 PN10 Long Weld Neck Flange Installed In Piping Systems ?

Get DIN 28115 PN10 Long Neck Welding Flanges Suppliers in UAE Who Provides Installation Guidelines

  • Cut pipe to required length
  • Bevel pipe end
  • Align flange with pipe axis
  • Fix position using tack welds
  • Complete full welding
  • Check weld alignment and quality
  • Perform pressure testing after installation



Stocking Distributor Of DIN 28115 PN10 Long Welding Neck Flanges In UAE, Check DIN 28115 PN10 Flange Material, And Price Per Kg In GCC Countries

What Material Are Used for DIN 28115 PN10 Long Neck Welding Flanges For Piping Connection ?

Grade list of DIN 28115 PN10 long neck welding flanges Valve Pipes Pipe Fittings Nuts & Bolts
A350 low temp carbon steel Grade LF2, Gr LF3 ASTM A352 Gr LCB/ LC3 ASME SA333 Gr 6, Grade 3 A420 LTCS WPL6 & WPL 3 SA A194 Grade 7 & A320 L7
EEMUA 234/3-6 Copper Nickel 70/30 EEMUA 234/1-2 EEMUA 234/7-13 Cu-ni 90/10
ASTM A182 Gr F1/5/9/11/12/22/91 ASME SA 217 Grade WC1/ WC6/ WC9/ C5/ C12 A335 P1, P5, P9, P11, P12, P22, P91 ASTM SA 234 Alloy Steel WP1, WP5, WP9, WP11, WP12, WP22, WP91 ASTM A194 2H & A193 B7
A182 Grade F304/ F316/ F321/ F321H/ F347 ASME SA182 F304/ F316/ F321/ F321H/ F347 SA312 TP304, TP316, TP321, TP321H, TP347 ASTM A403 WP304, WP316, WP321, WP321H, WP347 ASTM A194 Grade 8 & A193 Gr B8
ASTM A105 Carbon Steel ASME SA216 WCB A106 Grade A/ B/ C SA 234 WPB/ WPC/ WPA ASTM A194 2H & A193 Gr B7
DIN 28115 PN10 long neck welding flanges grade Valve Pipes Pipe Fittings Nut & Bolt

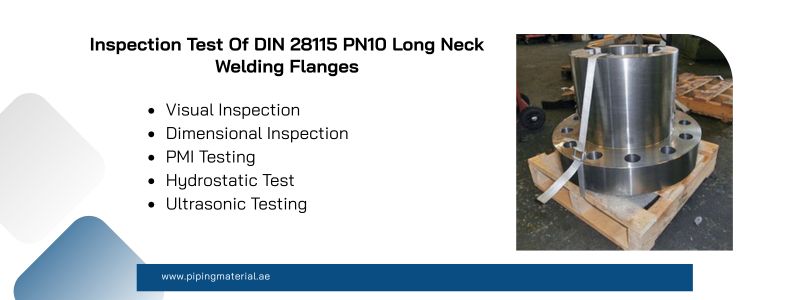

Inspection Test Of DIN 28115 PN10 Long Neck Welding Flanges


Inspection Test Of DIN 28115 PN10 Long Neck Welding Flanges



Sales Representative Available To Provide Quick Quote

Sharjah Fujairah Doha Riyadh
Dubai Umm Al Quwain Ras Al Khaimah Muscat
Ajman Saudi Arabia Abu Dhabi Al Jubail



DIN 28115 PN10 Long Neck Welding Flanges Features

  • High pressure resistance
  • Leak-proof welding joint
  • High temperature suitability
  • Strong mechanical strength
  • Long service life
  • Easy installation



Buy DIN 28115 PN10 CS Long Neck Welding Flanges From Manufacturers Who Stand With You Before, During, And After Purchase, Check DIN 28115 PN10 SS LWNRF Flange Temperatur And Price Per Kg In Sharjah

Temperature of DIN 28115 PN10 Long Neck Welding Flanges According To EN 1092-1

Temperatur WNR 1.4307
(INOX 304L)		 WNR 1.4541
(INOX 321)		 WNR 1.4404
(INOX 316L)		 WNR 1.4571
(INOX 316Ti)		 WNR 1.4462
(Duplex 2205/ UNS S31803)
Room Temperatur in Celsius 10,0 (bar) 10,0 (bar) 10,0 (bar) 10,0 (bar) 10,0 (bar)
100 8,6 9,9 9,4 10,0 10,0
150 7,7 9,3 9,4 9,8 10,0
200 7,0 8,8 7,9 9,3 10,0
250 6,5 7,9 6,9 8,3 –
300 6,0 7,6 6,6 7,8 –
350 5,7 7,6 6,4 7,6 –
400 5,5 7,2 6,2 7,6 –
450 5,3 7,2 6,2 7,6 –
500 5,1 7,0 6,0 7,5 –
550 4,3* 6,7* – 7,4 –
560 4,0* 6,1* – 7,4 –
570 3,7* 5,6* – 7,3* –
580 3,4* 5,1* – 6,7* –
590 3,0* 4,5* – 6,0* –
600 2,8* 4,0* – 5,5* –



Technical Data Of DIN 28115 PN10 Long Neck Welding Flanges

Find Trusted DIN 28115 PN10 Long Neck Welding Flanges Suppliers in UAE Check Specifications & Details

Standard Rated pressure Size
DIN 28115 PN10 DN10 – DN2000
Type Surface Hole & Thickness
Welding Neck Forged Steel Flanges Annealed, Bright Annealing, Polished 4 To 24 hole, and 0.5-100mm
Method Of Process Material Specification (DIN 28115 PN10 forged flange) Specification Material (DIN 28115 PN10 plate flange)
  • Forged
  • Plate
  • Casting
  • Stamped
  • Nickel alloy: ASME SB564, Ni 200/201
  • Titanium : ASME SB381 F2, F3, F5, F12
  • Low temperature carbon steel: A350 LF2, LF3, LF6
  • Carbon steel :
    • SA105
    • ASME SA181 Class 60/ CL 70
    • A694 F42 Carbon Steel, F46, F52, F56, F60, F65, F70
  • Copper nickel (for sea water):
    • 70/30 CuNi
    • ASME B151
    • CW352H, C7060T, Copper Nickel 90/10, WL 2.1972, EEMUA 234/3-6, C70620
  • Duplex & Super duplex: F51 (UNS S31803), F44 (UNS S31254), F60 (UNS S32205), F61 (UNS S32550) F55 (UNS S32760), ASME SA182 F53 (UNS S32750),
  • Stainless steel : A182 F304/ 304L/ F316/ 316L/ F310/ F310S/ F316Ti/ F317L/ F321/ 321H/ F347/ F347H/ F904L
  • Alloy steel : ASME SA182 (most selling F11, F12, F22, F91), Gr F1, F5, F9
  • Hastelloy: B-2, B, B-3, C-276, C-2000, C, C-4, C-22, C-22HS, G-35, G-30, G-3, N, S, W, X
  • Incoloy: Alloy 800H/HT, 803, 825, 832, 908, A-286, 27-7MO, 864, 890, 903, 907, 028, 020, 945, 925, 926, 330, 25-6HN, DS, 909, 945X, MA956
  • Inconel: 600, 601, 617, 625, 625LCF, 686, 690, 601GC, 602CA, 603XL, 693, 751, 725, 706, 718, 718SPF, 740H, MA754, MA758, 783, X-750
  • Monel: 404, R-405, 502, Alloy 400/401, K-500,
  • LTCS : SA516 Grade 60/ 65/ 70
  • Duplex & super duplex: ASTM A240 F44 (UNS S31254), F60 (UNS S32205), F53 (UNS S32750), F51 (UNS S31803), F55 (UNS S32760), F61 (UNS S32550)
  • Stainless steel: SA240 F304/F304L, F310S, F316/F316L, F316Ti, F310, F317L, F347/F347H, F321/F321H, F904L
Get connected verified DIN 28115 PN10 long neck welding flanges suppliers, they offers Export Packaging Logistics
  • Ship with MTC Acc. to EN 10204/3.1
  • Quotation with Valuable Data Sheet
  • Quick Response within 24 Hours
  • Lowest price in UAE
  • Design / Modify Drawings for Free
  • Solution Treatment / Aging Treatment
  • Wooden Case
  • Plastic Bag
  • Or custom as required
  • By Sea
  • By Air (for urgent demand)



See Where You Can Find Material Ex Stock

Country Cities
Netherlands Amsterdam
Netherlands The Hague
Belgium Brussels
Netherlands Haarlem
Belgium Meeuwen-Gruitrode
Belgium Seraing
Netherlands Eindhoven
Belgium Ghent
Netherlands Rotterdam
Belgium Leuven
Belgium Westerlo
Belgium Antwerp



Check DIN 28115 PN10 Flange Dimensions And Weight Chart, And Buy DIN 28115 PN10 Alloy Steel Long Neck Welding Flanges From Verified Suppliers In The Middle East And India

DIN 28115 PN10 Long Neck Welding Flanges Dimensions


DIN 28115 PN10 Long Neck Welding Flange Dimensions



DIN 28115 PN10 Alloy Steel Long Neck Welding Flanges Weight Chart

DN ISO DIN D k b h1 D3 S r h2 d4 f d2 KG
10 – 14 75 50 12 28 22 1.8 4 6 35 2 11 0.34
– 17.2 – 75 50 12 28 26 1.8 4 6 35 2 11 0.34
15 – 20 80 55 12 30 28 2 4 6 40 2 11 0.39
– 21.3 – 80 55 12 30 30 2 4 6 40 2 11 0.46
20 – 25 90 65 14 32 35 2.3 4 6 50 2 11 0.6
– 26.9 – 90 65 14 32 38 2.3 4 6 50 2 11 0.6
25 – 30 100 75 14 35 40 2.6 4 6 60 2 11 0.78
– 33.7 – 100 75 14 35 42 2.6 4 6 60 2 11 0.78
32 – 38 120 90 14 35 50 2.6 6 6 70 2 14 1.07
– 42.4 – 120 90 14 35 55 2.6 6 6 70 2 14 1.06
40 – 44.5 130 100 14 38 55 2.6 6 7 80 3 14 1.21
– 48.3 – 130 100 14 38 62 2.6 6 7 80 3 14 1.2
50 – 57 140 110 14 38 70 2.9 6 8 90 3 14 1.37
– 60.3 – 140 110 14 38 74 2.9 6 8 90 3 14 1.36
65 – 76.1 160 130 14 38 88 2.9 6 9 110 3 14 1.6
80 – 88.9 190 150 16 42 102 3.2 8 10 128 3 18 2.72
100 – 106 210 170 16 45 122 3.6 8 10 148 3 18 3.2
– 114.3 – 210 170 16 45 130 3.6 8 10 148 3 18 3.22
125 – 133 240 200 18 48 148 4 8 10 178 3 18 4.58
– 139.7 – 240 200 18 48 155 4 8 10 178 3 18 4.42
150 – 159 265 225 18 48 172 4.5 10 12 202 3 18 5.26
– 166.3 – 265 225 18 48 184 4.5 10 12 202 3 18 5.04
200 – 219.1 320 280 20 55 236 5.9 10 15 258 3 18 7.95
250 – 267 375 335 22 60 282 6.3 12 15 312 3 18 11.16
– 273 – 375 335 22 60 290 6.3 12 16 312 3 18 10.57
300 – 323.9 440 395 22 62 342 7.1 12 15 365 4 22 14.26
350 – 355.6 490 445 22 62 385 7.1 12 15 415 4 22 18.56
– – 368 490 445 22 62 385 7.1 12 15 415 4 22 16.76
400 – 406.4 540 495 22 65 438 7.1 12 15 465 4 22 21.25
– – 419 540 495 22 65 438 7.1 12 15 465 4 22 19.1



Applications Of DIN 28115 PN10 SS LWNRF Flange


Applications Of DIN 28115 PN10 SS LWNRF Flange



Material Inspection Facilities In The Following Countries

Region City Country
Middle East Dubai United Arab Emirates
Middle East Riyadh Saudi Arabia
Middle East Abu Dhabi United Arab Emirates
Middle East Dammam Saudi Arabia
Africa Abuja Nigeria
Middle East Doha Qatar
Middle East Jeddah Saudi Arabia
Middle East Kuwait City Kuwait
MENA Casablanca Morocco
MENA Cairo Egypt
Africa Cape Town South Africa
Africa Johannesburg South Africa
Africa Lagos Nigeria



What Are The Common Failures Of DIN 28115 PN10 Long Neck Welding Flanges ?

  • Weld Cracking
  • Flange Deformation
  • Leakage
  • Corrosion
  • Fatigue Failure



DIN 28115 PN10 Long Neck Welding Flanges Import Price And Shipping Time Variations

Nepal Vietnam Cambodia
Estimated Shipping 7 days 10 days 9 days
Extra cost 5% 5% 5%
Thailand Russia Australia
Estimated Shipping 7 days 20 days 21 days
Extra cost 5% 5% 5%
Note: Get updated price list from the verified DIN 28115 PN10 long neck welding flanges manufacturers, suppliers, and stockist listed on pipingmaterial.ae
