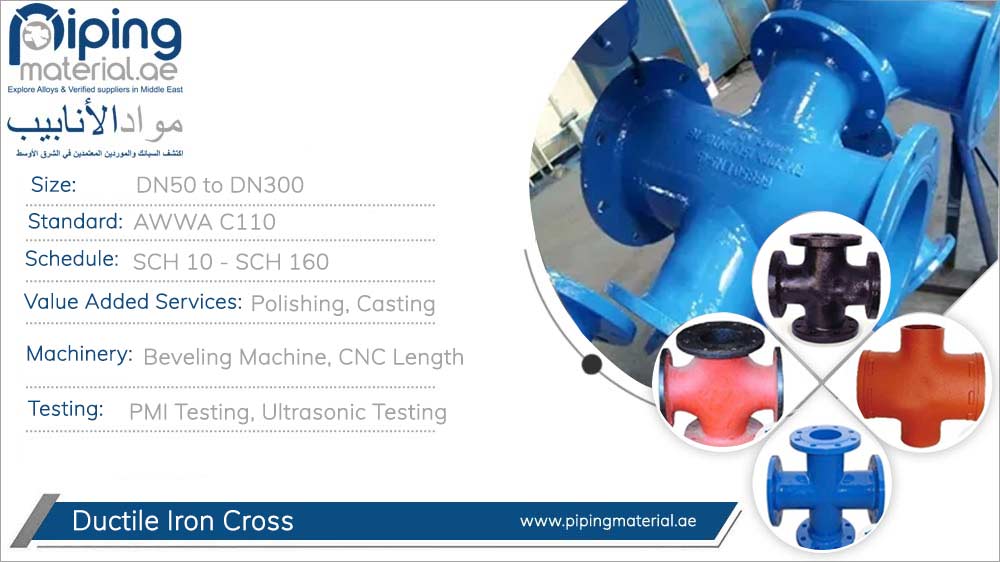

What Is Ductile Iron Cross?
A ductile iron cross fitting is designed with 4 openings that are seen in different systems. A Ductile Iron Cross has 90% recycled material and has constituents of carbon, iron, silicon, manganese, and other alloys. The Ductile Iron Pipe Cross has 3 outlets with one inlet section. The outlet sections can be designed in either equal or reduced sizes. The Di Pipe Cross Section is designed in sizes between 1/2 to 48 inches of nominal diameters. The pipes have excellent mechanical and physical properties. A Di Crosses Fitting influences the characteristics of the flow and can connect different piping equipment in the system. The versatile Ductile Iron 4 Way Pipe Cross Fittings can handle higher pressure media in harsh environments.
Verified manufacturers and stockists
Ductile Iron Pipe Cross Specification
- Specification : Ductile Iron Cross
- Thickness : 4-12 Mm
- Surface Finishing : Paint Coated
- Application : Structure Pipe
- Material : Di
- Type : Cross
- Size : DN50-DN300
- Dimensions : AWWA C110
- End Style : Mechanical Joint
- Finish :Cement Lined
Ductile Iron Cross Price in USD
| Description | Class | Per Unit In USD (Dollar) |
|---|---|---|
| 3 in | 150 | $38 |
| 4 in | 150 | $52 |
| 6 in | 150 | $84 |
| 8 in | 150 | $95 |
| 10 in | 150 | $112 |
Ductile Iron Mechanical Joint Cross Types
Ductile Iron Reducing Crosses
3 Inch Di Pipe Crosses
10 Inch Di Pipe Crosses
Di Equal Crosses
Di Crosses Fitting
Di Crosses Tee
150 Lb. Di Flanged Crosses
6 Inch 150# Di Pipe Crosses Flanged Fittings
8 Inch Di Mechanical Joint Crosses
Di 4 Way Pipe Crosses Fittings
Di Crosses
Di Pipe Crosses
Choose from the list of trusted di cross importers in the middle east, before ordering ductile iron 4 way pipe cross fittings check the size range and sectional area formula
Class 150 Ductile Iron Flanged Cross Size Chart
Socket x Socket x Socket PN16
| DN (inch) – Body | Nominal Size DN (inch) – Branch |
| 3.93 | 3.93 |
| 5.90 | 3.93 |
| 5.90 | 5.90 |
| 7.87 | 3.93 |
| 7.87 | 5.90 |
| 7.87 | 7.87 |
Sectional Area Formula Of Ductile Iron Reducing Cross
The ductile iron reducing cross has a formula R= 1- e –(n+1). Here the n in the Ductile Iron Reducing Cross represents the strain hardening coefficient. For perfectly plastic material, R is 0.632.
Know more about connection types of ductile iron equal cross, purchasing di cross flanged fittings directly from manufacturers in Dubai and saving your time
What Is A Ductile Iron Equal Cross connection?
A ductile iron equal cross is a 4-way fitting. TheDi Equal Cross has an equal opening across all its channels. In simple terms, the diameters of the openings are of the same diameter. The Ductile Iron Crosses Tee gives equal strength and stability for an even flow of media. The tees are common in larger water lines and other systems.
Features Of Ductile Iron Cross Fitting
A ductile iron cross is 4-sided opening that can be availed in anequal or reduced openigs. The 150 Lb. Ductile Iron Flanged Cross can handle different pressure and temperature conditions across its channels. This Crosses hasgood tolerance to stress and tension in the system.
An 8 Inch Di Mechanical Joint Cross makes use of lugs to fasten the material efficiently.
Check ductile iron pipe cross dimensions, features, and heat treatment of ductile iron mechanical joint cross with material testing reports
| Size (mm) |
Pressure Rating (psi) |
Dimensions in mm | ||||
|---|---|---|---|---|---|---|
| Run | Branch | T | T 1 | H | J | |
| 101.6 | 101.6 | 250 | 13.2 | 13.2 | 165.1 | 6.5 |
| 152.4 | 101.6 | – | 13.9 | 13.2 | 203.2 | 203.2 |
| 152.4 | 152.4 | – | 13.9 | 13.2 | 203.2 | 203.2 |
| 203.2 | 101.6 | – | 15.2 | 13.20 | 228.6 | 228.6 |
| 203.2 | 152.4 | – | 15.2 | 13.97 | 228.6 | 228.6 |
| 203.2 | 203.2 | – | 15.2 | 15.24 | 228.6 | 228.6 |
| 254 | 101.6 | – | 17.2 | 13.20 | 279.4 | 279.4 |
| 254 | 152.4 | – | 17.2 | 13.97 | 279.4 | 279.4 |
| 254 | 203.2 | – | 17.2 | 15.24 | 279.4 | 279.4 |
| 254 | 254 | – | 20.3 | 20.32 | 279.4 | 279.4 |
| 304.8 | 101.6 | – | 19.0 | 13.20 | 304.8 | 304.8 |
| 304.8 | 152.4 | – | 19.0 | 13.97 | 304.8 | 304.8 |
| 304.8 | 203.2 | – | 19.0 | 15.24 | 304.8 | 304.8 |
| 304.8 | 254 | – | 22.0 | 20.32 | 304.8 | 304.8 |
| 304.8 | 304.8 | – | 22.0 | 22.0 | 304.8 | 304.8 |
| 355.6 | 152.4 | – | 16.7 | 13.97 | 355.6 | 355.6 |
| 355.6 | 203.2 | – | 16.7 | 15.24 | 355.6 | 355.6 |
| 355.6 | 254 | – | 16.7 | 17.27 | 355.6 | 355.6 |
| 355.6 | 304.8 | – | 16.7 | 19.05 | 355.6 | 355.6 |
| 355.6 | 355.6 | 250 | 16.7 | 16.76 | 355.6 | 355.6 |
| 406.4 | 152.4 | – | 17.7 | 13.97 | 381 | 381 |
| 406.4 | 203.2 | – | 17.7 | 15.24 | 381 | 381 |
| 406.4 | 254 | – | 17.7 | 17.27 | 381 | 381 |
| 406.4 | 304.8 | – | 17.7 | 19.05 | 381 | 381 |
| 406.4 | 355.6 | 250 | 17.7 | 16.76 | 381 | 381 |
| 406.4 | 406.4 | 250 | 17.7 | 17.78 | 381 | 381 |
| 457.2 | 152.4 | – | 19.05 | 13.97 | 330.2 | 393.7 |
| 457.2 | 203.2 | – | 19.05 | 15.24 | 330.2 | 393.7 |
| 457.2 | 254 | – | 19.05 | 17.27 | 330.2 | 393.7 |
| 457.2 | 304.8 | – | 19.05 | 19.05 | 330.2 | 393.7 |
| 457.2 | 355.6 | 250 | 19.05 | 16.76 | 419.1 | 419.1 |
| 457.2 | 406.4 | 250 | 19.05 | 17.78 | 419.1 | 419.1 |
| 457.2 | 457.2 | – | 19.05 | 19.05 | 419.1 | 419.1 |
| 508 | 101.6 | – | 20.3 | 13.20 | 355.6 | 431.8 |
| 508 | 152.4 | – | 20.3 | 13.97 | 355.6 | 431.8 |
| 508 | 203.2 | – | 20.3 | 15.24 | 355.6 | 431.8 |
| 508 | 254 | – | 20.3 | 17.27 | 355.6 | 431.8 |
| 508 | 304.8 | – | 20.3 | 19.05 | 355.6 | 17431.8 |
| 508 | 355.6 | 250 | 20.3 | 16.76 | 355.6 | 431.8 |
| 508 | 406.4 | 250 | 20.3 | 17.78 | 457.2 | 457.2 |
| 508 | 457.2 | – | 20.3 | 19.05 | 457.2 | 457.2 |
| 508 | 508 | – | 20.3 | 20.32 | 457.2 | 457.2 |
| 609.6 | 101.6 | – | 22.6 | 13.20 | 381 | 482.6 |
| 609.6 | 152.4 | – | 22.6 | 13.97 | 381 | 482.6 |
| 609.6 | 203.2 | – | 22.6 | 15.24 | 381 | 482.6 |
| 609.6 | 254 | – | 22.6 | 17.27 | 381 | 482.6 |
| 609.6 | 304.8 | – | 22.6 | 19.05 | 381 | 482.6 |
| 609.6 | 355.6 | 250 | 22.6 | 16.76 | 381 | 482.6 |
| 609.6 | 406.4 | 250 | 22.6 | 17.78 | 381 | 482.6 |
| 609.6 | 457.2 | – | 22.6 | 19.05 | 558 | 558 |
| 609.6 | 508 | – | 22.6 | 20.32 | 558 | 558 |
| 609.6 | 609.6 | – | 22.6 | 22.60 | 558 | 558 |
| 762 | 304.8 | – | 26.1 | 19.05 | 457.2 | 584 |
| 762 | 355.6 | 250 | 26.1 | 16.76 | 457.2 | 584 |
| 762 | 406.4 | 250 | 26.1 | 17.7 | 457.2 | 584 |
| 762 | 457.2 | – | 26.1 | 19.05 | 457.2 | 584 |
| 762 | 508 | – | 26.1 | 20.3 | 457.2 | 584 |
| 762 | 609.6 | – | 26.1 | 22.6 | 635 | 635 |
| 762 | 762 | – | 26.1 | 26.1 | 635 | 635 |
| 914.4 | 304.8 | – | 29.2 | 19.05 | 508 | 660 |
| 914.4 | 355.6 | 250 | 29.2 | 16.76 | 508 | 660 |
| 914.4 | 406.4 | 250 | 29.2 | 17.7 | 508 | 660 |
| 914.4 | 457.2 | – | 29.2 | 19.0 | 508 | 660 |
| 914.4 | 508 | – | 29.2 | 20.3 | 508 | 660 |
| 914.4 | 609.6 | – | 29.2 | 22.6 | 508 | 660 |
| 914.4 | 762 | – | 29.2 | 26.1 | 711 | 711 |
| 914.4 | 914.4 | – | 29.2 | 29.21 | 711 | 711 |
| 1066.8 | 304.8 | – | 32.5 | 19.05 | 584 | 762 |
| 1066.8 | 355.6 | 250 | 32.5 | 16.76 | 584 | 762 |
| 1066.8 | 406.4 | 250 | 32.5 | 17.78 | 584 | 762 |
| 1066.8 | 457.2 | – | 32.5 | 19.05 | 584 | 762 |
| 1066.8 | 508 | – | 32.5 | 20.32 | 584 | 762 |
| 1066.8 | 609.6 | – | 32.5 | 22.6 | 584 | 762 |
| 1066.8 | 762 | – | 32.5 | 26.1 | 787 | 787 |
| 1066.8 | 914.4 | 150 | 32.5 | 29.2 | 787 | 787 |
| 1066.8 | 914.4 | – | 45.2 | 40.1 | 787 | 787 |
| 1066.8 | 1066.8 | 150 | 32.5 | 32.5 | 787 | 787 |
| 1066.8 | 1066.8 | – | 45.2 | 45.2 | 787 | 787 |
| 1219.2 | 304.8 | – | 36.0 | 19.05 | 26 | 863 |
| 1219.2 | 355.6 | 250 | 36.0 | 16.7 | 660 | 863 |
| 1219.2 | 406.4 | 250 | 36.0 | 17.7 | 660 | 863 |
| 1219.2 | 457.2 | – | 36.0 | 19.05 | 660 | 863 |
| 1219.2 | 508 | – | 36.0 | 20.3 | 660 | 863 |
| 1219.2 | 609.6 | – | 36.0 | 22.6 | 660 | 863 |
| 1219.2 | 762 | – | 36.0 | 26.1 | 660 | 863 |
| 1219.2 | 914.4 | – | 36.0 | 29.2 | 863 | 863 |
| 1219.2 | 1066.8 | 150 | 36.0 | 32.5 | 863 | 863 |
| 1219.2 | 1066.8 | – | 49.7 | 45.2 | 863 | 863 |
| 1219.2 | 1219.2 | 150 | 36.0 | 36.0 | 863 | 863 |
| 1219.2 | 1219.2 | – | 49.7 | 49.7 | 863 | 863 |
| 1371.6 | 914.4 | – | 26.6 | 29.2 | 787 | 939 |
| 1371.6 | 1066.8 | – | 26.6 | 32.5 | 990 | 990.6 |
| 1371.6 | 1219.2 | – | 26.6 | 36.0 | 990 | 990.6 |
| 1371.6 | 1371.6 | – | 26.6 | 26.6 | 990 | 990.6 |
| 1524 | 914.4 | – | 27.94 | 29.21 | 838 | 1066.8 |
| 1524 | 1066.8 | – | 27.94 | 32.5 | 1092 | 1092 |
| 1524 | 1219.2 | – | 27.94 | 36.0 | 1092 | 1092 |
| 1524 | 1371.6 | – | 27.94 | 26.6 | 1092 | 1092 |
| 1524 | 1524 | – | 27.94 | 27.9 | 1092 | 1092 |
| 1625.6 | 914.4 | – | 29.4 | 29.21 | 812 | 1117 |
| 1625.6 | 1066.8 | – | 29.4 | 32.5 | 1219.2 | 1143 |
| 1625.6 | 1219.2 | – | 29.4 | 36.0 | 1219.2 | 1143 |
| 1625.6 | 1371.6 | – | 29.4 | 26.67 | 1219.2 | 1168.4 |
| 1625.6 | 1524 | – | 29.4 | 27.9 | 1219.2 | 1168.4 |
| 1625.6 | 1625.6 | 250 | 29.4 | 29.4 | 1219.2 | 1219.2 |
Heat treatment Of Di Cross
The heat treatment of the Di cross is carried out to eliminate any stress or tension caused during the forming process.
A Di Crosses is heated at temperatures above the austenite limit for a prolonged period. Heat treatment can be done via annealing, quenching, and other methods.
Select your size in the online inventory of ductile iron cross fitting and also see the polishing process of di pipe flanged cross
Weight of Ductile Iron Reducing Cross in KG
| DN | Weight in (lbs) |
|---|---|
| DN80 | 451.94 |
| DN100 | 540.13 |
| DN125 | 859.8 |
| DN150 | 903.8 |
| DN200 | 1333.7 |
| DN250 | 2345.7 |
| DN300 | 3152.6 |
| DN350 | 4210.8 |
| DN400 | 4850.1 |
| DN500 | 8179.1 |
| DN600 | 9369.6 |
| DN700 | 16534.6 |
| DN800 | 21605.3 |
| DN900 | 29982.8 |
| DN1000 | 40785.5 |
How To Do Ductile Iron 4 Way Pipe Cross Fittings Polishing?
The 4 way Di cross fitting can be polished with wax, hemp, wheel, cloth, wheel, wind wheel, thread cloth, etc. The 6 Inch 150# Di Cross Flanged Fittings can be polished to enhance the surface finish. This gives the fittings superior corrosion resistance. Internal polishing is done to prevent internal damage and corrosion reducing any pollution or blockage.
