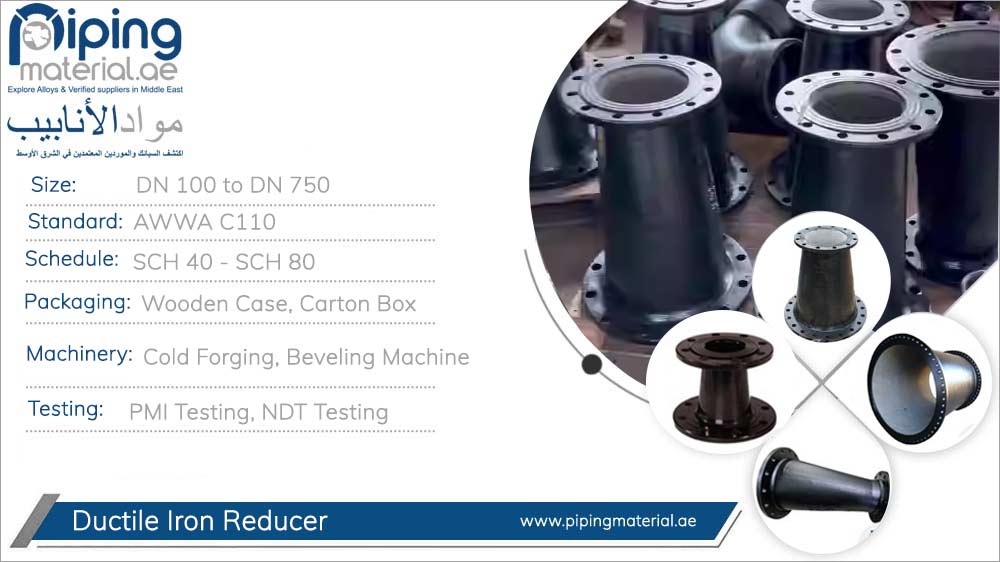

Ductile Iron Reducer



What Is Ductile Iron Reducer?

A ductile iron reducer is a fitting that reduces the nominal bore size from a bigger diameter to a smaller inner dimension. A Ductile Iron Reducer allows change in pipe size to connect different sized pipes to meet hydraulic flow requirements. The Ductile Iron Pipe Reducers is typically ordered in concentric and eccentric specifications. The reducers ensure a gradual drop of media in the system. The Di Reducers helps in meeting the requirements of different piping systems as they are available in a range of sizes. The common grades of the Ductile Iron Reducer Fittings are ASTM A536, grade 60, 65, and 80. These fittings have greater strength across a range of environments.

Verified Supplier

Verified manufacturers and stockists

available 1 cars
Aqua Fitting Co. LTD
1
Dalian, China
Aqua Fitting Co. LTD

When Would You Use a Ductile Iron Flanged Reducer?

A ductile iron flanged reducer is primarily employed to join piping equipment of different sizes. The Ductile Iron Flanged Reducer is used in a variety of industrial applications. This includes pipe, automotive components, gearboxes, and machine frames. The Di Pipe Reducer is also a feature in wind power, impact protection applications, etc.

When Would You Use a Ductile Iron Flanged Reducer

Piping Material

Table of Content

Di Pipe Reducer





Specification Of Di Pipe Reducer

  • Specification : Ductile Iron Reducer
  • Size : DN 100 – DN 750
  • Body Material: : ASTM A536 Ductile Iron
  • Connection : Socket
  • Application/Usage : Water Pipe
  • Pressure : PN10/PN16
  • Surface Treatment : Galvanised
  • End Connection : Plain End x Plain End
  • Product Type : Reducer Fitting
  • Feature : Corrosion Proof/ High Strength/ Excellent Quality
  • Finishing : Polished



Ductile Iron Pipe Reducer Price List

10 in. x 8 in. Concentric Reducers – 150 LB, Weight :109.01 LBS

USD $813.23

10 in. x 4 in. Concentric Reducers – 150 LB, Weight : 89.05 LBS

USD $703.34

5 in. x 4 in. Concentric Reducers – 150 LB, Weight :39.04 LBS

USD $456.00



6 in. x 5 in. Concentric Reducers – 150 LB, Weight : 47.03 LBS

USD $403.45

3 in. x 2-1/2 in. Concentric Reducers – 150, Weight : 19.03 LBS

USD $703.34

6 in. x 3 in. Concentric Reducers – 150 LB, Weight : 39.04 LBS

USD $312.86



Searching for a ductile iron flanged reducer importer? get connected with a trusted stockist of di pipe reducer in the middle east

Available Types Of Ductile Iron Flanged Reducer

Ductile Iron Pipe Reducers

Ductile Iron Pipe Reducers

Ductile Iron Flanged Reducers

Ductile Iron Flanged Reducers

Ductile Iron Concentric Reducers

Ductile Iron Concentric Reducers

Ductile Iron Reducers Fittings

Ductile Iron Reducers Fittings

Di Reducers

Di Reducers

Di Pipe Reducers

Di Pipe Reducers

Di Concentric Reducers

Di Concentric Reducers

Di Eccentric Reducers

Di Eccentric Reducers

150 lb. Ductile Iron Flanged Con Reducerss

150 lb. Ductile Iron Flanged Con Reducers

4 X 3 Di Reducers

4 X 3 Di Reducers

8 X 6 Di Reducers

8 X 6 Di Reducers

10 X 8 Di Reducers

10 X 8 Di Reducers

6 X 4 Di Reducers

6 X 4 Di Reducers

4 X 2 Di Reducers

4 X 2 Di Reducers

12 X 6 Di Reducers

12 X 6 Di Reducers

6 X 2 Di Reducers

6 X 2 Di Reducers

6x3 Di Reducers

6×3 Di Reducers

3 Inch Di Pipe Reducers Fittings

3 Inch Di Pipe Reducers Fittings





Compare ductile iron eccentric reducer manufacturers & freight costs in Dubai, view the installation process of di reducer

How Is Di Pipe Reducer Installed?

How Is Di Pipe Reducer Installed?



The Di pipe reducers can be efficiently connected to different pressure applications. The 10 X 8 Ductile Iron Reducers is generally connected using push-on joints, mechanical joints, and other standard connection types.



Check ductile iron pipe reducer dimensions and ductile iron flanged reducer thickness calculation, and commercial benefits

Ductile Iron Reducer Dimensions

Ductile Iron Reducer Dimensions
Size
(inch & mm)		 Pressure
Rating
(psi)		 Dimensions in mm
Large
End In mm		 Small
End in inch		 T T 1 F
152.4 4 250 13.97 13.20 228.6
203.2 4 – 15.24 13.20 279.4
203.2 6 – 15.24 13.97 279.4
254 4 – 17.27 13.20 304.8
254 6 – 17.27 13.97 304.8
254 8 – 17.27 15.24 304.8
304.8 4 – 19.0 13.20 355.6
304.8 6 – 19.0 13.97 355.6
304.8 8 – 19.0 15.24 355.6
304.8 10 – 19.0 17.27 355.6
355.6 6 – 16.76 13.97 406.4
355.6 8 – 16.76 15.24 406.4
355.6 10 – 16.76 17.27 406.4
355.6 12 – 16.76 19.05 406.4
406.4 6 – 17.78 13.97 457.2
406.4 8 – 17.78 15.24 457.2
406.4 10 – 17.78 17.27 457.2
406.4 12 – 17.78 19.05 457.2
406.4 14 – 17.78 16.76 457.2
457.2 6 – 19.0 13.97 482.6
457.2 8 – 19.0 15.24 482.6
457.2 10 – 19.0 17.27 482.6
457.2 12 – 19.0 19.05 482.6
457.2 14 – 19.0 16.76 482.6
457.2 16 – 19.0 17.78 482.6
457.2 6 – 20.32 13.97 508
508 8 – 20.32 15.24 508
508 10 – 20.32 17.27 508
508 12 – 20.32 19.0 508
508 14 – 20.32 16.76 508
508 16 – 20.32 17.78 508
508 18 – 20.32 19.0 508
609.6 8 – 22.60 15.24 609.6
609.6 10 – 22.60 17.27 609.6
609.6 12 – 22.60 19.05 609.6
609.6 14 – 22.60 16.76 609.6
609.6 16 – 22.60 17.78 609.6
609.6 18 – 22.60 19.0 609.6
609.6 20 – 22.60 20.32 609.6
762 12 – 26.16 19.05 762
762 16 – 26.16 16.76 762
762 18 – 26.16 19.0 762
762 20 – 26.16 20.32 762
762 24 – 26.16 22.60 762
914.4 16 – 29.21 17.78 914.4
914.4 18 – 29.21 19.0 914.4
914.4 20 – 29.21 20.32 914.4
914.4 24 – 29.21 22.60 914.4
914.4 30 – 29.21 26.16 914.4
1066.8 24 – 32.51 22.60 1066
1066.8 30 – 32.51 26.16 1066
1066.8 36 – 32.51 29.21 1066
1219.2 30 – 36.06 26.16 1219
1219.2 36 – 36.06 29.21 1219
1219.2 42 – 36.06 32.51 1219
1371.6 42 – 22.86 31.75 635
1371.6 48 – 22.86 35.56 457
1524 48 – 23.87 35.56 508
1524 54 – 23.87 22.86 381
1625.6 54 – 25.14 22.86 457
1625.6 60 250 25.14 23.87 431



  • 54 inch to 64 inch reducer fittings are rated for only 150 psi in AWWA C153
  • Ductile Iron Eccentric reducers are not available 54 inch and larger.



How To Calculate Di Eccentric Reducer Thickness?

The Di eccentric reducer is produced by dividing the plate volume by its surface area. The Di Eccentric Reducers thickness can also be calculated using the thickness calculator.



Commercial Benefits Of Ductile Iron Reducer Fittings

  • The ductile iron reducer has high strength due to its spheroidal graphite microstructure.
  • The 6 X 4 Ductile Iron Reducer has excellent beam strength and greater resistance to impact and traffic loads.
  • The versatile 4 X 2 Ductile Iron Reducers has excellent ductility and is lighter and easy to manoeuvre.
  • The reducers have simplistic joints that accommodate some angular deflection.
  • The reducers have simplistic joints that accommodate some angular deflection.
Commercial Benefits Of Ductile Iron Reducer Fittings



Weight Chart Of Di Reducer In KG

Size
(inch & mm)		 Weight
(kg)
Large
End In mm		 Small
End in inch
152.4 4 20.41
203.2 4 29.48
203.2 6 34.01
254 4 38.55
254 6 43.09
254 8 49.89
304.8 4 54.43
304.8 6 58.96
304.8 8 65.77
304.8 10 74.84
355.6 6 70.30
355.6 8 77.11
355.6 10 88.45
355.6 12 102.05
406.4 6 86.18
406.4 8 95.25
406.4 10 106.59
406.4 12 120.20
406.4 14 127.0
457.2 6 99.79
457.2 8 108.86
457.2 10 120.20
457.2 12 133.8
457.2 14 138.34
457.2 16 151.95
457.2 6 120.20
508 8 129.27
508 10 140.61
508 12 156.48
508 14 161.0
508 16 174.63
508 18 185.97
609.6 8 185.97
609.6 10 199.5
609.6 12 217.7
609.6 14 222.26
609.6 16 238.13
609.6 18 249.47
609.6 20 269.88
762 12 331.12
762 16 333.39
762 18 369.67
762 20 392.35
762 24 437.71
914.4 16 505.75
914.4 18 526.16
914.4 20 555.65
914.4 24 607.81
914.4 30 703.06
1066.8 24 821.00
1066.8 30 934.40
1066.8 36 1063.67
1219.2 30 1186.14
1219.2 36 1333.56
1219.2 42 1505.92
1371.6 42 918.52
1371.6 48 868.62
1524 48 1070.47
1524 54 932.13
1625.6 54 1222.43
1625.6 60 1351.70



Now no need to pay more, meet ductile iron reducer fittings suppliers in GCC countries and enjoy factory prices



How To Make Ductile Iron Concentric Reducer From Pipe?

A ductile iron concentric reducer can be produced customizing a pipe grade. The Di Concentric Reducer can be formed as the pipe is cut in exact size as per requirements. This can be followed by grooving the Ductile Iron Concentric Reducers for better flexibility and tolerance.



Ductile Iron Reducer Sizes

Ductile Iron Reducer Sizes
DN
inch		 DN2
inch		 Flange
drilling		 L
mm
2.55 1.96 PN10-16 200
3.14 2.55 PN10-16 200
3.14 1.96 PN10-16 200
3.93 3.14 PN10-16 200
3.93 2.55 PN10-16 200
3.93 1.96 PN10-16 200
4.92 3.93 PN10-16 200
4.92 3.14 PN10-16 200
5.90 4.921 PN10-16 200
5.90 3.93 PN10-16 200
5.90 3.14 PN10-16 200
7.87 5.90 PN10 300
7.87 3.93 – 300
7.87 3.14 – 300
9.84 7.87 – 300
9.84 5.90 – 300
9.84 3.93 – 300
11.81 9.84 – 300
11.81 7.87 – 300
11.81 5.90 – 300
11.81 3.93 – 300
13.77 11.81 – 300
13.77 9.84 – 300
13.77 7.87 – 300
15.74 13.77 – 300
15.74 11.81 – 300
15.74 9.84 – 300
15.74 7.87 – 300
19.68 15.74 – 600
19.68 11.81 – 600
23.62 19.68 – 600
23.62 15.74 PN10 600
