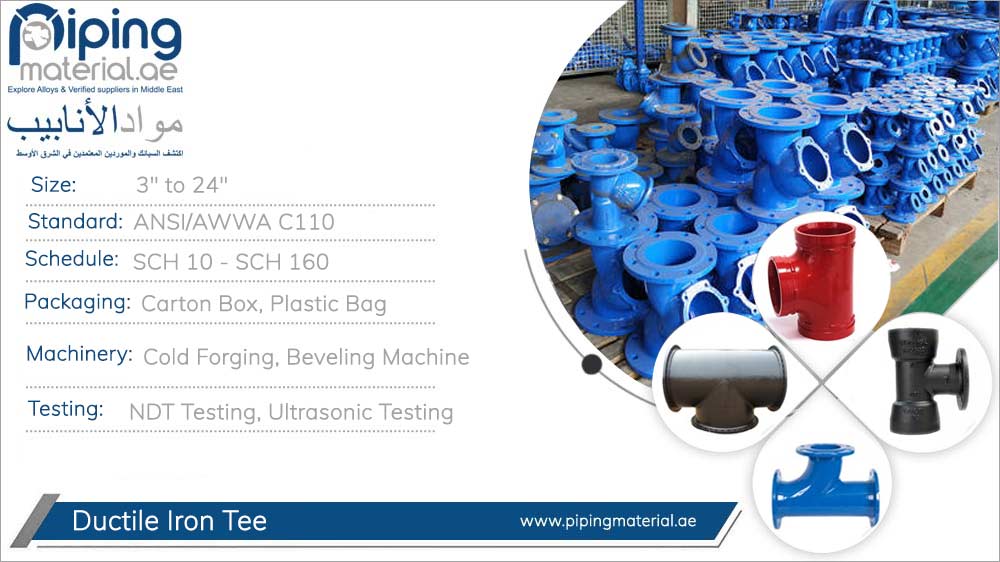

What Is Ductile Iron Tee?
A Ductile iron tee is a versatile three channel fitting. The Ductile Iron Tee Fittings allow for a flow of media to take place across three channels. Designed with constituents of carbon, silicon, manganese, iron, and other alloys, the Ductile Iron Tee Pipe Fitting has good corrosion resistance. The tees have 2 outlets with a 90 degree with the main connection line. The Di Tee is extensively used in the waterworks system to either combine or separate the fluid flow in the system. A Di Pipe Tees is available in different sizes and specifications that allow them to be connected to different devices. The Ductile Iron Pipe Tees is a common feature in chemical processing, water transport systems, automobile industries, etc. A Ductile Iron Mechanical Joint Tees can also be customized to meet different project requirements.
Verified manufacturers and stockists
Specification Of Ductile Iron Tee Fitting
- Specification : Ductile Iron Tee
- Connection : Flange & Socket end
- Material : Ductile Iron
- Rated Pressure Bar : PN 10 & PN 16
- Size : 80 to 750 mm
- Application : Water Supply
- Capacity Hydro test pressure : 25kg
- Delivery Time : Within 2 weeks
- Finishing : Non Poilshed, Polished
- Thickness : 10-15mm To 250MM
- Certified : AS/NZS2280
- Technics : Casting
- Hardness : K12 PN1.0
- Type : Adapters
Advantages of 4 inch ductile iron flanged tee, compare di tapped tee price list & difference
1 Inch, (34mm), Tees, Grooved Paint
US $74.81
1 1/4 Inch, (42mm), Tees, Grooved Paint
US $205.75
1 1/2 x 1 1/4 Inch, Reducing Tees
US $89.58
2 x 1 1/4 Inch,
Reducing Tees
US $97.27
12×8 (324x219mm), Reducing Tees
US $249.39
2×11/2 (60x48mm) Mechanical Tees
US $104.98
Ductile Iron Reducing Tee vs Tapped Tee: What’s the Difference?
Reducing and tapped tees are two types of tees that allow for connection in the system. The Ductile Iron Tapped Tee is a bell end tees that has an end that is tapped. The tapped end facilitates the connection of a threaded pipe. A Ductile Iron Reducing Tees is a fitting that has one of the two channels reduced in size. The reduced end enables a reduction in the movement of fluid in the system. The Di Flanged Reducing Tees can either be threaded or welded in place.
Common Types Of Ductile Iron Tee
Di Tees Fittings
Di Tees Pipe Fitting
Di Flanged Reducing Tees
Ductile Iron Reducing Tees
Ductile Iron Tapped Tees
Di Y Tees
Di Side Outlet Tees
Di Pipe Tees
Di Anchor Tees
Di Swivel Tees
Di Swept Tees
Ductile Iron Double Socket Branch Flanged Tee
Flanged Ductile Iron Tees
Di Hydrant Tees
Di Mechanical Joint Tees
Di Tees
Di Pipe Tees
Di Socket Tees
Ductile Tees
Di Reducing Tees
4 Inch Di Tees
8x8x6 Di Tees
6x6x8 Di Tees
6×4 Di Tees
8 X 4 Di Tee
6 Inch Di Tee
12 Inch Di Tee
6 Di Tee
6 Inch Di Flanged Tee
4 Inch Di Flanged Tee
| Size (mm & inch) |
Pressure Rating (psi) |
Dimensions in MM | ||||
|---|---|---|---|---|---|---|
| Run in mm | Branch in inch | T | T 1 | H | J | |
| 101.6 | 4 | 250 | 13.2 | 13.2 | 165.1 | 6.5 |
| 152.4 | 4 | – | 13.9 | 13.2 | 203 | 203 |
| 152.4 | 6 | – | 13.9 | 13.9 | 203 | 203 |
| 203.2 | 4 | – | 15.2 | 13.2 | 228 | 228 |
| 203.2 | 6 | – | 15.2 | 13.9 | 228 | 228 |
| 203.2 | 8 | – | 15.2 | 15.2 | 228 | 228 |
| 254 | 4 | – | 17.2 | 13.2 | 279 | 279 |
| 254 | 6 | – | 17.2 | 13.9 | 279 | 279 |
| 254 | 8 | – | 17.2 | 15.2 | 279 | 279 |
| 254 | 10 | – | 20.3 | 20.3 | 279 | 279 |
| 304.8 | 4 | – | 19.0 | 13.2 | 304 | 304 |
| 304.8 | 6 | – | 19.0 | 13.9 | 304 | 304 |
| 304.8 | 8 | – | 19.0 | 15.2 | 304 | 304 |
| 304.8 | 10 | – | 22.0 | 20.3 | 304 | 304 |
| 304.8 | 12 | – | 22.0 | 22.0 | 304 | 304 |
| 355.6 | 4 | – | 16.7 | 13.2 | 355 | 355 |
| 355.6 | 6 | – | 16.7 | 13.9 | 355 | 355 |
| 355.6 | 8 | – | 16.7 | 15.2 | 355 | 355 |
| 355.6 | 10 | – | 16.7 | 17.2 | 355 | 355 |
| 355.6 | 12 | – | 16.7 | 19.0 | 355 | 355 |
| 355.6 | 14 | – | 16.7 | 16.7 | 355 | 355 |
| 406.4 | 4 | – | 17.7 | 13.2 | 381 | 381 |
| 406.4 | 6 | – | 17.7 | 13.9 | 381 | 381 |
| 406.4 | 8 | – | 17.7 | 15.2 | 381 | 381 |
| 406.4 | 10 | – | 17.7 | 17.2 | 381 | 381 |
| 406.4 | 12 | – | 17.7 | 19.0 | 381 | 381 |
| 406.4 | 14 | – | 17.7 | 16.7 | 381 | 381 |
| 406.4 | 16 | – | 17.7 | 17.7 | 381 | 381 |
| 457.2 | 6 | – | 19.0 | 13.9 | 330.2 | 393.7 |
| 457.2 | 8 | – | 19.0 | 15.2 | 330.2 | 393.7 |
| 457.2 | 10 | – | 19.0 | 17.2 | 330.2 | 393.7 |
| 457.2 | 12 | – | 19.0 | 19.0 | 330.2 | 393.7 |
| 457.2 | 14 | – | 19.0 | 16.7 | 419.1 | 419.1 |
| 457.2 | 16 | – | 19.0 | 17.7 | 419.1 | 419.1 |
| 457.2 | 18 | – | 19.0 | 19.05 | 419.1 | 419.1 |
| 508 | 4 | – | 20.3 | 13.2 | 355.6 | 431.8 |
| 508 | 6 | – | 20.3 | 13.97 | 355.6 | 431.8 |
| 508 | 8 | – | 20.3 | 15.2 | 355.6 | 431.8 |
| 508 | 10 | – | 20.3 | 17.2 | 355.6 | 431.8 |
| 508 | 12 | – | 20.3 | 19.05 | 355.6 | 431.8 |
| 508 | 14 | – | 20.3 | 16.7 | 355.6 | 431.8 |
| 508 | 16 | – | 20.3 | 17.78 | 457.2 | 457.2 |
| 508 | 457.2 | – | 20.3 | 19.05 | 457.2 | 457.2 |
| 508 | 20 | – | 20.3 | 20.32 | 457.2 | 457.2 |
| 609.6 | 4 | – | 22.6 | 13.2 | 381 | 482.6 |
| 609.6 | 6 | – | 22.6 | 13.97 | 381 | 482.6 |
| 609.6 | 8 | – | 22.6 | 15.24 | 381 | 482.6 |
| 609.6 | 10 | – | 22.6 | 17.27 | 381 | 482.6 |
| 609.6 | 12 | – | 22.6 | 19.05 | 381 | 482.6 |
| 609.6 | 14 | – | 22.6 | 16.7 | 381 | 482.6 |
| 609.6 | 16 | – | 22.6 | 17.7 | 381 | 482.6 |
| 609.6 | 18 | – | 22.6 | 19.05 | 558.8 | 558.8 |
| 609.6 | 20 | – | 22.6 | 20.32 | 558.8 | 558.8 |
| 609.6 | 24 | – | 22.6 | 22.6 | 558.8 | 558.8 |
| 762 | 12 | – | 26.1 | 19.0 | 457.2 | 584.2 |
| 762 | 14 | – | 26.1 | 16.7 | 457.2 | 584.2 |
| 762 | 16 | – | 26.1 | 17.7 | 457.2 | 584.2 |
| 762 | 18 | – | 26.1 | 19.05 | 457.2 | 584.2 |
| 762 | 20 | – | 26.1 | 20.3 | 457.2 | 584.2 |
| 762 | 24 | – | 26.1 | 22.6 | 635 | 635 |
| 762 | 30 | – | 26.1 | 26.1 | 635 | 635 |
| 914.4 | 6 | – | 29.2 | 13.9 | 508 | 660.4 |
| 914.4 | 8 | – | 29.2 | 15.2 | 508 | 660.4 |
| 914.4 | 12 | – | 29.2 | 483.8 | 508 | 660.4 |
| 914.4 | 14 | – | 29.2 | 16.7 | 508 | 660.4 |
| 914.4 | 16 | – | 29.2 | 17.7 | 508 | 660.4 |
| 914.4 | 18 | – | 29.2 | 19.05 | 508 | 660.4 |
| 914.4 | 20 | – | 29.2 | 20.3 | 508 | 660.4 |
| 914.4 | 24 | – | 29.2 | 22.6 | 508 | 660.4 |
| 914.4 | 30 | – | 29.2 | 26.1 | 711.2 | 711.2 |
| 914.4 | 36 | – | 29.2 | 29.2 | 711.2 | 711.2 |
| 1066.8 | 12 | – | 32.5 | 19.05 | 584.2 | 762 |
| 1066.8 | 14 | – | 32.5 | 16.7 | 584.2 | 762 |
| 1066.8 | 16 | – | 32.5 | 17.7 | 584.2 | 762 |
| 1066.8 | 18 | – | 32.5 | 19.05 | 584.2 | 762 |
| 1066.8 | 20 | – | 32.5 | 20.3 | 584.2 | 762 |
| 1066.8 | 24 | – | 32.5 | 22.6 | 584.2 | 762 |
| 1066.8 | 30 | – | 32.5 | 26.1 | 787.4 | 787.4 |
| 1066.8 | 36 | 150 | 32.5 | 29.2 | 787.4 | 787.4 |
| 1066.8 | 36 | – | 45.2 | 40.1 | 787.4 | 787.4 |
| 1066.8 | 42 | 150 | 32.5 | 32.5 | 787.4 | 787.4 |
| 1066.8 | 42 | – | 45.2 | 45.2 | 787.4 | 787.4 |
| 1219.2 | 12 | – | 36.0 | 483.8 | 660.4 | 863.6 |
| 1219.2 | 14 | – | 36.0 | 16.7 | 660.4 | 863.6 |
| 1219.2 | 16 | – | 36.0 | 17.7 | 660.4 | 863.6 |
| 1219.2 | 18 | – | 36.0 | 19.05 | 660.4 | 863.6 |
| 1219.2 | 20 | – | 36.0 | 20.3 | 660.4 | 863.6 |
| 1219.2 | 24 | – | 36.0 | 22.6 | 660.4 | 863.6 |
| 1219.2 | 30 | – | 36.0 | 26.1 | 660.4 | 863.6 |
| 1219.2 | 36 | – | 36.0 | 29.2 | 863.6 | 863.6 |
| 1219.2 | 42 | 150 | 36.0 | 32.5 | 863.6 | 863.6 |
| 1219.2 | 42 | – | 49.7 | 45.2 | 863.6 | 863.6 |
| 1219.2 | 48 | 150 | 36.0 | 36.0 | 863.6 | 863.6 |
| 1219.2 | 48 | – | 49.7 | 49.7 | 863.6 | 863.6 |
| 1371.6 | 36 | – | 26.6 | 29.2 | 787.4 | 939.8 |
| 1371.6 | 42 | – | 26.6 | 32.5 | 990 | 990 |
| 1371.6 | 48 | – | 26.6 | 36.0 | 990 | 990 |
| 1371.6 | 54 | – | 26.6 | 26.6 | 990 | 990 |
| 1524 | 36 | – | 27.9 | 29.2 | 838.2 | 1066.8 |
| 1524 | 42 | – | 27.9 | 32.5 | 1092.2 | 1092.2 |
| 1524 | 48 | – | 27.9 | 36.0 | 1092.2 | 1092.2 |
| 1524 | 54 | – | 27.9 | 26.6 | 1092.2 | 1092.2 |
| 1524 | 60 | – | 27.9 | 27.9 | 1092.2 | 1092.2 |
| 1625.6 | 36 | – | 29.4 | 29.2 | 812.8 | 1117.6 |
| 1625.6 | 42 | – | 29.4 | 32.5 | 1219.2 | 1143 |
| 1625.6 | 48 | – | 29.4 | 36.0 | 1219.2 | 1143 |
| 1625.6 | 54 | – | 29.4 | 26.6 | 1219.2 | 1168.4 |
| 1625.6 | 60 | – | 29.4 | 27.9 | 1219.2 | 1168.4 |
| 1625.6 | 64 | 250 | 29.4 | 29.4 | 1219.2 | 1219.2 |
| Size (in.) |
Weight in kg |
|
|---|---|---|
| Run | Branch | Tee |
| 101.6 | 4 | 29.48 |
| 152.4 | 4 | 45.35 |
| 152.4 | 6 | 47.62 |
| 203.2 | 4 | 65.77 |
| 203.2 | 6 | 68.03 |
| 203.2 | 8 | 74.84 |
| 254 | 4 | 99.79 |
| 254 | 6 | 104.32 |
| 254 | 8 | 108.86 |
| 254 | 10 | 129.27 |
| 304.8 | 4 | 142.88 |
| 304.8 | 6 | 145.15 |
| 304.8 | 8 | 151.95 |
| 304.8 | 10 | 172.36 |
| 304.8 | 12 | 183.70 |
| 355.6 | 4 | 170.0 |
| 355.6 | 6 | 174.6 |
| 355.6 | 8 | 181.4 |
| 355.6 | 10 | 188.2 |
| 355.6 | 12 | 201.8 |
| 355.6 | 14 | 206.3 |
| 406.4 | 4 | 215.4 |
| 406.4 | 6 | 219.9 |
| 406.4 | 8 | 226.7 |
| 406.4 | 10 | 233.6 |
| 406.4 | 12 | 244.9 |
| 406.4 | 14 | 244.9 |
| 406.4 | 16 | 260.8 |
| 457.2 | 6 | 226.7 |
| 457.2 | 8 | 233.6 |
| 457.2 | 10 | 240.4 |
| 457.2 | 12 | 251.7 |
| 457.2 | 14 | 297.1 |
| 457.2 | 16 | 306.1 |
| 18 | 18 | 315.2 |
| 457.2 | 18 | 283.4 |
| 508 | 4 | 285.7 |
| 508 | 8 | 292.5 |
| 508 | 10 | 299.3 |
| 508 | 12 | 310.7 |
| 508 | 14 | 312.9 |
| 508 | 16 | 381.0 |
| 508 | 457.2 | 385.5 |
| 508 | 20 | 401.4 |
| 609.6 | 4 | 396.8 |
| 609.6 | 6 | 399.1 |
| 609.6 | 8 | 403.6 |
| 609.6 | 10 | 410.5 |
| 609.6 | 12 | 421.8 |
| 609.6 | 14 | 421.8 |
| 609.6 | 16 | 430.9 |
| 609.6 | 18 | 576.0 |
| 609.6 | 20 | 591.9 |
| 609.6 | 24 | 625.9 |
| 762 | 12 | 673.5 |
| 762 | 14 | 675.8 |
| 762 | 16 | 682.6 |
| 762 | 18 | 687.1 |
| 762 | 20 | 698.5 |
| 762 | 24 | 918.5 |
| 762 | 30 | 975.2 |
| 914.4 | 6 | 966.1 |
| 914.4 | 8 | 970.6 |
| 914.4 | 12 | 984.2 |
| 914.4 | 14 | 986.5 |
| 914.4 | 16 | 991.0 |
| 914.4 | 18 | 993.3 |
| 914.4 | 20 | 1004.7 |
| 914.4 | 24 | 1022.8 |
| 914.4 | 30 | 1360.7 |
| 914.4 | 36 | 1435.6 |
| 1066.8 | 12 | 1435.6 |
| 1066.8 | 14 | 1435.6 |
| 1066.8 | 16 | 1442.4 |
| 1066.8 | 18 | 1444.6 |
| 1066.8 | 20 | 1453.7 |
| 1066.8 | 24 | 1471.9 |
| 1066.8 | 30 | 1873.3 |
| 1066.8 | 36 | 1934.5 |
| 1066.8 | 36 | 2433.5 |
| 1066.8 | 42 | 2025.2 |
| 1066.8 | 42 | 2531.0 |
| 1219.2 | 12 | 1957.2 |
| 1219.2 | 14 | 1957.2 |
| 1219.2 | 16 | 1961.7 |
| 1219.2 | 18 | 1964.0 |
| 1219.2 | 20 | 1973.1 |
| 1219.2 | 24 | 1989.0 |
| 1219.2 | 30 | 2020.7 |
| 1219.2 | 36 | 2519.7 |
| 1219.2 | 42 | 2594.5 |
| 1219.2 | 42 | 3263.5 |
| 1219.2 | 48 | 2676.1 |
| 1219.2 | 48 | 3347.5 |
| 1371.6 | 36 | 2199.9 |
A Di tee is designed with 3 openings and is used to divide the flow or curtail the flow in one channel. A Flanged Ductile Iron Tee has excellent castability and machinability that makes producing them easy. The tees also have outstanding toughness and strength. The di socket tee is very resilient and has lower emissions, and requires little to no energy to operate. The versatile Ductile Iron Hydrant Tee has an excellent strength-to-weight ratio and is cheaper than ordinary steel. These tees are environmentally friendly and have a long service life.
Meet verified ductile iron side outlet tee manufacturers in Dubai, also refer to connection types of ductile iron tee fittings
Connection Types of Ductile Iron Tee Pipe Fitting
The Ductile iron tee pipes are classified based on their connection types. The Ductile Iron Anchor Tees can be connected via the socket weld end, threaded end, or flanged connection amongst the most common. The connection type of the Ductile Iron Y Tees can either be with a plain or bevel end.
A large selection of ductile iron anchor tee and side outlet tee suppliers in the middle east, view measure process of di double socket branch flanged tee
How To Measure Ductile Iron Flanged Tee?
Tees are generally measured from their run to the bull of the fitting. The Ductile Iron Side Outlet Tees run is considered the length of the tee with the bull top part of the tees.
For example. If a Ductile Iron Double Socket Branch Flanged Tee is designed in dimensions of 3/4 x 3/4 and 1/2. The right inside diameter is ¾, and the top inside diameter is ½.
Reliable importer of ductile iron mechanical joint tee in sharjah, find here the installation benefits of di swivel tee, contact for any quantity and size range
Reasons To Buy Ductile Iron Reducing Tee
Installation Benefits Of Ductile Iron Swivel Tee
The ductile iron swivel tee is a robust fitting that is connected to piping apparatus. A Di Swivel Tees allows the coupling or the hose connection to rotate and move easily. This helps avert twisting, kinking, and excessive bending of the tees. The Ductile Iron Swept Tees reduces maintenance and makes the entire system more efficient.
