En 1092-1 flange

EN 1092-1 Flange Highlights
| Size in Ready Stock: | 1/2″ To 48″ | DN10 – DN5000 |
|---|---|
| Thread : | BSPP (Male & female), NPT, FPT, BSP, MNPT (Male), MPT/ BSPT (Female) |
| Approval : | SABIC, RINA, KPI, EIL, KNPC, Q CHEM, ADNOC, BAPCO, MA’ADEN, KOC, Saudi Aramco |
| Suited for: | High Pressure, Seawater |
| European & American Standard: | API, EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN, GOST |
| Raw Material Origin: | Indian, German, Korean, Japanese, UK, European |
| Pressure Class: | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Types of Faces : | M/F (Male And Female), RTJ (Ring Type Joint), T/G (Tongue And Groove ), RF (Raised Face), FF (Flat Face) |
| Service Life : | 40+ years |
| MTC: | EN 10204/3.1B and 3.2 |
| RFQ: | support@pipingmaterial.ae |
Check EN 1092-1 Type 11 PN 40 Blind Flange Dimension And Specification
EN 1092-1 Flange Specifications

Size In Ready Stock: 1/2″ to 48″ | DN10 – DN5000

Maximum Size: NPS 26 to NPS 60 For Large Diameter

Manufacturing Way: Forged, Heat treated and machined, Casting

Bolts Hole Number: 4 To 48

Corrosion Resistance: Seawater, High Pressure, High Temperature

Surface Finish: Spiral Serrated, Stock Finish, Mirror &, Anti-rust Coating

Application: Heavy Oil Refineries, Oil & Gas Industry, Chemical Industry, Nuclear Power Plants

Testing: Tensile Test, Hydrostatic Testing Machine, Hardness Testing, Pressure Shell Test
Documentation: Material Test Certificates (MTC), MTC EN 10204/3.1B
Packaging: Plastic Bag, Wooden Case, Carton Box, Custom
Value Added Services: Cutting, Polishing, Threading, Casting, Machining

Equipments: Electric Bevelling Machine, Pushing Machine, Press Machine, Sand-blasting Machine, Bending Machine
Get Quote Directly From EN 1092-1 Flange Suppliers in UAE
100% Tested EN 1092-1 Flange Weld Neck Flanges With MTC EN 10204 3.1/3.2
EN 1092-1 PN16 Flange Dimensions
| DN | Mating dimensions | Neck Outside Diameter (A) | Bore Diameter | Flange Thickness | Chamfer
(E) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outside Diameter (D) | Bolt Circle Diameter (K) |
|
Bolting | |||||||||||
| No | Size | B1 | B2 | B3 | C1 | C2 | C3 | C4 | ||||||
| 01, 02, 05, 11, 12, 21 | 11 21* 34 |
01 12 32 |
02 | 04 | 01 02 04 |
11 12 13 |
21 | 05 | 02 04 |
|||||
| 50 | 165 | 125 | 18 | 4 | M16 | 60.3 | 61.5 | 65 | 77 | 19 | 18 | 18 | 18 | |
| 65 | 185 | 145 | 18 | ** | M16 | 76.1 | 77.5 | 81 | 96 | 20 | 18 | 18 | 18 | 6 |
| 80 | 200 | 160 | 18 | 8 | M16 | 88.9 | 90.5 | 94 | 108 | 20 | 20 | 20 | 20 | 6 |
| 100 | 220 | 180 | 18 | 8 | M16 | 114.3 | 116 | 120 | 134 | 22 | 20 | 20 | 20 | 6 |
| 150 | 285 | 240 | 18 | 8 | M20 | 168.3 | 170.5 | 174 | 188 | 24 | 22 | 22 | 22 | 6 |
| 200 | 340 | 295 | 22 | 12 | M20 | 219.1 | 221.5 | 226 | 240 | 26 | 24 | 24 | 24 | 6 |
| 250 | 405 | 355 | 26 | 12 | M24 | 273 | 276.5 | 281 | 294 | 29 | 26 | 26 | 26 | 8 |
| 300 | 460 | 410 | 26 | 12 | M24 | 323.9 | 327.5 | 333 | 348 | 32 | 28 | 28 | 28 | 8 |
| 400 | 580 | 525 | 30 | 16 | M27 | 406.4 | 411 | 416 | 454 | 38 | 32 | 32 | 32 | 8 |
| 500 | 715 | 650 | 33 | 20 | M30 | 508 | 513.5 | 519 | 556 | 46 | 44 | 44 | 44 | 8 |
| 600 | 840 | 770 | 36 | 20 | M33 | 610 | 616.5 | 622 | 660 | 52 | 54 | 54 | 54 | 8 |
| 700 | 910 | 840 | 36 | 24 | M33 | 711.1 | – | – | – | – | 36 | 42 | 48 | – |
| 800 | 1025 | 950 | 39 | 24 | M36 | 813 | – | – | – | – | 38 | 42 | 52 | – |
| 900 | 1125 | 1050 | 39 | 28 | M36 | 914 | – | – | – | – | 40 | 44 | 58 | – |
| 1000 | 1255 | 1170 | 42 | 28 | M39 | 1016 | – | – | – | – | 42 | 46 | 64 | – |
| 1200 | 1485 | 1390 | 48 | 32 | M45 | 1219 | – | – | – | – | 48 | 52 | 76 | – |
| 1400 | 1685 | 1590 | 48 | 36 | M45 | 1422 | – | – | – | – | 52 | 58 | – | – |
| 1600 | 1930 | 1820 | 56 | 40 | M52 | 1626 | – | – | – | – | 58 | 64 | – | – |
| 1800 | 2130 | 2020 | 56 | 44 | M52 | 1829 | – | – | – | – | 62 | 68 | – | – |
| 2000 | 2345 | 2230 | 62 | 48 | M56 | 2032 | – | – | – | – | 66 | 70 | – | – |
| Thickness of Collar (F) | Diameter of Shoulders G (maximum) | Length | Neck Diameters |
Corner Radius (R) | Neck Thickness (S) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 16 | – | 28 | 45 | 8 | 74 | 84 | 84 | 5 |
| 16 | 55 | 32 | 45 | 10 | 92 | 104 | 104 | 6 | 2.9 |
| 16 | 70 | 34 | 50 | 10 | 105 | 118 | 120 | 6 | 3.2 |
| 18 | 90 | 40 | 52 | 12 | 131 | 140 | 140 | 8 | 3.6 |
| 20 | 140 | 44 | 55 | 12 | 184 | 195 | 190 | 10 | 4.5 |
| 20 | 190 | 44 | 62 | 16 | 235 | 246 | 246 | 10 | 5.9 |
| 22 | 235 | 46 | 70 | 16 | 292 | 298 | 296 | 12 | 6.3 |
| 24 | 285 | 46 | 78 | 16 | 344 | 350 | 350 | 12 | 7.1 |
| 28 | 380 | 63 | 85 | 16 | 445 | 456 | 458 | 12 | 8 |
| 32 | 475 | 73 | 90 | 16 | 548 | 559 | 576 | 12 | 8 |
| 32 | 575 | 83 | 95 | 18 | 652 | 658 | 690 | 12 | 8.8 |
| – | 670 | 83 | 100 | 18 | 755 | 760 | 760 | 12 | 8.8 |
| – | 770 | 90 | 105 | 20 | 855 | 864 | 862 | 12 | 10 |
| – | 860 | 94 | 110 | 20 | 955 | 968 | 962 | 12 | 10 |
| – | 960 | 100 | 120 | 22 | 1058 | 1072 | 1076 | 16 | 10 |
| – | 1160 | – | 130 | 30 | 1262 | – | 1282 | 16 | 12.5 |
| – | 1346 | – | 145 | 30 | 1465 | – | 1482 | 16 | 14.2 |
| – | 1546 | – | 160 | 35 | 1668 | – | 1696 | 16 | 16 |
| – | 1746 | – | 170 | 35 | 1870 | – | 1896 | 16 | 17.5 |
| – | 1950 | – | 180 | 40 | 2072 | – | 2100 | 16 | 20 |
Looking To Switch Suppliers? Obtain Quotes Of EN 1092-1 PN6 Flange And Compare It To Your Current Suppliers Revised Cost, Refer Size
| DN | Mating dimensions | Flange thickness | Length | Neck Dia | Wall thickness (see 5.6.1) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Diameter of bolt circle | Diameter of bolt hole | Bolting | OD of neck | Corner radii | ||||||||||
| D | K | L | Number | Size | A | C2 | C3 | H2 | H3 | N1 | N3 | R1 | S | ||
| Flange type | |||||||||||||||
| 11, 21 | 11 21 a | 11 | 21 | 11 | 11 | 11 | 21 | 11 | 21 | 11 | |||||
| 10 b, c | 125 | 85 | 18 | 4 | M16 | 24 | 46 | 4 | |||||||
| 15 | 130 | 90 | 18 | 4 | M16 | 21,3 | 26 | 26 | 60 | 6 | 48 | 52 | 4 | 4 | 2,6 |
| 25 | 150 | 105 | 22 | 4 | M20 | 33,7 | 28 | 28 | 65 | 8 | 60 | 63 | 4 | 4 | 3,6 |
| 40 | 185 | 135 | 26 | 4 | M24 | 48,3 | 34 | 34 | 80 | 10 | 84 | 90 | 6 | 4 | 5,0 |
| 50 | 200 | 150 | 26 | 8 | M24 | 60,3 | 38 | 38 | 85 | 10 | 95 | 102 | 6 | 5 | 6,3 |
| 65 | 230 | 180 | 26 | 8 | M24 | 76,1 | 42 | 42 | 95 | 12 | 124 | 125 | 6 | 5 | 8,0 |
| 80 | 255 | 200 | 30 | 8 | M27 | 101,6 | 46 | 46 | 102 | 12 | 136 | 142 | 8 | 6 | 11,0 |
| 100 | 300 | 235 | 33 | 8 | M30 | 127,0 | 54 | 54 | 120 | 14 | 164 | 168 | 8 | 6 | 14,2 |
| 125 | 340 | 275 | 33 | 12 | M30 | 152,4 | 60 | 60 | 140 | 16 | 200 | 207 | 8 | 6 | 16,0 |
| 150 | 390 | 320 | 36 | 12 | M33 | 177,8 | 68 | 68 | 160 | 18 | 240 | 246 | 10 | 8 | 17,5 |
| 200 | 485 | 400 | 42 | 12 | M39 | 244,5 | 82 | 82 | 190 | 25 | 305 | 314 | 10 | 8 | 25,0 |
| 250 | 585 | 490 | 48 | 16 | M45 | 298,5 | 100 | 100 | 215 | 30 | 385 | 394 | 12 | 10 | 32,0 |
| 300 b | 690 | 590 | 52 | 16 | M48 | 120 | 480 | 10 | |||||||
EN 1092-1 PN40 Flange Dimensions

| DN | Mating dimensions | Neck Outside Diameter Of (A) | Bore Diameter | Flange Thickness | Chamfer (E) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outside Diameter Of (D) | Bolt Circle Diameter Of (K) | Bolt Hole Diameter Of (L) | Bolting | |||||||||||
| Number | Size | B1 | B2 | B3 | C1 | C2 | C3 | C4 | ||||||
| 01, 02, 05, 11, 12, 21 | 11 21* 34 |
01 12 32 |
02 | 04 | 01 02 04 |
11 12 13 |
21 | 05 | 02 04 |
|||||
| 10 | 90 | 60 | 14 | 4 | M12 | 17.2 | 18 | 21 | 31 | 14 | 16 | 16 | ||
| 15 | 95 | 65 | 14 | 4 | M12 | 21.3 | 22 | 25 | 35 | 14 | 16 | 16 | 3 | |
| 20 | 105 | 75 | 14 | 4 | M12 | 26.9 | 27.5 | 31 | 42 | 16 | 18 | 18 | 4 | |
| 25 | 115 | 85 | 14 | 4 | M12 | 33.7 | 34.5 | 38 | 49 | 16 | 18 | 18 | 4 | |
| 40 | 150 | 110 | 18 | 4 | M16 | 48.3 | 49.5 | 53 | 67 | 18 | 18 | 18 | 5 | |
| 50 | 165 | 125 | 18 | 4 | M16 | 60.3 | 61.5 | 65 | 77 | 20 | 20 | 20 | 5 | |
| 80 | 200 | 160 | 18 | 8 | M16 | 88.9 | 90.5 | 94 | 114 | 24 | 24 | 24 | 6 | |
| 100 | 235 | 190 | 22 | 8 | M20 | 114.3 | 116 | 120 | 138 | 26 | 24 | 24 | 6 | |
| 125 | 270 | 220 | 26 | 8 | M24 | 139.7 | 141.5 | 145 | 166 | 28 | 26 | 26 | 6 | |
| 150 | 300 | 250 | 26 | 8 | M24 | 168.3 | 170.5 | 174 | 194 | 30 | 28 | 28 | 6 | |
| 200 | 375 | 320 | 30 | 12 | M27 | 219.1 | 221.5 | 226 | 250 | 36 | 34 | 36 | 6 | |
| 300 | 515 | 450 | 33 | 16 | M30 | 323.9 | 327.5 | 333 | 368 | 48 | 42 | 42 | 8 | |
| 350 | 580 | 510 | 36 | 16 | M33 | 355.6 | 359.5 | 365 | 418 | 54 | 46 | 46 | 8 | |
| 400 | 660 | 585 | 39 | 16 | M36 | 406.4 | 411 | 416 | 472 | 60 | 50 | 50 | 8 | |
| 450 | 685 | 610 | 39 | 20 | M36 | 457 | 462 | 467 | 510 | 66 | 57 | 57 | 8 | |
| 500 | 755 | 670 | 42 | 20 | M39 | 508 | 513.5 | 519 | 572 | 72 | 57 | 57 | 8 | |
| 600 | 890 | 795 | 48 | 20 | M45 | 610 | 616.5 | 622 | 676 | 84 | 72 | 72 | 8 | |
| Thickness of collar (F) | Shoulders Diameter of (G) maximum | Length | Neck Diameters |
Corner Radius (R) | Neck Thickness (S) | ||||
|---|---|---|---|---|---|---|---|---|---|
| H1 | H2 | H3 | N1 | N2 | N3 | ||||
| 32 34 |
05 | 12 13 |
11 34 |
11 34 |
11 34 |
12 13 |
21 | 11 12 13 21 |
11 34 |
| 3 | 12 | – | 22 | 35 | 6 | 28 | 30 | 28 | 4 |
| 12 | – | 22 | 38 | 6 | 32 | 35 | 32 | 4 | 2 |
| 14 | – | 26 | 40 | 6 | 40 | 45 | 40 | 4 | 2.3 |
| 14 | – | 28 | 40 | 6 | 46 | 52 | 52 | 4 | 2.6 |
| 14 | – | 32 | 45 | 7 | 64 | 70 | 70 | 6 | 2.6 |
| 16 | – | 34 | 48 | 8 | 75 | 84 | 84 | 6 | 2.9 |
| 18 | 70 | 40 | 58 | 12 | 105 | 118 | 120 | 8 | 3.2 |
| 20 | 90 | 44 | 65 | 12 | 134 | 145 | 142 | 8 | 3.6 |
| 22 | 115 | 48 | 68 | 12 | 162 | 170 | 162 | 8 | 4 |
| 24 | 140 | 52 | 75 | 12 | 192 | 200 | 192 | 10 | 4.5 |
| 28 | 190 | 52 | 88 | 16 | 244 | 260 | 254 | 10 | 6.3 |
| 34 | 285 | 67 | 115 | 18 | 362 | 380 | 378 | 12 | 8 |
| 36 | 330 | 72 | 125 | 20 | 408 | 424 | 432 | 12 | 8.8 |
| 42 | 380 | 78 | 135 | 20 | 462 | 478 | 498 | 12 | 11 |
| 46 | 425 | 84 | 135 | 20 | 500 | 522 | 522 | 12 | 12.5 |
| 50 | 475 | 90 | 140 | 20 | 562 | 576 | 576 | 12 | 14.2 |
| 54 | 575 | 100 | 150 | 20 | 666 | 686 | 686 | 12 | 16 |

How Does EN 1092-1 Flange Design ?
| Type | Flange form | Diagram | Pressure rating |
|---|---|---|---|

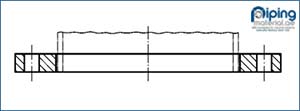

| EN 1092-1 Type 01 | Plate flange or slip-on flange | ![]() |
PN 10/ PN16/ PN40 |
| EN 1092-1 Type 02 | Loose plate flange with weld-on plate collar | ![]() |
PN 2,5 to PN 40 |

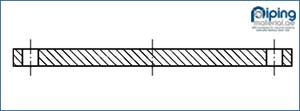

| EN 1092-1 Type 05 | Blind Flange | ![]() |
PN 10/ PN16/ N40 |

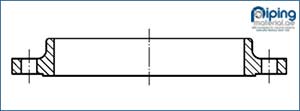

| EN 1092-1 Type 11 | Weld-neck flange | ![]() |
PN 2,5 to PN 400 |
| EN 1092-1 Type 12 | Hubbed Slip-on Flange | ![]() |
PN 2,5 to PN 400 |

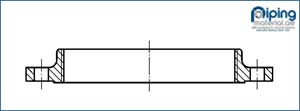

| EN 1092-1 Type 13 | Hubbed threaded flange | ![]() |
PN 2,5 to PN 400 |

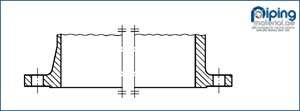

| EN 1092-1 Type 21 | Integral flange | ![]() |
– |
| EN 1092-1 Type 32 | Weld-on plate collars | ![]() |
PN 2,5 to PN 40 |
| EN 1092-1 Type 33 | Lapped pipe ends | ![]() |
PN 2,5 to PN 40 |

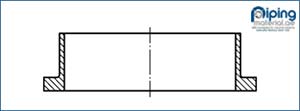

| EN 1092-1 Type 35 | Weldring neck | ![]() |
PN 10 to PN 40 |
| EN 1092-1 Type 36 | Pressed collar with long neck | ![]() |
PN 10 to PN 40 |

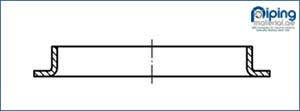

| EN 1092-1 Type 37 | Pressed collar | ![]() |
PN 10 to PN 40 |
See Where You Can Find Material Ex Stock
| Umm Al Quwain | Sharjah | Fujairah | Doha |
|---|---|---|---|
| Dubai | Ras Al Khaimah | Muscat | Riyadh |
| Ajman | Saudi Arabia | Abu Dhabi | Al Jubail |
| Dimension | EN 1092-1 Flange Types | Size | EN 1092-1 tolerance in MM |
|---|---|---|---|
| – | – | DN 125 | + 3.0 0 |
| – | 11. ,21.34 | > DN 125 s DN 1200 | +4.5 0 |
| O.D. of neck A | – | DN 1200 | +6,0 0 |
| – | – | > DN 150 | +0,75% . min. + 0,3 mm |
| – | 35.36.37 | DN 150 | 11% max. 330mm |
| – | – | – | +0.5 0 |
| Diameter of bore B1,B2,B3 | 01. 02. 04. 12. 32 | DN 100 < DN 400 | 10 0 |
| – | – | DN 400 < DN 600 | +15 0 |
| – | – | DN 600 | + 3.0 0 |
| – | – | – | Both faces un-machined or machined neck one face neck machined |
| – | 11.34b | > DN 100 | + 10 2.0 0 0 |
| – | – | DN 100 s DN 400 | +1.5 +2,5 0 0 |
| Wall thickness SC | – | DN 400 | +20 3,5 0 0 |
| – | 35 | S 8 8 | +15% -10% |
| – | – | >8 | +15% -5% |
| – | – | – | -12,5% +15% |
| – | 36.37 | DN 600 | -0.5 mm +15% |
| Wall thickness Of bevelled SP | 35,36,37 | <6 | +1,0 0 |
| – | – | >6 | +2,0 0 |
| – | – | DN 250 | +4,0 |
| – | – | DD 250 < DN : 500 | +5.0 |
| – | – | > DN 500 < DN 800 | +6,0 |
| – | 21 | > DN 800 < DN 1200 | +7,0 |
| – | – | > DN 1200 < DN 1600 | +8,0 |
| Outside diameter of D | – | > DN 1600 < DN 2000 | 10,0 |
| – | – | > DN 150 | +2,0 |
| – | – | DN 150 < DN 500 | +3,0 |
| – | All other types | DN 500 < DN 1200 | +5.0 |
| – | – | DN 1200 < DN 1800 | +7,0 |
| – | – | DN 1800 | 10.0 |
| Dimension | Types | Facing | Size | Tolerance |
|---|---|---|---|---|
| – | – | All machined on both faces types | < 18 thickness in mm> 18 mm < 50 thickness mm > 50 thickness mm | + 1.0 + 1.5 + 2,0 |
| Flange C1, C2, C3. | Thickness C4 | Only machined on front face Type 02 and 04 (unmachined) | < 18 thickness in mm> 18 mm < 50 thickness mm > 50 thickness mm | +2.0 -1.3 .4.0 -1.5 +7.0 -2.0 |
| Facing d, | Diameter | All types | < DN 250 > DN 250 | -2.0 -1.4 :3.0 -1.0 |
| Facing | F height | All facing type B. D. F and G types | 2 mm | 0 -1.0 |
| Facing | F2 height | All facing types C. E and G types | All Types Of DN | +0.5 0 |
| Facing | F3 height | All acing types D and F types | All Types Of DN | +0.5 0 |
| – | – | All facing type H type | All Types Of DN | +0.2 0 |
| Facing | F4 height | All facing type H types | All Types Of DN | +0.5 0 |
| – | W | – | – | +0.5 0 |
| – | X | All | All Types Of DN | 0 -0.5 |
| Facing | Y | Types | – | +0.5 0 |
| – | Z | – | – | 0 -0.5 |
| Diameter | bolt | – | M10 to M24 bolt sizes | + 1.0 |
| Circle K | – | All types | M27 to M45 bolt sizes | + 1,5 |
| Centre-to-centre | – | – | M10 to M24 bolt sizes | + 1,0 |
| Of adjacent holes | bolt | All types | M27 to M45 bolt sizes | + 1,5 |
| Eccentricity | of | – | < DN 100 | 0 |
| Diameters of machined | face | All types | > DN 100 | 2,0 |
| Parallelism between | bolting | All machined bearing surfaces types | All Types Of DN | 1° |
| Flange and bearing jointing | surfaces faces | All unmachined bearing surfaces types | – | 2° |
EN 1092-1 Type 11 Weld Neck Flange Pressure Class
- PN10
- PN16
- PN25
- PN40
- PN63
- PN100
- PN160
- PN250
- PN320
- PN400
Manufacturing Types of EN 1092-1 Flange
| Type | Flange form |
|---|---|
| EN 1092-1 Type B | Plate flange with a raised face |
| EN 1092-1 Type C | Hubbed slip-on flange |
| EN 1092-1 Type D | Hubbed threaded flange |
| EN 1092-1 Type E | Weld-neck flange |
| EN 1092-1 Type F | Hubbed slip-on flange for welding |
| EN 1092-1 Type H | Hubbed threaded flange for welding |
| EN 1092-1 Type I | Integral flange |
| EN 1092-1 Type J | Loose plate flange for welding |
Which Manufacturing Methods Are Recommended For EN 1092-1 Materials ?
| Type of flange and Collar | Forging method | Machined method (from forged or rolled bar) |
Pressed method from seamless or welded pipes (from flat products) |
Casting method | Plates method (made from flat plate) |
Bent andelectric welded (From bars, sectional strip orsteel B , C , D , E) |
|---|---|---|---|---|---|---|
| EN 1092-1 Type 01 plate flange for welding | Yes | Yes | No | No | Yes | Yes |
| EN 1092-1 Type 02 loose plate flange for Types 32-37 | Yes | Yes | No | Yes | No | Yes |
| EN 1092-1 Type 04 loose plate flange for Type 34 | Yes | Yes | No | Yes | No | Yes |
| EN 1092-1 Type 05 blind flange | Yes | Yes | No | Yes | No | No |
| EN 1092-1 Type 11 weld neck flange | Yes | Yes | No | No | No | Yes, for DN 700 |
| EN 1092-1 Type 12 hubbed slip on flange for welding | Yes | Yes | No | No | No | No |
| EN 1092-1 Type 13 hubbed threaded flange | Yes | Yes | No | No | No | No |
| EN 1092-1 Type 21 integral flange | Yes | Yes | Yes | No | No | No |
| EN 1092-1 Type 32 weld on plate collar | Yes | Yes | No | Yes | No | Yes |
| EN 1092-1 Type 33 lapped end pipe | Yes | No | No | Yes | No | Yes |
| EN 1092-1 Type 34 weld neck collar | Yes | Yes | Yes | No | No | Yes |
| EN 1092-1 Type 35 welding neck | Yes | Yes | No | Yes | No | Yes |
| EN 1092-1 Type 36 pressed collar with long neck | Yes | No | No | No | Yes | Yes |
| EN 1092-1 Type 37 pressed collar | Yes | Yes | No | Yes | No | Yes |
EN 1092-1 Steel Flanges Surface Finish
| – | Outer diameter | Centre bore diameter | – | – | ||
|---|---|---|---|---|---|---|
| EN 1092-1 flange type | Holes of Bolt | Spot facing | Ra maximum µm |
Rz maximum µm |
Ra max µm |
Rz maximum µm |
| EN 1092-1 Type 01 plate flange for welding | b | c | 25 | 160 | 25 | 160 |
| EN 1092-1 Type 02 loose plate flange for Types 32-37 | b | – | 25 | 160 | 25 | 160 |
| EN 1092-1 Type 04 loose plate flange for Type 34 | b | – | 25 | 160 | 25 | 160 |
| EN 1092-1 Type 05 blind flange | b | c | 25 | 160 | n.a. | – |
| EN 1092-1 Type 11 weld neck flange | b | c | 25 a | 160 a | 25 a | 160 a |
| EN 1092-1 Type 12 hubbed slip on flange for welding | b | c | 25 a | 160 a | 25 a | 160 a |
| EN 1092-1 Type 13 hubbed threaded flange | b | c | 25 a | 160 a | See thread standard | |
| EN 1092-1 Type 21 integral flange | – | c | 25 a | 160 a | 25 a | 160 a |
| EN 1092-1 Type 32 weld on plate collar | – | – | 25 | 160 | 25 | 160 |
| EN 1092-1 Type 33 lapped end pipe | – | – | 25 a | 160 | 25 a | 160 |
| EN 1092-1 Type 34 weld neck collar | – | – | 25 a | 160 a | 25 a | 160 a |
| EN 1092-1 Type 35 weldring neck | – | – | 25 a | 160 a | 25 a | 160 a |
| EN 1092-1 Type 36 pressed collar with long neck | – | – | 25 a | 160 a | 25 a | 160 a |
- a = up to PN 40 un-machined
- b = PN 40 (only drilled) bolt holes
- c = PN ≥ 63 for chip machining spot facing
Before You Buy EN 1092-1 Weld Neck Flange In Dubai, Check The Manufacturing Origin, View UNI EN 1092-1 Plate Flange Advantages And Disadvantages
Advantages of Using EN 1092-1 Slip On Flanges ?
- Can Resist Carbide Precipitation
- High Tensile Strength
- High Creep And Rupture Properties
- Durability
- Corrosion Resistance
- Wide Range Of Environment
- Great Welding Properties
Most Common Types of EN 1092-1 Flanges
EN 1092-1 Plate Flange
EN 1092-1 Type 11 PN 40 Blind Flange
EN 1092-1 PN6 Flange
EN 1092-1 Weld Neck Flange
UNI EN 1092-1 Plate Flange
EN 1092-1 RF Flange
EN 1092-1 Blind Flange
En 1092-1 Type 01 PN6 Plate Flange
Din EN 1092-1 PN-160 Flange
Sales Agents In Following Locations
| MENA | Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine |
|---|---|
| Middle East Countries | Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen |
| Africa | South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria |
Get Benefits Of The Lowest Price When Buying From Verified EN 1092-1 Rf Flange Manufacturers & Suppliers In UAE.
Which Documents You Should Verify When Buying EN 1092-1 Rf Flange ?
Find EN 1092-1 Flange Suppliers in UAE Who Provide Complete Documentation
- NABL Laboratory Reports
- Raw Material Test Reports
- Commercial Invoice which includes HS Code
- Certificate of Origin
- Material Test Certificates (MTC)
- Test Certificates certifying NACE MR0175, NACE MR0103
- Quality Assurance Plan (QAP)
EN 1092-1 Flange Technical Details
| British/ European standard | Standard size range | Pressure class |
|---|---|---|
|
|
|
| Manufacturing Method | Check Before Delivery | Quality Test & MTC |
Above listed companies can export EN 1092-1 flange to UAE, Saudi Arabia, USA, UK, Egypt & Qatar |
|
|
| Marking & Packaging | EN 1092-1 Flange material | DN |
|
|
|
| PN | Facing Types | Bolts Holes |
|
|
|
What Factors Affect The Dimension & Size Of EN 1092-1 Flanges ?
- The outer diameter of the body
- The diameter of the bolt circle
- Bolt hole diameter
- Bolt hole alignment
- The blind thickness
Sales Representatives Are Available To Provide Prompt Quotes
| Country | Cities |
|---|---|
| Netherlands | Amsterdam |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Seraing |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | Rotterdam |
| Belgium | Leuven |
| Belgium | Westerlo |
| Belgium | Antwerp |
Tired Of Buying Costly EN 1092-1 Pn40 Flange From Stockists? Contact Leading EN 1092-1 Blind Flange Manufacturers For Wholesale Prices In The Middle East, View Applications
Applications Of EN 1092-1 PN40 Slip On Flange
Get Connect With EN 1092-1 Flange Suppliers in UAE Who Supplied in Different Industries For Their Need
- Nuclear Power
- Oil And Gas Industry
- Food Processing And Manufacturing
- Waterworks Systems
- Municipal Pipe Systems
- Fossil Fuel Power Plants
- Power Plants Industry
Call Now For Free Sample Which Can Be Arranged From Locations Mentioned Below
| Region | City | Country |
|---|---|---|
| Middle East | Dubai | United Arab Emirates |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Dammam | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Doha | Qatar |
| Middle East | Jeddah | Saudi Arabia |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| MENA | Cairo | Egypt |
| Africa | Cape Town | South Africa |
| Africa | Johannesburg | South Africa |
| Africa | Lagos | Nigeria |
What Equipments Are Used For The Testing Of EN 1092-1 Blind Flange ?
- Direct-reading Spectrograph
- X-ray Detector
- Hydrostatic Testing Machine
- Magnetic Particle Detector
- Ui Trasonic Flaw Detector













Table of Content
