Forged Flanges Overview

Manufacturing Method	Forged, Plate and Cast
Standard	ASME B16.5 (Forged Flange), ASME B16.47 (Large Diameter Forged Flange)
Sizes	NPS 1/2″ to NPS 24″ (150#, 300#, 400#, 600#, 900#, 1500#), NPS 1/2 – NPS 12″ (2500# Forged Flange)
Pressure Rating Class	ASME B16.5 Class 150, 300, 400, 600, 900, 1500, 2500
Steel and Alloys	Copper, Copper Nickel, Stainless Steel, Duplex and Super Duplex, Carbon Steel, Nickel Alloy, Inconel, 16Mo3, Monel, Hastelloy, Titanium Forged Flanges

Table of Content

Forged Flanges Specification
ASME B16.5 Flange Dimension
Size Chart of ASTM A105 Forged Flanges
What is the Connection Method For Forged Flanges?
Processing of Forged Pipe Flange
Purpose of Forged Carbon Steel Flanges
Class 300 ANSI B16.47 Forged Flange Dimensions
How to Determine Whether the ASME B16.5 SS Blind Forged Flange Specification is Accurate?
ANSI B16.5 Forged Flanges Face Types
ANSI B16.36 Flange Dimensions
Weight Chart of Class 150 ANSI B16.5 Forged Pipe Flange
ASME B16.5 Forged Steel Flanges Pressure Ratings
Forged Flanges Manufacturing Process
Manufacturing Standard of Forged Flange
Gasket Chart of MS Flange Forged
Carbon Steel Forged Flange Hydrostatic Test Pressures
Types of Forged Flange
Forged Blind Flange Torque Chart
How to Test the Stainless Steel Forged Pipe Flange?
Grain Structure of ASME B16.5 Forged Flange
List of Raw Materials Used in Forged Flange Production

Forging Method of Forged Steel Flanges
Readily Available Stock Of Forged Flanges
Inconel Forged Flange
Monel Forged Welded Flange
Inconel 625 Slip On Forged Flange
Hastelloy Forged Flange
Hastelloy C276 Forged Blind Flange
ASTM B564 UNS N06625 Forged Pipe Flange
Stainless Steel Forged Flange
ASTM A182 Gr 304 Long Forged Weld Neck Flanges
SS 304L Forged Welded Flange
316 Stainless Steel Slip On Forged Flange
AISI 316L Forged Blind Flange
Duplex Steel Forged Flange
ASTM A182 F51 Forged Welded Flange
ASTM A182 F60 Slip On Forged Steel Flange
ASTM A182 F53 Forged Blind Flange
ASTM A182 F55 Forged Pipe Flange
Super Duplex Forged Flange
Carbon Steel Forged Flange
ASTM A105 Slip On Forged Steel Flange
A105N Normalized Forged Blind Flange
ASTM A350 LF2 Forged Pipe Flange
LTCS Long Forged Weld Neck Flanges
ASTM A694 F42 Forged Welded Flange
ASTM A692 F52 Forged Pipe Flange

Find the Best Forged Carbon Steel Flanges Suppliers in UAE

Forged Flanges Specification

Connection Types: Raised face (RF) Forged Flange, Ring Joint (RTJ) Forged Flange, Flat Face (FF) Forged Flange

Applications: High pressure and temperature

German Standard: Forged Flange DIN 2527/B

EN 1092-1 Forged Flange: Type E/F/G/H, Type A (FF), Type B (RF), Type C (Tongue) and Type D (Groove)

Forged Flange Other Name: Nozzle Flange

SOUR Service Certification: NACE MR 01-75 / ISO 15156

Country of Origin: Forged Flange make in UAE, Europe, USA, India, Netherlands, Japan and Korean

Stainless Steel Forged Flanges as per ASTM A182/ SA 182

Carbon Steel Forged Flanges as per ASTM A105, A350, A694, A181

Duplex Steel Forged Flanges in UNS S31803, UNS S32205, UNS S32750, UNS S32760

Buy Directly from Forged Flange suppliers in UAE

100% Tested ANSI B16.5 Forged Flange with MTC EN 10204/3.1, ISO 10474

Steel Forged Flange Available in Class 150 – 2500. Get A Quick Quote From Genuine Manufacturers & Suppliers

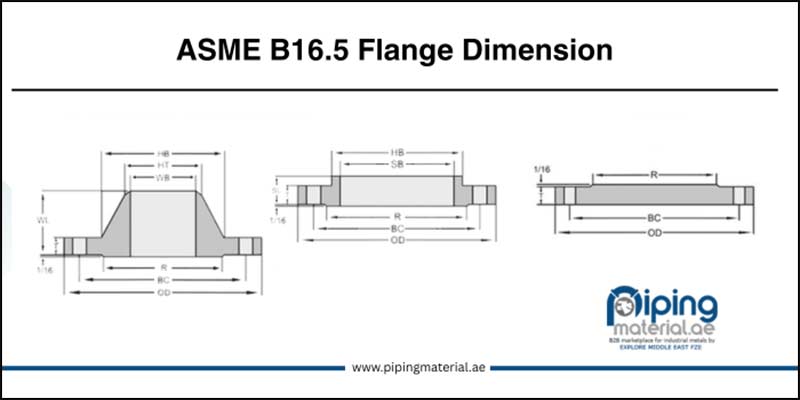

ASME B16.5 Flange Dimension

NPS (O)	No. and Size of Holes Diameter	Bolt Circle Diameter	Outside dia. of flange (Q)	Minimum thickness of flange (Y)	Overall Length Weld Neck	Outer Diameter of raised face R	Overall Length Slip On and socket Weld
24	20	749.5	813	47.7	152.4	35 692	82.6
20	20	635.0	698	42.9	144.5	32 584	73.0
18	16	578.0	635	39.7	139.7	32 533	68.3
16	16	539.5	597	36.6	127.0	29 470	63.5
14	12	476.0	533	35.0	127.0	29 413	57.2
12	12	432.0	483	31.8	114.3	25 381	55.6
10	12	362.0	406	30.2	101.6	25 324	49.2
8	8	298.5	343	28.6	101.6	22 270	44.4
6	8	241.5	279	25.4	88.9	22 216	39.7
5	8	216.0	254	23.9	88.9	22 186	36.5
4	8	190.5	229	23.9	86.2	19 157	33.3
3	4	152.5	190	23.9	69.8	19 127	30.2
3.1/2	8	178.0	216	23.9	71.4	19 140	31.8
2.1/2	4	139.5	178	22.3	69.8	19 105	28.6
2	4	120.5	152	19.1	63.5	19 92	25.4
1.1/4	4	89.0	117	15.9	57.2	15 64	20.6
1.1/2	4	98.5	127	17.5	61.9	15 73	22.2
1	4	79.5	108	14.3	55.6	15 51	17.5
1/2	4	60.5	89	11.2	47.6	15 35	15.9
3/4	4	82.5	117	15.9	57.2	15 43	25.4

Check Types of Stainless Steel Forged Pipe Flange & Forged Steel Tank Flanges Size Chart. View MS Flange Forged Price in Dubai

Size Chart of ASTM A105 Forged Flanges

Size (mm)	Size (inch)
600	24
500	20
450	18
400	16
350	14
300	12
250	10
200	8
150	6
125	5
100	4
80	3
90	3 ½
50	2
65	2 ½
25	1
32	1 ¼
40	1 ½
15	1/2

Direct Buy From The Leading Manufacturers of Forged Welding Neck Flange At Economical Rates in The Sharjah

Sales Agents in Following Locations

Muscat	Riyadh	Dubai	Ras Al Khaimah
Sharjah	Fujairah	Umm Al Quwain	Doha
Saudi Arabia	Al Jubail	Abu Dhabi	Ajman

Buy All Types of Forged Aluminum Flanges As Per Asme B16.5. Check Forged Steel Flange Manufacturing Methods, Advantages, and Disadvantages

What is the Connection Method For Forged Flanges?

Welded
Threaded

Processing of Forged Pipe Flange

Processing
Price
Material Capacity and Strength
Dimensional Tolerances
Limiting Material Waste
Sizes, Material and Grade

Purpose of Forged Carbon Steel Flanges

The purpose of forged carbon steel flanges is given below:

Support
Strength
Sealing
Connection

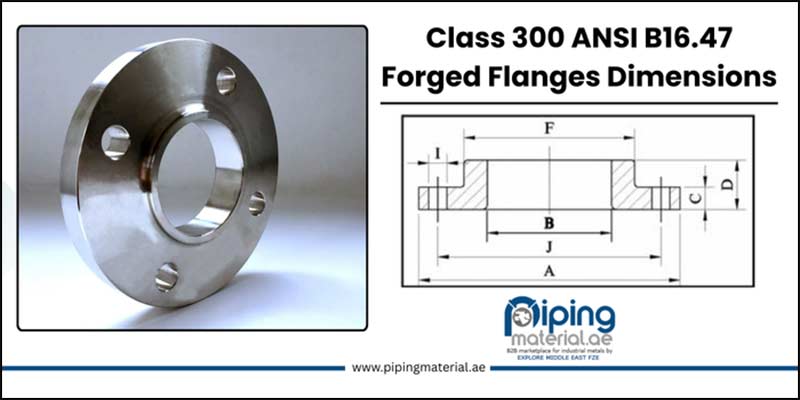

Class 300 ANSI B16.47 Forged Flange Dimensions

NPS	F	D	G	A	Holes	B	C	I
60	1657	200	1676	1855	52	1528.8	132	48
58	1626	1590	799.81	1805	129	1478	195	48
56	1540	188	1575	1745	48	1427.2	124	48
54	1492	178	1511	1685	44	1376.4	121	48
52	1435	170	1460	1625	44	1325.6	116	48
50	1378	160	1410	1570	44	1274.8	111	48
48	1327	150	1359	1510	44	1224	108	41
46	1270	144	1295	1455	40	1173.2	103	41
44	1219	136	1245	1405	40	1122.4	102	41
42	1168	130	1194	1345	36	1071.6	97	41
40	1111	125	1124	1290	36	1020	90.5	41
38	1060	120	1073	1240	32	970	87.4	41
36	997	120	1022	1170	32	919.2	90.5	41
34	940	110	965	1110	32	868.4	82.5	41
32	889	106	914	1060	28	817.6	81	41
30	832	100	857	985	28	766.8	74.5	35
28	781	95	800	925	28	716	71.5	35
26	724	90	749	870	24	665.2	68.5	35
22	610	80	641	750	20	563.6	46	35

Storage Sites of Partner Suppliers

City	Region	Country
Dubai	Middle East	United Arab Emirates
Abu Dhabi	Middle East	United Arab Emirates
Dammam	Middle East	Saudi Arabia
Riyadh	Middle East	Saudi Arabia
Doha	Middle East	Qatar
Abuja	Africa	Nigeria
Kuwait City	Middle East	Kuwait
Jeddah	Middle East	Saudi Arabia
Cairo	MENA	Egypt
Casablanca	MENA	Morocco
Johannesburg	Africa	South Africa
Cape Town	Africa	South Africa
Lagos	Africa	Nigeria

How to Determine Whether the ASME B16.5 SS Blind Forged Flange Specification is Accurate?

Match details with ASME B16.5
Confirm certification documents
Inspect the standard markings
Check the flange dimensions
Verify the material grade

ANSI B16.5 Forged Flanges Face Types

Face Types	Full Form
RTJ	Ring type joint
T and G	Tongue and groove
LJ	Lap joint
FF	Flat face
RF	Raised face
M and F	Male and female

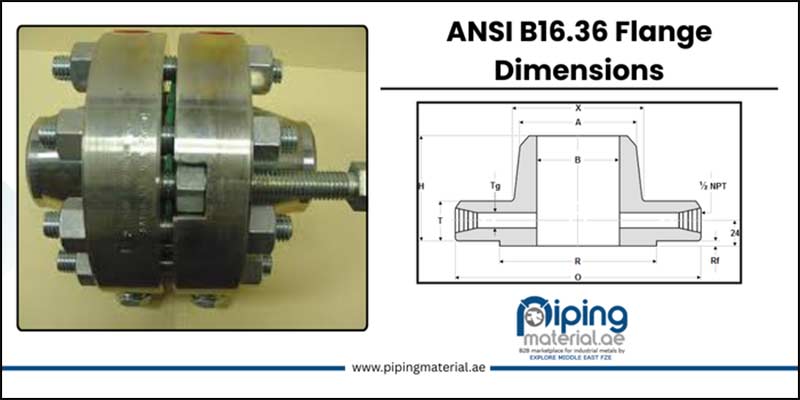

ANSI B16.36 Flange Dimensions

NPS	HUB DIA	DIA OF TAB	MIN THK FLG	HGT FLG	HUB DIA	DIA RF	OUT SIDE DIA
NPS	X	Tg	T	H	A	R	O
20	587	12.7	62.0	160	508.0	584.2	775
24	702	12.7	68.3	167	610.0	692.2	915
18	533	12.7	58.8	157	457.0	533.4	710
16	483	12.7	55.6	144	406.4	469.9	650
14	425	12.7	52.4	141	355.6	412.8	585
12	375	12.7	49.3	129	323.8	381.0	520
10	321	12.7	46.1	116	273.0	323.8	445
8	260	12.7	39.7	110	219.1	269.9	380
6	206	12.7	36.6	98	168.3	215.9	320
4	146	12.7	36.6	90	114.3	157.2	255
3	117	9.5	36.6	87	88.9	127.0	210
2.1/2	100	6.4	36.6	87	73.0	104.8	190
2	84	6.4	36.6	84	60.3	92.1	165
1.1/2	70	6.4	36.6	84	48.3	73.0	155
1	54	6.4	36.6	81	33.4	50.8	125

Warehouse Locations of Partner Suppliers

Middle East countries	Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen
Africa	Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA	Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine

Weight Chart of Class 150 ANSI B16.5 Forged Pipe Flange

NPS	Socket Weld	Weld Neck	Blind	Lap Joint	Slip On	Thd
24	99	120.6	193.5	123.8	99	99
22	83.3	101.3	159.8	110.3	83.3	83.3
20	74.3	88.7	128.3	87.8	74.3	74.3
18	58.5	74.3	99	72	58.5	58.5
16	44.1	63	81	63	47.7	44.1
14	40.5	51.3	63	47.3	40.5	40.5
12	28.8	39.6	55.4	28.8	28.8	28.8
10	19.4	24.3	31.5	19.4	19.4	19.4
8	13.5	18.9	21.2	13.5	13.5	13.5
6	8.6	11.7	12.2	8.6	8.6	8.6
5	6.8	9.5	9	6.8	6.8	6.8
4	5.9	7.4	7.7	5.9	5.9	5.9
3	4.1	5.2	4.1	4.1	4.1	4.1
2½	3.6	4.5	3.2	3.6	3.6	3.6
2	2.3	2.7	2.3	2.3	2.3	2.3
1½	1.4	1.8	1.8	1.4	1.4	1.4
1	0.9	1.4	0.9	0.9	0.9	0.9

ASME B16.5 Forged Steel Flanges Pressure Ratings

Temperature (°F)	900	2500	1500	150	600	300	400
1000	965	2685	1610	20	645	325	430
950	1125	3120	1870	35	750	375	500
900	1150	3200	1920	50	770	385	510
850	1165	3240	1945	65	780	390	520
800	1180	3280	1970	80	790	395	525
750	1195	3320	1990	95	795	400	530
700	1210	3360	2015	110	805	405	540
650	1225	3400	2040	125	815	410	545
600	1245	3460	2075	140	830	415	555
500	1310	3640	2185	170	875	435	585
400	1410	3920	2350	180	940	470	630
300	1585	4400	2640	205	1055	530	705
200	1800	5000	3000	235	1200	600	800
-20 to 100	2160	6000	3600	275	1440	720	960

Check Out Your Nearby Locations For Fastest Deliveries

Country	Cities
Netherlands	The Hague
Belgium	Meeuwen-Gruitrode
Netherlands	Amsterdam
Belgium	Antwerp
Netherlands	Haarlem
Belgium	Brussels
Belgium	Seraing
Belgium	Ghent
Belgium	Leuven
Netherlands	Eindhoven
Belgium	Westerlo
Netherlands	Rotterdam

Forged Flanges Manufacturing Process

Manufacturing Standard of Forged Flange

ASME B16.5 : for steel flanges (NPS 1/2″ To 24″)
ASME B16.47 : for large diameter flanges (Normal pipe size 26″ to 60″)
MSS-SP44 : for pipeline flanges (NPS 12″ to 60″)
API 605 : for large diameter CS forged flanges (NPS 26″ To 60″)

Gasket Chart of MS Flange Forged

Sizes (mm)	ID	N-Bore (in)	O.D
450	457	18	549
500	508	20	606
600	610	24	718
250	273	10	340
300	324	12	410
350	356	14	451
400	406	16	514
200	219	8	279
150	168	6	222
125	141	5	197
100	114	4	175
40	48	1 ½	86
50	60	2	105
65	73	2 ½	124
80	89	3	137
90	102	3 ½	162
15	21	½	48
20	27	¾	57
25	33	1	67
32	42	1 ¼	76

Carbon Steel Forged Flange Hydrostatic Test Pressures

ASTM Specification
	Test Pressure(psig)
	150#	300#	400#	600#	900#	1500#	2500#
A105 A516-70 A515-70 A537-C1.1 A672-C70 A672-B70 A696 Grade C A350-LF2 A675-70 A216-WCB	450	1125	1500	2225	3350	5575	9275

Types of Forged Flange

Long Forged Weld Neck Flanges

Forged Welded Flange

Slip On Forged Flange

Forged Blind Flange

Forged Pipe Flange

Forged Hub Type Flange

Orifice Forged Flange

Forged Socket Weld Flange

Forged Lap Joint Flange

Forged Blind Flange Torque Chart

Size (mm)	Size (Inch)	Deeper Than the Serrations (mm)	No Deeper of the Serrations (mm)
600	24	6.0	12.0
500	20	6.0	12.0
450	18	6.0	12.0
250	10	4.5	8.0
400	16	4.5	10.0
350	14	4.5	8.0
300	12	4.5	8.0
200	8	4.5	8.0
125	5	3.0	6.0
150	6	3.0	6.0
100	4	3.0	6.0
90	3 1/2	3.0	6.0
80	3	1.5	4.5
40	1 1/2	1.5	3.0
32	1 1/4	1.5	3.0
25	1	1.5	3.0
15	1/2	1.5	3.0
20	3/4	1.5	3.0

How to Test the Stainless Steel Forged Pipe Flange?

100% surface and visual examination
Tensile test per heat
Dimension controlling during finishing and fabricating
Intergranular Corrosion test
NDT test
PT test
Ultrasonic test (UT)
MT test
PMI test

Grain Structure of ASME B16.5 Forged Flange

List of Raw Materials Used in Forged Flange Production

Material	ASTM standard
Stainless steel forged flanges	ASTM A182/ A182M ASME SA 182/ SA 182M ASTM A182 – SS 300 & 400 series ASTM A182 F6a (SS 410)
Carbon steel forged flanges	A105/ A105N / SA105
Alloy steel forged flanges	A182/ A182M/ SA 182
A105 forged steel flanges	ASTM A105
A350 LF2 forged flanges	ASTM A350/ A350M
Copper forged flange	ASTM B171 / ASME SB171
Nickel alloy forged flange	ASTM B564 / ASME SB564
Duplex forged flange	ASTM A182 / ASME SA182
Super suplex forged flange	ASTM A182/ ASME SA182
Titanium forged flange	ASTM B381/ ASME SB381

Forging Method of Forged Steel Flanges

Die Forging
Free Forging

Readily Available Stock Of Forged Flanges

Inconel Forged Flange

Method: Forged casting

Highly precision customized

Monel Forged Welded Flange

Faces: Ring Type Joint, Raised Faces

Pipe Lines Connections

Inconel 625 Slip On Forged Flange

size: 1/2″- 80″

Pressure : PN6 – PN100

Hastelloy Forged Flange

Forming type : Forged, casting

Wall thickness : SCH5S – XXS

Hastelloy C276 Forged Blind Flange

Material: Hastelloy

standard : ANSI B16.5

ASTM B564 UNS N06625 Forged Pipe Flange

DN15 to DN2000

Pressure : 150#-2500#

Stainless Steel Forged Flange

Good temperature resistance

Processes : Forming, Cooling

ASTM A182 Gr 304 Long Forged Weld Neck Flanges

NPS 26 to NPS 60

MSS-SP44

SS 304L Forged Welded Flange

Testing : Ultrasonic testing machine

USe : Oil & Gas – upstream and downstream

316 Stainless Steel Slip On Forged Flange

15NB – 1500NB

Temperature : 1700 and 2300°F

AISI 316L Forged Blind Flange

Origin: Japanese, Indian, Korean and European

No. Of Bolts Hole : 4 To 48

Duplex Steel Forged Flange

Machining Process : Chamfering edges, Forming

Test Certificate : 100% Radiography Test

ASTM A182 F51 Forged Welded Flange

Surface Finish : Serrated, Mirror finish

Installations : Power generation plant

ASTM A182 F60 Slip On Forged Steel Flange

Sealing Face : T&G face, RTJ face

Fast Delivery in Saudi Arabia 7 to 8 days

ASTM A182 F53 Forged Blind Flange

Connection : Welding, Threaded

Marking : Manufacturer logo, Material

ASTM A182 F55 Forged Pipe Flange

Specific heat : 0.500 J/g-°C

Thickness : SCH 160

Super Duplex Forged Flange

Face Types : Lap Joint Face, Male Female Face

Finish : Spiral Serrated, Concentric Serrated

Carbon Steel Forged Flange

Gasket : PTFE Gasket, RTJ Gaskets

Grades : ASTM A105, A105N, A350

ASTM A105 Slip On Forged Steel Flange

BS4504 , BS10

Coating: Cold and Hot Dip Galvanized

A105N Normalized Forged Blind Flange

PN0.6-PN400

customized Packing

ASTM A350 LF2 Forged Pipe Flange

export to : United States, Germany

delivery time : 15-30 days

LTCS Long Forged Weld Neck Flanges

Pressure : 150LBS-2500LBS

Application : Agricultural Irrigation

ASTM A694 F42 Forged Welded Flange

Bolt Hole Diameter : 11-42

Customized Size

ASTM A692 F52 Forged Pipe Flange

DN15 to DN2000

Certification : ISO9001:2008

Verified Supplier

List of Forged flanges suppliers in UAE

Flange Types items

available 9 cars

Dubai, UAE

Prestige Metalloys LLC

info@metalloys.ae
+971 568293363

Gujarat, India

Steel Mart

gulf@steelmarts.com
+91 9326039861

Mumbai, India

P M Industries

info@pm-industries.com
+91 9867897207

Mumbai, India

Pipefit Solution Pvt. Ltd

sales@pipefitsolution.com
+91 86556 83938

Mumbai, India

Vision Alloys

sales@visionalloys.com
+91 9769434949

Mumbai, India

Jade Special Metal

sales1@jadealloys.com
+91 9987685906

Abu Dhabi, UAE

Royal Veritas

nkk@rvoget.ae
+971 523973687

Mumbai, India

Gandhi Metal India

export@gandhimetalindia.co.in
+91 9920315665

Mumbai, India

Metal Tech Engg

sales@metaltecheng.com
+91 9320211186
