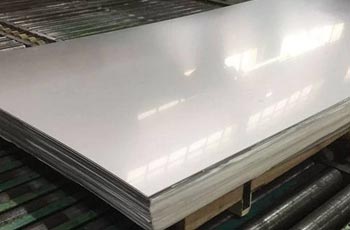

Hastelloy C4 Plate

hastelloy c4 plate
Hastelloy c4 is a high-performance superalloy grade. The hastelloy c4 plate has a superior chemical composition of nickel, chromium, molybdenum, and other alloys. This gives the plate enhanced resistance toxic affluents in different environmental conditions. The din 2.4610 hot rolled plate is strong and has excellent stabilization at elevated temperatures. These plates can be machined following conventional methods.

The uns n06455 clad plate resists the formation of grain boundary precipitates in the heat-affected zone. It can be welded following all welding methods except the submerged arc and oxy-acetylene welding process. The hastelloy alloy c4 cold rolled plate can be finished in 2d, 2b, bright annealed, smooth finished, etc. The finish helps enhance their quality and aesthetics of the material. The haynes alloy c4 foil is the thinnest metal that is used to protect material during heat treatment and transportation.

The robust asme sb575 c4 shim sheet helps fill any gaps between materials. This gives the sheets more stability and strength in the system. A werkstoff nr. 2.4610 coil is used in chemical systems, petrochemical, marine, food processing, oil, and gas industries. The c4 Hastelloy perforated sheet is available in different sizes and per project requirements.

Verified Supplier

Verified Stockists (Contact directly for instant quote)

available 5 cars

Discover suppliers of alloy c4 sheet in UAE at discounted prices and read about what does mean by half hard

Hastelloy C4 plate specification gathered from various genuine suppliers


hastelloy c4 Plate Specification

For special sizes, get in touch with one of the granted Hastelloy C4 plate suppliers in the UAE listed above.
Sizes of Hastelloy C4 plate/sheet Alloy C4 strip sizes Alloy C4 plate Edges
  • Thickness: 0.1 to 5 mm
  • Width: 0.5 to 1 m
  • Length: 0.7 to 6 m
  • Dimension : 0.05 to 15mm
  • Slit edge
  • Rolled edge
Haynes alloy C4 foil ASME ASTM Standard ASTM B575 UNS N06455 strip Density
ASME SB575 ASTM B575
  • 8.64 g/cm3
  • 0.312 lb/in.3
Maximum operating temperature C4 Hastelloy sheet Melting point Alloy Hastelloy C4 sheet temperature range
1900°F 1335°C – 1380°C
  • 1200 to 1900°F
  • 649 to 1038°C
Nickel alloy C4 plate grades Hardness range of Werkstoff nr. 2.4610 coil Haynes alloy C4 foil Elongation
  • Grade C4
Rockwell hardness : 100 max 40 %
ASME SB575 C4 shim sheet surface finish classes Top 7 type of UNS N06455 plate for chemical Industry Manufacturing methods of Din 2.4610 hot rolled plate
  • Class A : finest finish
  • Class B: slightly less fine finish
  • Class C : most basic finish
  • Alloy C4 Foils

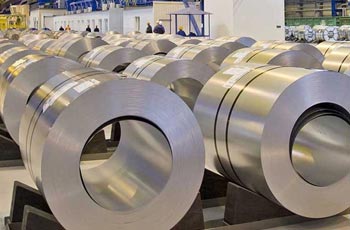

  • ASTM B575 UNS N06455 Strips
  • C4 Hastelloy Clad Plate

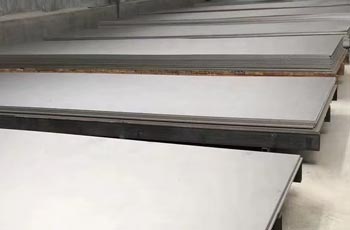

  • Nickel Alloy C4 Annealed Plate
  • Werkstoff NR. 2.4610 Sheet
  • Haynes Alloy C4 Rolls
  • ASME SB575 C4 Plate

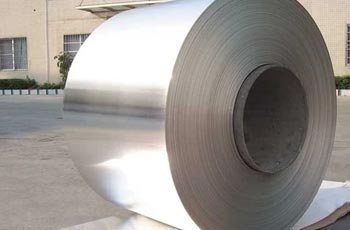

  • UNS N06455 Coil
  • DIN 2.4610 Shim Sheet

Above Hastelloy C4 plate stockist produce corresponds with customer drawings, contrast our cost and turnaround time with those of other Alloy C4 sheet stockists.

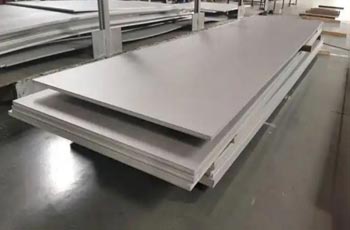

  • Cold Rolled

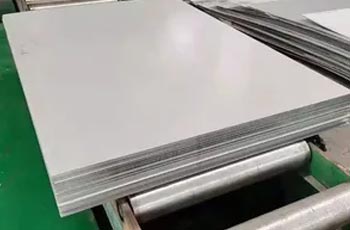

  • Hot Rolled
  • Forged
Hastelloy alloy C4 cold rolled plate features Haynes alloy C4 plate welding method Supply ASME SB575 C4 sheet in following brand
  • Weldability
  • Outstanding heat resistance
  • Metallurgical stability
  • Corrosion resistance
  • Strength
  • GTAW (TIG)
  • SMAW (MMA)
  • PLASMA
  • SAW
  • GMAW (MIG/MAG)
  • Nippon Yakin
  • HAYNES International
  • Outokumpu
  • Columbus Stainless
  • VDM
  • ATI
  • Valbruna Stainless Steel
  • Special Metals(SMC)
Nickel alloy C4 strip marking C4 Hastelloy plate finish ASTM B575 UNS N06455 coil applications
  • Material grade
  • ASTM/ ASME standard
  • Origin of material
  • Manufacturing date
  • Manufacturer logo / name
  • Sizes
  • Mirror
  • Electroless nickel plating
  • Sandblasted
  • Matte
  • Brushed
  • Glossy
  • Power Generation
  • Off-Shore Oil Drilling
  • Gas Processing
  • Chemical Equipment
  • Pharmaceuticals
  • Petrochemicals

Buy from the top Hastelloy C4 plate suppliers with zero rejection rates in Zimbabwe, Ghana, Guinea, Morocco, Sudan, and Libyan Arab Jamahiriya.

Modulus of elasticity Coefficient of thermal expansion (100°C) a/10-6°C-1 Specific heat (J/kg•°C)
30.8 x 10³ ksi 10.9 408
Nickel alloy C4 sheet common trade names Haynes alloy C4 sheet welding electrode Other industry standards
  • Nicrofer® 6616 hMo
  • Hastelloy C-4®
AWS A5.11 ENiCrMo-7
  • ASTM B575
  • DIN 17744
  • VdTÜV
Standard of WNR 2.4610 plate Certification of ASTM B575 UNS N06455 foil Haynes alloy C4 plate value added services
  • WERKSTOFF NR. 2.4610
  • UNS N06455
  • JIS NW6455
  • EN 10204/3.1B
  • Raw Materials Certificate
  • Certificate of Origin legalized
  • Third Party Inspection Report
  • 100% Radiography Test Report
  • Mechanical processing
  • Polishing
  • Welding
  • Shearing
  • Blanking
  • Edge preparation
  • Cutting to length
  • Slitting
  • Sawing
  • Bending

Use chat or email to get in direct contact with listed Hastelloy C4 plate stockists, distributors and stockholders for these services.



Nickel alloy C4 sheet packaging ASME SB 575 Alloy C4 sheet inspection plan Alloy C4 plate hardness type
  • Steel Strips Bundled
  • Bubble wraps
  • Wooden Pallets
  • Customized Pallets
  • Chemical test
  • Visual inspection test
  • Third party inspection test
  • Destructive test
  • Non destructive test pmi test
  • Mechanical test
  • Flaring Test
  • Nabl approved lab test
  • Spring Hard
  • Soft
  • Quarter Hard
  • Hard
  • Half Hard
Werkstoff nr. 2.4610 plate processing EN 2.4610 sheet PREN number Electrical resistivity
  • Manufacturing
  • Processing
  • Cutting
  • Packaging
  • Measuring
43 1.24 μΩ•m
Difference between plate, sheet & Foil ASME SB575 C4 foil characteristics Din 2.4610 hot rolled plate delivery time
  • Plate : 6mm
  • Sheet : 0.5 mm up to 6 mm
  • Foil : less than 0.2 mm
  • High strength
  • High precision
  • Excellent corrosion resistance
  • Resistance to stress corrosion cracking
  • Generally it is 7-10 days if its in stock
  • 15-20 days if its not in stock
ASTM B575 UNS N06455 strip method of cutting EN 2.4610 plate documentation offered
  • Waterjet cutting
  • Plasma cutting
  • Oxy-propane flame cutting
  • Laser cutting

Direct contact with the above Hastelloy C4 plate distributors, stockists, and dealers specified for the above-mentioned cuts



  • Bill of Lading.
  • Copy of Invoice
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Country of Origin Certificate (Original)

Find trustworthy stockists of ASTM B575 UNS n06455 strip and Werkstoff nr. 2.4610 coil in the Middle East and Africa and view test temperature

Hastelloy c4 vs c276

C4 C276
C4 contains less carbon as compare to C276 C276 contains more carbon as compare to C4
C4 contains high chromium as compare to C276 C276 contains less chromium as compare to C4
C4 has a high yield strength than C276 C276 has low yield strength as compare to C4
C4 has a high melting point as compare to C276 Low melting point as compare to C4
Suitable for welding and machining Unsuitable for welding & machined used for special techniques
High corrosion resistant in temperature environments More corrosion resistant in acidic environment
Less expensive More expensive

Thickness of Hastelloy C4 sheet

C4 Hastelloy sheet Gauge Number Nickel C4 sheet in inch Alloy C4 sheet in mm
8 .17187 4.365
9 .15625 3.968
10 .14062 3.571
11 .125 3.175
12 .10937 2.778
14 .07812 1.984
16 .0625 1.587
18 .050 1.270
20 .0375 .9525
22 .03125 .7937
24 .025 .635
26 .01875 .476
28 .01562 .396
30 .0125 .3175

Hastelloy C4 equivalent material

Standards Country Value
UNS North America N06455
WNR Russia 2.4610
ASTM America ASTM B575
ASME Australia ASME SB 575
JIS Japan NW6455
BS United Kingdom
GOST Russia Х15Н60М15
AFNOR France
EN Europe
AMS United States
ANSI America
SAE United States
AS Australia
DIN German 17744

Hastelloy C4 plate HSN code

Description HS code
Alloy C4 sheet 7506

Delivery location and schedule for alloy C4 sheet

Note: below table is published based on data collected by genuine suppliers

Export to Price variations and estimated delivery
France  5 % extra | 30 days
Italy  5 % extra | 30 days
Malaysia  5 % extra | 10 days
Philippines  5 % extra | 14 days
Indonesia  5 % extra | 9 days
Oman  5 % extra | 5 days

Hastelloy C4 mechanical properties

Grade Tensile strength Elastic modulus Yield strength ( @ 0.2% offset) Elongation at break (in 50.8 mm)
Nickel C4 plate 107000 psi 30600 ksi 71400 psi 42%
738 MPa 211 GPa 492 MPa 42%

Alloy C4 plate thickness tolerance

Width (milimeter) 30 < t < 40 25 < t < 30 20 < t < 25 16 < t < 20 12.5 < t < 16 10 < t < 12.5 8 < t < 10 6 < t < 8 4.5 < t < 6 2.5 < t < 4.5
W < 1200 1.4 1 0.8 0.8 0.8 0.35 0.32 0.3 0.23 0.2
1200 < W < 1500 1.4 1 0.9 0.8 0.8 0.38 0.35 0.3 0.25 0.2
1500 < W < 1800 1.5 1.1 0.9 0.8 0.8 0.4 0.38 0.32 0.28 0.2
1800 < W < 2100 1.5 1.1 0.9 0.8 0.8 0.45 0.4 0.36 0.3 0.2
2100 < W < 2400 1.5 1.1 1 0.9 0.8 0.8 0.8 0.8 0.8
2400 < W < 2700 1.7 1.3 1.1 1 0.9 0.8 0.8 0.8 0.8
2700 < W < 3000 1.8 1.4 1.3 1.1 1 1 1 0.9 0.8

Hastelloy C4 chemical composition

Fe C P Ti Mn Ni S Si Mo Cr Co
Iron Carbon Phosphorus Titanium Manganese Nickel Sulfur Silicon Molybdenum Chrome Cobalt
3 15 4 .70 1 Balance 30 8 14-17 14-18 2

hastelloy c4 Plate Properties

ASTM B575 UNS N06455 strip welding procedure

Welding procedure
GMAW Gas Metal Arc Welding
SMAW Shielded Metal Arc Welding
GTAW Gas Tungsten Arc Welding

Alloy C4 strip dimension

Hastelloy 2.4610 strip Nominal Width (mm) W > 1500 1200 < W  < 1500 W < 1200
Tolerance (mm) Mill edge + 20 20 20
0 0 0
Trimmed edge + 5 5 3
0 0 0

Hastelloy alloy C4 sheet size chart

Werkstoff nr. 2.4610 plate size (milimeter) 3.4 3.18 4.75 3.96 7.92 6.35 12.7 9.53 15.9 22.2 19.1 25.4 76.2 31.8 28.6 38.1 50.8 44.5 63.5
Nickel alloy C4 plate size (inches) 0.134 0.125 0.187 0.156 0.312 0.25 0.5 0.375 0.6 0.875 0.75 1 3 1.25 1.125 1.5 2 1.75 2.5

Gauge chart of Nickel alloy C4 plate

Hastelloy 2.4610 sheet gauge Gauge Hastelloy C4 plate
inch Alloy C4 plate gauge decimal in inches Din 2.4610 plate weight in lb/ft2
8 0.1719 0.1719 6.93
9 0.1563 0.1562
10 0.1406 0.1406 5.67
11 0.125 0.125 5.04
12 0.1094 0.1094 4.41
14 0.0781 0.0781 3.15
16 0.0625 0.0625 2.52
18 0.05 0.05 2.016
20 0.0375 0.0375 1.512
22 0.0313 0.0312 1.26
24 0.025 0.025 1.008
26 0.0188 0.0187 0.756
30 0.0125 0.0125

Werkstoff nr. 2.4610 plate tolerances on length

ASME SB575 NW 6455 cold rolled plate nominal length (milimeter) Tolerance(milimeter)
+
L > 8,000 40 0
2,000  <  L < 8,000 0.005 times length 0
L < 2,000 10 0

UNS N06455 plate tolerances on width

ASME SB575 C4 shim sheet nominal W (mm) Tolerance (milimeter)
Trimmed edge Mill edge
+ +
Width > 1500 5 0 20 0
1200 < Width < 1500 5 0 20 0
Width < 1200 3 0 20 0

ASTM B575 UNS N06455 plate weight chart

ASME SB575 NW 6455 sheet gauge standard gauge Weight Alloy C4 sheet gauge decimal
inches lb/ft2 inches
8 0.1719 6.93 0.1719
9 0.1563 0.1562
10 0.1406 5.67 0.1406
11 0.125 5.04 0.125
12 0.1094 4.41 0.1094
14 0.0781 3.15 0.0781
16 0.0625 2.52 0.0625
18 0.05 2.016 0.05
20 0.0375 1.512 0.0375
22 0.0313 1.26 0.0312
24 0.025 1.008 0.025
26 0.0188 0.756 0.0187
30 0.0125 0.0125

ASME SB575 C4 sheet thermal and electrical properties

Grade Specific Heat (J/kg•°C) Electrical Resistivity (μΩ•m) Thermal Conductivity ((100°C) ) Mean Coefficient of Thermal Expansion
C4 408 1.24 10.1 λ/(W/m•°C) 10.9(100°C) a/10-6°C-1

Meet the top importers of ASME SB575 c4 Hastelloy perforated sheet and clad plate in Dubai who offers MTC and knows about grain size measurement

The planimetric or jefferies methods can be used to determine the grain size of the plate. The nickel alloy c4 chequered plate grain size is based on the grains per unit area, average grain area, and diameter.
Half hard hastelloy c4 plate is produced by cold rolling next to full hard temper.
The hastelloy c4 sheet can be employed in most critical conditions up to 825 degrees c.

Discover traders who supply a wide range of nickel alloy c4 chequered plate and shim sheet stock at a reduced cost with no minimum order. Compare Hastelloy c4 vs c276

Hastelloy is a premium superalloy having different grades. The hastelloy c4 vs c276 grade can be differentiated based on key features. The hastelloy c4 grade is designed with a superior chemical composition compared to the hastelloy c276 grade. So, the astm b575 uns n06455 strip has better corrosion resistance properties compared to the c276 grade. The c276 grade also has poor mechanical properties compared to the c4 hastelloy perforated sheet.

Locate distributors of Jindal, Posco, and Aperam made DIN 2.4610 hot rolled and cold rolled plates in a range of sizes; you can also examine the bending process

The alloy c4 sheet can be bent following roll-forming, roll-bending, and press-braking operations.
