IDF Unions Overview
|
Standard |
ISO2852 , IDF, ISO1127 |
|---|---|
| DIN Standards |
|
| Industry Standards |
|
| Grades | T304, T316L, EN 1.4301, EN 1.4404 etc. |
| Origin | American, Janpanese, European, Russian, Korean |
| Sanitary Unions |
|
| HSN Code | 73072100 |
| Temprature | -30°C / -22°F up to +120°C/ +248°F |
| Packaging |
|
| Connection |
|
| Specification |
|
| Welding Method |
|
| Types | Welded, Seamless, Fabricated |
| Certificates |
|
Find the Top 10 Trustworthy Sanitary IDF Union Suppliers in UAE
IDF Unions Specifications
IDF Unions Sizes : 1″ thru 4″
Sanitary IDF Union Thickness: 12 Swg, 14 Swg, 16 Swg, 18 Swg or Customizable
IDF Hygienic Unions Seal Material: Silicone, EPDM, PTFE, Buna-N etc.
Exterior Surface Finish: 32 Ra
Services: Custom Fabrication, Threading , Passivation and Electropolishing As Per ISO/SF5 Standards
IDF Hygienic Union Fittings Testing: Hardness, Ultrasonic, Roughness Test
Finish: Mirror Polished (SF5), Electropolished (SF5), SF1 (2B mill), Bright Annealed, Mechanical Polished
Applications: Dairy Processing Plants, Food & Beverage Industry, Pharmaceutical & Biotech, Chemical & Processing Plants
Interior Surface Finish: 15 Ra
Types: Hexagonal Nut, Blank Nut, Welding Male, Welding Liner, Expanding Male, Expanding Liner
Buy Directly From IDF Unions Suppliers in UAE and Get Datasheet
Process: Mandrel, Hot forming
Get Connected with Certified INOX 304 IDF Hygienic Unions Manufacturers in Dubai, Find here DIN 1.4301 IDF Union Fitting Advantages
IDF Union Fitting Advantages
Renowned IDF Unions Suppliers in UAE of top-grade materials, crafted for longevity and reliability.
- Hygienic Design
- Easy Maintenance
- Robust & Corrosion Resistant
- High-Pressure Reliability
- Versatility
Weekly Shipment to Below Locations
| Fujairah | Umm Al Quwain | Sharjah | Doha |
|---|---|---|---|
| Riyadh | Dubai | Muscat | Ras Al Khaimah |
| Al Jubail | Abu Dhabi | Saudi Arabia | Ajman |
IDF Unions Types
Sanitary IDF Hexagonal Nut
IDF Blank Nut
Dairy IDF Welding Male
Sanitary IDF Welding Liner Union
IDF Expanding Male Union
Dairy IDF Expanding Liner Union
Buy AISI 316 IDF Hygienic Union Fittings at Discount Prices with Electropolishing, Also check Dimensions and Installation Process
IDF Hygienic Union Fittings Surface Finish
- Mill Finish
- Fine Mechanical Polish
- Electropolishing
- Mirror Polish
Call Now for the Clients List Based in Below Locations
| Country | Cities |
|---|---|
| Netherlands | Amsterdam |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Seraing |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | Rotterdam |
| Belgium | Leuven |
| Belgium | Westerlo |
| Belgium | Antwerp |

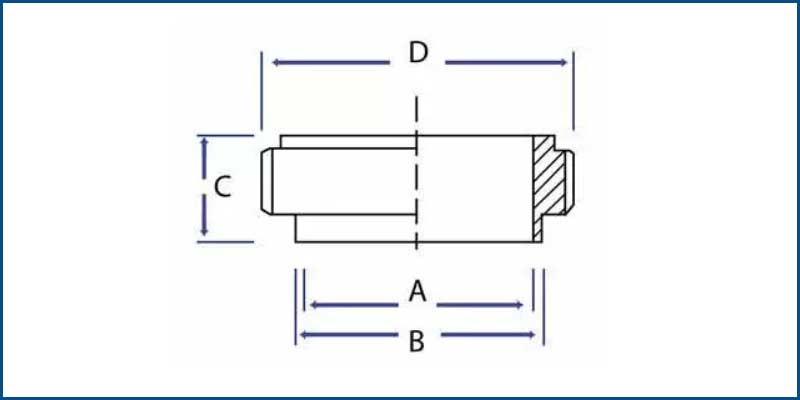

Sanitary IDF Union Dimensions
| Product Code | Size | A | B | C | D | E |
|---|---|---|---|---|---|---|
| IDN154 | 1½” | 43.50 | 47.86 | 30.00 | 3.50 | 60.00 |
| IDN204 | 2″ | 57.00 | 61.37 | 30.00 | 3.50 | 75.00 |
| IDN104 | 1″ | 30.50 | 34.34 | 30.00 | 3.50 | 46.00 |
| IDN254 | 2½” | 70.70 | 74.88 | 30.00 | 3.50 | 90.00 |
| IDN304 | 3″ | 83.30 | 84.80 | 30.00 | 3.50 | 105.00 |
| IDN404 | 4″ | 112.00 | 122.05 | 34.90 | 4.70 | 133.00 |

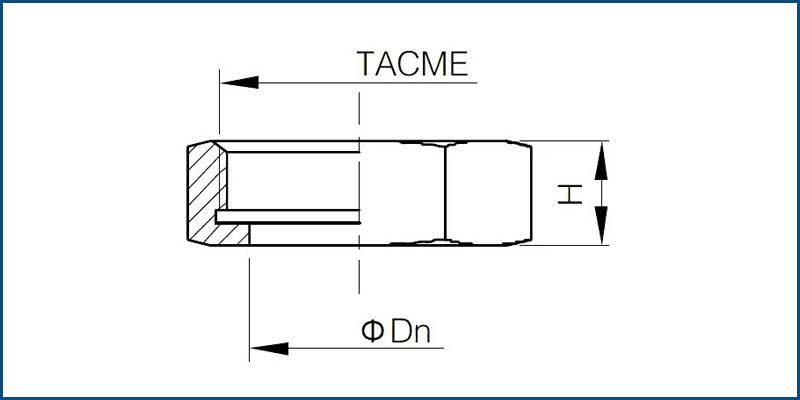

Dimension of IDF Hexagon Nut
| Size | TACME | D | H |
|---|---|---|---|
| 1″ | 38.3 X 8 | 53.1 | 30 |
| 1 1/2″ | 51.8 X 8 | 69.3 | 30 |
| 2″ | 65.3 X 8 | 86.6 | 30 |
| 2 1/2″ | 78.8 X 8 | 103.9 | 30 |
| 3″ | 92.3 X 8 | 121.2 | 30 |
| 4″(ISO) | 119.4 X 8 | 155.9 | 35 |
| 4″(IDF) | 127.2 X 6 | 165.1 | 35 |
Sales Agents in Following Locations
| Region | City | Country |
|---|---|---|
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Dubai | United Arab Emirates |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Dammam | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Doha | Qatar |
| Middle East | Jeddah | Saudi Arabia |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| MENA | Cairo | Egypt |
| Africa | Cape Town | South Africa |
| Africa | Johannesburg | South Africa |
| Africa | Lagos | Nigeria |
Dimension of Sanitary IDF Welding Liner
| Size | D1 | D | H | |
|---|---|---|---|---|
| ISO | IDF | |||
| 1″ | 33.8 | 25.6 | 25.4 | 21.5 |
| 1 1/2″ | 47 | 38.6 | 38.1 | 21.5 |
| 2″ | 60.5 | 51.6 | 50.8 | 21.5 |
| 2 1/2″ | 74 | 64.1 | 63.5 | 21.5 |
| 3″ | 87.5 | 76.7 | 76.2 | 21.5 |
| 4″(ISO) | 114.4 | 102.5 | – | 21.5 |
| 4″(IDF) | 120.6 | – | 101.6 | 30 |
IDF Unions Installation Process
- Prepare the Components
- Clean the Surfaces
- Place the Seal
- Align the Union Ends
- Tighten the Union Nut
- Check Alignment
- Pressure / Leak Test
You can save 15%-25% Cost when Ordering Stainless Steel Dairy IDF Union Directly from the Importers in the Middle East and Asia
DIN 1.4301 IDF Union Fitting Technical Details
| Finish | Machined | Product Model | ISO EN 10357-D Threaded Unions IDF | Size | 51.0 mm |
|---|---|---|---|---|---|
| Dimension B | 21.50 | Connection type | Weld and Thread | Standard | IDF |
| Material | 1.4404 (316L) | OD/ID x t | 51.60/48.50×1.55 | Dimension C | 64.10 x 1/8 |
| Weight – Net (Kg) | 0.15 kg | Net weight | 0.146 kg | – | – |
Sales Representatives Are Available to Provide Prompt Quotes
| MENA | Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine |
|---|---|
| Middle East countries | Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen |
| Africa | South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria |
Dairy IDF Union Size Chart
| Size | Bore Size | Hex Nut | Seal | |
|---|---|---|---|---|
| (mm) | A/F (mm) | L (mm) | ID (mm) | |
| 1 | 22.2 | 46 | 30 | 22.2 |
| 1.5 | 34.9 | 60 | 30 | 34.9 |
| 2 | 47.6 | 75 | 30 | 47.6 |
| 2.5 | 60.3 | 90 | 30 | 60.3 |
| 3 | 73.0 | 105 | 30 | 73.0 |
| 4 | 97.6 (14 swg) | 133 | 35 | 97.6 |
Compare Price with other Stainless Steel 316L IDF Unions BS 4825 part 4 Manufacturers in the United Arab Emirates
Sanitary IDF Unions Applications
Experienced IDF Unions Suppliers in UAE delivering dependable solutions for demanding applications.
- Dairy Processing Plants
- Food & Beverage Industry
- Pharmaceutical & Biotechnology Industry
- Cosmetics
- Chemical & Water Treatment
- Meat Processing
Dairy IDF Union Equivalent
| America | United Kingdom | Japan | Russia | North America | Europe | France | Russia |
|---|---|---|---|---|---|---|---|
| ASTM | BS | JIS | WERKSTOFF NR. | UNS | EN | AFNOR | GOST |
| SS 304 | 304S31 | SUS 304 | 1.4301 | S30400 | X5CrNi18-10 | Z7CN18‐09 | 08Х18Н10 |
| SS 316 | 316S31 / 316S33 | SUS 316 | 1.4401 / 1.4436 | S31600 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Z7CND17‐11‐02 | – |
| SS 316L | 316S11 / 316S13 | SUS 316L | 1.4404 / 1.4435 | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Z3CND17‐11‐02 / Z3CND18‐14‐03 | 03Ch17N14M3 / 03Ch17N14M2 |
| SS 316H | 316S51 | – | – | S31609 | – | – | – |
| SS 317 | – | SUS 317 | 1.4449 | S31700 | X5CrNiMo1713 | – | – |
| SS 304L | 3304S11 | SUS 304L | 1.4306 / 1.4307 | S30403 | X2CrNi18-9 / X2CrNi19-11 | Z3CN18‐10 | 03Х18Н11 |
| SS 310 | 310S24 | SUS 310 | 1.4841 | S31000 | X15CrNi25-20 | – | 20Ch25N20S2 |
| SS 304H | – | – | 1.4301 | S30409 | – | – | – |
| SS 310S | 310S16 | SUS 310S | 1.4845 | S31008 | X8CrNi25-21 | – | 20Ch23N18 |
| SS 321 | – | SUS 321 | 1.4541 | S32100 | X6CrNiTi18-10 | – | – |
| SS 317L | – | SUS 317L | 1.4438 | S31703 | X2CrNiMo18-15-4 | – | – |
| SS 347 | – | SUS 347 | 1.4550 | S34700 | X6CrNiNb18-10 | – | – |
| SS 321H | – | SUS 321H | 1.4878 | S32109 | X12CrNiTi18-9 | – | – |
| SS 347H | – | SUS 347H | 1.4961 | S34709 | X6CrNiNb18-12 | – | – |
| SS 410S | – | SUS410S | 1.4516 | S41008 | X6CrNiTi12 | – | – |
| SS 409 | – | SUS409 | 1.4512 | S40900 | X2CrTi12 | – | – |
| SS 904L | 904S13 | SUS 904L | 1.4539 | N08904 | X1NiCrMoCu25-20-5 | Z2 NCDU 25-20 | STS 317J5L |
Sanitary IDF Union Chemical Composition
| Grades | Chromium | Phosphorus | Silicon | Sulfur | Nickel | Manganese | Carbon |
|---|---|---|---|---|---|---|---|
| SS 304 | 18.00 20.00 | 0.04 | 0.075 | 0.03 | 8.00 11.00 | 2 | 0.08 |
| SS 304H | 18.00 20 | 0.04 | 0.75 | 0.03 | 8.00 11 | 2 | 0.04 0.1 |
| SS 304L | 18.00 20.00 | 0.04 | 0.75 | 0.03 | 8.00 13.00 | 2 .00 | 0.035 |
| SS 316 | 16.00 18.00 | 0.040 | 0.75 | 0.030 | 11.00 4.00 | 2.00 | 008 |
| SS 310 | 24.00 26 | 0.04 | 0.75 | 0.03 | 19.00 22 | 2 | 0.15 |
| SS 416 | 12.00 14.00 | 0.066 | 1.00 | 0.15 | 1.25 | 0.15 | |
| SS 316L | 16.00 18 | 0.04 | 0.75 | 0.03 | 10.00 15 | 2 | 0.035 |
| SS 317 | 18.00 20 | 0.04 | 0.75 | 0.03 | 11.00 14 | 2 | 0.08 |
| SS 316H | 16.00 18.00 | 0040 | 0.75 | 0.030 | 11.00 14.00 | I 2.00 | 0_04 0.10 |
| SS 321 | 17.00 20 | 0.04 | 0.75 | 0.03 | 9.00 13 | 203 | 0.48 |
| SS 347 | 17.00 20 | 0.04 | 0.75 | 0.03 | 7.00 13 | 200 | 0.08 |
| 21-6-9 | 19.00 21.5 | 60 | 1 | 0.03 | 5.50 7.5 | 8.00 | 0.04 |
IDF Hygienic Unions Mechanical Properties
| Grades | Yield Strength (MPa) | Tensile Strength (MPa) | Poisson’s Ratio | Elongation (%) | Modulus of Elasticity (GPa) | Hardness (HRB) |
|---|---|---|---|---|---|---|
| SS 304L | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 304H | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 310S | 205 – 275 | 515 – 740 | 0.29 | 40 – 50 | 193 | 90 – 105 |
| SS 310 | 205 – 275 | 515 – 740 | 0.29 | 40 – 50 | 193 | 90 – 105 |
| SS 316L | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 446 | 205 | 520 – 720 | 0.28 | 40 – 50 | 190 | 85 – 95 |
| SS 317 | 205 | 520 – 730 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 321 | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 347 | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 316 | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 316Ti | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 317L | 205 | 520 – 730 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 321H | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
| SS 410 | 205 | 520 – 720 | 0.28 | 35 – 45 | 190 | 85 – 95 |
| SS 904L | 205 | 520 – 720 | 0.29 | 40 – 50 | 193 | 85 – 95 |
