Incoloy 800 tube

Incoloy 800 tube

A brilliant heat-resistant superalloy, it comprises nickel, iron and chromium. An Incoloy 800 tube can withstand severe temperatures without getting deformed. It is also stable, sturdy, and oxidation-resistant. Another advantage of this material is its capacity to handle reducing chemicals and aqueous substances. Incoloy 800 does not undergo carburization in intermediate temperatures.
Incoloy 800 tubing is popular in furnace components, electrical heating elements, refineries, pressure vessels, etc. The long-term strength of this alloy at high temperatures makes it a highly coveted material by several industries. It gets manufactured in different shapes and uses versatile treatments for manufacturing, like a cold finish and a UNS N08800 redrawn tube.

Verified Supplier

Verified stockists and wholesalers

available 7 cars

UNS N08800 redrawn tube and Incoloy 800 seamless tube suppliers in UAE

Incoloy 800 tubing specification


Incoloy 800 Tube Specification

For quick delivery in UAE or Saudi Arabia contact above Incoloy 800 tube suppliers and stockists for the
most precise estimate.

Incoloy 800 tubing wall thickness Nickel 800 hot-worked tubing (As-extruded) Cold-worked seamless tubing
Seamless tubing: 0.25mm-3.0mm
  • 50.8 – 254 mm or
  • 2 – 10″
  • 9.5 – 219 mm or
  • 3/8 – 8 5/8″
DIN 1.4876 tubes ASTM Standard Incoloy alloy 800 welded tube tensile strength Alloy 800 annealed tube yield Strength
  • ASTM B163
  • ASME SB 163
54.00-77.00 13.00-21.00
UNS N08800 tubes manufacturing types 1.4876 Incoloy 800 manufacturing techniques UNS N08800 redrawn tube finish
  • Electric Resistance Welded (ERW)
  • Fabricated
  • LSAW
  • Seamless
  • Redrawn
  • Welded
  • Seam-Welded
  • Seamless
  • LSAW
  • Fabricated
  • CEW
  • Redrawn
  • CDW
  • Welded
  • DOM
  • ERW
  • EFW
  • Polished
  • custom
  • Mill finish
  • Electro Polish
  • Cold Finish
  • Bright
  • Mechanical Polish
  • Annealing
  • Pickling
1.4876 Incoloy 800 square tubing melting point Nickel 800 redrawn tube density UNS 8800 exhaust tubing temperature range
1385 °C 7.94 g/cm³ 816°C
EN 1.4876 heat exchanger tube length Inconel 800 condenser tubes services Supply Inconel alloy 800 tube in following brand
  • Cut Length
  • Single
  • Double Random
  • Standard
  • cut-to-length services
  • machining
  • tube manipulation
  • plasma profiling
  • threading
  • Beveling
  • welding
  • laser cutting

Use chat or email to get in direct contact with mentioned Incoloy 800 tube stockists,
stockholder, and distributors for these services.

  • Seah Steel Corporation, Korea
  • Sanyo Special Steel, Japan
  • Kobe Special Tube, Japan
  • Special Metals USA
  • BOHLER
  • Nippon Steel Corporation, Japan
  • Tubacex Tubos Inoxidables S.A., Spain
  • Sumitomo Metals, Japan
  • Esab
  • Lincoln
  • Metrode
  • Schoeller Bleckmann, Austria
Alloy Incoloy 800 boiler tube maximum operating temperature Werkstoff NR. 1.4876 tubing common trade names Hardness range of WNR 1.4876 cold drawn tube
816°C
  • Incoloy 800
  • Nickelvac 800
  • Nicrofer 3220
  • Alloy 800
  • Ferrochronin 800
  • Nickel-Chromium-Iron
184 HB
Type of Inconel 1.4876 tube for chemical Industry 800 Inconel tubes form Manufacturing methods of Incoloy 800 tubing
  • 800 Inconel seamless tube
  • Incoloy 800 welded tube
  • Mechanical tubing
  • nickel alloy 800 annealed tube
  • 1.4876 Incoloy 800 cold drawn tube
  • Bright annealed tube
  • nickel 800 coiled tubing
  • Extruded tube
  • Incoloy 1.4876 heat exchanger tube

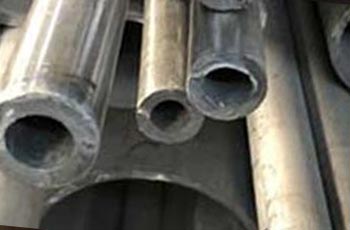

  • Redrawn tube

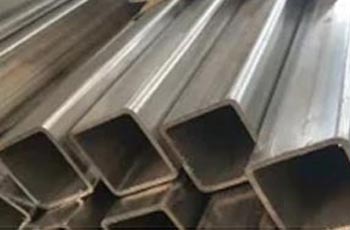

  • DIN 1.4876 square tubing
  • polish tube

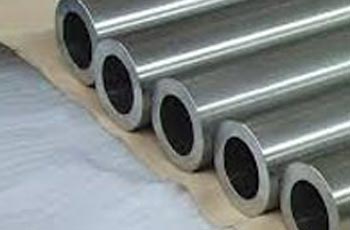

  • Incoloy alloy 800 exhaust tubing
  • precision tubes
  • Cold redrawn reboiler tubes
  • UNS 8800 high pressure tube
  • hydraulic tubing
  • Internally finned tubing
  • Evaporator tubes

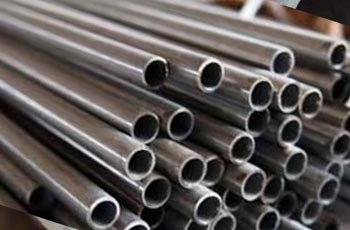

  • EN 1.4876 capillary tubing
  • Instrumentation tube
  • Inconel 800 gas tube
  • U-bent tubing

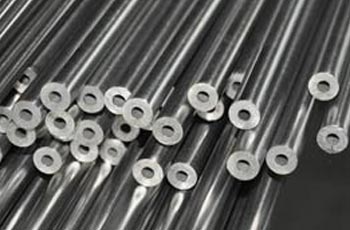

  • Inconel Alloy 800 condenser tube

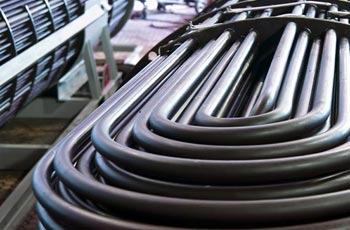

  • Heater tube
  • Alloy 800 condenser tubes

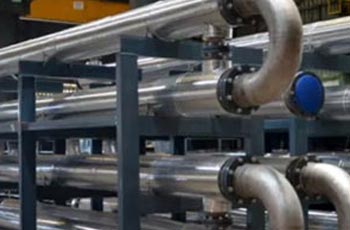

  • UNS N08800 boiler tube
  • Superheater tubes

Compare our price and response time to other Incoloy 800 tube stockists

  • Round
  • Hydraulic
  • Straight
  • ‘U’ bent
  • Square
  • Rectangular
  • Coil
  • Hot formed
  • Cold drawn
  • Precision Rolled
  • Cold Formed
Certification of Incoloy 1.4876 bright annealed tube Origin standards of Incoloy alloy 800 superheater tubes Nickel 800 coiled tubing features
  • HS Code Commercial Invoice
  • Laboratory Test Certificate from Govt. Approved Lab
  • Form A for Generalized System of Preferences (GSP)
  • Raw Materials Certificate
  • DFARS compliant
  • EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
  • Fumigation Certificates
  • Surface roughness measurement
  • Third Party Inspection Report
  • Moisture testing report
  • Heat Treatment Charts
  • American
  • Janpanese
  • European/ German
  • Korean
  • Steam power plants
  • Distilleries
Inconel alloy 800 polish tube benefits Inconel 1.4876 precision tubes marking 1.4876 Incoloy 800 tubing applications
  • Strength at high temperatures
  • Its ability to resist oxidation
  • Carburization
  • High-temperature corrosion
  • Specification
  • Material Grade
  • Method of Manufacturing (Seamless / Welded)
  • Heat Number
  • Manufacturer’s Name or Custom Logo – on request
  • Nominal Size
  • Schedule or Wall Thickness

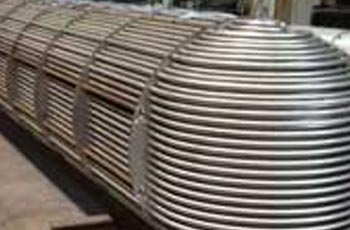

  • Heat exchangers
  • Muffles
  • Radiant tubes
  • Heat Treat Trays
  • Cracker Tubes
  • Manifolds
  • Food processing
  • Furnace equipment parts

The above-mentioned Incoloy 800 tube suppliers represent ex-stock and have provided to
numerous nations in the past, such as Tanzania, Namibia, Mauritius, Swaziland and Morocco

Get nickel 800 high pressure tube suppliers with below approval Inconel alloy 800 cold redrawn reboiler tubes SWG 1.4876 Incoloy 800 hydraulic tubing welding method
  • ADNCO
  • ORPIC
  • NPDC
  • PETRONAS
  • QAFCO
  • MAADEN
  • KNPC
  • SABIC
  • Aramco
  • ALBA
  • KOC
  • Qatar Petroleum
  • EGPC
  • 10 Swg.
  • 16 Swg.
  • 18 Swg.
  • 20 Swg.
  • 12 Swg.
  • 14 Swg.
  • SMAW
  • FCAW
  • submerged arc welding
  • TIG
  • GMAW including both MIG and MAG
DIN 1.4876 gas tube documentation offered UNS N08800 heater tube equipment EN 1.4876 condenser tube delivery time
  • Copy of Invoice
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc
  • Country of Origin Certificate (Original)
  • Bill of Lading
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc
  • Press machine
  • electric bevelling machine
  • Sand-blasting machine
  • Bending machine
  • Pushing Machine
  • 15-20 days if its not in stock
  • Generally it is 7-10 days if its in stock
  • 5-7 days in Saudi Arabia, Oman, and Qatar
Inconel 800 tube testing requirements 1.4876 Incoloy 800 capillary tubing packaging UNS 8800 mechanical tubing end type
  • Chemical test
  • Mechanical test
  • pmi test
  • Visual inspection test
  • Third party inspection test
  • Nabl approved lab test
  • Flaring Test
  • Destructive test
  • Non destructive test

Clear and concise communication on the mentioned test with the distributors, dealers,
and Incoloy 800 tube stockists specified above

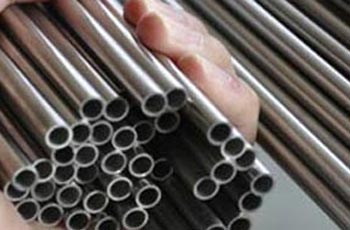

  • Wooden Boxes
  • PE Fabric Bundles
  • Crates (steel/wooden)
  • Wrapped in plastic or standard seaworthy export packing
  • custom
  • Special crates for with each radius separated
  • Bundles (hexagonal)
  • TBE: Thread Both Ends
  • TLE: Thread Large End
  • TOE: Thread One End
  • TSE: Thread Small End
  • Plain Ends (PE)
  • Threaded Ends (TE)
  • Bevelled Ends (BW)
  • Grooved Ends
  • BSE: Bevel Small End
  • BW: Buttweld End
  • PE: Plain End
  • PBE: Plain Both Ends
  • POE: Plain One End
  • TE: Thread End
  • BE: Bevel End
  • BBE: Bevel Both Ends
  • BLE: Bevel Large End
  • BOE: Bevel One End

Get connected with Incoloy 800 tubing suppliers who react quickly to urgent requirements in Middle East countries, check DIN 1.4876 heat exchanger tube sizes and stock

UNS N08800 redrawn tube price

Price of Incoloy 800 Tube Price in ZAR Price in USD Price in UAE Dirham
Welded tubing 9.53 X 0.5 X 6000 mm ZAR 166.24 US $ 9.10 33.41 AED
Welded tubing 9.53 OD X 0.6 mm wall X 6.1 meter ZAR 254.29 US $ 13.92 51.12 AED
15.875 X 0.9mm X 6 meter tube ZAR 169.34 US $ 9.27 34.05 AED
Annealed/ extruded tube 133.0 OD X 8.0 wall X 6000 mm ZAR 330.46 US $ 18.09 66.43 AED

Live chat with above listed suppliers to get complete price list ex Saudi Arabia, Qatar, Oman & Egypt

DIN 1.4876 heat exchanger tube gauge thickness

Gauge Thickness range(inch) Typical value (inch)
8 0.157 – 0.167 0.165
7 0.175 – 0.185 0.18
20 0.031 – 0.035 0.035
19 0.038 – 0.042 0.042
22 0.025 – 0.029 0.028
11 0.112 – 0.122 0.12
10 0.126 – 0.136 0.134
9 0.140 – 0.150 0.148
18 0.044 – 0.049 0.049
17 0.053 – 0.058 0.058
16 0.060 – 0.065 0.065
15 0.066 – 0.074 0.072
14 0.075 – 0.085 0.083
13 0.087 – 0.097 0.095
12 0.101 – 0.111 0.109

Types of nickel alloy 800 welded tube

UNS 8800 condenser tubes

UNS 8800 condenser tubes

Incoloy 800 seamless tube

Incoloy 800 seamless tube

UNS N08800 redrawn tube

UNS N08800 redrawn tube

DIN 1.4876 heat exchanger tube

DIN 1.4876 heat exchanger tube

Nickel alloy 800 welded tube

Nickel alloy 800 welded tube

EN 1.4876 precision tubes

EN 1.4876 precision tubes

Nickel 800 superheater tubes size chart

Types Out diameter (OD) Length Wall thickness
Incoloy 800 Seamless tube (as per need) 5.00 milimeter ~ 203.02 milimeter as per need
Incoloy 800 Welded tube (available + as per need) 5.00 milimeter ~ 1219.02 milimeter 1.00 ~ 15.00 milimeter
NB Sizes (available) 1/8” ~ 8” Upto 6 Meters SCH 40 /SCH 10 /SCH 160/ SCH 5 / SCH 80

Alloy 800 tube size chart

Gauge OD Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 0.051 – 0.102

Rupture strength of 1.4876 Incoloy 800 boiler tube

Welding Product Temperature Stressa for Rupture in
100 hours 1000 hours 10,000 hours
°F °C ksi MPa ksi MPa ksi MPa
Inconel Filler Metal 82 1000 540 58 400 52 359 47 324
1200 650 36 252 27.5 190 20.5 141
1400 760 16 110 11.5 79 8.3 57
1600 870 6.8 47 3.5 24 1.75 12
1800 980 2.7 19 1.25 9 0.57 4
Inco-Weld A Electrode 1000 540 60 414 51 352 39 269
1200 650 35 241 24.5 196 16 110
1400 760 16.5 114 11 76 7.1 49
1600 870 7 48 3.65 25 1.9 13
1800 980 2.3 16 0.9 6

Incoloy alloy 800 cold drawn tube tolerances

O.D. Inches Wall Thickness Inches O.D. +/- INCHES
2-1/2″ to 3-1/2″ incl. .032 to .165 0.014
Over .165 to .220 0.02
1 to 1-1/2″ incl. .025 to .065 0.008
Over .065 to .134 0.01
3-1/2″ to 5″ incl. .083 to .165 0.02
Over .165 to .220 0.025
1/2″ to 1″ incl. .025 to .065 0.005
Over .065 to .134 0.01
1-1/2″ to 2″ incl. .025 to .049 0.01
Over .049 to .083 0.011
Over .083 to .148 0.012
2″ to 2-1/2″ incl. .032 to .065 0.012
Over .065 to .109 0.013
Over .109 to .165 0.014

Impact strength of Incoloy 1.4876 extruded tube

Temperature Specimen Orientation Charpy Keyhole Impact Strength
°F °C ft•lbf J
70 21 Longitudinal / Transverse 89.8 / 82.7 122 / 112
-110 -79 Longitudinal / Transverse 89.8 / 85.0 122 / 115
-320 -196 Longitudinal / Transverse 78.3 / 69.5 106 / 94
-423 -253 Longitudinal / Transverse 73.0 / 64.3 99 / 87

Thermal properties of Inconel 800 tube

Temperature Electrical Resistivity Thermal Conductivity Coefficient of Expansion
°F ohm•circ mil/ft Btu•in/ft2•h°F 10-6 in/in/°F
70 595 80
100 600 83
1400 758 166 9.9
1600 770 181 10.2
1800 776 214
2000 788
400 657 103 8.8
600 682 115 9
200 620 89 7.9
1200 746 152 9.6
800 704 127 9.2
1000 722 139 9.4
°C mW•m W/m°C mm/m/°C
20 0.989 11.5
100 1.035 13 14.4
200 1.089 14.7 15.9
600 1.223 21.1 17.1
700 1.251 22.8 17.5
800 1.266 24.7 18
900 1.283 27.1
300 1.127 16.3 16.2
400 1.157 17.9 16.5
500 1.191 19.5 16.8
1000 1.291 31.9

Fatigue strength of EN 1.4876 precision tubes

Material Condition Tensile Strength 104 Cycles 105 Cycles 106 Cycles 107 Cycles 108 Cycles
ksi MPa ksi MPa ksi MPa ksi MPa ksi MPa ksi MPa
Cold-Drawn Annealed 82 565 48 331 43 296 39 269 36 248 32 221
Hot-Rolled 92 634 57 393 54 372 53 365 52 359 51 352
Cold-Drawn 114 786 65 448 49 338 37 255 33 228
Hot-Rolled Annealed 82 565 47 324 43 296 38 262 35 241 31 214

Nickel alloy 800 welded tube chemical composition

Grade Ni% Cr% Mn% Fe% Si% Al% C%
Incoloy 800 30.0-35.0 0.1 1.5 39.5 1 0.1

Alloy 800 tube mechanical properties

Grade Tensile Strength Yield Strength (0.2%Offset) Elongation
(per square inch) (megapascal) (per square inch) (megapascal) %
Incoloy 800 tube 75000 520 30000 205 30

Incoloy 800 Tube Properties

DIN 1.4876 heat exchanger tube equivalent

Standards Country Incoloy 800 tube
UNS North America N08800
WNR Russia 1.4876
ASTM America ASTM B163
ASME Australia ASME SB 163
EN Europe X10NiCrAlTi32-20
DIN German 1.4876
JIS Japan NCF 800
BS United Kingdom NA 15
GOST Russia ЭИ670
AFNOR France Z8NC32-21

Physical properties of UNS N08800 redrawn tube

Grade Density Melting Point
Incoloy 800 7.94 g/cm3 1357°C -1385°C

Delivery time and location for Incoloy 800 seamless tube

Export to Variations in price Expected delivery
Philippines 5 % extra 14 days
Oman 5 % extra 5 days
USA 5 % extra 40 to 60 days
Qatar 5 % extra 7 days
France 5 % extra 30 days
Indonesia 5 % extra 9 days
South Africa 5 % extra 25 to 30 days
UAE 5 % extra 5 Days
Saudi Arabia 5 % extra within 7 days
Italy 5 % extra 30 days
Uk 5 % extra 30 days
Malaysia 5 % extra 10 days

Buy nickel alloy 800 welded tube and EN 1.4876 precision tube with MTR/ MTC at a genuine prices in Dubai

Incoloy 800 tube get manufactured in different ways to match your requirement. An Incoloy 800 seamless tube does not necessitate a weld or seam for joining. It is sturdy and ductile. Usually, it gets preferred in extreme temperatures and pressures.
An alternative procedure is to use an Incoloy 1.4876 extruded tube. It is common in multiple industries and involves heating the material to a high temperature for enhanced malleability. Then, it gets pushed through a die to produce the required product.
A drawn tube, in contrast, gets pulled through the die several times to obtain the final shape. An Incoloy alloy 800 cold drawn tube is different from extrusion, which only forces the material through a die that matches the required design.

Incoloy 800 undergoes various treatment types based on user requirements. Annealing hardening is a process for softening the alloy. It involves heating the alloy to a critical temperature so recrystallization can occur. It then gets cooled to room temperature slowly. You can conduct full or process annealing for EN 1.4876 precision tube. The latter has a faster cooling rate.
Contrastingly, tempering lowers the brittleness of the alloy. It requires heating the material to below the critical temperature and holding it there before cooling. The temperature you choose will decide the hardness of the alloy.

Incoloy 800 frequently gets utilized in condenser and heat exchanger tubing because of its resistance to high temperatures. While UNS 8800 condenser tube have similarities with exchangers, they also have inherent differences. A condenser transforms a substance from a vapour to a liquid state. However, a DIN 1.4876 heat exchanger tube obtains the heat produced during this transformation, transferring it to another fluid. Their prime goal of changing the physical state is different.
This superalloy resists thermal cycling. It makes it perfect for heat-based applications like heater elements and petrochemical processes. Steam generation plants also use nickel 800 superheater tube because of their resistance to stress cracking.

You can easily get stockists who provide a wide range of alloy 800 tube in GCC with standard finishes and certification to suit your project’s needs.

Cold working is also a common approach to manufacturing Incoloy 800 components. In this process, the tube get drawn over a mandrel. Then, they get pushed through a die. A carefully controlled process achieves the dimensions you need, i.e., the diameter and the wall thickness. Finally, the alloy 800 tube gets annealed and cut to the desired length.
Cold drawing produces components with superb mechanical integrity. It lets manufacturers customize the products per the user’s requirements. Moreover, this tubing is sturdy and has higher hardness, making it perfect for critical applications, like a 1.4876 Incoloy 800 boiler tube.

Find a delivery time and cost comparison of many certified Inconel 800 tube distributors and importers here.

Alloy 800 is primarily known for its superior mechanical properties at room and elevated temperatures (for a short exposure). It can resist severe temperatures without undergoing deformation. A nickel alloy 800 welded tube is a highly stable and robust material that also offers resistance to oxidation and carburization. Additionally, this material also provides sulfidation resistance and creep-rupture.
You can employ an Inconel 800 tube in reducing environments that require harsh chemicals without inducing safety risks. Furnace components like cracker tube, pressure vessels, hydrocarbon plants, and electrical heating elements often use this material. Applications that demand dependable and long service life rely on Alloy 800 for its high-grade metallurgical profile
