Inconel 625 Plate

inconel 625 plate

The Nickel alloy 625 is a high nickel based grade. Inconel 625 plate is manufactured with a primary constituent of nickel, chromium, molybdenum and niobium. The rare combination gives the Inconel 625 Clad Plates good resistance to corrosion and superior strength.

These plates work in cryogenic temperatures as well as in temperatures up to 1800 degrees F. Inconel alloy 625 sheet is tolerant to pitting, crevice corrosion and is immune to intergranular attack.

They are also immune to chloride stress corrosion. The Inconel 625 sheet thickness range comes between 6mm up to 150mm or more. Nickel 625 plates are available in different sizes and shapes to suit all project requirements. Inconel 625 sheet AMS 5599 can also be availed with different surface finishes for aerospace sector.

The alloy 625 strips, plates and sheets have excellent physical and mechanical properties. These sheets have a width between 10 to 2500mm and are available in lengths up to 3 meters. But you can ask for cut to sized material from listed Inconel 625 plates suppliers to avoid the wastage.

The nickel alloy 625 plate stock has a density of 8.44 g/cm3 with a melting range between 1290 to 1350 degrees C. They also showcase good tensile and yield strengths. UAE imports most of the nickel 625 plates from Netherlands, Germany and United Kingdom and HS code is 75062000.

The Inconel alloy 625 sheets can also be customized as per the requirements. The Inconel 625 plate price starts at $38.99 per kg. The price depends on the size, thickness, and other material specifications of the grade. The Inconel 625 plate weight calculator can be used to efficiently calculate the weight of the material.

Verified Supplier

Verified Stockists (Contact directly for instant quote)

available 4 cars

Piping Material

Discover Inconel 625 sheet suppliers in UAE at a reasonable price. Compare Inconel 625 vs 718 composition

Complete information for alloy 625 sheet grade

Note: Below information is taken from trusted resourse

Grade ASTM AMS WNR Temprature Strength Nickel content Lifespan
Inconel 625
  • ASTM B443
  • ASME SB443
AMS 5599/5869 WNR 2.4856
  • 2000°F
  • 1093°C
  • Yeild: 490 Mpa
  • Tensile: 690 MPa
58% over 50 years

Do you need to buy alloy 625 plate from reputed stockists in the Middle East and Asia in custom sizes? Buy crack free AMS 5599 sheet & Inconel 625 strip at lowest price in Dubai

Inconel 625 plate specification gathered from various reliable suppliers


Inconel 625 Plate Specification

For larger sizes, please contact the Inconel 625 plate suppliers listed above in the UAE.
Size range of alloy 625 plate/ sheet Alloy 625 strip sizes DIN 2.4856 sheet edges
  • Inconel 625 plate thickness: 1 – 250 mm
  • Width: 600 – 3000 mm
  • Length: 1000 – 15000 mm
  • Gauge: 0.127 – 13 mm
  • Width: 6 – 2000 mm
  • Length: upto 15 meter
  • Slit edge
  • Rolled edge
Nickel alloy coil 625 AMS Difference between Inconel 625 plate, sheet & Foil Inconel 2.4856 cold rolled plate density
  • AMS 5599
  • AMS 5869
  • Plate: 600 or thicker
  • Sheet: 0.5mm upto 600 thick
  • Foil: less than 0.2mm thick
  • 8.44 g/cm³
Alloy 625 LCF plate dimension Inconel 625 LCF sheet melting point Temperature range of nickel 625 annealed plate
  • 0.50 mm to 2.00 mm thick
  • 1290-1350°C
  • 1800°F
2.4856 Inconel foil delivery time Hardness range of Inconel 625 rolling plate DIN 2.4856 plate elongation
  • 15-20 days if its not in stock
  • Generally it is 7-10 days if its in stock
  • Oman/ Qatar/ Saudi Arabia – 3-5 days (by Air / Ship)
  • Rockwell hardness: 29 HRC
  • 55.00 – 30.00%
AMS 5869 foil surface finish classes Most common types of Inconel 625 plate material Manufacturing technique of nickel alloy 625 coil
  • Class A : finest finish
  • Class B: slightly less fine finish
  • Class C : most basic finish

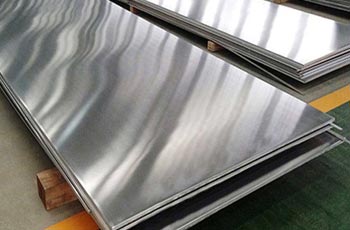

  • Inconel 625 Sheet
  • Alloy 625 plate
  • Inconel 6625 Clad plate
  • Coil
  • Rolls
  • Inconel 625LCF Foils
  • Shim sheet
  • Strips
  • WNR 2.4856 annealed plate

Above Inconel 625 plate stockist produce corresponds with customer drawings, check cost and turnaround time with those of other alloy 625 sheet stockists.

  • Roll forming
  • Cold rolling
  • Hot rolling
Nickel 625 shim sheet features 625 Inconel hot rolled plate welding method Supply alloy 625 sheet in following brand
  • Outstanding heat resistance
  • Strength
  • Weldability
  • Metallurgical stability
  • Corrosion resistance
  • PLASMA
  • SAW
  • GTAW (TIG)
  • SMAW (MMA)
  • GMAW (MIG/MAG)
  • Nippon Yakin
  • ATI
  • HAYNES International
  • Outokumpu
  • VDM
  • Columbus Stainless
  • Special Metals(SMC)
  • Valbruna Stainless Steel
2.4856 Inconel plate marking BS 3072NA21 cold rolled plate finish Inconel 625 coil applications
  • Manufacturer logo / name
  • ASTM/ ASME standard
  • Manufacturing date
  • Material grade
  • Sizes
  • Origin of material
  • Sandblasted
  • Brushed
  • Glossy
  • Matte
  • Electroless nickel plating
  • Mirror
  • Marine applications
  • Utility boat exhaust ducts
  • Chemical Processing
  • Flue gas desulfurization scrubbers
  • Heat Exchangers
  • Submarine propulsion motors
  • Propeller blades
  • Steam-line bellows

Buy from the top Inconel 625 plate suppliers with zero rejection rates in South Africa, Middle East, Egypt, US, Oman, and Saudi Arabia.

Modulus of elasticity of 2.4856 Inconel foil Nickel alloy 625 annealed plate coefficient of thermal expansion DIN 2.4856 hot rolled plate velocity
  • 103 KSI
  • 1.28 x 10-5 1/K (at 20°C)
  • 2293 In/ms
AMS 5599 sheet common trade names Alloy 625 plate welding electrode Inconel 625 foil other industry standards
  • CarTech Pyromet® Alloy 625
  • Nickelvac 625
  • ISO NW6625
  • Inconel 625
  • Haynes 625
  • 625 Alloy
  • W-No 2.4856
  • Nickel 625
  • INCONEL Welding Electrode 112
  • PWA LCS
  • GE Aviation S-SPEC-35 AeDMS S-400
  • EN 2.4856
  • RR SABRe Edition 2
  • DFARS Compliant
  • EN 10204
  • GE Aircraft Engine (GT193)
  • EMS95377
ISO standard of Inconel 625 strip Certification of AMS 5599 shim sheet Alloy 625 rolling plate value added services
  • ISO 6208
  • Third Party Inspection Report
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • EN 10204/3.1B
  • Certificate of Origin legalized
  • Shearing
  • Sawing
  • Edge preparation
  • Polishing
  • Bending
  • Cutting to length
  • Blanking
  • Slitting
  • Welding
  • Mechanical processing

For these services, use chat or email to get in touch with listed Inconel 625 plate stockists,and distributors.

Werkstoff Nr 2.4856 plate packaging AMS 5599 sheet testing requirements 625 Inconel hot rolled plate hardness type
  • Customized Pallets
  • Bubble wraps
  • Steel Strips Bundled
  • Wooden Pallets
  • Visual inspection test
  • Non destructive test pmi test
  • Flaring Test
  • Chemical test
  • Mechanical test
  • Destructive test
  • Third party inspection test
  • Nabl approved lab test
  • Half Hard
  • Quarter Hard
  • Hard
  • Spring Hard
  • Soft
Inconel 625 strip processing Nickel 625 plate PREN number Electrical conductivity of 2.4856 Inconel coil
  • Grinding
  • Edging
  • Precision Rerolling
  • Heat Treating
  • Trepanning
  • Boring
  • Leveling
  • Deburring
  • 40.8
  • 0.000129 ohm-cm
DIN 2.4856 cold rolled plate method of cutting AMS 5599 sheet characteristics Standard of nickel alloy 625 sheet
  • Laser cutting
  • Waterjet cutting
  • Plasma cutting
  • Oxy-propane flame cutting

Direct contact with the above Inconel 625 plate distributors, dealers, and stockists specified for the above-mentioned cuts

  • Pitting and crevice cor- rosion
  • Excellent weldability
  • High creep strength
  • High tensile strength
  • High corrosion-fatigue strength
  • NACE: MR0175
  • S-1000/S-SPEC-1
  • RR: SABRE AEROSPACE
  • ISO: 15156
  • AMS 5599
  • AMS: 5666
  • ISO: 15156
  • SAE AMS5599
  • MR0103
Alloy 625 annealed plate documentation offered Inconel 625 plate HS code Inconel 625 plate ASTM
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Bill of Lading.
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Country of Origin Certificate (Original)
  • Copy of Invoice
  • HS Code 7506

Thickness of nickel alloy 625 rolling plate

3/16″ 4.8 mm
1/2″ 12.7 mm
1/4″ 6.3 mm
3/8″ 9.5 mm
5/8″ 15.9 mm
1″ 25.4 mm
1 1/2″ 38.1 mm
3/4″ 19 mm
1 1/4″ 31.8 mm
2 1/2″ 63.5 mm
1 3/4″ 44.5 mm
2″ 50.8 mm
3″ 76.2 mm

Inconel 625 sheet hs code

Material HS code
Inconel 625 sheet 75062000

Inconel 625 sheet thickness tolerance

Inconel 625 sheet tolerance up to & under nominal thickness t (mm)
Width w (mm) 2.5<t <4.5 4.5<t <6.0 6.0<t <8.0 8.0<t <10.0 10.0<t <12.5 12.5<t <16.0 16.0<t <20.0 20.0<t <25.0 25.0<t <30.0 30<t <40.0
2400< w <2700 0.80 0.80 0.80 0.80 0.90 1.0 1.1 1.3 1.7
w < 1200 0.20 0.23 0.30 0.32 0.35 0.80 0.80 0.80 1.0 1.4
1800< w <2100 0.20 0.30 0.36 0.40 0.45 0.80 0.80 0.90 1.1 1.5
1200< w <1500 0.20 0.25 0.30 0.35 0.38 0.80 0.80 0.90 1.0 1.4
1500< w <1800 0.20 0.28 0.32 0.38 0.40 0.80 0.80 0.90 1.1 1.5
2700< w <3000 0.80 0.90 1.0 1.0 1.0 1.1 1.3 1.4 1.8
2100< w <2400 0.80 0.80 0.80 0.80 0.80 0.90 1.0 1.1 1.5

Difference between Inconel 600 and 625

Inconel 600 Inconel 625
Low purity High purity
Low corrosion resistance High corrosion resistance
Curie Temperature, -124°C Curie Temperature, -196°C
Density: 8.47 g/cm³ Density: 8.44 g/cm³
Matrix: Nickel,
Chromium,
Iron
Matrix: Nickel,
Chromium,
Molybdenum,
Niobium
Type: solid solution strengthened alloy Type: solid solution strengthened alloy
High temperature High temperature

DIN 2.4856 plate mechanical properties

Hardness Tensile strength Yield strength Elongation
Hot-finished 65-85 HRB 550-725 MPa 205-345 MPa 55-35%
Hot-finished and annealed 80-95 HRB 580-760 MPa 240-450 MPa 50-30%

Nickel alloy 625 sheet equivalent material

Standards Country Value
UNS North America N06625
WNR Russia 2.4856
ASTM America ASTM B443
ASME Australia ASME SB443
JIS Japan NCF 625
BS United Kingdom NA 21
GOST Russia ХН75МБТЮ
AFNOR France NC22DNB4MNiCr22Mo9Nb
EN Europe NiCr23Fe
AMS United States
  • AMS 5599
  • AMS 5869

Inconel 625 chemical composition

Material C Cr Co Mo Fe Nb+Ta Ag Ni Si Mn Ti S P AI N
Inconel 625 0.10% max 20.00-23.00% 1.00% max 8.00-10.00% 5.00% max 3.15-4.15% 0.40% max 58.00% min 0.50% max 0.50% max 0.40% max 0.01% max 0.01% max
Alloy 625 LCF max. 0,03 20,00 – 23,00 8,00 – 10,00 3,15 – 4,15 min. 58,00 max. 0,15 max. 0,50 max. 0,40 max. 0,40 max. 0,02

Inconel 625 Plate Properties

Types of nickel alloy 625 sheet

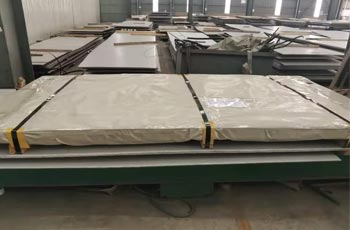

Inconel 625 plate

Inconel 625 plate

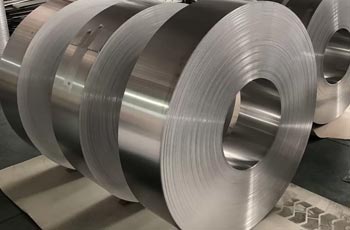

DIN 2.4856 coil

DIN 2.4856 coil

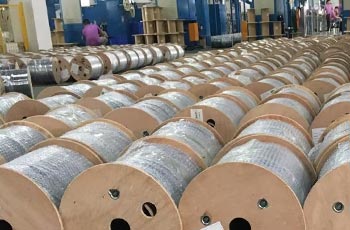

Alloy 625 strip

Alloy 625 strip

Nickel 625 foil

Nickel 625 foil

AMS 5599 rolling plate

AMS 5599 rolling plate

inconel 625 grade 1 annealed plate

Inconel 625 grade 1 annealed plate

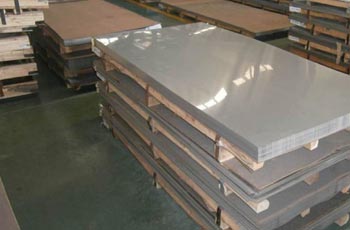

2.4856 Inconel hot-rolled plate

2.4856 Inconel hot-rolled plate

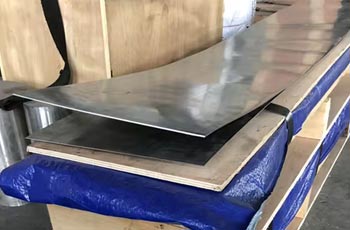

Inconel alloy 625 cold-rolled plate

Inconel alloy 625 cold-rolled plate

Inconel 625 grade 2 shim stock

Inconel 625 grade 2 shim stock

Gauge chart of werkstoff 2.4856 annealed plate

Gauge Inconel 625 sheet
Gauge Decimal (inches)
8 0.1719
9 0.1562
10 0.1406
11 0.1250
12 0.1094
14 0.0781
16 0.0625
18 0.0500
20 0.0375
22 0.0312
24 0.0250
26 0.0187
30 0.0125

Alloy Inconel 625 shim sheet flatness tolerance

Alloy(s) Permissible Variations from Flat, in. Specified Thickness, in.
625 0.625″ 2 to 2-3/4, excl.
625 1.125″ 1/2 to 3/4, excl.
625 1.125″ 3/8 to 1/2, excl.
625 1.125″ 3/4 to 1, excl.
625 2.125″ 3/16 to 1/4, excl.
625 1.5″ 1/4 to 3/8, excl.
625 1.125″ 1 to 2, excl.
Once the complete length is cut, the straightness tolerance will be null and invalid

AMS 5599 sheet tolerances on length

Nominal length (mm) L < 2,000 2,000 < L < 8,000. L > 8,000
Alloy 625 Shim Sheet Tolerance(mm) Minus 0 0 0
Plus 10 0.005 times L 40

625 Inconel hot rolled plate tolerances on width

Tolerance (mm)
Nominal length (mm) 1200 < w  < 1500 w > 1500 w < 1200
Trimmed edge Plus 5 5 3
Minus 0 0 0
Mill edge Plus 20 20 20
Minus 0 0 0

Size chart of BS 3072NA21 cold rolled plate

Inconel 625 sheet stocked sizes
Size (in mm) Size (in inches)
3.18 0.125
38.1 1.500
3.96 0.156
12.7 0.500
15.9 0.600
6.35 0.250
7.92 0.312
22.2 0.875
31.8 1.250
3.40 0.134
76.2 3
44.5 1.750
19.1 0.750
9.53 0.375
25.4 1
4.75 0.187
63.5 2.500
28.6 1.125
50.8 2

Werkstoff 2.4856 plate weight chart

Gauge Inconel sheet
Weight (lb/ft2)
8 6.93
22 1.26
10 5.67
26 0.756
20 1.512
16 2.52
24 1.008
11 5.04
20 1.512
18 2.016
11 5.04
14 3.15
12 4.41

Inconel 625 plate price

Grade alloy 625 Cold Rolled Plate Thickness in mm Price in UAE Driham Price in USD Price in Pound
Inconel 625 Plate 0.4mm thick x 250mm x 250mm AED 300.01 US $ 81.67 £ 65.00
0.7mm thick x 250mm x 250mm AED 383.10 US $ 104.28 £83.00
0.9mm thick x 250mm x 250mm AED 484.64 US $ 131.93 £105.00
1.0mm thick x 250mm x 250mm AED 636.95 US $ 173.39 £138.00
 0.6mm thick x 250mm x 250mm AED 364.63 US $ 99.26 £79.00
2.0mm thick x 100mm x 100mm AED 212.32 US $ 57.80 £46.00
3.0mm thick x 100mm x 100mm AED 258.47 US $ 70.36 £56.00
4.0mm thick x 100mm x 100mm AED 300.01 US $ 81.67 £65.00
0.8mm thick x 250mm x 250mm AED 424.64 US $ 115.59 £92.00
0.5mm thick x 250mm x 250mm AED 323.09 US $ 87.95 £70.00
5.0mm thick x 100mm x 100mm AED 332.32 US $ 90.46 £72.00

Notes

  • Contact above listed Inconel 625 plate suppliers directly for shipping time
  • Above is the approx price
  • Origin wise price may vary

DIN 2.4856 strip dimension

KG P/M2 4.5 6.3 8.1 27.0 10.8 14.4 18.0 28.0
Dimension (mm) 0.5 X 1000 X 2000 0.7 X 1219 X 3048 0.9 X 1219 X 3048 3 X 1200 X 3000 1.2 X 1219 X 3048 1.6 X 1200 X 3048 2.0 X 1219 X 3048 3.18 X VARIOUS ANN

Inconel 625 vs 825

Inconel 625 Inconel 825
Welding electrodes INCONEL 112 welding electrode
  • 112 welding electrode
  • 686CPT welding electrode
Curie temperature value < -196°C -196°C
Sulphur (S) <=0.015% <=0.03.0%
Manganese (Mn) <=0.50% <=1.00%
Phosphorus (P) <=0.015%
Melting point 1290-13500C 1370-14000C
Density 8.44 g/cm3 8.14 Mg/m3
Fillers
  • INCONEL filler metal 625
  • INCOLOY 82
  • 625 filler metal
  • 686CPT filler metal

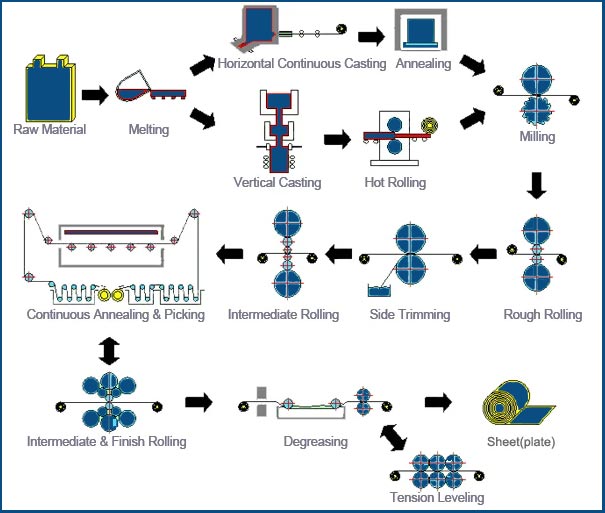

Manufacturing process of AMS 5599 sheet

AMS 5599 sheet manufacturing process

Corrosion rate of nickel alloy 625 coil

Alloy Corrosion Rate
Alloy 825 7.9mpy 0.2mm/a

Inconel 625 grade 1 vs grade 2

Inconel 625 grade 1 Inconel 625 grade 2
Heat Treatment Solution annealed at temperatures around 1,900°F solution annealing process at a slightly lower temperature
Mechanical Properties Lower tensile strength and hardness Higher tensile strength and hardness
Applications Seawater and chemical processing industries Aerospace components
Corrosion resistance Provides exceptional corrosion resistance in various harsh environments Retains excellent corrosion resistance but may offer slightly improved performance in aggressive chemical environments
Min annealing temperature 871°C 1093°C

Nickel 625 shim sheet thermal and electrical properties

Temp.
°F
Electrical
Resistivityc (ohm-circ mil/ft)
Meal Linear
Expansiona (10-6in/in•°F)
Thermal
Conductivityb,c (Btu•in/ft2-h•°F)
2000 806
-250 50
0 64
70 776 68
-100 58
100 780 70
400 806 7.3 87
200 794 7.1 75
600 812 7.4 98
1200 830 8.2 132
800 818 7.6 109
1000 830 7.8 121
-200 52
1400 824 8.5 144
1600 818 8.8 158
1700 9.0
1800 812 175

Inconel 625 vs monel 400

Inconel 625 Monel 400
Corrosion Resistance Excellent Good
Temperature range Cryogenics to 1800°F Cryogenics to 1000°F
Applications Aerospace, chemical processing, marine engineering Marine applications, chemical processing equipment, oil and gas
Nitric acide Good Not acceptable
Hydrofluoric acide Low Excellent
Marine / salt water Excellent Very good

Ductility and toughness of Inconel alloy 625 plate

Test
Temperature,
Orientation Impact Strength,
°F °C J ft•lb
85 29 Transverse 62, 66, 70 46, 49, 51.5
Longitudinal 65, 66, 68 48, 49, 50
-110 -79 Transverse 53, 57, 60 39, 42, 44
Longitudinal 53, 57, 60 39, 44, 49
-320 -196 Transverse 42, 43, 49 31, 32, 36
Longitudinal 47, 47, 48 35, 35, 35.5

Inconel 625 cold rolled sheet tensile properties (1052°C)

Temperatur °F RT 1000 1200 1400 1600 1800 2000
°C RT 538 649 760 871 982 1093
0.2% Yield Strength ksi 71.2 56.3 55.1 53.8 29.6 9.9 5.0
MPa 491 388 380 371 204 68 35
Ultimate Tensile Strength ksi 133.9 118.4 117.7 71.0 34.7 15.3 8.7
MPa 923 816 811 490 239 106 60
Elongation % 47.5 54.2 109.3 135.0 160.6 154.5 128.3

Alloy 625 hot rolled plate tensile properties (1050°C)

Temperatur °F RT 800* 1000 1200 1400 1600 1800 2000
°C RT 427* 538 649 760 871 982 1093
0.2% Yield Strength ksi 60.5 46.4 44.8 43.7 43.7 30.6 11.8 5.4
MPa 417 320 309 301 301 211 81 37
Ultimate Tensile Strength ksi 129.6 116.1 112.3 112.7 71.1 38.0 17.3 9.3
MPa 894 800 774 777 490 262 119 64
Elongation % 48 51.5 52.1 80.3 102.2 115.7 120.7 135.1

Nickel 625 sheet temperature range

HAYNES® 625 alloy
ASME Section Xll Grade 1 650°F (343°C)1
Grade 2
650°F (343°C)7
B31.1 1200°F (649°C)1
B16.34 1200°F (649°C)6
B16.5 1200°F (649°C)8
B31.3 1200°F (649°C)6
Section l Grade 1 1100°F (593°C)1
Code Case 2632 1200°F (650°C)2
Grade 2 1100°F (593°C)3
CodeCase 1935
1000°F (538°C)3
Section lV HF-300.2
Section Vlll Div. 2 Grade 1 800°F (427°C)5
Code Case 2468
800°F (427°C)6
Div. 1 Grade 1 1200°F (649°C)1
Grade 2 1600°F (871°C)3
1200°F (649°C)
Section lll Class 1 Grade 1 800°F (427°C)3
Class 2 Grade 1 800°F (427°C)4
Class 3 Grade 1 800°F (427°C)4
MMPDS 6.3.3

DIN 2.4856 plate modulus at elevated temperatures

Temp.
°F
Modulus of Elasticity, 103 ksi Temp.
°C
Poisson’s Ratio Modulus of Elasticity, GPa
Tension Shear Tension Shear
Solution-
Treated
Annealed Solution-
Treated
Annealed Solution-
Treated
Annealed Solution-
Treated
Annealed Solution-
Treated
Annealed
400 28.1 28.7 10.8 11.1 204 0.303 0.286 193.7 197.9 74.5 76.5
200 29.1 29.6 11.1 11.6 93 0.311 0.280 200.6 204.1 76.5 80.0
70 29.7 30.1 11.3 11.8 21 0.312 0.278 204.8 207.5 78.0 81.4
600 27.2 27.8 10.4 10.8 316 0.300 0.290 187.5 191.7 71.7 74.5
1000 25.1 25.9 9.6 9.9 538 0.312 0.305 173.1 178.6 66.2 68.3
800 26.2 26.9 10.0 10.4 427 0.302 0.295 180.6 185.5 68.9 71.7
1200 24.0 24.7 9.2 9.4 649 0.314 0.321 165.5 170.3 63.4 64.8
1600 21.5 21.4 8.3 8.0 871 0.289 0.336 148.2 147.5 57.2 55.2
1400 22.8 23.3 8.8 8.7 760 0.305 0.340 157.2 160.6 60.7 60.0

AMS 5599 sheet nominal room-temperature mechanical properties

Form And Condition Yield Strength
(0.2% Offset)
Tensile
Strength
Reduction
Of Area
Elongation Hardness, Brinell
MPa ksi MPa ksi % %
Solution-Treated 276-414 40-60 689-827 100-120 60-40
Annealed 414-655 60-95 827-1034 120-150 60-40 60-30 145-220
Annealed 414-621 60-90 827-1034 120-150 55-30 145-240
Solution-Treated 290-414 42-60 724-896 105-130 90-60 65-40 116-194
SHEET and STRIP
TUBE and PIPE,
COLD-DRAWN
As-Rolled 414-758 60-110 827-1103 120-160 60-40 60-30 175-240
ROD, BAR, PLATE
Annealed 414-517 60-75 827-965 120-140 55-30

Delivery location and schedule for Inconel 625 plate

Export to Price variations and estimated delivery
UAE  5 % extra | 5 Days
South Africa  5 % extra | 25 to 30 days
Saudi Arabia  5 % extra | 7 days
Qatar  5 % extra | 7 days
USA  5 % extra | 40 to 60 days
Uk  5 % extra | 30 days
France  5 % extra | 30 days
Italy  5 % extra | 30 days
Malaysia  5 % extra | 10 days
Philippines  5 % extra | 14 days
Indonesia  5 % extra | 9 days
Oman  5 % extra | 5 days
Bahrain  5 % extra | 9 days
Kuwait  5 % extra | 10 days

inconel 625 plate

Several importers and traders offer a range of Inconel 625 coil at discounted costs in Dubai. Know more about Werkstoff nr 2.4856 annealed plate surface finish

The alloy 625 plates can be treated in a different finish to enhance the surface quality. The WERKSTOFF Nr 2.4856 plates can be electroplated, galvanized, anodized, plasma sprayed, painted, or dipped among others.

The Inconel 718 is a nickel and cobalt based alloy. ASME SB443 VdTüV 499 Shim Sheet is a primary nickel based alloy grade. The content of nickel and cobalt gives the alloy 718 better hardness than AMS 5869 Foil. However, the Inconel 718 grade doesn’t have great corrosion resistance properties when compared to the Nickel Alloy 625 Coil. The forming and post-weld conditions of the 718 alloy gives better forming capabilities over the AMS 5599 Perforated Sheet.

The Inconel 625 sheet is a feature in different industrial, commercial and domestic systems. These sheets are common in aerospace components like expansion joints, exhaust systems, turbine shroud rings, etc. The Inconel 625 Sheet Suppliers supply the sheet for use in air pollution control- dampers and flue gas desulfurization components. The ASTM B443 UNS N06625 Sheet is also seen in marine service for navy exhaust systems and auxiliary propulsion systems.

The robust Alloy 625 Strip is also a feature in the nuclear industry where reactor core and control rod components are designed. The versatile Inconel 625 Sheet Size is seen in offshore oil production, petroleum refining, and waste treatment. All this is possible due to the outstanding Inconel 625 Sheet Thickness Tolerance.

Nickel alloy 625 sheet and Inconel 625 foil are available to meet specific requirements. Get a quote. View DIN 2.4856 hot-rolled plate standards and thickness

The Inconel 625 Plate ASTM standard is the ASTM B443 alloy grade. Other standards of the grade include the UNS N06625, JIS NCF 625, BS NA 21, and EN NiCr22M09Nb.

A large selection of UNS N06625 plates & Inconel 625 LCF clad sheets at very low price in UAE, contact listed verified alloy 625 plate suppliers for a free sample, also know the temperature range

The Inconel 625 hot rolled plate is processed in a temperature range between 1650 to 2150 degrees F. Heavy working of the plate is done at temperatures close to 2150 degrees F. The BS 3072NA21 Cold Rolled Plate can be cold-formed via standard shop fabrication practices.
