Inconel 625 Round Bar

Inconel 625 Round Bar Summary

Size	As Per Drawing or Sample
International Standards	ASTM B446, ASME SB 446, ISO 9723, VdTüV 499, BS3076NA21, UNS N06625, WNR 2.4856
Available Forms	Square, Hex, Rectangular, Round, Flat Bar, Ingot, Billet
Raw Material Orign	Japanese, American, European, Indian, Korean,
Surface	Hot Rolled Pickled, Polished, Hairline
Fillers	INCONEL filler metal 625 INCOLOY 82
Quality Test	Hardness Test, Bending Test, Hydrostatic
Welding Electrode	INCONEL 112
Technique	Hot and Cold Rolled
Delivery Time	Singapore : 6-8 Days \| Qatar : 7-8 Days
MTC	EN 10204 3.1
Services	Cutting, Heat Treatment, Shearing

Table of Content

Inconel 625 round bar specifications
Price of Alloy 625 round bar
Discover Ready Inventory Of Inconel 625 Round Bar
Alloy 625 Hex Bar
Inconel 625 Flat Bar
DIN 2.4856 Square Bar
Nickel Alloy 625 Rectangular Bar
AMS 5666 Round Bar
AMS 5837 Rod
ASTM B446 UNS N06625 Forged Bar
Inconel Alloy 625 Bar
Nickel 625 Round Rod
WNR 2.4856 Forged Round Rod
Inconel 625LCF Bright Bar
Inconel 625 Grade 1 Black Bar
Inconel 625 Grade 2 Hot Rolled Bar
Cold Drawn Inconel 625 Round Bar
International Standard of Alloy 625 bar
What is Effect Of Intermediate-Temperature Exposure On Properties Of Hot Rolled Inconel 625 Annealed Bar
Physical Properties of Inconel 625 bar stock
Code Of Inconel 625 Bar Stock
ASTM B446 UNS N06625 Rod hs code
Inconel 625 Rod Application
Effect of Annealing on Room-Temperature Properties of Hot-Rolled 625 Rod
Various types of Inconel 625 bar
Inconel 625 Bar Stock weight calculation formula

Tolerances of SB 446 UNS N06625 forged bar
Inconel 625 Polished Round Bar Charpy V-Notch Impact Strength
How Cold-Drawn Inconel 625 Rod Room-Temperature Properties Affected by 1 Hour Annealing ?
Inconel 625 Hex Bar Value Added Services
What are Conditions for Turning Of Alloy 625 Bar With Single-Point Tools ?
What Certification Provided With Inconel 625 Flat Bar
What is Corrosion Rate Of Nickel 625 Bar in Hydrobromic Acid and Sulfuric Acid ?
Chemical composition of Inconel 625 round bar
DIN 2.4856 round bars mechanical properties
Equivalent standard of nickel alloy 625 hex bar material
Nickel 625 round bar size chart
ASTM B446 UNS N06625 rod weight chart
Thermal and Electrical Properties Of Inconel 625 Square Bar
What is Corrosion Cracking Time Of AMS 5837 Bright Bar Compred to Other Alloys ?
Which Documentaion Will Get With Inconel 625 Rectangular Bar
Inconel 625 Round Bar Modulus at Elevated Temperature
Alloy 625 Round Bar Testing
How Inconel 625 Bar is Differ As Per Pitting and Crevice Corrosion Rate With Other Alloys ?

Alloy 625 hex bar and Inconel 625 bar stock suppliers in UAE

Inconel 625 round bar specifications

Buy High Quality Material From Inconel 625 Round Bar Suppliers in UAE As Per Custom Specification

Inconel 625 round bar specification

Inconel 625 Round Bar:4 to 500mm Dia, 1- 6.0 meter (length)

Alloy 625 Square Bar: 18 – 47mm

AMS 5666 Flat Bar: 2-150 mm (thickness), 12.7 to 254 mm (width)

ASTM B446 UNS N06625 Hex Bar: 18 -57mm (Size), 1- 6.0 meter (Length)

WNR 2.4856 Rectangular Bar: 33 x 30 mm to 295 x 1066 mm

Comply with: ASTM, NACE MR0175, ANSI, AMS, ASME, DFAR, EN, GB, NORSOK, JIS, GOST, ISO 15156

Suitable Temperatures: Up to 2000° F

Heat Treatment: Age Hardened, Solution Annealed and Cold Worked

MTR: NDT, PMI, Ultrasonic, Eddy Current Test reports

Supply State: PH, H&T, ANN

Obtain Quote Directly from Inconel 625 Round Bar suppliers in UAE With Data Sheet

Process:Forged and Rolled

Buy Inconel 625 flat bar as per AMS 5599, 5666 material at reasonable prices from reliable ASTM B446 UNS N06625 alloy rod suppliers in UAE

Price of Alloy 625 round bar

Compare response time and price of reliable Inconel 625 round bar stockists & manufacturers & grab the best deal here.

Thickness	Price Per Unit (USD)	Price Per Unit (AED)	Price Per Unit (OMR)
125mm OD x 37mm thk	US $ 175.25	AED 643.57	OMR 67.46
125mm OD x 26mm thk	US $ 119.91	AED 440.35	OMR 46.16
125mm OD x 17mm thk	US $ 78.91	AED 289.78	OMR 30.38
125 mm x 350 mm	US $ 1,931.40	AED 7092.70	OMR 743.51
125mm x 270mm length	US $ 1,486.01	AED 5457.09	OMR 572.05
625 x 500mm long	US $ 1,268.67	AED 4658.95	OMR 488.38
35 mm	US $ 443.71	AED 1629.44	OMR 170.81
25 mm x 6ft	US $ 269.32	AED 989.03	OMR 103.68
20 mm dia	US $ 434.08	AED 1594.08	OMR 167.10
32 mm dia x 410 mm	US $ 990.76	AED 3638.38	OMR 381.40
32 mm dia x 170 mm long	US $ 391.36	AED 1437.20	OMR 150.66
32 mm dia x 150 mm long	US $ 342.23	AED 1256.77	OMR 131.74
34 mm dia x 400 mm long	US $ 757.14	AED 2780.45	OMR 291.47
34 mm dia x 330 mm long	US $ 588.30	AED 2160.42	OMR 226.47
25 mm dia	US $ 3,274.42	AED 12024.69	OMR 1260.51

Material Inspection Facilities in the Following Countries

Riyadh	Dubai	Muscat	Ras Al Khaimah
Fujairah	Umm Al Quwain	Sharjah	Doha
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

Discover Ready Inventory Of Inconel 625 Round Bar

Find Genuine Inconel 625 Round Bar Suppliers in UAE Who Supply Various Types

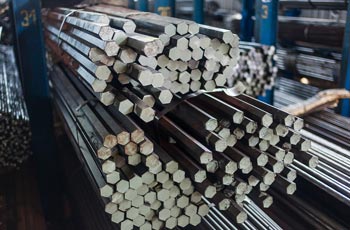

Alloy 625 Hex Bar

Resistance (μΩ.m):1.09±0.05
Purity: Ni 58% min

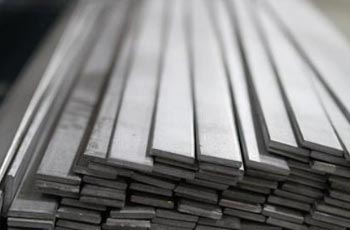

Inconel 625 Flat Bar

Trade Name:Chornin 625, Nickelvac 625, Haynes 625
Condition: Hardened, Annealed, Turned & Rough

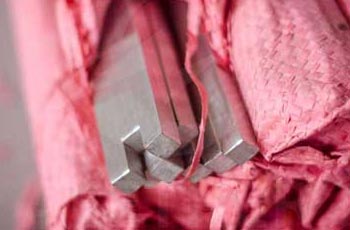

DIN 2.4856 Square Bar

Testing: Chemical, Mechanical, Flaring, PMI Test
Tolerance: H8 to H13, K9 to K12

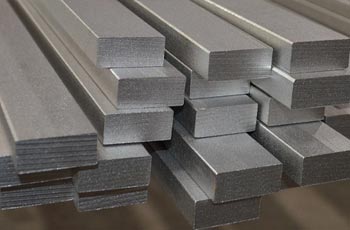

Nickel Alloy 625 Rectangular Bar

Service: Bending, Welding, Decoiling, Cutting
Surface: Bright, Oxidized, Annealed

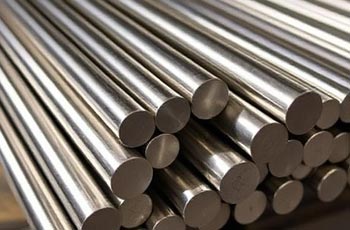

AMS 5666 Round Bar

Lifespan: More Than 50 Years
Operating Temperature: 1093 °C

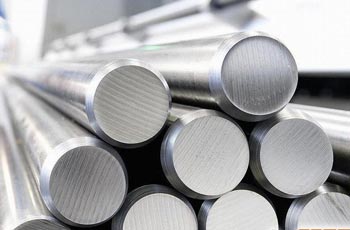

AMS 5837 Rod

Method: Forged, Rolled
Method: Hot Rolled, Cold Drawn, Forged, Centreless Grinding

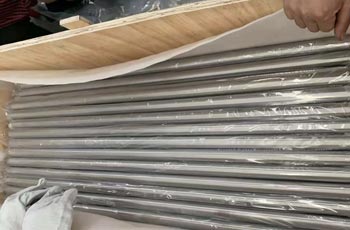

ASTM B446 UNS N06625 Forged Bar

Brand: Outokumpu, Yakin, AventBar, ATI
Condition: Rolling, Forging, CNC Machining, Annealing

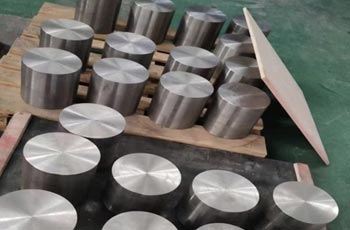

Inconel Alloy 625 Bar

Tolerance: ±10%
Technique: Hot and Cold Rolled

Nickel 625 Round Rod

Packaging: Steel frame, woven bag, wooden case
Feature: Corrosion resistance, oxidation resistance

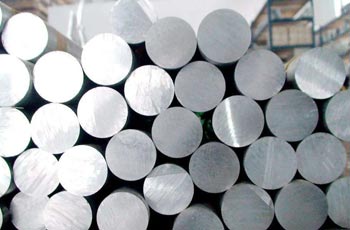

WNR 2.4856 Forged Round Rod

Length:6 Meter or as your request
Use: used in extreme environments

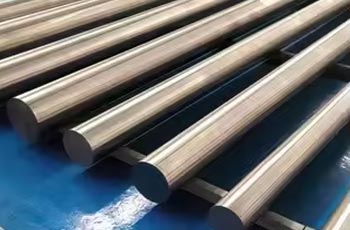

Inconel 625LCF Bright Bar

Size: As per drawing or sample
Magnetic: Non-magnetic or Only Slightly Magnetic

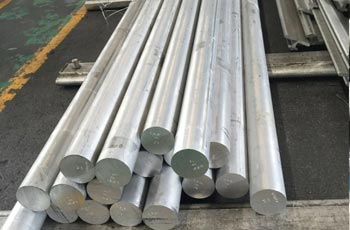

Inconel 625 Grade 1 Black Bar

Customization: Full and Design Customization,
AMS: AMS 5666, AMS 5837

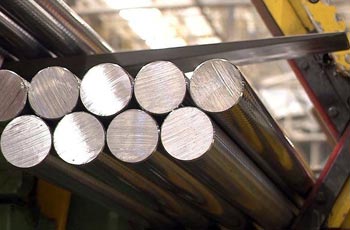

Inconel 625 Grade 2 Hot Rolled Bar

Benefits: High Creep and Rupture Strength, Excellent Weldability
Hardness: 175-240(Brinell)

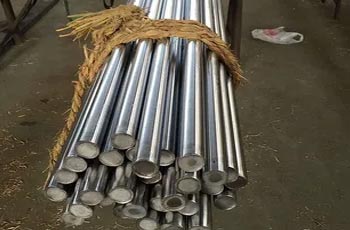

Cold Drawn Inconel 625 Round Bar

Process: Forging + Machining + Heating Treatment
Quality: 100% Inspection

International Standard of Alloy 625 bar

Get Top Inconel 625 Round Bar Suppliers in UAE Who Supply As Per International Standard

Solid Bar	ISO 9723, ASME Code Case 1935, AMS 5666, ASME SB 466, ASTM B 446, BS 3076 NA21, EN 10095, VdTUV 499, DIN 17752
Forging Stock	SME Code Case 1935, DIN 17754, ASTM B 564, ASME SB 564, ISO 9725, AMS 5666
Solid Rod	BS 3076 NA21, VdTUV 499, ASME SB 466, ISO 9723, ASTM B 446, EN 10095, SME Code Case 1935, DIN 17752

What is Effect Of Intermediate-Temperature Exposure On Properties Of Hot Rolled Inconel 625 Annealed Bar

Exposure Temperature, °F (°C)	Room Temperature Properties					Exposure Temperature Properties
	Tensile Strength		Yield Strength (0.2% offset)		Elongation, %	Tensile Strength		Yield Strength (0.2% offset)		Elongation, %
	MPa	ksi	MPa	ksi	Elongation, %	MPa	ksi	MPa	ksi	Elongation, %
No Exposure	965.3	140.0	479.2	69.5	54	–	–	–	–	–
1400 (760)	1123.8	163.0	737.7	107.0	26	584.7	84.8	544.7	79.0	62
1200 (649)	1213.5	176.0	872.2	126.5	30	1010.1	146.5	734.3	106.5	54
1600 (871)	992.8	144.0	528.8	76.7	34	284.1	41.2	275.8	40.0	80

Physical properties of Inconel 625 bar stock

Melting Range	2350	°F
	1290	°C
Density	0.305	lb/cu in
	8.44	gram/cc
Curie Temperature	-196	°C
	<-320	°F
Specific Heat		Btu/lb°F (J/kg°C)
	0.154(645)	1800°F (982°C)
	0.160(670)	2000°F (1093°C)
	0.141(590)	1400°F (760°C)
	0.148(620)	1600°F (871°C)
	0.128(536)	1000°F (538°C)
	0.135(565)	1200°F (649°C)
	0.122(511)	800°F (427°C)
	0.098(410)	70°F (21°)
	0.109(456)	400°F (204°C)
	0.115(481)	600°F (316°C)
	0.102(427)	200°F (93°C)
	0.096(402)	0°F (-18°C)
Permeability	1.0006	15.9 kA/m

Code Of Inconel 625 Bar Stock


625 alloy (N06625, W86112)
ASME	Section I	Grade 1 1100°F (593°C)1 Code Case 2632 1200°F (650°C)2 Grade 2 1100°F (593°C)3 Code Case 1935 1000°F (538°C)3

	Section III	Class 2	Grade 1800°F (427°C)4
		Class 1	Grade 1800°F (427°C)3
		Class 3	Grade 1800°F (427°C)4
	Section IV	HF-300.2	–
	Section VIII	Div. 2	Grade 1 800°F (427°C)5 Code Case 2468 800°F (427°C)6
	Section VIII	Div. 1	Grade 1 1200°F (649°C)1 Grade 2 1600°F (871°C)3 1200°F (649°C)5
	B16.34	1200°F (649°C)6
	B16.5	1200°F (649°C)8
	B31.1	1200°F (649°C)1
	B31.3	1200°F (649°C)6
MMPDS	6.3.3

ASTM B446 UNS N06625 rod hs code

Product Description	HS Code
Inconel 625 round bar	75051220

Inconel 625 Rod Application

Jet engine components
High-strength fasteners.
Reactors
Flue gas desulfurization (FGD) systems
Downhole equipment
Seawater heat exchangers
Exhaust systems
Dampers
Components for sour gas service.

Effect of Annealing on Room-Temperature Properties of Hot-Rolled 625 Rod

Annealing Temper- ature, °F	Yield Strength (0.2% Offset), ksi	Tensile Strength, ksi	Reduction Of Area, %	Elonga- tion, %	Hardness, Rb
As-Rolled	92.0	147.5	55.3	46.0	98
1500	85.0	143.5	45.7	42.0	101
1400	90.8	145.5	49.5	43.0	101
1600	87.2	145.5	41.5	39.0	101
1800	83.6	143.5	48.0	44.0	101
2200	48.0	116.5	61.3	72.0	88
1700	86.0	147.0	48.0	40.0	103
1850	78.6	142.5	53.0	46.0	99
2000	52.5	124.0	62.5	64.0	93
1900	66.3	142.5	51.5	49.0	95
2100	50.0	116.0	61.0	62.0	89
Annealing Temper- ature, °C	Yield Strength (0.2% Offset), MPa	Tensile Strength, MPa	Reduction Of Area, %	Elonga- tion, %	Hardness, Rb
As-Rolled	634.3	1017.0	55.3	46.0	98
816	586.1	989.4	45.7	42.0	101
1204	331.0	803.2	61.3	72.0	88
760	626.0	1003.2	49.5	43.0	101
871	601.2	1003.2	41.5	39.0	101
982	576.4	989.4	48.0	44.0	101
927	593.0	1013.5	48.0	40.0	103
1010	542.0	982.5	53.0	46.0	99
1093	362.0	855.0	62.5	64.0	93
1038	457.1	982.5	51.5	49.0	95
1149	344.7	799.8	61.0	62.0	89

Various types of Inconel 625 bar

Inconel 625 grade 2 peeled round bars

ASME SB446 Gr 2 forged round bar

Alloy 625 rod

ASTM B446 UNS N06625 flat bar

Alloy Inconel 625 hex bar

Inconel 6625 square bar

DIN 2.4856 rectangular bar

Nickel alloy 625 bright bar

AMS 5666 rounds

AMS 5837 shaft

Inconel alloy 625 billet

Nickel 625 bloom

2.4856 Inconel bar stock

Inconel 2.4856 polished bar

Werkstoff 2.4856 cold drawn bar

UNS N06625 bright drawn round bar

WNR 2.4856 cold finished round bar

Inconel 625 Round Bar (hot rolled)

Nickel 625 annealed bar

UNS 6625 forged bar

UNS N06626 hexagonal bar

Inconel 625LCF forged cold drawn bar

Inconel 625 grade 1 ground and rolled polished bar

Inconel 625 bar stock weight calculation formula

Weight calculation formula
UNS N06625 hex bar:	Size (mm) X Size (mm) X 0.00680 = Wt. per Mtr.
Alloy 625 flat bar:	Width (mm) X Thickness (mm) X 0.00798 = Weight per Mtr.
Inconel 2.4856 round bar:	Diameter (mm) X Diameter (mm) X 0.00623 = Wt. per Mtr.
AMS 5837 square bar:	Size (mm) X Size (mm) X 0.00788 = Wt. per Mtr.

Tolerances of SB 446 UNS N06625 forged bar

Cold Drawn Alloy 625 Round Bar Tolerances
Diameter, Size or width across flats (mm)				Variation Permitted (mm)
Flat (width)	Round	Square and hexagon	Flat (thickness)	Flat (width)	Round	Square and hexagon	Flat (thickness)
< 18	≥6 ≦ 18	≥ 6 ≦ 18	< 18	+ 0 to – 0.0110	+ 0 to – 0.0070	+ 0 to – 0.0090	+ 0 to – 0.0110
> 18 ≦ 30	> 18 ≦ 30	> 18 ≦ 30	> 18 ≦ 30	+ 0 to – 0.0130	+ 0 to – 0.0085	+ 0 to – 0.0110	+ 0 to – 0.0130
> 30 ≦ 50	> 30 ≦ 50	> 30 ≦ 50	> 30 ≦ 50	+ 0 to – 0.0160	+ 0 to – 0.0100	+ 0 to – 0.0130	+ 0 to – 0.0250
> 50 ≦ 80	> 50 ≦ 80	> 50 ≦ 80	> 50 ≦ 80	+ 0 to – 0.0190	+ 0 to – 0.0120	+ 0 to – 0.0160	+ 0 to – 0.0350
> 80 ≦ 100	> 80 ≦ 100	> 80 ≦ 105	–	+ 0 to – 0.0220	+ 0 to – 0.0140	+ 0 to – 0.0250	–
> 100 ≦ 130	–	–	–	+ 0 to – 0.0350	–	–	–
> 130 ≦ 160	–	–	–	+ 0 to – 1.000	–	–	–
> 160 ≦ 320	–	–	–	+ 1.000 to – 1.000	–	–	–

Inconel 625 Polished Round Bar Charpy V-Notch Impact Strength

Notch Orientation To Welding Direction	Welding Material	Charpy V-Notch Impact Strength, ft-lb (J)
Notch Orientation To Welding Direction	Welding Material	-110°F (-79°C)	-320°F (-196°C)	Room Tempera- ture
Perpendicular	Electrode 112	42.5 (57.6)	34.8 (47.2)	46.5 (63.1)
Perpendicular	Filler Metal 625a	60.0 (81.5)	57.0 (77.3)	68.5 (92.9)
Parallel		41.5 (56.3)	32.8 (44.5)	45.0 (61.0)

Call Now for a Free Sample, Which Can Be Arranged From the Cities Specified Below

Country	Cities
Netherlands	Amsterdam
Belgium	Brussels
Netherlands	Eindhoven
Belgium	Ghent
Belgium	Seraing
Netherlands	The Hague
Belgium	Meeuwen-Gruitrode
Netherlands	Haarlem
Belgium	Westerlo
Belgium	Leuven
Netherlands	Rotterdam
Belgium	Antwerp

How Cold-Drawn Inconel 625 Rod Room-Temperature Properties Affected by 1 Hour Annealing ?

Annealing Temperature,		Impact Strength (Charpy V)		Yield Strength (0.2% Offset),		Tensile Strength,		Reduction Of Area, %	Grain Size,		Elongation %	Hardness, Rb
°F	°C	ft•lb	J	ksi	MPa	ksi	MPa	Reduction Of Area, %	in.	mm	Elongation %	Hardness, Rb
As- Drawn	As- Drawn	64.5	87.5	145.5	1003.2	163.0	1123.8	50.5	0.003	.076	21.0	106
1200	649	71.5	97.0	133.5	920.5	159.5	1099.7	47.2	0.0045	.114	28.5	106
1100	593	75.0	101.7	134.3	926.0	160.5	1106.6	48.3	0.0035	.089	28.0	106
1400	760	53.0	71.9	135.5	934.2	162.5	1120.4	39.0	0.005	.127	27.0	106
1300	704	57.0	77.3	135.0	930.8	164.0	1130.7	38.8	0.005	.127	26.0	106
1500	816	55.0	74.6	120.0	827.4	152.0	1048.0	41.5	0.0035	.089	29.0	105
									30% 0.009	.229
1600	871	62.0	84.1	102.5	706.7	146.5	1010.1	45.2	70% 0.005	.127	35.0	103
1800	982	84.5	114.6	62.3	429.5	127.5	879.1	55.3	0.0009	.229	52.0	95
1700	927	82.5	111.9	62.3	429.5	133.5	920.5	44.0	0.0008	.203	48.5	97
1900	1038	91.0	123.4	60.8	419.2	130.5	899.8	55.7	0.0008	.203	53.0	95
2100	1149	138.0	187.1	48.3	333.0	118.0	813.6	60.4	0.0032	.081	63.0	89
2000	1093	115.5	156.6	56.5	389.6	126.5	872.2	61.0	0.0019	.048	57.0	93
2200	1204	141.0	191.2	44.6	307.5	113.0	779.1	58.4	0.006	.152	62.3	86

Inconel 625 Hex Bar Value Added Services

Get quick quote from genuine Inconel 625 round bar stockists, stockholders, and distributors in UAE

ASTM; ASME; ANSI; EN; DFAR compliant
Trepanning, grinding, PSQ, and turned, ground & polished bar
Testing and secondary heat-treating services
Turnkey inventory stocking programs
NORSOK certified stock on select alloys
24 hr call out service
Special packaging
ISO Certified
Same day cutting capability
Custom cutting round bar to 16″

What are Conditions for Turning Of Alloy 625 Bar With Single-Point Tools ?

High Speed Steel				Coated Carbide
Surface Speed		Feed		Surface Speed		Feed
m/min	fpm	Mm/rev	lpr	m/min	fpm	m/rev	lpr
4.0-10.7	13-35	0.13-0.51	0.005-0.020	14-34	45-110	0.13-0.51	0.005-0.020

What Certification Provided With Inconel 625 Flat Bar

Discover Verified Top Inconel 625 Rod Suppliers in UAE Who Provide All Needed Certification

DFARS compliant
EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 material test certificates (MTC)
Fumigation certificates
Raw materials certificate
Third party inspection report
Moisture testing report
Heat treatment charts
Surface roughness measurement
HS code commercial invoice
Laboratory test certificate from govt. approved lab
Form A for generalized system of preferences (GSP)

What is Corrosion Rate Of Nickel 625 Bar in Hydrobromic Acid and Sulfuric Acid ?

Hydrobromic Acid
Conc.Wt.%	125°F	75°F	50°F	100°F	175°F	150°F	225°F	200°F	Boiling
10°C	66°C	38°C	24°C	52°C	93°C	79°C	–	107°C	–
5	–	–	–	–	0.13	<0.01	–	0.60	–
2.5	–	–	–	–	–	<0.01	–	<0.01	<0.01
7.5	–	–	–	–	<0.01	<0.01	–	0.93	–
15	0.30	–	–	<0.01	–	0.64	–	–	–
10	–	–	–	–	0.82	0.15	–	–	–
25	–	–	–	–	–	–	–	–	–
40	0.15	–	–	0.08	0.42	0.25	–	0.79	–
20	0.33	0.01	–	0.16	–	0.65	–	–	–
30	0.21	–	–	0.11	0.72	0.34	–	–	–

Sulfuric Acid
Conc.Wt.%	150°F	100°F	75°F	125°F	175°F	225°F	200°F	275°F	250°F	350°F	300°F	Boiling
24°C	79°C	52°C	38°C	66°C	93°C	121°C	107°C	149°C	135°C	–	177°C	–
2	–	–	–	–	–	–	–	–	–	–	–	–
1	–	–	–	–	–	–	–	–	–	–	–	–
3	–	–	–	–	–	–	–	–	–	–	–	–
5	–	–	–	–	<0.01	–	0.06	–	–	–	–	0.40
4	–	–	–	–	–	–	–	–	–	–	–	–
10	–	–	–	–	0.01	–	0.24	–	–	–	–	1.05
30	0.01	–	–	–	0.03	–	0.68	–	–	–	–	–
20	–	–	–	–	0.02	–	0.58	–	–	–	–	2.84
40	0.02	–	–	<0.01	0.58	–	–	–	–	–	–	–
60	0.48	–	–	<0.01	0.92	–	–	–	–	–	–	–
50	0.01	–	–	–	0.89	–	–	–	–	–	–	–
70	0.63	<0.01	–	0.23	–	–	–	–	–	–	–	–
90	–	0.17	<0.01	1.26	6.97	–	–	–	–	–	–	–
80	0.91	0.05	–	0.31	2.54	–	–	–	–	–	–	–
96	–	–	–	–	–	–	–	–	–	–	–	–

Chemical composition of Inconel 625 round bar

Grade	C,Carbon	Cr,Chromium	Co,Carbon monoxide	Fe,Iron	Mo,Molybdenum	Ni,Nickel	Nb,Niobium	Ti,Titanium
625	<=0.10%	21.5%	<=1.0%	<=3.0%	9.0%	65.05%	3.65%	<=0.50%< /td>

DIN 2.4856 round bars mechanical properties

Form And Condition	Hardness, Brinell	Yield Strength (0.2% Offset)		Tensile Strength		Elongation	Reduction Of Area
Form And Condition	Hardness, Brinell	ksi	MPa	ksi	MPa	%	%
ROD, BAR, PLATE
Annealed	145-220	60-95	414-655	120-150	827-1034	60-30	60-40
As-Rolled	175-240	60-110	414-758	120-160	827-1103	60-30	60-40
Solution-Treated	116-194	42-60	290-414	105-130	724-896	65-40	90-60

Equivalent standard of nickel alloy 625 hex bar material

Standards	Country	Value
UNS	North America	N06625
WNR	Russia	2.4856
ASTM	America	B446
ASME	Australia	SB446
JIS	Japan	NCF 625
BS	United Kingdom	NA 21
GOST	Russia	ХН75МБТЮ
AFNOR	France	NC22DNB4M
EN	Europe	NiCr22MogNb
AMS	United States	5666/5837
ANSI	America	–
SAE	United States	–
AS	Australia	–
DIN	German	2.4856

Inconel 625 round bar properties

Delivery time and location for Inconel 625lcf rounds

Export to	shipping time
Maldives	7
Bangladesh	14
Mayanmar	25
Taiwan	15
Cambodia	9
Mexico	45
Bolivia	45
Brazil	45-60
Chile	45
Azerbaijan	20-30
Colombia	45
Ecuador	60
Guyana	60
Paraguay	60
Uruguay	60

Check the nickel alloy 625 square bar size and weight charts. Choose reputable suppliers to reduce the risk

Nickel 625 round bar size chart

Description	Manufacture Method	Diameter	Shape	Specification
1.000 DIA	Hot Finished	1.0000	Rod/ Bar Round	ASME SB446
.500 DIA		0.5000		CPW-A-5666
.500 DIA		0.5000		ASME SB446
.750 DIA		0.7500		ASME SB446

Inconel 625 round bar size chart

ASTM B446 UNS N06625 rod weight chart

Size	Kgs / Foot
3mm	0.017
1/8″	0.019
5/32″	0.029
4mm	0.030
3/16″	0.043
5mm	0.047
7/32″	0.058
6mm	0.068
1/4″	0.076
7mm	0.091
5/16″	0.118
8mm	0.120
9mm	0.152
3/8″	0.170
10mm	0.189
11mm	0.228
7/16″	0.232
12mm	0.271

Inconel 625 round bar weight chart

Partner Traders and Importers Are Available in the Regions Mentioned Below for Swift Deliveries

MENA	Morocco, Egypt, Tunisia, Algeria, Israel, Libya, Palestine
Middle East Countries	Saudi, UAE, Kuwait, Qatar, Oman, Bahrain, Iran, Iraq, Lebanon, Jordan, Yemen, Syria
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

To get Inconel alloy 625 bars at the most affordable price in Dubai, get in touch with trustworthy and genuine alloy 625 round bar suppliers in the UAE

Thermal and Electrical Properties Of Inconel 625 Square Bar

Temp. °F	Electrical Resistivityc ohm-circ mil/ft	Thermal Conductivityb,c Btu•in/ft2-h•°F	Meal Linear Expansiona 10-6in/in•°F	Temp °C	Thermal Conductivity b,c W/m•°C	Mean Linear Expansiona µm/ µm•°C	Electrical Resistivityc µΩ-cm
-200	–	52	–	-129	7.5	–	–
-250	–	50	–	-157	7.2	–	–
-100	–	58	–	-73	8.4	–	–
70	776	68	–	21	9.8	–	129
0	–	64	–	-18	9.2	–	–
100	780	70	–	38	10.1	–	130
400	806	87	7.3	204	12.5	13.1	134
200	794	75	7.1	93	10.8	12.8	132
600	812	98	7.4	316	14.1	13.3	135
1000	830	121	7.8	538	17.5	14.0	138
800	818	109	7.6	427	15.7	13.7	136
1400	824	144	8.5	760	20.8	15.3	137
1200	830	132	8.2	649	19.0	14.8	138
1600	818	158	8.8	871	22.8	15.8	136
1800	812	175	–	982	25.2	–	135
1700	–	–	9.0	927	–	16.2	–
2000	806	–	–	1093	–	–	134

What is Corrosion Cracking Time Of AMS 5837 Bright Bar Compred to Other Alloys ?

Alloy	Time to Cracking
625	No Cracking in 1,008 h
254SMO	24 h
316L	2 h
31	36 h
28	36 h
G-35®	No Cracking in 1,008 h
G-30®	168 h

Which Documentaion Will Get With Inconel 625 Rectangular Bar?

NACE 0175/ ISO 15156 rorrosion resistance test
Manufacturer’s mill test certificate certifying, heat no, finish, chemical composition, grade etc.,
Country of origin certificate (Original)
Bill of lading
Copy of invoice
Copy of packing List indicating details of sizes, quantity, weight, thickness etc.

Learn about Din 2.4856 shaft in detail, including its stocks and uses. Connect with alloy 625 hexagon bar certified suppliers in the Middle East countries and India

Dealers and Distributors Are Present in the Locations Mentioned Below

Region	Country	City
Middle East	United Arab Emirates	Dubai
Middle East	Qatar	Doha
Africa	Nigeria	Abuja
Middle East	Saudi Arabia	Jeddah
Middle East	Kuwait	Kuwait City
MENA	Morocco	Casablanca
Middle East	Saudi Arabia	Riyadh
MENA	Egypt	Cairo
Africa	South Africa	Cape Town
Middle East	United Arab Emirates	Abu Dhabi
Africa	South Africa	Johannesburg
Middle East	Saudi Arabia	Dammam
Africa	Nigeria	Lagos

Inconel 625 Round Bar Modulus at Elevated Temperature

Temp. °F	Poisson’s Ratio		Modulus of Elasticity, 103 ksi				Temp. °C	Modulus of Elasticity, GPa
	Poisson’s Ratio		Tension		Shear			Tension		Shear
	Solution- Treated	Annealed	Solution- Treated	Annealed	Solution- Treated	Annealed		Solution- Treated	Annealed	Solution- Treated	Annealed
200	0.311	0.280	29.1	29.6	11.1	11.6	93	200.6	204.1	76.5	80.0
70	0.312	0.278	29.7	30.1	11.3	11.8	21	204.8	207.5	78.0	81.4
400	0.303	0.286	28.1	28.7	10.8	11.1	204	193.7	197.9	74.5	76.5
800	0.302	0.295	26.2	26.9	10.0	10.4	427	180.6	185.5	68.9	71.7
1600	0.289	0.336	21.5	21.4	8.3	8.0	871	148.2	147.5	57.2	55.2
600	0.300	0.290	27.2	27.8	10.4	10.8	316	187.5	191.7	71.7	74.5
1200	0.314	0.321	24.0	24.7	9.2	9.4	649	165.5	170.3	63.4	64.8
1000	0.312	0.305	25.1	25.9	9.6	9.9	538	173.1	178.6	66.2	68.3
1400	0.305	0.340	22.8	23.3	8.8	8.7	760	157.2	160.6	60.7	60.0

Alloy 625 Round Bar Testing

Effective and brief communication of the test with the below-specified distributors, dealers, and Inconel 625 round bar stockists

Chemical test
Mechanical test
Destructive test
Non destructive test
pmi test
Visual inspection test
Third party inspection test
Nabl approved lab test
Flaring Test

How Inconel 625 Bar is Differ As Per Pitting and Crevice Corrosion Rate With Other Alloys ?

Alloy	Critical Crevice Temperature		Critical Pitting Temperature
	in Acidified 6% FeCl3		in Acidified 6% FeCl3
	°F	°C	°F	°C
625	104	40	212	100
254SMO	86	30	140	60
316L	32	0	59	15
31	109	42.5	163	72.5
28	64	17.5	113	45
G-35®	113	45	203	95
G-30®	100	37.5	154	67.5

Verified Supplier

List of Inconel 625 Round Bar Suppliers in UAE

Nickel Alloy Round Bar items

available 8 cars

Dubai, UAE

Prestige Metalloys LLC

info@metalloys.ae
+971 568293363

Mumbai, India

Nikkon Engineering

nikkonsteel@hotmail.com
+91 9372489237

Ras Al Khaimah, UAE

Texmo Alloys

texmoalloys@hotmail.com
+971 556878640

Mumbai, India

Raaj Sagar Steel

ayush@raajsagarsteels.com
+91 9820889426

Technolloy Inc

export@technolloy.com
+91 9869042111

Mumbai, India

Heubach International

mahendra@heubachint.com
+ 91 9987013449

Mumbai, India

Kanakratna Steelage

export@kanakratnasteelage.com
+919820807107

Al Jubail, KSA

Premium Technical Support

info@premiumtechsaudi.com
+966 546621439

Round Bar

A reliable B2B Platform to Get connected with suppliers

Buy bright cold drawn flat bars, hexagons, squares, and special alloy rounds stock in accurate dimensions, tolerances and surface finish in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Umm Al Quwain and Fujairah.

Meet top 10 stockists and suppliers of bright drawn steel square and flat bars who exports to Saudi Arabia, Qatar, Oman, Bahrain, Netherlands and Kuwait.

Get competitive quotes of bright cold drawn flat bars, hex bars, square rods and rounds from reliable bright steel bar suppliers in United Arab Emirates

Direct delivery from Ex-stock of Bright Bars in Saudi Arabia, Dubai and Qatar at Factory Price

Bright Steel Bars Tolerances as per BS EN 10278

Only B2B platform developed for UAE and Middle East countries where buyers can find round bar manufacturers, traders, stockists and suppliers along with steel bars technical specifications, tolerances and dimensions.
