Inconel 718 Plate

Inconel 718 plate

The Inconel 718 is a high-strength alloy grade. Inconel 718 Plate is designed with primary constituents of chromium, nickel, molybdenum, tantalum, titanium, and other alloys. This gives the Alloy 718 Plate superior resistance to corrosive affluents in harsh environments. These plates have good creep and rupture resistance while having excellent tolerance to sulfide stress corrosion cracking. The Nickel Alloy 718 plate works well in cryogenic temperatures up to long-term service up to 1200 degrees F. The addition of niobium in the Inconel Alloy 718 Clad Plate permits the age hardening of the alloy. This allows for a spontaneous hardening and annealing process. The ASTM B670 UNS N07718 Strip can be welded following standard welding procedures.

The plates can be processed in either hot or cold working processes. The UNS N07718 Hot Rolled Plate is subjected to high temperatures that allow them to reach its recrystallization limit. This gives the plates superior ductility and formability. Alloy 718 Cold Rolled Plate is processed at room temperature. These plates have better performance strength and tolerance than hot rolled plates. An ISO 6208 Perforated Sheet is punched and stamped in different shapes. This adds an aesthetical outlook to different applications. The Inconel 718 Plate Suppliers supply plates in different sizes, which can be customized as per requirements.

Verified Supplier

Verified Stockists (Contact directly for instant quote)

available 5 cars

Find alloy 718 sheet suppliers in UAE, identify Inconel 718 strip ASTM standard

Complete information for alloy 718 sheet grade

Note: Below information is taken from trusted resourse

Grade ASTM AMS WNR Temprature Strength Nickel content Lifespan
Inconel 718
  • ASTM B670
  • ASME SB670
AMS 5596/5597 WNR 2.4668
  •  -253° to 1300°F
  • -423° to 705°C
  • Yeild: 725 MPa
  • Tensile: 1035 MPa
52.5% 25 to 35 years

Do you want to purchase Inconel 718 sheet from a reliable importer in the Middle East in specific sizes? Buy alloy 718 plate with weld-patch testing

Inconel 718 plate specification

Inconel 718 Plate Specification

For larger sizes, please contact the Inconel 718 plate suppliers listed above in the United Arab Emirates.
Manufacturing size range of alloy 718 plate/ sheet ISO 6208 strip sizes Nickel Alloy 718 plate edges
  • Inconel 718 sheet thickness: 0.15 to 6.35mm
  • Width: 600 mm
  • Length: 2000/2500/3000 mm
  • Gauge: 0.0008″ – 0.012″
  • Width: under 24″
  • Length: upto 15 m
  • Slit edge
  • Rolled edge
Inconel 718 strip AMS ASTM Standard of Werkstoff NR. 2.4668 coil AMS 5596 sheet density
  • AMS 5596
  • AMS 5597
  • Inconel 718 (N07718)
  • Inconel 718SPF – UNS N07719
  • ASTM B670 UNS N07718
  • SB 670 UNS N07718
  • 8.19 g/cc
Max operating temperature of alloy 718 foil UNS N07718 hot rolled plate melting point Temperature range of Inconel alloy 718 sheet
  • up to 1300°F
  • 1430°C
  • -423° to 1300°F
ASTM B670 UNS N07718 strip delivery time Hardness range of Inconel 718 foil Alloy 718 annealed plate elongation
  • 7-10 days if its in stock
  • 15-20 days if its not in stock
  • Oman/ Qatar/ Saudi Arabia – 3-5 days (by Air / Ship)
  • 20-25 HRc
  • 25%
Nickel alloy 718 rolling plate surface finish classes Most common types of ASME SB670 718 Inconel plate Manufacturing technique of UNS N07718 hot rolled plate
  • Class A : finest finish
  • Class B: slightly less fine finish
  • Class C : most basic finish
  • Inconel 2.4668 Plate
  • ASME SB 670 Inconel 2.4668 Sheet
  • Nickel 718 Clad plate
  • Werkstoff 2.4668 Coil
  • Shim sheet
  • UNS 7718 Rolls
  • WNR 2.4668 Annealed plate
  • B50TF14 Foils
  • EN 2.4668 Strips

Above Inconel 718 plate stockist produce corresponds with customer drawings, contrast our cost and turnaround time with those of other nickel alloy 718 sheet stockists.

  • Roll forming
  • Cold rolling
  • Hot rolling
AMS 5596 sheet features Werkstoff NR. 2.4668 coil welding method Supply Inconel 718 plate in following brand
  • Corrosion resistance
  • Weldability
  • Metallurgical stability
  • Strength
  • Outstanding heat resistance
  • GMAW (MIG/MAG)
  • SMAW (MMA)
  • GTAW (TIG)
  • PLASMA
  • SAW
  • ATI
  • Columbus Stainless
  • Nippon Yakin
  • VDM
  • Special Metals(SMC)
  • HAYNES International
  • Outokumpu
  • Valbruna Stainless Steel
Alloy 718 foil marking ASME SB670 718 Inconel shim sheet finish UNS N07718 hot rolled plate applications
  • Material grade
  • Manufacturing date
  • Origin of material
  • ASTM/ ASME standard
  • Manufacturer logo / name
  • Sizes
  • Matte
  • Glossy
  • Brushed
  • Mirror
  • Electroless nickel plating
  • Sandblasted
  • Turbines
  • Down-hole shafting parts
  • Nuclear fuel parts
  • Aircraft engine components
  • Well head parts
  • Rocket components
  • Cryogenic storage tanks

The Inconel 718 plate suppliers listed above are ex-stock and have supplied to numerous nations in the past, such as Senegal, Oman, Namibia, Saudi Arabia

Modulus of elasticity of Alloy 718 cold rolled plate 718 Inconel sheet coefficient of thermal expansion Alloy 718 sheet velocity
  • 200 GPa
  • 1.22 ± 0.01 × 10−5 K−1 (12 ppm)
  • 0.15–0.20mm/rev
Alloy 718 sheet common trade names ASME SB670 718 Inconel shim sheet welding electrode Other industry standards of nickel alloy 718 plate
  • Inconel 718
  • Alloy 718
  • Nickel 718
  • Nicrofer 5219
  • Alvac 718
  • Haynes 718
  • Altemp 718
  • INCONEL® filler metal 718
  • PWA-LCS
  • EN 10204
  • GE Aircraft Engine (GT193)
  • RR SABRe Edition 2
  • GE Aviation S-SPEC-35 AeDMS S-400
  • DFARS Compliant
  • EN 2.4668
Standard of werkstoff NR. 2.4668 coil Certification of Inconel 718 sheet ASME SB670 718 Inconel rolling plate value added services
  • AMS 5596
  • AMS 5597
  • ASTM B670
  • ASME SB670
  • GE Aviation S-SPEC-35 AeDMS S-400
  • RR SABRe Edition 2
  • EMS95377
  • EN 10204
  • EN 2.4856
  • PWA LCS
  • DFARS Compliant
  • GE Aircraft Engine (GT193)
  • Edge preparation
  • Sawing
  • Cutting to length
  • Slitting
  • Polishing
  • Shearing
  • Welding
  • Blanking
  • Bending
  • Mechanical processing

Use chat or email to get in direct contact with listed Inconel 718 plate stockists, stockholders, and distributors for these services.

Alloy 718 foil packaging ASTM B670 UNS N07718 strip testing requirements DIN 2.4668 sheet hardness type
  • Wooden Pallets
  • Customized Pallets
  • Steel Strips Bundled
  • Bubble wraps
  • Flaring Test
  • Destructive test
  • Chemical test
  • Mechanical test
  • Third party inspection test
  • Visual inspection test
  • Nabl approved lab test
  • Non destructive test pmi test
  • Spring Hard
  • Half Hard
  • Soft
  • Hard
  • Quarter Hard
Nickel alloy 718 plate processing UNS N07718 annealed plate  documentation offered Electrical conductivity of alloy 718 plate
  • Precision Rerolling
  • Grinding
  • Deburring
  • Edging
  • Heat Treating
  • Boring
  • Leveling
  • Trepanning
  • Copy of Invoice
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Bill of Lading.
  • Mill Test Certificate certifying
  • Country of Origin Certificate (Original)
  • 11.4 W/m-K, 79.1 BTU-in/hr-ft²-°F
Difference between alloy Inconel 718 plate, sheet & foil Alloy 718 cold rolled plate characteristics Inconel 718 clad plate method of cutting
  • Sheet: 0.5mm upto 600 thick
  • Foil: less than 0.2mm thick
  • Plate: 600 or thicker
  • High strength
  • High oxidation resistance
  • Superior weldability
  • Waterjet cutting
  • Oxy-propane flame cutting
  • Plasma cutting
  • Laser cutting

Direct contact with the above Inconel 718 plate distributors, dealers, and stockists specified for the above-mentioned cuts

Thickness of AMS 5596 sheet

1 3/4″ 3/16″ 1 1/4″ 2″ 3″ 1/4″ 3/8″ 1″ 5/8″ 1 1/2″ 2 1/2″ 1/2″ 3/4″
44.5 4.8mm 31.8 50.8 76.2 6.3 9.5 25.4 15.9 38.1 63.5 12.7 19

Nickel alloy 718 sheet thickness tolerance

Tolerance up to & under nominal thickness t (mm)
Width w (mm) 20.0<t <25.0 2.5<t <4.5 10.0<t <12.5 6.0<t <8.0 16.0<t <20.0 25.0<t <30.0 8.0<t <10.0 30<t <40.0 4.5<t <6.0 12.5<t <16.0
2100< w <2400 1.0 0.80 0.80 0.90 1.1 0.80 1.5 0.80 0.80
1500< w <1800 0.90 0.20 0.40 0.32 0.80 1.1 0.38 1.5 0.28 0.80
1200< w <1500 0.90 0.20 0.38 0.30 0.80 1.0 0.35 1.4 0.25 0.80
w < 1200 0.80 0.20 0.35 0.30 0.80 1.0 0.32 1.4 0.23 0.80
2700< w <3000 1.3 1.0 0.90 1.1 1.4 1.0 1.8 0.80 1.0
2400< w <2700 1.1 0.80 0.80 1.0 1.3 0.80 1.7 0.80 0.90
1800< w <2100 0.90 0.20 0.45 0.36 0.80 1.1 0.40 1.5 0.30 0.80

Delivery location and schedule for werkstoff NR. 2.4668 coil

Note: below table is published based on data collected by genuine suppliers

Export to Price variations and estimated delivery
Oman  5 % extra | 5 days
Bahrain  5 % extra | 9 days
Kuwait  5 % extra | 10 days
Singapore  5 % extra | 8 days
Azerbaijan  5 % extra | 30 to 45 days
Egypt  5 % extra | 18 days
Turkey  5 % extra | 21 days
Saudi Arabia  5 % extra | 3 to 5 days
Libya  5 % extra | 45 to 60 days
Nigeria  5 % extra | 30 days

ASTM B670 UNS N07718 strip mechanical properties

Elong. in 2 in. (50mm) or 4D min, % Ultimate Tensile R/A Yield Strength (0.2% OS) Hardness Brinell
12 185 KSi 15 150 KSi 331

UNS N07718 hot rolled plate equivalent material

Standards Country Value
UNS North America N07718
WNR Russia 2.4668
ASTM America ASTM B670
ASME Australia ASME SB670
JIS Japan NCF 718
BS United Kingdom
GOST Russia
AFNOR France
EN Europe
AMS United States AMS 5596/5597

Inconel 718 sheet chemical composition

Ni Al Fe Mo Cr Cu P Nb C Mn S Si Co Ti B
50 – 55 0.2 – 0.8 Bal 2.8 – 3.3 17 – 21 0.3 max 0.015 max 4.75 – 5.5 0.08 max 0.35 max 0.015 max 0.35 max 1.0 max 0.65 – 1.15 0.006 max

Inconel 718 Plate Properties

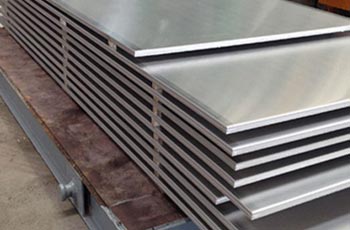

Types of alloy 718 sheet

Inconel 718 plate

Inconel 718 plate

ASTM B670 UNS N07718 coil

ASTM B670 UNS N07718 coil

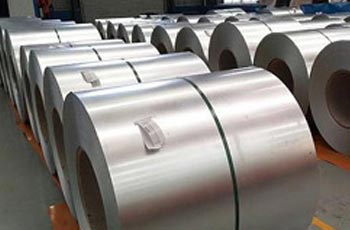

DIN 2.4668 strip

DIN 2.4668 strip

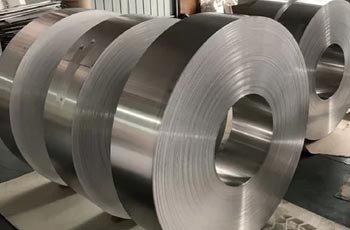

Nickel alloy 718 foil

Nickel alloy 718 foil

WNR 2.4668 rolling plate

WNR 2.4668 rolling plate

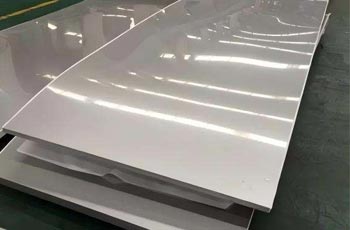

UNS 7718 annealed plate

UNS 7718 annealed plate

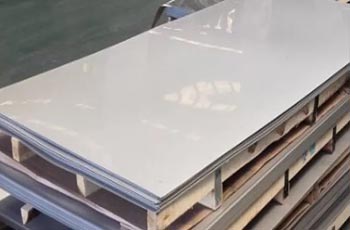

Alloy inconel 718 hot-rolled plate

Alloy Inconel 718 hot-rolled plate

AMS 5596 cold-rolled plate

AMS 5596 cold-rolled plate

Nickel 718 shim stock

Nickel 718 shim stock

Gauge chart of nickel alloy 718 plate

Gauge 30 8 9 26 24 10 22 20 18 14 11 16 12
Gauge Decimal (inches) 0.0125 0.1719 0.1562 0.0187 0.0250 0.1406 0.0312 0.0375 0.0500 0.0781 0.1250 0.0625 0.1094

ASME SB670 718 Inconel shim sheet flatness tolerance

Alloy(s) Permissible Variations from Flat, in. Specified Thickness, in.
718 0.3125″ 2 to 2-1/4, excl.
718 0.75″ 1/4 to 3/8, excl.
718 0.5625″ 3/4 to 1, excl.
718 0.5625″ 3/8 to 1/2, excl.
718 0.5625″ 1/2 to 3/4, excl.
718 1.0625″ 3/16 to 1/4, excl.
718 0.5625″ 1 to 2, excl.

Alloy 718 cold rolled plate tolerances on length

Nominal length (mm) L > 8,000 2,000 < L < 8,000 L < 2,000
Tolerance(mm) Plus 40 0.005 times L 10
Minus 0 0 0

ISO 6208 sheet tolerances on width

Tolerance (mm)
Nominal length (mm) 1200 < w  < 1500 w < 1200 w > 1500
Mill edge Plus 20 20 20
Minus 0 0 0
Trimmed edge Plus 5 3 5
Minus 0 0 0

Size chart of alloy 718 plate

Not finding your sizes in Saudi Arabia? Get best price from genuine stockists of Inconel 718 sheets & plates

Nickel 718 plate Stocked Sizes
Size (in mm) Size (in inches)
50.8 2
3.18 0.125
3.96 0.156
22.2 0.875
12.7 0.500
6.35 0.250
7.92 0.312
25.4 1
3.40 0.134
19.1 0.750
9.53 0.375
15.9 0.600
63.5 2.500
76.2 3
4.75 0.187
31.8 1.250
38.1 1.500
28.6 1.125
44.5 1.750

ASME SB670 718 Inconel shim sheet weight chart

Gauge Inconel 718 sheet
Weight (lb/ft2)
16 2.52
22 1.26
24 1.008
8 6.93
26 0.756
11 5.04
20 1.512
10 5.67
18 2.016
14 3.15
12 4.41

Inconel 718 plate price

Grade Thickness in mm Price in UAE Driham Price in USD Price in Pound
Inconel 718 Plate 0.4mm thick x 250 x 250 AED 323.09 US $ 87.95 £99.00
0.8mm thick x 250 x 250 AED 680.14 US $ 862.76 £146.00
0.5mm thick x 250 x 250 AED 461.19 US $ 125.58 £108.00
0.635mm thick x 250 x 250 AED 503.12 US $ 137.00 £125.00
1.0mm thick x 250 x 250 AED 950.33 US $ 258.78 £204.00

ASTM B670 UNS N07718 strip dimension

KG P/M2 8.1 27.0 14.4 6.3 10.8 4.5 27.0 27.0 18.0
Dimension (mm) 0.9 X 1219 X 3048 3 X 1200 X 3000 1.6 X 1200 X 3048 0.7 X 1219 X 3048 1.2 X 1219 X 3048 0.5 X 1000 X 2000 3 X 1200 X 3000 3 X 1200 X 3000 2.0 X 1219 X 3048

Purchase cut-to-size Werkstoff nr. 2.4668 annealed plate and Inconel 718 foil from the first stockist in Dubai in accordance with the requirements and compare Inconel 718 vs 625


The Inconel 625 is a primary nickel based alloy, while Alloy 718 Sheet is a standard nickel and cobalt based alloy. The alloy 625 has a higher content of chromium, nickel, and molybdenum content than the WERKSTOFF NR. 2.4668 Coil. This allows the Inconel 625 grade to have better resistance to corrosive media in harsh environments.
The Alloy 718 Foil has better hardness due to the cobalt content being greater than the Inconel 625 grade. Similarly, the ASME SB670 718 Inconel Shim Sheet has better formability than the Alloy 625 grade.
The ASTM standard of the Inconel 718 plate is the ASTM B670, ASTM B906, and ASTM B637.
The boiling point of the Inconel 718 plate is 3000 degrees C.

Are you looking for a source of Posco, Arcelor Mittal, Jindal-made 718 Inconel sheet? You’ve arrived at the appropriate site, learn about the cutting process

The best method to cut an Inconel 718 plate is a conventional arc cutting system. The best arc in the Inconel 718 Sheet is achieved using a mixture of argon and hydrogen gases.

This page allows you to compare the costs and delivery times of different AMS 5596 sheet, UNS N07718 hot/ cold rolled plate traders. Look at the machinability rating

The 718 Inconel sheet is a nickel based cobalt alloy that is heat resistant. These sheets have a machinability rating of 10%. This makes machining the Alloy 718 Sheet more difficult than normal austenitic grades.
