Inconel X-750 Plate

Inconel x-750 plate

The Inconel X-750 is a precipitation-hardened alloy grade. Inconel X-750 Plate is a nickel and chromium grade that has additions of titanium, aluminum, copper, and other alloys. The Inconel x 750 plate has excellent corrosion and oxidation resistance properties. These plates have high strengths in temperatures up to 1500 degrees F and can be heat treated. The AMS 5598 Plate has outstanding creep rupture strength and excellent workability. These plates are resistant to chloride ion stress corrosion cracking in harsh environments.

The Nickel Alloy X-750 plate has a density of 0.300 lb/cubic inches. These plates can be welded following standard procedures and have enhanced machinability. A Din 2.4669 Cold Rolled Plate has an excellent surface finish and a melting point between 2540 to 2600 degrees F. They have an outstanding modulus of rigidity and elasticity. The ASTM B637 UNS N07750 Strip has good mechanical properties. They have a minimum tensile strength of 165ksi with a minimum yield strength of 105ksi. WERKSTOFF NR. 2.4669 Coil can be elongated by 20% in the system. The coils also have superb thermal properties and thermal expansion. The ASME SB637 X750 Shim Sheet can be subject to different heat treatment procedures to increase the hardness of the grade. The robust Inconel X 750® Foil is available in different sizes as per customer requirements.

Verified Supplier

Verified Stockists (Contact directly for instant quote)

available 5 cars

Check out a few reputable Inconel x750 sheet suppliers in UAE, check ASTM B637 UNS N07750 strip ASTM and AMS standards

Inconel X-750 plate specification gathered from various genuine suppliers


Inconel X-750 Plate Specification

For larger sizes, please contact the Inconel X-750 plate suppliers listed above in the United Arab Emirates.
Manufacturing size range of Inconel X-750 plate/sheet
sizes
X-750 strip sizes Alloy x-750 sheet edges
  • Thickness: 0.3 mm to 20 mm
  • Width: 600 to 2000 mm
  • Length: 1000 to 6000 mm
  • Gauge: 0.008″ to 0.012″
  • Width: 6 mm to 350 mm
  • Length: upto 15 meter
  • Slit edge
  • Rolled edge
Inconel X 750 strip AMS Inconel alloy X-750 plate ASTM Standard Inconel X750 sheet density
  • 5542
  • 5598
ASTM B637
  • 8.28 g/cm3
  • 0.299 lb/in.3
Maximum operating temperature ASTM B637 UNS N07750 strip melting point Inconel x-750 temperature range
1300°F
  • 1430°C
  • 2600°F
up to 1800°F
AMS 5542 sheet grades Hardness range of AMS 5598 plate Werkstoff NR. 2.4669 coil elongation
  • Grade X-750
  • 27-40 HRC
26 %
Inconel X 750® foil surface finish classes Most common types of Inconel alloy X750 plate Manufacturing technique of Nickel alloy X-750 hot rolled plate
  • Class A : Finest finish
  • Class B: Slightly less fine finish
  • Class C : Most basic finish
  • Coil
  • Foils
  • Sheet
  • Rolls
  • Clad plate

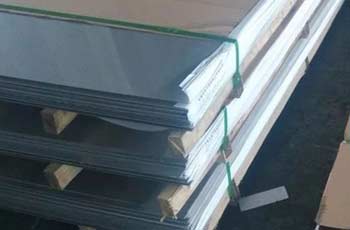

  • Annealed plate
  • Plate
  • Shim sheet
  • Strips

above Inconel X-750 plate stockist produce corresponds with customer drawings, contrast our cost and turnaround time with those of other Inconel X-750 plate stockists.

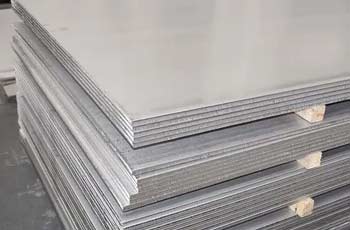

  • Cold Rolled

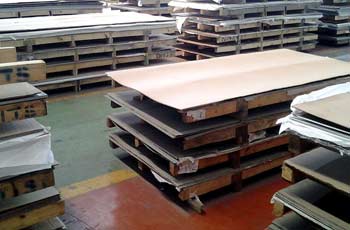

  • Hot Rolled
  • Forged
Inconel x 750 strip features Inconel x-750 sheet welding method Supply Inconel x750 sheet stock in following brand
  • Outstanding heat resistance
  • Corrosion resistance
  • Metallurgical stability
  • Weldability
  • Strength
  • SMAW (MMA)
  • SAW
  • GTAW (TIG)
  • PLASMA
  • GMAW (MIG/MAG)
  • Nippon Yakin
  • Valbruna Stainless Steel
  • Columbus Stainless
  • Outokumpu
  • Special Metals(SMC)
  • HAYNES International
  • VDM Metals
  • ATI
Inconel x 750 plate marking Werkstoff NR. 2.4669 sheet finish AMS 5598 coil applications
  • Origin of material
  • Material grade
  • Sizes
  • ASTM/ ASME standard
  • Manufacturing date
  • Manufacturer logo / name
  • Glossy
  • Brushed
  • Matte
  • Sandblasted
  • Electroless nickel plating
  • Mirror
  • Aircraft structures
  • Nuclear reactors
  • Rocket engines
  • Heat treat fixtures

The suppliers listed above are ex-stock and have supplied to numerous nations in the past, such as Ghana, Tanzania, Mauritius, Tunisia and Kenya.

Inconel alloy X-750 sheet modulus of elasticity Coefficient of thermal expansion Inconel alloy X750 sheet documentation offered
75.8 kN/mm² 12.6 μm/m °C
  • Bill of Lading.
  • Copy of Invoice
  • Manufacturer’s Mill Test Certificate certifying, Heat No, finish, Chemical Composition, Grade etc.,
  • Copy of Packing List indicating details of Sizes, quantity, weight, thickness etc.
  • Country of Origin Certificate (Original)
Inconel Alloy X750 sheet common trade names Din 2.4669 plate welding electrode Other industry standards
  • Haynes X750
  • Pyromet® X750
  • Nickelvac®X750
  • Nicorros® 7016
Electrode 112
  • SAE AMS 5542
  • ISO 6208
  • SAE AMS 5598
  • PWA-LCS
  • RR SABRe Edition 2
  • W.Nr 2.4669
  • DFARS Compliant
  • GE Aircraft Engine -GT193
Standard of Inconel x-750 sheet Certification of Inconel x-750 coil Inconel Alloy X750 Plate value added services
  • ASTM B637
  • ASME SB 637
  • AMS 5542
  • AMS 5598
  • AMS 5670
  • AMS 5671
  • AMS 5247
  • MIL-N-778
  • UNS N07750



  • Third Party Inspection Report
  • EN 10204/3.1B
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Certificate of Origin legalized
  • Mechanical processing
  • Edge preparation
  • Bending
  • Shearing
  • Polishing
  • Sawing
  • Cutting to length
  • Slitting
  • Blanking
  • Welding

Use chat or email to get in direct contact with listed Inconel X-750 plate stockists, stockholders, and distributors for these services.



Nickel Alloy X-750 hot rolled plate packaging Inconel X 750® foil testing requirements Alloy X750 sheet hardness type
  • Steel Strips Bundled
  • Customized Pallets
  • Bubble wraps
  • Wooden Pallets
  • Chemical test
  • Nabl approved lab test
  • Flaring Test
  • Visual inspection test
  • Mechanical test
  • Third party inspection test
  • Non destructive test pmi test
  • Destructive test
  • Hard
  • Half Hard
  • Spring Hard
  • Soft
  • Quarter Hard
AMS 5542 sheet processing AMS 5598 plate PREN number Electrical conductivity
  • Processing
  • Packaging
  • Cutting
  • Additive manufacturing
  • Measuring
15.05 – 18.8 1.22 X 10-6 Ω.m
Difference between plate, sheet & Foil Inconel X 750 coil characteristics Werkstoff NR. 2.4669 sheet delivery time
  • Plate : 6mm
  • Sheet : 0.5 mm up to 6 mm
  • Foil : less than 0.2 mm
  • High strength after suitable heat treatment
  • Creep rupture strength at temperatures about 700°C
  • High tensile properties
  • Generally it is 7-10 days if its in stock
  • 15-20 days if its not in stock
  • Oman/ Qatar/ Saudi Arabia – within 7 days (by Air / Ship)
ASME SB637 X750 shim sheet method of cutting
  • Waterjet cutting
  • Laser cutting
  • Plasma cutting
  • Oxy-propane flame cutting

Direct contact with the above Alloy X750 Sheet distributors, dealers, and stockists specified for the above-mentioned cuts



To get AMS 5542 annealed plate at the most competitive price, choose a reliable Middle East importer and stockists also compare Inconel x-750 vs Inconel 625

Thickness of X750 sheet

UNS 7750 plate gauge no. X750 sheet in milimeter Alloy X750 sheet in inch
8 4.365 .17187
9 3.968 .15625
10 3.571 .14062
11 3.175 .125
12 2.778 .10937
14 1.984 .07812
16 1.587 .0625
18 1.270 .050
20 .9525 .0375
22 .7937 .03125
24 .635 .025
26 .476 .01875
28 .396 .01562
30 .3175 .0125

Inconel alloy X750 plate hs code

Description HS code
X-750 Inconel plate 75052200

Delivery location and schedule for ASTM B637 UNS N07750 Strip


Delivery Location and schedule for Inconel X750 Plate

Note: below table is published based on data collected by genuine suppliers

Export to Price variations and estimated delivery shipping time
Saudi Arabia  5 % extra | 7 days 7
Qatar  5 % extra | 7 days 7
USA  5 % extra | 40 to 60 days 45-60
Kenya  5 % extra | 19 days 19
Italy  5 % extra | 30 days 30
Norway  5 % extra | 45 days 45
Indonesia  5 % extra | 9 days 9
Bahrain  5 % extra | 9 days 9
Algeria  5 % extra | 45 days 45
Angola  5 % extra | 45 days 45
Egypt  5 % extra | 18 days 18
Nigeria  5 % extra | 30 days 30
Poland  5 % extra | 45 days 45
Sweden  5 % extra | 45 days 45

Inconel X-750 plate thickness tolerance

Width w (milimeter) 2.5 < t < 4.5 4.5 < t < 6 6 < t < 8 8 < t < 10 10 < t < 12.5 12.5 < t < 16 16 < t < 20 20 < t < 25 25 < t < 30 30 < t < 40
width < 1200 0.2 0.23 0.3 0.32 0.35 0.8 0.8 0.8 1 1.4
1200 < width < 1500 0.2 0.25 0.3 0.35 0.38 0.8 0.8 0.9 1 1.4
1500 < width < 1800 0.2 0.28 0.32 0.38 0.4 0.8 0.8 0.9 1.1 1.5
1800 < width < 2100 0.2 0.3 0.36 0.4 0.45 0.8 0.8 0.9 1.1 1.5
2100 < width < 2400 0.8 0.8 0.8 0.8 0.8 0.9 1 1.1 1.5
2400 < width < 2700 0.8 0.8 0.8 0.8 0.9 1 1.1 1.3 1.7
2700 < width < 3000 0.8 0.9 1 1 1 1.1 1.3 1.4 1.8

Inconel X-750 plate welding procedures

UNS N07750 plate welding procedure
Shielded Metal-Arc Welding (SMAW)
Gas-Metal-Arc Welding (GMAW )
Gas Tungsten-Arc (GTAW )

Inconel X-750 mechanical properties

X-750 Inconel sheet size & condition Yield Strength
(0.2% Offset)
Tensile Strength Hardness Elongation
min min Rockwell %, min
0.25 – 0.61 mm, incl / Solution Treated 517 MPa 931 MPa 30
0.25 – 4.75 mm / Aging Treated 793 MPa 1172 MPa 32C min 18
Over 0.61 – 4.75 mm, incl / Solution Treated 517 MPa 931 MPa 35

Nickel alloy X-750 sheet equivalent material

Standards Country Value
UNS North America N07750
WNR Russia 2.4669
ASTM America ASTM B 637
ASME Australia ASME SB 637
JIS Japan
BS United Kingdom
GOST Russia
AFNOR France
EN Europe
AMS United States 5598
ANSI America
SAE United States
AS Australia
DIN German

Inconel X-750 chemical composition

Grade % Cr Nb+Ta Ni Cu C Mn S Si Fe
WNR 2.4669 plate Min 14 0.7 70 5
Max 17 1.2 0.50 0.08 1 0.01 0.50 9

Inconel X-750 Plate Properties

ASME SB637 X750 shim sheet tolerances on length

Nickel X-750 plate nominal length (milimeter) Tolerance(milimeter)
+
Length < 2,000 10 0
2,000  Length < 8,000 0.005 times length 0
Length > 8,000 40 0

AMS 5598 plate tolerances on width

X-750 Inconel plate nominal width (mm) Tolerance (mm)
Mill edge Trimmed edge
+ +
Width < 1200 20 0 3 0
1200 < Width < 1500 20 0 5 0
Width > 1500 20 0 5 0

Size chart of Nickel alloy X-750 sheet

Nickel X-750 sheet size (in milimeter) Size (in inch)
3.40 .134
3.18 .125
4.75 .187
3.96 .156
7.92 .312
6.35 .250
12.7 .500
9.53 .375
15.9 .600
22.2 .875
19.1 .750
25.4 1
76.2 3
31.8 1.250
28.6 1.125
38.1 1.500
50.8 2
44.5 1.750
63.5 2.500

Alloy X750 sheet weight chart

US Standard Gauge Gauge Weight Gauge Decimal
(inches) lb/ft2 inches
.0125 30 .0125
.0188 26 .756 .0187
.0250 24 1.008 .0250
.0313 22 1.26 .0312
.0375 20 1.512 .0375
.0500 18 2.016 .0500
.0625 16 2.52 .0625
.0781 14 3.15 .0781
.1094 12 4.41 .1094
.1250 11 5.04 .1250
.1406 10 5.67 .1406
.1563 9 .1562
.1719 8 6.93 .1719

Alloy X750 strip dimension

Kilogram P/M2 Dimension (milimeter)
6.3 0.7 x 1219 x 3048
4.5 0.5 x 1000 x 2000
8.1 0.9 x 1219 x 3048
14.4 1.6 x 1200 x 3048
10.8 1.2 x 1219 x 3048
27.0 3 x 1200 x 3000
18.0 2.0 x 1219 x 3048
28.6 3.18 x VARIOUS ANN

Manufacturing process of Inconel X-750 plate

Manufacturing process of Inconel X-750 plate

AMS 5542 sheet thermal and electrical properties

Physical Properties 200°C 427°C 600°C 732°C 816°C
Inconel x-750 coefficient of thermal expansion ( µm/m⁰C) 14.22 15.12 15.66 15.84
Charpy Impact V-notch /J 115.2
Modulus of Elasticity / x105 MPa 1.89 1.8 1.61
Thermal Conductivity /kcal/(hr.m.°C) 11.2 12.9 15.66 15.84

Get cut-to-size Werkstoff nr. 2.4669 coil & x750 sheet from the first traders in Dubai, check AMS 5598 shim stock application

The Inconel X-750 plate is a precipitation-hardened grade due to the additions of aluminum and titanium. The Nickel Alloy X-750 Hot Rolled Plate has good corrosion and oxidation resistance that allow them to work in harsh environments. These plates have excellent tensile and yield strength that allows them to work in aircraft systems.
The Inconel x-750 sheet standard is ASTM B 637 and AMS 5667-5671and 5747 standards.
The Inconel 625 has primary alloys of chromium, nickel, and molybdenum. The inconel x750 sheet stock is a nickel and chromium alloy. The Inconel 625 has better corrosion and oxidation resistance than the Inconel X-750 grade. The Inconel X-750 steel has better tensile and yield strength compared to the Inconel 625 specification. This is the major differences between the inconel x-750 vs 718 grades.

Consult the top ASME SB637 Inconel x 750® clad plate, coil, and shim sheet exporters in India and Asia, and also look into the testing process.

The Alloy X750 sheet can be subjected to 100% radiography testing, bending testing, corrosion testing, and mill testing. Further, the AMS 5542 Perforated Sheet can be subjected to a compression test, tensile test, Hardness test, impact test, etc.

Keep in touch with distributors of the nickel alloy x-750 hot rolled and cold rolled plate in Middle East countries and compare the cost

The price of the Inconel Alloy X750 plate in India is $26.56 per kg. The price of Alloy X750 Clad Plate in China is $23.45 per kg. The quality of steel from China is low as they are dumping steel in the market due to overproduction.
