Insert Outlet Overview
| Manufacturing Standard |
|
|---|---|
| Heat treatment |
|
| Testing |
|
| Origin | American, Janpanese, European, Russian, Korean |
| HSN Code | 8536 |
| Surface Treatment | Polished |
| Packaging |
|
| Sour Service |
|
Buy from Authenticated Insert Branch Outlet Suppliers in UAE
Insert Outlet Specification
Insert Outlet Size: 1/2 to 24″ Inch
Insert Branch Outlet Pressure : Class 3000, 6000, 9000
Insert Weldolet Material: Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Nickel Alloy etc.
Insert Socket Outlet Connection: Threaded, Socket Weld, Soldering, Push-to-Connect
Insert Weld Outlet Schedule: Sch 40, Sch 80, Sch 160
Insert Branch Outlet Coating: Anti Rust Paint
Insert Outlet Applicable Fluid: Water and Air, Steam, Oil and Gas
Applications: Water Treatment Plants, HVAC Systems, Oil & Gas Industry, Power Plants etc.
Insert Socket Outlet Surface Finish: HDG, Black, Polished, Electric Galvanizing
Thread: NPT, NPTF, BSPT, BSPP, UNF, UN
Buy Directly From Insert Outlet Suppliers in UAE and Get Datasheet
Process: Hot and Cold Formed
Quickly get Pricing from Reputable Insert Socket Outlet Manufacturers in UAE, Check Insert Weldolet Pressure Rating in Class 3000 LB
Insert Socket Outlet Pressure Rating
| Plug Size (NPT) | Pressure Rating (psi) |
|---|---|
| 1/16″ – 1/8″ | Up to 10,000+ psi |
| 1/4″ – 1/2″ | Up to 10,000+ psi |
| 3/4″ – 1″ | Up to 8,000+ psi |
| > 1″ | – |
Insert Outlet Types
Insert Branch Outlet
Insert Socket Outlet
Insert Weld Outlet
Call Now for the Clients List Based in Below Locations
| Fujairah | Umm Al Quwain | Sharjah | Doha |
|---|---|---|---|
| Riyadh | Dubai | Muscat | Ras Al Khaimah |
| Al Jubail | Abu Dhabi | Saudi Arabia | Ajman |
Also View Commercial Benefits of Insert Type Weldolet, Verified Carbon Steel Insert Weldolet Importers in the Middle East and India
Insert Weldolet Benefits
- Enhanced Structural Integrity
- Self-Reinforcing & Safe
- Cost & Time Efficiency
- Improved Flow Efficiency
- Versatility & Compliance
- Ideal for Critical Applications
See Where You Can Find Material Ex Stock
| Country | Cities |
|---|---|
| Netherlands | Amsterdam |
| Netherlands | The Hague |
| Belgium | Brussels |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Seraing |
| Netherlands | Eindhoven |
| Belgium | Ghent |
| Netherlands | Rotterdam |
| Belgium | Leuven |
| Belgium | Westerlo |
| Belgium | Antwerp |
Don’t Forget to Check Stainless Steel Insert Weld Outlet Dimensions and Weight as per ASME B16.11

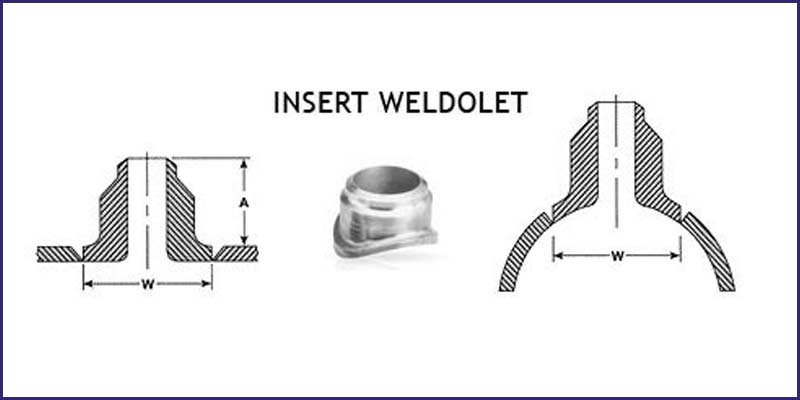

Insert Weld Outlet Dimensions
| Outlet Size | A’ Dimensions (Height above run pipe) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | |
| Std Wt Run Pipe | 1.50 | 1.50 | 1.62 | 1.75 | 2.00 | 2.25 | 2.38 | 2.75 | 3.06 | 3.38 | 3.50 | 3.75 | 3.81 | 4 | 4.56 |
| XS Run Pipe | 1.50 | 1.50 | 1.62 | 1.75 | 2.00 | 2.25 | 3.06 | 3.87 | 3.69 | 4.06 | 3.81 | 4.19 | 4.38 | 4.69 | 5.50 |
| .500″ to .750″ Thick Run Pipe | – | – | – | 2.88 | 3.31 | 3.75 | 4.12 | 4.18 | 4.25 | 4.37 | 4.50 | 4.69 | 5.13 | 5.62 | 6.50 |
| .750″ to 1.00″ Thick Run Pipe | – | – | – | 3.22 | 3.38 | 3.75 | 4.34 | 4.62 | 4.84 | 5.10 | 5.25 | 5.88 | 6.50 | 6.75 | 7.62 |
| 1.00″ to 1.25″ Thick Run Pipe | – | – | – | 3.38 | 3.50 | 4.00 | 4.50 | 4.88 | 5.00 | 5.38 | 5.50 | 6.00 | 6.50 | 7.00 | 8.00 |
| 1.25″ to 1.50″ Thick Run Pipe | – | – | – | 3.62 | 3.87 | 4.25 | 4.69 | 5.16 | 5.31 | 5.68 | 5.81 | 6.44 | 6.50 | 7.56 | 8.72 |
Insert Weldolet Applications
Established Insert Outlet Suppliers in UAE of reliable goods tailored for harsh industrial applications
- Petrochemical & Oil & Gas
- Chemical Processing
- Power Plants & Nuclear
- Pharmaceutical & Food Processing
- General Industrial Piping
Insert Branch Outlet Weight Chart
| Size In Inch | A | B | C | D | Weight In LBS |
|---|---|---|---|---|---|
| 1 | 1 1/16 | 2 | 1 7/16 | 1 1/32 | 0.4 |
| 1 1/4 | 1 1/4 | 2 3/8 | 1 3/4 | 1 3/8 | 0.7 |
| 1 1/2 | 1 5/16 | 2 7/8 | 2 | 1 5/8 | 0.8 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2 1/16 | 1.5 |
| 2 1/2 | 1 5/8 | 4 1/6 | 3 | 2 7/16 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3 1/16 | 3.75 |
| 1/2 | 3/4 | 1 3/8 | 15/16 | 5/8 | 0.15 |
| 3/4 | 7/8 | 1 5/8 | 1 3/16 | 13/16 | 0.25 |
| 3 1/2 | 2 | 5 3/8 | 3 7/8 | 3 9/16 | 5 |
| 4 | 2 | 6 | 4 3/4 | 4 | 6.7 |
| 5 | 2 1/4 | 7 1/8 | 5 9/16 | 5 1/16 | 8.5 |
| 6 | 2 3/8 | 8 1/2 | 6 11/16 | 6 1/16 | 14 |
| 8 | 2 3/4 | 10 3/8 | 8 11/16 | 7 15/16 | 28 |
| 10 | 3 1/16 | 12 9/16 | 10 13/16 | 10 | 39 |
| 12 | 3 3/8 | 14 7/8 | 12 13/16 | 12 | 65 |
| 14 | 3 1/2 | 16 1/8 | 14 1/16 | 13 1/4 | 70 |
| 16 | 3 11/16 | 18 1/4 | 16 1/16 | 15 1/4 | 92 |
| 18 | 4 1/16 | 20 3/4 | 18 5/8 | 17 1/4 | 125 |
| 20 | 4 5/8 | 23 1/16 | 20 1/16 | 19 1/4 | 175 |
| 24 | 5 3/8 | 27 7/8 | 25 1/8 | 23 1/4 | 280 |
| 30 | 5 3/8 | 34 1/16 | 30 7/16 | 29 1/4 | 440 |
| 36 | 5 3/8 | 34 1/16 | 36 1/2 | 35 1/4 | 1180 |
Sales Agents in Following Locations
| Region | City | Country |
|---|---|---|
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Dubai | United Arab Emirates |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Dammam | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Doha | Qatar |
| Middle East | Jeddah | Saudi Arabia |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| MENA | Cairo | Egypt |
| Africa | Cape Town | South Africa |
| Africa | Johannesburg | South Africa |
| Africa | Lagos | Nigeria |
Buying a Factory Direct will Save your Cost in SS 304 Insert Weld Outlets, Find the Top 6 Certified ASTM A105 Insert Wledolets Stockists in the United Arab Emirates
Insert Weld Outlets Documentations
Trusted Insert Outlet Suppliers in UAE delivering materials with superior resistance and reliability.
- Quality Assurance Plan (QAP)
- Certificate of Origin
- Fumigation Certificates
- Raw Material Test Reports
- Material Traceability Records
- Heat Treatment Charts
- Material Test Certificates (MTC)
- Commercial Invoice which includes HS Code
Locate Available Material from Stock
| MENA | Libya, Morocco, Tunisia, Algeria, Israel, Egypt, Palestine |
|---|---|
| Middle East countries | Lebanon, Qatar, Saudi, Bahrain, UAE, Kuwait, Iraq, Jordan, Iran, Syria, Yemen |
| Africa | South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria |
