Inconel Flanges Manufacturer in India

Mumbai, India

Renine Metalloys

Year of establishment

2008

Total export experience (in Years)

Nature of Business

Exporters, Manufacturer, Supplier

Third Party Inspection

Yes

Custom Sizes

Yes

Custom Packaging

Yes

MTC Report

Yes

Major clients in the Middle East

Dakhili Ali Al Dossary Trading Est. (Riyadh, KSA), Icon Arabia Trading - Saudi Arabia, WETCO (Saudi Arabia)

Inconel Alloy is a nickel-based material suitable for highly resistant and extreme environments. Inconel Flanges are used to connect long pipelines without any leakage in high temperature. These flanges connect two pipes using Nut bolt and gasket. There are several piping connections where ASTM B564 flanges are required such as Pipe to Valve, Pipe to Pump, Pipe to Pressure Vessel, and Pipe to Heat Exchanger. Inconel pipe flanges can be installed with bolting or via welding methods. Inconel threaded flanges are used when pressure is low between 300 Psi to 600 Psi. Inconel flanges are also known as corrosion resistant flange or high temperature flanges.

Inconel Forged Flanges are highly recommended for chemical processing, high-temperature, and high-pressure pipelines. These flanges are best to use for highly corrosive acids such as sulfuric acid, and seawater applications. All types of Inconel flanges such as Weld neck, Slip On, and Blind Flange can sustain up to 1149°C temperature. High-Temperature Exhaust Gases generate during petrochemical refining and oil extraction process so Inconel alloy flanges are widely used in such environments.

Indian origin Inconel flanges meet EN 1092-1, ASTM, ISO, and ASME standards. Compared to European and USA origin, Indian material is cost effective due to low manufacturing cost and labour. Renine Metalloys is one of the reliable manufacturer of Inconel Flanges in India. The company is an approved supplier in Oil and Gas companies of Oman and KSA. Renine also supply CRA Flanges (Inconel Cladding) as per specification and American standard.

The company is specialized in manufacturing Inconel Slip On, Blind, Weld Neck, and Socket Weld Flanges as per ASTM B564/ SB 564 specification. They produce high quality Inconel Forged Flanges in pressure class 150 to 2500 as per ASME B16.5. Renine Metal supply SGS inspected Inconel Flanges in Middle east Countries to meet the International Standards.

Inconel Flanges Manufacturer in India

Inconel Flanges Specification

Size : 15NB – 1200NB, 1/2″ to 48″, PN 2.5 – PN 400

Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Grades : Inconel 600, 601, 625, 718, 690, X750

Quote within 24Hrs with Technical Data Sheet

Standards : ASTM B564, ASME B16.5, MSS SP-25

100% Tested Inconel Flanges supply with MTC EN 10204/3.1

Who they are?

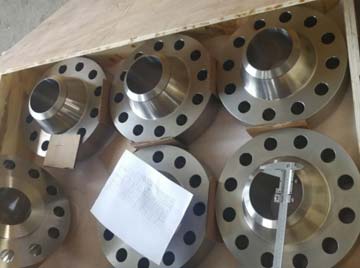

Inconel Flanges Manufacturer in India

Supplier of Inconel Blind Flange in Mumbai

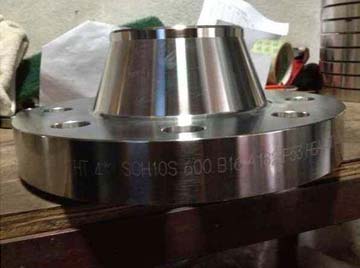

Inconel Weld Neck Flange Stockist in India

List of Top 9 of Countries Import Inconel Flanges From India

Country	Port Name	Delivery by Air from Mumbai, India	Delivery Estimate by Ship from Mumbai (India)
United States	New York (JFK) Houston (IAH)	7-10 days	4-6 weeks
United Arab Emirates	Dubai (DXB) Jebel Ali Port	4-6 days	2-4 weeks
Saudi Arabia	Jeddah (JED) Dammam (DMM)	5-7 days	3-5 weeks
Germany	Hamburg (HAM) Bremen (BRE)	7-10 days	3-5 weeks
France	Le Havre (LEH) Marseille (MRS)	7-10 days	3-5 weeks
Japan	Tokyo (NRT) Yokohama (YOK)	6-8 days	3-4 weeks
South Korea	Busan (PUS) Incheon (ICN)	5-7 days	2-4 weeks
Brazil	Santos (SSZ) Rio de Janeiro (GIG)	8-10 days	4-6 weeks
Italy	Genoa (GOA) Naples (NAP)	7-10 days	3-5 weeks

Inconel Flanges Manufacturing Process

Why Inconel Flanges are Non Magnetic?

Inconel flanges are non-magnetic because of high nickel content, FCC structure (Crystal Structure), and magnetic permeability. Check the composition, characteristics, and magnetic properties of Inconel Pipe Flanges:

Inconel Flanges	INCO600	INCO 601	INCO 625
Magnetic Permeability (µ)	1.0006	1.0006	1.0006
Nickel Content (Ni)	72.0% min	58-63%	58.0% min
Chromium Content	14-17%	21-25%	20-23%
Iron Content	6-10%	Balance	5% max
Crystal Structure	Face-Centered Cubic (FCC)	Face-Centered Cubic (FCC)	Face-Centered Cubic (FCC)
Magnetic Response	Non-magnetic	Non-magnetic	Non-magnetic
Density	8.47 g/cm³	8.11 g/cm³	8.44 g/cm³
Tensile Strength	550 MPa (min)	585 MPa (min)	830 MPa (min)
Melting Range	1354-1413°C	1360-1411°C	1290-1350°C

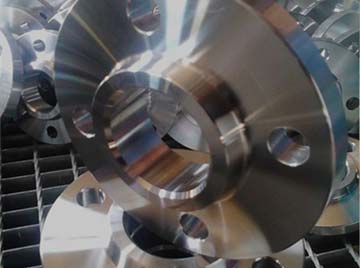

Supplier of Inconel Blind flange in Mumbai

Inconel Blind Flange manufacturing sizes @ Renine

Maximum manufacturing size	Up to 60 inches (1500 mm)
German Standard	DIN 2527, DIN 2631-2638
Japanese Standard	JIS B2220 (5K, 10K, 16K, 20K, 30K)
PN Rating	PN 2.5 to PN 400
Korean Standard	KS B 1501
No. of Bolt holes	4, 8, 12, 16 or custom
Inconel Blind Flange (Forging Method)	Up to 24 inches (600 mm)
Inconel Blind Flange (made from Plate)	Up to 60 inches (1500 mm)

Inconel BLRF and SORF Pressure Rating

Inconel	Flange Type	Pressure Rating (Class)	Temperature Range
Inconel 625	BLRF (Blind Raised Face)	Class 150	Up to 1,000°F (538°C)
Inconel 625	BLRF (Blind Raised Face)	Class 300	Up to 1,000°F (538°C)
Inconel 625	SORF (Slip-On Raised Face)	Class 150	Up to 1,000°F (538°C)
Inconel 625	SORF (Slip-On Raised Face)	Class 300	Up to 1,000°F (538°C)

Inconel Blind Flange Weight in Kg

Size		Weight (Kg)			Dimension
NPS (Inches)	DN (mm)	SOW SW	WN	Blind	Flange MM	Flange Thickness
1	25	0.8	1	0.9	108	14.2
1 1/4	32	1	1.3	1.2	117.3	15.7
2	50	2.1	2.6	2.4	152.4	19.1
2 1/2	65	3.3	4.1	3.9	177.8	22.4
3	80	3.9	4.9	4.9	190.5	23.9
1/2	15	0.4	0.5	0.4	88.9	11.2
3/4	20	0.6	0.7	0.6	98.6	12.7
3 1/2	90	4.8	6.1	6.2	215.9	23.9
4	100	5.3	6.8	7.0	228.6	23.9
5	125	6.1	8.6	8.6	254	23.9
16	400	44.8	60.6	76.1	596.9	36.6
18	450	48.9	68.3	93.7	635	39.6
6	150	7.5	10.6	11.3	279.4	25.4
8	200	12.1	17.6	19.6	342.9	28.4
12	300	26.2	36.5	43.2	482.6	31.8
14	350	34.6	48.4	58.1	533.4	35.1
20	500	61.9	84.5	122.0	698.5	42.9
24	600	86.9	115	185.0	812.8	47.8

Inconel Weld Neck Flange Price List in India

Concerned about the cost? Always buy tested material at factory price from Inconel Flanges manufacturer in India.

Size In Inches	Pressure Rating	Price In US$ (Dollar) per unit
1"	150#	US $ 150
2"	150#	US $ 250
4"	150#	US $ 500
6"	150#	US $ 800
8"	150#	US $ 1,000
10"	150#	US $ 1,500

Manufacturer of high-quality Inconel Flanges in India, get a free quote from Renine Metalloys.

DIN Standard	DIN 2501 DIN 2502 DIN 2573 DIN 2576 DIN 2543 DIN 2633 DIN 2631	Japanese Standard	JIS B2311 JIS B2312 JIS B2220
EN Standards	EN 1092-1 EN 1092-2	AWWA Standard	AWWA C207
BS Standard	BS 4504 BS 10	ISO Standard	ISO 160 ISO 6164

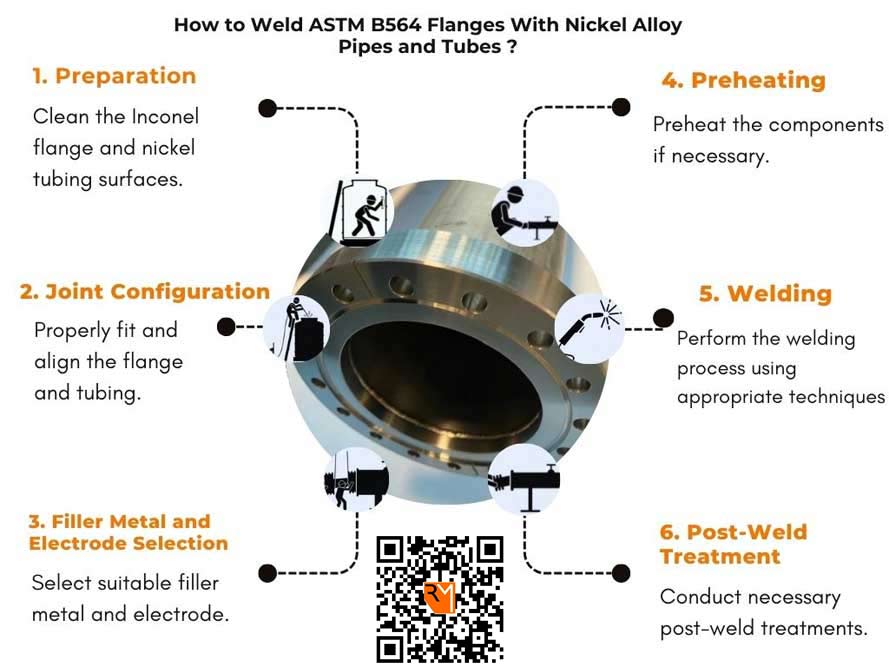

How to weld ASTM B564 Flanges with Nickel Alloy Pipes and Tubes?

Inconel Flanges welding process

Inconel Flanges Hole Size Chart

Pipe Size (inch)	Diameter of Hole (inch)	No. of Holes
1/2	5/8	4
1	5/8	4
1-1/2	5/8	4
2	3/4	4
3	3/4	4
4	3/4	8
5	7/8	8
6	7/8	8
8	7/8	8
10	1	12
12	1	12
14	1-1/8	12
16	1-1/8	16
18	1-1/8	16

Thread Types of Inconel Flanges

NPT (National Pipe Thread)
BSPT (British Standard Pipe Tapered)
BSPP (British Standard Pipe Parallel)
ANSI/ASME B1.20.1
DIN 2999
JIS B0203
ISO 7/1
API (American Petroleum Institute) Threads

Inconel Flanges ANSI/ ASME Standard and Types with Pressure Class

ASTM B564 Slip on Flange and Inconel Threaded flanges as per ANSI/ JIS/ DIN/ ASME B16.5/ 16.47 standard

Flange Type	ANSI/ ASME B16.5	ANSI/ ASME B16.47	JIS Standard	DIN Standard
Size Range	½ " to 24"	26" to 60"	10A to 1500A	DN 10 to DN 4000
Pressure Classes	Class 150, 300, 400, 600, 900, 1500, and 2500	75, 150, 300, 400, 600, and 900	5K, 10K, 16K, 20K, 30K	PN 2.5 to PN 400

Inconel Weld Neck Flanges

Parameter	ASME B16.5	ASME B16.47	JIS Standard	DIN Standard
Size Range	½” to 24″	26″ to 60″	10A to 1500A	DN 10 to DN 4000
Pressure Classes	150# to 2500#	75# to 900#	5K, 10K, 16K, 20K, 30K	PN 2.5 to PN 400
Standard	ANSI B16.5	B16.47 (Series A & B)	JIS B2220	DIN 2631 to 2638

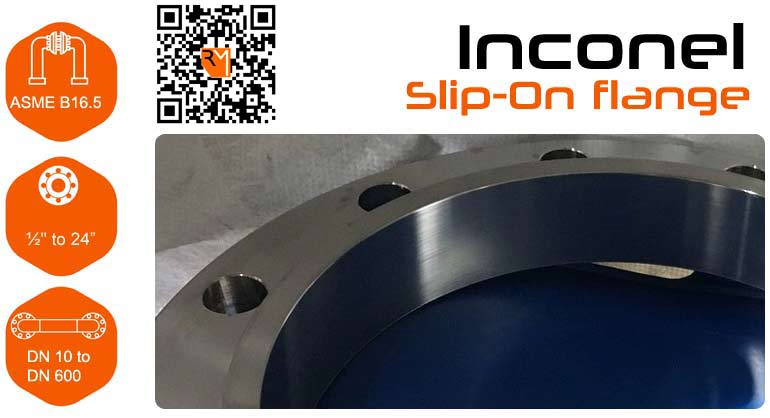

Inconel Slip-On Flanges

Parameter	ASME B16.5	Not manufactured in B16.47	JIS Standard	DIN Standard
Size Range	½” to 24″	NA	10A to 1500A	DN 10 to DN 600
Pressure Classes	150# to 1500#	NA	5K, 10K, 16K, 20K	PN 6 to PN 40
Standard	ANSI B16.5	NA	JIS B2220	DIN 2573 to 2576

Inconel Socket Weld Flanges

Parameter	ASME B16.5	Not manufactured in B16.47	JIS Standard	DIN Standard
Size Range	½” to 4″	NA	10A to 150A	DN 10 to DN 100
Pressure Classes	150# to 1500#	NA	5K, 10K, 16K	PN 6 to PN 40
Standard	ANSI B16.5	NA	JIS B2220	DIN 2673

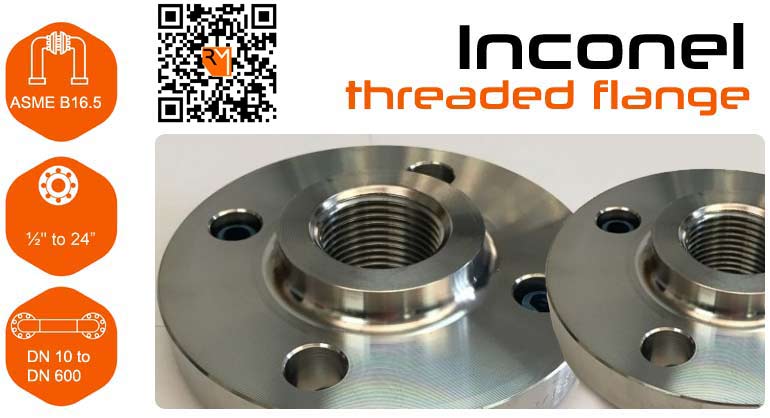

Inconel Threaded Flanges

Parameter	ASME B16.5	Not manufactured in B16.47	JIS Standard	DIN Standard
Size Range	½” to 4″	NA	10A to 150A	DN 10 to DN 100
Pressure Classes	150Lbs to 15000Lbs	NA	5K, 10K, 16K	PN 6 to PN 40
Standard	ANSI B16.5	NA	JIS B2220	DIN 2566

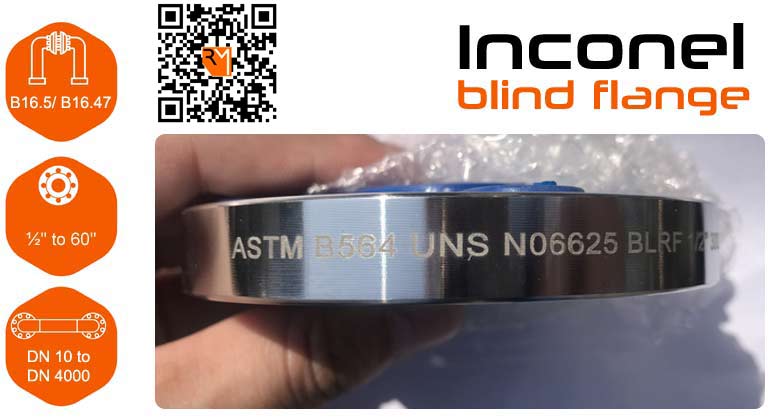

Inconel Blind Flanges

Parameter	ASME B16.5	ASME B16.47	JIS Standard	DIN Standard
Size Range	½” to 24″	26″ to 60″	10A to 1500A	DN 10 to DN 4000
Pressure Classes	CL 150 to 2500	75 to 900	5K, 10K, 16K, 20K, 30K	PN 2.5 to PN 400
Standard	ANSI B16.5	ANSI B16.47 (Series A & B)	JIS B2220	DIN 2527

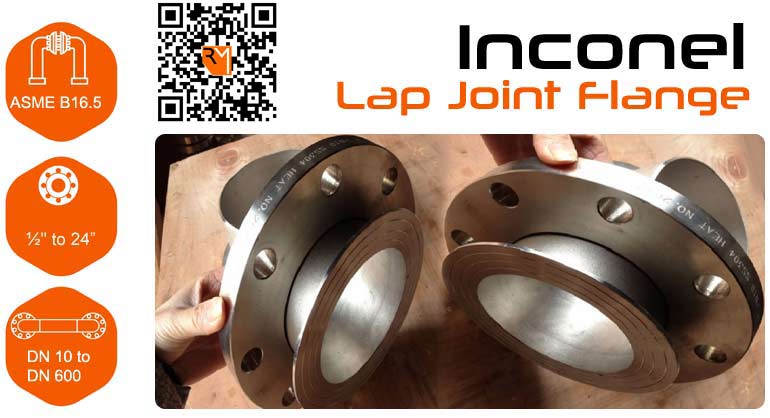

Inconel Lap Joint Flanges

Parameter	ASME B16.5	Not manufactured in B16.47	JIS Standard	DIN Standard
Size Range	½” to 24″	NA	10A to 1500A	DN 10 to DN 600
Pressure Classes	CL 150 to 1500	NA	5K, 10K, 16K, 20K	PN 6 to PN 40
Standard	ANSI B16.5	NA	JIS B2220	DIN 2641 to 2642

List of Oil and Gas Companies in Oman and Saudi Arabia

Supplying Class 150 and CL 300 Inconel Raised Face Socket Weld Flange to Oil and Gas Companies in Oman And Saudi Arabia for over One Decade

Renine Metalloys is the 1st Indian manufacturer of Inconel Flanges who is supplying ASTM B564 Slip on Flange, Blind, SORF, Threaded, and Weld Neck flanges with custom fabrication. Following is the list of companies where Renine is exporting since 2008.

Company Name	City
Hilong Oman	Muscat, Oman
Fahud PDO LMP – Halliburton	Mct, Oman
MOG Services	Muscat, Oman
ARA Petroleum LLC	Muscat, Oman
Amal Petroleum Services	Seeb, Oman
Seven Seas Petroleum LLC	Muscat, Oman

Company Name	City
Petrogistix Base	Dhahran, Saudi Arabia
Fadahili Gas Plant jubail	Dammam, Saudi Arabia
Saudi Black Gold EST.	Dhahran, Saudi Arabia
Weatherford Energy Services Saudi Arabia Co. Ltd	Dhahran, Saudi Arabia
ARABIAN FAL COMPANY	Riyadh, Saudi Arabia
GAS Arabian Services	Dammam, Saudi Arabia

Certifications Required by Oil and Gas Industry for Inconel Flanges

Manufacturer Testing Reports

Material Test Report (MTR)
Certification to ASTM Standards
Pressure Vessel Code Certification
ISO 9001 Certification
NACE MR0175/MR0103
API Standards

Inconel SWRF and WNRF Weight Chart

NPS (Inches)	SWRF	WNRF
1/2	0.7	0.9
3/4	1.3	1.5
1	1.5	1.8
1 1/2	3	3.5
2	3.6	4.4
3	7	8.5
4	14.5	17.4
5	24.4	29.2
6	28.7	34.9
8	43.4	53.9
12	84.2	103.0
16	142.0	170.0
18	173.0	204.0
20	220.0	254.0

Inconel SWRF Flange Weight

NPS	Class 150	Class 300
1/2"	0.4	0.6
3/4"	0.6	1.1
1"	0.8	1.4
2"	2.1	2.9
3"	3.9	5.9
4"	5.3	9.6
5"	6.1	12.3
6"	7.5	15.6
8"	12.1	24.2
10"	16.5	34.1
12"	26.2	49.8
14"	34.6	69.9
16"	44.8	88.1
18"	48.9	109.0
20"	61.9	134.0
24"	86.9	201.0

Types of Inconel Flanges

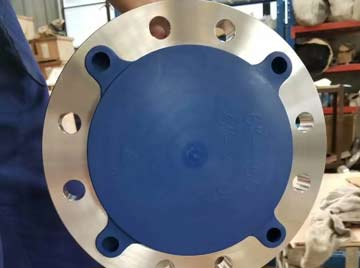

Inconel Blind flange

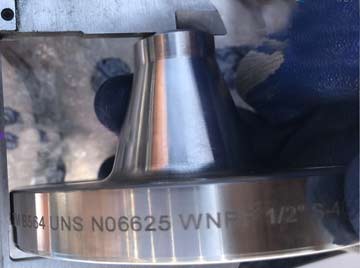

Inconel Weld Neck flange

Inconel Slip on Flange

Inconel Threaded flanges

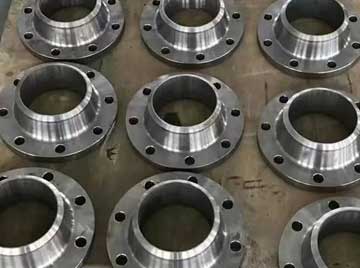

Inconel Forged Flanges

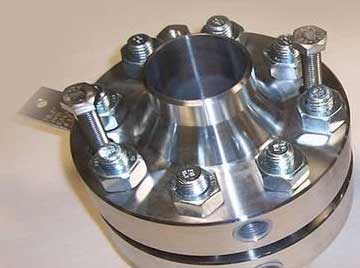

Inconel Alloy Orifice Flange

Test Certificates of Inconel Forged Flanges

Manufacturer of Inconel Forged Flanges for Chemical and Petrochemical Pipelines and Ship with MTC EN 10204/3.1B, Radiographic, Tensile, Hardness and Impact Test Reports

Find list of a few important flange test reports which may required by the project manager or engineers.

Radiographic Test (RT)
Tensile Test (UT):
Hardness Test
Impact Test (Charpy/Izod)
Ultrasonic Test (UT)
Magnetic Particle Test (MPT)
Dye Penetrant Test (DPT)
Visual Inspection
Chemical Composition Test
Pressure Test

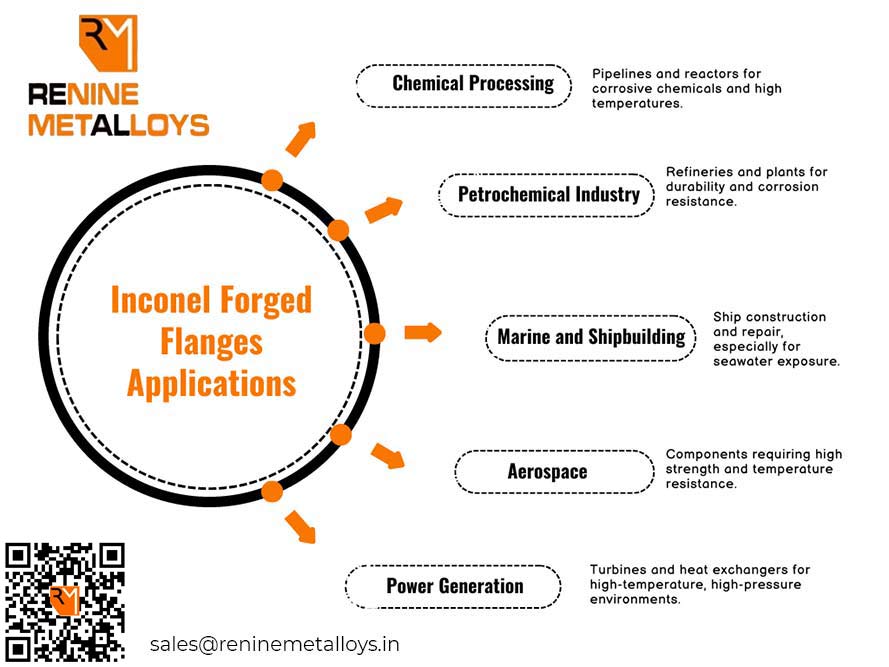

Inconel Forged Flanges Applications

Inconel Flanges Hardness

Get Inconel Alloy Orifice Flange and ASME SB564 Long Welding Neck Flanges as per NACE MR0175 Hardness Requirements

Inconel Alloy	Typical Hardness
Inconel 600	Rockwell C (HRC): 80-90
Inconel 601	Rockwell C (HRC): 85-95
Inconel 625	Rockwell C (HRC): 85-95
Inconel 718	Rockwell C (HRC): 40-45

Mumbai Head Office

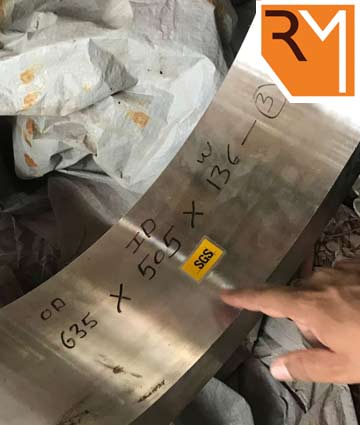

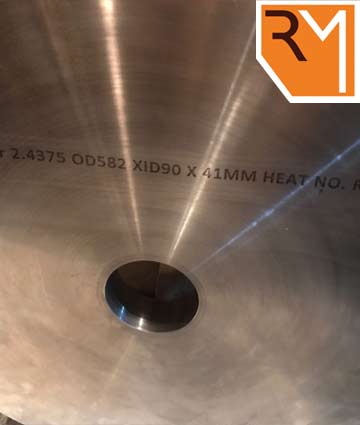

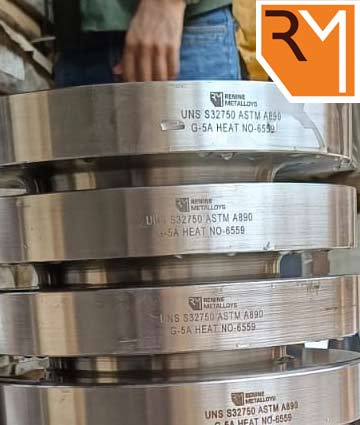

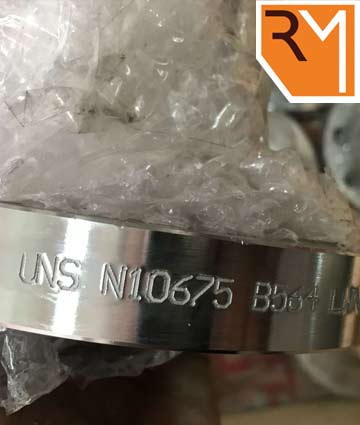

Renine Metalloys Manufacturing Unit (India)
