What is Monel Welding Rod?
Monel Welding Rod is a high-performance alloy of copper and nickel (with a trace of silicon, iron, carbon, and manganese). Monel Welding Wire shows excellent resistance, high strengths to acidic and alkaline environments, good ductility, and good thermal conductivity.
These welding wire and rods comes in various grades such as Monel Filler Metal 67, Monel Filler Metal 60 and Monel Filler Metal 190. The number of these grades indicate the composition percentage ie Monel Filler Metal 67 come with 63% Ni, Monel Filler Metal 60 with 60% Ni, and Monel Filler Metal 190 with 67% Nickel content.
Other side, Monel filler metal 67 conserves its mechanical properties and performance in temperature from 0 to 1,000 F. ERNiCu-7 TIG Rod is suitable for weld both grades such as Alloy 400 and K500. ERNiCu-7 welding rod also known as NA60. These Monel filler wire used as GTAW/ GMAW to weld Monel 400, K500, and alloy 404. The welded joints of Monel 400 material maintain their strength at at elevated temperatures.
Furthermore, It is hardened only through cold-working. Monel Welding Electrode, among other high nickel consumables, is considered a puritan alloy. As it contains the same copper and nickel content, which are found naturally in Ontario, Canada’s Sudbury mines. Monel Welding Electrode 187 is resistant to different types of chemicals, such as fluorine, hydrofluoric acid, alkalis, acid, and sulfuric acid. Therefore, Alloy 400 Welding Wire is the preferred in the chemical process industry.
Monel welding process includes TIG, MIG, and Stick welding. The weld appearance of joints are very smooth & aesthetic so they need very minimum finish after the welding. Due to the excellent resistance these Monel Welding Rods are mainly used in marine, chemical processing, and oil & gas industries. These Alloy 400 Filler Metal is also used for Monel welding in pressure vessels, pumps, valves, and pipes.
Here, meet one of the oldest Supplier of Monel Welding Rod in India. Shanti Metal not only supply Monel Electrodes in Mumbai but also provides free consultancy that how to weld Monel Alloy. The company also stock ERNiCu-7 TIG Rod and Monel Welding Wire of leading manufacturers like ESAB (Sweden), Lincoln (USA), Böhler (Austria), and Special Metals (USA). Shanti Metal can supply Monel 400 TIG rod and wires within 7 days in UAE, Saudi Arabia, Qatar, Oman, Bahrain, and Turkey.
Monel Welding Rod Specification
Size : 2.0mm to 5.0mm
Length : 300mm, 350mm
Diameter : 2.5mm, Ø 3.2mm, Ø 4.0mm, Ø 5.0mm
Classification : AWS A5.11, A5.1, ECuNi, ENiCu-7
Quote within 24Hrs with Technical Data Sheet
100% Tested Monel Welding Rod supply with MTC EN 10204/3.1
Who they are?
Monel Welding Rod Supplier in India

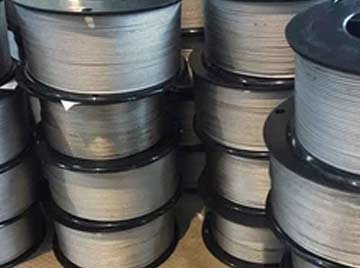

Alloy 400 Welding Wire Stockist in Mumbai

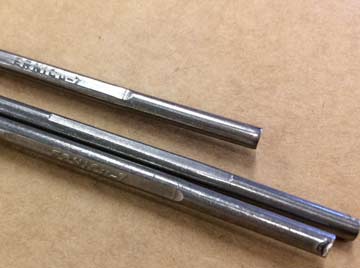

Manufacturers of Monel TIG Rod in India
Exporter of Monel 400 Welding Electrode in Mumbai
Get Maximum Sizes of Monel 400 Welding Electrode in Mumbai with Free Consultancy that how to Weld Monel Alloy
Monel 400 Welding Electrode Size Range
| Monel Electrode Size (Diameter) | Typical Length |
|---|---|
| 1.6 mm (1/16 inch) | 300 mm (12 inches) |
| 2.4 mm (3/32 inch) | 300 mm (12 inches) |
| 3.2 mm (1/8 inch) | 300 mm (12 inches) |
| 4.0 mm (5/32 inch) | 300 mm (12 inches) |
| 5.0 mm (3/16 inch) | 350 mm (14 inches) |
Weld Alloy 400 with Stainless Steel by Monel Welding Electrode 187
Monel TIG Rod Weight Chart
| Diameter, mm | Cross-section area, mm2 | Weight, kg/m |
|---|---|---|
| 10 | 78,5 | 0,617 |
| 11 | 95,0 | 0,746 |
| 6,5 | 33,2 | 0,260 |
| 5,5 | 23,8 | 0,187 |
| 7 | 38,5 | 0,302 |
| 8 | 50,3 | 0,395 |
| 12 | 113,0 | 0,888 |
| 6 | 28,3 | 0,222 |
| 9 | 63,6 | 0,499 |
| 14 | 154,0 | 1,210 |
What is Monel Filler Metal 67?
Monel filler metal 67 is a nickel alloy welding consumable used to weld Monel alloy 450, 70/30 copper-nickel, and other copper-nickel alloys. The 67 indicate the composition & properties used in the filler metal. It has excellent resistance to decay in seawater and is widely used for desalination and marine applications.
Equivalent Material of Monel Welding Wire
Know More About Alloy 400 Welding Wire Equivalent Material Available in India at Very Low Price
Supplier of high-quality Monel 400 Welding Electrode in India, get free quote and fastest delivery from Shanti Metal Supply Corporation in UAE.
| Welding Wire | Monel Filler Metal 67 | Monel Filler Metal 60 | Monel Filler Metal 187 | Monel Filler Metal 190 |
|---|---|---|---|---|
| AWS | AWS A5.14 ERNiCu-7 | AWS A5.14 ERNiCu-6 | AWS A5.14 ERNiCu-4 | AWS A5.14 ERNiCu-8 |
| ASTM (American Standard) | ASTM B150, ASTM B164 | ASTM B150, ASTM B164 | ASTM B163, ASTM B164 | ASTM B150, ASTM B164 |
| UNS | N04400 / Monel 400 | N04400 / Monel 400 | N05500 / Monel K-500 | N04400 / Monel 400 |
| ASME BPVC SFA | SFA-5.14 ERNiCu-7 | SFA-5.14 ERNiCu-6 | SFA-5.14 ERNiCu-4 | SFA-5.14 ERNiCu-8 |
Typical Welding Parameters of Monel Welding Rod
| Monel 400 Welding Wire Diameter | Process | Amps (flat) | Volt | Amps (V/OH) | |
|---|---|---|---|---|---|
| in | (mm) | ||||
| .045 | (1.2) | GMAW | 180-220 | 28-32 | Spray Transfer 100% Argon |
| 3/32 | (2.4) | GTAW | 120-175 | 15-20 | 100% Argon |
| 1/16 | (1.6) | GTAW | 90-130 | 14-18 | 100% Argon |
| .035 | (0.9) | GMAW | 150-190 | 26-29 | Spray Transfer 100% Argon |
| 1/16 | (1.6) | GMAW | 200-250 | 29-33 | Spray Transfer 100% Argon |
| 1/8 | (3.2) | GTAW | 150-220 | 15-20 | 100% Argon |
Shanti Metal Supply Corporation is a largest supplier of Monel TIG Rod and specialized in Ernicu-7 TIG Rod in India.
Ernicu-7 TIG Rod Price in India
| Brand | Price in India (per kg) | Price in USD (per kg) |
|---|---|---|
| ESAB | ₹9,000 – ₹12,000 | US $107.28 – $143.04 |
| Lincoln | ₹10,000 – ₹13,000 | US $119.20 – $154.95 |
| Bohler | ₹11,000 – ₹14,000 | US $131.12 – $166.87 |
| Special Metals | ₹12,000 – ₹15,000 | US $143.04 -$178.79 |
Shanti Metal Supply Corporation keep the stock of leading Monel Welding Rod manufacturers, contact to the supplier to check the availability & Price list.
Manufacturers of Monel TIG Rod
List of Top 5 Manufacturers of Monel TIG Rod in India and Europe
Here is the list of leading manufacturers of Monel Filler Metal
| Manufacturer Name | Monel Filler Metal Grades | Location |
|---|---|---|
| Sandvik | Monel 400/ 404 / K500 | Sandviken, Sweden |
| Böhler Welding | Monel 400/ 404 / K500 | Vienna, Austria |
| Metrode | Monel 400/ K500 | London, United Kingdom |
| Haynes International | Monel 400/ 404 / K500 | Kokomo, Indiana, USA |
| Arcos | Monel 400/ 404 | Houston, Texas, USA |
| ESAB | Monel 400/ K500 | Gothenburg, Sweden |
| VDM Metals | Monel 400/ 404 | Altena, Germany |
| Techalloy | Monel 400/ K500 | Houston, Texas, USA |
| Midalloy | Monel 400/ 404 | New Castle, Delaware, USA |
| Special Metals | Monel 400/ 404 / K500 | New Hartford, New York, USA |
| NIHONWELD | Monel 400/ 404 / K500 | Malabon, Metro Manila, Philippines |
Differences between Monel MIG Welding and TIG Welding
| Difference between | Monel MIG Welding | Monel TIG Welding |
|---|---|---|
| Weldable Monel components |
|
|
| Welding time (1 meter) Monel Tube welding |
|
|
| Monel plate welding |
|
|
| Weld Finish |
|
|
| Welder Experience |
|
|
| Filler Metal |
|
|
| Weld Speed |
|
|
Monel 400 Welding Procedure
Monel 400 Welding Electrode is a nickel alloy that can be welded with the use of different methods such as shielded metal arc welding (SMAW), gas metal arc welding (GMAW), and gas tungsten arc welding (GTAW). It is known for its good weldability and can be easily welded by most traditional processes. But it is expensive and prone to lack-of-fusion (LOF) and cracking.
Monel 400 is generally welded through gas tungsten arc, submerged arc welding, and gas metal arc. In such cases, Monel filler metal 60 is sometimes used, which has the same corrosion resistance and high strength as Monel alloy. The welding procedure for Monel electrodes is similar to that of austenitic stainless steels and mainly does not need preheating or post-weld treatment. But it is necessary to clean the joint areas properly after welding to avoid contamination and embrittlement and to make sure optimal corrosion resistance. The material used should also be free from scaling before welding.
Buy Monel Welding Rod online directly from Dealer and Distributor in Mumbai and save up to 30% on actual price.
Monel Welding Rod Mechanical Properties
| Properties | Monel 400 | Monel K-500 |
|---|---|---|
| Density, g/cm³ | 8.80 | 8.44 |
| Density, lb/in.³ | 0.318 | 0.305 |
| Melting Range, °C | 1300-1350 | 1315-1350 |
| Melting Range, °F | 2370-2460 | 2400-2460 |
| Poisson’s Ratio | 0.32 | 0.32(aged material) |
| Curie Temperature, °C | 21-49 | – |
| Curie Temperature, °F | 70-120 | – |
| Compression | 26.0 | – |
| Tension | 26.0 | 26.0 |
| Torsion | 9.5 | 9.5 |
Chemical Composition of Monel Welding Rod
| Element | Monel 400 | Monel K500 |
|---|---|---|
| Nickel (Ni) | 63.0% – 70.0% | 63.0% – 70.0% |
| Copper (Cu) | 28.0% – 34.0% | 28.0% – 34.0% |
| Iron (Fe) | Max 2.5% | Max 2.5% |
| Manganese (Mn) | Max 2.0% | Max 2.0% |
| Silicon (Si) | Max 0.5% | Max 0.5% |
| Carbon (C) | Max 0.3% | Max 0.3% |
| Sulfur (S) | Max 0.024% | Max 0.024% |
| Phosphorus (P) | Max 0.03% | Max 0.03% |
What is ernicu-7 TIG Rod? Best Welding condition by using ERNiCu-7 Welding Rod.
ERNiCu-7 is a copper-nickel alloy base wire for GTAW and GMAW welding Monel alloys 404 and 400. It is used to cover steel after the initial coat of 610 nickel. ERNiCu-7 Monel TIG wire is used for various welding applications such as joining base materials, dissimilar welding, overlaying steel, marine applications, and SAW welding.
The best welding condition with the use of ERNiCu-7 Monel TIG Rod has been seen in various ways, such as welding processes, materials, fluxes, and shielding gases. As it is made of a copper-nickel alloy base wire, it has similar characteristics to the material being welded. These features include good strength and resistance to corrosion in seawater and decreasing acids.
| Recommended Welding Condition | |
|---|---|
| Welding Process |
|
| Shielding Gas |
|
| Amperage |
|
| Arc Length |
|
| Material Preparation |
|
| Electrode Angle |
|
| Welding Positions |
All welding positions such as
|
| Tungsten Electrode |
|
| Interpass Temperature |
|
| Preheat |
|
| Voltage |
|
| Inspection |
|
Product Testing Equipment
Typical Mechanical Properties of Monel 400 Welding Electrode
| Properties | Annealed | Annealed + Aged | Spring Temper | Spring Temper + Aged | ||||
|---|---|---|---|---|---|---|---|---|
| Approx. tensile strength | <850 N/mm² | <123 ksi | >950 N/mm² | >138 ksi | 1000 – 1300 N/mm² | 145 – 189 ksi | 1200 – 1500 N/mm² | 174 – 218 ksi |
| Approx. operating temperature | -100 to +260 °C | -150 to +500 °F | -100 to +260 °C | -150 to +500 °F | -100 to +260 °C | -150 to +500 °F | -100 to +260 °C | -150 to +500 °F |
How to Weld Monel Alloys with Stainless Steel?
There are many welding methods can be used to weld Monel alloys with stainless steel such as GTAW and GMAW. But, as per the welders stainless steel should be welded using ER309 and ER309L filler metal. On other side, Monel welding should be done using ERNiCu-6 (Monel 60) and ERNiCu-7 (Monel 67).
So technically, it is possible to weld both Monel with SS, but due to compatibility issues engineers avoid such welding. For the durable welds the composition and properties should match of the base material.
Applications of Monel Welding Rods
- Marine and Offshore Applications
- Chemical Processing Industry
- Aerospace Industry
- Oil and Gas Industry
- Power Generation
- Marine Engineering
- Food and Beverage Industry
- Water Treatment Plants
- Pulp and Paper Industry
- Electronics and Electrical Equipment
As a renowned Monel Welding Rod supplier in India, the company supplied all types of Monel Filler Metal at genuine price in India.
Time and Delivery Location for Monel Welding Rod
Shanti Metal can supply the material using top and reliable logistics services such as FedEx, DHL, UPS Worldwide, Sea, and Air Freight. By Sea, it is the most economical option but takes a longer time to deliver. Check the
| Delivery Time | ||
|---|---|---|
| Country | No. of Days via DHL/ FedEx | No. of Days via Sea Freight |
| USA | 3-5 | 15-30 |
| Germany | 3-5 | 15-30 |
| UAE | 2-4 | 10-20 |
| Saudi Arabia | 3-5 | 15-25 |
| Singapore | 3-5 | 10-15 |
| South Korea | 3-5 | 10-20 |
| Japan | 4-6 | 20-30 |
| Australia | 4-6 | 20-30 |
| Brazil | 6-8 | 30-45 |
| Mexico | 4-6 | 20-30 |
| Italy | 3-5 | 15-25 |
| France | 3-5 | 15-25 |
| Canada | 3-5 | 15-25 |
| Netherlands | 3-5 | 15-25 |
| Belgium | 3-5 | 15-25 |
| Switzerland | 3-5 | 15-25 |
| Spain | 3-5 | 15-25 |
| Turkey | 3-5 | 15-25 |
| Thailand | 3-5 | 10-20 |
| Malaysia | 3-5 | 10-20 |
| Philippines | 4-6 | 15-25 |
| South Africa | 4-6 | 20-30 |
| Chile | 4-6 | 20-30 |
| India |
|
– |
