Stellite is a trademarked name owned by Stellite division of Kennametal Inc., Pittsburgh, USA. Kennametal produced a complete series of Stellite Welding Rod of cobalt-based alloys. The list of grades includes Stellite 6, Stellite 12, Stellite 21, Stellite 31, Stellite 22, Stellite 25, and Stellite 44. Stellite cobalt-based alloys comes in form of welding rod, welding wire, and electrode. Stellite 6 welding electrode are known for excellent wear resistance and specially manufactured for high temperature applications. These Stellite welding wire and electrodes are cobalt based with additions of various elements such as Carbon, Chromium, Tungsten (W) and/or Molybdenum (MO).
Shanti Metal Supply Corporation is one of the largest Stellite welding rod supplier in India since 1983. Shanti Metal provides same day delivery of Stellite 6 tig welding rod as per AWS A5.21.
Stellite Welding Rod Specification
Standards: Welding Electrode – AWS A5.13, ECoCr-A
Filler Metal- AWS A5.21, ERCoCr-A
Size: 2.6 mm,3.2 mm,4.0 mm, 5.0 mm,6.4 mm
Welding Positions: All positions (F, V, OH, H)
Quote within 24Hrs with Technical Data Sheet
Type Of Current: Direct Current Electrode Positive (DCEP)
100% Tested Stellite Welding Rod supply with MTC EN 10204/3.1
Who they are?

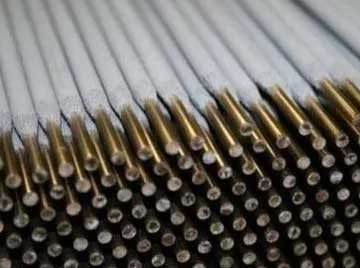

Stellite Welding Rod Supplier in India

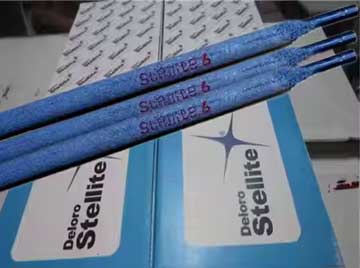

Stockist of Stellite 6 Filler Wire in Mumbai
Stellite 6 TIG Rod manufacturer in India
Exporter of Stellite 21 Welding Rod in Mumbai
Price List of Stellite 6 Filler Wire in Mumbai
| Size | Price in USD (Per Kg) |
|---|---|
| 4 x 350 mm | FOB Price: US $ 36.94 |
| 3.1 x 450 mm | FOB Price: US $ 73.89 |
| 6.4mm | FOB Price: US $ 42.90 |
| 1/8″ | FOB Price: US $ 69.82 |
Stellite Welding Rod UNS, AWS, and other Equivalent Standards
| Properties | UNS | ASME | AWS | |
|---|---|---|---|---|
| Stellite 6 | Welding Rod | W73006 | ASME BPVC IIC SFA 5.21 ERCoCr-A | AWS A5.21 |
| Welding Wire | W73036 | ASME BPVC IIC SFA 5.21 ERCCoCr-A | ||
| Electrode | W73006 | ASME BPVC IIC SFA 5.13 ECoCr-A | ||
| Stellite 12 | Welding Rod | R30012 | ASME BPVC IIC SF A 5.21 ERCoCr-B | AWS A5.21 |
| Welding Wire | W73012 | ASME BPVC IIC SF A 5.21 ERCCoCr-B | ||
| Electrode | W73042 | ASME BPVC IIC SF A 5.13 ECoCr-B | AWS A5.13 | |
| Stellite 21 | Welding Rod | R30021 | ASME BPVC IIC SFA 5.21 ERCoCr-E | AWS A5.21 |
| Welding Wire | W73041 | ASME BPVC IIC SFA 5.21 ERCCoCr-E | ||
| Electrode | W73021 | ASME BPVC IIC SFA 5.13 ECoCr-E | AWS A5.13 | |
| Stellite 31 | Welding Rod | W73031 | ASME BPVC IIC SFA 5.21 ERCoCr-C | AWS A5.21 |
| Welding Wire | W73031 | ASME BPVC IIC SFA 5.21 ERCoCr-C | AWS A5.21 | |
| Electrode | W73031 | ASME BPVC IIC SFA 5.13 ECoCr-C | AWS A5.13 | |
| Stellite 25 | Welding Rod | R30605 | ASME BPVC IIC SFA 5.21 ERCoCr-E | AWS A5.21 |
| Welding Wire | R30605 | ASME BPVC IIC SFA 5.21 ERCoCr-E | AWS A5.21 | |
| Electrode | R30605 | ASME BPVC IIC SFA 5.13 ECoCr-E | AWS A5.13 | |
| Stellite 1 | Welding Rod | – | ASME BPVC IIC SFA 5.21 ERCoCr-C | AWS A5.21 |
| Welding Wire | W73031 | ASME BPVC IIC SFA 5.21 ERCCoCr-C | AWS A5.21 | |
| Electrode | W73001 | ASME BPVC IIC SFA 5.13 ECoCr-C | AWS A5.13 | |
| Stellite 190 | Welding Rod | R30014 | ASME BPVC IIC SFA 5.21 ERCoCr-G | AWS A5.21 |
| Stellite 694 | Solid Wire | B50TF55 | – | – |
Note:
- Kennametal is the manufacturer of Stellite Brand
- ASME: Boiler and Pressure Vessel Code (BPVC), the American Society of Mechanical Engineers
- AWS: American Welding Society Standards
- UNS: Unified Numbering System
Physical Properties of Stellite 6 Welding Rod
| Properties | Value | |
|---|---|---|
| Density | g/cm3 | 8.44 |
| Melting Range | °C | 1285 – 1410 |
Which welding electrode is best to weld wear resistant steel?
Stellite 6 TIG Rod is Best for Welding of Cobalt Based Alloys
Difference Between Stellite 6 Welding Rod and Stellite 21
| Properties | Stellite 6 Welding Rod | Stellite 21 Welding Rod |
|---|---|---|
| Composition |
|
|
| Hardness (as-welded) |
|
|
| Melting Range |
|
|
| Oxidation Resistance |
|
|
| Applications |
|
|
ECoCr-A electrodes are used for what purpose?
ECoCr-A electrodes are used under extreme conditions such as oil & gas, mining, and power plants.
There are 4 main purpose of using ECoCr-A electrodes:
- Hardfacing
- Welding
- Protective Coatings
- Aerospace and Automotive Parts
Stellite 21 Welding Electrode vs 12
Distributor & supplier of Stellite Welding Rod in India, get lowest price from Shanti Metal Supply Corporation.
| Difference between | Stellite 21 | Stellite 12 |
|---|---|---|
| Primary Composition |
|
|
| Typical Applications |
|
|
| Hardness (Rockwell C) |
|
|
| Heat Resistance |
|
|
| Weldability |
|
|
| Post-Weld Heat Treatment |
|
|
| Typical Welding Processes |
|
|
Hardness of Stellite 21 Welding Rod
Know More About Stellite 21 Welding Rod Hardness HRC
- 40-50 HRC
- The hardness make them best choice to use in Wear Resistance like construction and Mining sectors
- Stellite 21 maintains its hardness in extreme conditions
- Proper welding techniques ensure the optimal hardness
Mac hica E3072 stellite welding electrode price in Mumbai
| Size | Pack Weight | FOB Price in USD Per Kg ex Mumbai, India |
|---|---|---|
| 2.5MM | 1 Kg | US $ 184.68 |
| 3.2MM | US $ 154.22 | |
| 4MM | US $ 154.22 | |
| 2.5MM | 2 Kg | US $ 367.41 |
| 3.2MM | US $ 306.44 | |
| 4MM | US $ 306.44 | |
| 2.5MM | 4 Kg | US $ 731.51 |
| 3.2MM | US $ 609.60 | |
| 4MM | US $ 773.63 |
Sizes of Mac Hica E3072 Electrode
Shanti Metal Supply Corporation stock a wide range of Stellite Welding Rod in Mumbai, get a quick quote now!
| Sizes & Recommended Amperages | ||||
|---|---|---|---|---|
| 6.40mm | 2.50mm | 4.00mm | 3.25mm | 5.00mm |
| 220-275 | 60-75 | 100-150 | 90-115 | 150-220 |
Dimensions and Weight of Stellite Welding Electrodes
Get Stellite Welding Electrodes at Reseller Price for Traders in Oman and Bahrain
A renowned Stellite Welding Rod Supplier and Stockist in Mumbai. The company is supplying stellite 6 welding rod, tig rod, and filler wire to leading petrochemical, oil and gas industries in Saudi Arabia, Bahrain, and Oman.
| Diameter | mm | 5.00 | 4.00 | 3.15 |
|---|---|---|---|---|
| Wt. per Box | Kgs. | 4.00 | 4.00 | 4.00 |
| Welding Current | Amps | 180 – 200 | 140 – 180 | 100 – 120 |
| Wt. per Carton | Kgs. | 16.00 | 16.00 | 16.00 |
| Length | mm | 450 | 450 | 450 |
Hardness & Chemical Composition of Stellite 6 Welding Rod
| Co | W | Cr | C |
|---|---|---|---|
| Base | 3-6 | 27-32 | 0.9-1.4 |
| Hardness | Melting Range | Stellite 6 Alloy Density | Others |
|
|
|
Ni, Fe, Si, Mn, Mo |
Stellite Welding Rod HSN Code
| Properties | Value |
|---|---|
| HS Code | 83113090 |
Why ECoCr-A material is known for Hardfacing welding electrode?
ECoCr-A Satellite Hardfacing Welding Electrode for Wear Resistance at Distributor Price in India
Stellite 6 Welding Rod Mechanical Properties
| Properties | Value | |
|---|---|---|
| Condition | Casting | |
| Tensile Strength | MPa | 790 |
| Yield Strength (0.2% Offset) | MPa | 660 |
| Elongation in 4D | % | << 1 |
| Hardness | HRC | 36 – 46 |
