What is a Duplex Pipe?
Duplex Pipe Material is mix of austenite and ferrite stainless. These pipes contains 22% chromium, 5% nickel, and 3% molybdenum which make this alloy a best choice to use with corrosion resistance environments. Duplex Steel Pipes comes in 2 grades which are UNS S31803 and S32205. UNS S32205 Duplex Pipe has a little higher Tensile Strength but other side UNS S31803 Pipes are more cost effective.
These Duplex Stainless Steel Pipes are mainly used in marine sector and water desalination plants in form of seamless, welded, EFW, and ERW. Duplex Steel Seamless Pipe are supplied accordance to ASTM A789/A790. ASME SA 789/SA 790 specification is applicable If the material has to be use in boilers and pressure vessel. Furthermore, ASTM A928 is the American standard for Duplex Steel EFW Pipe.
EN 10216-5 standard Duplex Pipe can be ordered in different conditions such as solution annealed, quenched, or pickled. In pharmaceuticals, food processing and other hygiene industries Mechanically polished duplex pipes are highly in demand to prevents bacterial growth. While, rough surface Duplex Stainless Steel Pipes can be used for any construction or transporting fluids.
Vishal Tube is a Manufacturer of Duplex Pipe in India since 1987. They produce Welded, ERW, and Seamless Duplex Stainless Steel Pipes as per ASTM A790. Vishal Tube is the only company in Mumbai who is an approved supplier in SADARA SWRO, Saudi Arabia for Duplex Steel Pipes.
Duplex Pipe Specification
Duplex Seamless Pipe: 6 to 1200 NB
Duplex Welded Pipe: 1/8″ to 36″ NB
Finish : Solution Annealed, Mirror, BA Polishing, Cold Drawn, 600 grit, 400 grit, 2B
DSS Pipe Standards: ASTM, JIS, AMS, DIN, ASME, AISI
Quote within 24Hrs with Technical Data Sheet
100% Tested Duplex Pipe supply with MTC EN 10204/3.1
Who they are?

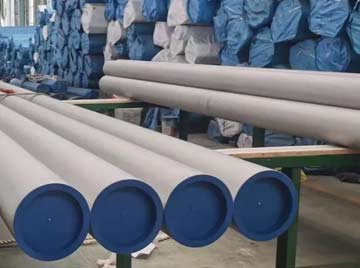

Duplex Pipe Manufacturer in India

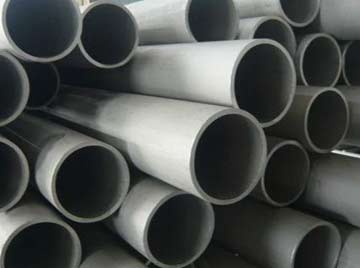

Seamless Duplex Stainless Steel Pipe Supplier in Mumbai

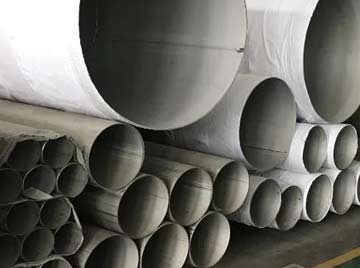

Stockist of Duplex Steel ERW Pipes in India

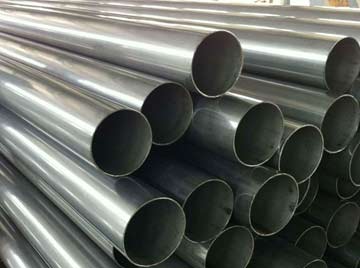

Duplex Steel Welded Pipes Exporter in India
Seamless Duplex Stainless Steel Pipe Supplier in Mumbai
Vishal Tube Industries supply Duplex Steel Seamless Pipe from 1/2 Inch to 24 Inch. For the larger OD they can offer Welded pipes. The standard wall thickness of Duplex SMLS pipes comes between Schedule 10 to 160 as per ASME/ANSI B36.10M. Order Duplex Steel Pipe in 6 meter or custom length from their Ex-stock in Mumbai (India). UNS S31803 and S32205 both are the duplex pipe material code which mark on the product with manufacturer name and origin.
Size Chart of Seamless Duplex Stainless Steel Pipe
| Pipe OD mm | Pipe WT mm | Sch | in. | Kg/m |
|---|---|---|---|---|
| 17.15 | 1.65 | 10S | 3/8 | 0.64 |
| 17.15 | 2.31 | 40S | 3/8 | 0.86 |
| 13.72 | 1.65 | 10S | 1/4 | 0.50 |
| 21.34 | 2.77 | 40S | 1/2 | 1.29 |
| 13.72 | 3.02 | 80S | 1/4 | 0.81 |
| 26.67 | 2.87 | 40S | 3/4 | 1.71 |
| 21.34 | 3.73 | 80S | 1/2 | 1.65 |
| 26.67 | 2.11 | 10S | 3/4 | 1.30 |
| 17.15 | 3.20 | 80S | 3/8 | 1.12 |
| 21.34 | 2.11 | 10S | 1/2 | 1.02 |
| 13.72 | 2.24 | 40S | 1/4 | 0.64 |
| 26.67 | 3.91 | 80S | 3/4 | 2.23 |
Weight Chart of Duplex Steel Welded Pipe
| Weight | 10 SWG, ( 3.2 mm) | 12 SWG, (2.6 mm) | 14 SWG, (2.1 mm) | 16 SWG, (1.65 mm) | 18 SWG, (1.2 mm) | 19 SWG, (1.0 mm) | |
|---|---|---|---|---|---|---|---|
| Size in Inch | OD | Weight per meter | Weight per meter | Weight per meter | Weight per meter | Weight per meter | Weight per meter |
| 1 1/4 | 31.75 | 2.266 | 1.880 | 1.544 | 1.232 | 0.909 | 0.763 |
| 1 1/2 | 38.1 | 2.770 | 2.289 | 1.875 | 1.492 | 1.098 | 0.920 |
| 2 | 50.8 | 3.778 | 3.108 | 2.537 | 2.012 | 1.476 | 1.235 |
| 2 1/2 | 63.5 | 4.786 | 3.928 | 3.198 | 2.531 | 1.854 | 1.550 |
| 1/2 | 12.7 | 0.754 | 0.651 | 0.552 | 0.452 | 0.342 | 0.290 |
| 5/8 | 15.875 | 1.006 | 0.856 | 0.718 | 0.582 | 0.437 | 0.369 |
| 3/4 | 19.05 | 1.258 | 1.061 | 0.883 | 0.712 | 0.531 | 0.448 |
| 1 | 25.4 | 1.762 | 1.470 | 1.214 | 0.972 | 0.720 | 0.605 |
| 3 1/2 | 88.9 | 6.802 | 5.566 | 4.521 | 3.571 | 2.610 | 2.180 |
| 3 | 76.2 | 5.794 | 4.747 | 3.860 | 3.051 | 2.232 | 1.865 |
| 4 | 101.6 | 7.810 | 6.385 | 5.183 | 4.091 | 2.988 | 2.495 |
Types of Duplex Pipes
Vishal Tube maintains a wide stock of Duplex Pipes in both round and square shapes. Contact them to compare prices of Duplex Pipe Grade UNS S31803 and S32205 in India. Also check price of top 5 leading seamless duplex pipe manufacturers.

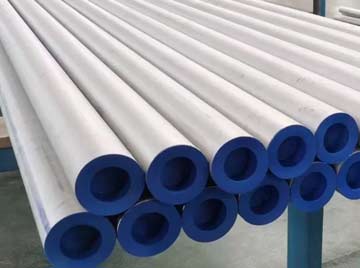

Duplex Seamless Pipe

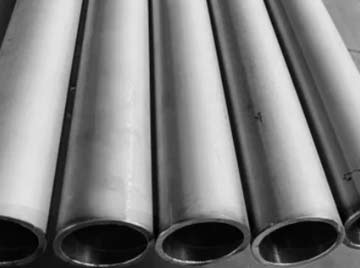

Duplex Steel ERW Pipe

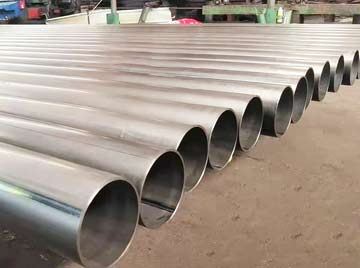

Duplex Steel Welded Pipe

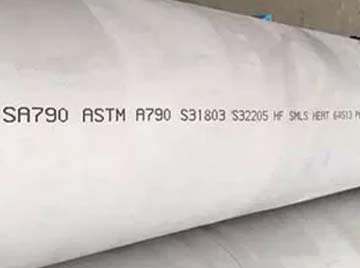

UNS S31803 Pipe
UNS S32205 Pipe

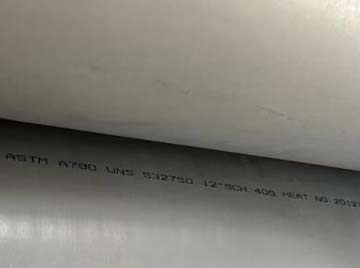

Schedule 40S Duplex Steel Pipe
Supply DSS Seamless Pipe According to ASTM A790 with MTC EN 10204/3.1B
Vishal Tube is a dealer and distributor of European origin Duplex Pipe manufacturers in India. Ask for a quick quote of leading manufacturers such as Sandvik, Outokumpu, Nippon Steel, Jindal, and Sumitomo Metals. They offer MTC EN 10204/3.1B with Duplex Pipe Material.
5 Big Difference between Duplex Welded Pipe and Seamless Pipe
There are 5 major differences between these pipes which are size, wall thickness, manufacturing process, time, and cost. Duplex Steel Seamless Pipes and welded pipes are used based on the project requirement, budget, and pressure capability.
| Duplex Welded Pipe | Duplex Seamless Pipe | |
|---|---|---|
| Standard Manufacturing Sizes |
|
|
| Wall Thickness |
|
|
| Pressure Rating |
|
|
| Manufacturing Process |
|
|
| Approx. Cost in India |
|
|

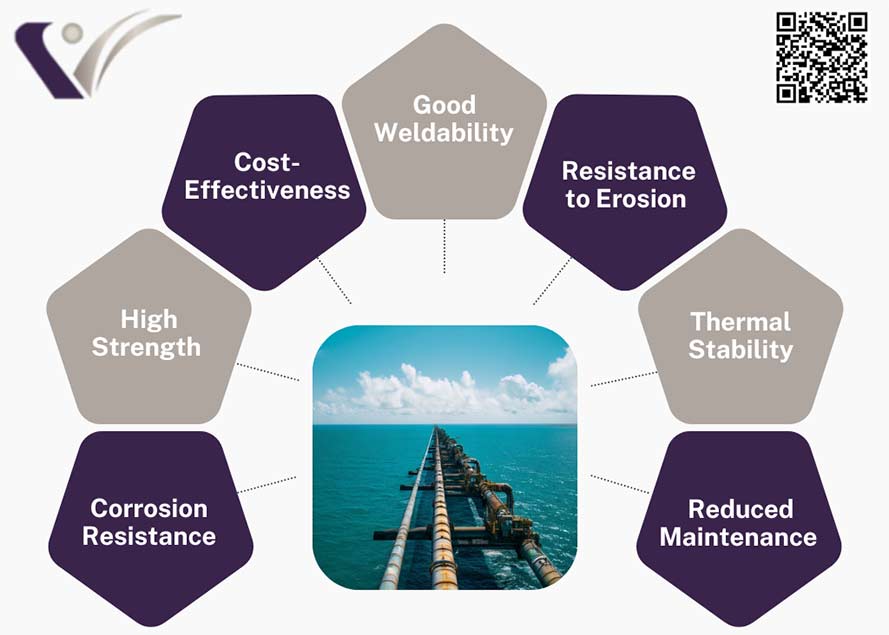

Why Duplex Steel Pipes are used in Seawater Pipelines?
These pipes are suitable for marine and seawater applications due to high PREN (Pitting Resistance) which is between 30-36 and unique properties. Duplex Steel Pipes are highly resistant to chlorinity and salinity. DSS Pipes are stronger and light weight compared to 316 grade.
Approved Vendor in SADARA SWRO Plant, Saudi Arabia of Duplex Stainless Steel Pipes
6 Major Differences between UNS S31803 Pipe and UNS S32205 Pipe
Check their properties below which makes them suitable for subsea offshore and water desalination plants.
| Differences Between | UNS S31803 | UNS S32205 |
|---|---|---|
| Density |
|
|
| Ultimate Tensile Strength |
|
|
| Yield Strength (@Strain 0.2 %,) | ||
| 200 °C |
|
|
| 150 °C |
|
|
| 100 °C |
|
|
| 50.0 °C |
|
|
| Impact Toughness (at -50°C) |
|
|
| Elongation |
|
|
| Hardness (Brinell) |
|
|
| Fatigue Strength |
|
|
| Corrosion Resistance (Pitting) |
|
|
Notes:
- Yield Strength values can slightly different and may depend upon duplex pipe manufacturers
- Ask for MTC 3.1 from seamless duplex pipe manufacturers for exact specification and dimensions
Top 10 Major Countries Import Duplex Steel Pipes from India
Below are top 10 countries where Indian manufacturers and suppliers export duplex steel pipes. Duplex Pipe manufacturers in India offer competitive prices and fastest delivery to Saudi Arabia and other MENA countries. These regions have a high demand of DSS pipes which are used in Petrochemical, oil & gas pipelines, chemical processing, power generation, and marine industry.
- United States
- United Arab Emirates
- Saudi Arabia
- South Korea
- China
- Germany
- Italy
- Singapore
- Brazil
- Australia
Check Sizes Difference in Duplex Steel ERW Pipes and Seamless Pipes
| Dimensions | Duplex ERW Pipe | Seamless Duplex Pipe |
|---|---|---|
| Sizes in mm |
|
|
| Sizes in inches |
|
|
| Wall Thickness |
|
|
| Standard Length |
|
|
| End Types |
|
|
Which Duplex Pipe should be installed in Temperature above 300ºC and Why?
Each Duplex pipe code has its unique mechanical properties and capabilities to use in high temperature applications. UNS S31803 and UNS S32205 Pipe are suitable only up to 300ºC. Check the Duplex Pipe grades and suitable temperatures in the following table.
| Duplex Pipe Grades | Suitable Temperature |
|---|---|
| UNS S32750 |
|
| UNS S31803 |
|
| UNS S32205 |
|
Manufacturer of Duplex Pipes in India, get a free quote from Vishal Tube Industries.

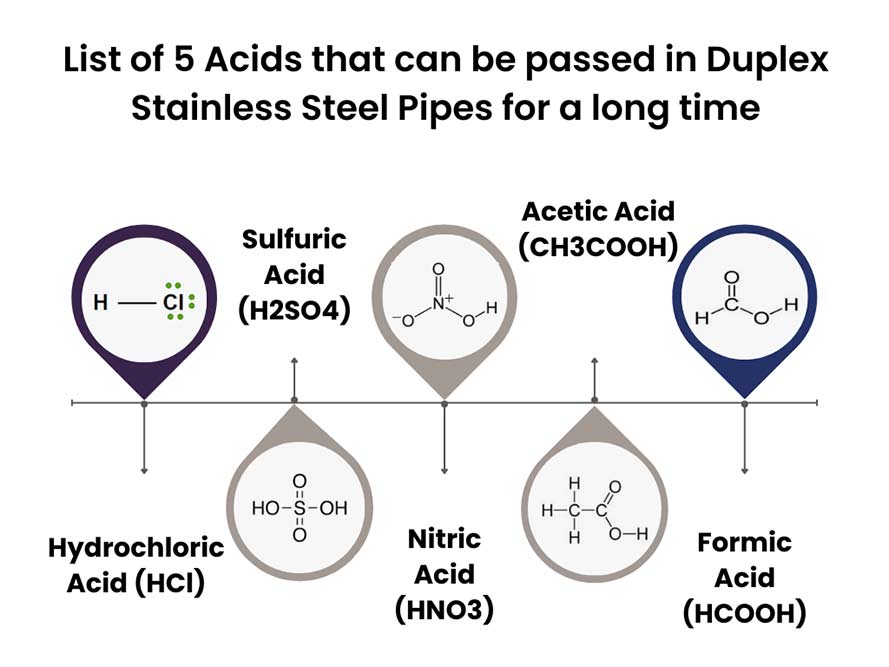

List of 5 Acids that can be passed in Duplex Stainless Steel Pipes for a long time
Price Difference in Duplex Steel Welded Pipes and Seamless Pipes in India
| Duplex Welded Pipe Price Ex Mumbai (per meter) | Duplex Seamless Pipe Price Ex Mumbai (per meter) | |
|---|---|---|
| 1/2″ (15 mm) | US $60 | US $110 |
| 1″ (25 mm) | US $70 | US $135 |
| 2″ (50 mm) | US $95 | US $175 |
| 3″ (75 mm) | US $120 | US $215 |
| 4″ (100 mm) | US $140 | US $250 |
| 6″ (150 mm) | US $180 | US $300 |
| 8″ (200 mm) | US $220 | US $350 |
| 10″ (250 mm) | US $270 | US $425 |
| 12″ (300 mm) | US $320 | US $500 |
| 14″ (350 mm) | US $370 | US $575 |
Which Welding Electrodes should be used to weld Duplex Pipes?
| Duplex Steel Pipe Welding Process | Welding Rod / Wire | Recommended for Duplex Pipe Wall Thickness |
|---|---|---|
| TIG (GTAW) | ER2209 | Up to 10 mm (3/8 inch) |
| MIG (GMAW) | ER2209 | 10 mm to 25 mm (3/8 to 1 inch) |
| Stick Welding (SMAW) | E2209 | Up to 12 mm (1/2 inch) |
| Flux-Cored Arc Welding (FCAW) | FCW-2209 | Up to 25 mm (1 inch) |
Vishal Tube Industries also offer all kind of welding and fabrication work like duplex pipe spool, or weld any flange on the end of a duplex stainless steel pipe.
Best Welding Procedure of Duplex Stainless Steel Pipes

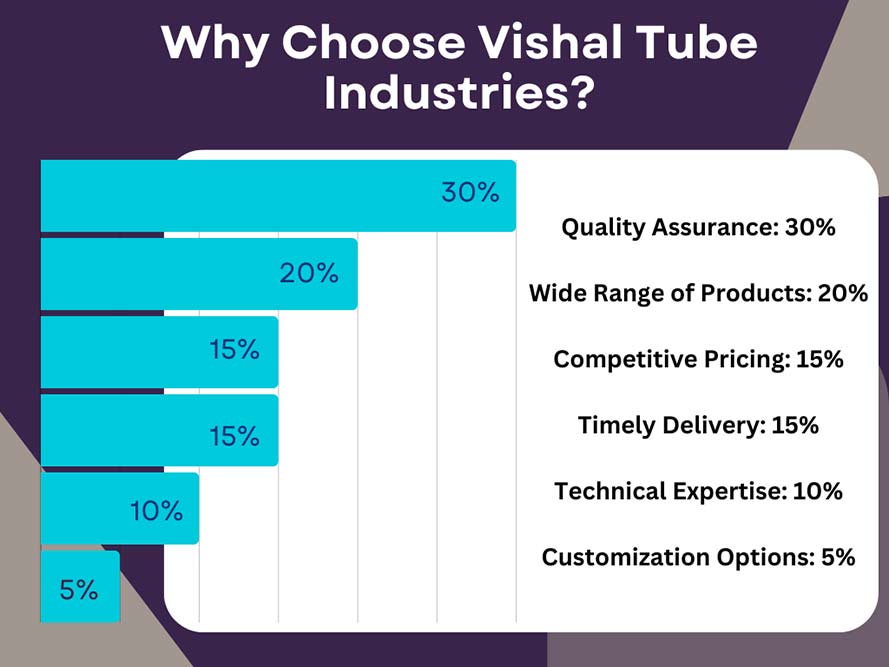

Why Choose Vishal Tube Industries for the Requirements of Duplex Pipes?
- Vishal Tube has a strong supply network in MENA countries
- Approved Duplex Pipe Supplier in SADARA SWRO Saudi Arabia
- Can arrange the material from KNPC & Saudi Aramco approved Duplex Pipe Manufacturers
- Experience of 37 years in Duplex Steel
- Dedicated team for each task from the Quotation till delivery
- Takes action immediately within 2 hours if buyers are facing any issues
- Can arrange any size of Duplex Steel Pipes within 3 days in Saudi Arabia
Quality & Testing
Vishal Tube offer MTC 3.1 and 3.2 to ensure Duplex Stainless Steel Pipe quality and age.
- Flattening Test
- Flaring Test
- IGC Test
- PMI Test
- Mechanical Test
- Micro and Macro Test
- Hardness Test
- Chemical Analysis
- Pitting Resistance Test
What is The Age of Duplex Stainless Steel in Marine Environments?
Duplex Stainless Steel Pipes are suitable for Seawater and Marine projects. The service life may vary and depends on the manufacturer, quality, and temperatures. The approximate life of Duplex Steel Pipes is 20 to 30 years.
As a renowned Duplex Pipe manufacturer, the company has served the petrochemical, oil and gas industries for over 3 decades.
Top 10 Characteristics of Duplex Steel Seamless Pipe
- Fastener
- High Strength
- Corrosion Resistance
- Good Ductility
- High Impact Toughness
- Excellent Fatigue Resistance
- Cost-Effectiveness
- Good Weldability
- Resistance to High Temperatures
- Lower Thermal Expansion
- Magnetic Properties
Why Duplex Steel is mixture of Austenitic and Ferritic Stainless Steel?
Duplex Steel is a combination of Austenitic and Ferritic and this alloy can withstand in sea pipelines and marine projects. These unique properties makes Duplex Steel pipe stronger and provide a longer life. Here are the top 5 advantages of Duplex Pipe
- Balanced Microstructure
- Corrosion Resistance
- Improved Mechanical Properties
- Stress Corrosion Cracking Resistance
- Improve Weldability
- Thermal Stability
- Cost Effective
Chemical Composition of Duplex Stainless Steel Pipe
| Material | Composition % (Approx.) | ||||||
|---|---|---|---|---|---|---|---|
| Mo | Ni | Cr | N | Cu | Mn | W | |
| 2101 LDX | 0.3 | 1.5 | 21.5 | 0.22 | – | 5 | – |
| DX2202 | 0.3 | 2.5 | 23 | 0.2 | – | 1.5 | – |
| RDN 903 | 0.2 | 1.8 | 20 | 0.11 | – | 4.2 | – |
| 2304 | 0.3 | 4.8 | 23 | 0.10 | – | – | – |
| 2205 | 3.1 | 5.7 | 22 | 0.17 | – | – | – |
| 2507 | 4 | 7 | 25 | 0.27 | – | – | – |
| Zeron 100 | 3.2 | 7 | 25 | 0.25 | 0.7 | – | 0.7 |
| Ferrinox 255/ Uranus 2507Cu | 3.5 | 6.5 | 25 | 0.25 | 1.5 | – | – |
Physical Properties of Duplex Steel ERW Pipes
| Grade | UNS S31803 Pipe |
|---|---|
| Density (g/cm 3) | 7.805 |
| Density (lb/in 3) | 0.285 |
| Melting Point (°C) | 1420 – 1465 |
| Melting Point (°F) | 2588 – 2669; |
Duplex SS Pipe Mechanical Properties
| Mechanical Properties | Yield,min,ksi [MPa] | Tensile, min, ksi[MPa] | Elongation, %(min) | Hardness, HB(max) |
|---|---|---|---|---|
| UNS S31803 Pipe | 65 [450] | 90 [620] | 25 | 290 |
| UNS S32205 Pipe | 65 [450] | 95 [655] | 25 | 290 |
