Golden Steel Material
|
|
|
|||||||||
|
|
|
|||||||||
|
|

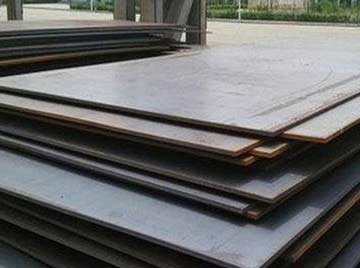

ASTM A516 Grade 70 Plate is made from carbon steel material. This grade is also known as boiler quality and specifically used to make pressure vessel. Under the ASTM A516 American standard SA 516 Gr 70 is the highest grade which has 620 MPa Tensile and 260 MPa Yield Strength. A516 Grade 70 Steel Plate have excellent weldability and can be weld using SMAW, GTAW, GMAW, and SAW Techniques. These SA516 Gr 70 Plates are suitable to weld through E7018 Electrode, ER70S-6 Welding Wire, and EM12K flux wire.
ASTM A516 Grade 70 Pressure Vessel material are supplied in form of sheet and plate. SA 516 Grade 70N means the plates are Heat treated and SA 516 Grade 70 are non-normalized or As Rolled material. ASTM A516 70N is preferred to use for superior toughness in extreme cold environments.
These ASTM A516 Grade 70 Boiler Quality Plates comes in a thickness range between 3/16 inch to 12 inches. The most demanded origin of SA 516 GR 70 are USA, Europe, South Korea, Japan, India, and China. Equivalent Name of A516 GR 70 are P265GH, P295GH, P355GH (EN 10028-2) in Europe. On other side, in Germany it is known as P265GH and P295GH. In Japan, the same material is available in name of SB 450, SB 480. In Australia, this grade is called AS 1548-7-460, and AS 1548-7-490. The Indian standard for this SA516 GR 70 plate is IS 2041 R260, R355 and Q345R is the Chinese standard. As per the International standards, there may be slight difference in their mechanical properties.
ASTM A516 Grade 70 Plate Supplier in Saudi Arabia indicate grades, dimensions and origin marking on the final goods. Before choosing the SA 516 GR 70 equivalent, should refer their mechanical properties and chemical composition.
Golden Steel Material was established in 2018 in Al Jubail, Saudi Arabia. The company maintain a wide stock of ASTM A516 GR70 Plates from leading manufacturers such as POSCO (South Korea), Thyssenkrupp (Germany), JFE Steel (Japan), Tata Steel (India), Nippon Steel (Japan), and ArcelorMittal (Luxembourg). Golden Steel can supply SA 516 GR 70 material same day in Dammam and Jubail in Kingdom of Saudi Arabia.
ASTM A516 Grade 70 Plate Specification
Thickness: 3mm-600mm
Width: 1500mm-3000mm
Length: 3000mm-11000mm
Quote within 24Hrs with Technical Data Sheet
Production: Hot-Rolled (HR) / Cold-Rolled (CR)
100% Tested ASTM A516 Grade 70 Plate/ sheet supply with MTC EN 10204/3.1
Who they are?
ASTM A516 Grade 70 Plate Supplier in Saudi Arabia
Hot Rolled A516 Grade 70 Steel Plate Supplier in Al Jubail
Stockist of ASME SA516 Gr 70 Plate in KSA
Hot Rolled A516 Grade 70 Steel Plate Supplier in Al Jubail
SA516 Gr 70 Plate, Sheet, and Coil are mainly manufactured via Hot Rolled process. If a smooth finish required for thin sheet then Cold Rolled method can be used by the ASTM A516 Grade 70 plate manufacturers.
Sizes of ASTM A516 Gr 70 Plates
Supplier of high-quality ASTM A516 Grade 70 Plates in Saudi Arabia, get a free quote from Golden Steel Material
| SA 516 70 Plate Sizes in Stock | |
|---|---|
| 3/16" | 1/2" |
| 3/4" | 1-1/2" |
| 1" | 2" |
| 1-1/4" | 2-1/2" |
| 1/4" | 5/8" |
| 1/8" | 3/8" |
| 3" | 4" |
Which Manufacturers of ASTM A516 Grade 70 Plates are approved in Saudi Aramco?
Chemical Composition of ASTM A516 Grade 70 Plate
| SA 516 GR 70 Steel Plate | |
|---|---|
| Properties | Value |
| C | 0.10/ 0.22 |
| S | 0.03 |
| Al | 0.02 |
| Cr | 0.3 |
| Cu | 0.3 |
| Ti | 0.03 |
| V | 0.02 |
| Si | 0.6 |
| Mn | 1/ 1.7 |
| P | 0.03 |
| Ni | 0.3 |
| Mo | 0.08 |
| Nb | 0.01 |
ASME SA516 Gr 70 Plate in Stock at KSA With Mill Certificate EN10204 3.1 and accordance to A20/A20M
Golden Steel offer EN 10204 3.1 Certification for traceability and assurance of A516 GR70 material. ASTM A516 Grade 70 Plates are manufactured accordance to A20/A20M which ensures material can be used for pressure vessel.
Certificates of ASTM A516 Grade 70 Plates
ASTM A516 Grade 70 Mechanical Properties
| Yield strength | Tensile strength | Elongation in 2″ 1 |
|---|---|---|
| ksi | ksi | min % |
| 38 | 70 – 90 | 21 |
Price List of ASTM A516 Grade 70 Plates
| Size | Price in Saudi Riyal | Price in USD |
|---|---|---|
| 8FT X 4FT X 3/8 THK | SAR 835.75 | US $ 222.74 |
| 8FT X 4FT X 1/2 THK | SAR 1062.49 | US $ 283.17 |
| 8FT X 4FT X 5/8 THK | SAR 1341.05 | US $ 357.41 |
| 1000 X LG 6000 X THK 6 MM | SAR 2917.28 | US $ 777.50 |
| 20 INCH X12 INCH | SAR 924.60 | US $ 246.42 |
| 30 MMX2000 MM X 6000MM | SAR 16010.28 | US $ 4,266.98 |
Why choose GSM?
- Golden Steel Understand Needs of construction, oil & gas, and infrastructure in Saudi Arabia
- All ASTM A516 Grade 70 material meet or exceed Saudi Standards (SASO)
- Competitive Pricing
- Flexible Payment Terms
- Fastest deliver anywhere in Saudi Arabia like Al-Khobar, Riyadh, Yanbu, Dammam, Jeddah, and Jubail
- Offer Value added services for Boiler & Pressure Vessel Steel Plate
Pressure Vessel Steel Plate Stockist in Saudi Arabia
There are various grades comes in carbon steel which can be used to produce Pressure Vessel. Among all of them SA516 Gr 70 Plate is the prime choice for manufacturing pressure vessels. The high tensile strength, toughness, and impact resistance make ASTM A516 Grade 70 Plate most suitable even at lower temperatures.
Why ASTM A516 Grade 70 material is called Pressure Vessel Steel?
| ASTM A516/ SA 516 GR 70 material | ||
|---|---|---|
| Physical Properties | Value | |
| Strength | Tensile Strength |
|
| Yield Strength |
|
|
| Toughness | Impact Toughness |
|
| Common Welding Technique | SMAW |
|
| SAW |
|
|
Applications of ASTM A516 Grade 70 Plates
- Pressure Vessels
- Boilers
- Piping Systems
- Storage Tanks
- Structural Components
- Marine Applications
- Chemical Processing
- Power Generation Industries
Boiler Quality Plates and Sheet Supplier in Jubail
ASTM A516/A516M is the American Standard which ensure that the material can be used in Boilers. A516 Grade 70 Steel Plate is one of the suitable material can sustain in boiler, thermal and critical applications.
Why A516 Grade 70 plates are known as BQ plates?
Golden Steel ASTM A516 Grade 70 Plate is used in following projects in Saudi Arabia
| Projects | Location |
|---|---|
| Offshore Protection Constructions & Services (OPCS) | Al Juaima’h, Saudi Arabia |
| Zamil Offshore Services Company | Al Khobar, Saudi Arabia |
| OFFSHORE OIL ENGINEERING ARABIA LTD. (COOEC) | Dammam, Saudi Arabia |
| Offshore Fabrication Company in Saudi Arabia | Ras Al Khair, Saudi Arabia |
| Manifa – Saudi Aramco plant | Al Khalidiyyah, Saudi Arabia |
Distributor of Saudi Aramco Approved Plates A516 Grade 70 Equivalent to P355GH and 490B
Saudi Aramco is one of the largest oil company in Saudi Arabia. There are a few ASTM A516 Grade 70 Plate manufacturers who meet the quality standard as per Saudi Aramco. Local or International ASTM A516 Grade 70 Plate suppliers in Saudi Arabia can pass if they meet Aramco’s inspection and testing procedures. Golden Steel can supply Saudi Aramco Approved SA516 GR 70 Plates at lowest price.
Equivalent Material of ASTM A516 Grade 70 Plates
| Standards | Value |
|---|---|
| British Standard | BS1501-224-490A/B |
| European Norm | EN10028 P355GH |
| ASTM | A516 |
| ASME | SA 516 |
