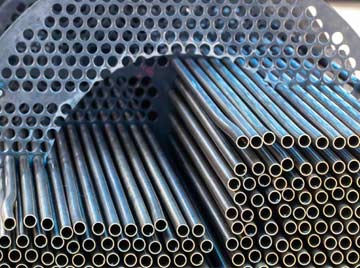

Heat Exchanger Tube Manufacturer in India

Mumbai, India

Amardeep Steel Centre

Amardeep Steel Centre
Amardeep Steel Centre
Year of establishment 1984
Total export experience (in Years) 35
Nature of Business Supplier
Third Party Inspection Yes
Custom Sizes Yes
Custom Packaging Yes
MTC Report Yes
Major clients in the Middle East Al Mulla Industries Co. W.L.L. - Kuwait, Asyad Drydock (Muscat, Oman), Ellora Group WLL (Doha, Qatar), Gasco, SABIC, Saudi Aramco
Chat for Live PriceGet A quote Now!

Heat exchanger tubes and boiler tubing are used in power generation plants, boilers and chemical processing industries. Amardeep Steel produces straight and U Tubes as per ASTM, IBR, DIN, ASME, and TEMA standards. SA 179 & SA 192 Heat Exchanger Tube are manufactured as welded types which are suitable for low, medium and high pressure applications. The 2 most common grades of seamless tubes used in Heat Exchanger are SA 213 T11 and T22. For Thermal Expansion Amardeep Steel produces U Tubes in various dimensions and grades.

Amardeep Steel Centre is based in Mumbai, India. They are specializing in manufacturing heat exchanger tubes via hot rolled and cold drawn methods. The company produces SA213 type-T22 Alloy Steel Boiler Tubes for high temperature steam oxidation. They manufacture SA213 T22 Steel Tube (Heavy wall), SA178A material, SA213 TP310H, and SB423 Incoloy 825 Heat exchanger tube. SA213-T22 reheater rear tube also called Chrome Moly Heater Tube. The company can supply SA178A ERW low carbon steel boiler tubes in 6 to 850mm OD. The 5 most popular grades come in Carbon steel boiler tubes which includes SA-178, SA-210, SA-192, SA-515, and SA-285. High quality SA213 TP310H Solution Anneal Condenser Tube makes Amardeep Steel No. 1 manufacturer in India. The company has had a ZERO rejection rate in the last 40 years.

Heat Exchanger Tube Manufacturer in India

Heat Exchanger Tube Material Specifications

Standard
  • ASTM A178
  • ASME SA 178
  • ASME SA 213
  • ASME SA 209
  • ASME SA 213
  • ASME SB 423
  • ASTM E1955/M
  • ASTM E1032
OD
  • 12.7 to 127mm
Wall Thickness
  • 1.5 to 6.0mm
Length
  • 6 – 25m
Ends
  • Plain Ends
  • Bevel Ends
Technique
  • Cold drawn
  • Hot rolled
  • Cold rolled
Manufacturing Process of Heat Exchanger Tube
  • Cold Drawing process
  • Drawn On Mandrel
Advantages
  • Close tolerances
Delivery Condition
  • Annealed
  • Pickled (AP)
  • Polished
  • Bright Annealed (BA)
  • Cold Drawn
  • MF
Ex-Stock Grades and material availability at Manufacturer
  • TP304 / 304L
  • TP347
  • TP347 H
  • TP316, TP316L
  • TP321
  • TP321H
  • TP 309S
  • TP310S
  • Duplex 2205 / S31803
  • Alloy Steel
  • Carbon Steel
  • Nickel Alloy
  • Inconel
  • Monel
  • Hastelloy

Manufacturer Processing Service
  • Bending
  • Decoiling
  • Welding
Heat Exchanger Tube Types manufactured by Amardeep Steel
  • U Tube
  • Finned Tube
  • Condenser Tube
  • Evaporator Tube
  • Superheater Tube
  • Boiler Tube
  • Reheater Tube
Cold Drawn Seamless Tube Applications and Uses
  • Condenser
  • Heat exchanger
  • Cooling, Heating
  • Air-conditioning industry
  • Boiler
Marking
  • Nominal size
  • Specification
  • Schedule or wall thickness
  • Material grade
  • Method of manufacturing
  • Manufacturer name/ logo
5 reasons which makes Amardeep as No. 1 Heat Exchanger Tube manufacturer in India
  • Amardeep Steel have skilled team to produce Boiler and Heat Exchanger Tubes
  • Special attention for Emergency shutdown
  • Custom fabrication choices
  • Manufacturing Heat Exchanger Tubes in a wide range of material
  • 100% Tested material

Who they are?

Heat Exchanger Tube Manufacturer in India

Heat Exchanger Tube Manufacturer in India

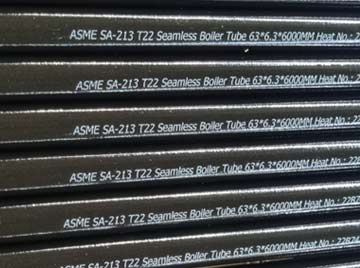

SA213 T22 Boiler Tube Supplier in Mumbai

SA213 T22 Boiler Tube Supplier in Mumbai

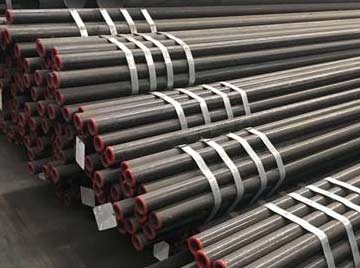

SA178A Condenser Tube Manufacturer in India

SA178A Condenser Tube Manufacturer in India

Stainless steel u tubes

Stainless steel u tubes exporter in India

Carbon steel seamless heat exchanger tube

Manufacturer of Carbon steel seamless heat exchanger tube

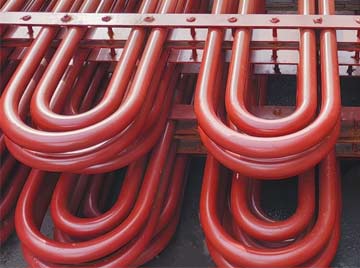

SA213 T11 Boiler Tube

SA213 T11 Boiler Tube Manufacturer in Mumbai

Stockist of SA178A Boiler Tube and SA209 T1A Heat Exchanger Tube for High Temperature Steam Oxidation

Working Pressure of SS Heat Exchanger Tube

Heat Dissipated (kW) Dim. A (mm) Dim. B (mm) Dim. C (mm) Water Flow (l/min) Oil Flow (l/min) Weight (kg)
9 460 266 89 120 120 11
15 734 540 89 85 110 15
22 1114 920 89 75 90 20
133 1652 1398 141 220 180 62
66 784 490 168 460 480 44
100 1164 870 168 360 390 60
358 1224 810 273 1000 920 148
22 764 520 114 140 180 21
35 1144 900 114 140 170 27
144 1672 1378 168 310 330 78
196 2180 1886 168 280 300 104
140 834 470 219 740 580 79
224 1214 850 219 650 550 101
354 1722 1358 219 520 500 133
536 2230 1866 219 480 460 164
223 844 430 273 1100 960 114
48 1652 1408 114 120 150 38
52 764 510 141 320 240 30
82 1134 890 141 250 210 45
624 1732 1318 273 900 740 198
871 2240 1826 273 790 750 244

Heat Exchanger Tube Dimensions

Size Range Tolerance
O.D. Wall
+ – + –
Under 1.000 .004" .004" 20% 0%
1.000 to 1.500 .006" .005" 20% 0%
4.001 to 5.000 .015" .025" 22% D
Under 1.000 .004" .004" 20% D
2.500 to 2.999 .012" .012" 22% 0%
3.000 to 4.000 .015" .015" 22% 0%
2.000 to 2.499 .010" .010" 22% 0%
1.501" – 1.999* .008" .008" 10% 10%
4.001 – 5.000 .015" .015" 10% 10%
1.501 to 1.999 .008" .008" 22% 0%
3.000" – 4.000" .015* .015* 10% 10%
2.000 – 2.499* .010" .010" 10% 10%
2.500 – 2.999 .012" .012" 10% 10%
1.000" . 1.500 .006" .006" 10% 10%
Under 1.000 .004" .004" 10% 10%

Shell and Tube Heat Exchanger HSN Code

Property Value
HSN Code 84195010

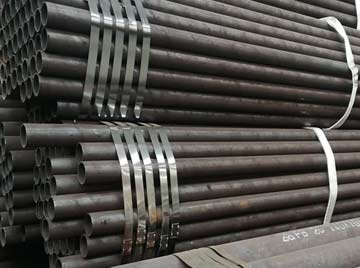

SA209 T1A Heat Exchanger Tube Size and Price List

Size Range Price in USD $
Length (In) Width ( In)
18.812 6.75 US $4,215
29.125 7.75 US $7,152
17.125 4.5 US $2,465
10.375 4.5 US $2,068
27.125 4.5 US $2,875
41.125 7.75 US $8,355

Compare Heat Exchanger Tube Price with other suppliers and manufacturers, you will find Amardeep Steel pricing are most competitive in India. Their experience, highly skilled team and latest manufacturing technique help them to supply high quality SA213 T22, T11, T1, T9 and T5 Boiler Tubes in Asian countries.

Heat Exchanger Tube Leak Tester

  • G-160 Tube Testing Tool
  • G-650 Joint Testing Tool
  • G-250 Vacuum Tube Testing Tool

List of Heat Exchanger Tube Material Grade

Material Grades ASTM
Stainless Steel Boiler Tube
  • 304/304L,304H, 304LN
  • 316/316L, 316H, 316Ti, 316LN
  • 317/317L
  • 321
  • 310S, 310H
  • 347, 347H, 347HFG
 ASTM A213 TP321/321H
Alloy Steel U Tube
  • SA213-T22 Steel Tubes
  • T11
  • T9
  • T23
  • T5
  • T91
  • T2
  • T12
 ASTM A213
Nickel Alloy Condenser Tube
  • Alloy 200
  • Alloy 201
 ASTM B163

Types of Carbon Steel Heat Exchanger Tube

Amardeep Steel is one of the largest manufacturer of Heat Exchanger Tubes in India. Check the list of American Standard and grades for all Carbon Steel Boiler Tubes and compare their advantages and capabilities.

Heat Exchanger Tube Types

International Standard Specification Benifits and Advantages
ASTM A179/ SA 179 Heat Exchanger Tube
  • High heat transfer efficiency
  • Good corrosion resistance
  • Moderate strength compared to SA 210 Tube
  • Suitable for Low to medium-pressure applications
ASTM A210/ SA 210 Boiler Tube (Grade A1, C)
  • High strength at elevated temperatures
  • Good weldability
  • Suitable for High-pressure applications
ASTM A192/ SA 192 Heat Exchanger Tube
  • High-pressure applications
  • Excellent thermal conductivity
ASTM A 334/ SA 334 Boiler Tube (Grade 1, 6)
  • Low-temperature toughness
  • Good machinability
ASTM A 209/ SA 209 Boiler Tube (Grade T1, T1a)
  • High creep resistance
  • Excellent oxidation resistance
ASTM A 213/ SA 213 Heat Exchanger Tube (Grade T5, T11, T12, T22)
  • High-temperature strength
  • Excellent corrosion and oxidation resistance
ASTM A 556/ SA 556 Heat Exchanger Tube (Grade-A2-B2-C2)
  • Excellent formability
  • Good weldability
ASTM A 199/ SA 199 Heat Exchanger Tube (T5)
  • High-temperature strength
  • Good corrosion and oxidation resistance
BS 3059
  • Part I (Grade 320)
  • Part II (Grade 360, 440)
  • CFS 360
  • BS-980 (CDS-1)
  • BS 3602 PT-1
  • BS 3059 Heat Exchanger Tubes are suitable for a wide range of engineering applications
DIN 17175
  • ST35.8
  • ST45.8
  • 15 MO3
  • 10CrMo44
  • 13CrMo910
  • DIN 17175 Boiler Tubes are suitable for high-pressure and high-temperature applications
  • Superior strength and creep resistance

Manufacturer of SA178A ERW Low Carbon Steel Boiler Tubes in 6 to 850mm OD

Heat Exchanger Tube Weight Chart

OD inches Gage Weight Ft.
1-1/4 13 1.328
1-1/4 12 1.448
1-1/2 13 1.619
1-1/2 12 1.769
5/8 16 0.435
3/4 16 0.534
2-1/2 12 3.050
2-1/2 11 3.600
2-1/2 10 3.859
2-1/2 7 5.047
3-1/4 10 5.092
3-1/4 7 6.697
3-1/2 11 5.127
1 16 0.686
2 13 2.201
2 12 2.409
3 12 3.691
3 11 4.189
3 10 4.652
4 10 6.326

Heat Exchanger Tube Rupture

Heat Exchanger Tube Rupture

Heat Exchanger Tube Minimum Wall Thickness

OD Minimum Wall Thickness
BWG (inch) 5 (.220) 6 (.203) 7 (.180) 8 (.165) 9 (.148) 10 (.134) 11 (.120) 12 (.109) 13 (.095) 14 (.083) 16 (.065) 18 (.049) 20 (.035)
[mm] [inch] [mm] 5,59 5,16 4,57 4,19 3,76 3,40 3,05 2,77 2,41 2,11 1,65 1,24 0,89
1/2 lb/ft – – – – 0,586 0,555 0,519 0,487 0,441 0,399 0,327 0,256 0,190
12,70 .500 kg/m – – – – 0,873 0,826 0,773 0,725 0,657 0,594 0,487 0,381 0,283
5/8 lb/ft – – – – 0,804 0,752 0,696 0,647 0,581 0,521 0,423 0,328 0,242
15,88 .625 kg/m – – – – 1,198 1,120 1,036 0,964 0,865 0,776 0,630 0,488 0,360
3/4 lb/ft – – – – 1,021 0,948 0,872 0,807 0,720 0,643 0,518 0,400 –
19,05 .750 kg/m – – – – 1,521 1,412 1,299 1,202 1,072 0,957 0,771 0,595 –
7/8 lb/ft – – – – – 1,158 1,056 0,973 0,864 0,767 0,614 0,472 –
22,23 .875 kg/m – – – – – 1,722 1,571 1,448 1,285 1,141 0,913 0,702 –
1 lb/ft – – 1,696 1,587 1,456 1,342 1,225 1,128 0,998 0,887 0,709 0,543 –
25,40 1.000 kg/m – – 2,526 2,363 2,169 1,998 1,824 1,680 1,487 1,321 1,056 0,808 –
1 1/4 lb/ft 2,607 2,451 2,225 2,071 1,891 1,734 1,577 1,448 1,277 1,131 0,900 0,686 –
31,75 1.250 kg/m 3,882 3,650 3,313 3,085 2,816 2,583 2,349 2,157 1,902 1,684 1,340 1,022 –
1 1/2 lb/ft 3,253 3,047 2,753 2,556 2,326 2,128 1,930 1,769 1,556 1,375 1,090 0,830 –
38,10 1.500 kg/m 4,845 4,538 4,100 3,807 3,464 3,169 2,875 2,634 2,317 2,048 1,624 1,236 –
2 lb/ft 4,547 4,241 3,810 3,525 3,196 2,914 2,636 2,409 2,114 1,863 1,472 – –
50,80 2.000 kg/m 6,771 6,316 5,674 5,250 4,759 4,340 3,925 3,588 3,148 2,775 2,192 – –
2 1/2 lb/ft 5,839 5,435 4,867 4,494 4,066 3,701 3,341 3,050 2,671 2,351 1,854 – –
63,50 2.500 kg/m 8,696 8,094 7,249 6,693 6,055 5,512 4,976 4,542 3,978 3,502 2,761 – –
3 lb/ft 7,132 6,628 5,924 5,464 4,935 4,487 4,047 3,691 3,228 2,840 – – –
76,20 3.000 kg/m 10,622 9,871 8,823 8,137 7,350 6,683 6,027 5,497 4,808 4,229 – – –

Heat Exchanger Tube Inspection Methods at Amardeep Steel Centre (India)

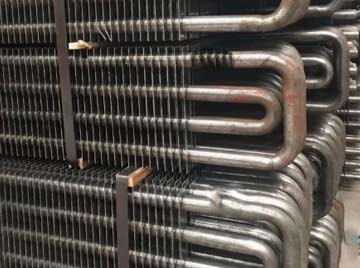

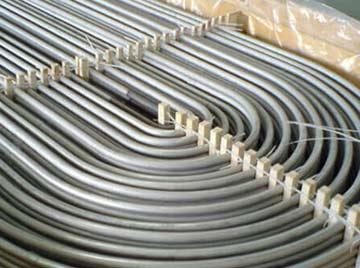

Stockist of SA213 T11 Reheater Tube and SA192 U Tube with Radiography Test as per ASTM E1955/m, ASTM E1032
  • Eddy Current Testing (ECT)
  • Dye Penetrant Test
  • Magnetic Particle Test
  • Hardness Testing
  • Leak Testing
  • Ultrasonic Test
  • Visual Testing
  • Heat Exchanger Tube Leakage Test
  • Product Testing

Boiler Tube Test Method

Heat Exchanger Tube Gauge Chart

Outside Diameter Gauge ( BWG )
20 18 16 15 14 13 12 11 10
in mm Weight kg/m
1/4 0.250 6,350 0.12 0.16 0.19 – – – – – –
5/8 0.625 15,875 0.33 0.45 0.58 0.64 0.71 0.80 0.89 0.97 –
3/4 0.750 19.050 0.40 0.55 0.72 0.77 0.88 0.98 1.12 1.20 1.31
2 1/4 2.250 57.150 – 1.73 2.26 2.48 2.87 3.26 3.70 4.06 4.51
2 3/8 2.375 60.325 – 1.81 2.38 2.63 3.02 3.44 3.93 4.30 4.78
1 3/4 1.750 44.450 0.97 1.32 1.74 1.92 2.20 2.50 2.84 3.10 3.44
2 2.000 50.800 – 1.52 1.99 2.20 2.53 2.89 3.27 3.59 3.97
3 3.000 76.200 – 2.31 3.04 3.35 3.85 4.39 5.00 5.49 6.10
5/16 0.313 7.950 0.15 0.21 0.25 0.28 – – – – –
1 1/2 1.500 38.100 0.82 1.13 1.49 1.64 1.87 2.17 2.40 2.63 2.92
1 1.000 25.400 0.54 0.74 0.97 1.06 1.21 1.37 1.55 1.68 1.92
1 1/8 1.125 28.575 0.61 0.83 1.10 1.21 1.37 1.56 1.76 1.92 2.11
3 1/2 3.500 88.900 – 2.69 3.56 3.93 4.51 5.15 5.86 6.44 7.17
2 1/2 2.500 63.500 – 1.91 2.52 2.78 3.18 3.66 4.14 4.54 5.04
1 1/4 1.250 31.750 0.68 0.94 1.23 1.35 1.53 1.76 1.96 2.16 2.40

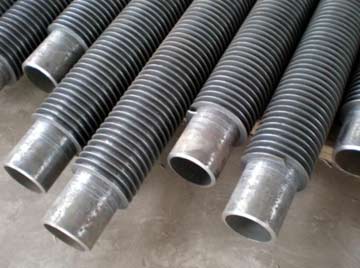

Advantages and Disadvantages of Finned Tube Heat Exchanger

Advantages

  • Fins expand the tube’s outside surface area.
  • Good air heat exchanger efficiency is provided by a fin tube heat exchanger.
  • Heat can pass through the wall of the tube.

Disadvantages

  • Upkeep and cleaning of the tubes’ exterior surfaces.
  • The fins make mechanical cleaning extremely challenging.
  • Is Limited to Chemical Cleaning Only.

ASTM A213 Superheater Tubes and Boiler Tubing

Grade UNS # Trade Name
T11 K11597 1 1/4 Chrome
T22 K21590 2 1/4 Chrome
T5 K41545 5 Chrome
T9 K90941 9 Chrome
T91 K90901 T91
T92 K92460 T92

Equivalent Material of Stainless Steel Heat Exchanger Tube

Stainless Steel Type ASTM Equivalent Standard
Grads (TP) UNS EN / Din JIS Afnor (NF)
Austenitic 304 S30400 1.4301 SUS 304 Z 6 CN 18.09
304L S30403 1.4306 SUS 304L Z 2 CN 18.10
347 S34700 1.455 SUS 347 Z 6 CNNb 18.10
304H S30409 1.4948 SUS 304H Z 6 CN 19.10
316 S31600 1.4401 SUS 316 Z 6 CND 17.11
316L S31603 1.4404 SUS 316L Z 2 CND 17.12
316Ti S31635 1.4571 – Z 2 CND 17.12
321 S32100 1.4541 SUS 321 Z 6 CNT 18.10
316H S31609 1.4919 SUS 316H Z 10 CND 18.10
321H S32109 1.4941 SUS 321H Z 10 CND 18.10
Ferritic 405 S40500 1.4002 SUS 405 Z 6 CAL 13
410 S41000 1.4002 SUS 410 Z 12 C 13
430 S43000 1.4016 SUS 430 Z 10 C 17

Manufacturer, Supplier & Stockist of

Heat Exchanger Tube

Heat Exchanger Tube

SA213 T22 Boiler Tube

SA213 T22 Boiler Tube

SA209 T1A Heat Exchanger Tube

SA209 T1A Heat Exchanger Tube

SA213 T11 Reheater Tube

SA213 T11 Reheater Tube

SA192 U Tube

SA192 U Tube

SA213 T22 Condenser Tube

SA213 T22 Condenser Tube

SA178A Boiler Tube

SA178A Boiler Tube

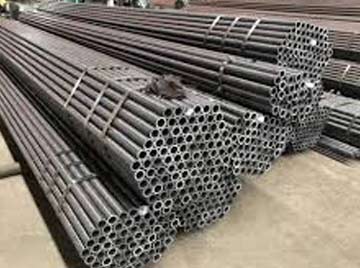

Alloy Steel Evaporator Tube

Alloy Steel Evaporator Tube

Stainless Steel Condenser Tube

Stainless Steel Condenser Tube

Carbon Steel Finned Tube

Carbon Steel Finned Tube

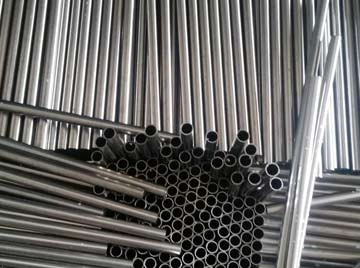

SA213 TP304 SS Superheater Tube

SA213 TP304 SS Superheater Tube

SA213-T22 Superheater Tube Stock

Manufacturer of SA213 T22 Condenser Tube and SA213 TP304 SS Superheater Tube with MTC EN 10204.3
Size Length
2" x 0.203" SA213-T22 40′ – 6"
2" x 0.180" SA213-T22 40′ – 6"
2" x 0.150" SA213-T22 40′ – 6"
2.5" x 0.180" SA213-T22 40′ – 6"
2" x 0.135" SA213-T22 40′ – 6"
2" x 0.165" SA213-T22 40′ – 6"

ASTM A213 T22 Finned Tube Chemical Composition

Cr, % C, % Mo, % S, % Mn, % P, % Si, %
1.90-2.60 0.05-0.15 0.87-1.13 0.025 max 0.30-0.60 0.025 max 0.50 max

ASTM A213 T22 Reheater Tube Mechanical Properties

Yield Strength, MPa Tensile Strength , MPa Hardness, HB Elongation, %
205 min 415 min 163 max 30 min

Shipping estimate of Amardeep Steel

Export to Variations in Costs Delivery Time
Qatar 5 % extra 7 days
Cambodia 5 % extra 9 days
Malaysia 5 % extra 7 days
Indonesia 5 % extra 7 days
Vietnam 5 % extra 14 days
South Africa 5 % extra 15-20 days
USA 5 % extra 30-40 days

Amardeep Steel recently supplied SA179 Tube to Baghdad, Iraq from Ex-stock. They have strong supply network globally including Qatar, UAE, Iraq, Poland, Kuwait, Ireland, Singapore, Philippines, UK, and USA.

Accreditations and Certifications

ISO 9001:2015

ISO 9001:2015

Star Export House Certificate

Star Export House Certificate

Export Excellence Award (2017-18)

Export Excellence Award (2017-18)

Company Profile

Nature of Business Manufacturer, Supplier & Stockist
Import Export Code (IEC) 0304049697
Legal Status of firm Proprietorship
GST No. 27APBPS1510H1Z6

Contact Info

Contact Person Mr Deepak Sheth
Phone +91 8591210578
Email rfq@amardeepsteelllp.com
Address Amardeep Steel Centre
Sanghrajka House, 2nd Floor, Opera House, Near Indusind Bank, Lamington
Road, Mumbai: 400004, India

rfq@amardeepsteelllp.com

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
