Noble Ferromet Pvt. Ltd.
Mumbai, India
Noble Ferromet
|
|
|
|||||||||
|
|
|
|||||||||
|
|
Noble Ferromet Pvt. Ltd. was established in 2011 as a manufacturer of Stainless Steel Valves in India. This company is engaged in exporting SS Pressure Reducing Valve in USA, Canada, Saudi Arabia, Australia, Netherlands, Germany, Japan and South Korea. Noble Ferromet produce SS Gate Valve Valves as per International standards such as ASTM, DIN, JIS, ASME, ANSI. They can produce all types of SS Valves including Gate, Globe, Butterfly, Check, Diaphragm, Plug and Control Valves. The company is specialized in manufacturing NSF/ANSI 61 Certified Stainless Steel Valves in India.
Stainless Steel Valve specification
Sizes: 1/2″ to 56″ (6NB-1400NB)
Standard: ASME, ANSI, AS, DIN, BS and NSF/ANSI 61
Pressure Rating: 150#-2500#
End Connection: Flanges, Screwed, Buttweld
Quote within 24Hrs with Technical Data Sheet
Buy 100% Tested SS Valves with MTC EN 10204/3.1
Who they are?

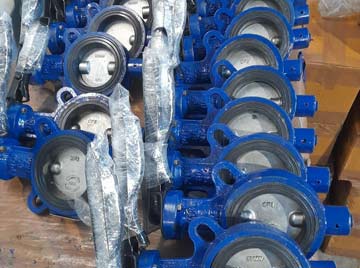

Stainless Steel Valve Manufacturer in India

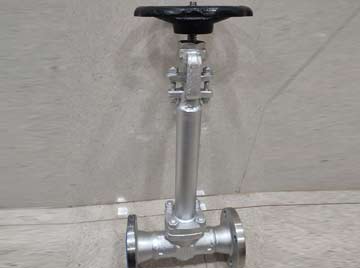

Cast Stainless Steel Valve Supplier in Mumbai
NSF/ANSI 61 Certified SS Valves Manufacturers in Mumbai
| Type of Valve | Maximum size | Maximum Pressure |
|---|---|---|
| SS Gate valve | 64" | 2500LB |
| SS Globe valve | 24" | 2500LB |
| SS Check valve | 40" | 2500LB |
| SS Ball valve | 48" | 2500LB |
| SS Buttefly valve | 96" | 600LB |
CF3/CF8/CF3m Industrial Valve Specification
| Types of SS Valves | Ball valve, Gate, Globe, Check |
|---|---|
| Connection Type | Flanges |
| Driving Type | Manual and actuator |
| Pressure Class |
|
| SS Ball Valve Structure | Floating Ball Valve |
| Valve Function | On-off |
| Suitable medium |
|
| Application |
|
| NACE |
|
| Delivery time |
|
| End Connection |
|
| Valve Port type |
|
| Minimum Order Quantity | The listed manufacturer accepts smallest orders quantity such as 1 piece |
| Packages | Standard Plywood box for export in UAE and Middle East countries |
| Origin | India, Europe, UK, USA |
| HS Code | 8481804090 |
| Replacement Guarantee by the manufacturer | Free replacement if any issue with the quality or specification |
| How to order? | Send an email directly to the Stainless Steel Valve Manufacturer in India for a quick quote, quantity no matter |
Stainless Steel Valve Body material
| No | Part Name of a SS Valve | Carbon Steel to ASTM Standard | Stainless Steel Valves to ASTM (USA Specification) | Alloy Steel Valves to American Standard | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Valve Body | A216 Gr WCB | A352 Gr LCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | A217 WC6 | A217 WC9 | A217 C5 |
| 2 | Bonnet | A216 Gr WCB | A352 Gr LCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | A217 WC6 | A217 WC9 | A217 C5 |
| 3 | Wedges | A216 Gr WCB | A352 Gr LCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | A217 WC6 | A217 WC9 | A217C5 |
| 4 | Seating Rings | A105N (Normalized) | A350 Gr LF2 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | A182 F11 | A182 F22 | A182F5 |
| 5 | Stem | A182 F6a | A182 Gr F304 | A182 F304 | A182 F316 | A182 F304L | A182 F316L | A182 F304 | ||
| 6 | Gaskets |
304/ 316 Stainless Steel + Graphite, PTFE
|
||||||||
| 7 | Stem Packing |
Flexible Graphite material
|
||||||||
| 8 | Lantern Rings | A1821 F6a | A182 Gr F304 | A182 F304 | A182F316 | A182 F304L | A182 F316L | A182 F304 | ||
| 9 | Backseat | A182F6a | A182 Gr F304 | A182 F304 | A182F316 | A182 F304L | A182 F316L | A182 F304 | ||
| 10 | Nuts | A1942H | A194 Grade 7 |
A194 Grade 8
|
A194 gr 4 | |||||
| Bolt | ASTM A193 B7 | A320 L7 |
A193 B8
|
A193 B16 | ||||||
| 12 | Gland | F6a | A182 F304 | A182 F304 | A182F316 | A182 F304L | A182 F316L | A182 F304 | ||
| 13 | Gland Flanges | A216WCB | A352 LCB | A351 CF8 | A351 CF8 | A351 CF8 | A351 CF8 | A217 WC6 | A217 WC9 | A217 C5 |
| 14 | Gland Eye bolts | A193 B7 | A194 Gr 7 |
ASTM A193 B8
|
A193 B16 | |||||
| 15 | Gland Nuts | A1942H | A320 L7 |
ASTM A194 8
|
A194 Gr 4 | |||||
| 16 | Pins | AISI 1045 | AISI 1045 |
ASTM A182 F304
|
AISI/ SAE 1045 | |||||
| 17 | Stem Nuts |
A439 D2/ Copper
|
||||||||
| 18 | Retaining Nuts |
SAE/ AISI 1020
|
||||||||
| 19 | Nipple Fitting |
Copper (Cu)
|
||||||||
| 20 | H.W. Lock Nuts |
SAE/ AISI 1020
|
||||||||
| 21 | Handwheels |
ASTM A197
|
||||||||
SS Valve Manufacturing Standard
- Design Standard: ANSI/ ASME B16.34 API600
- Face to face: ANSI/ ASME B16.10
- Cap ends: ANSI/ ASME B16.5
- Test: API598
Manufacturer of Stainless Steel Check Valve for high pressure fluid operations in India
Cast Stainless Steel Valve Grades
- CF8
- CF8M
- CF3
- CF3M
- 4A
Manufacturer of Stainless Steel Pressure Reducing Valves for Chemical Plants
Types of tests conducted before dispatch:
- Material analysis
- In-production control
- NDE
- Tightness tests
- Final inspection before dispatch
Supplier of Cast Stainless Steel Valve for non-corrosive applications
Noble Ferromet Pvt. Ltd. is one the the SS Valve manufacturer in India who also have specialization in Anti-Static Design and API 607 Fire Safe valves. All their manufactured valves are Compliant to NACE MR0175 and API 6D.
Exporter of Stainless Steel Butterfly Valve as per ASME B16.10, API 600 and API 6D
Advantages to buy SS Valves from Indian manufacturers
- Low cost in manufacturing high quality valves in India so overall lowest price compared to UK, Europe and USA
- Free Samples, just buyer need bear the air fee
- Free replacement
- Get fast delivery in UAE, Saudi Arabia, Qatar, Bahrain and all Asian and Middle East countries
- MTC and Third Party Inspection
- USA, Europe origin available
- 100% zero leakage
- OEM production with brand name/ logo as required
- 100% tested valves
Certificates
GST Certificate
Udyam Registration (India)
Certificate of Importer-Exporter (Govt of India)
Company Profile
| Nature of Business | Manufacturer and Supplier |
|---|---|
| Import Export Code (IEC) | 0311052126 |
| Legal Status of firm | Pvt Ltd |
| GST No. | 27AADCN1976E1ZF |
