Stainless Steel Capillary Tube Manufacturer in India

Victor Steel

Year of establishment

2009

Total export experience (in Years)

Nature of Business

Manufacturer

Third Party Inspection

Yes

Custom Sizes

Yes

Custom Packaging

Yes

MTC Report

Yes

Major clients in the Middle East

Asas Al-Modon- Riyadh, Saudi Arabia, Ellora Group WLL (Doha, Qatar)

Capillary Tube also known as ultra-thin tube or medical tubing. These Stainless Steel Capillary Tube and Hypodermic Tubing are produced between 0.1 – 8 mm which can sustain in high temperature and corrosive environments. Precision Stainless Steel Tubing are used in various applications such as Medical and Pharmaceutical, Aerospace, Chemical Processing, and Instrumentation.

Stainless Steel Hypodermic Tubing comes in all gauges including Thin Wall (TW) and Regular Wall (RW). Welded and drawn Stainless Steel Hypodermic Tubing are known for tight OD and ID tolerances as per ASTM A908 standard. Capillary Tubing standard sizes are 3 to 33 gauge. These SS Capillary Tube can be manufactured in various grades such as T201, T304, T304L, T316, T316L, T410, T465, and 17-7. Among them 316 and 304 Stainless Steel Capillary Tube are the most selling grades.

Manufacturers of Capillary Tube prefer cold drawing methods to ensure high dimensional accuracy and smooth surface. SS 304 Capillary Tubing can be bent without cracking for Medical Devices. Victor Steel is a leading Stainless Steel Capillary Tube Manufacturer in India, specializes in producing high-quality 304 and 316 micro tube suitable for chemical injection and HPLC systems.

Stainless Steel Capillary Tube Manufacturer In India

Stainless Steel Capillary Tube Specification

Outside Diameter: 0.3-12.0 mm

Wall Thickness: 0.08-0.2 mm

Delivery Condition: Bright Annealed, Polished, Pickled, Electrolytic Polished

Quote within 24Hrs with Technical Data Sheet

Material: SS 304, SS 304L, SS 316, SS 316L

100% Tested Stainless Steel Capillary Tube supply with MTC EN 10204/3.1

Who they are?

Stainless Steel Capillary Tube Manufacturer In India

304 Stainless Steel Capillary Tube supplier in Mumbai

Precision Stainless Steel Tubing Stockist in India

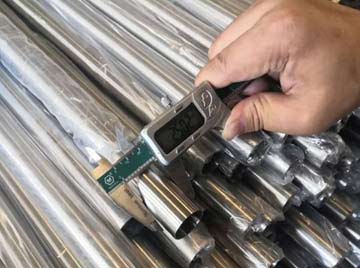

Exporter of Stainless Steel 316 Capillary Tube in India

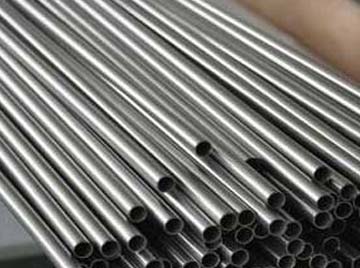

304 Stainless Steel Capillary Tube supplier in Mumbai

Victor Steel is specialized in manufacturing SS 304 Capillary Tube also known as precision tube. These tubing are produced in seamless and welded form through redrawn, die, and annealed process.

SS Capillary Tube Size Chart

Gauge	OD Tolerance	Extra Thin Wall	Thin Wall	Regular Wall	Ultra Thin Wall
Gauge	mm	XTW mm	TW mm	RW mm	UTW mm
20	0.901 – 0.914	–	0.108 – 0.134	0.108 – 0.165	–
19	1.054 – 1.079	0.070 – 0.108	0.102 – 0.140	0.166 – 0.216	–
23	0.635 – 0.647	–	0.089 – 0.114	0.140 – 0.165	0.051 – 0.102
22	0.711 – 0.723	0.077 – 0.102	0.096 – 0.121	0.140 – 0.165	0.051 – 0.102
29	o.330 – 0.342	–	–	0.064 – 0.089	–
24	0.558 – 0.571	–	0.089 – 0.114	0.114 – 0.140	0.051 – 0.102
21	0.812 – 0.825	–	0.102 – 0.127	0.140 – 0.165	0.051 – 0.102
28	0.355 – 0.368	–	–	0.076 – 0.102	–
27	0.406 – 0.419	–	0.064 – 0.089	0.089 – 0.115	–
18	1.257 – 1.282	0.083 – 0.121	0.127 – 0.165	0.191 – 0.241	0.051 – 0.102
17	1.460 – 1.485	0.083 – 0.127	0.115 – 0.152	0.177 – 0.229	0.057 – 0.102
30	0.304 – 0.317	–	–	0.064 – 0.089	–
16	1.638 – 1.663	0.096 – 0.133	0.127 – 0.165	0.204 – 0.254	0.070 – 0.121
15	1.816 – 1.841	0.096 – 0.134	0.127 – 0.165	0.204 – 0.254	0.070 – 0.121
14	2.082 – 2.133	0.114 – 0.165	0.165 – 0.229	0.216 – 0.292	0.076 – 0.134
26	0.457 – 0.469	–	–	0.089 – 0.114	–
25	0.508 – 0.520	–	0.089 – 0.114	0.115 – 0.140	–

Marking on a SS Capillary Tubing

Tolerance of High Precision SS Capillary Tube

Size OD		Nominal WT		Length Tolerance		OD Tolerance		WT Tolerance
in	mm	in	mm	in	mm	in	mm	%
½	12.7	0.065	1.65	+⅛, -0	+3.18, -0	+/-0.005	+/-0.13	+/-10.0%
1	25.4	0.065	1.65			+/-0.005	+/-0.13
4	101.6	0.083	2.11			+/-0.015	+/-0.38
2	50.8	0.065	1.65			+/-0.008	+/-0.20
1½	38.1					+/-0.008	+/-0.20
3	76.2					+/-0.010	+/-0.25
2½	63.5					+/-0.010	+/-0.25
¾	19.1					+/-0.005	+/-0.13
6	152.4	0.109	2.77	+1, -0	+25.4, -0	+/-0.030	+/-0.76

Mechanical Properties of Stainless Steel Capillary Tube

Material	Temperure	Tensile Strength	Yield Strength	Elongation
Material	Min. º F(º C)	Ksi (MPa), Min.	Ksi (MPa), Min.	%, Min
TP 304	1900 (1040)	75(515)	30(205)	35
TP 304L		70(485)	25(170)
TP 316		75(515)	30(205)
TP 316L		70(485)	25(170)

Applications of Precision Stainless Steel Tubing

Medical Devices
HPLC
UHPLC
Chemical injection
Aerospace
Instrumentation
Automotive Industry
Food and Beverage Industry
Pharmaceuticals
Oil and Gas
Hydraulic Systems
Research and Development

Difference Between Hypodermic, Metric, And Fractional Stainless Steel Capillary Tube

Victor Steel Corporation offer Stainless Steel Capillary Tube in a range of sizes. Understand the difference between sizes of Hypodermic, Metric, And Fractional tubing

	Hypodermic Tube	Metric Tube	Fractional Tube
Outside Diameter (OD)	0.18 – 0.84 mm 0.007″ to 0.033″	0.5 – 12 mm 0.020″ to 0.472″	1/16″ to 1/4″ 1.59 – 6.35 mm
Wall Thickness	0.06 – 0.15 mm 0.0025″ to 0.006″	0.5 – 1 mm 0.020″ to 0.039″	0.025″ to 0.050″ 0.64 – 1.27 mm
Tensile Strength	450 – 700 MPa 65,000 – 100,000 psi	520 – 620 MPa 75,000 – 90,000 psi	400 – 600 MPa 58,000 – 87,000 psi
Applications & Uses	Medical devices precision instruments	Chromatography Microfluidics	HVAC Water lines Industrial applications
Material	Only in Stainless steel	Produced only in Stainless steel grades like 304, 316	Stainless steel Carbon steel
Unit	Inches	Millimeters (mm for OD & ID)	Inches
Features	Manufactured in extremely tight tolerances Thin wall Smooth Inner Surface Light weight High Strength	Manufactured in various Wall Thicknesses Suitable for Industrial use Used in high and low-pressure applications	Produced in range of sizes up to 1" Manufacturer can produce in thicker walls as required

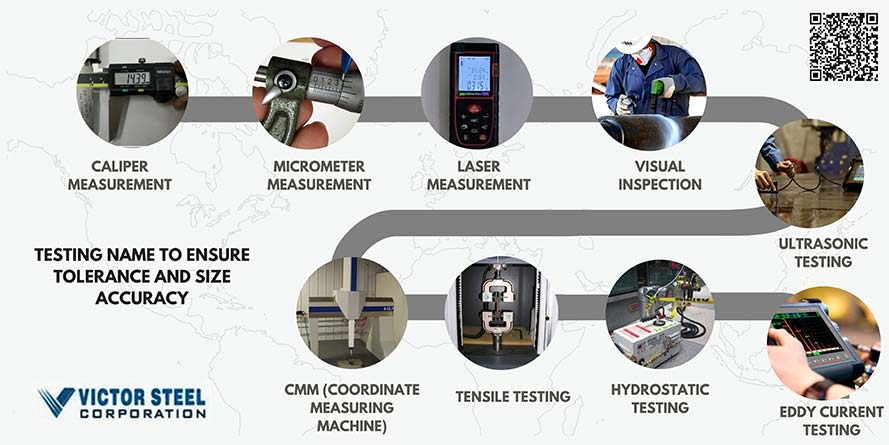

Testing name to ensure Tolerance and Size Accuracy

Limits and effects of Partial Pressures of H₂S and CO₂ on Stainless Steel Capillary Tubing

Parameter	H₂S Partial Pressure (bar)	CO₂ Partial Pressure (bar)	Effect on Tubing
Low	≤ 0.1	≤ 0.1	Minimal corrosion risk.
Moderate	0.1 – 0.5	0.1 – 0.5	Increased risk of stress corrosion cracking (SCC).
High	0.5 – 1.0	0.5 – 1.0	Significant risk of SCC and pitting.
Very High	≥ 1.0	≥ 1.0	Severe corrosion damage; risk of failure.

Stainless Steel Capillary Tubing Price in India

SS Capillary Tube manufacturer in India offer lowest price for all sizes and custom surface finish.

Gauge	Nominal		Outside Diameter		Inner Diameter		Alloy	Nominal	Length	Price in USD
Gauge	Wall	ID	Min	Max	Min	Max	Alloy	OD	Length	Price in USD
4RW	0.02	0.198	0.236	0.24	0.195	0.201	304	0.238	1 FT	US $ 17.25
4RW	0.02	0.198		0.24	0.195	0.201			5 FT	US $ 68.12
4TW	0.015	0.208		0.24	0.206	0.21			1 FT	US $ 15.25
4TW	0.015	0.208			0.206	0.21			5 FT	US $ 63.75
4X	0.01	0.218			0.216	0.22			1 FT	US $ 12.96
4X	0.01	0.218			0.216	0.22			5 FT	US $ 53.87
3RW	0.02	0.219	0.257	0.261	0.216	0.222		0.259	1 FT	US $ 15.65
3RW	0.02	0.219			0.216	0.222			5 FT	US $ 60.59
3TW	0.015	0.229			0.227	0.231			1 FT	US $ 17.55
3TW	0.015	0.229			0.227	0.231			5 FT	US $ 65.48
3X	0.01	0.239			0.237	0.241			1 FT	US $ 15.45
3X	0.01	0.239			0.237	0.241			5 FT	US $ 61.78
5RW	0.015	0.189	0.217	0.221	0.186	0.192		0.219	1 FT	US $ 16.65
5RW	0.015	0.189			0.186	0.192			5 FT	US $ 62.37
5X	0.007	0.205			0.203	0.207			1 FT	US $ 20.76
5X	0.007	0.205			0.203	0.207			5 FT	US $ 78.25

Things to consider while buying SS Capillary Tube

Things to consider while buying SS Capillary Tubes

Chemcial Composition of SS Capillary Tube

Grades	Ni	C	Mn	Mo	S	Si	P	Cr
SS 304	8.0-11.0	0.08	2	–	0.03	1	0.045	18.0-20.0
SS 304L	8.0-13.0	0.035		–				18.0-20.0
SS 316	11.0-14.0	0.08		2.0-3.0				16.0-18.0
SS 316L	10.0-14.0	0.035		2.0-3.0				16.0-18.0

ASTM Standard of Stainless Steel Capillary Tube

Standard	Common Manufacturing Grades
ASTM A269	SS 304, 316, 304L, and 316L
ASTM A213	AISI 304, 316, 321, 310, and 347
ASTM A632	AISI 304, 316, 321, 310, and 347
ASTM A908	SUS 304, 316, and 316L

Advantages of using Stainless Steel Capillary Tubing in HPLC

High Corrosion Resistance
Tight dimensional tolerances
Precision and Accuracy
Excellent mechanical strength
Electropolished or bright annealed surface
Suitable for High Pressure above 6000 psi
Suitable for solvents, acids and other Chemicals
Easy to clean
Cost-Effective

Welded and drawn Stainless Steel Hypo Tubes for medical and laboratory industry

Welded and drawn hypo tubes are used in medical and laboratory sector due to high tensile and superior resistance. These tubes are used in High-Performance Liquid Chromatography (HPLC) and surgical equipment. Victor is a leading Stainless Steel Hypo Tube supplier in India and offer fast delivery in Middle East countries.

Advantages of using a capillary tube in laboratory

Seamless and welded capillary tube comes in Bright annealed and electropolished finish in various sizes, grades, and wall thickness. Check the advantages of using SS Capillary Tube in laboratory.

Advantages of using a capillary tube

Types of Stainless Steel Capillary Tubing

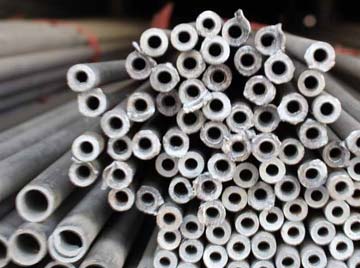

SS Precision Tubing

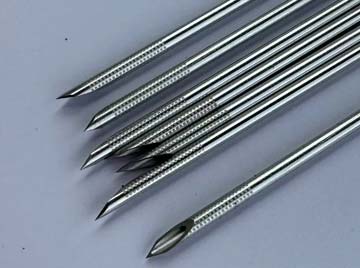

304 Stainless Steel Needle Tubing

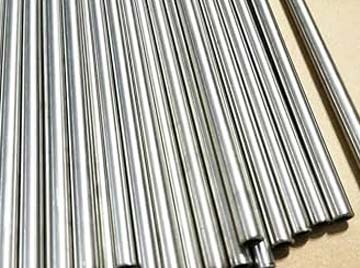

Precision Stainless Steel Micro Tubing

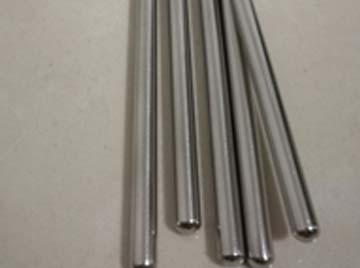

SS 304 Thermocouple Tubing

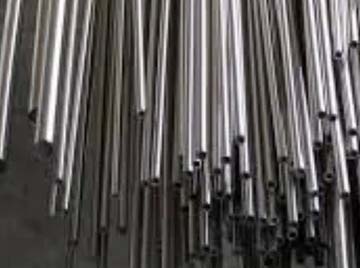

Stainless Steel 316 Microbore Tubing

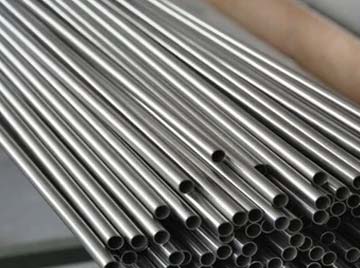

Stainless Steel Instrument Tubing

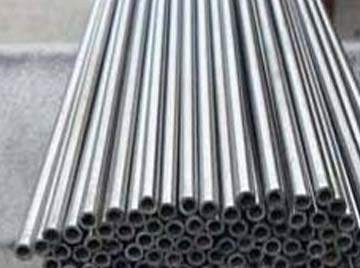

SS 316 Analytical Tubing

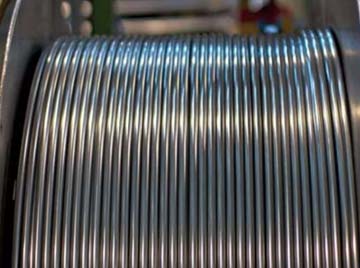

Stainless Steel Control Line Tubing

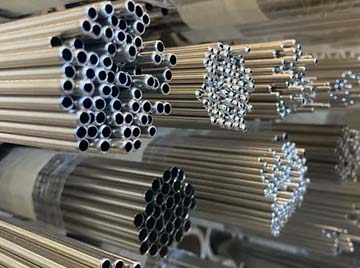

Stainless Steel Hypodermic Tubing

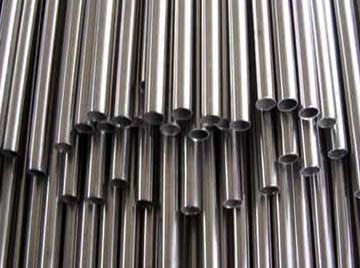

Ultra-thin Capillary Tube

Equivalent Material of SS Capillary Tube

Material	WNR	UNS NO
SS 304	1.4301	S30400
SS 304L	1.4306	S30403
SS 316	1.4436	S31600
SS 316L	1.4404	S31603

Strict Tolerances and High Precision SS Capillary Tubes supplier in India

Victor Steel is one of the larges manufacturer of SS Capillary Tube who can produce these material in grade 304, 304L, 316, 316L, 321, 310S, and AISI 904L. These tubes are produced in tighter tolerances for critical industries such as aerospace and instrumentation system.

304/ 316 Precision Stainless Steel Tubing in full-hard temper condition

Manufacturer of Precision Stainless Steel Tube in India offer full-hard temper condition without annealing. SUS 304 & AISI 316 Capillary Tubing comes in Bright annealed or custom finish as per the project requirement. SS 316 Capillary Tube are well suitable for marine & chemical processing industries. The company is exporting SS Capillary Tube in UAE, Saudi Arabia, USA, France, Oman, and Spain for HPLC, UHPLC Chromatography.

Temper Selection of a Stainless Steel Capillary Tube

Capillary Tube Temper Type	Tensile Strength	Description
3/4 Hard	≈ 140,000 to 160,000 Psi	Heat treated for strength and ductility.
Annealed	< 120,000 Psi	Soft and highly formable.
Full Hard	≈ 170,000 Psi	Maximum hardness after cold drawing.
Needle Hard	≈ 170,000 Psi	Cold worked condition for needle use.
1/2 Hard	≈ 120,000 to 140,000 Psi	Moderate strength and formability.

Manufacturer of Stainless Steel Hypodermic Tubing in Mumbai, tolerances as per ASTM A908 standard

Victor Steel is the only SS Capillary Tube manufacturers in Mumbai who produce the tubes that has custom shape at one end. They produce SS Hypodermic Tubing in 1/2" or 1/4" or similar metric sizes as required.
