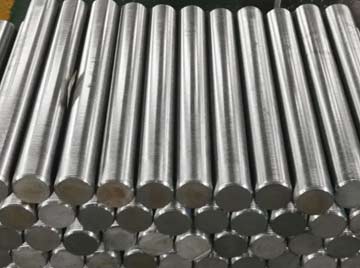

Threaded Rod Manufacturer in India

Stockist of

Threaded Rod Manufacturer in India

Threaded Rod Manufacturer in India

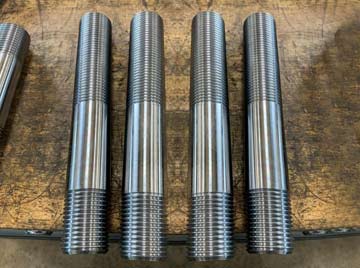

DIN 976-1A Studs exporter in Mumbai

DIN 976-1A Studs exporter in Mumbai

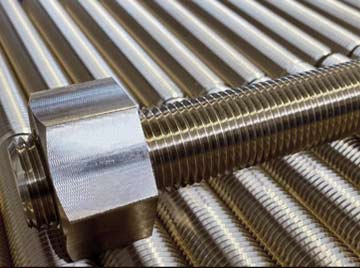

Manufacturer of Nickel Alloy Stud Bolts in India

Manufacturer of Nickel Alloy Stud Bolts in India

Threaded Rod manufactured from High Nickel Alloy (Hot Forged Method)

Manufacturer of DIN 976-1A Studs & Threaded Bars in Inconel, Monel and Hastelloy in Mumbai

These Hastelloy Threaded Rods can be used for Flanged and Piping connection under extreme temperature. Hastelloy Stud Bolts are majorly used in Chemical processing, Aerospace and High Temperature applications. Check the table given below for the suitable media with Nickel Alloy Stud Bolts and Tie Rods.

Nickel Alloy Grades Suitable Acids or Chemicals Pitting Temperature
Alloy C276, Hastelloy
  • Ferric and cupric chlorides
  • Acetic anhydride
  • Sea water
  • Brine solution
  • 150°C
Alloy C22, Hastelloy
  • Ferric and cupric
  • Chlorine
  • Formic acid
  • Acetic acid
  • Excellent resistance to pitting
Alloy B2, Hastelloy
  • Hydrochloric acid
  • Hydrogen chloride
  • Sulphuric acid
  • Acetic acid
  • Phosphoric acid
  • Excellent resistance to pitting
Alloy X, Hastelloy
  • Oxidation resistance
Alloy G3, Hastelloy
  • Mixed acids
  • Sulfate compound
  • Nitric acid
  • Hydrofluoric acid
  • 75°C
Alloy G-30, Hastelloy
  • Phosphoric acid
  • Nitric acid
  • 75°C

Metal Arena produce Nickel Alloy Stud Bolts up to 4-1/2 Inch diameter, Inquire now for custom sizes and Thread type

Technical Specification

Diameter ¼ Inch to 4-1/2 Inch
Length
  • 1 meter
  • 2 meter
  • 3 meter
Cold Finish Threaded Rod (Hastelloy) ASTM B574 UNS N10276
Hot Forged Threaded Rod (Hastelloy) ASTM B564 UNS N10276
Thread Type
  • UNC
  • UNF
  • BSF
  • BSW
German Standard
  • DIN 933
  • DIN 931
  • DIN 934
  • DIN 912
  • DIN 603
  • DIN 6923
  • DIN 970
  • DIN 7981
  • DIN 7982
  • DIN916
  • DIN 913
  • DIN 7985
ISO Standards
  • ISO 4032
  • ISO 4033
  • ISO 4017
  • ISO7380
Buy Hastelloy All thread & Eye Stud Bolt in M8, M16, M20 metric thread pitch at lowest price in India

Equivalent Standard

Hastelloy Equivalent Name & Standard
C276 (Most Popular Grade)
  • W.Nr 2.4819
  • UNS N10276
C22
  • W.Nr 2.4602
  • UNS N06022
B2
  • W.Nr 2.4617
  • UNS N010665
C-2000
  • W.Nr 2.4675
  • UNS N06200
G-30
  • W.Nr 2.4603
  • UNS N06030
X
  • W.Nr 2.4665
  • UNS N06002
Manufacturer of Knurled, Welded and Continuous Threaded Stud Bolts for extreme temperature up to 1230°C in Alloy C276/ UNS N10276

Types of Threaded Rods or all-thread rods (ATR)

  • Double End Stud Bolts
  • Fully Threaded Studs
  • Anchor Stud Bolt
  • Tap End Stud Bolts
  • Continuous Threaded Stud Bolts
  • Welding Studs
  • Eye Stud Bolt
  • Shear Stud Bolt
  • Lug Stud Bolt
  • Plain Stud Bolt
  • UNC Stud Bolt

Cold Finished Threaded Studs as per ASTM B574 UNS N10276 and Hot Forged Stud Bolt as per ASTM B564 specification in various Thread Pitch

Coarse Thread
  • UNC
  • UNRC
Fine Thread
  • UNF
  • UNRF
8 – Thread
  • 8UN

Certificates

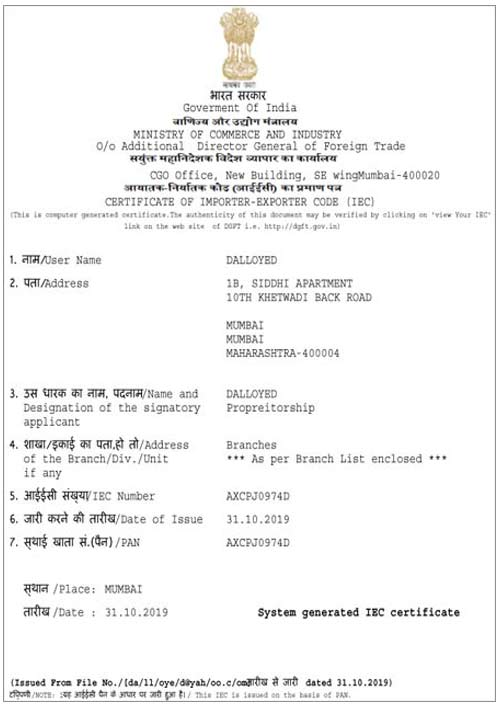

Certificate of Importer-Exporter

Certificate of Importer-Exporter

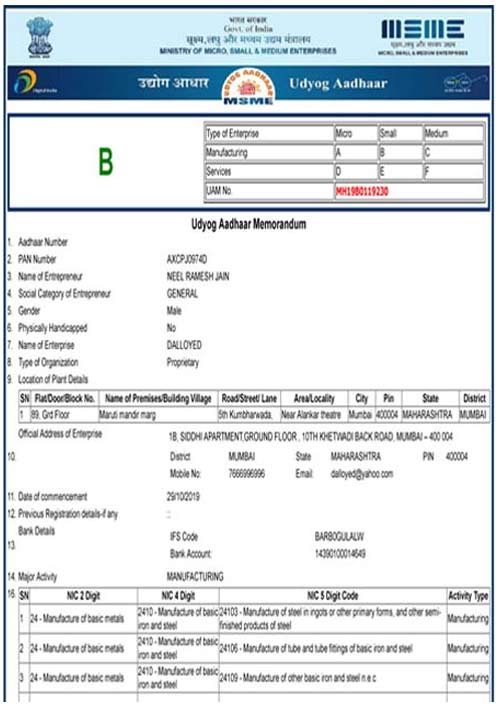

GST Certificate
