What is Inconel 718?
Inconel 718 is a high strength grade of Nickel based alloys. Nickel alloy 718 material is mostly sold in shape of Plate, Sheet, Strips, Round Bar, Forging, Flanges, Bolts and Nuts, Fasteners, Tubing, Pipe, Fititngs, and Valves. Alloy 718 products are used under 700°C temperature in Aerospace, Nuclear Plants, Marine, Oil and Gas and other harsh environments. Inconel 718 Tensile Strength is 1030 MPa (150 ksi) and Hardnes is 330-365 HB. The density of Ni 718 is 8.19 g/cm³. In unavailability of Inconel 718, Inconel 625 & Waspaloy can be used which have equivalent properties.
Raaj Sagar Steels is one of the largest Inconel 718 Supplier in India. The company maintain a wide stock of Inconel 718 Round Bar and Rod of leading manufacturers including HAYNES (USA), Special Metals (USA), VDM Metals (Germany), Valbruna (Netherlands), and Outokumpu (Finland). Check the complete product list of Inconel 718 (WNR 2.4668, UNS N07718) :
| Form | ASTM Standard |
|---|---|
| Inconel 718 Round Bar/ Rod | ASTM B637 UNS N07718 |
| Inconel 718 Pipe | ASTM B983, B829 |
| Alloy 718 Tube | ASTM B163, B516 |
| Inconel 718 Plate | ASTM B670 UNS N07718 |
| Nickel 718 Pipe Fittings | ASTM B366 UNS N07718 |
| Forging (Flanges and Forged Fittings) | ASTM B637 UNS N07718 |
| Inconel 718 Bolts, Nuts, and Fasteners | ASTM F2281 |
| Ni 718 Casting Valves | ASTM A494 Grade CY-40 |
| DIN 2.4668 Wires | ASTM B637 |
Inconel 718 Specification
| Inconel 718 Inventory Size Ranges |
|
|---|---|
| Bolts Size |
|
| Fasteners Standard |
|
| 718 Round Bar Standard |
|
| 718 Sheet, Coil and Plate Standard |
|
| Other Industry Standards |
|
| Inconel 718 Common Trade Names |
|
| Fabrication |
|
| Workability |
|
| Inconel 718 Round Bar Brands |
Raaj Sagar Steels is a stockholder and distributor of leading European and USA mills, offer Inconel 718 material at dealer price in India. |
| List of Test Reports you must ask from your Inconel 718 supplier | To ensure the correct properties & quality of Inconel 718, following testing can be done
|
| Which documents this supplier offer with Inconel 718 material |
|
Who they are?
Inconel 718 Supplier in India
Stockist of Alloy 718 Round Bar in Mumbai
UNS N07718 Sheet Supplier in India
Check Inconel 718 Price per KG in India
Nickel 718 Round Bar Price List ex Mumbai
Nickel alloy 718 Price is approx US $38 per kg in India. Check the following Price of Inconel 718 Round Bar and Rod ex Mumbai, India. ASTM B637 UNS N07718 Bars are available in Ex-Stock.
| Inconel 718 Bar | Price in USD $ |
|---|---|
| 30.0 Dia x 100mm long | US $118.02 |
| 30.0 Dia x 100mm long | US $198.11 |
| 30.0 Dia x 500mm long | US $609.77 |
| 30.0 Dia x 500mm long | US $833.17 |
| 30.0 Dia x 100mm long | US $269.76 |
| 30.0 Dia x 250mm long | US $217.78 |
| 30.0 Dia x 500mm long | US $386.38 |
| 30.0 Dia x 250mm long | US $386.38 |
| 30.0 Dia x 250mm long | US $531.09 |
| 30.0 Dia x 1000mm long | US $519.85 |
The above price was updated by supplier in Aug 2024, for more sizes you can contact Raaj Sagar Steels. They can supply Inconel 718 material in Saudi Arabia, Oman, Qatar, Dubai, Iraq, Libya, Turkey, Morocco, Tunisia, and Egypt withing 7-10 days.
Ex-stock of Inconel 718 at Raaj Sagar Steels (India)
Raaj Sagar Steels maintain a large stock of Inconel 718 material in their Mumbai warehouse. You will find all standard sizes of Nickel 718 Bars, Rods and Hex Bolts. The company is also associated with genuine stickist of Inconel 718 round bar in Mumbai so they can arrange the custom sizes at lowest price in India.
| Alloy 718 Bar & Rods | Inconel 718 Bolts and Fasteners |
|---|---|
|
|
What are the features of Inconel 718?
- Good mechanical properties
- High temperature resistant
- Excellent welding characteristics
- Highly resistant
- Sulfide stress corrosion cracking
- Rupture strength properties
- Very Versatile
- Stable in Extreme Environments
Raaj Sagar Steels is a trusted supplier of high-quality Inconel 718 Round Bars in Mumbai.
UNS N07718 Sheets Thickness from 0.5 mm to 6 mm at Lowest Price in Mumbai
Inconel Alloy 718 Sheet Thickness Chart
| ASTM B670 UNS N07718 Sheets | ||
|---|---|---|
| Thickness | Thickness | Size Range |
| mm | inches | mm |
| 0.381 | 0.015 | 36 x 120 |
| 0.381 | 0.015 | 36 x 96 |
| 0.45212 | 0.0178 | 36 x 96 |
| 0.45212 | 0.0178 | 36 x 120 |
| 0.45212 | 0.0178 | 48 x 96 |
| 0.45212 | 0.0178 | 48 x 120 |
| 0.5969 | 0.0235 | 36 x 120 |
| 0.5969 | 0.0235 | 36 x 144 |
| 0.5969 | 0.0235 | 30 x 96 |
| 0.5969 | 0.0235 | 30 x 120 |
| 0.5969 | 0.0235 | 36 x 96 |
| 0.5969 | 0.0235 | 48 x 96 |
| 0.5969 | 0.0235 | 48 x 120 |
UNS N07718 Sheet & Plate Surface Finish
| ASTM B670 UNS N07718 Sheet | ||
|---|---|---|
| Surface Finish | Thickness (mm) | Width (max mm) |
| 2E | 0.4-8.0 | 2032 |
| 2D | 0.4-6.35 | 1524 |
| 2H | 0.4-6.35 | 1524 |
| 2R | 0.25-3.5 | 1524 |
| 2B | 0.25-8.0 | 2032 |
| Polished, brushed plate | 0.5-4.0 | 1524 |
Looking for cut to size Inconel 718 sheets and plates? Get incredible discounts from India’s biggest supplier!
ASTM B670 Alloy 718 Sheet Weight Chart
| Size Range | Approx Weight per Sheet | Surface Area per Unit weight | ||
|---|---|---|---|---|
| lbs | kg | lbs/ft² | kg/m² | |
| 36 x 96 | 15.12 | 6.84936 | 0.630 | 3.07566 |
| 48 x 96 | 24.19 | 10.95807 | 0.756 | 3.690792 |
| 48 x 120 | 30.24 | 13.69872 | 0.756 | 3.690792 |
| 30 x 96 | 20.16 | 9.13248 | 1.008 | 4.921056 |
| 30 x 120 | 25.20 | 11.4156 | 1.008 | 4.921056 |
| 36 x 120 | 18.90 | 8.5617 | 0.630 | 3.07566 |
| 36 x 96 | 18.15 | 8.22195 | 0.756 | 3.690792 |
| 36 x 120 | 22.68 | 10.27404 | 0.756 | 3.690792 |
| 36 x 120 | 30.24 | 13.69872 | 1.008 | 4.921056 |
| 36 x 144 | 36.29 | 16.43937 | 1.008 | 4.921056 |
| 36 x 96 | 24.19 | 10.95807 | 1.008 | 4.921056 |
| 48 x 96 | 32.26 | 14.61378 | 1.008 | 4.921056 |
| 48 x 120 | 40.32 | 18.26496 | 1.008 | 4.921056 |
How does Inconel® 718 compare to other metals?
Inconel 625 vs 718
| Properties | Inconel 625 | Inconel 718 |
|---|---|---|
| Composition | Chromium (20-23%) and molybdenum (8-10%) | Chromium (17-21%), iron (up to 19%) |
| Corrosion Resistance | Excellent resistance to oxidation, reduction | Good resistance to oxidation and corrosion |
| Strength | Good strength and fatigue resistance | Exceptional tensile, creep, and fatigue strength |
| Temperature Range | 1,800°F (982°C) | 1,300°F (700°C) |
| Applications | Aerospace components, Marine equipment, Chemical processing | Aerospace engine components, Gas turbines |
A Supplier and Stockist of Inconel 718 material offers the lowest price in Mumbai.
Alloy 718 Hex Bolt Dimensions in mm
Ready Stock in Mumbai of Nickel 718 Hex Bolts and 2.4668 Socket Head Cap Screws with EN 10204 Type 3.1 Certificate
| Diameter(Metric) | Head Depth (k)(mm) | Threaded portion Length* (b)(mm) | Pitch(mm) | Across Flats (s)(mm) |
|---|---|---|---|---|
| M4 | 2.8 | 14 | 0.7 | 7 |
| M5 | 3.5 | 16 | 0.8 | 8 |
| M6 | 4 | 18 | 1.0 | 10 |
| M7 | 4.8 | 20 | 1.0 | 11 |
| M8 | 5.3 | 22 | 1.25 | 13 |
| M10 | 6.4 | 26 | 1.5 | 17 |
| M12 | 7.5 | 30 | 1.75 | 19 |
| M14 | 8.8 | 14 | 2 | 22 |
| M16 | 10 | 38 | 2 | 24 |
| M18 | 11.5 | 42 | 2.5 | 27 |
| M20 | 12.5 | 46 | 2.5 | 30 |
| M22 | 14 | 50 | 2.5 | 32 |
| M24 | 15 | 54 | 3.0 | 36 |
| M27 | 15 | 54 | 3.0 | 41 |
| M30 | 18.7 | 66 | 3.5 | 46 |
| M33 | 21 | 72 | 3.5 | 50 |
| M36 | 22.5 | 78 | 4 | 55 |
| M39 | 25 | 84 | 4 | 60 |
| M42 | 26 | 90 | 4.5 | 65 |
| M45 | 28 | 96 | 4.5 | 70 |
| M48 | 30 | 102 | 5 | 75 |
Raaj Sagar Steels is a largest manufacturer & supplier of Inconel 718 Hex Bolts, Nuts, Threaded Rod, Rivets, and Socket Head Cap Screws in India. Ask for a free sample now.

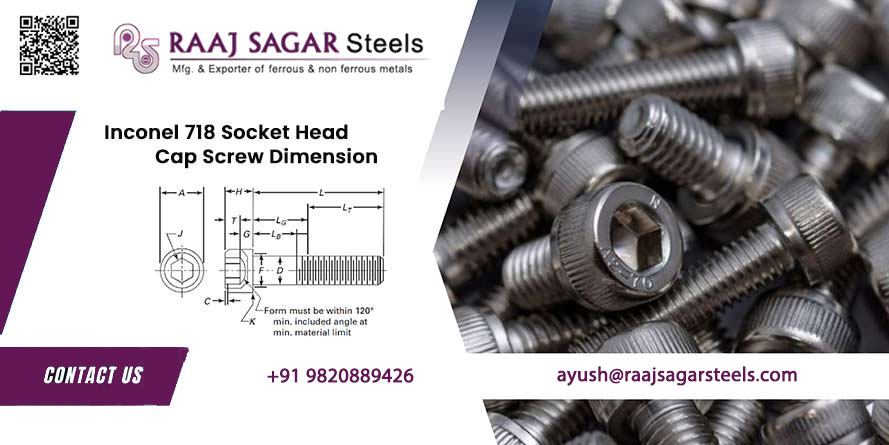

Inconel 718 Socket Head Cap Screw Dimensions
| Nominal Size | A | C | D | G | H | J | K | T | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Head Diameter | Maximum Chamferor Radius | Body Diameter | Minimum Wall Thickness | Head Height | Nominal Hexagon Socket Size | Maximum Chamferor Radius | Minimum Key Engagement | ||||||
| Max. | Min. | Max. | Min. | Max. | Min. | ||||||||
| 5 | (0.1250) | 0.205 | 0.198 | 0.012 | 0.1250 | 0.1202 | 0.043 | 0.125 | 0.121 | 3/32 | 0.094 | 0.008 | 4 0.057 |
| 6 | (0.1380) | 0.226 | 0.216 | 0.013 | 0.1380 | 0.1329 | 0.047 | 0.138 | 0.134 | 7/64 | 0.109 | 0.008 | 0.064 |
| 8 | (0.1640) | 0.270 | 0.257 | 0.014 | 0.1640 | 0.1585 | 0.056 | 0.164 | 0.159 | 9/64 | 0.141 | 0.008 | 0.077 |
| 10 | (0.1900) | 0.312 | 0.298 | 0.018 | 0.1900 | 0.1840 | 0.065 | 0.190 | 0.185 | 5/32 | 0.156 | 0.008 | 0.090 |
| 12 | (0.2160) | 0.324 | 0.314 | 0.022 | 0.2160 | 0.2095 | 0.082 | 0.216 | 0.210 | 5/32 | 0.156 | 0.010 | 0.103 |
| 1/4 | (0.2500) | 0.375 | 0.354 | 0.025 | 0.2500 | 0.2435 | 0.095 | 0.250 | 0.244 | 3/16 | 0.188 | 0.010 | 0.120 |
| 5/16 | (0.3125) | 0.469 | 0.446 | 0.033 | 0.3125 | 0.3053 | 0.119 | 0.312 | 0.306 | 1/4 | 0.250 | 0.010 | 0.151 |
| 3/8 | (0.3750) | 0.562 | 0.540 | 0.040 | 0.3750 | 0.3678 | 0.143 | 0.375 | 0.368 | 5/16 | 0.312 | 0.010 | 0.182 |
| 7/16 | (0.4375) | 0.656 | 0.631 | 0.047 | 0.4375 | 0.4294 | 0.166 | 0.438 | 0.430 | 3/8 | 0.375 | 0.015 | 0.213 |
| 1/2 | (0.5000) | 0.750 | 0.725 | 0.055 | 0.5000 | 0.4919 | 0.190 | 0.500 | 0.492 | 3/8 | 0.375 | 0.015 | 0.245 |
| 9/16 | (0.5625) | 0.843 | 0.827 | 0.062 | 0.5625 | 0.5538 | 0.214 | 0.562 | 0.554 | 7/16 | 0.437 | 0.015 | 0.276 |
Recent Projects List
Supplying High Quality Alloy 718 for Oilfield Applications in Iraq, Papua New Guinea, Nigeria, Azerbaijan, Trinidad & Tobago
Raaj Sagar Steels recently supplied Inconel 718 material in following projects. Inconel 718 products was exported in form of ASTM B637 UNS N07718 Round Bar, ASTM B670 UNS N07718 Sheet, Plate, ASTM B163 UNS N07718 Tubing, ASTM F2281 UNS N07718 Bolts, Nuts and Fasteners.
| Export Year | Oilfield Projects |
|---|---|
| 2022 | TotalEnergies Project, Basra, Iraq |
| 2022 | Nasiriyah Oil Field Drilling, Nasiriyah, Iraq |
| 2022 | Papua LNG Project, Gulf Province, Papua New Guinea |
| 2021 | Bonga North Project, Offshore Lagos, Nigeria |
| 2020 | Gbaran-Ubie Phase 2, Bayelsa, Nigeria |
| 2021 | Azeri Central East (ACE) Project, Caspian Sea, Azerbaijan |
| 2022 | Dragon Gas Field, Offshore, Trinidad & Tobago |
| 2021 | Cassia Compression Project, Offshore Trinidad (Trinidad & Tobago) |
Estimate Shipping time for Inconel 718 material from India
Raaj Sagar Steels supply the Nickel Alloy 718 products from Ex-stock. In a short span of time the company became No. 1 Choice to deliver the material on time in South Africa, Saudi Arabia, and middle east countries.
| Export to | Cost Variations and the Expected Delivery |
|---|---|
| Vietnam | 5 % extra | 10 days |
| Cambodia | 5 % extra | 9 days |
| Iraq | 5 % extra | 10 days |
| Saudi Arabia | 5 % extra | 7 days |
| Azerbaijan | 5 % extra | 10 days |
| Nigeria | 5 % extra | 15 days |
Manufacturer Testing Reports
- Chemical Analysis
- Mechanical Testing
- Flattening Test
- Intergranular Corrosion Test
- Micro Test
- Macro Testing
Inconel 718 Applications
Inconel 718 Equivalent
| Equivalent Standard of Inconel 718 – WNR 2.4668 – UNS N07718 |
||
|---|---|---|
| Standards | Country | Value |
| ASTM | America | B637 |
| ASME | USA | SB 637 |
| UNS | North America | UNS N07718 |
| JIS | Japan | NCF 718, JIS H4554 |
| AMS | United States | 5662/ 5663/ 5664/ 5832/ 5914/ 5962 |
| DIN | German | NiCr19Fe19Nb5Mo3 |
| BS | UK | BS HR2, BS 3076, HR2 |
| AFNOR | France | NC19FeNb, AFNOR N-10003 |
| UNI | Italy | UNI 5660 |
| UNI | Spain | UNI 5660 |
| SS | Sweden | SS 14 2574 |
| GB | China | GH4169, GB/T 14992 |
| KS | Korea | KS D 3802 |
| AS | Australia | AS 2914 |
| EN | Netherlands | EN 10095 |
| EN | Europe | EN 10095 |
| GOST | Russia | ЭП718 (EP718), GOST R 5632-91 |
Inconel 718 Chemical Composition
| Element | Percentage |
|---|---|
| Carbon | 0.08 max |
| Manganese | 0.35 max |
| Copper | 0.30 max |
| Chromium | 17-21 |
| Nickel | 50-55 |
| Molybdenum | 2.80-3.30 |
| Titanium | 0.65-1.15 |
| Aluminum | 0.20-0.80 |
| Phosphorus | 0.015 max |
| Sulfur | 0.015 max |
Inconel 718 Mechanical Properties
| Mechanical Properties | Metric | English |
|---|---|---|
| Tensile Strength, Yield | 1100 MPa @Strain 0.2 % | 160000 psi @Strain 0.2 % |
| 980 MPa @Strain 0.2 %, Temperature 650 °C | 142000 psi, @Strain 0.2 %, Temperature 1200 °F | |
| Tensile Strength, Ultimate | 1100 MPa @Temperature 650 °C | 160000 psi @Temperature 1200 °F |
| 1375 MPa @Temperature 23.0 °C | 199400 psi @Temperature 73.4 °F | |
| Elongation at Break | 25 % | 25 % |
| 18 % @Temperature 650 °C | 18 % @Temperature 1200 °F | |
| Rupture Strength | 593 MPa @Temperature 649 °C, Time 3.60e+6 sec | 86000 psi @Temperature 1200 °F Time 1000 hour |
| 703 MPa @Temperature 649 °C, Time 360000 sec | 102000 psi @Temperature 1200 °F, Time 100 hour |
Inconel 718 Density
| Physical Properties | Metric | English |
|---|---|---|
| Density | 8.19 g/cc | 0.296 lb/in³ |
India’s Reliable Stockist of Inconel 718 Round Bar. Buy material from Ex-stock in Mumbai.
