Carbon Steel Fittings Manufacturer in India

Mumbai, India

Montex Forge Industries

Year of establishment

2020

Total export experience (in Years)

Nature of Business

Manufacturer

Third Party Inspection

Yes

Custom Sizes

Yes

Custom Packaging

Yes

MTC Report

Yes

Major clients in the Middle East

N/A

Carbon Steel Fittings Manufacturer in India

Carbon Steel Fittings Specification

Size Range	Carbon Steel Seamless Pipe Fittings : 1/2" – 10" Carbon Steel Welded Pipe Fittings : 1/2" – 48"
Material Grades	ASTM A/SA-234 WPB ASTM A/SA-420
Bending Radius	R=1D 2D 3D 5D 6D 8D 10D
DIN Standards	DIN 2605-1 (Elbow) DIN 2605-2 (Elbow) DIN 2617 (Caps) DIN 2616-1 (Eccentric Reducer) DIN 2616-2 (Concentric Reducer) DIN 2615-1 (Tee) DIN 2615-2 (Tee)
Type	Seamless Welded Buttweld
Manufacturing Process	Forge Push Cast Press
Schedule	SCH 10S, 40S, 80S, 160S, XXS
Carbon Steel Pipe Bend Types	3D, 5D, 10D bend Long radius bend Short radius bend Induction bends Miter bends Piggable bends U bend J Bend Hot Induction Bend
Most Common Grades	WPHY 42 WPHY 46 WPHY 52 WPHY 60 WPHY 65 WPHY 70
Features of Carbon Steel Buttweld Fittings	Corrosion Resistance Strength Durability
Dimensions	ANSI / ASME B16.9 ANSI/ ASME B16.28 ANSI/ ASME B16.25 MSS-SP-95 MSS-SP-43 MSS-SP 119 MSS-SP-83
Applications of Carbon Steel Pipe Fittings	HVAC Manufacturing Oil and Gas Water Treatment Construction
GOST Standard	GOST 17375 GOST 17375 GOST 17378 GOST 17376 GOST 17379
Custom Sizes	Yes
Third Party Inspection	Yes
Custom Packaging	Yes
Types of Carbon Steel Fittings	Elbow Tee Fittings Reducer Cap Pipe Cross Stub End Pipe Bend
Certificates	ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2018 PED Certificate

Who they are?

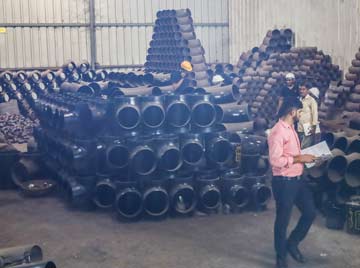

Carbon Steel Fittings Manufacturer in India

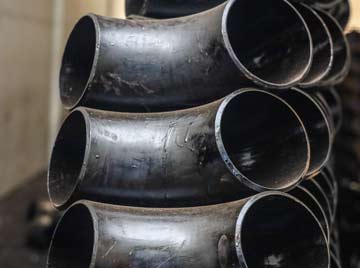

Supplier of Carbon Steel Pipe Elbows in Mumbai

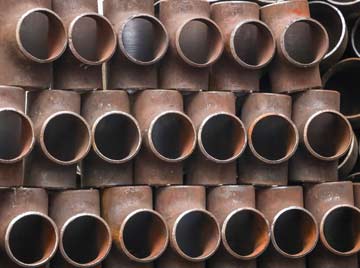

Carbon Steel Seamless Fittings Stockist in India

The Only Company in Mumbai Manufacture Carbon Steel Seamless Fittings Up to 24″ and Welded Fittings Up to 40″

Size Chart of Carbon Steel Buttweld Fittings

Nominal Pipe Size	Wall Thickness*	Fahrenheit Temperature Indicated
Nominal Pipe Size	Wall Thickness*	-20° to 650°	700	750°	⑉ 8009
1/2	.109	1695	1621	1463	1220
10	.365	720	688	621	518
12	.375	630	602	543	453
6	280	840	803	725	604
1	.133	1575	1506	1359	1134
2	.154	900	861	777	648
1 1/4	.140	1065	1019	919	766
3/4	.113	1455	1392	1256	1046
3 1/2	.226	1020	975	880	734
4	.237	975	932	841	702
3	.216	1095	1047	945	788
5	258	885	846	764	637
1 1/2	.145	1005	960	867	723
8	.322	765	731	660	550
2/2	.203	1215	1162	1048	874
16	.375	495	473	427	356
18	.375	450	430	388	354
20	.375	405	387	349	291
24	.375	330	315	284	237
14	.375	570	545	492	410

Price List of High Carbon Steel Pipe Fittings

Products	Size Range	Price in USD
Carbon Steel Sch 40 90 Degree Elbow	2"	US $ 9.99
	3′	US $ 14.79
	4"	US $ 24.29
	8"	US $ 109.99
Carbon Steel Sch 40 Straight Tee	2"	US $ 11.69
	3"	US $ 29.99
	4"	US $ 47.99
	6"	US $ 89.99
	8"	US $ 149.99

Carbon Steel Fittings Brands in Stock

Manufacturer Name	Origin	Stock Sizes
Arcelor Mittal	Roman, Romania	Up to NPS 20
Benteler	Shreveport, LA, USA	Up to NPS 4
Bri-Steel	Edmonton, Alberta, Canada	NPS 12 and larger
Liberty	Ostrava, Czech Republic	Up to NPS 10
Nippon Steel Corp.	Wakayama, Japan
PTC Alliance	Beaver Falls, PA, USA	NPS 2 and smaller
Berg	Panama City, FL, USA	NPS 24 and larger
JFE Steel	Chita, Japan	–
Nippon Steel Corp (NSC)	Nagoya, Japan	–
Tenaris Mavrick	Conroe, TX, USA	–
US Steel	West Mifflin, PA, USA	–

Get Heavier Wall Thickness CS Buttweld Fittings in Accordance to BS 1640 /ASME B16.9, B16.28 and B16.25

Carbon Steel Seamless Fittings Wall Thickness

NPS (in)	OD (in)mm	Wall Thickness (in) mm
NPS (in)	OD (in)mm	Sch 160	Sch 140	Sch 120	Sch 100	Sch 80	Sch 60	Sch 40	Sch 30	Sch 20	Sch 10	Sch STD	Sch XSS	Sch XXS
1/2	0.840	0.187	–	–	–	0.147	–	0.109	–	–	–	0.109	0.147	0.294
1/4	0.540	–	–	–	–	0.119	–	0.088	–	–	–	0.088	0.119	–
1/8	0.405	–	–	–	–	0.095	–	0.068	–	–	–	0.068	0.095	–
3/4	1.050	0.219	–	–	–	0.154	–	0.113	–	–	–	0.113	0.154	0.308
3/8	0.675	–	–	–	–	0.126	–	0.091	–	–	–	0.091	0.126	–
1	1.315	0.250	–	–	–	0.179	–	0.133	–	–	–	0.133	0.179	0.358
1 1/2	1.900	0.281	–	–	–	0.200	–	0.145	–	–	–	0.145	0.200	0.400
1 1/4	1.660	0.250	–	–	–	0.191	–	0.140	–	–	–	0.140	0.191	0.382
2 1/2	2.875	0.375	–	–	–	0.276	–	0.203	–	–	–	0.203	0.276	0.552
2	2.375	0.344	–	–	–	0.218	–	0.154	–	–	–	0.154	0.218	0.436
4	4.500	0.531	–	0.438	–	0.337	–	0.237	–	–	–	0.237	0.337	0.674
5	5.563	0.625	–	0.500	–	0.375	–	0.258	–	–	–	0.258	0.375	0.750
3 1/2	4.000	–	–	–	–	0.318	–	0.226	–	–	–	0.226	0.318	–
3	3.500	0.438	–	–	–	0.300	–	0.216	–	–	–	0.216	0.300	0.600
6	6.625	0.719	–	0.562	–	0.432	–	0.280	–	–	–	0.280	0.432	0.864
22	22.000	2.125	1.875	1.625	1.375	1.125	0.875	–	0.500	0.375	0.250	0.375	0.500	–
24	24.000	2.344	2.062	1.812	1.531	1.219	0.969	0.688	0.562	0.375	0.250	0.375	0.500	–
34	34.000	–	–	–	–	–	–	0.688	0.625	0.500	0.312	0.375	–	–
8	8.625	0.906	0.812	0.719	0.594	0.500	0.406	0.322	0.277	0.250	–	0.322	0.500	0.875
10	10.750	1.125	1.000	0.844	0.719	0.594	0.500	0.365	0.307	0.250	–	0.365	0.500	1.000
12	12.750	1.312	1.125	1.000	0.844	0.688	0.562	0.406	0.330	0.250	–	0.375	0.500	1.000
14	14.000	1.406	1.250	1.094	0.938	0.750	0.594	0.438	0.375	0.312	0.250	0.375	0.500	–
30	30.000	–	–	–	–	–	–	–	0.625	0.500	0.312	0.375	0.500	–
32	32.000	–	–	–	–	–	–	0.688	0.625	0.500	0.312	0.375	–	–
16	16.000	1.594	1.438	1.219	1.031	0.844	0.656	0.500	0.375	0.312	0.250	0.375	0.500	–
18	18.000	1.781	1.562	1.375	1.156	0.938	0.750	0.562	0.438	0.312	0.250	0.375	0.500	–
20	20.000	1.969	1.750	1.500	1.281	1.031	0.812	0.594	0.500	0.375	0.250	0.375	0.500	–
36	36.000	–	–	–	–	–	–	0.750	0.625	0.500	0.312	0.375	–	–
42	42.000	–	–	–	–	–	–	0.750	0.625	0.500	–	0.375	–	–

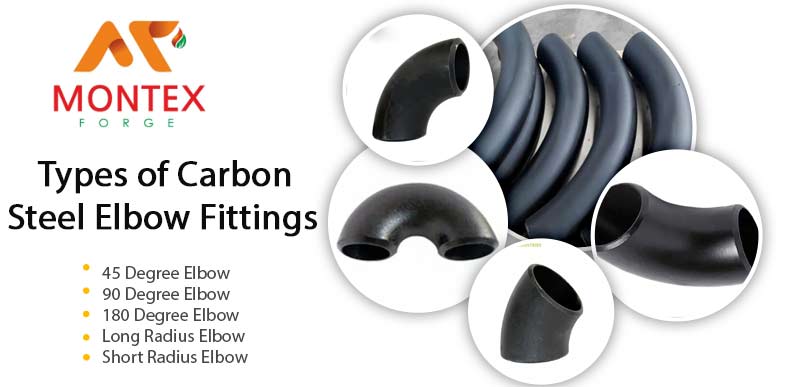

Types of Carbon Steel Elbow Fittings

Weights of Normalized Carbon Steel Pipe Elbow

Weights
NPS	45°LR ELBOW				90°LR ELBOW				90°SR ELBOW
NPS	5S	10S	40S	80S	5S	10S	40S	80S	5S	10S	40S	80S
1/2	0.024	0.030	0.038	0.090	0.049	0.060	0.075	0.110	–	–	–	–
3/4	0.031	0.030	0.037	0.090	0.062	0.060	0.075	0.110	–	–	–	–
1	0.039	0.100	0.120	0.140	0.078	0.140	0.160	0.230	0.077	0.094	0.118	0.180
2	0.143	0.310	0.400	0.540	0.286	0.460	0.660	1.000	0.191	0.318	0.434	0.680
3	0.405	0.650	1.100	1.600	0.810	1.200	2.150	3.000	0.540	0.761	1.360	1.900
4	0.696	1.050	1.950	2.800	1.390	2.000	4.000	6.100	0.928	1.310	2.560	3.800
5	1.420	1.710	3.240	4.800	2.830	3.420	6.480	10.00	1.890	2.280	4.320	6.300
6	2.010	2.430	4.970	7.900	4.030	5.250	9.940	15.80	2.680	3.240	6.630	10.40
8	3.530	5.010	10.10	15.80	7.060	10.00	20.10	32.00	4.710	6.680	13.40	21.55
10	6.620	7.770	17.70	23.90	13.20	15.50	35.40	48.00	8.830	10.40	23.60	31.75
11/2	0.085	0.180	0.200	0.310	0.170	0.280	0.350	0.500	0.114	0.189	0.245	0.340
11/4	0.063	0.140	0.170	0.230	0.125	0.240	0.260	0.400	0.101	0.152	0.204	0.280
12	11.10	12.50	28.10	38.00	22.30	25.90	56.20	72.00	14.80	16.70	37.50	47.17
21/2	0.288	0.450	0.700	0.960	0.576	0.800	1.300	1.800	0.383	0.541	0.909	1.300
31/2	0.540	0.760	1.410	2.000	1.080	1.530	2.820	3.800	0.719	1.020	1.880	2.700

ASTM Grades for Carbon Steel Buttweld Pipe Fittings

American Standard ASTM	Grades of Carbon Steel Fittings
ASTM A860 / A860M	MSS SP-75 WPHY42, WPHY46, WPHY52, WPHY60, WPHY65, WPHY70
ASTM A234 / A234M	WPB, WPC, WP1, WP11 CL1, WP11 CL2, WP11 CL3, WP12 CL1, WP12 CL2, ,WP5 CL1, WP9 CL1, WP9 CL3, WP22 CL1, WP22 CL3, WP5 CL3, WP92, WPR, WP91, WP911
ASTM A420 / A420M (Low Alloy Carbon Steel/ LTCS Fittings)	WPL6, WPL9, WPL3, WPL8

Types of Carbon Steel Reducer Fittings

Types of Carbon Steel Tee Fittings

Buttweld Tee
Reducing Tee
Equal Tee
Swept Tee
Saddle Tee
Barred Tee
Lateral Tee
Y Tee
Straight Tees
Reducing Outlet Tee

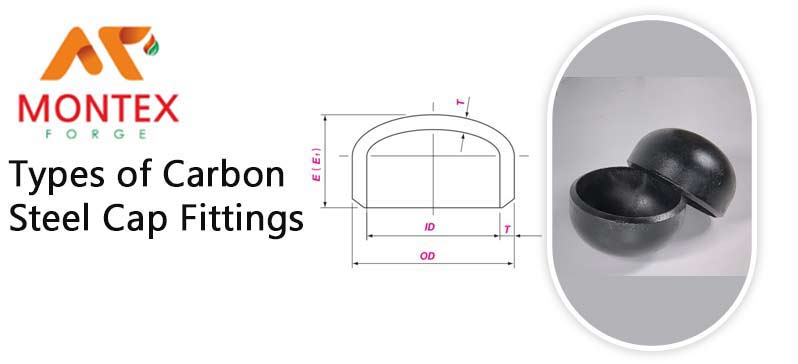

Types of Carbon Steel Cap Fittings

OD	DN	NPS	E	E1
21.3	15	1/2	25	25
26.7	20	3/4	25	25
33.4	25	1	38	38
42.2	32	1 1/4	38	38
60.3	50	2	38	44
73	65	2 1/2	38	51
88.9	80	3	51	64
101.6	90	3 1/2	64	76
114.3	100	4	64	76
48.3	40	1 1/2	38	38
141.3	125	5	76	89
168.3	150	6	89	102
219.1	200	8	102	127

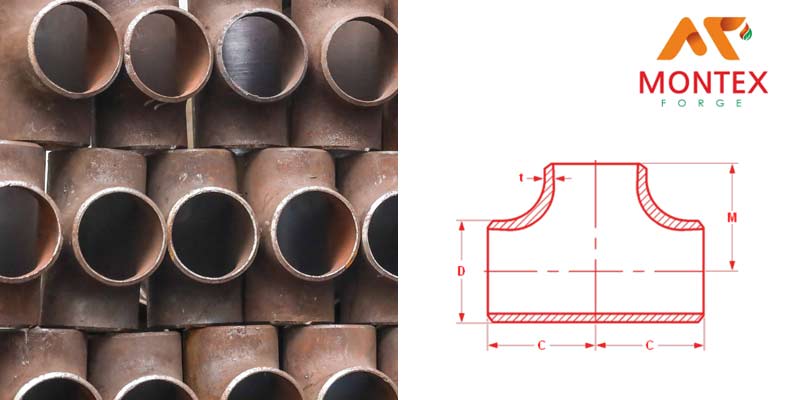

High Carbon Steel Buttweld Fittings Dimension Chart

High Carbon Steel Buttweld Fittings Dimension

NPS	Outer Diameter. D	Center to End M	Center to End C
1/2	21.3	25	25
1	33.4	38	38
3/4	26.7	29	29
2	60.3	64	64
3	88.9	86	86
4	114.3	105	105
5	141.3	124	124
6	168.3	143	143
8	219.1	178	178
10	273	216	216
12	323.8	254	254
14	355.6	279	279
16	406.4	305	305
18	457	343	343
20	508	381	381

Types of Carbon Steel Pipe Fittings

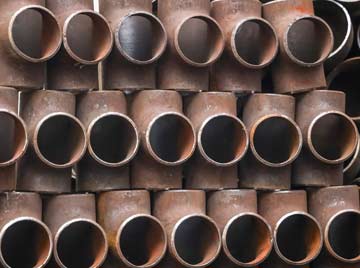

High Carbon Steel Tee

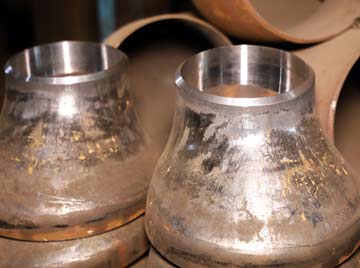

Black Carbon Steel Reducer

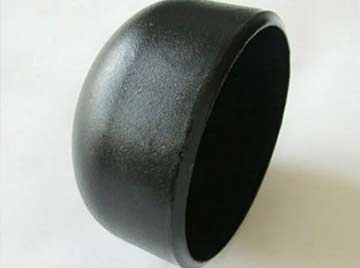

Quenching Carbon Steel Cap

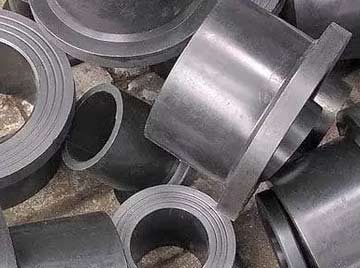

Steel Low Carbon Stub End

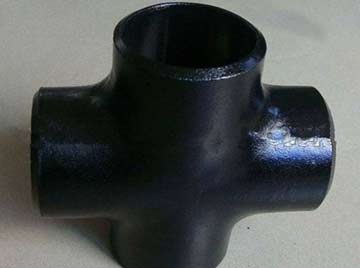

Plain Carbon Steel Cross

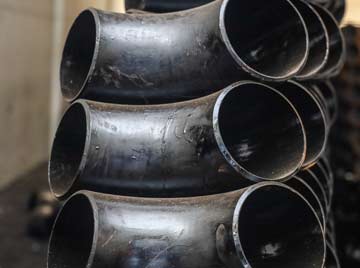

ASME B16.9 Carbon Steel Elbow

Known for Custom and Complex Sizes of ASTM A234 WPB, WPC, IS 1239 P-1/2, IS 3589 Heavy Carbon Steel Fittings

Size of Carbon Steel Buttweld Fittings

Types	Elbow	Reducer	Tee
Name	45°/90°/180° Elbow Short/Long Radius Elbow	Concentric Reducer Eccentric Reducer	Reducing Tee Equal Tee
Sizes	Seamless elbow: 1/2"-24" Welded Elbow: 4"-72"	1/2” to 80”	1/2” to 72”
Standard	ANSI B16.9 ANSI B16.28 JIS B2312/2313 MSS-SP-43 Type A	ASTM A234 WPB A420 DIN 2616 DIN 2605 DIN 2615	ASTM A234 WPB A420 DIN 2605 /2615
WT	Sch 5S, Sch 10S, Sch 20S, Sch 40S, Sch 80S, S10, S20, S30, STD, S40, S60, XS, S80, S100, S120, S140, S160, XXS
Material	CS : ASTM A234 WPB WPC A105 A106 A53
Surface	Black paint Bright paint Galvanized Rust-proof Oil etc

Testing

Before Allotting a Batch No. Do Dimensional Inspection, MTC Verify, Shape and Processing Conditions Check Also Ultrasonic Examinations

Pitting Resistance Test
Intergranular Corrosion (IGC) Test
Hardness Test
Flattening Test
Chemical Analysis – Spectro Analysis
Mechanical Testing
Micro and MacroTest
Flaring Test
PMI Testing

Documentation

Fumigation Certificates
Quality Assurance Plan (QAP)
Guarantee Letter
Material Traceability Records
Heat Treatment Charts
NABL Approved Laboratory Test Reports
Test Certificates Certifying NACE MR0175, NACE MR0103
Raw Material Test Reports
Commercial Invoice
Packing List

Accreditations and Certifications

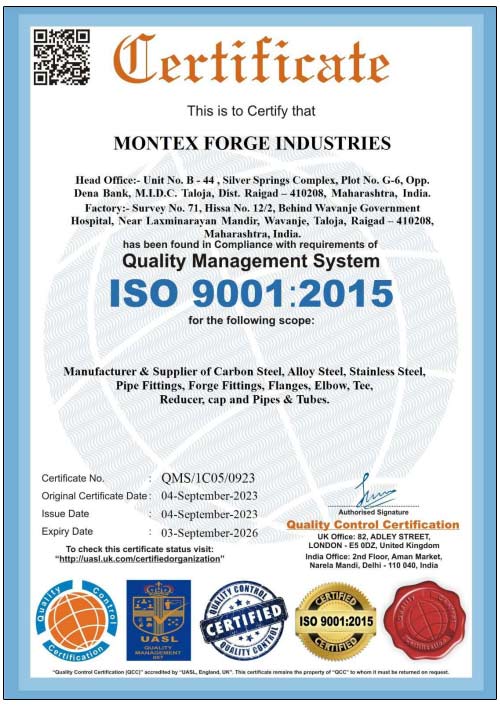

ISO 9001:2015

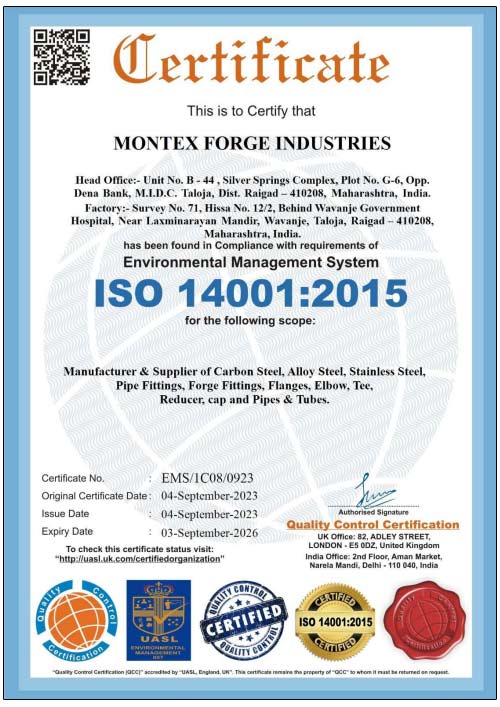

ISO 14001:2015

ISO 45001:2018

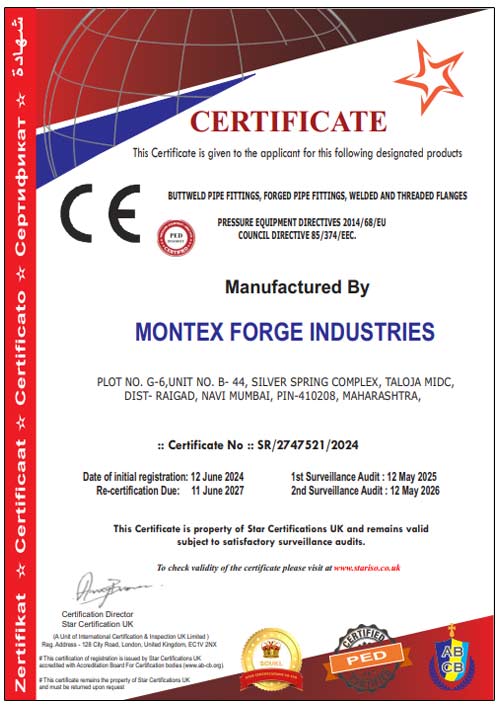

PED Certificate

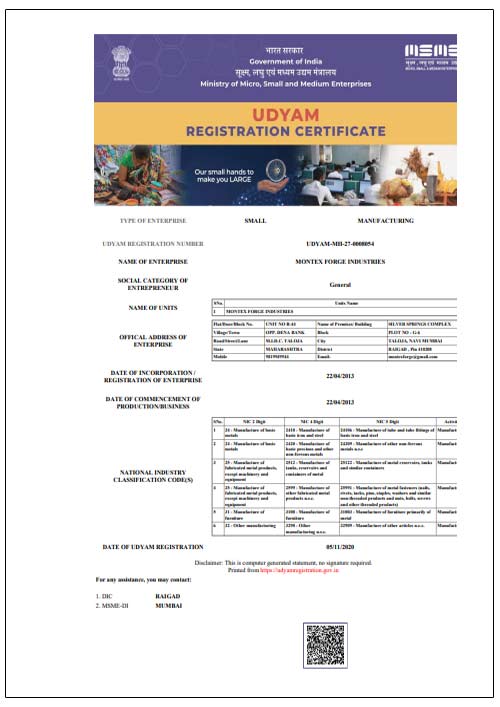

Udyam Registration Certificate

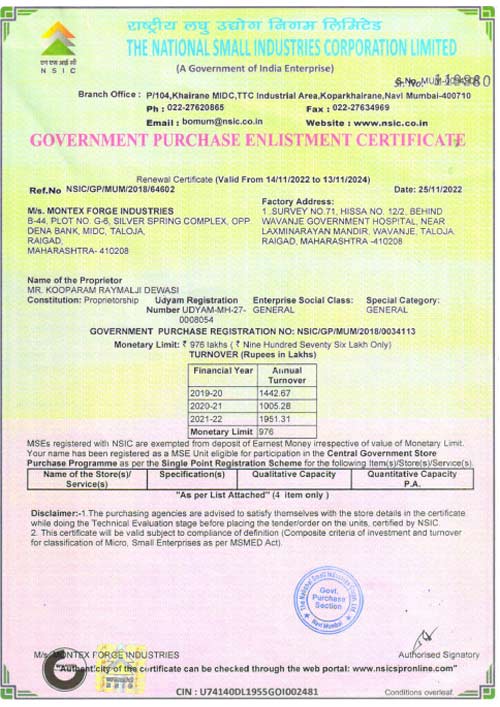

Government Purchase Enlistment Certificate

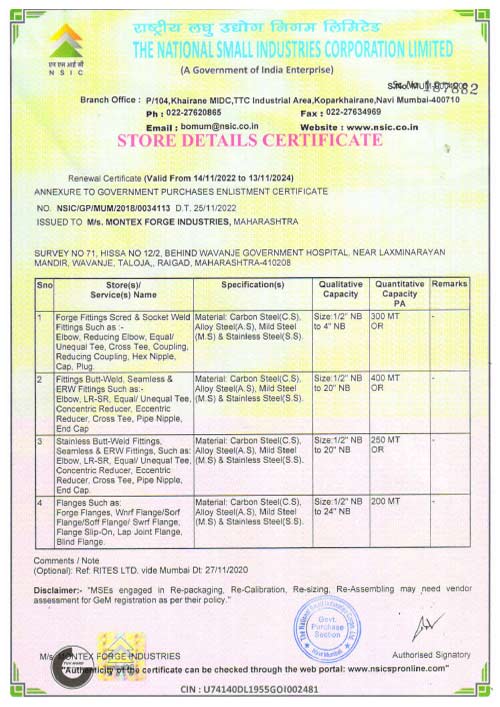

Store Details Certificate

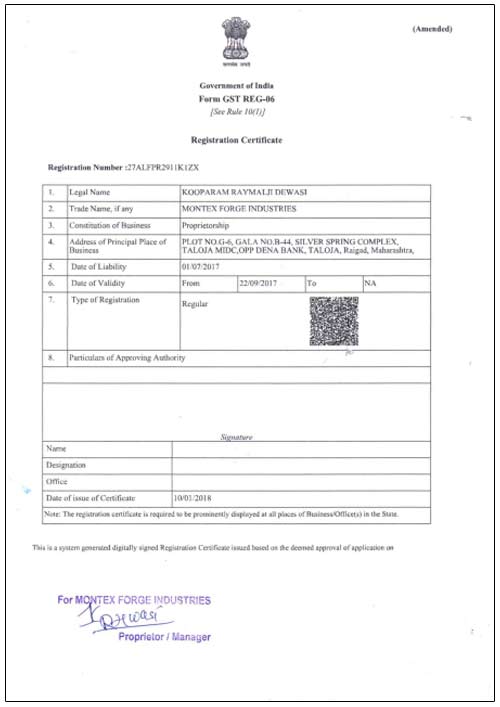

GST Certificate

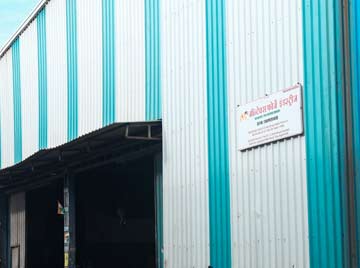

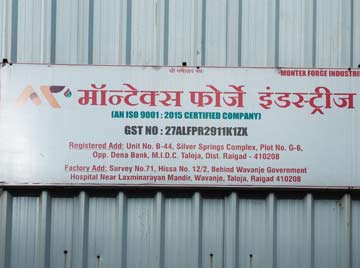

Head Office

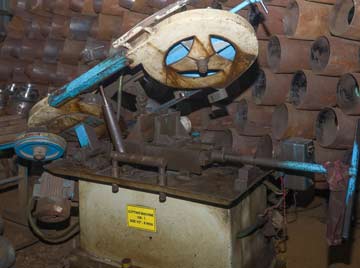

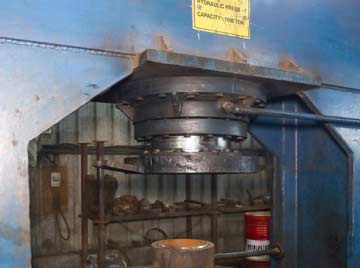

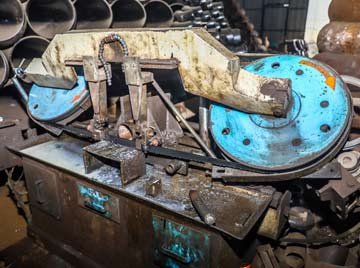

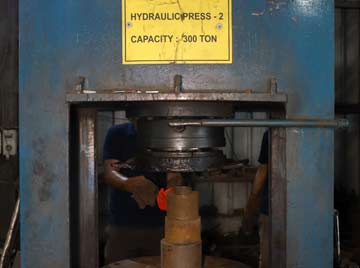

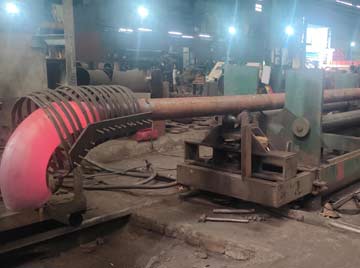

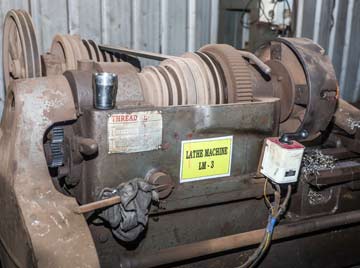

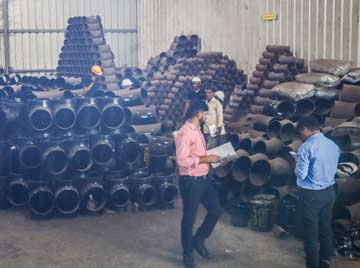

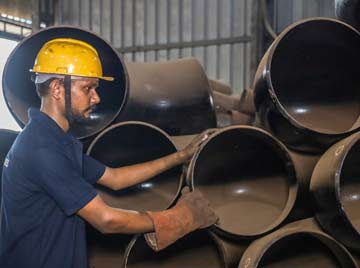

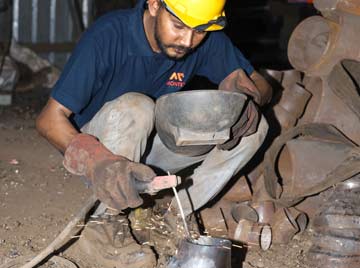

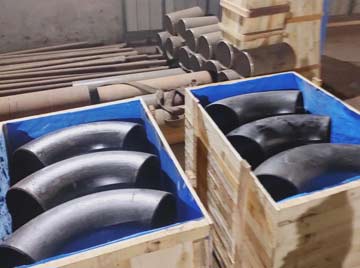

Factory Tour

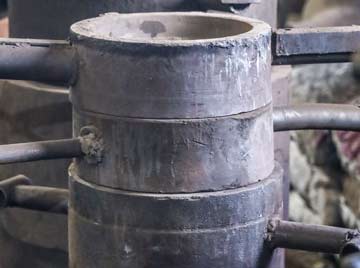

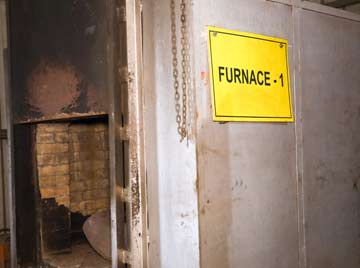

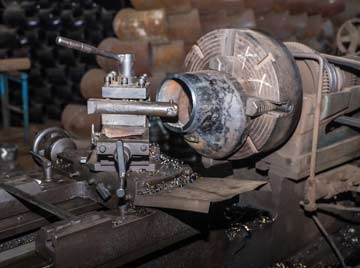

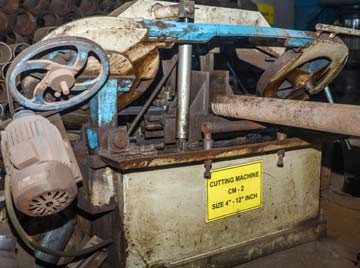

CS Fittings Manufacturing Capability and Infrastructure
