Pipe Fittings Manufacturer in Mumbai

Mumbai, India

Shree Metal Syndicate

Supplier 54
Supplier 54
Year of establishment 1983
Total export experience (in Years) 25
Nature of Business Stockist
Third Party Inspection Yes
Custom Sizes Yes
Custom Packaging Yes
MTC Report Yes
Major clients in the Middle East N/A
Chat for Live PriceGet A quote Now!

Pipe Fittings Manufacturer in Mumbai

Pipe Fittings Specifications

Size
  • Buttweld : 1/2" – 36"
  • Seamless : 1/2" – 24"
  • Welded : 24 – 96"
 Manufacturer Standard
  • ISO
  • DIN
  • EN
  • JIS
Forming
  • Cold Formed
  • Hot Formed
 Wall Thickness
  • SCH 10 To SCH XXS
Manufacturing Forms
  • Elbow
  • End cap
  • Pipe Bend
  • Tee
  • Pipe cross
  • Stub end
  • Reducer
 Coating Types
  • PE Coating
  • Anti rust
  • Back painting
Manufacturer Method
  • Welded
  • Seamless
  • Buttweld
 Production
  • Forged
  • Machined
  • Heat treated
Marking on Pipe Fittings
  • Manufacturer Logo
  • Size
  • Grade
  • Standard
  • SCH
 End Connection
  • Welded
Surface Treatment
  • Sand Rolling
  • Sand Blasting
 Pipe Bending Method
  • Mandrel Bending
  • Roll Bending
  • Ram Type Bending
  • Hot Induction Bending
  • Rotary Draw Bending
Pipe Bend Angle
  • 135°/ 180°
  • 45°/ 60°/ 90°
  • 15°/ 22.5/ 30°
 Pipe Bend Radius
  • 10D /12D/ 22D/ 3D
  • 4D/ 5D/ 6D/ 8D
Packaging Method
  • Wooden Pallet
  • Wooden Pallet
  • Wooden Cases
 Testing Method
  • PMI Test
  • HIC Test
  • Hyrdrostatic Test
  • Ultrasonic Test

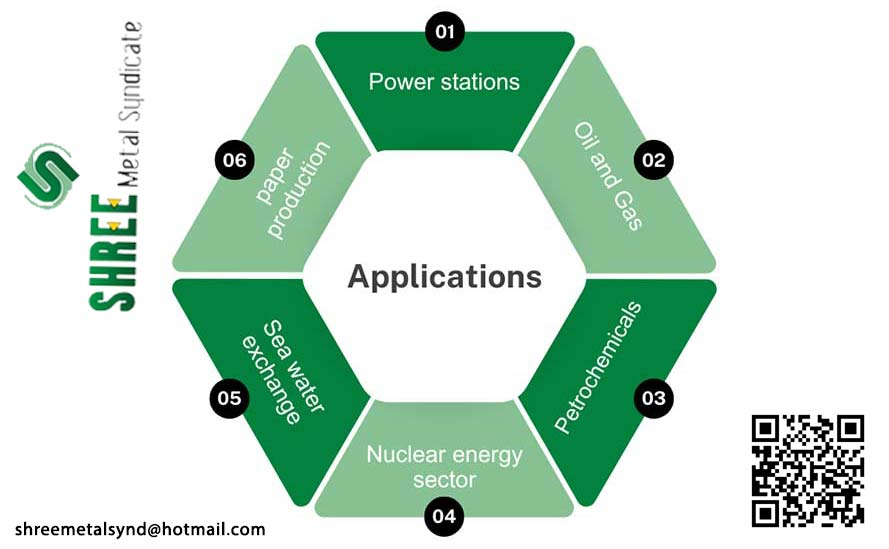

Pipe Fittings Applications

Pipe Fittings Application

Difference Between Seamless And Welded Pipe Fittings

Size Seamless Fitting Welded Fitting
Capacity Higher capacity Low capacity
Cost More Expensive Less Expensive
Heat Treatment Often Requires Heat Treatment To Relieve Stresses. May require additional heat treatment post-welding to ensure weld integrity.
Bore Size Below 24 inches Above 24 inches
Durability More Durable In Harsh Conditions. Durability Depends On Weld Quality And Maintenance.
Pipe Size 12" ½” to 72"

Who they are?

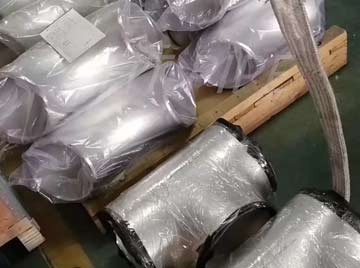

Pipe Fittings Manufacturer in Mumbai

Pipe Fittings Manufacturer in Mumbai

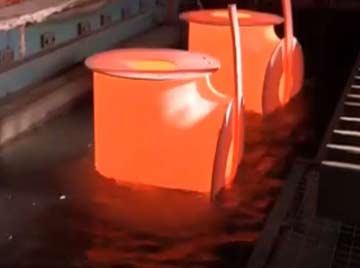

High Temperature Pipe Fittings for Oil and Gas Industry

High Temperature Pipe Fittings for Oil and Gas Industry

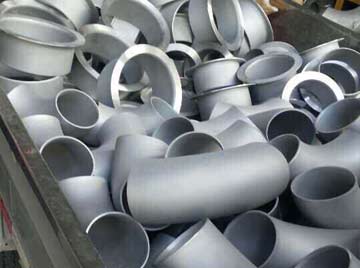

Manufacturer of Welded Pipe Fittings in Mumbai

Manufacturer of Welded Pipe Fittings in Mumbai

Stainless Steel Long Radius Elbow Manufacturer in India

Stainless Steel Long Radius Elbow Manufacturer in India

304 Stainless Steel Long Radius Bend Supplier in Mumbai

304 Stainless Steel Long Radius Bend Supplier in Mumbai

Manufacturer Of Stainless Steel Long Radius 90 Elbow in India

Manufacturer Of Stainless Steel Long Radius 90 Elbow in India

Steel Pipe Fittings International Standard

ISO Standard MSS Standards  GOST Standard
  • ISO 5251
  • MSS-SP-43
  • GOST 17379
  • GOST 17378
  • GOST 17376
  • GOST 17375
JIS Standard DIN Standards EN Standards
  • JIS B2312
  • JIS B2313
  • DIN 2618 (Saddle )
  • DIN 2617 (Caps)
  • DIN 2616-1 (Eccentric )
  • DIN 28011 (Torispherical heads)
  • DIN 2605-1 (Elbow)
  • DIN 2615-1/2 (Tee)
  • DIN 2605-2 (Elbow)
  • DIN 2616-2 (Concentric)
  • EN 10253-4
  • EN 10253-2

Pipe Fittings Manufacturing Process

  • Monaka Or Double Weld Seam Method
  • Flare Method For Stub Ends
  • Hot Forming Or Extrusion Method
  • Uo Or Single Weld Seam Method
  • Deep Drawing Method For Caps
  • Hydraulic Bulge Method – Cold Forming

High Temperature Pipe Fittings for Oil and Gas Industry with Zero defect at Best Price in India

Buttweld Pipe fittings are used in many industrial sectors where temperature is extremely high. Steel Pipe Fittings manufacturers produce special grade Elbow, Tee, Reducers, Caps, and Stub End for such applications. Shree Metal Syndicate is specialized in manufacturing High Temperature Pipe Fittings for liquid, acids or gases pipelines. Compare temperature limit and strength of all grades of steel pipe fittings at a glance:

Pipe Fittings Grade ASTM Standard WNR/ DIN Tensile Strength (MPa) Temperature Limit (°C)
304H A403 1.4948 515-690 Up to 800°C
316H A403 1.4919 515-690 Up to 800°C
321H A403 1.4941 515-690 Up to 850°C
347H A403 1.4961 515-690 Up to 850°C
310S A403 1.4845 520-720 Up to 1150°C
904L A403 1.4539 490-690 Up to 400°C
Alloy 20 (20Cb3) A403 2.4660 620-690 Up to 600°C
Inconel 600 B366 2.4816 550-750 Up to 1093°C
Inconel 625 B366 2.4856 827-1103 Up to 982°C
Incoloy 800H B366 1.4958 520-710 Up to 870°C
Incoloy 825 B366 2.4858 585-760 Up to 540°C
Hastelloy C276 B366 2.4819 690-827 Up to 1040°C
Monel 400 B366 2.4360 480-620 Up to 538°C
Monel K500 B366 2.4375 690-860 Up to 480°C

Types of Buttweld Pipe Fittings and their maximum manufacturing size

Manufacturer of Welded Pipe Fittings From Mumbai

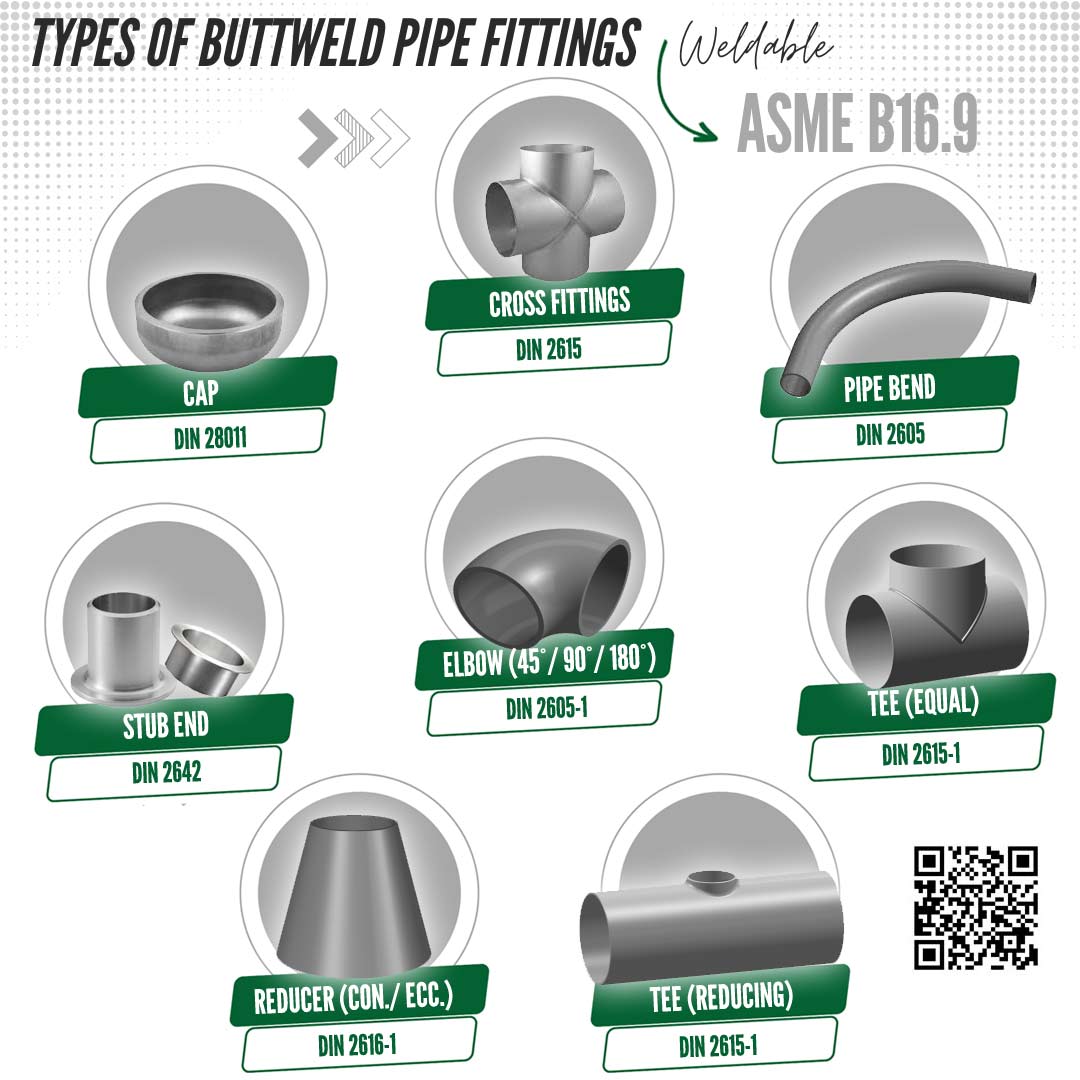

Types of Pipe Fittings

Pipe Fitting Type Max Size (in) Radius Degree Schedule & Wall Thickness DIN Standard ASME Standard
Elbow (90°) 48 Short (1D), Long (1.5D) 90° SCH 5, 10, 20, 40, 80, 160, XXS DIN 2605-1 ASME B16.9
Elbow (45°) 48 Short (1D), Long (1.5D) 45° SCH 5, 10, 20, 40, 80, 160, XXS DIN 2605-1 ASME B16.9
Elbow (180°) 48 Long (1.5D) 180° SCH 5, 10, 20, 40, 80, 160, XXS DIN 2605-1 ASME B16.9
Tee (Equal) 48 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2615-1 ASME B16.9
Tee (Reducing) 48 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2615-1 ASME B16.9
Reducer (Concentric) 48 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2616-1 ASME B16.9
Reducer (Eccentric) 48 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2616-1 ASME B16.9
Cap 48 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 28011 ASME B16.9
Stub End (Short) 24 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2642 ASME B16.9
Stub End (Long) 24 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2642 ASME B16.9
Cross Fittings 24 – – SCH 5, 10, 20, 40, 80, 160, XXS DIN 2615 ASME B16.9
Pipe Bend 48 3D, 5D, 6D, 10D Custom (0° to 180°) SCH 5, 10, 20, 40, 80, 160, XXS DIN 2605 ASME B16.9

Note: Above all types of Pipe Fittings are available with Shree Metal Syndicate, Mumbai. Find your sizes and get delivery from Ex-stock. The company can export buttweld fittings in Morocco, Saudi Arabia, Turkey, Malaysia, Singapore, Oman, Egypt, Qatar, Iraq, Algeria, Kuwait, Libya, Jordan, Lebanon, Syria, Tunisia, UAE, and Turkmenistan.

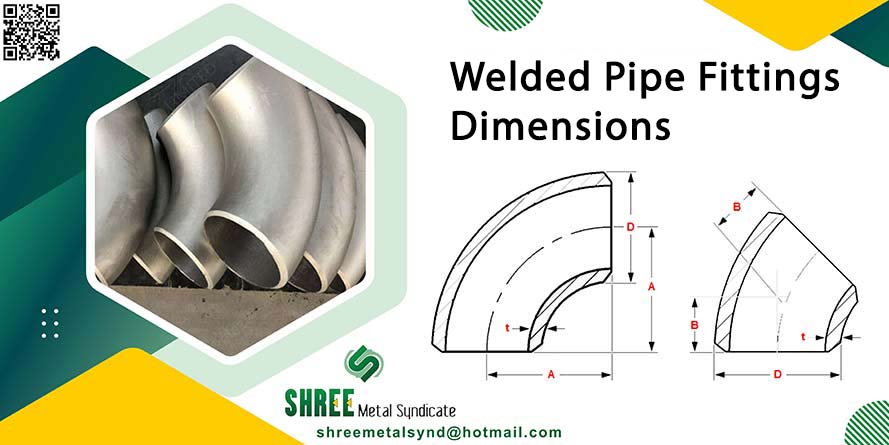

Welded Pipe Fittings Dimensions

Welded Pipe Fittings Dimensions

NPS O.D 45° 3D
B		 90° 3D
A		 90° LR
A		 45° LR
B
1/2 21.3     38 16
1 33.4 31 76 38 22
2 60.3 63 152 76 35
3 88.9 95 229 114 51
4 114.3 127 305 152 64
5 141.3 157 381 190 79
6 168.3 189 457 229 95
8 219.1 252 610 305 127
10 273 316 762 381 159
12 323.8 378 914 457 190
16 406.4 505 1219 610 254
18 457 568 1372 686 286
20 508 632 1524 762 318
24 610 757 1829 914 381
28 711 883 2134 1067 438
30 762 946 2286 1143 470
32 813 1010 2438 1219 502

304/L SS 45° Long Radius Weld Elbow Price List

  • Type = 45° Elbow, A403 WP304
Size Price In US$ (Dollar) per unit
15mm NB US $ 2.73
20mm NB US $ 3.82
25mm NB US $ 5.19
32mm NB US $ 4.72
50mm NB US $ 11.56
65mm NB US $ 13.10
80mm NB US $ 17.12
100mm NB US $ 28.06
125mm NB US $ 59.88
150mm NB US $ 92.80

Order Custom Sizes from genuine Pipe Fittings manufacturer in Mumbai, Contact Now Via Mail Or Live Chat

Supplier Of Dual Tested Pipe Elbows, Reducing Tee, Concentric And Ecentric Reducers From 1/8” To 4” NPS

SS 304 Reducing Tee Pipe Fitting Price

Size SCH Price In US$ (Dollar) per unit
1" x 1/2" 10S US $ 8.19
1.5" x 1/2" 10S US $ 13.80
1.5" x 3/4" 10S US $ 12.30
1.5" x 1"  10S US $ 18.64
2.5" x 1"  10S US $ 25.93
2.5" x 1.5" 10S US $ 25.95

Short Connection Length Calculation Formula For 45 Degree Elbow Fittings

Short connection length = height difference x 1.4142 ≤ 0.8284R, R = bending radius of elbow

Types of Elbow Pipe Fittings

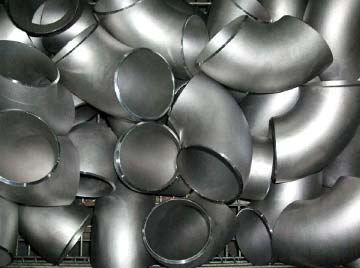

45 Deg EElbow

45 Deg Elbow

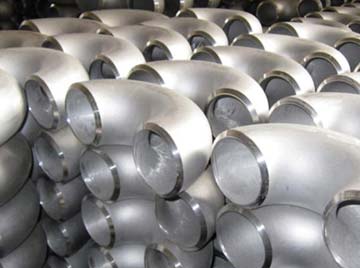

180 Deg Elbow

180 Deg Elbow

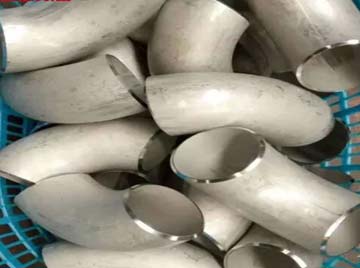

90 Deg Elbow

90 Deg Elbow

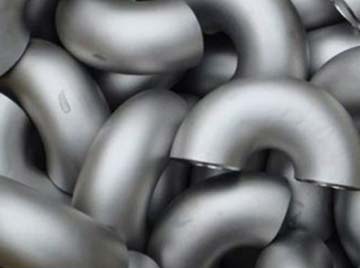

Short Radius Elbow

Short Radius Elbow

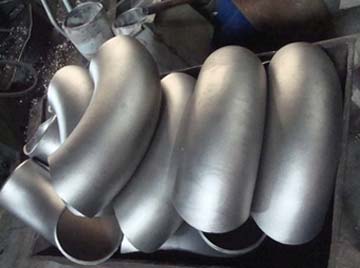

Long Radius Elbow

Long Radius Elbow

ASME B16.9 Pipe Fittings Pressure Types

Fittings Types Schedule Pressure Capacity
Pipe Bend SCH 40 To SCH 160 High pressure
End Cap SCH 40, STD, SCH 60 High pressure
Stub End SCH 40/ 80 High pressure and temperature
Tee All Schedule High pressure
Reducer SCH 20/ 40/ 60 High pressure level
Elbow All Schedule Low pressure

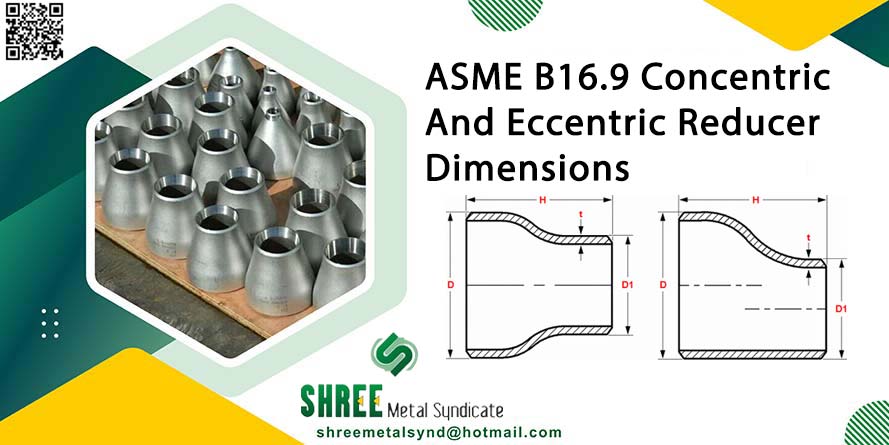

ASME B16.9 Concentric and Eccentric Reducer Dimensions

ASME B16.9 Concentric And Eccentric Reducer Dimensions

NPS Length
H		 O.D.
D		 O.D.
D1
1 – 1/2 51 33.4 21.3
1 – 3/4 51 33.4 26.7
2.1/2 – 1.1/4 89 73 42.2
2.1/2 – 1.1/2 89 73 48.3
2.1/2 – 2 89 73 60.3
3 – 2 89 88.9 60.3
3 – 2.1/2 89 88.9 73
3.1/2 – 1.1/4 102 101.6 42.2
4 – 1.1/2 102 114.3 48.3
4 – 2 102 114.3 60.3
5 – 2 127 141.3 60.3
5 – 2.1/2 127 141.3 73
5 – 3 127 141.3 88.9
6 – 2.1/2 140 168.3 73
6 – 3 140 168.3 88.9
6 – 4 140 168.3 114.3
6 – 5 140 168.3 141.3
8 – 3.1/2 152 219.1 101.6
8 – 4 152 219.1 114.3
8 – 5 152 219.1 141.3
8 – 6 152 219.1 168.3
10 – 4 178 273 114.3
12 – 6 203 323.9 168.3
12 – 8 203 323.9 219.1
14 – 12 330 355.6 323.9
16 – 8 356 406.4 219
16 – 10 356 406.4 273
16 – 12 356 406.4 323.9
16 – 14 356 406.4 355.6
18 – 16 381 457 406.4
20 – 12 508 508 323.9
22 – 20 508 559 508
24 – 16 508 610 406.4
24 – 18 508 610 457
24 – 20 508 610 508
24 – 22 508 610 559
26 – 18 610 660 457
28 – 24 610 711 610

Types of Reducer Pipe Fittings

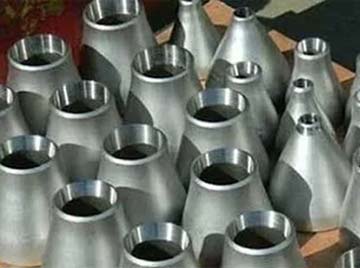

Concentric Reducer

Concentric Reducer

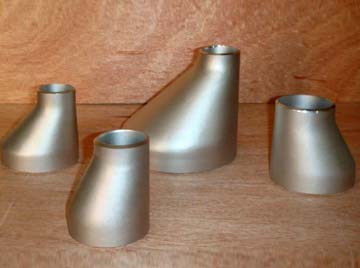

Eccentric Reducer

Eccentric Reducer

ASME B16.9 Elbow Weight

NPS Weight In KG
1/2 0.08
3/4 0.09
1 0.18
2 0.73
3 2.27
4 4.08
5 6.8
6 11.11
8 22.68
10 39.92
12 56.7
16 93.44
20 145.15
24 208.65
30 332.94

Types of Buttweld Tee Fittings

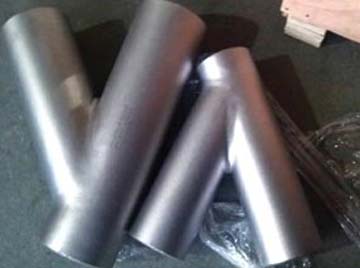

Lateral Tee

Lateral Tee

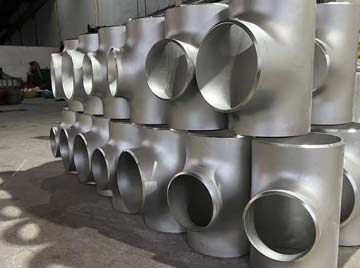

Reducing Tee

Reducing Tee

Equal Tee

Equal Tee

Weights of Butt Weld Tee Fittings

NPS LBS
1/2-3/8 0.25
1/2-1/4 0.25
1-3/4 0.93
1-1/2 0.88
1.1/4-1 1.5
1.1/4-3/4 1.5
2.1/2-2 6
2.1/2-1.1/2 5.5
2.1/2-1.1/4 5.25
2.1/2-1 5
3-2.1/2 6.75
3-2 6.5
3-1.1/2 6.25
3-1.1/4 6.15
3.1/2-3 8.8
3.1/2-2.1/2 8.5
3.1/2-2 8.3
3.1/2-1.1/2 8
3.1/2-1.1/4 –
4-3.1/2 11.8
4-3 11.6
5-4 21
5-3.1/2 20.5
6-5 34.5
6-4 33.5
10-6 83
10-5 81
10-4 80
12-10 119
12-8 117
12-6 114
12-5 110
14-12 160
14-10 158
14-8 155
14-6 115
16-14 194
16-12 191
16-10 186
16-8 180
16-6 173
20-18 340
22-18 410
22-16 408
22-14 406
24-16 516
24-14 513

Stainless Steel Pipe Fittings Chemical Composition

Grade SS Buttweld Pipe Fititngs
ASTM Standard		 C (%) Mn (%) Si (%) P (%) S (%) Cr (%) Ni (%) Mo (%) N (%) Other Elements
301 A403 ≤ 0.15 ≤ 2.00 ≤ 0.75 ≤ 0.045 ≤ 0.030 16.00-18.00 6.00-8.00 – – –
302 A403 ≤ 0.15 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 17.00-19.00 8.00-10.00 – – –
303 A403 ≤ 0.15 ≤ 2.00 ≤ 1.00 ≤ 0.20 ≤ 0.015 17.00-19.00 8.00-10.00 – – –
304 A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 18.00-20.00 8.00-10.50 – – –
304L A403 ≤ 0.03 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 18.00-20.00 8.00-12.00 – – –
305 A403 ≤ 0.12 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 17.00-19.00 10.50-13.00 – – –
308 A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 19.00-21.00 9.00-11.00 – – –
309 A403 ≤ 0.20 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 22.00-24.00 12.00-15.00 – – –
310 A403 ≤ 0.25 ≤ 2.00 ≤ 1.50 ≤ 0.045 ≤ 0.030 24.00-26.00 19.00-22.00 – – –
316 A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 16.00-18.00 10.00-14.00 2.00-3.00 – –
316L A403 ≤ 0.03 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 16.00-18.00 10.00-14.00 2.00-3.00 – –
316Ti A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 16.00-18.00 10.00-14.00 2.00-3.00 – Ti: 5(C+N)% to 0.70%
317 A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 18.00-20.00 11.00-15.00 3.00-4.00 – –
317L A403 ≤ 0.03 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 18.00-20.00 11.00-15.00 3.00-4.00 – –
321 A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 17.00-19.00 9.00-12.00 – ≤ 0.10 Ti: 5(C+N)% to 0.70%
321H A403 0.04-0.10 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 17.00-19.00 9.00-12.00 – ≤ 0.10 Ti: 4(C+N)% to 0.10%
347 A403 ≤ 0.08 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 17.00-19.00 9.00-13.00 – ≤ 0.10 Nb: 10(C+N)% to 1.00%
347H A403 0.04-0.10 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.030 17.00-19.00 9.00-13.00 – ≤ 0.10 Nb: 8(C+N)% to 1.00%
904L A403 ≤ 0.02 ≤ 2.00 ≤ 1.00 ≤ 0.045 ≤ 0.035 19.00-23.00 23.00-28.00 4.00-5.00 ≤ 0.10 Cu: 1.00-2.00%

Tee Pipe Fitting Uses and Advantages

  • Pipe Tee Fitting: Combines or divides fluid flow.
  • Function: Splits a single pipe into two or combines two pipes into one.
  • Connection: Joins three pipes at right angles.
  • Application: Changes pipe direction.

Corrosion Allowance Welded Pipe Fittings

Corrosion allowance MM
Aluminium 0.5
Copper-nickel alloys 0.5
Brass 0.8
Copper 0.8
Nickel alloy 0.075
Alloy Steel 1.5
Carbon Steel 1.5
Stainless Steel 0.8

SS Seamless Fittings Testing Requirements

Approved Vendor in YANBU and Renowned Supplier of Pipe Fittings in Saudi Arabia
  • Proof Testing
  • Tensile Test
  • PMI Test
  • Burst Testing
  • Radiography Test
  • Impact Testing
  • Hardness Test
  • Magnetic Particle Test
  • Liquid Penetrant Test

Inspection Test of Seamless Pipe Fittings

Material Of Pipe Fitting Schedule Inspection Grade Size
Low alloy Fittings ≥80 B ≤10"
SS and Low alloy Fittings <80 B >10"
Stainless Steel Pipe Fittings <80 C ≤10"
CS Fittings ≥80 B >10"
Carbon Steel Weld Fittings ≥80 C ≤10"
ASTM A234 WPB Pipe Fittings <80 C >10"
Carbon Steel Pipe Fittings <80 D ≤10"

Why Petrochemical companies in Saudi Arabia prefer ARAMCO approved Pipe Fittings?

Why Petrochemical Companies In Saudi Arabia Prefer ARAMCO Approved Pipe Fittings

Long Radius Elbow Fitting Price List

LR & SR Elbows Price List for India

  • Type = 45° Elbow, Buttweld, Grade 304/L
Size SCH Price In US$ (Dollar) per unit
1/2" 40S  US $ 4.60
3/4" 40S  US $ 5.72
1" 40S  US $ 8.69
1-1/4" 40S  US $ 11.64
1-1/2" 40S  US $ 12.00
2"  40S  US $ 14.09
2-1/2" 40S  US $ 29.64
3"  40S US $ 37.13
4" 40S US $ 79.20
5"  40S US $ 102.00
6"  40S US $ 188.84
8" 40S US $ 325.01

Short Radius Elbow Fitting Price

  • Type = 90° Elbow, Buttweld, Grade 304/L
Size SCH Price In US$ (Dollar) per unit
1"  40S  US $ 6.55
1-1/4" 40S  US $ 19.85
1-1/2"  40S  US $ 15.00
2"  40S  US $ 32.83
2-1/2" 40S  US $ 37.81
3"  40S  US $ 41.30
4"  40S  US $ 76.05
5"  40S US $ 178.16
6" 40S US $ 269.10
8 " 40S US $ 613.21
10" 40S US $ 978.60

Compare Their Response Time and Price with other pipe fittings manufacturers and stockists.

Which Aspects Should Consider When Purchasing an A403 WP304 Large Radius Elbow?

  • Wall thickness
  • Standards
  • Material Marking
  • Manufacturer name on the fitting
  • Age of material
  • Bevel
  • Radius (long & short)
  • Size
  • Angle – 45/ 90/ 180 degree
  • Operating at temperatures up to 870°C

Head Office of Shree Metal Syndicate, Mumbai

Shree Metal Syndicate Mumbai Office
Shree Metal Syndicate Mumbai Office
Shree Metal Syndicate Mumbai Office

Types of Elbow Pipe Fittings

  • Short radius elbow
  • 180-degree elbow
  • 90-degree elbow
  • Long radius elbow
  • 45-degree elbow

Directly send your drawing to this Pipe Fittings manufacturers in Mumbai (India) to get lowest quote quickly.

List Of Countries Where This Supplier Have Good Supplying Network

Export to Price variations and estimated delivery
Kazakhstan  5 % extra | 45 to 60 days
Algeria  5 % extra | 15 days
Bhutan  5 % extra | 7 days
Syria  5 % extra | 12 days
Vietnam  5 % extra | 10 days
Cambodia  5 % extra | 9 days
Thailand  5 % extra | 7 days
Morocco  5 % extra | 15 days
Australia  5 % extra | 21 days
Kenya  5 % extra | 19 days
Lebanon  5 % extra | 6 days
Turkmenistan  5 % extra | 7 days

HS Code For Elbow Pipe Fittings

  • HS Code 7307

Company Profile

Nature of Business Manufacturer, Exporter
Import Export Code (IEC) 0303084642
Legal Status of firm Proprietor
GST No. 27AFHPS7554K1Zq

Contact Info

Contact Person Mr. Pradip B Shah
Phone +91 9820141156
Email shreemetalsynd@hotmail.com
Mumbai Head Office Shree Metal Syndicate
12/14a, Munshi Bhawan Building, Islampura Street, Ground Floor, Near Moti Talkies Cinema, Mumbai – 400004, Maharashtra, India

shreemetalsynd@hotmail.com

⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
Quote in 2 Hrs ‹
⚡ B2B FAST TRACK Quote in 2 Hours, Guaranteed Trusted B2B piping partner
📧 Your Email 📱 Your WhatsApp No. 🔍 What are you looking for? — choose how to reach you —
🛡️ Free quote · No commitment
iry
