Gautam Tubes

Home > Listings > Gautam Tubes

Puddle Flange Manufacturer in India

Mumbai, India

Gautam Tubes

Year of establishment

1984

Total export experience (in Years)

Nature of Business

Manufacturer

Third Party Inspection

Yes

Custom Sizes

Yes

Custom Packaging

Yes

MTC Report

Yes

Major clients in the Middle East

N/A

Puddle Flange Specification

Size	1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings	Class 150 Class 300 Class 400 Class 600 Class 900 Class1500 Class 2500
Face Type	Flate Face (FF) Raised Face (RF) Ring Type Joint (RTJ)
Form	SORF Reducing WNRF Spectacle SWRF BLRF LAP Joint Threaded
Production	Forging Casting Cutting Rolling
JIS Standards	40K 5K 30K 20K 10K 16K 63K
Test Certificates	Impact test NACE MR0175 PMI ISO 15156 MTC EN 10204 type 3.1 Hardness test Tensile test
Thickness	100 – 200mm
Appliations	Building Foundations Wet Rooms and Bathrooms Plumbing Systems Industrial Applications Infrastructure
Coating	Anti-rust Paint Zinc Plated Oil Black Paint Cold and Hot Dip Galvanized
Test Report	DP Test PT Test Hydro Test Radiography Test Welding RT & NDT DPI Test LPI Test Welding DP Test
Export to	Saudi Arabia Thailand Korea Oman Dubai

Who they are ?

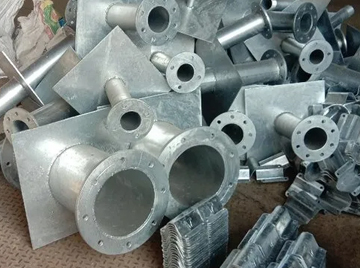

Puddle Flange Manufacturer in India

Supplier of Mild Steel Puddle Flange Pipe Sleeve in Mumbai

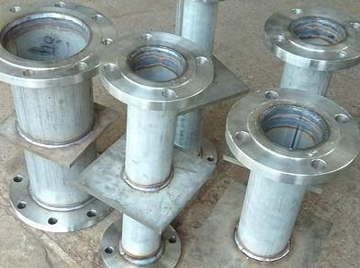

Stockist of Gi Puddle Flange Price List India

Manufacturer of Mild Steel puddle flange pipe sleeve in Mumbai

Puddle Flange Size Chart

Have questions about Puddle Flange? No problem, get in touch with the manufacturer.

Pipe Size (mm)	Flange Diameter (mm)	Flange Thickness (mm)	Pipe Hole Diameter (mm)	Bolt Hole Diameter (mm)	Number of Bolt Holes	Bolt Circle Diameter (mm)
150	250	12	150	20	8	200
300	400	15	300	30	8	350
50	150	10	50	16	4	100
200	300	15	200	25	8	250
250	350	15	250	25	8	300
100	200	12	100	20	8	150
400	500	20	400	30	12	450
500	600	20	500	36	12	550

Puddle Flange vs Thrust Flange

Not sure which flange is superior. Speak with the supplier and stockist to learn more about puddle or thrust flanges.

Properties	Puddle Flange	Thrust Flange
Material	Varied	Heavy-duty
Installation Location	Penetrations	Pipes
Applications	Waterproofing	Pressure
Primary Purpose	Sealing	Support
Design	Annular	Flat
Function	Barrier	Stabilization
Design Considerations	Seal	Strength
Typical Components	Gasket	Anchor
Maintenance	Inspection	Support

Check GI Puddle Flange Price List Ex Mumbai

Price List of Puddle Flange

Size	Price in US
25MM	US $ 30.85
50MM	US $ 371.56
80MM	US $ 100.42
100MM	US $ 143.45
150MM	US $ 265.40
300MM	US $ 572.40

1/2″ to 24″ Galvanised Puddle Flange and Carbon Steel Puddle Flanges for Heavy Construction Projects

Weight Chart of Puddle Flange

Gautam Tubes is a largest manufacturer of Puddle Flange.

NPS	OD	Sch 20	Sch 80	Sch 30	Sch 40	Sch 60	Sch 10	Sch 100	Sch 160	Sch 120
10”	10.750	10.250	9.562	10.136	10.020	9.750	10.420	9.312	8.500	9.062
1/2”	0.840	–	0.546	–	0.622	–	0.674	–	0.464	–
3/4”	1.050	–	0.742	–	0.824	–	0.884	–	0.612	–
12”	12.750	12.250	11.374	12.090	11.938	11.626	12.390	11.062	10.126	10.750
1”	1.315	–	0.957	–	1.049	–	1.097	–	0.815	–
1.1/4”	1.660	–	1.278	–	1.380	–	1.442	–	1.160	–
14”	14.000	13.376	12.500	13.250	13.124	12.812	13.500	12.124	11.188	11.814
1.1/2”	1.900	–	1.500	–	1.610	–	1.682	–	1.338	–
2”	2.375	–	1.939	–	2.067	–	2.157	–	1.687	–
16”	16.000	15.376	14.312	15.250	15.000	14.688	15.500	13.938	12.812	13.564
2.1/2”	2.875	–	2.323	–	2.469	–	2.635	–	2.125	–
3”	3.500	–	2.900	–	3.068	–	3.260	–	2.624	–
18”	18.000	17.376	16.124	17.124	16.876	16.500	17.500	15.688	14.438	15.250
3-1/2”	4.000	–	3.364	–	3.548	–	3.760	–	–	–
4”	4.500	–	3.826	–	4.026	–	4.260	–	3.438	3.624
20”	20.000	19.250	17.938	19.000	18.812	18.376	19.500	17.438	16.062	17.000
5”	5.563	–	4.813	–	5.047	–	5.295	–	4.313	4.563
8”	8.625	8.125	7.625	8.071	7.981	7.813	8.329	7.437	6.813	7.187
24”	24.000	23.250	21.562	22.876	22.624	22.062	23.500	20.938	19.312	20.376

HDPE coated GI Puddle Flange for Water Tanks at Distributors price in India

Puddle Flange Coatings

Supplier of Non Corrosive Stainless Steel Puddle Flanges in custom sizes

Pressure Rating of Puddle Flange

Temperature (F°)	150LB	2500LB	600LB	300LB	900LB	400LB	1500LB
200	260	5655	1360	680	2035	905	3395
750	95	4230	1015	505	1520	675	2535
500	170	5025	1205	605	1810	805	3015
400	200	5280	1265	635	1900	845	3170
300	230	5450	1310	655	1965	870	3270
650	125	4575	1100	550	1650	730	2745
600	140	4730	1135	570	1705	755	2840
850	65	2655	640	320	955	425	1595
900	50	1915	460	230	690	305	1150
950	35	1145	275	135	410	185	685
800	80	3430	825	410	1235	550	2055
700	110	4425	1060	530	1590	710	2655
1000	20	715	170	85	255	115	430

Why Puddle flanges is known is leak control flange or water stop flange?

Puddle flanges, also known as water stop flanges or leak control flanges, As they are specialized components used to prevent leaks and control the flow of water where pipes or other penetrations pass through walls, floors, or other barriers.

Name	Description	Primary Function
Puddle Flange	A specialized flange used to seal pipe penetrations through walls or floors.	Prevents leaks and controls water flow at penetration points.
Leak Control Flange	Focuses on managing and preventing leaks around pipes.	Ensures a watertight seal to avoid leaks.
Water Stop Flange	Emphasizes stopping or controlling water flow.	Acts as a barrier to prevent water seepage.

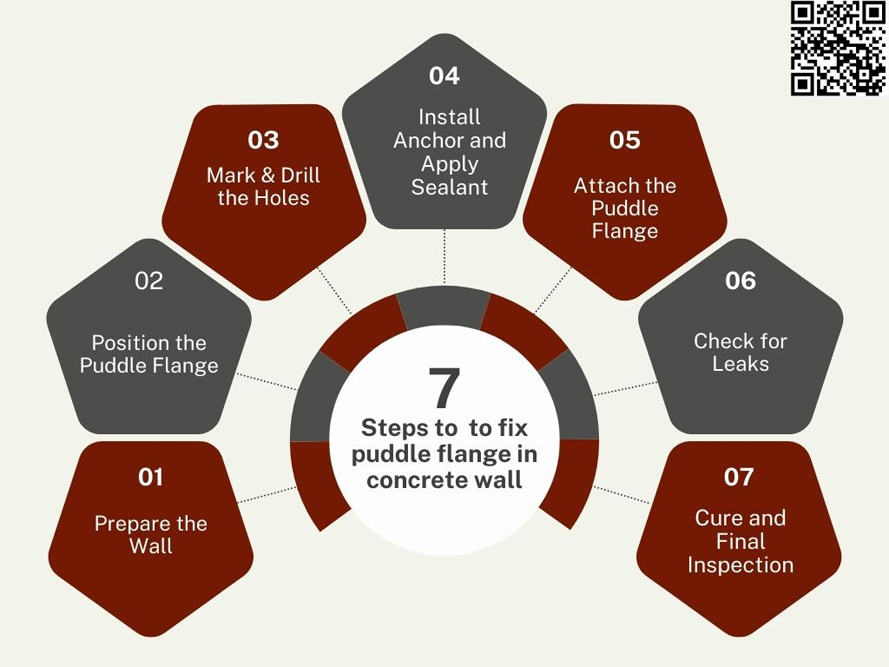

How to fix puddle flange in concrete wall?

Way To Apply Puddle Flange

Company Profile

Nature of Business	Manufacturer
Import Export Code (IEC)	0316955311
Legal Status of firm	Partnership
GST No.	27AAAFG5133G1ZQ

Contact Info

Contact Person	Mr. Vicky Bhansali
Phone	+91 9594663243
Email	inquiry@gautamtubes.com
Address	84, Kothari Bhavan, 1st Floor, Ardeshir Dady Street, Mumbai – 400004, India

inquiry@gautamtubes.com
