Long Radius Elbow
Long Radius Elbow Product Overview
| Size in Ready Stock | 1/2″ to 48″ | DN15 to DN1200 |
|---|---|
| Standard | ANSI B16.9, DIN2605, EN10253-2, DIN2615, ANSI B16.28, MSS-SP-43 |
| Approvals | ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, RINA, KPI |
| Ends Method | Plain, Compound Bevel & Bevelled |
| Forming Technique | Welding, Cutting, Bending |
| Test Certificates |
|
| Manufacturing Process | Forged, Machined, Hot & Cold Formed |
| Raw Material Origin | European, Japanese, German, Korean, Indian, American, Europe, USA, Canada, South Korea, UK, Germany, Russia, North America, Japan, South Africa |
| Shipping Time | Rotterdam : 20 Days | Andorra : 24 – 28 Days | Philippines : 18 – 22 Days |
| MTC | EN 10204/3.1B |
| Bending Methods | Rotary Draw Bending, Ram-Type Bending |
Why Buy Piping Materials From Pipingmaterial.ae?
Explore Middle East FZE’s 26-Year Journey in the Piping and Steel Trade is the Backbone of Pipingmaterial.ae, Ensuring Every Buyer Gets Access to Verified Suppliers and Authentic Product Information.
- Saves 20% Cost
- MENA Coverage
- Direct Delivery
- Buyer Seller Connect
- Weight Calculators
90 Degree Long Radius Elbow & 45 Degree LR Elbow Suppliers in UAE
Specification of Long Radius Elbow
Sizes: Seamless (1/2″ – 10″) | Welded (1/2″ – 48″)
Bevel: Approx. 37.5 degrees for Butt Welding Connections
Configuration Types: 1D, 2D, 3D, 5D Radius
SOUR Service Certification: NACE MR 01-75 / ISO 15156
Country of Origin: Netherlands, India, USA, Japan, Europe and Korea
Testing Methods: HIC Testing, Ultrasonic Testing, PMI Testing, NDT Testing
European Standard: EN10253-1, EN10253-2
Schedule: SCH 5 – SCH 160
Machinery: Beveling Machine, Cold Forging, CNC Length
Packaging Method: Wooden Box, Bubble Wraps
Value Added Services: Polishing, Casting, Threading, Cutting
Method: Welded, Buttweld, Seamless
Buy Directly From Long Radius Elbow Suppliers in UAE With Complete Data Sheet
100% Tested ASME B16.9 Long Radius Elbow with MTC EN 10204/3.1, ISO 10474
Long Radius Grooved Elbow Stock For Immediate Dispatch
Get ADNOC Approved Long Radius Elbow Suppliers in UAE offering extensive ready stock

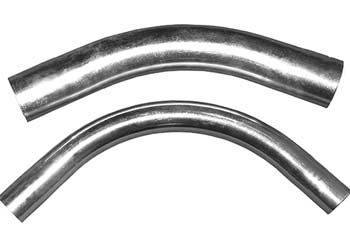

ASTM A403 WP304 Stainless Steel Long Radius Elbow
- Radius of Curvature: 1D-10D
- Connectivity: Fusion

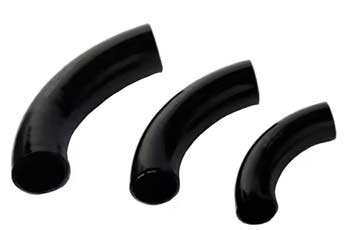

ASTM A234 WPB Carbon Steel Long Radius Elbow
- Fluid Compatibility: Water, Crude Oil, Hydrogen Sulfide, Mud
- Operating Temperature: -29°C to 121°C

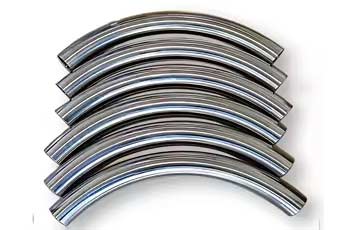

316 Stainless Steel Long 90 Degree Elbow
- Degree: 30, 45, 60, 90, 180
- Marking: Grade, Size

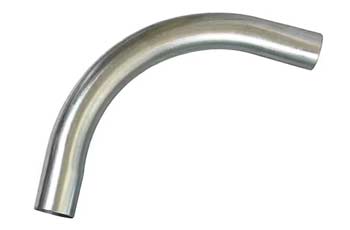

304 Stainless Steel Long Radius Grooved Elbow
- Pipe Class: 3000
- Mounting Hole Diameter: 0.25 in

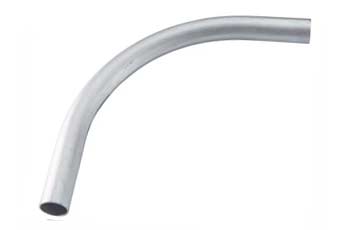

A420 WPL6 Aluminum Long Radius Elbow
- Surface Treatment: Mirror Polished, Shot blasted
- Customized Support: OEM

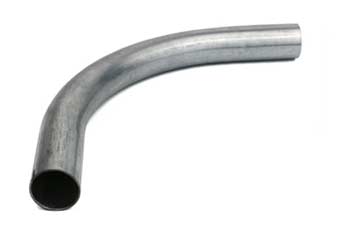

ASTM A 815 UNS S32205 Ductile Iron Long Radius Elbow
- Thread Types: NPT, BSPT
- Head Code: Round

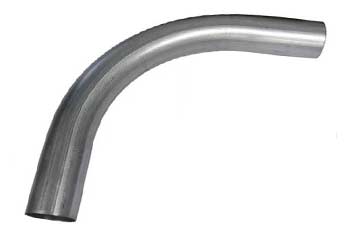

Duplex Steel UNS S31803 Long Radius Reducing Elbow
- Oiled Type: Non-oiled
- End Protector: Plastic Pipe Cap

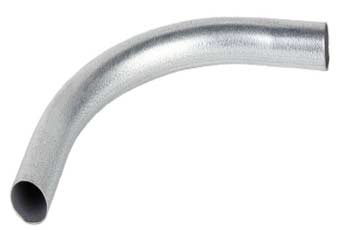

ASTM A403 UNS S31254 Long Radius Galvanized Elbow
- Processing Service: Cutting
- Pressure: 1.25 MPa – 1.6 MPa

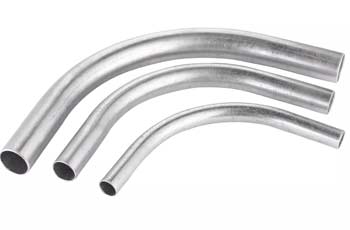

Super Duplex UNS S32760 Ductile Iron Long Radius Elbow
- Certificate: ISO 9001
- Degree: 90°

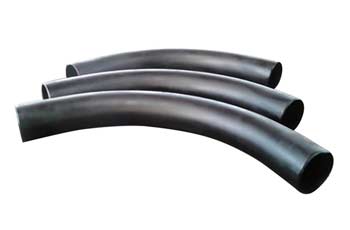

UNS S32750 Carbon Steel Long Radius Elbow
- Color: Black
- Medium: Water, Gas

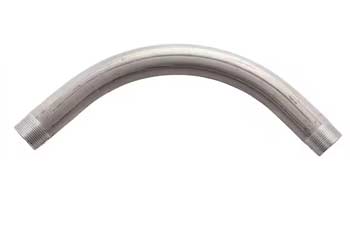

Inconel 625 SCH 10 Long Radius Elbow
- Forming Techniques: Extrusion, Hydraulic Bulge Forming
- Section Shape: Round

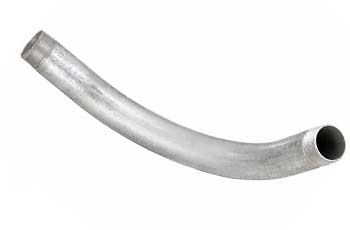

Hastelloy C276 Long 90 Degree Elbow
- Quality: High Quality
- Design Style: Contemporary

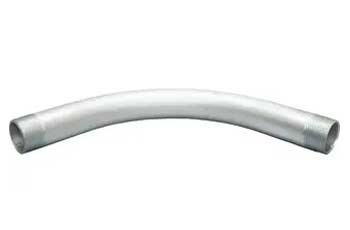

Monel 400 Long Radius Grooved Elbow
- Technique: Hot Pushing
- Diameter: 1.5D

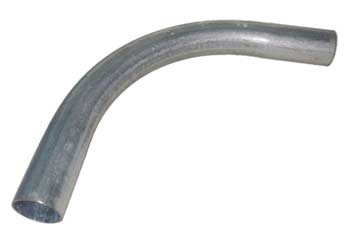

ASTM B366 UNS N10276 Aluminum Long Radius Elbow
- Machinery Test Report: Provided
- Usage: Jointing Pipe Lines

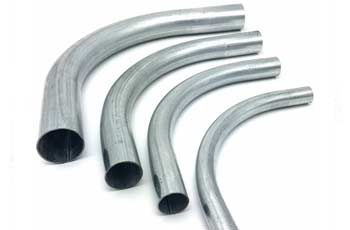

ASTM B366 UNS N06625 Stainless Steel Long Radius Elbow
- Coating: Black paint, Varnished
- End: BW, Bevel end, Plain end

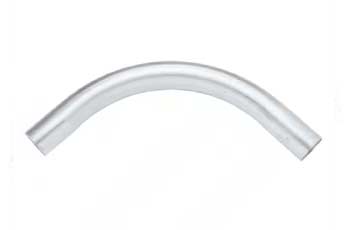

ASTM B366 UNS N04400 SCH 10 Long Radius Elbow
- Plastic Modling Type: Extruding
- Workmanship: Casting
Stainless Steel Long Radius Elbow Available in 45/ 90/ 180 Degree At Low Prices in Dubai
Pressure Ratings of SCH 10 Long Radius Elbow
Get Long Radius Elbow Suppliers in UAE providing precise pressure ratings
| NPS (inches) | OD (inch) | Wall Thick. (inch) | Pipe Sch | Temperature (°F) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
| Allowable Stress (psi) | ||||||||||||
| 16700 | 16700 | 15500 | 16700 | 13500 | 14400 | 12900 | 13200 | 12600 | ||||
| 1″ | 1.315 | 0.133 | 40 | 2205 | 2205 | 2047 | 2205 | 1783 | 1902 | 1703 | 1743 | 1664 |
| 4″ | 4.500 | 0.237 | 40 | 1102 | 1102 | 1023 | 1102 | 891 | 950 | 851 | 871 | 831 |
| 6″ | 6.625 | 0.280 | 40 | 877 | 877 | 814 | 877 | 709 | 756 | 677 | 693 | 661 |
| 2″ | 2.375 | 0.154 | 40 | 1371 | 1371 | 1272 | 1371 | 1108 | 1182 | 1059 | 1083 | 1034 |
| 5″ | 5.563 | 0.258 | 40 | 965 | 965 | 896 | 965 | 780 | 832 | 746 | 763 | 728 |
| 1 1/2″ | 1.900 | 0.145 | 40 | 1629 | 1629 | 1512 | 1629 | 1317 | 1404 | 1258 | 1287 | 1229 |
| 8″ | 8.625 | 0.322 | 40 | 771 | 771 | 716 | 771 | 623 | 665 | 596 | 610 | 582 |
| 10″ | 10.750 | 0.365 | 40 | 699 | 699 | 649 | 699 | 565 | 603 | 540 | 553 | 528 |
Angularity Tolerances of Long 90 Degree Elbow
| Angularity Tolerances | ||
|---|---|---|
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 26 a 30 | 5 | 10 |
| 10 a 12 | 3 | 5 |
| 18 a 24 | 4 | 10 |
| 5 a 8 | 2 | 4 |
| 14 a 16 | 3 | 7 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Storage Sites of Partner Suppliers
| Country | Cities |
|---|---|
| Netherlands | Haarlem, Amsterdam, The Hague, Rotterdam, Eindhoven |
| Belgium | Antwerp, Brussels, Seraing, Westerlo Ghent, Meeuwen-Gruitrode, Leuven |
Various Types of Long Radius Elbow
Check SABIC Approved Long Radius Elbow Suppliers in UAE providing assorted types
Reducing Long Radius Elbow
2 inch Long Radius Elbow
Extra Long Radius Elbow
3 inch Long Radius Elbow
SCH 80 Long Radius Elbow
Welded Long Radius Elbow
Get Connected with Genuine Carbon Steel Long Radius Elbow Manufacturers in Dubai, Buy LR Elbow in All Sizes (1/2 to 48 Inches) With Welded/ Seamless Condition
Schedule Chart of Aluminum Long Radius Elbow
| Nominal pipe size in | SCH 20 | SCH 10 | SCH 30 | SCH XS | SCH | SCH 40 | SCH | SCH 60 | SCH | SCH 80 | SCH | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 140 | XXS | 160 | 120 | |||||||||||||||||||
| wall thk. | weight | wall thk. | weight | wall thk. weight | wall thk. | weight | wall thk. | weight | wall thk. | weight | wall thk. | weight | wall thk. | weight | wall thk. | weight | wall thk. | weight | wall thk. | weight | ||
| mm | kg | mm | kg | mm kg | mm | kg | mm | kg | mm | kg | mm | kg | mm | kg | mm | kg | mm | kg | mm | kg | ||
| T | T | T | T | T | T | T | T | T | T | T | ||||||||||||
| 1″ | – | – | – | – | – | – | 4.55 | 0.19 | – | – | 3.38 | 0.15 | 9.09 | 0.34 | – | – | 6.35 | 0.27 | 4.55 | 0.19 | – | – |
| 2″ | – | – | – | – | – | – | 5.54 | 0.91 | – | – | 3.91 | 0.68 | 11.07 | 1.68 | – | – | 8.74 | 1.4 | 5.54 | 0.91 | – | – |
| 3/4″ | – | – | – | – | – | – | 3.91 | 0.09 | – | – | 2.87 | 0.07 | 7.82 | 0.18 | – | – | 5.56 | 0.15 | 3.91 | 0.09 | – | – |
| 12″ | 6.35 | – | – | – | 8.38 | 49.12 | 12.7 | 71.2 | 28.58 | 156.82 | 10.31 | 60.07 | 25.4 | 140.57 | 14.27 | – | 33.32 | 179.9 | 17.48 | 99.36 | 25.4 | 140.87 |
| 3″ | – | – | – | – | – | – | 7.62 | 2.78 | – | – | 5.49 | 2.08 | 15.24 | 5.17 | – | – | 11.13 | 4.02 | 7.62 | 2.78 | – | – |
| 10″ | 6.35 | – | – | – | 7.8 | 32.04 | 12.7 | 49.4 | 25.4 | 97.41 | 9.27 | 37 | 25.4 | 97.41 | 12.7 | – | 28.58 | 108.19 | 15.09 | 60.31 | 21.44 | 83.54 |
| 4″ | – | – | – | – | – | – | 8.56 | 5.4 | – | – | 6.02 | 3.95 | 17.12 | 10.3 | – | 13.49 | 8.42 | 8.56 | 5.4 | 11.13 | 7.11 | |
| 18″ | 9.53 | 99.2 | 6.35 | 79.82 | 11.13 | 138.29 | 12.7 | 153.3 | 39.67 | 461.77 | 14.27 | 176.31 | – | – | 19.05 | – | 45.24 | 519.59 | 23.83 | 287.57 | 34.93 | 411.21 |
| 24″ | 12.7 | 207.7 | 6.35 | 142.4 | 14.27 | 315.36 | 12.7 | 274.9 | 52.37 | 1101.62 | 17.48 | 384.1 | – | – | 24.61 | – | 59.54 | 1251.54 | 30.96 | 664.71 | 46.02 | 964.1 |
| 30″ | 12.7 | 451.3 | 7.92 | 277.51 | 15.88 | 550.2 | 12.7 | 452.3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
Common Mistakes to Avoid in Long Radius Grooved Elbow
- Misuse of Tools
- Neglecting Leakages
- Contact Tightening of Fittings
- Metal Mixing
- Missed Inspections
Center Chart of Ductile Iron Long Radius Elbow
| NPS (Inches) | Outside Diameter (mm) | Center to End (A) (mm) |
|---|---|---|
| 1/2 | 21.3 | 38 |
| 1 | 33.4 | 38 |
| 1 1/2 | 48.3 | 57 |
| 10 | 273.0 | 381 |
| 2 1/2 | 73.0 | 95 |
| 3 | 88.9 | 114 |
| 5 | 141.3 | 190 |
| 20 | 508.0 | 762 |
| 1 1/4 | 42.2 | 48 |
| 6 | 168.3 | 229 |
| 8 | 219.1 | 305 |
| 12 | 323.9 | 457 |
| 3 1/2 | 101.6 | 133 |
| 4 | 114.3 | 152 |
| 3/4 | 26.7 | 38 |
| 14 | 355.6 | 533 |
| 16 | 406.4 | 610 |
| 2 | 60.3 | 76 |
| 18 | 457.2 | 686 |
| 24 | 609.6 | 914 |
Check ANSI/ ASME B16.9 Long Radius Elbow Dimensions and Elbow 90 LR Sch 40 Weight Chart in Schedule 20 to 180

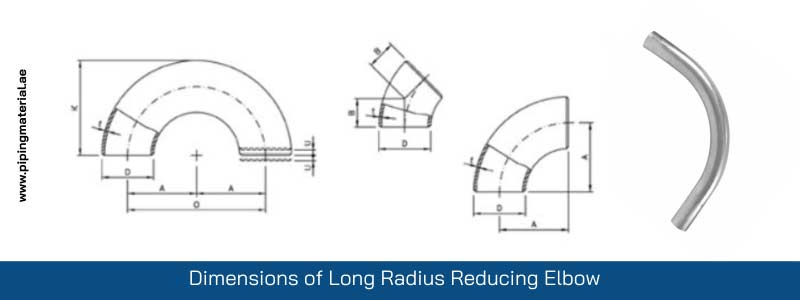

Dimensions of Long Radius Reducing Elbow
| Long Radius Reducing Elbow Dimensions | ||||||
|---|---|---|---|---|---|---|
| inches | ND | mm | Center to Center | Radius | Center to End | Back to Face |
| D | O | A | B | K | ||
| 1/2 | 15 | 21,34 | 76,20 | 38,10 | 15,87 | 47,62 |
| 3/4 | 20 | 26,67 | 57,15 | 28,57 | 11,11 | 42,86 |
| 1 | 25 | 33,40 | 76,20 | 38,10 | 22,22 | 55,56 |
| 1 1/4 | 32 | 42,16 | 95,25 | 47,60 | 25,40 | 69,85 |
| 16 | 400 | 406,40 | 1219,20 | 609,60 | 254,00 | 812,80 |
| 2 | 50 | 60,32 | 152,40 | 76,20 | 34,92 | 106,40 |
| 3 | 80 | 88,90 | 228,60 | 114,30 | 50,80 | 158,75 |
| 3 1/2 | 90 | 101,60 | 266,70 | 133,35 | 57,15 | 184,15 |
| 14 | 350 | 355,60 | 1066,80 | 533,40 | 222,25 | 711,20 |
| 22 | 550 | 558,80 | 1676,40 | 838,20 | 342,90 | 1117,60 |
| 4 | 100 | 114,30 | 304,80 | 152,40 | 63,50 | 209,55 |
| 5 | 125 | 141,30 | 381,00 | 190,50 | 79,38 | 261,90 |
| 6 | 150 | 168,27 | 457,20 | 228,60 | 95,25 | 312,70 |
| 2 1/2 | 65 | 73,02 | 190,50 | 95,25 | 44,45 | 131,80 |
| 8 | 200 | 219,07 | 609,60 | 304,80 | 127,00 | 414,30 |
| 24 | 600 | 609,60 | 1828,80 | 914,40 | 381,00 | 1219,20 |
| 10 | 250 | 273,05 | 762,00 | 381,00 | 158,75 | 517,50 |
| 1 1/2 | 40 | 48,26 | 114,30 | 57,15 | 28,57 | 82,55 |
| 18 | 450 | 457,20 | 1371,60 | 685,80 | 285,74 | 914,40 |
| 20 | 500 | 508,00 | 1524,00 | 762,00 | 317,50 | 1016,00 |
| 12 | 300 | 323,85 | 914,40 | 457,20 | 190,50 | 619,10 |
| 28 | 700 | 711,20 | 2133,60 | 1066,80 | 441,90 | 1422,40 |
Weight Chart of Carbon Steel Long Radius Elbow
| WEIGHTS OF FITTINGS | ||||||||
|---|---|---|---|---|---|---|---|---|
| NPS inches | ELBOWS LR 90° | |||||||
| SCH. 5S |
SCH. 10S |
SCH. 40S |
SCH. 80S |
|||||
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | ||||
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | ||||
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | ||||
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | ||||
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | ||||
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | ||||
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | ||||
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | ||||
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | ||||
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | ||||
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | ||||
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | ||||
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | ||||
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | ||||
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | ||||
| 16 | 41.3 | 47.0 | 95.0 | 125 | ||||
| 18 | 51.8 | 59.0 | 120 | 158 | ||||
| 20 | 73.0 | 85.0 | 146 | 194 | ||||
| 24 | 122 | 140 | 210 | 282 | ||||
Maintenance Tips For Aluminum Long Radius Elbow
- Regular Appearance Inspection
- Gentle Cleansing
- Control Fluid Parameters
- Proper Storage
Applications of Long 90 Degree Elbow
Why Don’t You Directly Contact A Long Radius Pipe Elbow Importer? Offer An Extensive Range of Extra Long Radius Elbows in Middle East Countries, Free Samples Before Dispatch of Complete Order
Long Radius Elbow Manufacturers in UAE Explore Nearby Locations For Quickest Delivery Options
| Middle East | Jordan, Beirut, Doha, Muscat, Fujairah, Manama, Abu Dhabi, Dammam, SCZone, Syria, Turkey, Jeddah, Yemen, Al Jubail, Jebel Ali, Saudi Arabia, Dubai, Lusail, Sohar, Lebanon, Amman, Ajman, Umm Al Quwain, Ras Al Khaimah, Riyadh, Al Khobar, Sharjah, Iraq |
|---|---|
| Asia | Singapore, Taiwan, Thailand, Myanmar Vietnam, Malaysia, Laos, Mongolia, Brunei, Indonesia, Cambodia, Philippines |
| Europe | Andorra, Italy, Georgia, Azerbaijan, Armenia, Netherlands, France, Germany, Belgium |
Long Radius Galvanized Elbow HSN Code
| Product | HSN Code |
|---|---|
| Long Radius Galvanized Elbow | 73079390 |
Available Materials and Grades of Long Radius Elbow

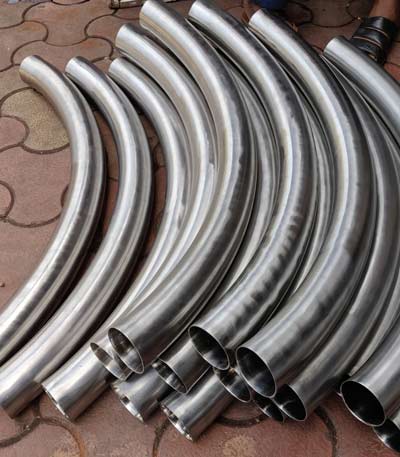

Stainless Steel Long Radius Elbow

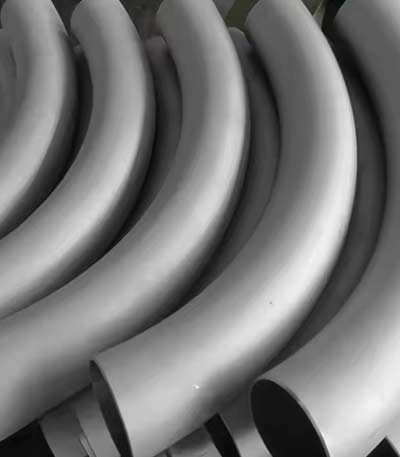

Duplex Steel Long Radius Elbow

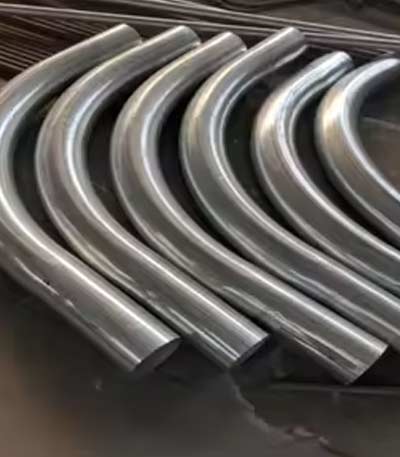

Super Duplex Long Radius Elbow

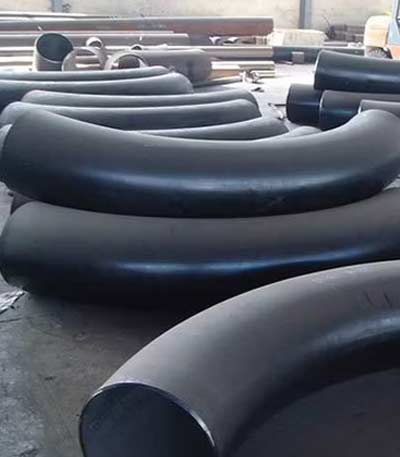

Carbon Steel Long Radius Elbow

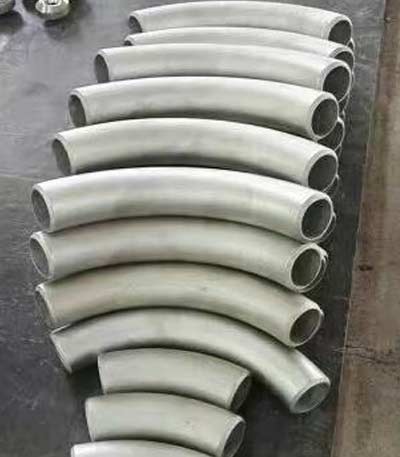

Hastelloy Long Radius Elbow

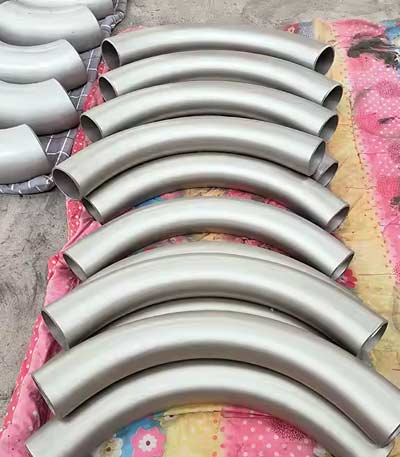

Inconel Long Radius Elbow

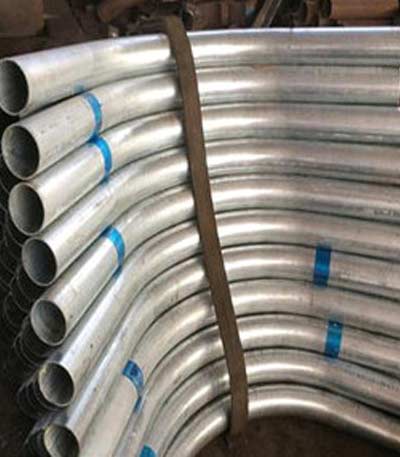

Monel Long Radius Elbow

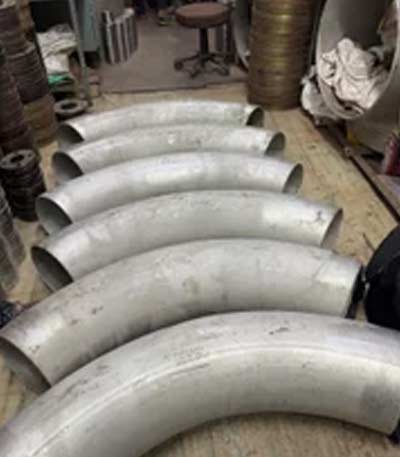

Nickel Alloy Long Radius Elbow

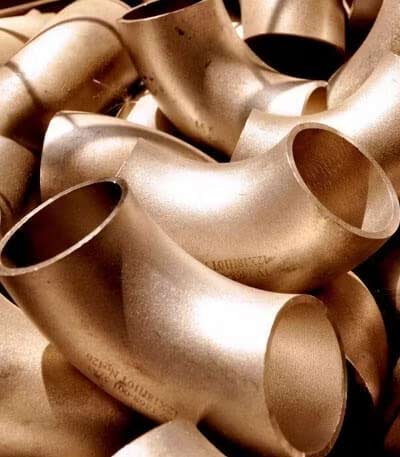

Copper Nickel Long Radius Elbow

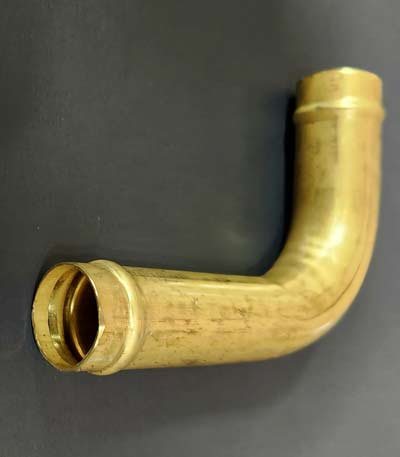

Brass Long Radius Elbow

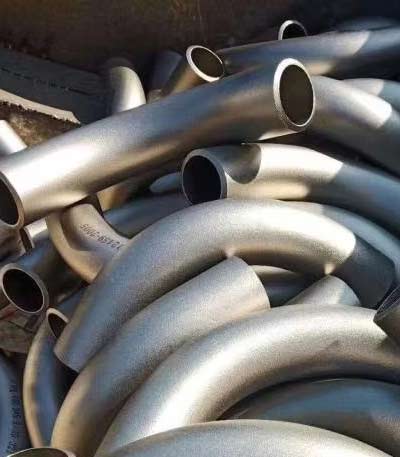

Alloy Steel Long Radius Elbow

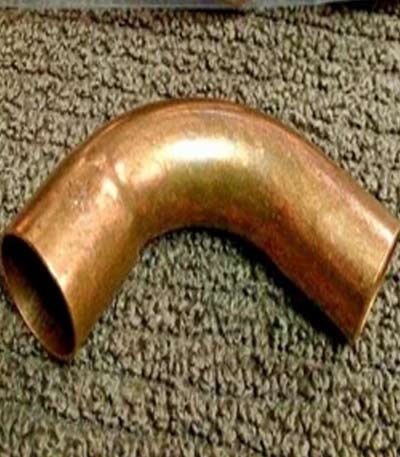

Copper Long Radius Elbow
Warehouse Locations of Long Radius Elbow Stockist in UAE Partner Suppliers
| GCC Countries | Qatar, United Arab Emirates (UAE), Saudi Arabia, Bahrain, Kuwait, Oman |
|---|---|
| Africa | Sudan, Ogun, Republic of the Congo, Ghana, Niger, Cameroon, Nigeria, South Africa, West Africa, Kenya, Nairobi, Congo, Chad, Togo, Benin, Johannesburg, Durban, Addis Ababa, Lagos, Cape Town, Abuja, Gabon, Rwanda, Ivory Coast, Equatorial Guinea |
| MENA | Algeria, Cairo, Tunisia, Libya, Egypt, Casablanca, Morocco |
