Monel K500 Pipe Review

Sizes Readily Available	Seamless Pipe: 4 – 219 mm (OD) Welded Pipe: 5 To 1219.2 mm (OD)
Brands in Stock	Rath Gibson, Tubacex, Haynes, Special Metals, Nippon Steel & Sumitomo Metal, Sanyo Special Steel, Alleima
Raw Material Orign	Indian, Korean, American, European, Russia, Janpanese
Material Type	Molybdenum-Columbium-Nickel-Chromimum Alloys
Swg	10, 12, 14, 16, 18, 20
Saudi Arabian Standard	SASO 7507
International Standards	ASTM B165, ASME SB165, UNS N05500, DIN 2.4375
Approval	ADNOC, PETRONAS, ORPIC, KOC, SABIC, QAFCO
Length	Upto 12 Metrs. or Custom
MTC	EN 10204 3.1

Table of Content

Alloy 625 Pipe Specifications
Immediate Availability From Our Inventory Of ASTM B865 N05500 Pipe
Monel K500 Seamless Pipe
Alloy K500 Welded Pipe
UNS N05500 ERW Pipe
Werkstoff NR. 2.4375 Round Pipe
Nickel Alloy K500 Square Pipe
K500 Monel Rectangular Pipe
Monel Alloy K500 Annealed Pipe
K500 Hollow Pipe
DIN 2.4375 Polished Pipe
Monel K500 Thick Wall Pipe
Alloy K500 Hot Finished Pipe
UNS N05500 Cold Finished Pipe
Werkstoff NR. 2.4375 Exhaust Pipe
Nickel Alloy K500 Clad Pipe
What factors contribute to the Corrosive Resistance of Monel K500 Seamless Pipe ?
Complete Information of Monel K500 Tube
K500 Monel Welded Tube Size Chart

Most Commonly Used Monel K500 Pipe Types
Check Monel Alloy K 500 Welded Pipe Hardness Range
What materials are used to manufacture Monel K500 Pipe ?
HS Code of Alloy K500 Tubing
Weight Chart of Nickel Alloy K500 Welded Pipe
Alloy K500 Pipe Testing Requirements
UNS N05500 Seamless Pipe Gauge Chart
Wnr 2.4375 Seamless Tube Schedule Chart
What Factors Should Be Considered When Selecting Monel K500 Seamless Pipe ?
Pressure Rating of Monel K500 Pipe
K500 Monel Seamless Pipe Chemical Composition
Mechanical Properties of DIN 2.4375 Welded Tube
Nickel Alloy K500 Bright Annealed Pipe Equivalent
Check Monel K500 Pipe Origins

Look for a Few Reliable Alloy K500 Tube Suppliers in Uae and Compare K500 vs. 400 Tubing

Monel K500 pipe specification

Monel K500 Seamless Pipe : 0.5 – 20 mm (Wall Thck.)

Alloy K500 Welded Pipe : 0.35 – 6 mm (Wall Thickness), Upto 12 Metrs. (Length)

UNS N05500 Thick Walled Pipe : 10 To 600 mm (OD), 2.5 – 100 mm (Wall Thickness)

Monel K500 Material Schedule: Sch 10 – XXH

Method: Hot Formed, Cold Formed, Precision Rolled

End: Grooved, Plain, Bevelled, Threaded

Suitable Temperatures: 1600°F – 2100°F

Process: ERW, Seamless, Welded

MTR : Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

Monel K500 Pipe Finish : Annealing, Polished, Bright

Get Quote Directly from Monel K500 Pipe Suppliers in UAE With Complete Documentation

Form: Round, Square, Rectangular, Hexagon etc.

Call Now for a Free Sample, Which Can Be Arranged From the Cities Specified Below

Riyadh	Dubai	Muscat	Ras Al Khaimah
Fujairah	Umm Al Quwain	Sharjah	Doha
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

Locate a Reliable Middle East Importer That Provides UNS N05500 Seamless Pipe With MTC at the Lowest Possible Cost. Examine the Installation Process

Immediate Availability From Our Inventory Of ASTM B865 N05500 Pipe

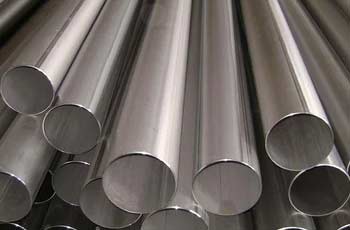

Monel K500 Seamless Pipe

Single Piece Length : 6 Metrs.
Size for Single Block Area : >1000 cm²

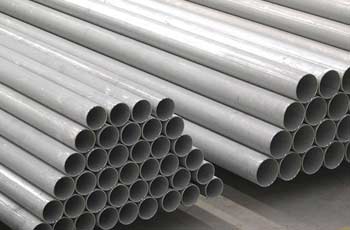

Alloy K500 Welded Pipe

Material : Superior Metal
Purity : 60% – 99% (Higher Purity)

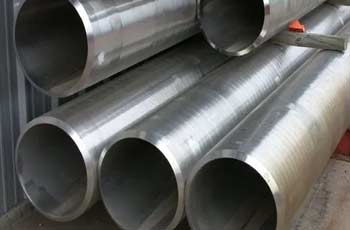

UNS N05500 ERW Pipe

Packing : PVC + Waterproofed Paper + ooden Case
Melting Point : 2460°F (1350°C)

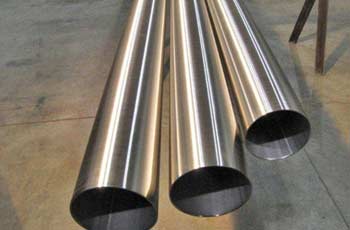

Werkstoff NR. 2.4375 Round Pipe

Resistance : 0.48 μΩ.m
Quality : CE & Testied Report

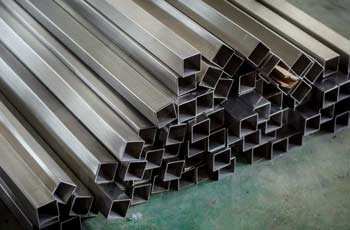

Nickel Alloy K500 Square Pipe

Size of an Average Particle : 20 – 45 µm (Medium)
Certification : ISO9001

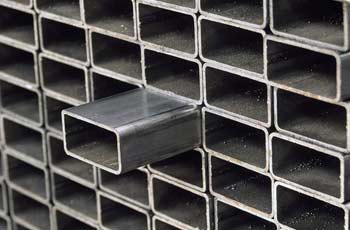

K500 Monel Rectangular Pipe

Nickel Content : 99.9%
Feature : Highly Resistance

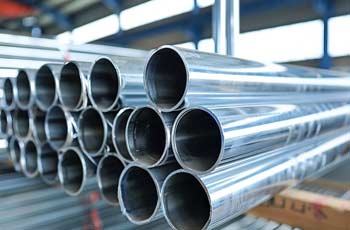

Monel Alloy K500 Annealed Pipe

Electric Resistivity : 307 nΩ.m (25°C)
Surface : Bright

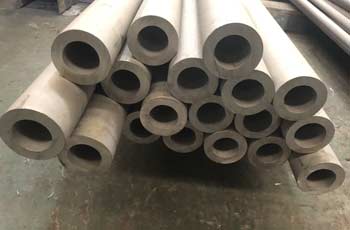

K500 Hollow Pipe

Common Trade Name : K-Monel®
Max. Operating Temp. : -100°C – +260°C

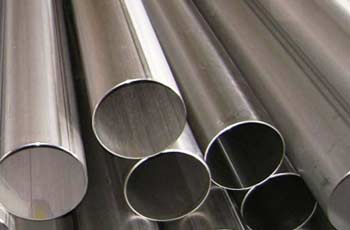

DIN 2.4375 Polished Pipe

Lifespan : 25 – 35 Yrs.
Manufacturing Type : CDW, Fabricated, Welded, DOM, LSAW, EFW, CEW

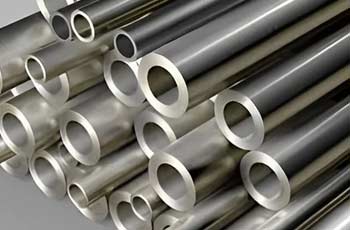

Monel K500 Thick Wall Pipe

Manufactured Technique : Hot & Cold Form, Cold Drawn, Precision Roll
Delivery Time : within 12 days

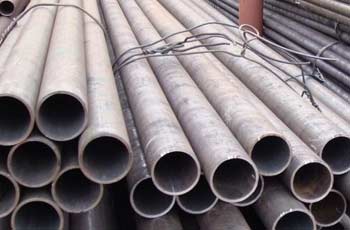

Alloy K500 Hot Finished Pipe

Tolerance : ±1%
Application : Scrapers, Springs, Pump Shaft

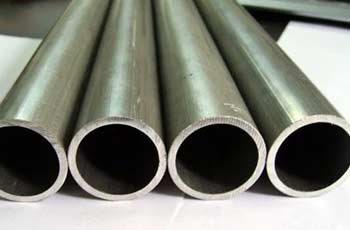

UNS N05500 Cold Finished Pipe

Is Materia Non-Oiled/ Oiled : Non Oiled
Process Service : Cutting, Punching, Welding, Decoiling, Bending

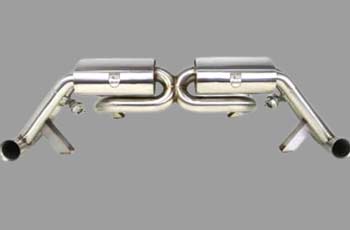

Werkstoff NR. 2.4375 Exhaust Pipe

Welding Line Type : Seamless
Invoicing : By Theoretical Weight

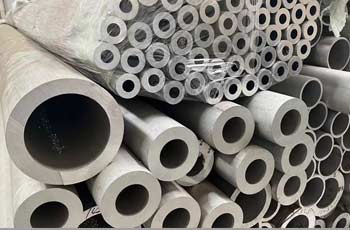

Nickel Alloy K500 Clad Pipe

Length : Customers Requirement
Finishes : 2B, 8K, 4K, BA, No.1, Brushed, HL, No.4, Polished

What factors contribute to the Corrosive Resistance of Monel K500 Seamless Pipe ?

Compare our price and response time to other Monel K500 pipe stockists

Forms a stronger protective oxided layer on surface
Highly copper content
Nickel Content that enhances corrosive resistance
Perform well in harsh chemical environment
Withstands exposure to acids
Resist attacks from seawater

Complete Information of Monel K500 Tube

Grade	WNR	ASTM	Other standards	Temprature	Nickel content	Strength	Lifespan
Monel k500	WNR 2.4375	ASTM B165 ASME SB165	–	1600°F 870°C	63%	Yeild: 690 MPa Tensile: 965 MPa	25 to 35 years

K500 Monel Welded Tube Size Chart

For larger sizes, please get in touch with the United Arab Emirates-based Monel K500 pipe suppliers mentioned below

Description	Wall	OD	Specification
1/2 OD X.049 WA	0.0490	0.5000	ASTM B163 ASTM B165
1/2 X .035 WA	0.0350	0.5000	ASTM B163 ASTM B165
5/8 OD X .065 WA	0.0650	0.6250	ASTM B163 ASTM B165
3/4 X .065 WA	0.0650	0.7500	ASTM B163 ASTM B165
3/4 X .049 WA	0.0490	0.7500	ASTM B163 ASTM B165
1 OD X .120 WA	0.1200	1.0000	ASTM B163 ASTM B165
1 X .083 WA	0.0830	1.0000	ASTM B163 ASTM B165
3/8 X .049 WA	0.0490	0.3750	ASTM B163 ASTM B165
3/8 OD X .035WA	0.0350	0.3750	ASTM B163 ASTM B165
1/2 OD X.065 WA	0.0650	0.5000	ASTM B163 ASTM B165
1 OD X .065 WA	0.0650	1.0000	ASTM B163 ASTM B165
1 X .035 WA	0.0350	1.0000	ASTM B165 ASME SB165
3.00 X .095WA	0.0950	3.0000	ASTM B165 ASME SB165
1/8 X .035 WA	0.0350	0.1250	ASTM B163 ASTM B165
.750 OD X .109	0.1090	0.7500	ASTM B163 ASTM B165
.750 OD X .095	0.0950	0.7500	ASTM B163 ASTM B165
1/4 X .065 WA	0.0650	0.2500	ASTM B163 ASTM B165
1/4 X .049 WA	0.0490	0.2500	ASTM B163 ASTM B165
1/4 OD X.035 WA	0.0350	0.2500	ASTM B163 ASTM B165

You Might Get the Most Precise Quote by Live-chatting With WNR 2.4375 Seamless Tube Stockists. Look at Rockwell’s Hardness

Most Commonly Used Monel K500 Pipe Types

Monel k500 bright annealed pipe

Alloy k500 round pipe

UNS n05500 seamless pipe

WNR 2.4375 seamless tube

Nickel alloy k500 welded pipe

K500 Monel welded tube

Check Monel Alloy K 500 Welded Pipe Hardness Range

To communicate directly with listed Monel K500 pipe stockists, stockholders, and distributors for these services, use chat or email

Grade	Hardness Range
Monel k500	140 To 315

What materials are used to manufacture Monel K500 Pipe ?

Monel K500 is an Nickel-Copper Alloy
Addition of Aluminum Enhances Mechanical Strength
As Well As Addition of Titanium Strengthen Hardness

HS Code of Alloy K500 Tubing

Hs Code	Name
75051220	Monel K500 pipe

Only Reputable Distributors of Nickel Alloy K500 Welded Pipe Can Be Found With the Required Lengths, Finishes, and Diameters, Know the Test Technique

What Are the Available Surface Finish Options for Monel Alloy K500 Pipe ?

Weight Chart of Nickel Alloy K500 Welded Pipe

Nominal Pipe Size	Wall Thickness		Outside Diameter		Weight		Weight
Nominal Pipe Size	inches	millimeter	inches	millimeter	kilogram-meter	Sched	pound-foot
1/2	0.109	2.769	0.840	21	1.268	40 STD	0.851
1/2	0.147	3.734	–	–	1.621	80 STD	1.088
3/4″	0.113	2.870	1.050	27	1.684	40 STD	1.131
3/4″	0.154	3.912	–	–	2.195	80 STD	1.474
1″	0.133	3.378	1.315	33	2.501	40 STD	1.679
1″	0.179	4.547	–	–	3.325	80 STD	2.172
1 1/4″	0.140	3.556	1.660	42	3.385	40 STD	2.273
1 1/4″	0.191	4.851	–	–	4.464	80 STD	2.997
1 1/2″	0.145	3.683	1.900	48	4.048	40 STD	2.718
1 1/2″	0.200	5.080	–	–	5.409	80 STD	3.361
2″	0.154	3.912	2.375	60	5.441	40 STD	3.653
2″	0.218	5.537	–	–	7.480	80 STD	5.022
2 1/2″	0.203	5.516	2.875	73	8.629	40 STD	5.793
2 1/2″	0.276	7.010	–	–	11.411	80 STD	7.661
3″	0.216	5.486	3.500	89	11.284	40 STD	7.576
3″	0.300	7.620	–	–	15.272	80 STD	10.253
4″	0.237	6.020	4.500	114	16.073	–	10.790
4″	0.337	8.560	–	–	22.318	–	14.983
6″	0.188	4.775	6.625	168	19.252	–	12.924
	0.203	5.516	–	–	20.739	–	13.923
	0.219	5.563	–	–	22.318	–	14.983
	0.250	6.350	–	–	25.354	–	17.021
	0.280	7.112	–	–	58.263	40 STD	18.974
	0.312	7.925	–	–	31.334	–	21.036
	0.375	9.525	–	–	37.285	–	25.031
	0.432	10.973	–	–	42.561	80 XHY	28.573
	0.500	12.700	–	–	48.719	–	32.708
8″	0.188	4.775	8.625	219	25.233	–	16.940
	0.203	5.156	–	–	27.198	–	18.259
	0.219	5.563	–	–	29.286	–	19.661
	0.250	6.350	–	–	33.308	20	22.361
	0.277	7.036	–	–	36.786	30	24.696
	0.322	8.179	–	–	42.352	40	28.554
	0.375	9.525	–	–	49.216	–	33.041
	0.406	10.312	–	–	53.085	60	35.638
	0.500	12.700	–	–	64.627	80 XHY	43.388
10″	0.188	4.775	10.750	273	31.588	–	21.207
	0.219	5.563	–	–	36.689	–	24.631
	0.250	6.350	–	–	41.759	20	28.035
	0.307	7.798	–	–	51.002	30	34.240
	0.344	8.738	–	–	56.946	–	38.231
	0.365	9.271	–	–	63.301	40 STD	40.483
	0.438	11.125	–	–	71.852	–	48.238
	0.500	12.700	–	–	81.530	60 XHY	54.735
	0.594	15.088	–	–	95.969	80	64.429
12″	0.188	4.775	12.750	324	37.570	–	25.222
	0.219	5.563	–	–	43.657	–	29.309
	0.250	6.350	–	–	49.713	–	33.375
	0.281	7.137	–	–	55.739	–	37.420
	0.312	7.925	–	–	61.735	–	41.445
	0.375	9.525	–	–	73.824	–	49.562
	0.406	10.312	–	–	79.727	–	53.525
	0.500	12.700	–	–	97.438	–	65.415
	0.562	14.275	–	–	108.966	–	73.154
14″	0.188	4.775	14.000	356	41.308	–	27.732
	0.219	5.563	–	–	48.012	–	32.233
	0.250	6.350	–	–	54.685	20	36.713
	0.281	7.137	–	–	61.327	–	41.172
	0.312	7.925	–	–	67.939	–	45.611
	0.375	9.525	–	–	81.281	STD	54.568
	0.438	11.125	–	–	94.498	40	63.441
	0.500	12.700	–	–	107.381	XHY	72.090
	0.625	15.875	–	–	132.983	–	89.278
16”	0.188	4.775	16.000	406	47.290	–	21.748
	0.219	5.563	–	–	54.980	–	36.910
	0.250	6.350	–	–	62.639	10	42.053
	0.281	7.137	–	–	70.268	–	47.174
	0.312	7.925	–	–	77.866	20	52.275
	0.344	8.738	–	–	85.677	–	57.519
	0.375	9.525	–	–	93.213	30STD	62.578
	0.438	11.125	–	–	108.433	–	72.797
	0.500	12.700	–	–	123.289	40XHY	82.770
18″	0.219	5.563	18.000	457	61.948	–	41.588
	0.250	6.350	–	–	70.593	–	47.393
	0.281	7.137	–	–	79.208	–	53.176
	0.312	7.925	–	–	87.792	20	58.939
	0.375	9.525	–	–	105.144	STD	70.588
	0.438	11.125	–	–	122.369	30	82.152
	0.500	12.700	–	–	139.198	XHY	93.450
	0.562	14.275	–	–	155.904	40	104.666
	0.625	15.875	–	–	172.754	–	115.978
20″	0.250	6.350	20.000	508	78.547	–	52.733
	0.282	7.163	–	–	88.458	–	59.386
	0.312	7.925	–	–	97.719	–	65.604
	0.375	9.525	–	–	117.075	20 STD	78.598
	0.438	11.125	–	–	136.305	–	91.508
	0.500	12.700	–	–	155.106	30 XHY	104.130
	0.594	15.088	–	–	183.378	40	123.110
	0.625	15.875	–	–	192.640	–	129.328
	0.688	17.475	–	–	211.368	–	141.901
24″	0.250	6.350	24.000	610	94.456	–	63.413
	0.281	7.137	–	–	106.029	–	71.183
	0.312	7.925	–	–	117.573	–	18.932
	0.375	9.525	–	–	140.938	20 STD	64.618
	0.438	11.125	–	–	164.176	–	110.219
	0.500	12.700	–	–	186.923	XHY	125.490
	0.625	15.875	–	–	232.410	–	156.028
	0.688	17.475	–	–	255.148	40	171.293
	0.750	19.050	–	–	277.401	–	186.233
30″	0.250	6.350	30.000	762	118.318	–	79.433
	0.281	7.137	–	–	132.851	–	89.189
	0.312	7.925	–	–	147.353	10	98.925
	0.375	9.525	–	–	176.731	STD	118.648
	0.438	11.125	–	–	205.983	–	138.286
	0.500	12.700	–	–	234.647	20 XHY	157.530
	0.625	15.875	–	–	292.066	30	196.078
	0.688	17.475	–	–	320.817	–	215.380
	0.750	19.050	–	–	348.988	–	234.293
36″	0.250	6.350	36.000	914	142.180	–	95.453
	0.281	7.137	–	–	159.672	–	107.196
	0.312	7.925	–	–	177.133	10	118.918
	0.375	9.525	–	–	215.525	STD	142.678
	0.438	11.125	–	–	247.790	–	166.353
	0.500	12.700	–	–	282.372	20 XHY	198.570
	0.625	15.875	–	–	351.723	–	236.128
	.688	17.475	–	–	386.487	–	259.467
	0.750	19.050	–	–	420.576	–	282.353
42″	0.312	7.925	42.000	1067	206.914	–	138.911
	0.375	9.525	–	–	248.319	STD	166.708
	0.500	12.700	–	–	33.097	XHY	221.610
	0.750	19.050	–	–	492.163	–	330.413
48″	0.375	9.525	48.000	1219	284.112	STD	190.738
	0.438	11.125	–	–	331.404	–	222.487
	0.500	12.700	–	–	377.822	XHY	253.650
	0.750	19.050	–	–	563.750	–	378.473
	0.875	22.225	–	–	655.969	–	440.383

Locate Available Material from Stock

Country	Cities
Belgium	Ghent
Belgium	Brussels
Netherlands	The Hague
Netherlands	Amsterdam
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Meeuwen-Gruitrode
Netherlands	Haarlem
Belgium	Westerlo
Belgium	Leuven
Netherlands	Rotterdam
Belgium	Antwerp

Alloy K500 Pipe Testing Requirements

Established Monel K500 Pipe Suppliers in UAE who delivers reliable materials that are tailored for harsh industrial sectors

Destructive & Non-Destructive Testing
Chemical Analysis
Third Party Inspection
PMI Testing
Nabl Approved Lab Test
Flaring Tested

Are You Having Trouble Finding Cut-to-size K500 Monel Welded Tube Stock for Your Project? You Can Obtain What You Need Here. See K500 vs. Inconel 718 Comparison

UNS N05500 Seamless Pipe Gauge Chart

Gauge No.	U.S.G		B.W.G
	inch	mm	inch	mm
6	0.2031	5.16	0.203	5.156
7	0.1875	4.76	0.180	4.572
8	0.1719	4.37	0.165	4.191
9	0.1563	3.97	0.148	3.759
10	0.1406	3.57	0.134	3.404
11	0.1250	3.18	0.120	3.048
12	0.1094	2.78	0.109	2.769
13	0.0938	2.38	0.095	2.413
14	0.0781	1.98	0.083	2.108
15	0.0703	1.79	0.072	1.829
16	0.0625	1.59	0.065	1.651
17	0.0563	1.43	0.058	1.473
18	0.0500	1.27	0.049	1.245
19	0.0438	1.11	0.042	1.067
20	0.0375	0.953	0.035	0.889
21	0.0344	0.873	0.032	0.813
22	0.0313	0.794	0.028	0.711
23	0.0218	0.714	0.025	0.635
24	0.0250	0.635	0.022	0.559
25	0.0219	0.556	0.020	0.508
26	0.0188	0.478	0.018	0.457
27	0.0172	0.437	0.016	0.406
28	0.0156	0.396	0.014	0.356
29	0.0141	0.358	0.013	0.330
30	0.0125	0.318	0.012	0.305
31	0.0109	0.277	0.010	0.254
32	0.0102	0.259	0.009	0.229
33	0.0094	0.239	0.008	0.203
34	0.0086	0.218	0.007	0.178
35	0.0078	0.198	0.005	0.127

Wnr 2.4375 Seamless Tube Schedule Chart

IPS 1-1/4″ OD 1.660″	SCH 10, 40, 80, 160, XXH	IPS 12″ OD 12.750″	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
IPS 1-1/2″ OD 1.900″	SCH 10, 40, 80, 160, XXH	IPS 14″ OD 14.000″	SCH10 (.188), SCH40 (.375)
IPS 1/2″ OD .840″	SCH 5, 10, 40, 80, 160, XXH	IPS 6″ OD 6.625″	SCH 5, 10, 40, 80, 120, 160, XXH
IPS 3/4″ OD 1.050″	SCH 10, 40, 80, 160, XXH	IPS 8 ” OD 8.625″	SCH 5, 10, 40, 80, 120, 160, XXH
IPS 1/8″ OD .405″	SCH 40, 80	IPS 3 1/2″ OD 4.000″	SCH 10, 40, 80, 160, XXH
IPS 1/4″ OD .540″	SCH 10, 40, 80	IPS 4″ OD 4.500″	SCH 10, 40, 80, 160, XXH
IPS 3/8″ OD .675″	SCH 10, 40, 80	IPS 5″ OD 5.563″	SCH 10, 40, 80, 160, XXH
IPS 1″ OD 1.315	SCH 5, 10, 40, 80, 160, XXH	IPS 10″ OD 10.750″	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
IPS 2″ OD 2.375″	SCH 10, 40, 80, 160, XXH	IPS 16″ OD 16.000″	SCH10(.188), SCH40(.375)
IPS 2 1/2″ OD 2.875″	SCH 10, 40, 80, 160, XXH	IPS 18″ OD 18.000″	SCH-40 (.375)
IPS 3″ OD 3.500″	SCH 5, 10, 40, 80, 160, XXH

What Factors Should Be Considered When Selecting Monel K500 Seamless Pipe ?

A top-tier Monel K500 Pipe Suppliers in UAE who are committed to quality pipes & long-term materials value

Conditional Environment
Materials Dimensions & Form
Certification & Compliance
Supplier Integrity

Pressure Rating of Monel K500 Pipe

Outside Diameter of the Pipe(inches)	Pipewall Thickness (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (pounds per square inch gauge)
1/8	7900	10100	–	–	–	–	–	–
1/4	3700	4800	7000	9500	–	–	–	–
5/16	–	3700	5400	7300	–	–	–	–
3/8	–	3100	4400	6100	–	–	–	–
1/2	–	2300	3200	4400	–	–	–	–
3/4	–	–	2200	3000	4000	4600	–	–
1	–	–	–	2200	2900	3400	3900	4300

Explore Nearby Locations for the Quickest Delivery Options

Region	City	Country
Middle East	Kuwait City	Kuwait
Middle East	Jeddah	Saudi Arabia
Middle East	Dammam	Saudi sArabia
Africa	Lagos	Nigeria
Middle East	Doha	Qatar
MENA	Casablanca	Morocco
Middle East	Abu Dhabi	United Arab Emirates
Africa	Johannesburg	South Africa
MENA	Cairo	Egypt
Middle East	Riyadh	Saudi Arabia
Africa	Cape Town	South Africa
Middle East	Dubai	United Arab Emirates
Africa	Abuja	Nigeria

K500 Monel Seamless Pipe Chemical Composition

Certified Monel K500 Pipe Suppliers in UAE supplying highly integrity products with proven resistance to fatigue

Grade	Nickel	Carbon	Manganese	Iron	Titanium	Copper	Aluminum
Monel K500	64.0	0.13	0.8	1.0	0.6	30.0	2.8

Mechanical Properties of DIN 2.4375 Welded Tube

Grade	Tensile Strength		Yield Strength (0.2%Offset)		Elongation
Grade	(per square inch)	(megapascal)	(per square inch)	(megapascal)	%
Monel K500	160000	1100	115000	790	20

Nickel Alloy K500 Bright Annealed Pipe Equivalent

Professional Monel K500 Seamless Pipe Suppliers in UAE who provides custom sizez that are backed by superior material science

Standards	Country	Monel k500
UNS	North America	N05500
WNR	Russia	–
ASTM	America	B165
ASME	Australia	SB165
JIS	Japan	–
BS	United Kingdom	–
GOST	Russia	–
AFNOR	France	–
EN	Europe	–
AMS	United States	–
ANSI	America	–
SAE	United States	–
AS	Australia	–
DIN	German	2.4375

Learn About Our Distribution Network

MENA	Morocco, Tunisia, Algeria, Egypt, Israel, Libya, Palestine
Middle East countries	Saudi, UAE, Kuwait, Qatar, Iraq, Oman, Jordan, Iran, Syria, Lebanon, Yemen
Africa	South Africa, Nigeria, Morocco, Kenya, Tunisia, Egypt, Algeria

Check Monel K500 Pipe Origins
