Nickel 200 Flanges Quick Information
| Grade | Nickel 200 Flanges | UNS N02200 | DIN/ W.Nr. 2.4066 |
|---|---|
| Nickel 200 Flanges Classification | SO (Slip-On) Flange, BL (Blind) Flange, TH (Threaded) Flange, SW (Socket Weld) Flange, LJ (Lapped) Flange, WN (Weld Neck) Flange |
| Nickel & Copper Content | Ni (99.0) & Cu (0.25) |
| Suitable for | Highly Corrosive Resistance, Chemical Service as per NACE MR0175 / ISO 15156. (WAS DC-002-397-32) |
| Other Trade Name | Nickel 99.2, Ni 200, Alloy 200, UNS N02200 |
Alloy 200 blind flanges and ASTM B564 UNS N02200 slip on flanges suppliers in UAE
Nickel 200 Flanges Specification
Dimensions: ASME B16.5, B16.47, B16.36, B16.48
NPS: ½” to 48″, Size Range : 15 – 1500 NB
Pressure rating: 150 – 600# (Threaded), Class 150 – 2500# (Forged)
Manufacturing Standard: ASTM B564/ ASME SB564
Design Spec: ASME VIII DIV 2 (PART 4-5)
Manufacturing procedure: As per NORSOK M-650/ISO 17782
Get Quote Directly from Nickel 200 Flanges Suppliers
100% Tested Nickel 200 Flanges with MTC EN 10204/3.1
Verified & genuine nickel alloy 200 weld neck flanges manufacturers in Dubai, contact for any size or quantity

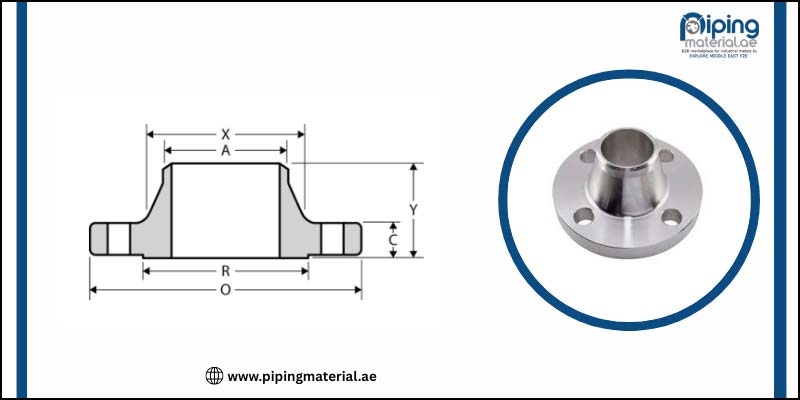

Size Chart for Class 150 Nickel Alloy 200 Weld Neck Flanges
| Nominal Sizes (Inch) | Outside Diameter (O.D.) (O) | Wall Thck. (C) | Diameter of Bolt Circle | Length thru Hub (Y) | Diameter of Hub at Base (X) | Diameter of Holes | Diameter of Raised Face (R) | Diameter of Hub at Point of Welding (A) | No. of Holes | Diameter of Bolts | Approx. Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 27.50 | 1.69 | 25 | 5.69 | 22 | 1.25 | 23 | 20 | 20 | 1.12 | 180 |
| 18 | 25 | 1.56 | 22.75 | 5.50 | 19.88 | 1.25 | 21 | 18 | 16 | 1.12 | 150 |
| 16 | 23.50 | 1.44 | 21.25 | 5 | 18 | 1.12 | 18.50 | 16 | 16 | 1 | 140 |
| 14 | 21 | 1.38 | 18.75 | 5 | 15.75 | 1.12 | 16.25 | 14 | 12 | 1 | 110 |
| 12 | 19 | 1.25 | 17 | 4.50 | 14.38 | 1 | 15 | 12.75 | 12 | 0.88 | 80 |
| 10 | 16 | 1.19 | 14.25 | 4 | 12 | 1 | 12.75 | 10.75 | 12 | 0.88 | 52 |
| 8 | 13.50 | 1.12 | 11.75 | 4 | 9.69 | 0.88 | 10.62 | 8.63 | 8 | 0.75 | 39 |
| 6 | 11 | 1 | 9.50 | 3.50 | 7.56 | 0.88 | 8.50 | 6.63 | 8 | 0.75 | 24 |
| 5 | 10 | 0.94 | 8.50 | 3.50 | 6.44 | 0.88 | 7.31 | 5.56 | 8 | 0.75 | 19 |
| 4 | 9 | 0.94 | 7.50 | 3 | 5.31 | 0.75 | 6.19 | 4.50 | 8 | 0.62 | 15 |
| 3 | 7.50 | 0.94 | 6 | 2.75 | 4.25 | 0.75 | 5 | 3.50 | 4 | 0.62 | 10 |
| 2 ½ | 7 | 0.88 | 5.50 | 2.75 | 3.56 | 0.75 | 4.12 | 2.88 | 4 | 0.62 | 8 |
| 2 | 6 | 0.75 | 4.75 | 2.50 | 3.06 | 0.75 | 3.62 | 2.38 | 4 | 0.62 | 6 |
| 1 ¼ | 4.62 | 0.62 | 3.50 | 2.25 | 2.31 | 0.62 | 2.50 | 1.66 | 4 | 0.50 | 3 |
| 1 | 4.25 | 0.56 | 3.12 | 2.19 | 1.94 | 0.62 | 2 | 1.32 | 4 | 0.50 | 3 |
| ½ | 3.50 | 0.44 | 2.38 | 1.88 | 1.19 | 0.62 | 1.38 | 0.84 | 4 | 0.50 | 2 |
7 Major Properties of ASTM B564 Nickel 200 Threaded Flanges
- Versatile
- Higher Level of Ductile
- Lower Resistant to Grained Boundary Embrittlement
- Can Withstand At Higher Temperature & Pressure
- Excellence Resistance to Caustic Alkali
- Lowest Permeability
- Resistance to Stress Corrosive Cracking & Pitting

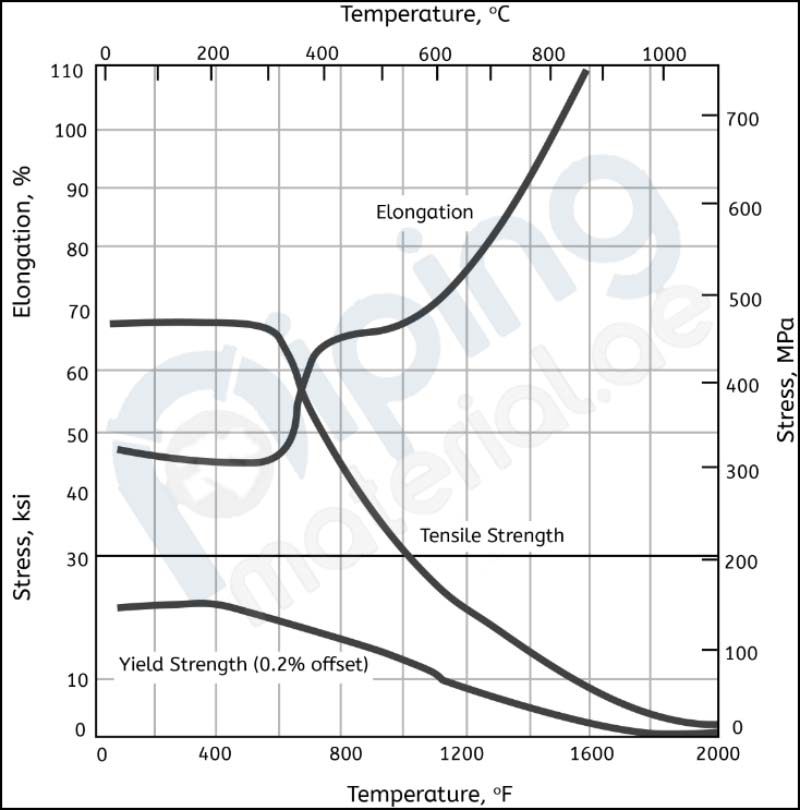

Nickel 200 Plate Flanges Temperature vs Strength
Suitable Gasket For Nickel 200 Forged Flange
| Nominal Flange Sizes (Inch) | Inside Daimeter (I.D.) | Outside Daimeter (O.D.) | ||||
|---|---|---|---|---|---|---|
| 900 LB | 600 LB | 400 LB | 300 LB | 150 LB | ||
| 12 | 12.75 | 19.625 | 18.00 | 16.50 | 16.625 | 16.125 |
| 10 | 10.75 | 17.125 | 15.75 | 14.125 | 14.25 | 13.375 |
| 8 | 8.62 | 14.125 | 12.625 | 12.00 | 12.125 | 11 |
| 6 | 6.62 | 11.375 | 10.50 | 9.75 | 9.875 | 8.75 |
| 5 | 5.56 | 9.75 | 9.50 | 8.375 | 8.50 | 7.75 |
| 4 | 4.50 | 8.125 | 7.625 | 7.00 | 7.125 | 6.875 |
| 3 | 3.50 | 6.625 | 5.875 | 5.875 | 5.875 | 5.375 |
| 2 1/2 | 2.88 | 6.50 | 5.125 | 5.125 | 5.125 | 4.875 |
| 2 | 2.38 | 5.625 | 4.375 | 4.375 | 4.375 | 4.125 |
| 1 1/4 | 1.66 | 3.50 | 3.25 | 3.25 | 3.25 | 3 |
| 1 | 1.31 | 3.125 | 2.875 | 2.875 | 2.875 | 2.625 |
| 1/2 | 0.84 | 2.50 | 2.125 | 2.125 | 2.125 | 1.875 |
Buy Din 2.4066 plate flanges and nickel alloy 200 pipe flange in cl 150 to 2500, check NI 200 flange price in the middle east
Pressure Rating of Nickel 2.4066 Lap Joint Flanges
| Temperature °F | Pressure Ratings | ||||||
|---|---|---|---|---|---|---|---|
| Class 2500 | Class 1500 | Class 900 | Class 600 | Class 400 | Class 300 | Class 150 | |
| 700 | 3540 | 2125 | 1275 | 850 | 565 | 425 | 110 |
| 650 | 3580 | 2150 | 1290 | 860 | 575 | 430 | 125 |
| 600 | 3640 | 2185 | 1310 | 875 | 580 | 435 | 140 |
| 500 | 3880 | 2330 | 1395 | 930 | 620 | 465 | 170 |
| 400 | 4140 | 2485 | 1490 | 995 | 660 | 495 | 190 |
| 300 | 4500 | 2700 | 1620 | 1080 | 720 | 540 | 205 |
| 200 | 5000 | 3000 | 1800 | 1200 | 800 | 600 | 230 |
| -20 to 100 | 6000 | 3600 | 2160 | 1440 | 960 | 720 | 275 |
Call Now for the Clients List Based in Below Locations
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Curie Temperature for ASME SB564M Nickel 200 Flange
| Grade | Nickel Alloy UNS N02200 | |
|---|---|---|
| Curie Temperature | °F | 680 |
| °C | 360 | |
Weekly Shipment to Below Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
Most Common Types of Nickel 200 Flanges
ASTM B564 Nickel Alloy Pipe Flanges Diameter & Number of Bolt Holes
| Pressure Classes | Number of Holes | Size in mm |
|---|---|---|
| 2500 | 12 | 73 |
| 1500 | 16 | 54 |
| 900 | 20 | 38.1 |
| 600 | 20 | 34.9 |
| 400 | 16 | 34.9 |
| 300 | 16 | 28.6 |
| 150 | 12 | 25.4 |
Storage Sites of Partner Suppliers
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Nickel 200 threaded flanges and alloy 2.4066 flanges in large diameter, check alloy 200 nickel RTJ flange dimensions, weight & specification

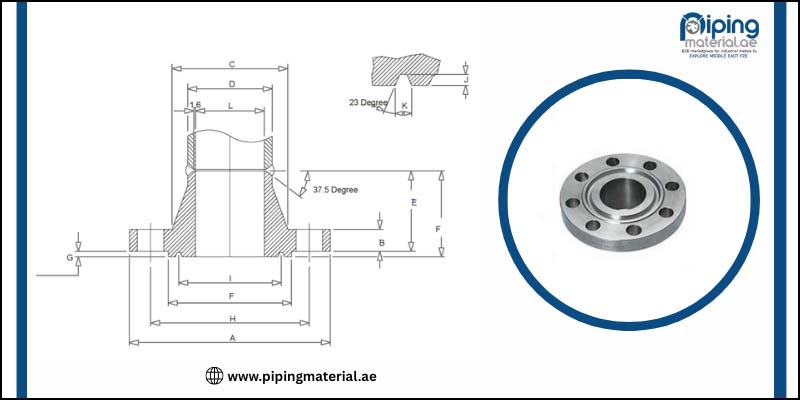

Dimension Chart for Nickel Alloy 200 RTJ Flanges
| Nominal Sizes | Outer Diameter (O.D.) | RTJ RF Diameter | Wall Thck. | Weld Neck (O.D.) | Outside Diameter for Hub | Welding Neck Length | RTJ Pitch dia | |
|---|---|---|---|---|---|---|---|---|
| mm | Inch | A | F | B | D | C | E | I |
| 400 | 16 | 595 | 483 | 35 | 406.4 | 457 | 125 | 454.03 |
| 350 | 14 | 535 | 425 | 33.4 | 355.6 | 400 | 125 | 396.88 |
| 300 | 12 | 485 | 406 | 30.2 | 323.8 | 365 | 113 | 381 |
| 250 | 10 | 405 | 330 | 28.6 | 273 | 305 | 100 | 304.8 |
| 200 | 8 | 345 | 273 | 27 | 219.1 | 246 | 100 | 247.65 |
| 150 | 6 | 280 | 219 | 23.9 | 168.3 | 192 | 87 | 193.68 |
| 125 | 5 | 255 | 194 | 22.3 | 141.3 | 164 | 87 | 171.45 |
| 100 | 4 | 230 | 171 | 22.3 | 114.3 | 135 | 75 | 149.23 |
| 90 | 3 1/2 | 215 | 154 | 22.3 | 101.6 | 122 | 70 | 131.78 |
| 80 | 3 | 190 | 133 | 22.3 | 88.9 | 108 | 68 | 114.3 |
| 65 | 2 1/2 | 180 | 121 | 20.7 | 73 | 90 | 68 | 101.6 |
| 50 | 2 | 150 | 102 | 17.5 | 60.3 | 78 | 62 | 82.55 |
| 40 | 1 1/2 | 125 | 82.5 | 15.9 | 48.3 | 65 | 60 | 65.07 |
| 32 | 1 1/4 | 115 | 73 | 14.3 | 42.2 | 59 | 56 | 57.15 |
| 25 | 1 | 110 | 63.5 | 12.7 | 33.4 | 49 | 54 | 47.63 |
| 20 | 3/4 | 100 | N/A | 11.2 | 26.7 | 38 | 51 | N/A |
| 15 | 1/2 | 90 | N/A | 9.6 | 21.3 | 30 | 46 | N/A |
Class 400 ANSI B16.5 Nickel 200 Flanges Weight Chart
| Nominal Sizes (Inch) | Socket Weld | Slip On | Blind | Threaded | Lap Joint | Weld Neck |
|---|---|---|---|---|---|---|
| 20 | 170.1 | 170.1 | 279.5 | 170.1 | 189 | 200.3 |
| 18 | 139.5 | 139.5 | 225.9 | 139.5 | 155.3 | 162 |
| 16 | 113.9 | 113.9 | 179.1 | 113.9 | 126 | 132.8 |
| 14 | 85 | 85 | 139.5 | 85 | 94.5 | 104.9 |
| 12 | 58.5 | 58.5 | 101.7 | 58.5 | 68.4 | 78.8 |
| 10 | 40 | 40 | 69.8 | 40 | 49.5 | 56.3 |
| 8 | 30.2 | 30.2 | 45 | 30.2 | 28.8 | 40.1 |
| 6 | 19.8 | 19.8 | 27.5 | 19.8 | 18.9 | 25.7 |
| 5 | 13.9 | 13.9 | 19.8 | 13.9 | 13.0 | 19.4 |
| 4 | 11.7 | 11.7 | 14.9 | 11.7 | 11.3 | 15.8 |
| 3½ | 9.5 | 9.5 | 13 | 9.5 | 9 | 11.7 |
| 3 | 6.8 | 6.8 | 9 | 6.8 | 6.3 | 8.1 |
| 2½ | 5.4 | 5.4 | 6.8 | 5.4 | 4 | 6.3 |
| 2 | 3.6 | 3.6 | 4.5 | 3.6 | 3.6 | 4.5 |
| 1¼ | 2 | 2 | 2.7 | 2 | 2 | 2 |
| 1 | 1.6 | 1.6 | 1.8 | 1.6 | 1.6 | 1.8 |
| 1/2 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 1.4 |
200 Nickel Alloy Weld Neck Flange Features
Pitting & Crevice Corrosive of Nickel Alloy 200 Pipe Flanges
| Grade | Max. Depth (mm) | Type Test | Molybdenum (Mo) | Number of Day |
|---|---|---|---|---|
| Nickel Alloy 200 | 63 (1.60) | Washers | 0% | 30 |
Explore Nearby Locations for the Quickest Delivery Options
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |

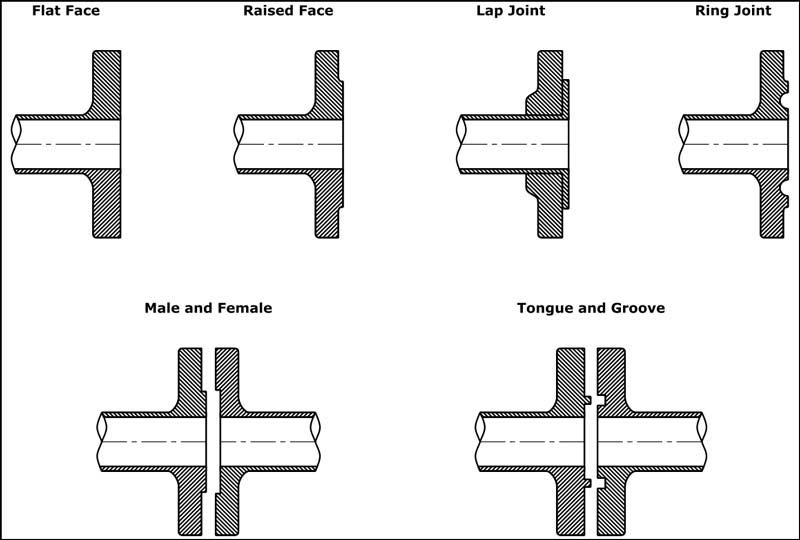

ASME SB564M Nickel 200 Flange Face Types
Direct buy from leading nickel 200 lap joint flanges manufacturers and save your cost of Ni 200 flange and UNS N02200 forged flanges
Chemical Composition of Nickel 200 Flanges
| Grade | Alloy 200 Flange |
|---|---|
| Manganese (Mn) | 0.35 |
| Sulfur (S) | 0.01 |
| Iron (Fe) | 0.40 |
| Carbon (C) | 0.15 |
| Silicon (Si) | 0.35 |
| Copper (Cu) | 0.25 |
| Nickel (Ni) | 99.0 |
Alloy 2.4066 Flanges Ultimate Tensile Strength
| Grade | Ultimate Tensile Strength | |
|---|---|---|
| Mpa | Psi | |
| ASTM B564 Nickel 200 | 462 | 67000 |
Material Density for ASTM B564 Nickel 200 Threaded Flanges
| Grade | Density |
|---|---|
| UNS N02200 | 8.9 g/cm3 |
Nickel Alloy UNS N02200 Blind Flanges Mechanical Properties
| Grade | Yield Strength (0.2%Offset) | Melting Point | Elongation | |
|---|---|---|---|---|
| Mpa | Psi | |||
| ASTM B564 Nickel 200 | 148 | 21500 | 2635°F (1446°C) | 45% |
Equivalent Material of Nickel 200 Flanges
| Grade | UNS | Werkstoff NR. | JIS | BS | AFNOR | EN | GOST |
|---|---|---|---|---|---|---|---|
| Nickel Alloy 200 Flange | N02200 | 2.4066 | NW 2200 | NA 11 | N-100M | Ni 99.2 | НП-2 |
Testing Requirements of Nickel Alloy DIN 2.4066 Slip on Flanges
Applications for Nickel DIN 2.4066 Socket Weld Flanges
- Pharmaceutical
- Sea Water Equipment
- Heat Exchanger
- Condensers
- Pulp & Paper
Nickel 200 Flanges Specific Heat
| Grade | Specific Heat | |
|---|---|---|
| J/kg*°C | Btu/lb*°F | |
| ASTM B564 Nickel Alloy | 456 | 0.109 |
What is the Standard Size Of Nickel 200 Flanges used in the Oil and Gas industry?
- 1/2″ To 48″ is The Standard Size Of Nickel 200 Flanges Which are Used In The Oil And Gas Industry
Corrosion Cracking for Nickel 200 Flanges
| Grade | Cracking Time |
|---|---|
| Nickel Alloy 200 | In 260 Hrs. No Cracking |
