S235J2W Steel Plate Highlights

ASTM Standard	ASTM A588 ASME SA588
Brands	Aperam, Posco, JSW, Nippon Steel, Salzgitter Mannesmann and Sumitomo Metal, SSAB, Essar, JFE
Edges	square end straight edge Quarter circle half circle 45 ° Corner 90 ° Corner
Value Added Services	Heat Treatment Polish Pickling Cladding Rolling Annealed Cutting Forging Bending Minor Fabrication
Origin	American, European, Janpanese, Russian, Korean
Perforated Sheet Pattern	Square Diagonal Aligned Square Aligned Hexagon Staggered Round Staggered Cloverleaf Aligned Slots Staggered
Testing	Single Heat Bundles Maximum Tensile Strength Reducion of Area Measurement. Simulated Post-Weld Heat Treatment Ultrasonic Examination. Product Analysis
Surface Finish	Anti rust oiled Color coated Anti rust varnished
Packaging	Industrial packing techniques Wooden crates/ boxes/ pallets Bundles with plastic wrapping Big rolls with spools
Certification	Certificate of Origin legalized EN 10204/3.1B, 100% Radiography Test Report Raw Materials Certificate Third Party Inspection Report

Table of Content

S235J2W Steel Plate Specification
Technical Requirements for S235J2W Material
S235J2W Steel Plate Origin
Useful Data Of S235J2W Steel Plate
Most Popular Types of S235J2W Corten Steel Plate
Temperature Range of S235J2W Steel

Production Process of S235J2W Corten Steel Sheet
Applications Of S235J2W Steel Plate
EN 10025 S235J2W+N Wear Resistant Plate Impact Test
Mechanical Properties of S235J2W Corten Plate
S235J2W Chemical Composition
Equivalent of EN 10025 S235J2W+N Wear Resistant Plate

Get best price from leading stockists & suppliers of EN 10025 S235J2W+N Corten steel material

S235J2W Steel Plate Specification

Check Here S235J2W Steel Plate Suppliers in UAE who provides Custom Specification

S235J2W Corten Steel Plate Width :1500mm to 4050mm

S235J2W Corten Wear Plate Rusting Period: 4-10 years

S235J2W Steel Sheet Thickness: 6mm to 200mm

EN 1.8961 Weathering Plate Welding Method: TIG, MIG, Stick

1.8961 Steel Plate Length: 3000mm to 15000mm

S235J2W Steel Plate Testing: Drop-Weight Test, Charpy V-Norch Impact Test

Manufacturing Process: Hot Rolled, Cold Rolled, Forged

Applications: Structural, Mechanical, Industrial and Construction etc.

Cutting :Laser, Plasma, Waterjet, Oxy-Propane Flame Cutting

Processing: Machining, Drilling, Forming, Grinding, Cutting, Testing

Buy Directly From S235J2W Steel Plate Suppliers in UAE and Get Datasheet

Surface Finish: Natural, Black Painted, Galvanized, PE coated

EN 1.8946 wear resistant plate and S235J2W weathering steel sheet in +N/ +AR conditions

Technical Requirements for S235J2W Material

EN 10025 S235J2W Delivery conditions	+N/ +AR
Impacting test	Low temperature
Cutting and welding	As per end user’s demands
Ultrasonic test	Under EN 10160/ ASTM A435/ ASTM A577/ ASTM A578
Mill test certificate	Under EN 10204 FORMAT 3.1/3.2

Warehouse Locations of Partner Suppliers

Country	Cities
Netherlands	Amsterdam
Belgium	Leuven
Netherlands	The Hague
Belgium	Brussels
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Belgium	Antwerp
Netherlands	Rotterdam
Netherlands	Eindhoven
Belgium	Westerlo
Belgium	Ghent

S235J2W Steel Plate Origin

Aperam S.A.: Amsterdam, Brussels, Paris, Madrid and Luxembourg

Posco :Pohang, South Korea

Salzgitter Mannesmann: Mülheim an der Ruhr, Germany

JSW: Mumbai , India

Nippon Steel and Sumitomo Metal Corporation: Tokyo, Japan

SSAB: Stockholm, Sweden

Essar: Mumbai, India

JFE:Tokyo, Japan

S235J2W EN 10025-5 heavy plate and S235J2W weather resistant steel plates for structural use

Storage Sites of Partner Suppliers

Region	Country	City
Middle East	United Arab Emirates	Abu Dhabi
Middle East	United Arab Emirates	Dubai
MENA	Morocco	Casablanca
Middle East	Saudi Arabia	Riyadh
Africa	Nigeria	Lagos
Middle East	Saudi Arabia	Dammam
Africa	Nigeria	Abuja
Middle East	Qatar	Doha
MENA	Egypt	Cairo
Middle East	Saudi Arabia	Jeddah
Africa	South Africa	Cape Town
Middle East	Kuwait	Kuwait City
Africa	South Africa	Johannesburg

Useful Data Of S235J2W Steel Plate

Manufacturing Sizes	International Standard	Surface
Width: 1500mm to 4050mm Length: 3000mm to 15000mm Thickness: 6mm to 200mm Obtain the quickest estimate for any size from UAE suppliers of S235J2W steel plate.	AISI, GB, JIS, DIN, BS ASTM A588 ASME SA588	Blasting Painting Clean
Surface Treatment Of S235J2W Steel Plate	Material	Manufacturing Technique Of S235J2W Corten Steel Plate
Galvanized Coated	S235J2W	Forged Cold rolled Hot rolled
Advantages	Available Height	Brinell Hardness
Improved atmospheric corrosion resistance	100mm 150mm 200mm 300mm 400mm 600mm	130
European Standard (EN)	Type Of Edging	Germany Standard
EN 10025	Square end Straight edge Quarter circle 90 Deg Corner Half circle	WBL 087 WSt 37-3
Welding Required Of S235J2W Plate	Uses and Applications	S235J2W Sheet Properties
Welding helmet Jacket or apron Respirator mask Gloves Wire brushes Clamps Chipping hammer Welding machine (MIG, TIG, or stick)	Fertilizers Power generation Infrastructure projects Nuclear industries Gas and oil industries Petrochemical Chemical industries Purchase from the leading zero-rejection S235J2W steel plate suppliers in South Africa, Saudi Arabia, Oman, United States, Middle East, and Egypt.	Weather resistance High strength Low maintenance Weldability Versatility
S235J2W Corten Heavy Plate Welding Techniques	Life Of S235J2W EN 10025-5 plate	Marking
Stick welding TIG welding MIG welding	Up to 25 Years	ASTM & ASME standard Origin of material Manufacturer logo / name Date of manufacturing Material & grade Sizes
Coating	EN 1.8961 Weathering Steel Plate Workability	Certification
Color coated Anti rust varnished PE coated Galvanized Anti rust oiled Natural Black painted	Gas cutting Cold working Hot working	Third party inspection report Certificate of origin legalized EN 10204/3.1B Raw materials certificate 100% radiography test report
Available Services Of 1.8961 Steel Plate	Packaging	Inspection Plan
Polish Pickling Forging Bending Cladding Annealed Cutting Minor Fabrication Heat Treatment Rolling	Industrial packing techniques Big rolls with spools Bundles with plastic wrapping Wooden boxes/ pallets/ crates	Reducion Of Area Measurement. Ultrasonic Examination. Single Heat Bundles Tensile Strength (Maximum) Drop-weight Test Simulated Post-weld Heat Treatment Product Analysis Charpy V-norch Impact Test
Processing	Cutting Method	Free Sample Available?
Drilling Cutting Grinding Testing Machining Forming	Waterjet cutting Laser cutting Oxy-propane flame cutting Plasma cutting	Yes Contact above listed S235J2W steel plate suppliers
Melting Completion (Liquidus)	Melting Onset (Solidus)	Maximum Temperature
1460 °C 2660 °F	1420 °C 2590 °F	410 °C 780 °F
Specific Heat Capacity	Thermal Conductivity	Thermal Expansion
470 J/kg-K 0.11 BTU/lb-°F	45 W/m-K 26 BTU/h-ft-°F	13 µm/m-K

Most Popular Types of S235J2W Corten Steel Plate

Check S235J2W Steel Plate Suppliers in UAE offering a Comprehensive Range of Types

S235J2W steel plate

S235J2W corten steel sheet

S235J2W corten flat sheets

S235J2W EN 10025-5 heavy plate

EN 10025 S235J2W+N cold rolled strip

EN 10025 S235J2W+AR hot rolled strip

EN 1.8946 wear resistant plate

1.8961 steel wear plate

S235J2W weathering steel plate

S235J2W weathering steel sheet

S235J2W corten weathered steel plate

S235J2W EN 10025-5 weathering plate

EN 10025 S235J2W+N weathering resistant steel plates

EN 10025 S235J2W+AR corten sheet metal

EN 1.8961 wear resistance steel plate

S235J2W corten steel weather resistant steel plate

S235J2W steel hot rolled plates

S235J2W structural steel plates

Temperature Range of S235J2W Steel

750 – 1.050 °C

Sales Representatives Across Various Continents

Ajman	Saudi Arabia	Abu Dhabi	Al Jubail
Ras Al Khaimah	Muscat	Dubai	Riyadh
Doha	Sharjah	Umm Al Quwain	Fujairah

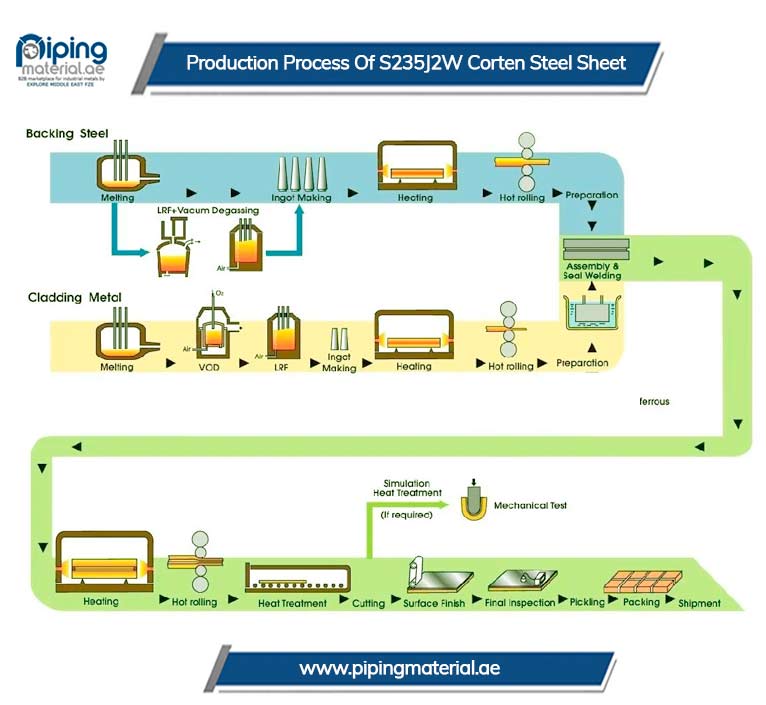

Production Process of S235J2W Corten Steel Sheet

Applications Of S235J2W Steel Plate

Structural Applications
Infrastructure & Engineering
Outdoor Structures
Transportation & Logistics
Offshore/Marine Usage

EN 10025 S235J2W+N Wear Resistant Plate Impact Test

Temperatur In °C	-20	0
Minimum absorbed energy J	27	27

Mechanical Properties of S235J2W Corten Plate

Check S235J2W Steel Plate Suppliers in UAE who provides wide Stock with high Tensile Strength

S235J2W corten steel plate
Yield strength Reh (Min.)						Tensile strength Rm
MPa						MPa
Thickness (mm)						Thickness (mm)
≤16	>16 ≤40	>40 ≤63	>63 ≤80	>80 ≤100	>100 ≤150	≤3	>3 ≤100	>100 ≤150
235	225	215	215	215	195	360-510	360-510	350-500

(Minimum) elongation – A			(Minimum) elongation – A
Lo = 80 mm			Lo = 5,65 * √So (%)
Thickness (mm)
>1,5 ≤2	>2 ≤2,5	>2,5 ≤3	>3 ≤40	>40 ≤63	>63 ≤100	>100 ≤150
19	20	21	26	25	24	22

S235J2W Chemical Composition

C	N	Cr	S	P	Cu	Mn	Si
0.16	0.010	0.35-0.85	0.035	0.040	0.20-0.60	0.15-0.70	0.45

Equivalent of EN 10025 S235J2W+N Wear Resistant Plate

UNI	Canada	USA	France	U.K.
EU 155	CSA G4021	ASTM	NFA35502	BS 4360
