sa 516 grade 70 plate

SA 516 Grade 70 Plate Product Overview

Available Size	Thickness: 6 – 300 mm Width: 1500 – 4050 mm
Brands in Stock	Vallourec Star, LP (VSTAR), Arcelor Mittal, JFE Steel, Benteler
Material Type	ASME SA 516/ASTM A516 Grade 70
International Standards	BS, DIN, ASME, ASTM, SA, EN
Raw Material Origin	Janpanese, Korean, European, Indian, American, Europe, USA, North America, Canada, UK, Japan, South Korea, Germany, Russia, South Africa
Manufacturing Technique	Hot and Cold Rolled
Surface	Natural, Painted
Heat Treatment	Rolled, Normalised, QT, N+T
Test certificates	EN 10204 3.1 /2.2/ 3.2, HIC Tested, NACE
Delivery Time	South Africa: 12- 14 days \| UAE : 8-10 days \| Egypt : 12-15 days \| Oman: 2-3 days

Table of Content

A516 Gr 70 Boiler Plate Density
Types of A516 Grade 70 Pressure Vessel Steel Plate
SA 516 Gr 70 Plate Chemical Composition
ASTM SA 516 Gr 70 HIC Plate Mechanical Properties
SA 516 Gr 70 Plate Weight Chart
SA 516 Grade 70 Plate Welding
Modulus of Elasticity of SA 516 Gr 70 Pressure Vessel Plate
Different Types of SA 516 Gr 70 Carbon Steel Plate
Standard Size Of ASTM A516-70 Plate
ASTM A516 Gr 70 Plate Temperature Range
SA 516 Grade 70 Material Thickness Tolerance
SA 516 Gr 70 Standard Plate Certificates
SA 516 Gr 70 Material Condition
What Are the Fabrication Challenges of A516 Grade 70 Pressure Vessel Steel Plate ?
What Are the Recommended Cutting Speeds for SA 516 Gr 70 Standard Pressure Vessel Plate?
Buying Tips For ASTM A516 Gr 70 Rolled Plate
SA 516 gr 70 killed Carbon Steel Welding Tips

Find The Most Inexpensive ASTM A516 Gr 70n Nace+Hic Steel Plate Suppliers in UAE and Look For The Application

SA 516 Grade 70 Material Specification

SA 516 gr 70 Plate: 0.6 to 3 mm (Width), 3000 to 8000 mm (Length)

SA 516 Gr.70 Low Temperature BQ Plate: 1 – 80 mm (Thickness), 1500 – 2500 mm (Width), 6000 – 12000 mm (Length)

ASTM A516 Grade 70 Boiler Plate: 3 to 600 mm (Thickness), 1500 to 3000 mm (Width)

SA 516 Gr. 70 NACE MR 1075 PVQ Plate: 3 – 150 mm (Thickness), Up to 12,000 mm (Dia), 3000 to 11000 mm (Length)

Surface Finish: Glossy, Mirror, Finest Finish, Matte

Cutting Method: Water Jet Cutting, Plasma, Oxy-propane, Laser

Process: Machining, Welding, Edging, Deburring, Grinding

Applications: Manufacturing Gas Cylinder, Plate Heat Exchangers, Evaporators

MTR: Charpy V-Notch Testing (CVN), PMI, Ultrasonic, NDT

Machining Process: Tapping, Countersinking, Milling, Counterboring

Get Quote Directly From SA 516 Grade 70 Plate Suppliers in UAE

Value Added Services: Welding, Slitting, Blanking, Polishing, Bending

Find Here Sa 516 Grade 70 Pressure Vessel Plate Suppliers in UAE And Stockists Who Serves in Various Industries

Common Application Of Sa 516 Grade 70 Plate

Storage Tanks (Oil/ Gas/ Liquid/ Acides)
Firewater
Manufacturing Gas Cylinder
Chemicals Tanks
H2S Environments
Sour Service
LPG Tank Truck

For ASTM A516 Gr 70 Rolled Plate Ex-stock You Can Call Or Chat To Below Verified SA 516 Grade 70 Plate Suppliers In UAE

Ready Stock Of SA 516 Gr 70 Plate

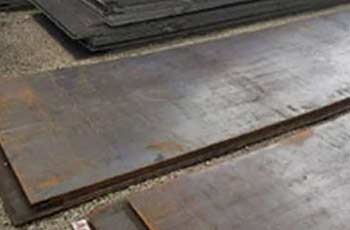

A516 Gr 70 Carbon Steel Pressure Vessel Plate

Delivery Time: 2 – 3 days (Oman)
Machining Process: Tapping, Countersinking, Milling

SA516 Gr 70 Pressure Vessel Plate

Temperature range : 455°C, 850°F
Marking: Material grade, Sizes, Manufacturers logo / name

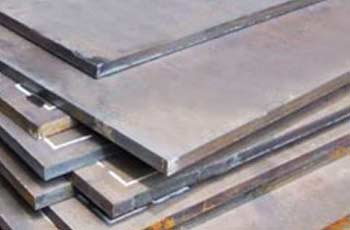

ASME SA516 Gr 70 Boiler Quality Plates

Condition: As Rolled, Normalized, HIC
Plate Services: Machining, Grinding, Testing

ASME SA516 Gr 70 Carbon Structural Steel Plate

British Standard :BS1501-224-490A/B
Test Plan: Tensile test, Brinell hardness test

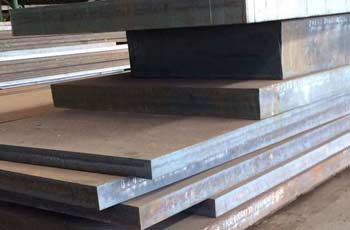

ASTM A516 Gr.70 PVQ Plate

Impact Test: -52° C
Plate Hardness: Hard, Quarter Hard, Soft, Spring Hard

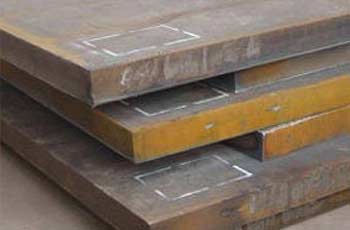

ASME SA516 Gr 7 Hot Rolled Plate

Process: Hot Rolled
Transport Method: Wooden boxes, Pallets, Plastic wrap

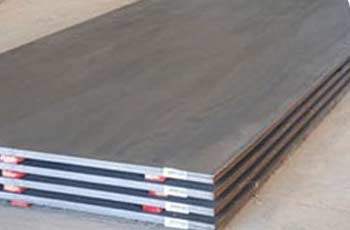

ASTM A516 Grade 70 Cold Rolled Plates

Machinability Range: 55% – 80%
Material Edges: Round, Rolled, Slit, Square

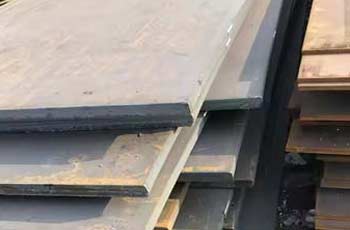

ASTM A516 Gr70 HIC Plate

Plate Tempering: 1200 degree F
Weldability: SMAW, FCAW, GMAW

SA 516 Grade 70 Plate Origin

Arcelor Mittal : Roman, Romania

Benteler : Dinslaken, Germany

JFE Steel: Chita, Japan

Tenaris Dalmine: Bergamo, Italy

Tubos Reunidos SA Tubos Reunidos Industrial: Amurrio, Spain

Vallourec Star, LP (VSTAR) : Youngstown, OH, USA

Buy Directly from Stockists and Dealers Of Arcelor Mittal SA 516 Grade 70 Plate In Fujairah

United Steel Industries FZC: Fujairah, UAE
Al NAWFAL STEEL WORKS LLC: Fujairah, UAE
Explore Middle East FZE: Fujairah Free Zone, UAE
Naseeb Steel and Aluminum Workshop: Industrial Area, Fujairah

Choose The Middle East Stockists And Importers Offering The Lowest Price For SA 516 Grade 70 Boiler Plate; Check The Supplementary Test

Below Price Is Approx, Please Contact Listed Suppliers & Stockists For Complete Price List With Estimate Delivery In UAE, Ksa, Oman, And Qatar

SA 516 Gr 70 Price Per Kg

Description	Weight (KGS)	Price Per Piece In US Dollar
50 X 570 X 1150 MM	260.000	US $336.25
10 X 570 X 1600 MM	75.000	US $87.75

Technical Consultant Are Placed In Below Locations To Resolve All Technical Query

Middle East countries	UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen
MENA	Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine
Africa	Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria

SA 516 Gr 70 Low Temperature Plate Inspection & Required Testing

SA 516 Gr 70 Low Temperature Plates Inspection & Required Testing

Marking & Tagging Of SA 516 70N + S5

Condition	Marking by ASTM A516 Gr 70 plate suppliers
Normalized	SA-516 Gr.70 N
Impact Tested	SA-516 gr.70 S5

For Below Services Directly Contact With Listed Stockists And SA 516 Grade 70 Plate Suppliers in UAE

ASTM A516 Gr 70 Rolled Plate Value Added Services

Value Added Services
Oxy-Fuel Cutting	Drilling
Flame Cutting	Coping
Plasma Cutting	Stamping
Beveling	PVQ Plate Processing
Tapping	CNC machining
Plate Flattening	Finishing
Coating	Stretcher Leveling

SA 516 Grade 70 Plate Maximum Thickness

SA 516 Grade 70 Material Grade U.S.[SI]	Maximum Thickness of steel plate SA516 Gr 70, in.[mm]
Plate A516 Gr 70 [485]	8[205]

ASTM A516 Grade 70 Plate Brinell Hardness

Brinell hardness : 200HB

Below Is The Approx Import Time Of SA 516 Gr 70 Suppliers For South Africa, Egypt, UAE, Ksa & Oman

Associate Traders And Importers Available In Below Locations For Quick Deliveries

Country	Cities
Belgium	Ghent
Netherlands	Rotterdam
Belgium	Seraing
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Netherlands	Amsterdam
Netherlands	The Hague
Belgium	Brussels
Belgium	Leuven
Belgium	Westerlo
Belgium	Antwerp
Netherlands	Eindhoven

SA 516 Gr 70 Plate Tensile Strength

Description	ASTM A516 Grade 70
Tensile strength (MPa)	485-620
Tensile strength (KSI)	70-90

SA 516 gr 70 Carbon Steel Plate Equivalent Material

Standard Of SA 516 Gr 70 material	A516 70 Plate Description
ASTM/ASME	A/SA516 – Grade 70
British Standard	BS1501-224-490A/B
European Norm	EN10028 P355GH

Sa 516 Grade 70 Plate Properties

Allowable Stress for A516 Gr 70 Steel Plate

Temperature	*MAS
-20~100	20.0
150	20.0
200	20.0
250	20.0
300	20.0
400	20.0
500	20.0
600	19.4
650	18.8
700	18.1
750	14.8
800	12.0
850	9.3
900	6.7
950	4.0
1000	2.5

A516 Gr 70 Boiler Plate Density

Density in Metric : 7.80 g/cc
Density in English : 0.282 lb/in³

Types of A516 Grade 70 Pressure Vessel Steel Plate

SA 516 70N lifting plate
A516 Grade 70 boiler plate
SA 516 Gr 70 steel pressure vessel steel plate
A516 70 steel pressure vessel shell
SA 516 Gr 70 LTCS heat exchanger plate
A516 Grade 70 cones
SA 516 Gr 70n welded head
ASTM A516 Gr70 base plate
ASME SA 516 Grade 70 saddle wear plate
A516 70 sour service plate
A516 Grade 70 baffle plate
SA516 Gr 70 HIC plate
SA 516 Grade 70 rolled plate

SA 516 Gr 70 Plate Chemical Composition

Composition Of ASME SA 516 Grade 70 material	Percentage %
S	0.03
Cu	0.3
Ni	0.3
C	0.10/ 0.22
Si	0.6
Mn	1/ 1.7
P	0.03
Al	0.02
Cr	0.3
Mo	0.08
Nb	0.01
Ti	0.03
V	0.02

ASTM SA 516 Gr 70 HIC Plate Mechanical Properties

Description	ASTM A516 Gr 70 Plate
Yield strength (MPa)	260
Yield strength (KSI)	38
Elongation in 50mm (minimum) (%)	21
Elongation in 200mm (minimum)(%)	17

Sales Representatives Are Available to Provide Prompt Quotes

Region	Country	City
Middle East	United Arab Emirates	Dubai
Middle East	Saudi Arabia	Riyadh
Middle East	Saudi Arabia	Jeddah
Middle East	United Arab Emirates	Abu Dhabi
Middle East	Qatar	Doha
Middle East	Saudi Arabia	Dammam
Middle East	Kuwait	Kuwait City
Africa	South Africa	Johannesburg
Africa	South Africa	Cape Town
Africa	Nigeria	Lagos
Africa	Nigeria	Abuja
MENA	Egypt	Cairo
MENA	Morocco	Casablanca

SA 516 Gr 70 Plate Weight Chart

Thickness (Millimeter)	Weight (KiloGram)	Length (M)	KiloGram and lineal metre of plate width	Width (millimeter)
5	39.25	9	94.2	2400
6	47.1	9.6	146.01	3100
8	62.8	9.6	194.68	3100
10	78.5	9.6	243.35	3100
12	94.2	9.6	292.02	3100
16	125.6	9.6	389.36	3100
20	157	9.6	486.7	3100
25	196.25	9.6	608.38	3100
32	251.2	9.6	778.72	3100
40	314	9.6	753.6	2400
50	392.5	7.6	942	2400
60	471	6	1130.4	2400
70	549.5	6	1318.8	2400
80	628	5.2	1507.2	2400
90	706.5	5.2	1695.6	2400
100	785	5.2	1884	2400

SA 516 Grade 70 Plate Welding

SA 516 Grade 70 suitable filler metal, welding wire & electrode

Solid and metal-cored wires	AWS (American Welding Society) ER70S-6 wires (Used for the root pass)	AWS E70C-6M H4 metal-cored wire (Used for fill and cap passes)
Gas-shielded flux-cored wires (FCAW-G)	AWS E71T-12MJ H4 wire (Used for pressure vessel fabrication)	T-12 wires (Good impact toughness)
Submerged ARC welding	Used for the cap passes & fill	–

Modulus of Elasticity of SA 516 Gr 70 Pressure Vessel Plate

English : 29000 ksi
Metric : 200 GPa

Different Types of SA 516 Gr 70 Carbon Steel Plate

A516 70N Steel Plate

ASTM A516 Gr 70N Rolled Plate

SA 516 Gr 70 LTCS Boiler Plate

A516 Grade 70 HIC Plate

ASTM A516 Gr70 Pressure Vessel Plate

SA 516 Grade 70 PVQ Plate

SA 516 Gr 70 Carbon Steel Plate

A516 GR70 CS Plate

A516 Grade 70 Pressure Vessel Steel Plate

Purchase In Dubai SA 516 GR 70N NACE MR 0103/0175 Steel Plate That Complies With International Requirements In A Variety Of Sizes; Read About Brittle Failure

Standard Size Of ASTM A516-70 Plate

WIDTH	THICKNESS	LENGTH
48″ to 120″	3/16″ to 6″	96″ to 480″

If You’re Looking For A Trader Of ASME SA 516 Gr.70 Plate In GCC Countries, You’ve Come To The Right Place. Know About Normalizing Temperature

ASTM A516 Gr 70 Plate Temperature Range

Temp. Unit	Range
°C	29°C – 343°C
°F	-20°F – 650°F

SA 516 Grade 70 Material Thickness Tolerance

Tensile Properties (Transverse)		Thickness (mm)
Tensile Properties (Transverse)		t ≤ 16	16 < t ≤ 40	40 < t ≤ 150
HARDNESS	TYPICAL	130 – 170BHN
Yield Strength (Mpa)	Guaranteed Min	305	295	275
Yield Strength (Mpa)	Typical	360 to 520	370 to 470	290 to 420
Elong. On 5.65√S0 (%)	Guaranteed Min	17	17	17
Elong. On 5.65√S0 (%)	Typical	22 to 34	22 to 33	22 to 31
Tensile Strength (Mpa)	Guaranteed Min	485	485	485
Tensile Strength (Mpa)	Typical	485 to 620	485 to 620	485 to 620

Are You Having Trouble Finding Cut-to-size Sa 516 Steel Plate Grade 70n Distributors For Your Project? You Can Obtain What You Need Here. Must Know About Mill Test Certification

SA 516 Gr 70 Standard Plate Certificates

Raw Material Test Reports
Heat Treatment Charts
MTC as per EN 10204 3.1/3.2
Invoice
Guarantee Letter
Packing List
QAP
NABL Approved Laboratory Test Reports

Material Inspection Facilities in the Following Countries

Riyadh	Dubai	Muscat	Ras Al Khaimah
Fujairah	Umm Al Quwain	Sharjah	Doha
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

SA 516 Gr 70 Material Condition

AR
Charpy V-Notch Impact Test
UT
N
Q+T
TMCP
Z

What Are the Fabrication Challenges of A516 Grade 70 Pressure Vessel Steel Plate ?

Hydrogen-Induced Cracking (HIC)
Porosity and Incomplete Fusion
Distortion from Welding Stresses
Tool Wear and Hard Spots
Difficulties with Drilling and Boring
Poor Surface Finish
Cracking During Cold Bending
Buckling and Thickness Reduction
Toughness After Heat Treatment

What Are the Recommended Cutting Speeds for SA 516 Gr 70 Standard Pressure Vessel Plate?

Application	Vc (m/min)	Vc (SFM)
Turning	240-350	790-1150
Grooving	135-195	440-640
Milling	150-220	490-720
Drilling	95-140	310-460
Parting	115-170	380-560

Buying Tips For ASTM A516 Gr 70 Rolled Plate

Tips
Go for A516 Gr 70 (485-620 MPa UTS)
Choose Normalized (Gr 70N) with Charpy V test
Use HIC-tested SA516 Gr 70N + NACE MR0175
Ask for IBR Approved plates (Form III)
