Shoulder bolts

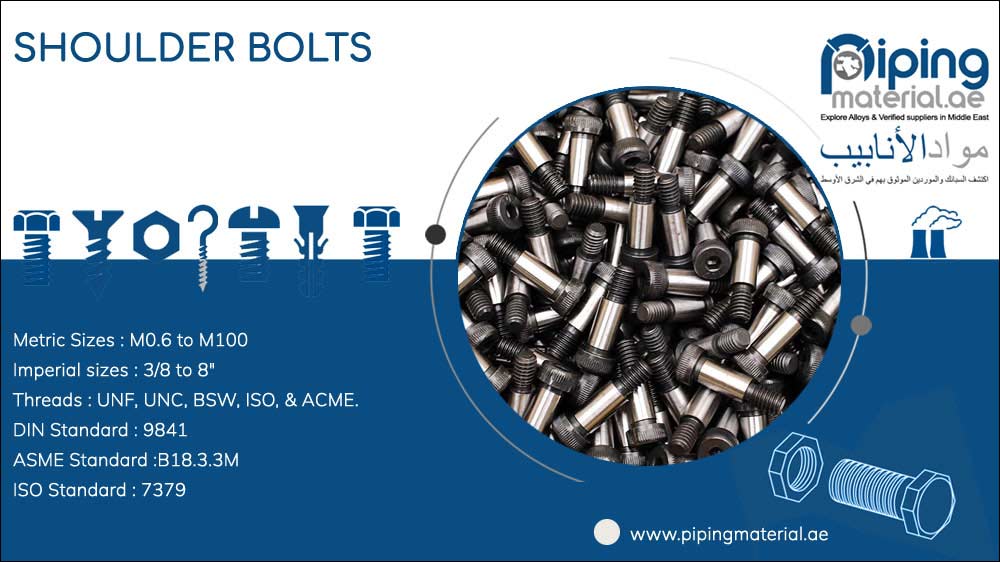

Shoulder Bolts

What are shoulder bolts?

A shoulder behind the head of machine screws, sometimes referred to as a shoulder screw or shoulder bolt, is not threaded but is larger in diameter than the threads. The screw’s nominal size is determined by the larger shoulder. The thread’s head has the largest diameter, with the primary diameter being slightly less than the shoulder’s diameter. Because the smooth shoulder extends beyond the surface the thread is pressed into when put, it can function as a shaft or dowel for the rotation or sliding of attached components such pulleys, gears, mechanical assembly, and the like. Since they are also used to secure stripper plates, shoulder screws are commonly referred to as stripper bolts.

Shoulder Bolt specifications and dimensions

Shoulder Bolt Specifications

Shoulder Bolt Dimensions

Find your size, stripper bolt and hex head shoulder bolt suppliers in UAE

How are metric shoulder bolts measured?

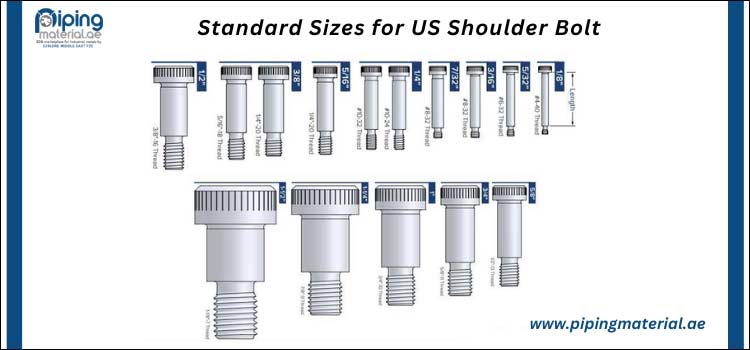

Shoulder bolts typically range in length from around 3/8″ to 6″ and in diameter from 1/4″ to 3/4″. From the base of the skull to the end, measure the length of the shoulder. The shoulder’s diameter is size. The thread size is another factor; it is always smaller in diameter than the shoulder and, for common sizes, ranges from 10-24 to 5/8-11. The thread length is fixed for each size. The screw’s extended unthreaded section is referred to as the screw’s shoulder, and the screw’s nominal size is determined by its diameter. The shoulder’s size is precise and falls between 0.002″ and 0.004″ below the average size. As a result, a 1/2″ (0.5000″) shoulder bolt’s shoulder diameter will fall between 0.498″ and 0.496″.

Check metric shoulder bolts temperature up to about 1300°f (700°c)

How do you install a stripper bolt ?

The installation procedure is not very complicated. You must first create a hole in the wood that is the proper size (diameter) for the bolt. The bolt is next slid into the hole; one might require a hammer as even the hole must be precisely the right size for the bolt to fit through. It’s time to attach the nut and washer now that you got the nut through the wood. The washer and nut should be placed on the back of the bolt. When you are going to apply pressure to the nut to pull the bolt into the wood, the washer will aid to spread the force. This will prevent the bolt from piercing it and becoming trapped in addition to safeguarding the wood on the reverse side.

Types of shoulder bolts

Shoulder Bolt

Shoulder Bolt

Metric Shoulder Bolts

Metric Shoulder Bolts

Stripper Bolt

Stripper Bolt

Hex Head Shoulder Bolt

Hex Head Shoulder Bolt

Hex Shoulder Bolt

Hex Shoulder Bolt

Socket Shoulder Bolt

Socket Shoulder Bolt

Precision Shoulder Bolts

Precision Shoulder Bolts

Headless Shoulder Bolt

Headless Shoulder Bolt

Button Head Shoulder Bolt

Button Head Shoulder Bolt

Socket Head Shoulder Bolt

Socket Head Shoulder Bolt

Get hex head shoulder bolt at affordable prices from genuine socket shoulder bolt stockists in the Dubai

What is the purpose of a hex head shoulder bolt?

Shoulder screws, much like all other types of screws, are designed to keep things together and at a particular position. On the other hand, these screws were developed specifically for use in components that call for a fastening pin, joint, shaft, dowel, pivot, or gliding motion. Products such as:

  • Bearings \sBushings
  • Mechanical assistance
  • movement directing
  • Accurately measured distances

In mechanical applications such as the following, these types of screws are frequently used:

  • Systems of vacuums
  • Engine
  • Linkages
  • Pulleys

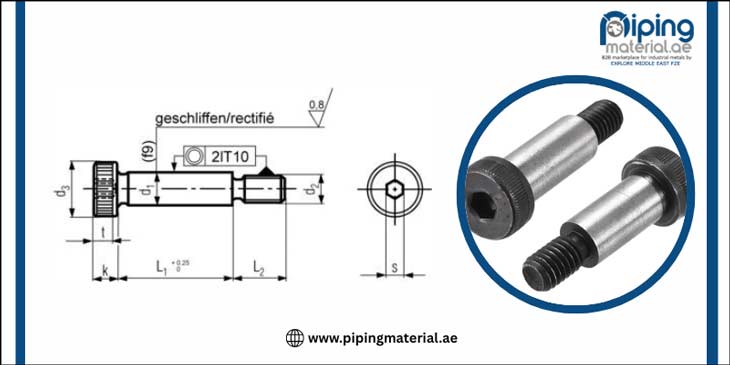

View dimensions, applications, weight chart and sizes of hex/ precision and headless shoulder bolt as per ISO 7379/ DIN 609 standard

What determines the size of a hex shoulder bolt?

Shoulder bolts range from 3/8″ to 6″ in length and 1/4″ to 3/4″ in diameter. The difference between size and length is measured from the bottom of the head to the shoulder. Thread size ranges from 10-24 to 5/8-11 and is smaller than shoulder size. particular thread length for each size. The term “shoulder” refers to the screw’s larger unthreaded part, the diameter of which serves as the basis for determining the nominal size. Use a hex driver since shoulder bolts have hex heads. Hex socket size for sizes 1 1/4″ and under is equal to half of the shoulder diameter, but for sizes 1 1/2″ to 2 “It is somewhat bigger than half of the sizes. Because they are internally wrenched, they can be placed in a counterbored recess.

Compare different trusted button head and socket head shoulder bolt importers in the Middle East and Africa

How hard is a shoulder bolt?

The shoulder bolt is made of medium-carbon-alloy steel that has been heat-treated, quenched, and tempered to a hardness between 32 and 43 Rockwell C. (in accordance with ASTM A574) In compliance with ANSI/ASME B18.3 regulations, the shoulder bolt also features a Class 3A UNRC (Unified National Rolled Coarse) thread and a minimum tensile strength of 160,000 psi. Make sure that the bolts you purchase from a general supply store adhere to these requirements. That may sound complicated, but it’s crucial.
