Slip On Flange Quick Review
| Manufacturing Method | Forged, Plate and Cast |
|---|---|
| Standard | ASME B16.5 (Forged Slip On Flange), ASME B16.47 (Large Diameter Slip On Flange) |
| Sizes | NPS 1/2″ To NPS 24″ (150#, 300#, 400#, 600#, 900#, 1500#), NPS 1/2″ – 12″ (2500# SO Flange) |
| Pressure Rating Class | ASME B16.5 Class 150, 300, 400, 600, 900, 1500, 2500 |
| Steel and Alloys | Stainless Steel, Carbon Steel, Nickel Alloy, Inconel, 16Mo3, Monel, Copper, Copper Nickel, Hastelloy, Titanium, Duplex and Super Duplex Slip On Flanges |
Easiest way to find a stainless steel slip on flange suppliers in UAE
Connection Types : Flat Face (FF) Slip On Flange, Raised Face (RF) Slip On Flange, Ring Joint (RTJ) Slip On Flange
Applications: Higher Temperature Boiler & Water Lines
German Standard: Slip On Flange DIN EN 1092-1
EN 1092-1 Slip On Flange : Type B (RF), Type A (FF), Type D (Groove), Type C (Tongue) & Type G/F/E/H
Slip On Flange Other Names : SO Flange, Flat Face (SOFF), Slip-On Raised Face (SORF)
SOUR Service Certification: NACE MR 01-75 / ISO 15156
Country of Origin: Slip On Flange make in India, UAE, Europe, Netherlands, Japan, USA & Korea
Stainless Steel Slip On Flange as per ASTM A182/ SA 182
Carbon Steel Slip On Flanges as per ASTM A350, A105, A181, A694
Duplex Steel Slip On Flanges in UNS S32205, UNS S31803, UNS S32760, UNS S32750
Buy Directly from Slip On Flange suppliers in UAE
100% Tested ANSI B16.5 Slip On Flange with MTC EN 10204/3.1, ISO 10474
Which Are The Limitations of Slip On Pipe Flange ?
- Required 2 weld instead of particularly one
- Not suitable for an cyclic loading
- Low mechanical strength
- Generally not use in above Class 600
- Limited non destructive tested capability
- Also Not available in various sizes for
- Not available in 2.5″ & mostly above for Class 1500 & 2500
Slip On Flange Welding Temperature Range
| Grade | Temperature Range |
|---|---|
| Slip On Flange | 20°F – 100°F |
Buy carbon steel SORF flange and aluminum slip on flanges at the best price in Dubai

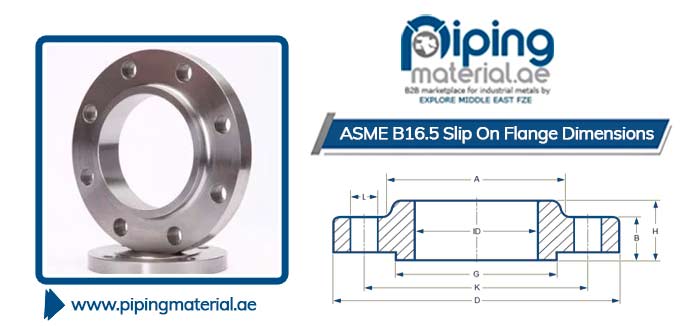

Dimension Chart of Slip On Flange
| NPS 1/2 slip on flange | ||||||
|---|---|---|---|---|---|---|
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 30 | 38 | 38 | 38 | 38 | – |
| Dia. D | 90 | 95 | 95 | 120 | 120 | – |
| Thickness Of B | 11.2 | 14.3 | 20.7 | 28.7 | 28.7 | – |
| Dia. G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | – |
| Dia. K | 60.3 | 66.7 | 66.7 | 82.6 | 82.6 | – |
| H | 15.6 | 22.6 | 28.4 | 38.4 | 38.4 | – |
| Number of L | 4 | 4 | 4 | 4 | 4 | – |
| Dia. L | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | – |
| NPS 3/4 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 38 | 48 | 48 | 44 | 44 | – |
| Dia. D | 100 | 115 | 115 | 130 | 130 | – |
| Thickness Of B | 12.8 | 15.9 | 22.3 | 31.8 | 31.8 | – |
| Dia. G | 42.9 | 42.9 | 42.9 | 42.9 | 42.9 | – |
| Dia. K | 69.9 | 82.6 | 82.6 | 88.9 | 88.9 | – |
| H | 15.6 | 25.6 | 31.4 | 41.4 | 41.4 | – |
| Number of L | 4 | 4 | 4 | 4 | 4 | – |
| Dia. L | 15.9 | 19.1 | 19.1 | 22.2 | 22.2 | – |
| NPS 1 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 49 | 54 | 54 | 52 | 52 | – |
| Dia. D | 110 | 125 | 125 | 150 | 150 | – |
| Thickness Of B | 14.3 | 17.5 | 23.9 | 35 | 35 | – |
| Dia. G | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | – |
| Dia. K | 79.4 | 88.9 | 88.9 | 101.6 | 101.6 | – |
| H | 17.6 | 26.6 | 33.4 | 47.4 | 47.4 | – |
| Number of L | 4 | 4 | 4 | 4 | 4 | – |
| Dia. L | 15.9 | 19.1 | 19.1 | 25.4 | 25.4 | – |
| NPS 1.1/4 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 59 | 64 | 64 | 64 | 64 | – |
| Dia. D | 115 | 135 | 135 | 160 | 160 | – |
| Thickness Of B | 15.9 | 19.1 | 27.1 | 35 | 35 | – |
| Dia. G | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 | – |
| Dia. K | 88.9 | 98.4 | 98.4 | 111.1 | 111.1 | – |
| H | 20.6 | 26.6 | 35.4 | 47.4 | 47.4 | – |
| Number of L | 4 | 4 | 4 | 4 | 4 | – |
| Dia. L | 15.9 | 19.1 | 19.1 | 25.4 | 25.4 | – |
| NPS 1.1/2 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 65 | 70 | 70 | 70 | 70 | – |
| Dia. D | 125 | 155 | 155 | 180 | 180 | – |
| Thickness Of B | 17.5 | 20.7 | 28.7 | 38.2 | 38.2 | – |
| Dia. G | 73.2 | 73.2 | 73.2 | 73.2 | 73.2 | – |
| Dia. K | 98.4 | 114.3 | 114.3 | 123.8 | 123.8 | – |
| H | 22.6 | 30.6 | 38.4 | 50.4 | 50.4 | – |
| Number of L | 4 | 4 | 4 | 4 | 4 | – |
| Dia. L | 15.9 | 22.2 | 22.2 | 28.6 | 28.6 | – |
| NPS 2 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 78 | 84 | 84 | 105 | 105 | – |
| Dia. D | 150 | 165 | 165 | 215 | 215 | – |
| Thickness Of B | 19.1 | 22.3 | 31.8 | 44.5 | 44.5 | – |
| Dia. G | 91.9 | 91.9 | 91.9 | 91.9 | 91.9 | – |
| Dia. K | 120.7 | 127 | 127 | 165.1 | 165.1 | – |
| H | 25.6 | 33.6 | 43.4 | 63.4 | 63.4 | – |
| Number of L | 4 | 8 | 8 | 8 | 8 | – |
| Dia. L | 19.1 | 19.1 | 19.1 | 25.4 | 25.4 | – |
| NPS 2.1/2 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 90 | 100 | 100 | 124 | 124 | – |
| Dia. D | 180 | 190 | 190 | 245 | 245 | – |
| Thickness Of B | 22.3 | 25.5 | 35 | 47.7 | 47.7 | – |
| Dia. G | 104.6 | 104.6 | 104.6 | 104.6 | 104.6 | – |
| Dia. K | 139.7 | 149.2 | 149.2 | 190.5 | 190.5 | – |
| H | 27 | 37 | 41 | 64 | 64 | – |
| 28.6 | 38.6 | 47.4 | 70.4 | 70.4 | – | – |
| Number of L | 4 | 8 | 8 | 8 | 8 | – |
| Dia. L | 19.1 | 22.2 | 22.2 | 28.6 | 28.6 | – |
| NPS 3 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 108 | 117 | 117 | 127 | – | – |
| Dia. D | 190 | 210 | 210 | 240 | – | – |
| Thickness Of B | 23.9 | 28.6 | 38.2 | 44.5 | – | – |
| Dia. G | 127 | 127 | 127 | 127 | – | – |
| Dia. K | 152.4 | 168.3 | 168.3 | 190.5 | – | – |
| H | 30.6 | 42.6 | 52.4 | 60.4 | – | – |
| Number of L | 4 | 8 | 8 | 8 | – | – |
| Dia. L | 19.1 | 22.2 | 22.2 | 25.4 | – | – |
| NPS 3.1/2 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 122 | 133 | 133 | – | – | – |
| Dia. D | 215 | 230 | 230 | – | – | – |
| Thickness Of B | 23.9 | 30.2 | 41.4 | – | – | – |
| Dia. G | 139.7 | 139.7 | 139.7 | – | – | – |
| Dia. K | 177.8 | 184.2 | 184.2 | – | – | – |
| H | 31.6 | 44.6 | 55.4 | – | – | – |
| Number of L | 8 | 8 | 8 | – | – | – |
| Dia. L | 19.1 | 22.2 | 25.4 | – | – | – |
| NPS 4 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 135 | 146 | 152 | 159 | – | – |
| Dia. D | 230 | 255 | 275 | 290 | – | – |
| Thickness Of B | 23.9 | 31.8 | 44.5 | 50.9 | – | – |
| Dia. G | 157.2 | 157.2 | 157.2 | 157.2 | – | – |
| Dia. K | 190.5 | 200 | 215.9 | 235 | – | – |
| H | 33.6 | 47.6 | 60.4 | 76.4 | – | – |
| Number of L | 8 | 8 | 8 | 8 | – | – |
| Dia. L | 19.1 | 22.2 | 25.4 | 31.8 | – | – |
| NPS 6 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 192 | 206 | 222 | 235 | – | – |
| Dia. D | 280 | 320 | 355 | 380 | – | – |
| Thickness Of B | 25.5 | 36.6 | 54.3 | 62 | – | – |
| Dia. G | 215.9 | 215.9 | 215.9 | 215.9 | – | – |
| Dia. K | 241.3 | 269.9 | 292.1 | 317.5 | – | – |
| H | 39.6 | 52.6 | 73.4 | 92.4 | – | – |
| Number of L | 8 | 12 | 12 | 12 | – | – |
| Dia. L | 22.2 | 22.2 | 28.6 | 31.8 | – | – |
| NPS 8 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 246 | 260 | 273 | 298 | – | – |
| Dia. D | 345 | 380 | 420 | 470 | – | – |
| Thickness Of B | 28.6 | 41.3 | 62 | 69.9 | – | – |
| Dia. G | 269.7 | 269.7 | 269.7 | 269.7 | – | – |
| Dia. K | 298.5 | 330.2 | 349.2 | 393.7 | – | – |
| H | 44.6 | 61.6 | 82.4 | 108.4 | – | – |
| Number of L | 8 | 12 | 12 | 12 | – | – |
| Dia. L | 22.2 | 25.4 | 31.8 | 38.1 | – | – |
| NPS 10 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 305 | 321 | 343 | 368 | – | – |
| Dia. D | 405 | 445 | 510 | 545 | – | – |
| Thickness Of B | 30.2 | 47.7 | 69.9 | 76.3 | – | – |
| Dia. G | 323.9 | 323.9 | 323.9 | 323.9 | – | – |
| Dia. K | 362 | 387.4 | 431.8 | 469.9 | – | – |
| H | 49.6 | 66.6 | 92.4 | 114.4 | – | – |
| Number of L | 12 | 16 | 16 | 16 | – | – |
| Dia. L | 25.4 | 28.6 | 34.9 | 38.1 | – | – |
| NPS 12 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 365 | 375 | 400 | 419 | – | – |
| Dia. D | 485 | 520 | 560 | 610 | – | – |
| Thickness Of B | 31.8 | 50.9 | 73.1 | 85.8 | – | – |
| Dia. G | 381 | 381 | 381 | 381 | – | – |
| Dia. K | 431.8 | 450.8 | 489 | 533.4 | – | – |
| H | 55.6 | 72.6 | 98.4 | 123.4 | – | – |
| Number of L | 12 | 16 | 20 | 20 | – | – |
| Dia. L | 25.4 | 31.8 | 34.9 | 38.1 | – | – |
| NPS 14 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 400 | 425 | 432 | 451 | – | – |
| Dia. D | 535 | 585 | 605 | 640 | – | – |
| Thickness Of B | 35 | 54 | 76.3 | 92.2 | – | – |
| Dia. G | 412.8 | 412.8 | 412.8 | 412.8 | – | – |
| Dia. K | 476.3 | 514.4 | 527 | 558.8 | – | – |
| H | 57.6 | 76.6 | 100.4 | 136.4 | – | – |
| Number of L | 12 | 20 | 20 | 20 | – | – |
| Dia. L | 31.8 | 31.8 | 38.1 | 41.3 | – | – |
| NPS 16 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 457 | 483 | 495 | 508 | – | – |
| Dia. D | 595 | 650 | 685 | 705 | – | – |
| Thickness Of B | 36.6 | 57.2 | 82.6 | 95.3 | – | – |
| Dia. G | 469.9 | 469.9 | 469.9 | 469.9 | – | – |
| Dia. K | 539.8 | 571.5 | 603.2 | 616 | – | – |
| H | 63.6 | 82.6 | 112.4 | 139.4 | – | – |
| Number of L | 16 | 20 | 20 | 20 | – | – |
| Dia. L | 28.6 | 34.9 | 41.3 | 44.5 | – | – |
| NPS 18 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 505 | 533 | 546 | 565 | – | – |
| Dia. D | 635 | 710 | 745 | 785 | – | – |
| Thickness Of B | 39.7 | 60.4 | 89 | 108 | – | – |
| Dia. G | 533.4 | 533.4 | 533.4 | 533.4 | – | – |
| Dia. K | 577.9 | 628.6 | 654 | 685.8 | – | – |
| H | 68.6 | 88.6 | 123.4 | 158.4 | – | – |
| Number of L | 16 | 24 | 20 | 20 | – | – |
| Dia. L | 31.8 | 34.9 | 44.5 | 50.8 | – | – |
| NPS 20 slip on flange | ||||||
| Class | 150# | 300# | 600# | 900# | 1500# | 2500# |
| Dia. (A) | 559 | 587 | 610 | 622 | – | – |
| Dia. D | 700 | 775 | 815 | 855 | – | – |
| Thickness Of B | 42.9 | 63.6 | 95.3 | 114.4 | – | – |
| Dia. G | 584.2 | 584.2 | 584.2 | 584.2 | – | – |
| Dia. K | 635 | 685.8 | 723.9 | 749.3 | – | – |
| H | 72.6 | 95.6 | 133.4 | 165.4 | – | – |
| Number of L | 20 | 24 | 24 | 20 | – | – |
| Dia. L | 31.8 | 34.9 | 44.5 | 54 | – | – |
Advantages of Utilizing the Reducing Slip On Flange
Class 600 SORF Flange Manufacturing Challenges
- Thermally Fatigue
- Mis-Alignment of Flange
- Surface Irregularity
- Weld Defect
- Manufactured Process
- Availability of Materials
Slip on plate flange manufactured by cut, cast, and forged methods. Check ANSI B16.5 SORF flanges dimensions

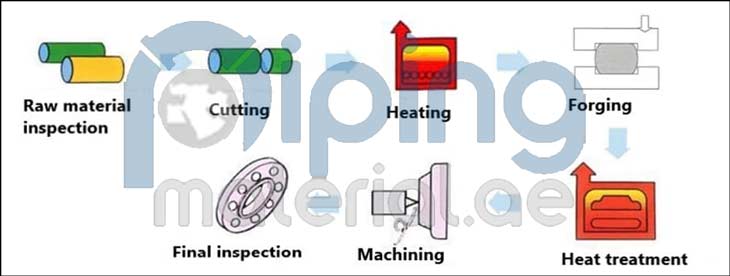

Manufacturing Process of Slip On Plate Flange
What is The Meaning Of SO & SORF ?
- SO : Slip On Flange
- SORF : Raised Face Slip On Flange
Inconel 625 SORF Flanges Dimension Chart
| Nominal Diameter | Outside Diameter (O.D.) | Dia. Bolt (Inch) | Thickness (Min) | Dia. Raised Face | Bore | Dia. Bolt Holes | Hub Diameter | Length Hub.Y | Dia. Bolt Circle | Number of Bolt | Weigth | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Inch | O | BD | C | G | B | BH | X | Y | BC | BN | Lb | Kg |
| 600 | 24″ | 813 | 1 1/4″ | 47.80 | 692.20 | 616 | 35.10 | 663.40 | 82.60 | 749.30 | 20 | 209 | 95 |
| 500 | 20″ | 698.50 | 1 1/8″ | 42.90 | 584.20 | 513.10 | 31.80 | 558.80 | 73.20 | 635 | 20 | 158 | 72 |
| 450 | 18″ | 635 | 1 1/8″ | 39.60 | 533.40 | 461.80 | 31.80 | 505 | 68.30 | 577.90 | 16 | 119 | 54 |
| 400 | 16″ | 597 | 1″ | 36.60 | 469.90 | 410.50 | 28.50 | 457.20 | 63.50 | 539.80 | 16 | 98 | 44.5 |
| 350 | 14″ | 533.50 | 1″ | 35.10 | 412.80 | 359.20 | 28.50 | 400.10 | 57.20 | 476.30 | 12 | 83 | 37.5 |
| 300 | 12″ | 482.50 | 7/8″ | 31.80 | 381 | 327.20 | 25.40 | 365.30 | 55.60 | 431.80 | 12 | 63 | 28.5 |
| 250 | 10″ | 406.50 | 7/8″ | 30.20 | 323.90 | 276.40 | 25.40 | 304.80 | 49.30 | 362 | 12 | 40 | 18.4 |
| 200 | 8″ | 343 | 3/4″ | 28.40 | 269.70 | 221.50 | 22.40 | 246.10 | 44.50 | 298.50 | 8 | 28.6 | 13 |
| 150 | 6″ | 279.50 | 3/4″ | 25.40 | 215.90 | 170.70 | 22.40 | 192 | 39.60 | 241.30 | 8 | 18 | 8.1 |
| 125 | 5″ | 254 | 3/4″ | 23.90 | 185.70 | 143.80 | 22.40 | 163.60 | 36.60 | 215.90 | 8 | 14.3 | 6.5 |
| 100 | 4″ | 228.50 | 5/8″ | 23.90 | 157.20 | 116.10 | 19.10 | 134.90 | 33.30 | 190.50 | 8 | 12.3 | 5.6 |
| 90 | 3-1/2″ | 216 | 5/8″ | 23.90 | 139.70 | 103.40 | 19.10 | 122.20 | 31.80 | 177.80 | 8 | 11 | 5 |
| 80 | 3″ | 190.50 | 5/8″ | 23.90 | 127 | 90.70 | 19.10 | 108 | 30.20 | 152.40 | 4 | 8.4 | 3.8 |
| 65 | 2-1/2″ | 178 | 5/8″ | 22.40 | 104.60 | 74.70 | 19.10 | 90.40 | 28.40 | 139.70 | 4 | 7.7 | 3.5 |
| 50 | 2″ | 152.50 | 5/8″ | 19.10 | 91.90 | 62 | 19.10 | 77.70 | 25.40 | 120.70 | 4 | 4.8 | 2.2 |
| 40 | 1-1/2″ | 127 | 1/2″ | 17.50 | 73.20 | 49.50 | 15.80 | 65 | 22.40 | 98.60 | 4 | 3.1 | 1.4 |
| 32 | 1-1/4″ | 117.50 | 1/2″ | 15.70 | 63.50 | 43.20 | 15.80 | 58.70 | 20.60 | 88.90 | 4 | 2.6 | 1.2 |
| 25 | 1″ | 108 | 1/2″ | 14.20 | 50.80 | 34.50 | 15.80 | 49.30 | 17.50 | 79.30 | 4 | 1.8 | 0.8 |
| 20 | 3/4″ | 98.50 | 1/2″ | 12.70 | 42.90 | 27.70 | 15.80 | 38.10 | 15.70 | 69.90 | 4 | 1.5 | 0.7 |
| 15 | 1/2″ | 89 | 1/2″ | 11.20 | 35.10 | 22.40 | 15.80 | 30.20 | 15.70 | 60.50 | 4 | 0.9 | 0.4 |
Gaskets Forms of Nickel Alloy Class 75 Slip On Plate Flange
- Spiral Wound
- Oval Ring
- PTFE
- RTJ
- Metal Jacketed
- FF
- RF
Stainless Steel Slip On Flanges Face Types
| Face | Marking Symbol |
|---|---|
| Male Female Face | M & F |
| Tongue Groove Face | T & G |
| Lap Joint Face | LJRF |
| Raised Face | RF |
| Ring Type Joint | RTJ |
| Flat Face | FF |
Check types of ASTM A182 F316 slip on plate flange and duplex steel threaded slip on flange size chart
Most Common Types for Slip On Flange
ASME B16.5 slip on raised face flange
Carbon steel SORF flange
SS hubbed flanges
Stainless steel slip on flange
Duplex steel slip on flat face flange
MS easy fit flange
Alloy steel quick flange
Super duplex floating flange
ASTM A182 F316 double welded slip on flange
Aluminum SO flanges
ASTM A105 SORF blind flange
ASTM A182 f304 SOFF flanges
- Forged slip on flange
- Cast slip on flange
- Slip On plate flange (made from plate)
- CNC machined slip on flange
Cs A105 Slip Joint Flange HSN Code
| Form | HSN Code |
|---|---|
| Slip On Flange | 730791 |
Surface Treatment for AMSE B16.5 Duplex Steel SORF Flange
- Zinc Plate
- Yellow Transparent
- Oil Black Painted
- Cold and Hot Dip Galvanize
- Anti Rust
Threaded Slip On Flange Size Chart
| Nominal Sizes (Inch) | Dimension | Dimensional Sizes | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2500 Lbs | 1500 Lbs | 900 Lbs | 600 Lbs | 400 Lbs | 300 Lbs | 125 / 150 Lbs | |||||||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||
| 2 1/2 | A | 10 1/2 | 266.7 | 9 5/8 | 244 | 9 5/8 | 244 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 | 177.8 |
| b | 2 1/4 | 57.2 | 1 5/8 | 41.3 | 1 5/8 | 41.3 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 | 25.4 | 7/8 | 22.2 | |
| D2 | 4 1/8 | 105 | 4 1/8 | 105 | 4 1/8 | 105 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | |
| D1 | 7 3/4 | 197 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 5 1/2 | 139.7 | |
| n | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 4 | 4 | |
| d | 1 1/4 | 31.8 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 3/4 | 19 | |
| 2 | A | 9 1/4 | 234.9 | 8 1/2 | 215.9 | 8 1/2 | 215.9 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 | 152.4 |
| b | 2 | 50.8 | 1 1/2 | 38.1 | 1 1/2 | 38.1 | 1 | 25.4 | 1 | 25.4 | 7/8 | 22.2 | 3/4 | 19 | |
| D2 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | |
| D1 | 6 3/4 | 171 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 5 | 127 | 5 | 127 | 5 | 127 | 4 3/4 | 121 | |
| n | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 4 | 4 | |
| d | 1 1/8 | 28.6 | 1 | 25.4 | 1 | 25.4 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | |
| 1 1/2 | A | 8 | 203 | 7 | 177.8 | 7 | 177.8 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 5 | 127 |
| b | 1 3/4 | 44.5 | 1 1/4 | 31.8 | 1 1/4 | 31.8 | 7/8 | 22.2 | 7/8 | 22.2 | 13/16 | 20.6 | 11/16 | 17.5 | |
| D2 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 98 | |
| D1 | 5 3/4 | 146 | 4 7/8 | 124 | 4 7/8 | 124 | 4 1/2 | 114 | 4 1/2 | 114 | 4 1/2 | 114 | 3 7/8 | 4 | |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| d | 1 1/4 | 31.8 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 5/8 | . 15.9 | |
| 1 1/4 | A | 7 1/4 | 184.2 | 6 1/4 | 159 | 6 1/4 | 159 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 4 5/8 | 117.5 |
| b | 1 1/2 | 38.1 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 13/16 | 20.6 | 13/16 | 20.6 | 3/4 | 19 | 5/8 | 15.9 | |
| D2 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | |
| D1 | 5 1/8 | 130 | 4 3/8 | 111 | 4 3/8 | 111 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 3 1/2 | 88.9 | |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| d | 1 1/8 | 28.6 | 1 | 25.4 | 1 | 25.4 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 5/8 | 15.9 | |
| 1 | A | 6 1/4 | 159 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 4 1/4 | 108 |
| b | 1 3/8 | 34.9 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 11/16 | 17.5 | 11/16 | 17.5 | 11/16 | 17.5 | 9/16 | 14.3 | |
| D2 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | |
| D1 | 4 1/4 | 108 | 4 | 102 | 4 | 102 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 1/8 | 79.4 | |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| d | 1 | 25.4 | 1 | 25.4 | 1 | 25.4 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 5/8 | 15.9 | |
| 3/4 | A | 5 1/2 | 139.7 | 5 1/8 | 130 | 5 1/8 | 130 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 3 7/8 | 98.4 |
| b | 1 1/4 | 31.8 | 1 | 25.4 | 1 | 25.4 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 1/2 | 12.7 | |
| D2 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | |
| D1 | 3 3/4 | 95.2 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 2 3/4 | 69.8 | |
| n | 4 | 44 | 4 | – | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| d | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 5/8 | 15.9 | |
| 1/2 | A | 5 1/4 | 133.4 | 4 3/4 | 121 | 4 3/4 | 121 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 3 1/2 | 88.9 |
| b | 1 3/16 | 30.2 | 7/8 | 22.2 | 7/8 | 22.2 | 9/16 | 14.3 | 9/16 | 14.3 | 9/16 | 14.3 | 7/16 | 11.1 | |
| D2 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | |
| D1 | 3 1/2 | 88.9 | 3 1/4 | 82.6 | 3 1/4 | 82.6 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 2 3/8 | 60.3 | |
| n | 4 | 44 | 4 | – | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| d | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | |
Isometric Symbol for Mild Steel Slip On Reducing Flange
| Isometric Symbol | Image | Flange |
|---|---|---|
 |
|
Slip On Flange |
Storage Sites of Partner Suppliers
| City | Region | Country |
|---|---|---|
| Dubai | Middle East | United Arab Emirates |
| Abu Dhabi | Middle East | United Arab Emirates |
| Dammam | Middle East | Saudi Arabia |
| Riyadh | Middle East | Saudi Arabia |
| Doha | Middle East | Qatar |
| Abuja | Africa | Nigeria |
| Kuwait City | Middle East | Kuwait |
| Jeddah | Middle East | Saudi Arabia |
| Cairo | MENA | Egypt |
| Casablanca | MENA | Morocco |
| Johannesburg | Africa | South Africa |
| Cape Town | Africa | South Africa |
| Lagos | Africa | Nigeria |
Refer ASME B16.5 slip on flange dimension and buy Ms SORF flange from verified suppliers in the middle east countries
Various Materials of Slip On Flanges
Quality first Slip On Flange Supplier with and trusted by leading brands across Umm Al Quwain & Fujairah
Sales Agents in Following Locations
| Muscat | Riyadh | Dubai | Ras Al Khaimah |
|---|---|---|---|
| Sharjah | Fujairah | Umm Al Quwain | Doha |
| Saudi Arabia | Al Jubail | Abu Dhabi | Ajman |
Why tensile tests required for Stainless Steel Slip On Flange ?
- The tensile Test are required for Stainless Steel Slip On Flange because of to confirm that it meet ductility, strength, & safety standard
ANSI Slip On Flange Height in Inch
| Classes | Height (Inch) |
|---|---|
| 2500# | 1/4″ |
| 1500# | 1/4″ |
| 900# | 1/4″ |
| 600# | 1/4″ |
| 400# | 1/4″ |
| 300# | 1/6″ |
| 150# | 1/6″ |
What are the applications of a slip on flanges ?
Trusted Slip On Flange Supplier in UAE delivering highly performance flanges that are designed to as per customer requirements
Warehouse Locations of Partner Suppliers
| Middle East countries | Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen |
|---|---|
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
| MENA | Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine |
Major Needs While Choosing the Correct Steel Slip On Flange
- Requirement of Flange Pressure
- Installation Requirement
- Considering the Budget
- Compatibility of Material
Slip On Raised Face Flange Temperature Range
| Alloy | UNS | Grade | Casting slip on flange | Forged slip on flange | WNR | DIN | Temperature range |
|---|---|---|---|---|---|---|---|
| Moly | K12822 | C-1/2Mo | ASTM A217-WC1 | ASTM A182 Gr F1 cl2 | 1.5415 | 15M03 |
|
| Alloy | G41300 | AISI 4130 slip on flanges | – | – | 1.7218 | – |
|
| Chrome-Moly | K41545 | 5Cr-1/2Mo | ASTM A217 Gr C5 | ASTM A182 Grade F5/F5a | 1.7362 | 12CRMO195 |
|
| K11572 | 1.1/4Cr-1/2Mo | ASTM A217 WC6 | ASTM A182 Gr F11 cl2 | 1.7335 | 13CRM044 |
|
|
| 9Cr-1Mo-V | A217-C12A | A182 Gr F91 | 1.4903 | X 10 CrMoVNb 9 1 |
|
||
| K21590 | 2.1/4Cr-1Mo | ASTM A217 Gr WC9 | ASTM A182 Grade F22 cl3 | 1.7380 | 10CRM0910 |
|
|
| K90941 | 9Cr-1Mo | A217-C12 | A182 Gr F9 | 1.7386 | X 12 CrMo 9 1 |
|
Key Features of Class 75 Slip On Flange
- Flange Design
- Applications
- Installation
- Material
- Cost-Effectiveness
- Limitations
Ss Slip On Flange Weight Chart
| Nominal Sizes | PN 100 | PN63 | PN 40 | PN 25 | PN 16 | PN 10 | PN 6 |
|---|---|---|---|---|---|---|---|
| 100 | 10.3 | 8.05 | 6.07 | 4.39 | 4.39 | 4.39 | 3.26 |
| 80 | 7.72 | 5.90 | 4.32 | 3.60 | 3.60 | 3.60 | 2.95 |
| 65 | 6.33 | 4.73 | 3.48 | 3.16 | 3.16 | 3.16 | 1.86 |
| 50 | 4.99 | 4.99 | 2.73 | 2.73 | 2.73 | 2.73 | 1.48 |
| 40 | 3.58 | 2.08 | 2.08 | 2.08 | 2.08 | 2.08 | 1.35 |
| 32 | 2.79 | 1.82 | 1.82 | 1.82 | 1.82 | 1.82 | 1.16 |
| 25 | 2.37 | 1.11 | 1.11 | 1.11 | 1.11 | 1.11 | 0.719 |
| 20 | 1.86 | 0.936 | 0.936 | 0.936 | 0.936 | 0.936 | 0.592 |
| 15 | 1.10 | 0.670 | 0.670 | 0.670 | 0.670 | 0.670 | 0.402 |
| 10 | 1 | 0.604 | 0.604 | 0.604 | 0.604 | 0.604 | 0.356 |
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Netherlands | The Hague |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | Amsterdam |
| Belgium | Antwerp |
| Netherlands | Haarlem |
| Belgium | Brussels |
| Belgium | Seraing |
| Belgium | Ghent |
| Belgium | Leuven |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
Advantages of Using Slip Joint Flange
We Collaborate With Traders in the Following Locations
| Dubai | Ajman |
| Fujairah | Ras Al Khaimah |
Table of Content
