Stainless Steel 304L Pipe Fittings

Home > Stainless Steel 304L Pipe Fittings

Stainless Steel 304 Pipe Fittings Highlights

Sizes in Stock :	1/2 to 120″
American & European Standard:	ASTM A403, ASME SA 403, UNS S30403, WNR 1.4306
Manufacturing Standard	ANSI B16.9, ANSI B16.28, DIN 2605, EN10253-1, DIN 2616, MSS-SP-43, DIN 2615, DIN 2617
Environment :	Mild Acids & Salt Water
Origin of Raw Material:	European, Indian, Korean, Janpanese, UK, German
Bending Radius:	3D, 1D, 6D, 5D, 10D, 2D, 8D
Heat Treatment :	1010 to 1120°C
Lifespan :	45 To 50 Years
HSN Code	7307
Bending Angle:	60°, 90°, 22.5°, 30°, 45°, or Custom
MTC:	EN 10204/3.1B
Schedule:	SCH 10 To SCH 160
Delivery Time:	Malaysia : 10 Days Germany : 20 Days
RFQ:	support@pipingmaterial.ae

Table of Content

ASTM A403 WP304L Buttweld Fittings Specification
SS 304L Fittings Price List
Types Of SA 403 Grade 304L Pipe Bend
AISI 304L Stainless Steel Elbow Types
Types Of 304l Stainless Steel Tee
Stainless Steel 304l Reducer Types
Types Of ASME SA403 WP304L Stub End & Cap
SA 403 Grade 304L Buttweld Cross Fittings Types
Types Of SS 304L Swage Nipple
Technical Details Of ASTM A403 WP304L Fittings
SA403 gr WP304L Stub End Specification
ASTM A403 WP304l Elbow Dimensions
Working Pressure Of Stainless Steel 304L Pipe Fittings
304L Stainless Steel Welded Fittings Equivalent Standard
ASME SA403 WP304L Welded Pipe Fittings Chemical Composition
SA 403 Grade 304L Weldable Pipe Fittings Mechanical Properties
SS 304L Pipe Fittings Angularity Tolerances
ASTM A403 Grade WP304L Buttweld Fittings Application
What To Check During ASTM A403 WP304L Fittings Dimension Inspection?

ASTM A403 WP304L Elbow and SA 403 WP 304L reducer suppliers in UAE

ASTM A403 WP304L Buttweld Fittings Specification

Find Stainless Steel 304L Pipe Fittings Suppliers in UAE Who Offer As Per Custom Specification

Stainless steel 304l pipe fittings specifications

Sizes in Stock: Buttweld : 1/2 to 36", Seamless : 1/2 to 24", Welded : 24 to 96"

Maximum Available Size: 120 Inch (DN2000)

Forms: Cap, Tee, Reducer, Elbow

Wall Thickness : Schedule 20 to SCH 180

Finish: Mill, Pickled, Polished

Packaging: Carton Box, Plastic Bag, Wooden Case

Value Added Services: Polishing, Cutting, Threading, Casting

Method: Buttweld, Seamless, Welded

Application: Petrochemical Industry, Aviation and Aerospace Industry, Gas Exhaust

Testing: Hyrdrostatic Test, Hardness Test, PMI Test

Machinery: Beveling Machine, Cold Forging, CNC

Temprature Range: 927°C

100% Tested ASTM A403 WP304 Buttweld Pipe Fittings With MTC EN 10204 3.1/3.2

Get Quote Directly From Stainless Steel 304 Pipe Fittings Suppliers in UAE

Verified manufacturers of Stainless Steel 304l Reducer and ASTM A403 WP304L Buttweld Fittings in Welded/ Seamless condition

SS 304L Fittings Price List

Elbow, 90 degree, ASTM A403 Grade WP 304L (Schedule 10, Seamless, ASME B16.9)
SIZE	USD/ Pcs	AED/ Pcs
15 NB	US $ 0.70	AED 2.59
20 NB	US $ 0.95	AED 3.48
25 NB	US $ 1.08	AED 3.97
32 NB	US $ 1.94	AED 7.13
40 NB	US $ 2.12	AED 7.80

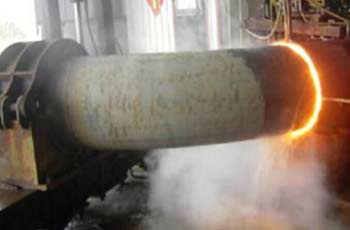

Types Of SA 403 Grade 304L Pipe Bend

Get Stainless Steel 304L Pipe Fittings Suppliers in UAE Who Supply Various Types

Type 304l Stainless Steel Long Radius Bend

ASTM A403 WP304L 3D Bend

ASTM A403 Grade WP304L 5D Bend

ASME SA403 WP304L U Bend

WP304L Short Radius Bend

A403 WP304L Return Bend

AISI 304L Welded Pipe Bend

ASTM A403 Gr WP 304L 10D Bend

Stainless Steel 304L Seamless Pipe Bend

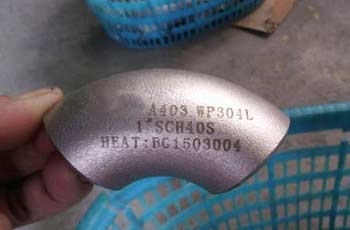

AISI 304L Stainless Steel Elbow Types

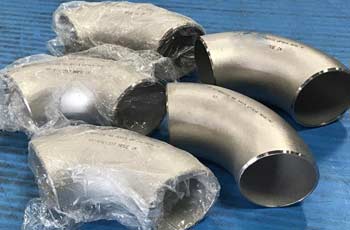

Stainless Steel 304L Short Radius Elbow

A403 WP304L Long Radius Elbow

304L SS 1D Elbow

ASTM A403 WP304L 45 Deg Elbow

304L Stainless Steel 90 Deg Elbow

Stainless Steel 304L 180 Deg Elbow

SS 304L 5D Elbow

SUS 304L Buttweld Elbow

SA403 WP304L 3D Elbow

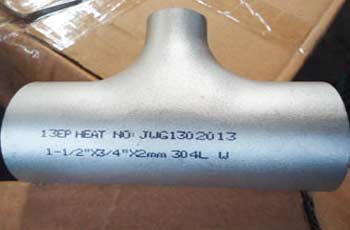

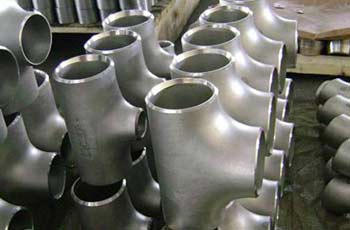

Types Of 304l Stainless Steel Tee

Stainless Steel 304L Buttweld Split Tee

WP304L Unequal Tee

304L Stainless Steel Buttweld Tee

ASTM A403 Grade WP304L Reducing Tee

SUS 304L Stainless Steel Equal Tee

ASME SA403 WP304L Lateral Tee

A403 WP 304L barred tee
SS 304L reducing outlet tees
A403 WP304L swept tee
ASTM A403 Gr WP304L saddle tee
AISI 304L Y tee

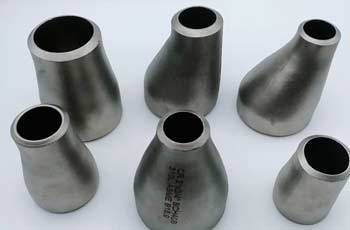

Stainless Steel 304l Reducer Types

Stainless Steel 304L Eccentric Reducer

UNS S30403 Concentric Reducer

ASTM A403 WP304L Buttweld Reducer

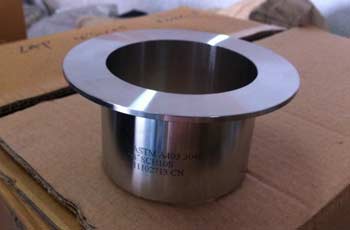

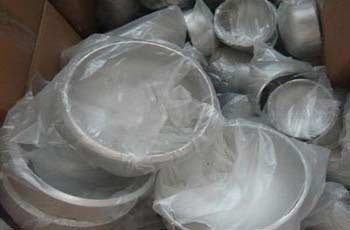

Types Of ASME SA403 WP304L Stub End & Cap

ASTM A403 Gr WP304L Pipe Cap

A403 WP304L Stub End

ASME SA403 WP304L Long Stub End

AISI 304L stainless lap joint stub end
ASME SA403 WP304L butt welded hemi-head pipe cap
ASTM A403 Gr WP304L collar

SA 403 Grade 304L Buttweld Cross Fittings Types

SS 304l Straight Cross

UNS S30403 Reducing Cross

ASTM A 403 WP 304l Equal Cross

Types Of SS 304L Swage Nipple

ASTM S30403 concentric swage nipple
A403 WP304L eccentric swage nipple (reducing)

Partner Traders and Importers Are Available in the Regions Mentioned Below for Swift Deliveries

Region	City	Country
Africa	Lagos	Nigeria
Middle East	Dubai	United Arab Emirates
Africa	Johannesburg	South Africa
Middle East	Abu Dhabi	United Arab Emirates
Africa	Abuja	Nigeria
Middle East	Dammam	Saudi Arabia
MENA	Cairo	Egypt
Middle East	Riyadh	Saudi Arabia
Africa	Cape Town	South Africa
Middle East	Doha	Qatar
Middle East	Kuwait City	Kuwait
MENA	Casablanca	Morocco

Technical Details Of ASTM A403 WP304L Fittings

SS 304L buttweld fittings sizes	Stainless Steel 304L fittings strength	ASTM A403 WP304L fittings life
SA 403 Gr 304L welded fittings : 24 – 96″ (BW) Type 304L Stainless Steel fabricated fittings : custom ASTM A403 WP 304L seamless fittings : 1/2″ – 24″ (BW)	Tensile stress: 485 Yield strength: 170	last for years, even decades
Quality inspection	Classes Of ASTM A403 WP304L	304L stainless steel welded fittings thickness tolerance
Annealing (Before machining & after welding) Liquid penetrant ASTM A403 WP304L -W & WX (With Radiographic test) A403 WP304L WU (With Ultrasonic test) CR304L (With Nondestructive NDT test)	ASTM A403 WP304L- W: welded fittings ASTM A403 WP304L- S: seamless fittings CR304L : corrosion resistant grade ASTM A403 WP304L – WX ASTM A403 WP304L – WU	custom +/-12.5%
ASTM A403 Gr WP 304L BW fittings meet the requirements	ASME SA403 WP304L welded pipe fittings American standard	SA 403 Grade 304L weldable pipe fittings temperature
MTC EN 10204 3.1/ 3.2 certificate ISO 15156 NACE TM-0284 HIC tested IBR NORSOK Sour service NACE MR0175 NACE MR0103 Welding as per 5.10.	ANSI/ ASME B16.28 ANSI/ ASME B16.9 ANSI/ ASME B16.25 (butt welding ends) MSS-SP-83 MSS-SP-95 MSS-SP-43 MSS-SP 119 (A 403 WP 304L belled end elbow)	870°C – 925°C
American standard & specification	A403 WP304L buttweld fittings manufacturing technique	Ends
Seamless fittings: ASTM A403 wp-s UNS S30403 Welded fittings: ASTM A403 wp-x UNS S30403 Chat with above seamless & welded Stainless Steel 304L Pipe Fittings suppliers, they export SS 304L fittings material regularly in Mexico, USA, Saudi Arabia, South Africa, Egypt & Azerbaijan	Mandrel Hot forming	Plain Bevel Compound Bevel Bevelled
SA 403 Grade 304L weldable pipe fittings schedule chart	SS 304L butt weld fittings testing reqirements	304L stainless steel buttweld fittings manufacturing types
SCH 10 SCH 60 STD XH XXH SCH 80 SCH 160 SCH 20 SCH 40	Ultrasonic test HIC tested Positive Material Identification (PMI) Hyrdrostatic test (according to ASTM A960/ A960M) Magnetic Particle Examination (For above Sch 80 SS 304L fittings bevel ends) Buy Korean origin material from above Stainless Steel 304L Pipe Fittings suppliers in UAE	SA403 gr WP304L elbow Stainless 304L cap ASTM A403 WP304L stub end AISI 304L material pipe bend SA 403 WP 304L cross SS 304L tee Type 304L Stainless Steel reducer
ASTM A403 WP304L fittings bend radius	ASME SA403 WP304L pipe bend angle	SA 403 WP 304L bending method
3D 6D 8D 10D 4D 5D	15° 45° 60° 90° 135° 22.5 30° 180°	Roll Bending Mandrel Bending Rotary Draw Bending Hot Induction Bending Ram-Type Bending
ASTM A403 WP304L buttweld fittings testing & inspection	ASTM A403 Grade WP304L buttweld pipe fittings DIN standards (Germany)	Stainless Steel 304L fittings EN standards (Europe)
100% Radiography Tested Magnetic Particle Examination (For above Sch 80 CS fittings bevel ends) Ultrasonic test HIC tested Positive Material Identification (PMI)	DIN 2617 (Caps) DIN 2605-1 (Elbow) DIN 2605-2 (Elbow) DIN 2616-2 (Concentric Reducer) DIN 2616-1 (Eccentric Reducer) DIN 2618 (saddle) DIN 2615-1 (Tee) DIN 2615-2 (Tee) DIN 28011 (Torispherical heads)	EN 10253-2
ASTM A403 WP304L fittings JIS standard (Japan)	GOST standard (Russia)	304L stainless steel welded fittings applicable fluids
JIS B2313 JIS B2312	GOST 17375 (induction elbow) GOST 17376 GOST 17378 GOST 17379 GOST 17375	Steam Gas Oil Water Air
ASME SA403 WP304L welded pipe fittings marking	SA 403 WP 304L butt welded joint packaging	SA 403 Grade 304L weldable pipe fittings standard
Size Dimensional standard – ASME B16.9 Manufacturers / suppliers name Grade Heat number	Carton Box Custom as per buyer choice Wooden Cases Wooden Pallet	ISO 5251 -SA 403 Gr 304L butt welding fittings

SA403 gr WP304L Stub End Specification

stub end standard	ASTM/ ASME	stub end schedule	Type	Installed with
MSS SP-43	A403 grade WP304L ASME SA403 WP304L	Schedule 10S Schedule 5S	Type A	Lap Joint flange
MSS SP-43		Schedule 10S Schedule 5S	Type B	Slip On flange
ASME B16.9		Schedule XS Schedule STD	butt weld	Lap Joint flange

Buy Directly from Stockists and Dealers of Stainless Steel 304L Pipe Fittings in Abu Dhabhi

Atiq Al Dhaheri & Co. LLC, Musaffah Industrial Area, Abu Dhabi
Deep Sea Pipes and Fittings Trading LLC, Musaffah M9, Abu Dhabi
Noble Marine Metals Co WLL, Musaffah, Abu Dhabi
HEBEIPAL Pipes And Fittings Trading, Musaffah M3, Abu Dhabi

ASTM A403 WP304l Elbow Dimensions

OD(D)	NPS	Center-End (B)	Center-End (A)
273	10	159	381
60.3	2	35	76
355.6	14	222	533
73	2½	44	95
559	22	343	838
26.7	3/4	19	38
88.9	3	51	114
33.4	1	22	38
323.8	12	190	457
219.1	8	127	305
406.4	16	254	610
457	18	286	686
610	24	381	914
114.3	4	64	152
48.3	1½	29	57
141.3	5	79	190
101.6	3½	57	133
168.3	6	95	229
508	20	318	762
21.3	1/2	16	38
42.2	1¼	25	48

Working Pressure Of Stainless Steel 304L Pipe Fittings

NPS (Inch)	Working Pressure	Wall Thickness	OD
16	220	.843	16.000
1/4	1130	.119	.540
5	290	.375	5.563
1/2	850	.147	.840
1-1/4	520	.191	1.660
3/8	920	.126	.675
1-1/2	470	.200	1.900
2	400	.218	2.375
6	280	.432	6.625
10	230	.593	10.750
3	370	.300	3.500
1	630	.179	1.315
2-1/2	420	.276	2.875
4	320	.337	4.500
3-1/2	350	.318	4.000
12	230	.687	12.750
14	220	.750	14.000
8	250	.500	8.625
3/4	690	.154	1.050

304L Stainless Steel Welded Fittings Equivalent Standard

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
A403 WP304L Fittings	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11

304l stainless steel fittings equivalent grades

ASME SA403 WP304L Welded Pipe Fittings Chemical Composition

Grade	P	S	C	Mn	Si	Cr	Ni
SS 304L	0.045 max	0.030 max	0.035 max	2 max	1.0 max	18 – 20	8 – 13

WP304l pipe fittings chemical composition

SA 403 Grade 304L Weldable Pipe Fittings Mechanical Properties

Tensile Strength	Melting Point	Density	Elongation	Yield Strength (0.2%Offset)
MPa – 515, Psi – 75000	1400 °C	8.0 g/cm3	0.35	MPa – 205, Psi- 30000

WP304l buttweld pipe fittings mechanical properties

Material Inspection Facility in Following Locations

Umm Al Quwain	Sharjah	Fujairah	Doha
Dubai	Muscat	Riyadh	Ras Al Khaimah
Abu Dhabi	Saudi Arabia	Al Jubail	Ajman

SS 304L Pipe Fittings Angularity Tolerances

NPS	Q	P
NPS	inch [mm]	inch [mm]
1/2~4	±0.03 [±1]	±0.06 [±2]
5~8	±0.06 [±2]	±0.12 [±4]
10~12	±0.09 [±3]	±0.19 [±5]
14~16	±0.09 [±3]	±0.25 [±6]
18~24	±0.12 [±4]	±0.38 [±10]
26~30	±0.19 [±5]	±0.38 [±10]
32~42	±0.19 [±5]	±0.50 [±13]
44~48	±0.19 [±5]	±0.75 [±19]

ASTM A403 Grade WP304L Buttweld Fittings Application

Storage tanks
Chemical processing equipment
Pharmaceutical processing equipment
Architectural mouldings
Marine equipment
Sinks & splashbacks
Oil & Gas applications

What To Check During ASTM A403 WP304L Fittings Dimension Inspection?

See Where You Can Find Material Ex Stock

Middle East countries	Saudi, Syria, Qatar, Iran, Bahrain, Kuwait, Lebanon,UAE, Iraq, Jordan, Yemen
MENA	Egypt,Morocco, Libya, Tunisia, Israel, Algeria, Palestine
Africa	Kenya, Morocco, South Africa, Nigeria, Tunisia, Egypt, Algeria

ASTM A403 WP304L Pipe Fittings Manufacturing Process

Manufacturing Process of ASTM A403 WP304L Pipe Fittings

ASTM A403 Gr WP304L Butt weld pipe fittings and SS 304L concentric reducer in Schedule 10/ 10S

304L Stainless Steel Fittings Thickness Chart

NPS	Caps	Lap Joint Stub Ends			180 Degree Return Bends				90 Degree Elbows			45 Degree Elbows		Tees
–	E	G	F	R	LR		LR		SR	LR	3R	LR	3R	C	M
–	E	G	F	R	O	K	K	O	A	A	A	B	B	C	M
12	6.00	15.00	10.00	0.50	36.00	24.38	18.38	24.00	12.00	18.00	36.00	7.50	14.88	10.00	10.00
2	1.50	3.62	6.00	0.31	6.00	4.19	3.19	4.00	2.00	3.00	6.00	1.38	2.50	2.50	2.50
2½	1.50	4.12	6.00	0.31	7.50	5.19	3.94	5.00	2.50	3.75	7.50	1.75	3.12	3.00	3.00
1	1.50	2.00	4.00	0.12	3.00	2.19	1.62	2.00	1.00	1.50	–	0.88	–	1.50	1.50
20	9.00	23.00	12.00	0.50	60.00	40.00	30.00	40.00	20.00	30.00	60.00	12.50	24.88	15.00	15.00
8	4.00	10.62	8.00	0.50	24.00	16.31	12.31	16.00	8.00	12.00	24.00	5.00	9.94	7.00	7.00
10	5.00	12.75	10.00	0.50	30.00	20.38	15.38	20.00	10.00	15.00	30.00	6.25	12.44	8.50	8.50
4	2.50	6.19	6.00	0.44	12.00	8.25	6.25	8.00	4.00	6.00	12.00	2.50	5.00	4.12	4.12
½	1.00	1.38	3.00	0.12	3.00	1.88	–	–	–	1.50	–	0.62	–	1.00	1.00
6	3.50	8.50	8.00	0.50	18.00	12.31	9.31	12.00	6.00	9.00	18.00	3.75	7.44	5.62	5.62
¾	1.00	1.69	3.00	0.12	3.00	2.00	–	–	–	1.50	–	0.75	–	1.12	1.12
18	8.00	21.00	12.00	0.5	54.00	36.00	27.00	36.00	18.00	27.00	54.00	11.25	22.38	13.50	13.50
16	7.00	18.50	12.00	0.50	48.00	32.00	24.00	32.00	16.00	24.00	48.00	10.00	19.88	12.00	12.00
1½	1.50	2.88	4.00	0.25	4.50	3.25	2.44	3.00	1.50	2.25	–	1.12	–	2.25	2.25
14	6.50	16.25	12.00	0.50	42.00	28.00	21.00	28.00	14.00	21.00	42.00	8.75	17.38	11.00	11.00
3½	2.50	5.50	6.00	0.38	10.50	7.25	5.50	7.00	3.50	5.25	10.50	2.25	–	3.75	3.75
3	2.00	5.00	6.00	0.38	9.00	6.25	4.75	6.00	3.00	4.50	9.00	2.00	3.75	3.38	3.38
1¼	1.50	2.50	4.00	0.19	3.75	2.75	2.06	2.50	1.25	1.88	–	1.00	–	1.88	1.88
5	3.00	7.31	8.00	0.44	15.00	10.31	7.75	10.00	5.00	7.50	15.00	3.12	–	4.88	4.88

WP304L Buttweld pipe fittings and 304L Stainless Steel Stub End Type B as per MSS SP-43, lowest price in Dubai

Manufacturing Standards Of SS 304l Welded Fittings

Meet Genuine Stainless Steel 304L Pipe Fittings Suppliers in UAE Who Offer As Per Manufacturing Standards

American Society for Mechanical Engineers

American Society for Testing and Materials

AISI 304L Reducer Heat Treatment

Solution Treatment	Annealing Range
1010 To 1120°C	1850° To 2050°F

BS EN 10255 & 10217-1 Dual Certified UNS S30403 long radius and short radius elbow, SUS 304L End Cap, AISI 304L reducing tee and DIN 1.4306 Return bends manufacturers in Middle East

Ready to Dispatch Stock Of 304L Stainless Steel Fittings

UNS S30403 Pipe Bend

Thickness Tolerance:+/-12.5% and Custom
Service:Could Produced According Drawings

DIN 1.4306 Concentric Reducer

Connection: Welding
Finish: Hot Galvanized

ASTM A403 Grade WP304L Reducing Tee

Technique: Forged, Casting
Sizes: Customizable

304l Stainless Steel Tee

Thread:BSP/ BSPT/ NPT
Shape: Equal, Reducing Tee

SA 403 Gr WP304L Stub Ends

Media: Oil, Gas, Water
Process: Push, Hot forming, Forge, Press, Cast

ASTM A403 Gr WP304L End Cap

Charpy Impact Test: Passed
Process Flow: Mandrel-Forming

SS 304L Long Radius Elbow

Test Passed: Corroison, Tensile
Material: Stainless Steel

Stainless Steel 304L Short Radius Elbow

Machining Tolerances: up to +/- 0.1mm
Freight Method: Air, Sea

SA 403 Wp 304l Elbow Bending Method

Hot Induction Bending
Mandrel Bending
Ram-Type Bending
Roll Bending
Rotary Draw Bending

Our Supply Range

Size: 1/2″ To 48″ NB

Thickness: SCH 10S To SCH 80S

Types : Elbow, Tee, Reducer

Locate Resellers and Stockists in Your Vicinity

Cities	Country
Meeuwen-Gruitrode	Belgium
Brussels	Belgium
Amsterdam	Netherlands
Haarlem	Netherlands
Eindhoven	Netherlands
Seraing	Belgium
Rotterdam	Netherlands
Ghent	Belgium
The Hague	Netherlands
Westerlo	Belgium
Leuven	Belgium
Antwerp	Belgium

SS 304L Tee Size Chart

(NPS)	OD.& ID.	Threads Size (Inch)
1/2	27/32	14
1/16	5/16	27
3/4	1-3/64	14
3	3-1/2	8
1	1-5/16	11-1/2
1/4	35/64	18
1/8	13/32	27
4	4-1/2	8
2	2-3/8	11-1/2
3-1/2	4	8
1-1/4	1-21/32	11-1/2
3/8	43/64	18
2-1/2	2-7/8	8
1-1/2	1-29/32	11-1/2

SUS 304l Buttweld Fittings Physical Properties

Properties		Values
Elastic Modulus	GPa	193
Density	kg/m3	8000
Specific Heat o- 1000C	J/kg.K	500
Electrical Resistivity	n.m	720
Mean Thermal of Coefficient of Expansion(m/m/oC)	o- 1000C	17.2
	o- 538oC	18.4
	o- 3150C	17.8
Thermal Conductivity (W/m.K)	at 5000C	21.5
Thermal Conductivity (W/m.K)	at 1000C	16.2
