Stainless Steel 310H Pipe Key Points

Sizes Availability	Seamless Pipe: OD: 1/8″ – 12″ NPS Welded Pipe: OD 1/4” – 36” Seamless Tube: 1″ OD- 7/8″ OD Welded Tube: 1″ OD- 4″ OD Custom
Brands in Stock	Centravis, Maruichi Stainless, Mannesmann Stainless, Nippon Steel Corp., PCC Rollmet, Ratnamani Metals & Tubes, Alleima, Sanyo Special Steel, Tubacex
Raw Material Orign	Janpanese, European, American, Korean, Russia, Indian
HSN Code	73044100
Saudi Arabian Standards	SASO-ASTM-A312M, A733, SASO 7306
International Standards	ASTM A312, ASME SA312, UNS S34709, WNR 1.4961, INOX 310H, AISI 310H, SUS 310H, ASTM A269, ASME SA269, ASTM A270, ASTM A554, ASME SA249
Approval	ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, Marine and KPI.
Services	Heat Treatment Cutting Shearing
MTC	EN 10204 3.1

Table of Content

Stainless Steel 310H Pipe Specification
310H Stainless Steel Tubing Size Chart
SUS310H Stainless Steel Welded Pipe Manufacturing Process
ASTM A312 gr TP310H Seamless Pipe Benefits
310H SS Seamless Tube Stock For Immediate Dispatch
Stainless Steel 310H Round Pipe
Polished Stainless Steel 310S Tube
AISI 310H Welded Pipe
Brushed 310H Stainless Steel Pipe
Cold Rolled SS 310H Rectangular Tube
Stainless Steel 310H Hollow Pipe
UNS S34709 Seamless Pipe
INOX 310H ERW Pipe
DIN 1.4961 Square Pipe
310H Stainless Steel Rectangular Pipe
SS 310H Thick Wall Pipe
310H SS Hot Finished Pipe

SUS 310H Cold Finished Pipe
Stainless Steel 310H Oval Pipe
Types of ASTM A213 TP310H Tubing
310H Stainless Steel Tubing Pressure Rating
UNS S34709 Stainless Steel Pipe Weight Chart
310H SS Seamless Tube Applications
A312 TP310H Seamless Tube Equivalent
ASTM A312 TP 310H Pipe Chemical Composition
SA 312 TP 310H Pipe Mechanical Properties
How do you identify genuine Stainless Steel 310H Pipe?
A312 TP 310H Tube Allowable Stress
A312TP310H Pipe Welding Electrodes
310H Stainless Steel Seamless Pipe Technical Data
SUS 310H Stainless Steel Pipe Origin
How to Ensure Optimal Performance of Stainless Steel 310H Pipes?

Discover the Top ASTM A312 TP310H Pipe Suppliers in UAE and Compare SS 310H and 310S

Stainless Steel 310H Pipe Specification

310H SS Seamless Pipe: 0.6 to 12.7 mm (Wall Thickness)

ASTM A312 gr TP310H Welded Pipe: 0.8 to 12.7 mm (Wall Thickness), up to 26 Meters (Length)

SUS310H Thick Walled Pipe: 10 to 600mm (OD), 2.5 to 100mm (Wall Thickness)

SA 213 TP 310H Pipe Schedule: 5 to XXH

310H Stainless Steel Tube Method: Cold Formed, Hot Formed, Precision Rolled

End: Bevelled, Plain, Grooved, Threaded

Suitable Temperatures: up to 925°C

Stainless Steel 310H Pipe Process: ERW, Seamless, Welded

MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

310H Stainless Steel Pipe Finish: Annealing, Polished, Bright

Get Quote Directly from Stainless Steel 310H Pipe Suppliers in UAE With Complete Documentation

UNS S34709 Tubing Form: Round, Square, Rectangular, Hexagon etc.

Choose the Middle East Stockist Giving the Best Price on 310H Seamless Pipe . Also, Check the Benefits

310H Stainless Steel Tubing Size Chart

OD mm	Pipe WT mm	in.	Sch	Kg/m
17.15	1.65	3/8	10S	0.64
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
13.72	1.65	1/4	10S	0.50
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16

SUS310H Stainless Steel Welded Pipe Manufacturing Process

Manufacturing method	Full form
A312TP310H OAW pipes	Oxy acetylene welding
SA312 TP310H MAW pipes	Manual arc welding (Hand-Welding)
INOX 310H ERW pipes	Electric resistance welding (Contact Welding)
ASTM A312 gr TP310H EFW pipes	Electric fusion welding pipe
ASTM A312 TP 310H SAW pipes	Submerged arc welding steel pipe
SA312 TP310H SSAW pipes	Spiral submerged arc welded
ASME SA 213 TP310H DSAW pipes	Double submerged arc welded pipe
UNS S34709 stainless steel HFW pipes	High frequency welding
SA213 TP310H HSAW pipes	Helical submerged arc welding
UNS S34709 stainless steel HFIW pipes	High frequency induction welding
ASME SA 213 TP310H BWP pipes	Butt welded pipes
UNS S34709 CEW pipes	Cold electric welded tubes
ASTM A312 310H stainless steel LSAW pipes	Longitudinal submerged arc welding

ASTM A312 gr TP310H Seamless Pipe Benefits

High Creep Strength
Superior Pressure Handling
Excellent Oxidation Resistance
Durability and Low Maintenance
Structural Integrity
Versatility

310H SS Seamless Tube Stock For Immediate Dispatch

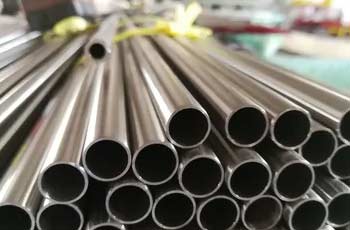

Stainless Steel 310H Round Pipe

Welding Line Type : EFW
Tolerance : ±1%

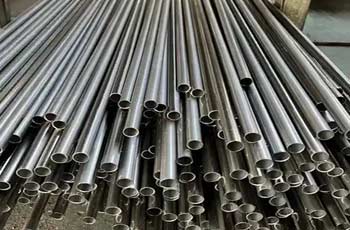

Polished Stainless Steel 310H Tube

Processing Service : Cutting, Bending, Welding
Invoicing : By Theoretical Weight

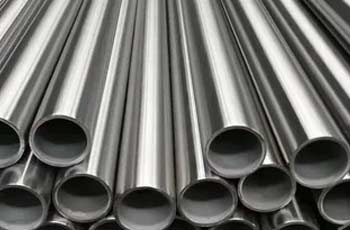

AISI 310H Welded Pipe

Application : High- heat industrial application
Steel Grade : 300 Series

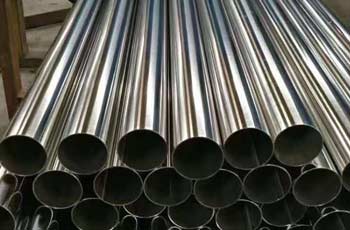

Brushed 310H Stainless Steel Pipe

Thickness : 0.5-50mm
Welding Line Type : Customized

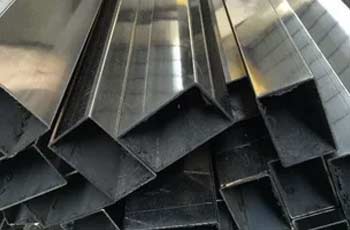

Cold Rolled SS 310H Rectangular Tube

Package : Plastic Bag+PVC Film+Wooden Case
Surface Finish : 2B

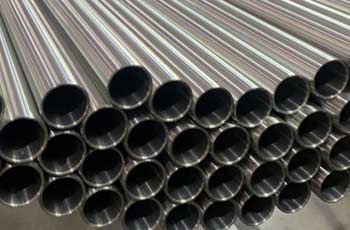

Stainless Steel 310H Hollow Pipe

Outer Diameter : 0.4mm-3000mm
Technology : Online Bright Annealing, Pickling

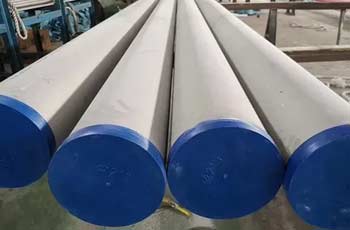

UNS S34709 Seamless Pipe

Technique : Cold Rolled Hot Rolled
Surface Treatment : Powder Coating

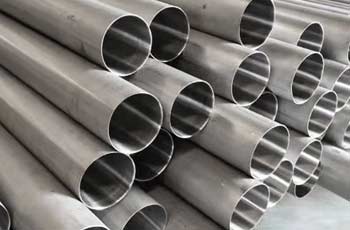

INOX 310H ERW Pipe

Packing : Standard Sea-worthy Packing
Max Length : Seamless Pipe 12000mm

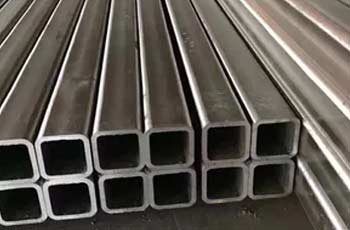

DIN 1.4961 Square Pipe

Hardness : Full Hard
Certificate : CE, API , RoHS, SNI, BIS, Saso, PVOC

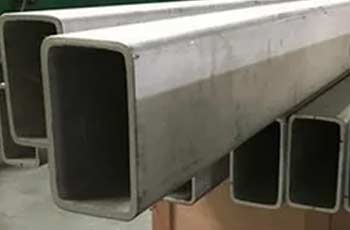

310H Stainless Steel Rectangular Pipe

Quality : High Quality. Accept
Length : 6m fixed length

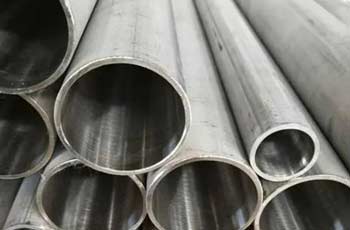

SS 310H Thick Wall Pipe

Ferrite content : 48-52%
Cross-sectional shape : Round Square Oval etc

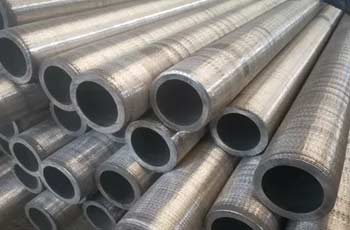

310H SS Hot Finished Pipe

Steel Grade : 300 Series
Payment : T/T, L/C,

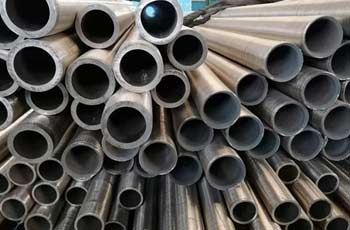

SUS 310H Cold Finished Pipe

Advantage : Strong Corrosion Resistance
Certification : ISO

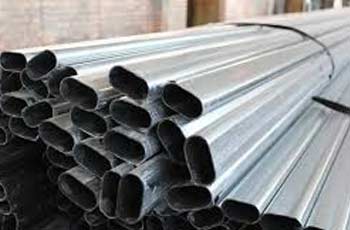

Stainless Steel 310H Oval Pipe

Standard : JIS, ASTM,JIS,EN,DIN,GB
Type : Seamless/Welded

Call Now for the Clients List Based in Below Locations

Country	Cities
Netherlands	The Hague
Belgium	Meeuwen-Gruitrode
Netherlands	Amsterdam
Belgium	Antwerp
Netherlands	Haarlem
Belgium	Brussels
Belgium	Seraing
Belgium	Ghent
Belgium	Leuven
Netherlands	Eindhoven
Belgium	Westerlo
Netherlands	Rotterdam

Types of ASTM A213 TP310H Tubing

SA312 310H SS Heat Exchanger Tube

SA213 TP310H Polished Tube

ASTM A312 TP310H Oval Tubes

UNS S34709 Stainless Steel Rectangular Tube

ASME SA 213 TP310H Coil Tube

SA 213 TP 310H Structural Tube

A312gr TP310H Perforated Tube

ASTM A312 gr TP310H Sanitary Tube

Electropolished Stainless Steel 310H Tubing

SA312 TP310H Instrumentation Tubing

ASTM A312 Grade TP310H Boiler Tubes

ASTM A312 310H Stainless Steel U Tube

A312TP310H Condenser Tubes

SA 312 TP 310H Slotted Tube

INOX 310H Ornamental Tube

SS 310H Needle Tube

DIN 1.4961 Pressure Tubing

SUS310H Stainless Steel Mechanical Tube

INOX 310H Capillary Tube

310H SS Aircraft Tubing

AISI 310H Corrugated Tube

Look for Importers of ASME SA312 UNS S31009 Welded Pipe Material in Ansi Sch 80, 40, or 60 With PMI Testing and View Hardness

310H Stainless Steel Tubing Pressure Rating

Size (inches)	Schedule	Temperature (°F)
Size (inches)	Schedule	100	200	300	400	500	600	650	700	750
1 1/2"	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
1"	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
3"	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
5"	40	1342	1158	1040	956	889	847	822	805	797
	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
2"	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
6"	40	1219	1052	945	869	808	770	747	732	724
	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
4"	40	1531	1321	1187	1091	1014	967	938	919	909
	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
8"	40	1073	926	832	765	711	678	657	644	637
	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
10"	40	974	840	755	694	645	615	596	584	578
	80	1609	1388	1247	1147	1066	1016	986	966	956
	160	3147	2714	2439	2242	2085	1986	1927	1880	1868

UNS S34709 Stainless Steel Pipe Weight Chart

NPS	Outside Diameter		Wall Thickness		Sched	Weight	Weight
NPS	in	mm	in	mm	Sched	Lb/ft	kg/Mtr
1/2″	0.840	21	0.109	2.769	40 STD	0.851	1.268
			0.147	3.734	80 STD	1.088	1.621
1″	1.315	33	0.133	3.378	40 STD	1.679	2.501
			0.179	4.547	80 STD	2.172	3.325
3/4″	1.050	27	0.113	2.870	40 STD	1.131	1.684
			0.154	3.912	80 STD	1.474	2.195
1 1/4″	1.660	42	0.140	3.556	40 STD	2.273	3.385
			0.191	4.851	80 STD	2.997	4.464
2″	2.375	60	0.154	3.912	40 STD	3.653	5.441
			0.218	5.537	80 STD	5.022	7.480
1 1/2″	1.900	48	0.145	3.683	40 STD	2.718	4.048
			0.200	5.080	80 STD	3.361	5.409
2 1/2″	2.875	73	0.203	5.516	40 STD	5.793	8.629
			0.276	7.010	80 STD	7.661	11.411
4″	4.500	114	0.237	6.020		10.790	16.073
			0.337	8.560		14.983	22.318
3″	3.500	89	0.216	5.486	40 STD	7.576	11.284
			0.300	7.620	80 STD	10.253	15.272
6″	6.625	168	0.188	4.775		12.924	19.252
			0.203	5.516		13.923	20.739

There Are Numerous Traders of WNR 1.4845 ERW Pipe Who Offer a Cut-to-length Service in Dubai, and Reviewed Applications

310H SS Seamless Tube Applications

Experienced Stainless Steel 310H Pipe Suppliers in UAE delivering dependable solutions for demanding applications.

Petrochemical and Refining
Power Generation
Industrial Furnace Components
Chemical Processing
Refinery Equipment
Heat treatment furnaces

A312 TP310H Seamless Tube Equivalent

310H stainless steel tubing standard type	310H ss seamless tubing equivalent standard	Origin of Country
Material	310H	USA
UNS	S34709	USA
DIN, WNr	1.4961	Germany
Nirosta®	–	from Krupp Thyssen Nirosta GmbH, Germany
European steel name	–	Europe
EN steel number	1.4961	Europe
GOST	–	Russia
SUS/ JIS	SUS310H	Japan
BS	–	Britain (UK)
UNI	–	Italy
INOX	310H	Germany
GB	–	China
SS	–	Sweden
PN	–	Poland
CSN	–	Czechia
SFS	–	Finland
AISI/ SAE	310H	USA
ONORM	–	Austria
SANS 50028-7	–	South Africa

ASTM A312 TP 310H Pipe Chemical Composition

Grade	Manganese, Mn	Carbon, C	Sulfur, S	Chromium, Cr	Phosphorous, P	Silicon, Si	Nickel, Ni
310H(%)	2.00 max	0.04-0.10	0.030 max	24.0-26.0	0.045 max	1.00 max	19.0-21.0

SA 312 TP 310H Pipe Mechanical Properties

Grade	Elongation(% 50millimeter)	Tensile Strength(Mpa)	Yield Strength 0.2% Proof(Mpa)	Hardness
Grade	Elongation(% 50millimeter)	Tensile Strength(Mpa)	Yield Strength 0.2% Proof(Mpa)	Rockwell B(HR B)maximum	Brinell(HB)maximum
310H	40	515	205	95	217

How do you identify genuine Stainless Steel 310H Pipe?

Check Material Test Certificate (MTC)
Verify Chemical Composition
Check High-Temperature Grade Features
Inspect Pipe Markings
Magnetic Test
Mechanical Property Testing
Buy from Approved Vendors

See Where You Can Find Material Ex Stock

Middle East countries	Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen
Africa	Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA	Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine

Stainless Steel 310H Pipe Properties

A312 TP 310H Tube Allowable Stress

Strength	Ksi	Mpa
Tensile	75	515

Please find Authorised Dealers and Distributors of Stainless Steel 310H Pipe in Saudi Arabia

Tenaris Saudi Arabia Ltd. : Dammam 34334, Saudi Arabia
KADEN Trading Company : Dammam, Saudi Arabia
Armetal Stainless Pipe Co : Riyadh, Saudi Arabia
Saudi Pipes Systems Co : Saudi Arabia

A312TP310H Pipe Welding Electrodes

Material	Stick welding electrode grade
SA 213 TP 310S pipe welding	E310H-16

Material Inspection Facility in Following Locations

Muscat	Riyadh	Dubai	Ras Al Khaimah
Sharjah	Fujairah	Umm Al Quwain	Doha
Saudi Arabia	Al Jubail	Abu Dhabi	Ajman

City	Region	Country
Dubai	Middle East	United Arab Emirates
Abu Dhabi	Middle East	United Arab Emirates
Dammam	Middle East	Saudi Arabia
Riyadh	Middle East	Saudi Arabia
Doha	Middle East	Qatar
Abuja	Africa	Nigeria
Kuwait City	Middle East	Kuwait
Jeddah	Middle East	Saudi Arabia
Cairo	MENA	Egypt
Casablanca	MENA	Morocco
Johannesburg	Africa	South Africa
Cape Town	Africa	South Africa
Lagos	Africa	Nigeria

Compare the Costs of Ss 310H Pipe From Two or More Reputable GCC Suppliers Before Making a Purchase. Check to See Whether It’s Magnetic

310H Stainless Steel Seamless Pipe Technical Data

310H SS seamless tube	ASTM A312 gr TP310H seamless pipe	DN
1″ OD- 7/8″ OD Wall gauge: 1/4″ – 3/16″ Length: Single, Double Random & Cut Length	6NB – 1200NB OD: 1/8″ – 12″ NPS Wall thickness: 0.6 – 12.7 mm Length: Single, Double Random & Cut Length	DN 6 to DN 750
ASTM A312 TP310H welded tube	ASTM A312 grade TP310H welded pipe	SUS310H stainless steel pipe end
1″ OD- 4″ OD Wall gauge: 0.065″ – 3/16″ Length: up to 26 Meters	1/8” – 36” NB OD 1/4” – 36” OD 6.35 – 114.3 mm Wall thickness: 0.8 – 12.7 mm Length: up to 26 Meters	PE (Plain End) BE (Beveled End 1.4961 stainless steel pipe)
Length	ASTM A312 TP310H pipe meaning	SA 213 TP 310H tube meaning
5.8 meters (20 feet) 6 meters (21 feet) 17-24 feet For custom length please contact below listed stainless steel 310H pipe suppliers in UAE	ASTM A312/ A312M – Standard specification for stainless steel 310H pipe seamless, welded & ERW pipe	ASTM A213/ A213M – Standard specification for ASTM A213 TP310H seamless heat exchanger tubes (A312TP310H superheater/ boiler tubing)
310H stainless steel seamless pipe wall thickness	Fluid SA 213 TP 310H seamless pipe	SS 310H ASTM pipe & tube standard
4 Inch Schedule 5 / 5S SCH 10 SUS 310H pipe (Most selling) ASTM A312 TP 310H SCH 10S SCH 20 SCH 30 SCH 40 UNS S34709 stainless steel pipe (Most selling) SCH 40S SCH 80 / 80S SCH 120 SCH 160 Standard (SCH STD) Ex-Standard (XS) Double Extra Strong (XSS)	Liquids Gasses Slurries Corrosive fluids Oxygen service Contact listed stainless steel 310H pipe suppliers for INOX 310H seamless pipes without weld for conveying these fluids	ASTM A312 TP310H- SUS310H stainless steel pipe ASTM A213 TP310H- 1.4961 stainless steel tube ASTM A269 TP310H- SA312 310H SS tube ASTM A358 TP310H- A312gr TP310H EFW pipe ASTM A249 TP310H- SA312 TP310H heat exchanger tube ASTM A270 TP310H- ASTM A312 gr TP310H Sanitary Tube ASTM A554 TP310H- SA312 TP310H square tube ASTM A511 TP310H- SA 312 310H stainless steel seamless mechanical tubes ASTM A409 TP310H- ASTM A213 TP310H large diameter welded pipe ASTM A999 ASTM B16.49 – Stainless steel pipe ASTM A312 TP310H pipe spool
Surface finish and treatments	Meet standards	310H stainless steel tubing material group
Cleaned Precleaned Pickled (As per ASTM A380) Passivated	DIN 17456 DIN 17458 EN 10088-3 NSF 61 ASME B36.19 ASME B36.19M EN 10216 – 5 EN 10216 – 2 EN 10217-7 EN 10088-2	ISO Group M
310H stainless steel seamless pipe finish	Stainless steel 310H pipe wall types	310H stainless steel tubing finishing treatment
Annealed & Pickled (A&P) Bright Annealed Solution annealed UNS S34709 stainless steel pipe 2B No.4 Mirror BA polishing 180 grit polished 320 grit 400 grit 600 grit Matt finish Cold Drawn	Heavy wall ASTM A312 TP 310H pipe Thin wall INOX 310S pipe Double wall SA312 TP310H pipe	Hot finished Cold finished
QC and stainless steel pipe ASTM A312 TP310H supporting documents	List of leading pipe A312 TP310H manufacturers	310H stainless steel seamless pipe value added services
MTC EN 10204 type 3.1 Verify quantity SUS310H stainless steel material, schedule & size as per the work order QC/ Inspection reports 310H ss seamless tubing detailed inspection plan (appearance, integrity, packaging etc) Check ASTM A312 TP310H pipe dimensions Origin of material Labeling verification Refer above before buying stainless steel 310H pipe from manufacturers, suppliers, stockholders, traders, stockist, or importers	ThyssenKrupp AG, Germany Sosta, Italy Steelmor, Gauteng (South Africa) Baosteel, China MACSTEEL, Gauteng (South Africa) Tata Steel, India Tubecon, Pretoria (South Africa) Sandvik, Sweden Nippon Steel & Sumitomo Metal Corporation, Japan Jiangsu Shagang, China Jindal steel pipe 310H, India Acerinox, Spain SMM Oman ArcelorMittal, Luxembourg (Europe) Aperam, Luxembourg (Europe) Outokumpu, Finland (Europe) Tenaris, Luxembourg (Europe) POSCO, South Korea Nippon Steel Corporation, Japan AL JAZEERA, Oman JFE, Japan Nippon Yakin Kogyo Co., Ltd., Japan Bristol Metals, USA Check ex-stock of above make with listed stainless steel 310H pipe suppliers	Beveling Threading Cutting Polishing
Manufacturing shape of SS 310H pipe	UNS S34709 stainless steel pipe manufacturing methods	Elongation
SA312 310H SS round pipe SA 312 TP 310H square pipe ASTM A312 310H stainless steel rectangular pipe	ASTM A312 TP 310H seamless pipe SA 312 TP 310H welded pipe A312gr TP310H ERW pipe SA312 310H SS EFW pipe ASTM A312 310H stainless steel fabricated pipes	40%
