Stainless Steel 310S Pipe Spotlights

Sizes Availability	Seamless Pipe: 1/8″ – 12″ NPS Welded Pipe: 1/4” – 36” Seamless Tube: 1″ OD- 7/8″ OD Welded Tube: 1″ OD- 4″ OD Custom
Brands in Stock	Centravis, Maruichi Stainless, Mannesmann Stainless, Nippon Steel Corp., PCC Rollmet, Ratnamani Metals & Tubes, Alleima, Sanyo Special Steel, Tubacex
Raw Material Orign	Janpanese, European, American, Korean, Russia, Indian
HSN Code	73044900
Saudi Arabian Standards	SASO-ASTM-A312M, A733, SASO 7306
International Standards	ASTM A312, ASME SA312, UNS S31008, WNR 1.4845, INOX 310S, AISI 310S, SUS 310S, ASTM A269, ASME SA269, ASTM A270, ASTM A554, ASME SA249
Approval	ADNOC, Q CHEM, EIL, MA’ADEN, KNPC, BAPCO, SABIC, KOC, Saudi Aramco, Marine and KPI.
Services	Heat Treatment Shearing Cutting
MTC	EN 10204 3.1

Table of Content

Stainless Steel 310S Pipe Specification
Stainless Steel 310S Pipe Sizes Chart
ASTM A213 TP310S Welded Pipe Manufacturing Process
AISI 310S Welded Tube Stock For Immediate Dispatch
Stainless Steel 310S Round Pipe
Polished Stainless Steel 310S Tube
AISI 310S Welded Pipe
Brushed 310S Stainless Steel Pipe
Cold Rolled SS 310S Rectangular Tube
Stainless Steel 310S Hollow Pipe
UNS S31008 Seamless Pipe
INOX 310S ERW Pipe
DIN 1.4845 Square Pipe
310S Stainless Steel Rectangular Pipe
SS 310S Thick Wall Pipe
310S SS Hot Finished Pipe
SUS 310S Cold Finished Pipe
Stainless Steel 310S Oval Pipe

Types of UNS S31008 Tubing
Pressure Rating of Stainless Steel 310S ERW Pipe
WNR 1.4845 Welded Pipe Schedule Chart
SA312 Type 310S Tube Creep Characteristics
WNR 1.4845 Rectangular Pipe Surface Finish
Equivalent Material of A312 TP310S Tube
ASTM A312 TP 310S ERW Pipe Chemical Composition
UNS S31008 Stainless Steel Pipe Mechanical Properties
Welding Techniques for UNS S31008 Stainless Steel Pipe
Allowable Stress of A312 TP 310S Seamless Tube
A312gr TP310S Pipe Welding Electrodes
AISI 310S Capillary Tube Weight Chart
SUS 310S Seamless Pipe Applications
310S Stainless Steel Seamless Pipe Technical Data
SS 310S Pipe Origin

Find ASTM A312 TP310S Pipe Suppliers in UAE and Middle East Countries, Discover More about the Creep Characteristics

Stainless Steel 310S Pipe Specification

SS310S Seamless Pipe: 0.6 to 12.7 mm (Wall Thickness)

310S Stainless Steel Welded Pipe: 0.8 to 12.7 mm (Wall Thickness), up to 26 Meters (Length)

ASTM A312 TP310S Thick Walled Pipe: 10 to 600mm (OD), 2.5 to 100mm (Wall Thickness)

SS 310S Pipe Schedule: 5 to XXH

SA 312 TP 310S Tube Method: Cold Formed, Hot Formed, Precision Rolled

End: Bevelled, Plain, Grooved, Threaded

Suitable Temperatures: up to 925°C

SA 213 TP 310S Pipe Process: ERW, Seamless, Welded

MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report

SS 310S Pipe Finish: Annealing, Polished, Bright

Get Quote Directly from Stainless Steel 310S Pipe Suppliers in UAE With Complete Documentation

SS 310S Tubing Form: Round, Square, Rectangular, Hexagon etc.

Are you Expecting Several Middle Eastern Importers to Offer ASME SA312 S31008 Seamless Pipe at Reasonable Prices? Learn about The 310S Stainless Steel Pipe Cold Forming Method

Stainless Steel 310S Pipe Sizes Chart

OD mm	Pipe WT mm	Sch	in.	Kg/m
88.90	7.62	80S	3	15.51
21.34	3.73	80S	1/2	1.65
141.30	15.882)	160	5	49.87
26.67	3.91	80S	3/4	2.23
219.08	18.23	120	8	91.30
33.40	4.55	80S	1	3.29
168.28	10.97	80S	6	43.21
13.72	3.02	80S	1/4	0.81
42.16	4.85	80S	1¼	4.53
17.15	3.20	80S	3/8	1.12
42.16	6.352)	160	1¼	5.69
114.30	13.492)	160	4	34.05
60.33	5.54	80S	2	7.60
168.28	14.27	120	6	54.75
73.03	5.16	40S	2½	8.77
219.08	23.012)	160	8	112.97
141.30	6.55	40S	5	22.10

ASTM A213 TP310S Welded Pipe Manufacturing Process

Manufacturing method	Full form
INOX 310S HFIW pipes	High frequency induction welding
310S stainless steel BWP pipes	Butt welded pipes
SS 310S CEW pipes	Cold electric welded tubes
SA312 TP310S OAW pipes	Oxy acetylene welding
1.4845 stainless steel MAW pipes	Manual arc welding (Hand-Welding)
SA 312 TP 310S ERW pipes	Electric resistance welding (Contact Welding)
1.4845 stainless steel EFW pipes	Electric fusion welding pipe
310S SS SAW pipes	Submerged arc welding steel pipe
SA 312 TP 310S SSAW pipes	Spiral submerged arc welded
SUS310S stainless steel DSAW pipes	Double submerged arc welded pipe
UNS S31008 stainless steel LSAW pipes	Longitudinal submerged arc welding
SA 213 TP 310S HFW pipes	High frequency welding
A312TP310S HSAW pipes	Helical submerged arc welding

AISI 310S Welded Tube Stock For Immediate Dispatch

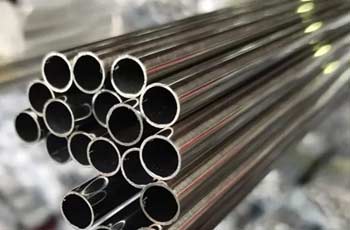

Stainless Steel 310S Round Pipe

Welding Line Type : Seamless welded
Tolerance : ±1%

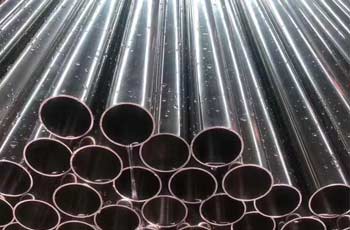

Polished Stainless Steel 310S Tube

Processing Service : Bending, Welding, Decoiling, Punching, Cutting, Moulding
Invoicing : By Actual Weight

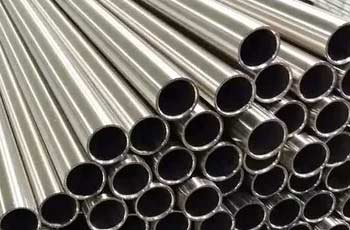

AISI 310S Welded Pipe

Outer Diameter : 6mm-2500mm
Packing : Standard Sea-worthy Packing

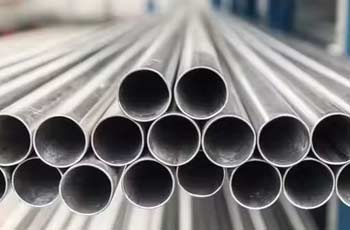

Brushed 310S Stainless Steel Pipe

Surface Finish : 2B
Grade : 300 Series

Cold Rolled SS 310S Rectangular Tube

Shape : Round.square.Rectangle
Technique : Cold Rolled Hot Rolled

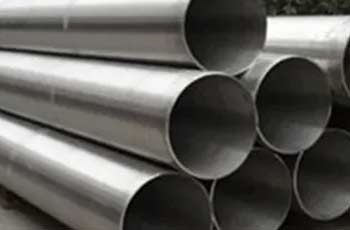

Stainless Steel 310S Hollow Pipe

Length : Customers’ Request
Color : Natural Silver

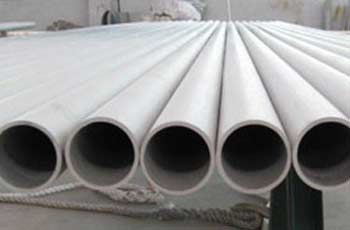

UNS S31008 Seamless Pipe

Payment terms : 30%T/T Advance + 70% Balance
Certification : ISO

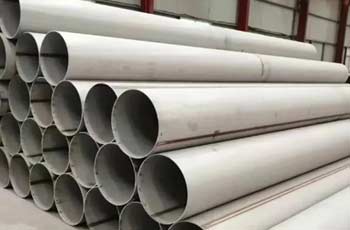

INOX 310S ERW Pipe

Quality : Mill Test Certificate or the third party Test
Finish(Surface): Pickled, Sandblast

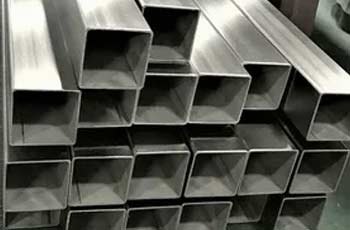

DIN 1.4845 Square Pipe

Application : Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe
Advantage : Strong Corrosion Resistance

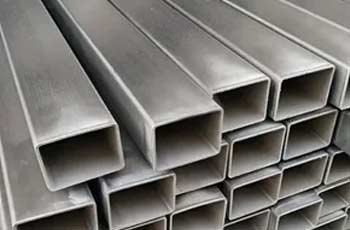

310S Stainless Steel Rectangular Pipe

Certification : BV
Thickness : 0.1mm-600mm

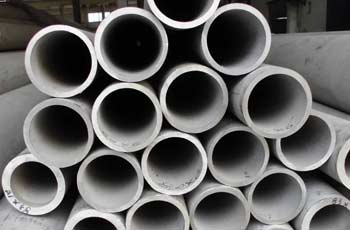

SS 310S Thick Wall Pipe

Welding Line Type : ERW,EFW,SEAMLESS
End protector : Plastic Pipe Cap,wrap with cloth/Customed

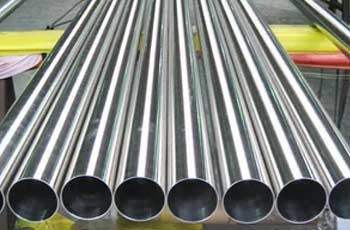

310S SS Hot Finished Pipe

Standard : ASTM , ASME, DIN ,EN, JIS, GB
Surface : Annealing

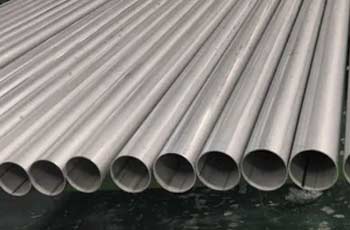

SUS 310S Cold Finished Pipe

Oiled or Non-oiled : Slightly Oiled
Special Pipe : Thick Wall Pipe, API Pipe, Other

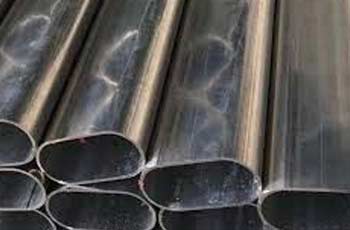

Stainless Steel 310S Oval Pipe

Quality ; Inspection Support
Service : Professional Team 24 Hours Online

See Where You Can Find Material Ex Stock

Country	Cities
Netherlands	The Hague
Belgium	Meeuwen-Gruitrode
Netherlands	Amsterdam
Belgium	Antwerp
Netherlands	Haarlem
Belgium	Brussels
Belgium	Seraing
Belgium	Ghent
Belgium	Leuven
Netherlands	Eindhoven
Belgium	Westerlo
Netherlands	Rotterdam

Types of UNS S31008 Tubing

SA 312 TP 310S Slotted Tube

SA213 TP310S Ornamental Tube

A312gr TP310S Needle Tube

DIN 1.4845 Mechanical Tube

AISI 310S Capillary Tube

ASTM A312 310S Stainless Steel Aircraft Tubing

SA 312 310S Stainless Steel Corrugated Tube

ASTM A312 TP310S Heat Exchanger Tube

SA 312 TP 310S Polished Tube

DIN 1.4845 Oval Tubes

UNS S31008 Rectangular Tube

ASME SA 213 TP310S Coil Tube

SUS310S Stainless Steel Structural Tube

INOX 310S Perforated Tube

SA 312 TP310S Sanitary Tube

Electropolished stainless steel 310S tubing

Electropolished Stainless Steel 310S Tubing

SA213 TP310S Pressure Tubing

ASTM A312 gr TP310S Instrumentation Tubing

SA 213 TP 310S Boiler Tubes

SA312 TP310S U Tube

A312gr TP310S Condenser Tubes

Pressure Rating of Stainless Steel 310S ERW Pipe

Pipe Size (inches)	Pipe Schedule	Temperature (oF)
Pipe Size (inches)	Pipe Schedule	100	200	300	400	500	600	650	700	750
1 1/2"	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
1"	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
2"	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
4"	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
	40	1531	1321	1187	1091	1014	967	938	919	909
3"	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
5"	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
	40	1342	1158	1040	956	889	847	822	805	797
6"	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
	40	1219	1052	945	869	808	770	747	732	724
8"	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
	40	1073	926	832	765	711	678	657	644	637
10"	160	3147	2714	2439	2242	2085	1986	1927	1880	1868
	80	1609	1388	1247	1147	1066	1016	986	966	956
	40	974	840	755	694	645	615	596	584	578

Get Stockists and Traders who Offer WNR 1.4845 Welded Pipe in Dubai with Schedules 40, 80, 20, 60, std, and XXS. Also, See the Welding Process

WNR 1.4845 Welded Pipe Schedule Chart

NB Sizes	Sch 80	Sch 5	Sch 10	Sch 160	Sch 40
1/4"	√	√	√		√
1"	√	√	√	√	√
3/8"	√	√	√		√
1 1/2"	√	√	√	√	√
4"	√	√	√	√	√
3/4"	√	√	√	√	√
5"	√	√	√		√
2"	√	√	√	√	√
1/2"	√	√	√	√	√
2 1/2"	√	√	√	√	√
1/8"	√	√	√		√
1 1/4"	√	√	√	√	√
6"	√	√	√		√
3"	√	√	√	√	√

SA312 Type 310S Tube Creep Characteristics

1% Elongation1) for		Rupture2) for
Temperature °C	1,000 h N/mm2	10,000 h N/mm2	1,000 h N/mm2	10,000 h N/mm2	100,000 h N/mm2
700	45	30	80	40	18
800	18	10	35	18	7
600	100	90	170	130	80
900	10	4	15	8.5	3

WNR 1.4845 Rectangular Pipe Surface Finish

Brushed Finish
Bead Blast Finish
Mirror Finish
Raw Finish
Polished Finish
Matte Finish
Satin Finish

Equivalent Material of A312 TP310S Tube

High-end Stainless Steel 310S Pipe Suppliers in UAE offering expertly designed products that exceed industry standards.

310S stainless steel pipe standard type	SS310S pipe equivalent standard	Origin of Country
Material	310S	USA
UNS	S31008	USA
DIN, WNr	1.4845	Germany
Nirosta®	–	from Krupp Thyssen Nirosta GmbH, Germany
European steel name	X8CrNi25-21	Europe
EN steel number	1.4845	Europe
GOST	10KH23N18 20KH23N18	Russia
SUS/ JIS	SUS310S	Japan
BS	310S16 310S24 310S31	Britain (UK)
UNI	X6CrNi25-20	Italy
INOX	310S	Germany
GB	1Cr25Ni20Si2	China
SS	2361	Sweden
PN	–	Poland
CSN	17255	Czechia
SFS	–	Finland
AISI/ SAE	310S	USA
ONORM	–	Austria
SANS 50028-7	–	South Africa

ASTM A312 TP 310S ERW Pipe Chemical Composition

Grade	Mo	Chromium, Cr	Phosphorous. P	Silicon, Si	Nickel. Ni	Manganese, Mn	Carbon, C	Sulfur. S
310S	–	24.0-26.0	0.045 max	1.50 max	19.0-22.0	2.00 max	0.08 max	0.030 max

UNS S31008 Stainless Steel Pipe Mechanical Properties

Grade	Elongation(% 50millimeter)	Tensile Strength(Mpa)	Yield Strength 0.2% Proof(Mpa)	Hardness
Grade	Elongation(% 50millimeter)	Tensile Strength(Mpa)	Yield Strength 0.2% Proof(Mpa)	Rockwell B(HR B)max	Brinell(HB)
310S	40	515	205	95	217

Check Out Your Nearby Locations For Fastest Deliveries

Middle East countries	Qatar, Lebanon, Bahrain, Saudi, Kuwait, UAE, Jordan, Iraq, Syria, Iran, Yemen
Africa	Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria
MENA	Morocco, Libya, Algeria, Tunisia, Egypt, Israel, Palestine

Welding Techniques for UNS S31008 Stainless Steel Pipe

Tungsten Inert Gas (TIG) Welding
Submerged Arc Welding
Laser Beam Welding (LBW)
Metal Inert Gas (MIG) Welding
Friction Welding
Shielded Metal Arc Welding

Stainless Steel 310S Pipe Properties

Allowable Stress of A312 TP 310S Seamless Tube

Strength	Ksi	Mpa
Tensile	75	515

A312gr TP310S Pipe Welding Electrodes

Material	Stick welding electrode grade
UNS S31008 stainless steel pipe welding	–

AISI 310S Capillary Tube Weight Chart

Nominal size in Inch	Outside diameter in mm	Wall thickness in Inch	Weight [lb/ft]	Outside diameter in Inch	Wall thickness in mm	Weight [Kg/M]
3 Inch	88.9 mm	0.083	3.05	3.500	2.11	4.54
3/4 Inch	26.7 mm	0.065	0.69	1.050	1.65	1.03
3 1/2 Inch	101.6 mm	0.083	3.50	4.000	2.11	5.21
1 Inch	33.4 mm	0.065	0.87	1.315	1.65	1.30
6 Inch	168.3 mm	0.109	7.65	6.625	2.77	11.38
1 1/4 Inch	42.2 mm	0.065	1.12	1.660	1.65	1.66
1/2 Inch	21.3 mm	0.065	0.54	0.840	1.65	0.80
2 1/2 Inch	73.0 mm	0.083	2.49	2.875	2.11	3.71
16 Inch	406.4 mm	0.165	28.11	16.000	4.19	41.83
4 Inch	114.3 mm	0.083	3.95	4.500	2.11	5.88
20 Inch	508.0 mm	0.188	40.12	20.000	4.78	59.70
5 Inch	141.3 mm	0.109	6.40	5.563	2.77	9.52
1 1/2 Inch	48.3 mm	0.065	1.28	1.900	1.65	1.91
8 Inch	219.1 mm	0.109	9.99	8.625	2.77	14.87
2 Inch	60.3 mm	0.065	1.61	2.375	1.65	2.40
12 Inch	323.9 mm	0.156	21.13	12.750	3.96	31.44
18 Inch	457.0 mm	0.165	31.64	18.000	4.19	47.09
10 Inch	273.1 mm	0.134	15.29	10.750	3.4	22.76
22 Inch	559.0 mm	0.188	44.18	22.000	4.78	65.75
14 Inch	355.6 mm	0.156	23.22	14.000	3.96	34.56

Muscat	Riyadh	Dubai	Ras Al Khaimah
Sharjah	Fujairah	Umm Al Quwain	Doha
Saudi Arabia	Al Jubail	Abu Dhabi	Ajman

SUS 310S Seamless Pipe Applications

Heat treatment baskets
Oil industry equipment
Energy conversion plants
Steam boilers
Heat Exchangers
Engineering industry
Radiant Tubes
Iron, steel
Cement Industry
Cryogenic structures

Check SS 310s ERW Pipe Wall Thickness, Toughness, and Specifications in Accordance with Standards Here

310S Stainless Steel Seamless Pipe Technical Data

SS 310S seamless tube	ASTM A312 TP310S seamless pipe	DN
1″ OD- 7/8″ OD Wall gauge: 1/4″ – 3/16″ Length: Single, Double Random & Cut Length	6NB – 1200NB OD: 1/8″ – 12″ NPS Wall thickness: 0.6 – 12.7 mm Length: Single, Double Random & Cut Length	DN 6 to DN 750
AISI 310S welded tube	SA 312 TP 310S welded pipe	UNS S31008 stainless steel pipe end
1″ OD- 4″ OD Wall gauge: 0.065″ – 3/16″ Length: up to 26 Meters	1/8” – 36” NB OD 1/4” – 36” OD 6.35 – 114.3 mm Wall thickness: 0.8 – 12.7 mm Length: up to 26 Meters	PE (Plain End) BE (Beveled End 310S SS pipe)
Length	ASTM A312 TP310S pipe meaning	SA 213 TP 310S tube meaning
5.8 meters (20 feet) 6 meters (21 feet) 17-24 feet For custom length please contact below listed stainless steel 310s pipe suppliers in UAE	ASTM A312/ A312M – Standard specification for UNS S31008 seamless, welded & ERW pipe	ASTM A213/ A213M – Standard specification for 310S SS seamless heat exchanger tubes (1.4845 stainless steel superheater/ boiler tubing)
SS 310S seamless tube wall thickness	Fluid stainless steel 310S seamless pipe	SS 310S ASTM pipe & tube standard
4 Inch Schedule 5 / 5S SCH 10 SUS 310S pipe (Most selling) ASTM A312 TP 310S SCH 10S SCH 20 SCH 30 SCH 40 ASME SA 213 TP310S pipe (Most selling) SCH 40S SCH 80 / 80S SCH 120 SCH 160 Standard (SCH STD) Ex-Standard (XS) Double Extra Strong (XSS)	Liquids Gasses Slurries Corrosive fluids Oxygen service Contact listed stainless steel 310s pipe suppliers for SS 310S seamless pipes without weld for conveying these fluids	ASTM A312 TP310S- SUS 310S pipe ASTM A213 TP310S- ASTM A312 TP310S tube ASTM A269 TP310S- SA 312 TP 310S tube ASTM A358 TP310S- A312TP310S EFW pipe ASTM A249 TP310S- SA 213 TP 310S heat exchanger tube ASTM A270 TP310S- ASTM A312 310S stainless steel sanitary tube ASTM A554 TP310S- SA 312 TP310S square tube ASTM A511 TP310S- ASTM A312 TP 310S seamless mechanical tubes ASTM A409 TP310S- SA 312 TP 310S large diameter welded pipe ASTM A999 ASTM B16.49 – A312TP310S pipe spool
Surface finish and treatments	Meet standards	310S stainless steel seamless pipe material group
Cleaned Precleaned Pickled (As per ASTM A380) Passivated	EN 10217-7 EN 10088-2 EN 10088-3 NSF 61 ASME B36.19 ASME B36.19M EN 10216 – 5 EN 10216 – 2 DIN 17456 DIN 17458	ISO Group M
SS 310S seamless pipe finish	SUS310S stainless steel pipe wall types	310S stainless steel seamless pipe finishing treatment
Annealed & Pickled (A&P) Bright Annealed Solution annealed stainless steel 310s pipe 2B No.4 Mirror BA polishing 180 grit polished 320 grit 400 grit 600 grit Matt finish Cold Drawn	Thin wall SUS310S stainless steel pipe Heavy wall UNS S31008 stainless steel pipe Double wall ASME SA 213 TP310S pipe	Hot finished Cold finished
QC and pipe A312 TP310S supporting documents	List of leading material A312 TP310S manufacturers	Stainless steel pipe ASTM A312 TP310S value added services
MTC EN 10204 type 3.1 Verify quantity AISI 310S material, schedule & size as per the work order QC/ Inspection reports 310S stainless steel tubing detailed inspection plan (appearance, integrity, packaging etc) Check 310S ss seamless tubing dimensions Origin of material Labeling verification Refer above before buying stainless steel 310s pipe from manufacturers, suppliers, stockholders, traders, stockist, or importers	Tubecon, Pretoria (South Africa) Sandvik, Sweden SMM Oman Tenaris, Luxembourg (Europe) Nippon Steel & Sumitomo Metal Corporation, Japan Jiangsu Shagang, China AL JAZEERA, Oman Outokumpu, Finland (Europe) Jindal steel pipe 310S, India Acerinox, Spain ThyssenKrupp AG, Germany POSCO, South Korea Nippon Steel Corporation, Japan Baosteel, China MACSTEEL, Gauteng (South Africa) Tata Steel, India ArcelorMittal, Luxembourg (Europe) Aperam, Luxembourg (Europe) JFE, Japan Nippon Yakin Kogyo Co., Ltd., Japan Bristol Metals, USA Sosta, Italy Steelmor, Gauteng (South Africa) Check ex-stock of above make with listed stainless steel 310s pipe suppliers	Cutting Beveling Threading Polishing
Manufacturing shape of SS 310S pipe	Elongation	AISI 310S pipe manufacturing methods
SA312 310S SS round pipe A312gr TP310S square pipe SA 312 310S stainless steel rectangular pipe	40%	ASTM A312 310S stainless steel seamless pipe SA312 TP310S welded pipe ASTM A312 310S stainless steel ERW pipe SA 312 TP 310S EFW pipe ASTM A312 TP 310S fabricated pipes

You’re not Required to pay for Trash! Many SS 310S Pipe Manufacturers in India and Asia offer Cut-to-length Services. Check about the Temperature Range

SS 310S Pipe Origin

Ratnamani Metals & Tubes: Indrad, Gujarat, INDIA

Alleima: Sandviken, Sweden

Sanyo Special Steel: Himeji, Japan

Tubacex: Llodio, Spain

Nippon Steel Corp.: Fujisawa, Japan

PCC Rollmet: Irvine, CA, USA

Mannesmann Stainless: Bergamo, Italy

Michigan Seamless Tube: South Lyons, MI, USA

Maruichi Stainless: Chofu-Minatomachi, JAPAN

Centravis: Nikopol, UKRAINE

Wyman Gordon: Houston, TX, USA

Sales Agents in Following Locations

City	Region	Country
Dubai	Middle East	United Arab Emirates
Abu Dhabi	Middle East	United Arab Emirates
Dammam	Middle East	Saudi Arabia
Riyadh	Middle East	Saudi Arabia
Doha	Middle East	Qatar
Abuja	Africa	Nigeria
Kuwait City	Middle East	Kuwait
Jeddah	Middle East	Saudi Arabia
Cairo	MENA	Egypt
Casablanca	MENA	Morocco
Johannesburg	Africa	South Africa
Cape Town	Africa	South Africa
Lagos	Africa	Nigeria
