Stainless Steel 347 Pipe Fittings

Home > Stainless Steel 347 Pipe Fittings

Talk to multiple authentic ASTM A403 WP347 buttweld elbow suppliers in UAE

Stainless Steel 347 Pipe Fittings Product Overview

Sizes in Stock :	1/2 to 48″
American & European Standard:	ASTM A403, ASME SA 403, UNS S34700, WNR 1.4550
Manufacturing Standard	ANSI B16.9, EN10253-1, DIN 2605, MSS-SP-43, DIN 2615, DIN 2616, ANSI B16.28, DIN 2617
Environment :	High Temperature
Origin of Raw Material:	European, Indian, Korean, Janpanese, UK, German
Bending Radius:	3D, 5D, 1D, 6D, 10D, 2D, 8D
Heat Treatment :	1010 to 1120°C
Lifespan :	50 Years or more
HSN Code	7307
Bending Angle:	22.5°, 60°, 90°, 30°, 45°, or Custom
MTC:	EN 10204/3.1B, 3.2
Schedule:	SCH 10 to SCH 160, XXS
Delivery Time:	Malaysia : 10 Days Germany : 20 Days
RFQ:	support@pipingmaterial.ae

Table of Content

Stainless Steel 347 Pipe Fitting specification
Ready to Dispatch Stock Of Stainless Steel 347 Fittings
ASTM A403 WP347 buttweld elbow
Stainless Steel 347 buttweld fittings
AISI 347 Tee
SA 403 Grade 347 Reducer
SS 347 Stub End
INOX 347 Cross
SA403 WP347 Pipe Bend
A403 WP304L Return Bend
Stainless Steel 347 Pipe Fittings Technical Specification
ASTM A403 WP 347 pipe bend
AISI 347 stainless steel elbow
SA 403 Grade 347 tee
ASTM A403 Gr WP347 reducer
ASME SA403 WP347 stub end & cap

SA403 WP347 buttweld cross fittings
Type 347 Stainless Steel swage nipple
A403 WP347 stub end specification
AISI 347 stainless steel butt welded fittings equivalent standard
347 stainless steel welded fittings chemical composition
SS 347 butt weld fittings mechanical properties
Stainless Steel 347 Pipe fittings Pressure Ratings
AISI 347 Seamless Pipe Fittings Physical Properties
SUS 347 Elbow Weight Chart
Stainless Steel 347 Tee Weight

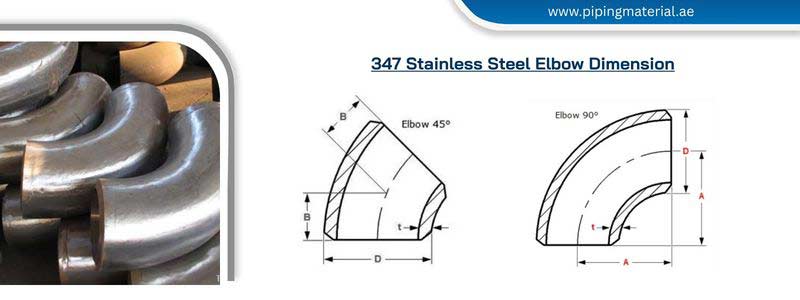

347 Stainless Steel Elbow Dimension

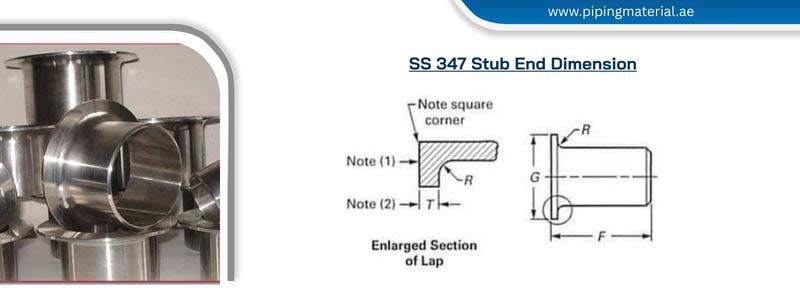

SS 347 Stub End Dimension
Stainless Steel 347 Pipe Fittings Fabrication and Heat Treatment

Stainless Steel 347 Pipe Fitting Specification

SS 347 Fitting Sizes in Stock: Buttweld : 1/2 to 36″, Seamless : 1/2 to 24″, Welded : 24 to 96″

347 SS BW Fittings Maximum Available Size: 120 Inch (DN2000)

Stainless Steel 347 Pipe Fittings Forms: Cap, Tee, Reducer, Elbow

Wall Thickness : Schedule 20 to SCH 180, XXS

Finish: Smooth, Mill, Pickled, Polished

SS 347 Buttweld Fittings Packaging: Plastic Bag, Carton Box, Wooden Case

Value Added Services: Cutting, Threading, Polishing, Casting

Method: Seamless, Buttweld, Welded

Application: Aerospace, Petrochemical Industry, Power Generation, Gas Exhaust

Testing: Hardness Test, Hyrdrostatic Test, PMI Test

Machinery: Cold Forging, Beveling Machine, CNC

Temprature Range: 800°F to 1500°F

100% Tested ASTM A403 WP347 Buttweld Pipe Fittings With MTC EN 10204 3.1/3.2

Get Quote Directly From Stainless Steel 347 Pipe Fittings Suppliers in UAE

Ready to Dispatch Stock Of Stainless Steel 347 Fittings

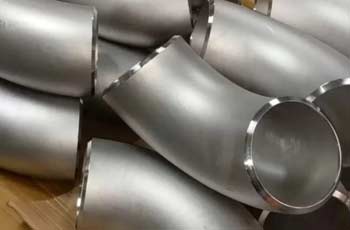

ASTM A403 WP347 buttweld elbow

Tensile Stress: 515 MPa
End: Bevel, Plain, Compound

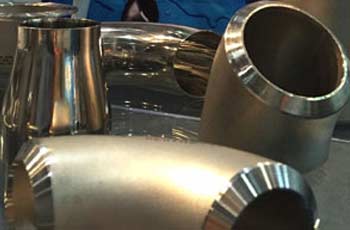

Stainless Steel 347 buttweld fittings

Tolerance: +/-12.5% and Custom
Finish: Hot Galvanized, Smmoth, Mirror

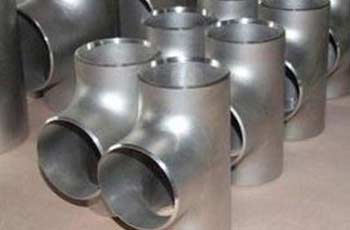

AISI 347 Tee

Technique: Forged, Casting
Sizes: As Per Customer Requirement

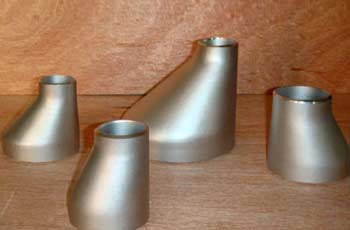

SA 403 Grade 347 Reducer

Thread: BSP/ BSPT/ NPT
Standard: ISO 5251

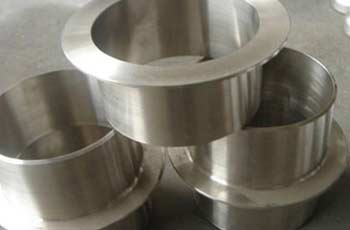

SS 347 Stub End

Media: Oil, Gas, Water
Testing: PMI, HIC, Hyrdrostatic

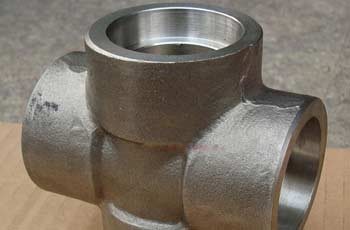

INOX 347 Cross

Melting Point: 1454 – 1495 deg * C
Charpy Impact Test: Passed

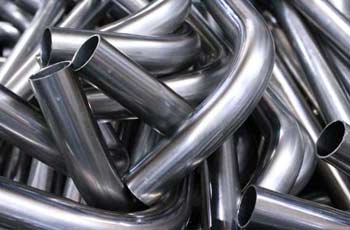

SA403 WP347 Pipe Bend

Radius: 2D to 12D
Material: Stainless Steel

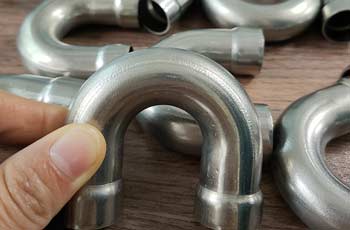

A403 WP304L Return Bend

Freight Method: Air, Sea
Machining Tolerances: up to +/- 0.1mm

Please find Genuine Dealers and Distributors of Stainless Steel 304 Pipe Fittings in Saudi Arabia

Gulf Pipe Supply and Services, Al Jubail
Fateh Al Jubail Trading Est, Al Jubail
Talal Mohammed Al Fareji Trading Est. (TMT), Al Jubail
Premium Technical Support Trading Est, Al Jubail
Abdullah Nasser Al-Qahtani Trading Co. Ltd. (ANSE GLOBAL), Al Jubail

Stainless Steel 347 Pipe Fittings Technical Specification

Stainless Steel 347 buttweld fittings sizes	SS 347 butt weld fittings strength	A403 WP347 buttweld fittings life
ASME SA403 WP347 welded fittings : 24 – 96″ (BW) SA 403 Grade 347 fabricated fittings : custom ASTM A403 WP 347 seamless fittings : 1/2″ – 24″ (BW)	Tensile stress: 515 Yield strength: 205	For many years
SA 403 WP 347 butt welded joint coating	ASTM A403 WP347 meaning	AISI 347 stainless steel butt welded fittings thickness tolerance
Anti rust light oiling FBE coated 347 SS fittings (in various thickness) PE coating (2 & 3 layers) Hot-dip galvanizing SA 403 Grade 347 elbow Varnished Back painting	P = alloy steel material number B = minimum yield of the grade W = wrought or weldable	custom +/-12.5%
S34700 stainless steel weld fittings meet the requirements	ASME SA403 WP347 welded pipe fittings American standard	SA 403 Grade 347 weldable pipe fittings temperature
MTC EN 10204 3.1/ 3.2 certificate ISO 15156 NACE TM-0284 HIC tested IBR NORSOK Sour service NACE MR0175 NACE MR0103	ANSI/ ASME B16.28 ANSI/ ASME B16.9 ANSI/ ASME B16.25 (butt welding ends) MSS-SP-83 MSS-SP-95 MSS-SP-43 MSS-SP 119 (SAE 347 belled end elbow)	1500°F
American standard & specification	SS 347 butt weld fittings manufacturing technique	Ends of ASME SA403 WP347 buttweld fittings
Seamless fittings: ASTM A403 wp-s UNS S34700 Welded fittings: ASTM A403 wp-x UNS S34700 Ask for a free sample from above Stainless Steel 347 Pipe Fittings suppliers & manufacturers, their major exporting countries are middle east, USA, South Africa, Egypt & Oman	Mandrel Hot forming	Plain Bevel Compound Bevel Bevelled
ASTM A403 Gr WP 347 BW fittings schedule chart	ASTM A403 WP347 fittings testing reqirements	7 manufacturing forms of SA 403 Grade 347 butt welded fittings
STD XH XXH SCH 60 SCH 80 SCH 160 SCH 10 SCH 20 SCH 40	HIC tested Positive Material Identification (PMI) Hyrdrostatic test (according to ASTM A960/ A960M) Magnetic Particle Examination (For above Sch 80 SS 347 fittings bevel ends) Ultrasonic test Order custom size to verified Stainless Steel 347 Pipe Fittings suppliers in UAE, contact now via mail or live chat	Type 347 Stainless Steel elbow AISI 347 material cap Inox AISI 347 stub end 347 Stainless Steel pipe bend SS 347 cross AISI 347 stainless steel tee SA403 WP347 reducer
347 stainless steel pipe fittings bend radius	ASTM A403 WP 347 pipe bend angle	SS 347 butt weld fittings bending method
3D 6D 8D 10D 4D 5D	45° 60° 90° 135° 15° 22.5 30° 180°	Roll Bending Mandrel Bending Rotary Draw Bending Hot Induction Bending Ram-Type Bending
ASME SA403 WP347 welded pipe fittings testing & inspection	SUS 347 welded fittings DIN standards (Germany)	347 stainless steel welded fittings EN standards (Europe)
Ultrasonic test HIC tested Positive Material Identification (PMI) 100% Radiography Tested Magnetic Particle Examination (For above Sch 80 CS fittings bevel ends)	DIN 2617 (Caps) DIN 2605-1 (Elbow) DIN 2605-2 (Elbow) DIN 2615-1 (Tee) DIN 2615-2 (Tee) DIN 28011 (Torispherical heads) DIN 2616-2 (Concentric Reducer) DIN 2616-1 (Eccentric Reducer) DIN 2618 (saddle)	EN 10253-2
SS 347 fittings JIS standard (Japan)	GOST standard (Russia)	347 stainless steel pipe fittings applicable fluids
JIS B2313 JIS B2312	GOST 17376 GOST 17378 GOST 17379 GOST 17375 (induction elbow) GOST 17375	Steam Gas Water Air Oil
ASTM A403 Gr WP 347 BW fittings marking	347 stainless steel welded fittings packaging	SA 403 WP 347 butt welded joint standard
Size Dimensional standard – ASME B16.9 Manufacturers name Grade Heat number	Wooden Pallet Carton Box Custom as per buyer choice Wooden Cases	ISO 5251 – AISI 347 stainless steel butt welding fittings

AISI 347 equal/ reducing/ lateral/ unequal tee, and UNS S34700 45/ 90/ 180 degree elbow manufacturers in Dubai in accordance with EN 10253-4 standards

ASTM A403 WP 347 pipe bend

SA 403 WP347 45 degree bend

A403 WP347 90 deg bend

ASME SA403 WP347 180 deg pipe bend

SA 403 Gr 347 long radius bend

SA 403 Grade 347 short radius bend

SAE 347 2.5D pipe bend

347 SS 3D pipe bend

SS UNS S34700 hot induction bend

Type 347 stainless steel mitered pipe bend

Types		ASTM A403 Gr WP 347 BW fittings dimensions & standard
A403 WP347 hot induction bend SA 403 Grade 347 seamless pipe bend A403 WP347 welded pipe bend SAE 347 return bend SA403 WP347 J bend SAE 347 long radius bend ASTM A403 WP 347 SS short radius bend ASME SA403 WP347 piggable bend	SAE 347 mitered pipe bend SS 347 2.5d pipe bend ASTM A403 WP 347 SS 3d pipe bend ASME SA403 WP347 5d pipe bend A403 WP347 10d pipe bend SAE 347 22d pipe bend SA403 WP347 L bend	OD 1/2” to 60” DN15 – DN 1500 ASME B16.49 ASME B16.9 EN/ DIN 1.4462

AISI 347 stainless steel elbow

Stainless Steel 347 45 deg elbow

ASTM A403 WP347 90 deg elbow

ASTM A403 Grade WP347 180 deg elbow

SS 347 long radius elbow

347 stainless steel short radius elbow

ASTM A403 Gr WP 347 90 deg long radius elbow

ASTM A 403 Gr.WP347-WX 90 deg short radius elbow

ASTM A403 WP347 45 deg short radius elbow

A403 Gr WP347 45 deg long radius elbow

ASTM A 403 WP 347 1.5D elbow

A 403 WP 347 3D elbow

SA 403 WP 347 2D elbow

Types of AISI 347 buttweld elbow	347 Stainless Steel elbow angle direction & degrees
Stainless 347 seamless elbow Type 347 Stainless Steel 1.5d elbow ASTM A403 WP347 reducing elbow 347 SS welded elbow ASTM A403 WP347 long radius elbow SAE 347 short radius elbow SA 403 Grade 347 1d elbow AISI 347 2d elbow SA403 WP347 3d elbow Inox AISI 347 5d elbow SA403 WP347 8d elbow	22.5 degree 347 SS elbow 180° short radius ASTM A403 WP347 elbow (SR return) 60° ASTM A403 WP347 elbow 90° Stainless 347 elbow 120° AISI 347 elbow 180° SA403 WP347 elbow 90° short radius SAE 347 elbow (SR) 30° SAE 347 elbow 45° Type 347 Stainless Steel elbow 90° long radius Inox AISI 347 elbow (LR) 45° long radius SA403 WP347 elbow 45° short radius Type 347 Stainless Steel elbow 180° long radius SA 403 Grade 347 elbow (LR return) Contact Above Verified Stainless Steel 347 Pipe Fittings Suppliers in UAE With MTC

SA 403 Grade 347 tee

UNS S34700 buttweld tee

A403 WP347 equal tee

SA403 WP347 reducing tee

WP347 lateral tee

1.4550 stainless steel barred tee

EN 1.4550 Y tee

347 stainless steel swept tee
A 403 WP 347 reducing tee
SA403 WP347 lateral tee
SA 403 Grade 347 saddle tee
Inox AISI 347 barred tee
ASTM a403 WP347 straight tees
ASTM A403 WP347 buttweld tee
AISI 347 stainless steel Y tee
A 403 WP 347 reducing outlet tees
ASTM A403 Grade WP347 equal tee

ASTM A403 Gr WP347 reducer

AISI 347 stainless steel buttweld reducer

AISI 347 stainless concentric reducer

AISI 347 eccentric reducer

SA403 WP347 eccentric reducer
ASTM A403 WP347 concentric reducer

Why don’t you directly contact an ss 347 fittings stockist? Extensive range & lowest price of ASME sa403 wp347 pipe cap and 347 ss concentric/ eccentric reducer in Middle East countries

Weekly Shipment to Below Locations

Region	City	Country
Middle East	Abu Dhabi	United Arab Emirates
Middle East	Dubai	United Arab Emirates
Middle East	Riyadh	Saudi Arabia
Middle East	Doha	Qatar
Middle East	Kuwait City	Kuwait
MENA	Cairo	Egypt
MENA	Casablanca	Morocco
Africa	Cape Town	South Africa
Middle East	Dammam	Saudi Arabia
Africa	Abuja	Nigeria
Africa	Johannesburg	South Africa
Middle East	Jeddah	Saudi Arabia
Africa	Lagos	Nigeria

ASME SA403 WP347 stub end & cap

Inox AISI 347 buttweld pipe cap

Steel 1.4550 large diameter end caps

S34700 stainless steel big size pipe end cap

347 steel long stub end

UNS S34700 stainless steel short stub end

DIN 1.4550 lap joint stub end

SA403 WP347 collar
ASTM A403 WP347 short stub end
SA 403 Grade 347 long stub end
347 stainless steel lap joint stub end
Inox AISI 347 butt welded hemi-head pipe cap

SA403 WP347 Buttweld Cross Fittings

Werkstoff No 1.4550 equal cross

347 stainless steel reducing cross

SUS 347 straight crosses

SA 403 Grade 347 unequal cross (reducing)
Inox AISI 347 straight crosses
SA403 WP347 reducing outlet crosses
ASTM A403 WP347 equal cross

Type 347 Stainless Steel swage nipple

SA 403 Grade 347 eccentric swage nipple (reducing)
ASTM A403 WP347 concentric swage nipple

End Types AISI 347 Material Swaged Nipple

BBE – Beveled Both Ends
BSE – Beveled small end
BLE – Beveled large end
PBE – Plain Both Ends
PSE – Plain small end
PLE – Plain large end
TBE – Treaded Both Ends
TSE – Treaded small end
TLE – Treaded large end

WNR 1.4550 Stub End Importers in Middle East Countries Offer Proper Stamping & Marking for 347 Stainless Steel Reducer

Locate Resellers and Stockists in Your Vicinity

Middle East countries	Qatar, Iran, Syria, Saudi, Bahrain, Kuwait, Lebanon,UAE, Iraq, Jordan, Yemen
MENA	Egypt, Morocco, Algeria, Palestine, Libya, Tunisia, Israel
Africa	Morocco, Nigeria, Tunisia, Egypt, Kenya, South Africa, Algeria

A403 WP347 stub end specification

Stainless 347 stub end standard	A403 WP347 stub end schedule	Type of SA403 WP347 stub end	Installed with
ASME B16.9	Schedule STD Schedule XS	butt weld	Lap Joint flange
MSS SP-43	Schedule 5S Schedule 10S	Type A	Lap Joint flange
MSS SP-43	Schedule 5S Schedule 10S	Type B	Slip On flange

AISI 347 Stainless Steel Butt Welded Fittings Equivalent Standard

STANDARD	JIS	GOST	EN	WERKSTOFF NR.	UNS
SS 347	SUS 347	08Ch18N12B	X6CrNiNb18-10	1.455	S34700

Suppliers of SA403 GR WP347 stainless steel pipe bend for leakproof connection, check SUS 347 flanged/ split tee chemical and mechanical properties

347 Stainless Steel Welded Fittings Chemical Composition

Grade	C	Mn	Si	S	Cr	Cb	Ni	P	Fe
Stainless Steel 347	0.08 max	2.0 max	1.0 max	0.030 max	17.00 – 20.00	10xC ? 1.10	9.00 – 13.00	0.045 max	62.74 min

SS 347 Butt Weld Fittings Mechanical Properties

Grade	Elongation (% in 50mm) min	Tensile Strength	Yield Strength 0.2% Proof	Hardness
Grade	Elongation (% in 50mm) min	Tensile Strength	Yield Strength 0.2% Proof	Rockwell B (HR B) max	Brinell (HB) max
347	40	515	205	95	201

Stainless Steel 347 Pipe fittings Pressure Ratings

Pipe Size	(in)	10"	4"	8"	4"	10"	1"	6"
Pipe Sch		160	40	160	80	80	80	160
Temp. (°F)	300	2439	1187	2460	1715	1247	3265	2549
	500	2085	1014	2103	1466	1066	2791	2179
	400	2242	1091	2262	1577	1147	3002	2343
	100	3147	1531	3175	2213	1609	4213	3289
	600	1986	967	2004	1397	1016	2659	2076
	700	1880	919	1905	1328	966	2528	1973
	650	1927	938	1944	1355	986	2580	2014
	750	1868	909	1885	1314	956	2501	1953
	200	2714	1321	2738	1909	1388	3634	2836
Pipe Size	(in)	1.5"	5"	8"	6"	2"	3"	5"
Pipe Sch		80	80	40	40	80	80	40
Temp. (°F)	300	2466	1535	832	945	2129	1979	1040
	500	2108	1312	711	808	1820	1691	889
	400	2267	1411	765	869	1957	1819	956
	100	3182	1981	1073	1219	2747	2553	1342
	600	2009	1250	678	770	1734	1612	847
	700	1909	1189	644	732	1648	1532	805
	650	1949	1213	657	747	1682	1564	822
	750	1889	1176	637	724	1631	1516	797
	200	2744	1709	926	1052	2369	2202	1158

Stainless Steel 347 Pipe Fittings Sales Agents in Following Locations

Fujairah	Umm Al Quwain	Sharjah	Doha
Riyadh	Dubai	Muscat	Ras Al Khaimah
Al Jubail	Abu Dhabi	Saudi Arabia	Ajman

AISI 347 Seamless Pipe Fittings Physical Properties

Density lbm/in3	Modules of Elasticity (annealed)2-psi	Coefficient of Thermal Expansion (min/in)-°F		Thermal Conductivity BTU/hr-ft-°F	Specific Heat BTU/lbm -°F
at 68 °F	in tension (E)	at 68 – 212°F	at 68 – 1832°F	68-932°F	at 32 – 212°F
0.288	28 x 106	9.2	11.4	14.7	0.12

Sales Representatives Are Available to Provide Prompt Quotes

Cities	Country
Haarlem	Netherlands
Eindhoven	Netherlands
Amsterdam	Netherlands
Brussels	Belgium
Seraing	Belgium
Rotterdam	Netherlands
Ghent	Belgium
Meeuwen-Gruitrode	Belgium
Westerlo	Belgium
The Hague	Netherlands
Antwerp	Belgium
Leuven	Belgium

SUS 347 Elbow Weight Chart

Normal Pipe Size For Stainless Steel 347 Elbow	Weight In Kilogram (KG)	Weight In LBS
30	166.47	367
1/2	0.04	0.09
1	0.11	0.25
1.1/4	0.17	0.38
3/4	0.04	0.09
1.1/2	0.18	0.4
2	0.37	0.81
2.1/2	0.79	1.75
3.1/2	1.59	3.5
3	1.19	2.63
4	2.04	4.5
5	3.4	7.5
8	10.43	23
10	19.5	43
26	124.74	275
12	28.12	62
6	5.44	12
14	36.29	80
16	45.36	100
20	72.57	160
22	89.36	197
18	57.15	126
24	107.95	238
36	240.86	531

Stainless Steel 347 Tee Weight

NPS	01/2	03/4	1	1.1/4	1.1/2	2	2.1/2	3	3.1/2	4	5	6
Weight (LBS)	0.35	0.45	0.75	1.3	2	3.5	6	7	9	12	21	34
Weight (KG)	0.16	0.2	0.34	0.59	0.91	1.59	2.72	3.18	4.08	5.44	9.53	15.42
NPS	8	10	12	14	16	18	20	22	24	26	30	36
Weight (LBS)	55	85	120	165	195	249	342	414	528	770	1060	1490
Weight (KG)	24.95	38.56	54.43	74.84	88.45	112.94	155.13	187.79	239.5	349.27	480.81	675.85

347 Stainless Steel Elbow Dimensions

Size		1	2	1¼	2½	4	3	5	8	6	10	12
OD		33.4	60.3	42.2	73	114.3	88.9	141.3	219.1	168.3	273	323.8
90 deg (LR)	Center-end-(A)	38	76	48	95	152	114	190	305	229	381	457
90 deg (3D)	Center-end-(A)	76	152	95	190	305	229	381	610	457	762	914
45 deg (LR)	Center-end-(B)	22	35	25	44	64	51	79	127	95	159	190
45 deg (3D)	Center-end-(B)	31	63	39	79	127	95	157	252	189	316	378
Size		14	18	16	20	24	22	26	38	36	40	48
OD		355.6	457	406.4	508	610	559	660	965	914	1016	1219
90 deg (LR)	Center-end-(A)	533	686	610	762	914	838	991	1448	1372	1524	1829
90 deg (3D)	Center-end-(A)	1067	1372	1219	1524	1829	1676	1981	2896	2743	3048	3658
45 deg (LR)	Center-end-(B)	222	286	254	318	381	343	406	600	565	632	759
45 deg (3D)	Center-end-(B)	441	568	505	632	757	694	821	1200	1135	1264	1516

SS 347 Stub End Dimensions

PS				1/2″	1″	1 1/4″	2″	3″	4″	5″	6″
Dia OfG				35	51	64	92	127	157	186	216
Radius OfR				3	3	5	8	10	11	11	13
Outer diameter	of barrel	(Max.)		22.8	35	43.6	62.4	91.3	116.7	144.3	171.3
Outer diameter	of barrel	(Min.)		20.5	32.6	41.4	59.5	88.1	113.5	140.5	167.5
Length OfF		Short And	Pattern	51	51	51	64	64	76	76	89
Length OfF		Long And	Pattern	76	102	102	152	152	152	203	203
PS				8"	10"	12"	14"	16"	18"	20"
Diameter OfG				270	324	381	413	470	533	584
Radius OfR				13	13	13	13	13	13	13
Outer diameter	of barrel	(Max.)		222.1	277.2	328	359.9	411	462	514
Outer diameter	of barrel	(Min.)		218.3	272.3	323.1	354.8	405.6	456	507
Length OfF		Short And	Pattern	102	127	152	152	152	152	152
Length OfF		Long And	Pattern	203	254	254	305	305	305	305
