Stainless Steel 904L Fasteners

Home > Stainless Steel 904L Fasteners

Stainless Steel 904L Fasteners Key Points

Size in Ready Stock:	M4 to M100
Custom Sizes Available in:	Up to M100
Length:	3mm to 200mm
International Standard:	ASME B18 2.1, ISO 4032, ISO 4033, DIN 931, DIN 933
European and American Standard:	ASTM A193, ASME SA193, UNS N08904, WNR 1.4539
Raw Material Origin:	European, Janpanese, Indian, UK, Korean, German
MTC:	EN 10204/3.1B
Steel Types:	Super Austenitic
Corrosion:	Crevice Corrosion and Pitting
Use:	Oil Refinery Components
Density:	0.287 lb/in3
Designed For:	Superior Corrosion Resistance
Conditions:	Extreme Temperature
Alloy Type:	High Performance Alloy
Ultimate Tensile Strength:	605 MPa
Suitable Environment:	High Chloride
Hardness:	70-90 HR B
Thread Pitch:	Coarse Thread and Fine Thread
Finish:	Mirror, Electroplated, Polished
Threads:	UNF, Rolled, UNR, UNJ, UNC,
Temperature Range:	850 –1150°C
Delivery Time	Poland : 25-30 Days Indonesia : 7-8 Days
RFQ:	support@pipingmaterial.ae

Table of Content

Stainless Steel 904l Fasteners Specifications
Available Ship Stock of SS 904L Fasteners
UNS S08904 Hex Bolts
ASTM A193 Stainless Steel 904l Stud Bolts
SS 904l Nut And Bolt
SUS 904l Socket Head Cap Screws
904l SS Threaded Rod
Stainless Steel 904l Dowel Pins
904l Stainless Steel Rivet
DIN 1.4539 Plain Washer
Stainless Steel 904l Hex Nuts Dimensions
Stainless Steel 904L Hex Head Bolt Torque Chart
Types of Stainless Steel 904L Fasteners
904l SS Threaded Rod Load Chart
904L Stainless Steel Bolts Dimensions

ASTM A193 Stainless Steel 904l Stud Bolt Surface Treatments
Applications of Stainless Steel 904l Threaded Bolt
SS 904l Fasteners Heat Treatment
904l Stainless Steel Fasteners Maximum Allowable Stress
904l Stainless Steel Washers Dimensions
SS 904l Heavy Hex Nuts Weight Chart
What Are the Major Considerations When Choosing SS 904L Bolts and Nuts?
904l Stainless Steel Bolts and Nuts Chemical Composition
SUS 904l Socket Head Cap Screw Mechanical Properties
Stainless Steel 904L Fasteners Equivalent Grades
Physical Properties of 904l Stainless Steel Washers
Stainless Steel 904l Fasteners Properties
904l Stainless Steel Fasteners HS Code

Check SS 904L nut price per kg in Dubai, suppliers of stainless steel 904L hex head bolt in UAE

Stainless Steel 904l Fasteners Specifications

Size Range: M2 to M120 or Custom Sizes

Manufacturing Method: CNC Machined, Cold Forging, Hot Forging

Testing : Tensile Test, Impact Test, Hardness Test

Threads Types : BSW, UN, UNF, CBSF

Machines: Making Machines, CNC Lath, Thread Rolling

Type of Head: Hex, Heavy Hex, Pan, Oval, Flat, Truss

Application: Marine Environments, Oil and Gas and Aerospace

Applicable Fluids: Steam, Oil, Water, Air and Gas

Threads Pitch : Fine and Coarse

Washer Available Forms : Type A, B, E, D, C, G

Type of Neck : Square, Hex, Triangular, Knurled

Finish: HDG, Phosphating and Oxidation

Get Quote Directly from Stainless Steel 904L Fasteners Suppliers in UAE

100% Tested Stainless Steel 904l Hex Head Bolt with MTC EN 10204 3.1/3.2

Available Ship Stock of SS 904L Fasteners

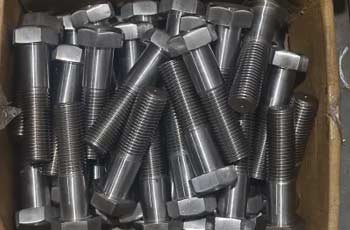

UNS S08904 Hex Bolts

Nominal Diameter : M3-M39
Finish : Passication, Polish

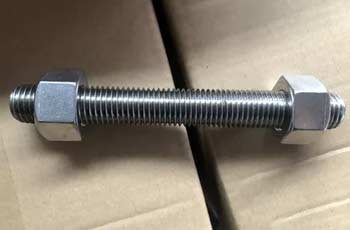

ASTM A193 Stainless Steel 904l Stud Bolts

Thread Coverage : Partially Threaded
Quality Control : 100% Inspection

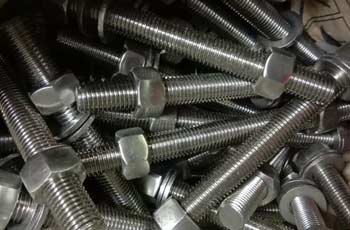

SS 904l Nut And Bolt

Diameter : M0.8mm-M100mm
Quality : High-Quality Guaranteed

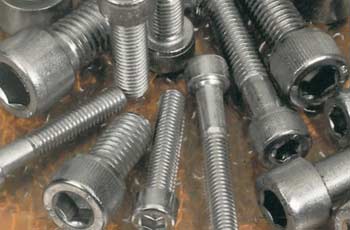

SUS 904l Socket Head Cap Screws

Inch Diameter : 1/4″ to 3″
Surface Treatment : Natural

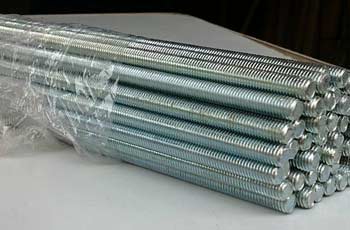

904l SS Threaded Rod

Tolerance : ±1%
Thread Type : Fine thread

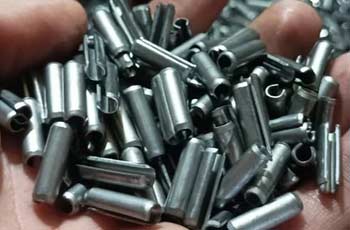

Stainless Steel 904l Dowel Pins

Head height : 20mm
Total Length : 5mm-70mm

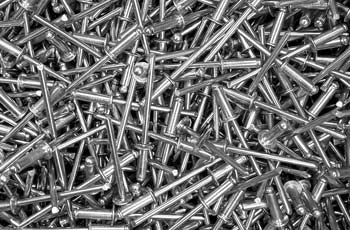

904l Stainless Steel Rivet

Rivet Diameter : 2.0 mm
Grip Range : 20 – 2000

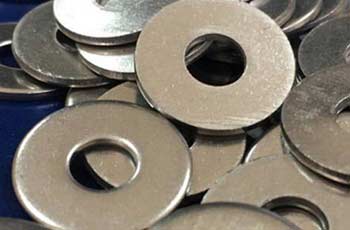

DIN 1.4539 Plain Washer

Inside Diameter : 20mm
Application : Heavy Industry

Connect by live chat with verified 904L stainless steel fasteners manufacturers & suppliers and get the fastest quote, check the wide range of sizes in metric/ imperial

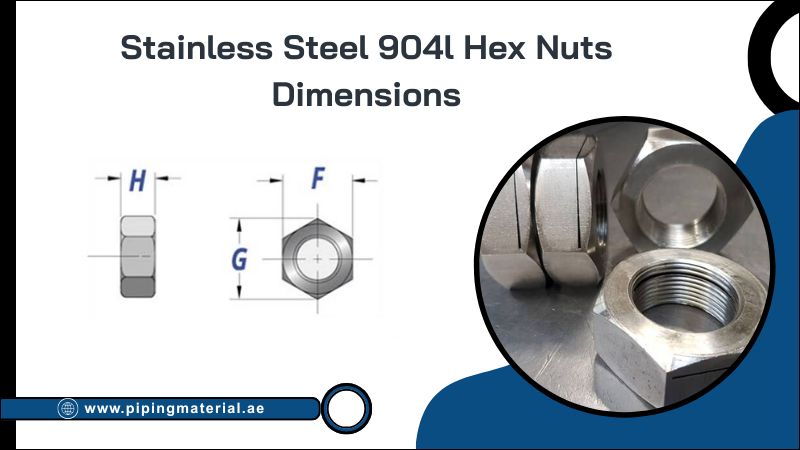

Stainless Steel 904l Hex Nuts Dimensions

Nominal Sizes		G		F			H
		Width Across Corners		Width Across Flats			Thickness
		Min	Max	Basic	Min	Max	Basic	Min	Max
1-5/8	10.06250	20.0686	20.0815	2-7/16	20.0356	20.0438	1-25/64	10.0353	10.0429
1-3/8	10.03750	20.0273	20.0382	2-1/16	10.0994	20.0062	1-11/64	10.0138	10.0206
1-3/4	10.07500	20.0893	30.0031	2-5/8	20.0538	20.0625	1-1/2	10.0460	10.0540
1-1/8	10.01250	10.0859	10.0949	1-11/16	10.0631	10.0688	31/32	0.0939	0.0999
1-1/2	10.0500	20.0480	20.0598	2-1/4	20.0175	20.0250	1-9/32	10.0245	10.0008
1	10.00000	10.0653	10.0732	1-1/2	10.0450	10.0500	55/64	0.0831	0.0887
9/16	0.05625	0.0982	10.0010	7/8	0.0861	0.0875	31/64	0.0473	0.0496
7/16	0.04375	0.0768	0.0794	11/16	0.0675	0.0688	3/8	0.0365	0.0385
7/8	0.08750	10.0447	10.0516	1-5/16	10.0269	10.0312	3/4	0.0724	0.0776
5/16	0.03125	0.0557	0.0577	1/2	0.0489	0.0500	17/64	0.0258	0.0273
5/8	0.06250	10.0051	10.0083	15/16	0.0922	0.0938	35/64	0.0535	0.0559
3/8	0.03750	0.0628	0.0650	9/16	0.0551	0.0562	21/64	0.0479	0.0337
3/4	0.07500	10.0240	10.0299	1-1/8	10.0088	10.0125	41/64	0.0617	0.0665
1/4	0.02500	0.0488	0.0505	7/16	0.0428	0.0438	7/32	0.0212	0.0226
1/2	0.05000	0.0840	0.0866	3/4	0.0736	0.0750	7/16	0.0427	0.0448

Stainless Steel 904L Hex Head Bolt Torque Chart

View Stainless Steel 904L Fasteners Suppliers in UAE, Gives Excellent Torque Chart for Bolts.

Size Inches or #	Threads Per Inch	in Inch-Pounds Standard Dry Torque
Size Inches or #	Threads Per Inch	–	–
#2	64	3.0	3.2
#2	56	2.5	2.6
#3	56	4.4	4.6
#3	48	3.9	4.0
#4	48	6.6	6.9
#4	40	5.2	5.5
#5	44	9.4	9.8
#5	40	7.7	8.1
#6	40	12.1	12.7
#6	32	9.6	10.1
#8	36	22.0	23.0
#8	32	19.8	20.7
#10	32	31.7	33.1
#10	24	22.8	23.8

Check Out Your Nearby Locations For Fastest Deliveries

Saudi Arabia	Al Jubail	Abu Dhabi	Ajman
Muscat	Riyadh	Dubai	Ras Al Khaimah
Sharjah	Fujairah	Umm Al Quwain	Doha

Contact SS 904L bolts and nuts manufacturer in United Arab Emirates, check UNS S08904 hex bolts and 904L SS threaded rod sizes, dimension and price list

Types of Stainless Steel 904L Fasteners

Check Stainless Steel 904L Fasteners Suppliers in UAE, Offers a Large Range of Commonly Used Fasteners Types.

Stainless Steel 904L Hex Bolts

UNS N08904 Eye Bolts

904L Stainless Steel U Bolts

Stainless Steel 904L Hex Nuts

SS 904l Heavy Hex Nuts

904L Stainless Steel Square Nuts

SS 904l Hex Cap Screws

DIN 1.4539 Button Head Screws

SUS 904l Self Drilling Screws

Stainless Steel 904L Stud Bolt

ASTM A193 Stainless Steel 904l Threaded Rod

904l Stainless Steel Washers

904l SS Threaded Rod Load Chart

Get Stainless Steel 904L Fasteners Suppliers and Stockist in Ajman, Sharjah or Dubai, Offers a Various Range of Sizes.

Thread Size	Min Proof Load (kg)	Stress Area (mm²)
M20	5617	245
M12	1937	84.3
M16	3598	157
M10	1335	58
M8	836	36.6
M6	459	20.1
M5	326	14.2
M4	204	8.8
M3	112	5

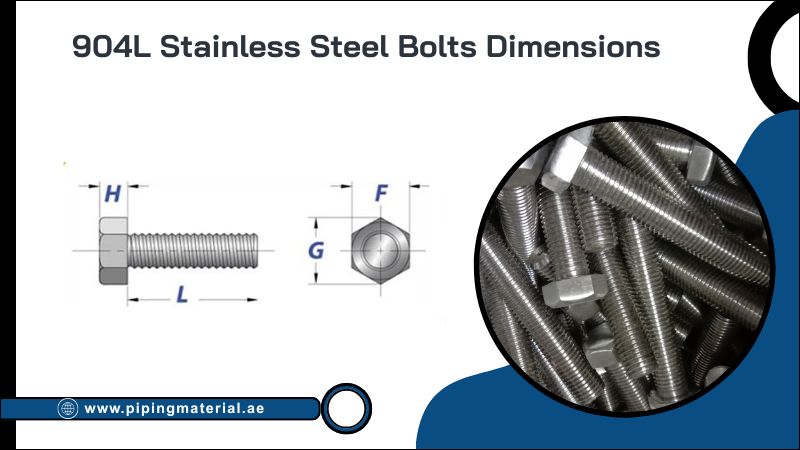

904L Stainless Steel Bolts Dimensions

Nominal Size (D)	Body Diameter		Acro The Flats		Acro The Flats		Head Thickness
Nominal Size (D)	D (Min)	D (Max)	F (Min)	F (Max)	C (Min)	C (Max)	H (Min)	H (Max)
M 100	99.13	90.00	140.00	145.00	159.60	167.43	60.10	63.9
M 90	89.13	90.00	125.50	130.00	143.07	150.11	54.26	57.74
M 80	79.26	80.00	111.00	115.00	126.54	132.72	48.42	51.58
M 72	71.26	72.00	101.40	105.00	115.60	121.24	43.55	46.45
M 64	63.26	64.00	91.80	95.00	104.65	109.70	38.68	41.32
M 56	55.26	56.00	82.20	85.00	93.71	98.15	33.80	36.2
M 48	47.38	48.00	72.60	75.00	82.76	86.60	28.93	31.07
M 42	41.38	42.00	62.90	65.00	71.71	75.06	25.03	26.97
M 36	35.61	36.00	53.80	55.00	60.79	63.51	21.63	23.38
M 30	29.67	30.00	45.00	46.00	50.85	53.12	17.92	19.48
M 24	23.67	24.00	35.00	36.00	39.55	41.57	14.56	15.44
M 20	19.67	20.00	29.16	30.00	32.95	34.64	12.12	12.88
M 16	15.73	16.00	23.67	24.00	26.75	27.71	9.68	10.32
M 14	13.73	14.00	20.67	22.00	23.35	24.25	8.51	9.09
M 12	11.73	12.00	17.73	19.00	20.03	20.78	4.24	7.76
M 10	9.78	10.00	15.73	17.00	17.77	18.48	6.17	6.63

Our Dealers and Distributors in Below Locations

Region	City	Country
Middle East	Kuwait City	Kuwait
Africa	Johannesburg	South Africa
Middle East	Riyadh	Saudi Arabia
Africa	Lagos	Nigeria
Middle East	Dammam	Saudi Arabia
MENA	Casablanca	Morocco
Middle East	Jeddah	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Doha	Qatar
MENA	Cairo	Egypt
Middle East	Dubai	United Arab Emirates
Africa	Cape Town	South Africa
Middle East	Abu Dhabi	United Arab Emirates

Buy DIN 1.4539 studs and ASTM A193 stainless steel 904L stud bolt as per JIS B1180, ISO 4014, DIN 933 standard at a genuine price in the Middle East

ASTM A193 Stainless Steel 904l Stud Bolt Surface Treatments

Applications of Stainless Steel 904l Threaded Bolt

Find Stainless Steel 904L Fasteners Suppliers in UAE, Offers a Various Industrial Applications.

SS 904l Fasteners Heat Treatment

Grades	Heat Treatment
904L Screws	1090 to 1175°C by Rapid Cooling

904l Stainless Steel Fasteners Maximum Allowable Stress

Metal Temperatures (Max)		Max Allowable Stress per ASME
°F	°C	ksi	MPa
100	38	17.8	123
200	93	16.7	115
300	149	15.1	104
400	204	13.8	95
500	260	12.7	88
600	316	12.0	83
700	371	11.4	79

Weekly Shipment to Below Locations

Country	Cities
Belgium	Westerlo
Netherlands	Rotterdam
Belgium	Antwerp
Netherlands	Haarlem
Belgium	Meeuwen-Gruitrode
Netherlands	The Hague
Belgium	Brussels
Netherlands	Amsterdam
Belgium	Leuven
Belgium	Seraing
Netherlands	Eindhoven
Belgium	Ghent

Check SUS 904L socket head cap screw and 904L stainless steel washers dimensions, grades, and weight chart

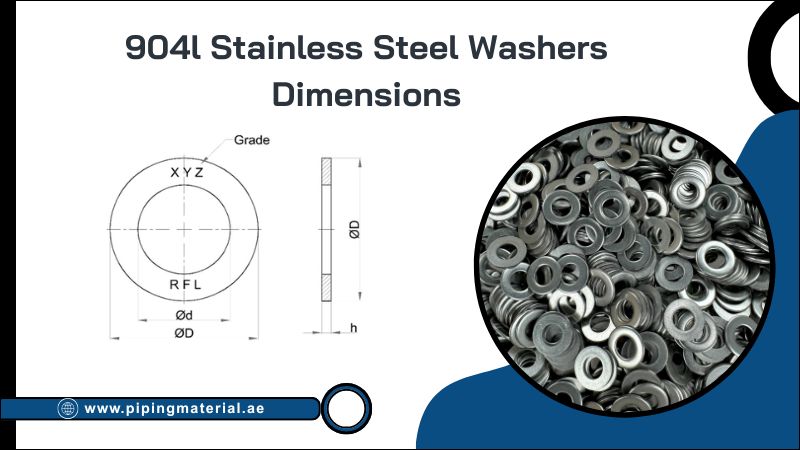

904l Stainless Steel Washers Dimensions

Size	Inside Diameter (d)		Outside Diameter (D)		Thickness (h)
Size	Max.	Min.	Max.	Min.	Max.	Min.
M 60	66.74	66	110	108.6	11	9
M 56	62.74	62	105	103.6	11	9
M 52	56.74	56	98	96.6	9	7
M 48	52.74	52	92	90.6	9	7
M 45	48.62	48	85	83.6	9	7
M 42	45.62	45	78	76.8	9	7
M 39	42.62	42	72	70.8	6.6	5.4
M 36	37.62	37	66	64.8	5.6	4.4
M 33	34.62	34	60	58.8	5.6	4.4
M 30	31.39	31	56	55.26	4.3	3.7
M 27	28.33	28	50	49.38	4.3	3.7
M 24	25.33	25	44	43.38	4.3	3.7
M 22	23.33	23	39	38.38	3.3	2.7
M 20	21.33	21	37	36.38	3.3	2.7
M 18	19.33	19	34	33.38	3.3	2.7
M 16	17.27	17	30	29.48	3.3	2.7

SS 904l Heavy Hex Nuts Weight Chart

SS 904l Nut Sizes	Heavy Hex	Heavy Square	Finished Hex	Finished Jam	Heavy Hex Jam	Square Nut
3 3/4″	1812	–	–	–	1005	–
3 1/4″	1194	–	–	–	651	–
3 1/2″	1526	–	–	–	851	–
3″	950	–	–	–	545	–
2 3/4″	738	–	–	–	429	–
2 1/4″	419	–	–	–	227	–
2 1/2″	564	–	–	–	332	–
2″	299	–	224	140	165	–
1 7/8″	241	–	–	–	134	–
1 5/8″	162	–	–	–	91.6	–
1 3/8″	102	125.0	73.0	47.9	59.3	94.5
1 3/4″	204	–	151	100	114	–
1 1/8″	59.2	72.4	40.3	24.7	32.4	52.5
1 1/4″	78.6	95.5	54.3	36.1	45.8	70.6
1 1/2″	131	161	94.3	60.9	74.8	122
1″	42.5	51.5	28.3	17.6	23.5	36.3
7/8″	29.7	36.2	19.0	12.0	16.7	24.5
5/8″	11.9	14.3	7.33	4.93	6.96	10.8
3/4″	19.3	23.5	11.9	7.70	11.0	15.4
1/2″	6.54	7.87	3.75	2.62	4.00	5.78

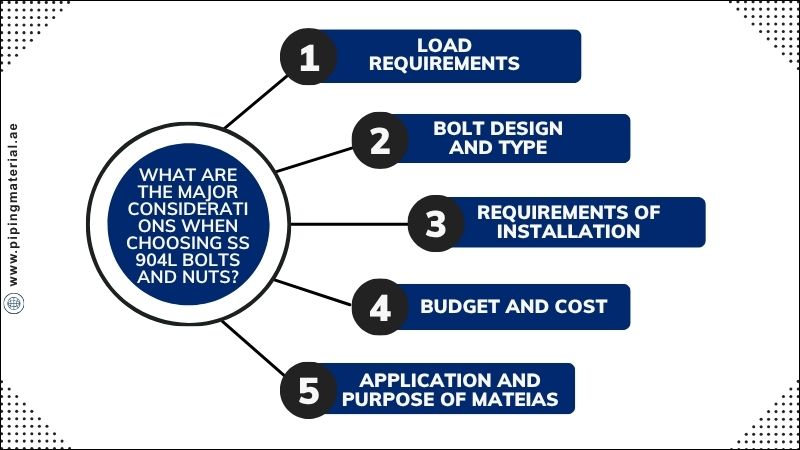

What Are the Major Considerations When Choosing SS 904L Bolts and Nuts?

904l Stainless Steel Bolts and Nuts Chemical Composition

Find Stainless Steel 904L Fasteners Suppliers and Stockist in Abu Dhabi or Umm Al Quwain, Offer Superior Chemical Composition.

Grade		C	N	Mn	Cr	P	Mo	Si	Ni	S
SS 904l Fasteners	Min.	–	0.10	–	19.0	–	4.00	–	23.00	–
SS 904l Fasteners	Max.	0.20	0.25	2.00	23.0	0.045	5.00	1.00	28.00	0.035

SUS 904l Socket Head Cap Screw Mechanical Properties

Check Stainless Steel 904L Fasteners Distributer in Ras Al Khaimah or Fujairah, Provides Outstanding Mechanical Properties.

Grade	Tensile Strength	Yield Strength 0.2% Proof	Elongation	Hardness
Grade	(MPa) min	(MPa) min	(% in 50mm) min	Brinell (HB) max	Rockwell B (HR B) max
SS 904l Nut	490	220	35	–	70-90 typical

Stainless Steel 904L Fasteners Equivalent Grades

Grade	Japanese JIS	UNS No	Euronorm		Old British
Grade	Japanese JIS	UNS No	No	Name	En	BS
DIN 1.4539 Studs	SUS 890L	N08904	1.4539	–	X1NiCrMoCu25-20-5	904S13

Physical Properties of 904l Stainless Steel Washers

Grade	Thermal Conductivity (W/m.K)		Density	Specific Heat 0-1000C	Elastic Modulus	Electrical Resistivity	Mean Coefficient of Thermal Expansion (m/m/0C)
Grade	at 1000C	at 5000C	kg/m3	J/kg.K	GPa	n.m	0-5380C	0-3150C	0-1000C
SS 904l Nut	13.0	–	8000	500	200	850	–	–	15.0

Stainless Steel 904l Fasteners Properties

904l Stainless Steel Fasteners HS Code

Grade	HS Code
SS 904l Fasteners	73181190

Material Inspection Facility in Following Locations

Africa	South Africa, Nigeria, Egypt, Algeria, Morocco, Kenya, Tunisia,
Middle East countries	UAE, Kuwait, Iraq, Lebanon, Qatar, Saudi, Bahrain, Jordan, Iran, Syria, Yemen
MENA	Libya, Algeria, Israel, Egypt, Morocco, Tunisia, Palestine
