Stainless Steel Eye Bolts

Home > Stainless Steel Eye Bolts

Stainless Steel Eye Bolts Core Characteristics

Size in Ready Stock :	M5 To M50
Length :	5 to 24mm
Thread Sizes :	1/4" To 2 3/4"
International Standard:	ASME B18 2.1, DIN 444, DIN 580, DIN 582, ISO 3266
Pitch :	Coarse & Fine Threads
Raw Material Origin :	German, UK, Korean, European, Janpanese, Indian
Commonly Used :	Lifting & Rigging Applications
Also Known	Eye Screw
Thread Type :	NC Rolled Machine
HSN Code :	7318
Working Load :	200 Lbs. To 65,000 Lbs
Features :	Closed/ Open Eye
Condition :	Cold Drawn & Threading
MTC	EN 10204/3.1B
Delivery Time	Poland : 25-30 Days Indonesia : 7-8 Days
RFQ:	support@pipingmaterial.ae

Table of Content

Stainless Steel Eye Bolts Specifications
Available Stock of SS Eye Bolts
Stainless Steel Welded Eye Bolts
SS 304 Fine Thread Eye Bolt
Stainless Steel Lifting Eye Bolts
316 SS Machined Eye Bolts
Stainless Steel Fully Threaded Eye Bolts
SS Long Shank Eye Bolts
Stainless Steel Swivel Eye Bolt
SS Female Eye Bolt
Stainless Steel Marine Eye Bolts Size Chart
316 Stainless Steel Eye Bolt Dimensions
Stainless Steel Lag Eye Bolt Thread Pitch
How To Install Stainless Steel Lifting Eye Bolts?
Stainless Steel Shoulder Eye Bolts Torque Specs

Different Types of Stainless Steel Eye Bolts
Working Load Limit of Stainless Shoulder Eye Bolt
304 Stainless Steel Eye Bolts Angle Chart
Applications of Heavy Duty Stainless Steel Eye Bolts
Stainless Steel Eye Bolt Capacity
Stainless Steel Lifting Eye Bolts Weight Capacity
Why Choose Stainless Steel Eye Bolts?
Stainless Steel Eye Bolts Chemical Composition
What is the Maximum Temperature of an SS Eye Bolt?
Stainless Steel Eye Bolts Mechanical Properties
Stainless Steel Ring Eye Bolts Equivalent Grades
Stainless Steel Eye Screws Testing Equipment

Stainless steel eye hooks and 316 SS lifting eye bolt suppliers in UAE

Stainless Steel Eye Bolts Specifications

Size Range: M6 To M80 or Custom Sizes

Bolt Thread Sizes: 1/4″ to 2 3/4″

Machines: Thread Rolling, CNC Lath, Making Machines

Finish: Plain and Zinc Plated

Manufacturing Method: Hot Forging, Cold Forging, CNC Machine

Features: Plain/Shoulder Profile & Customizable Options

Application: Industrial Lifting, Rigging, Anchoring and Construction

Threads Pitch: Fine and Coarse

Threads Types : BSW, BSF, UNC, UNF

Testing : Wedge Test, Salt Spray Test, Corrosion Test

Get Quote Directly from Stainless Steel Eye Bolts Suppliers in UAE

100% Tested Stainless Steel Eye Hooks with MTC EN 10204 3.1/3.2

Available Stock of SS Eye Bolts

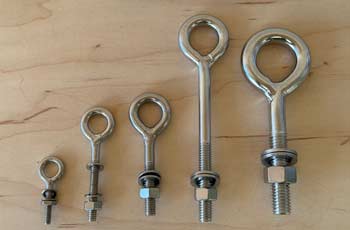

Stainless Steel Welded Eye Bolts

cap diameter : 10mm
finish : Plain

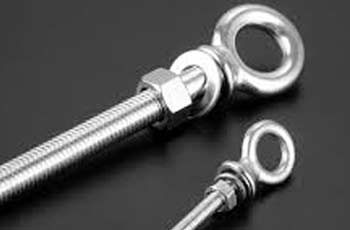

SS 304 Fine Thread Eye Bolt

Size : M5-M39, or customized
Quality Control : 100% Inspection before shipment

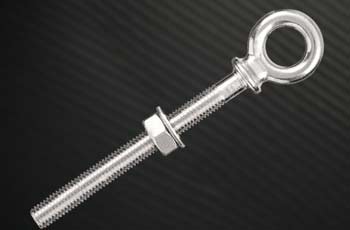

Stainless Steel Lifting Eye Bolts

Usage : Industry Machine
Advantage : OEM Customized Service Provided

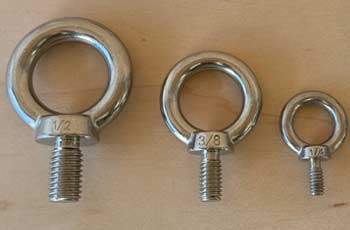

316 SS Machined Eye Bolts

Quality control : 100% Inspection
Thread Type : UNC

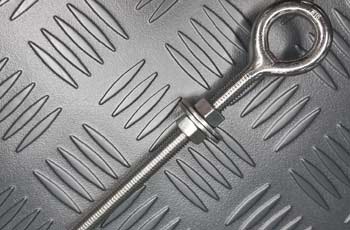

Stainless Steel Fully Threaded Eye Bolts

Size : M2-M100
Surface treatment : Zinc / Plain

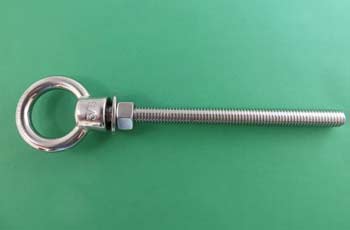

SS Long Shank Eye Bolts

Length : 6-60mm
Certificate : ISO9001

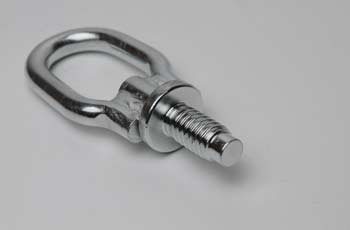

Stainless Steel Swivel Eye Bolt

Surface : Pollished
Application : Widely used in various industries

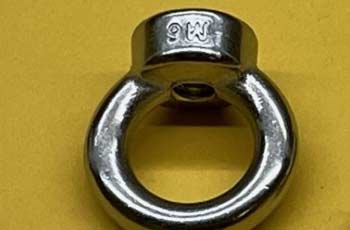

SS Female Eye Bolt

Quality Control : 100% quality insepected
Measurement system : Metric

Heavy duty stainless steel marine eye bolts and 304 SS eye bolt in annealed condition with mill test reports in the Middle East

Stainless Steel Marine Eye Bolts Size Chart

SS Eye Bolt Sizes	Diameter of Eye	Length of Shank	Length
M12	20	100	154
M10	17	73	115
M8	15	60	97
M6	11	45	74
M5	11	36	61
M4	10	29	52

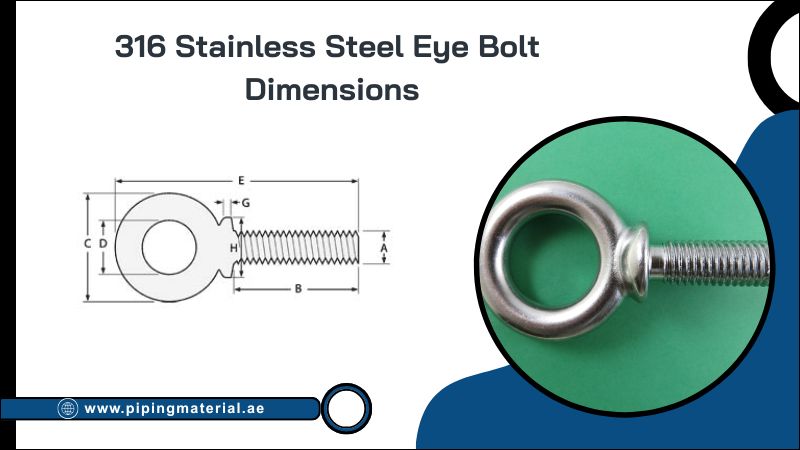

316 Stainless Steel Eye Bolt Dimensions

Sizes in (A x Pitch x B)	Shoulder Thickness (G)	Shoulder Diameter (H)	Overall Length (E)	Inside Eye Diameter (D)	Outside Eye Diameter (C)
(Millimeter)	(Millimeter)	(Millimeter)	(Millimeter)	(Millimeter)	(Millimeter)
48 * 5.0 * 101.6	11.9	74.6	310.4	82	174.6
48 * 5.0 * 96	11.9	74.6	294.8	82	174.6
45 * 4.5 * 95	10.3	65.1	282.6	73	152.4
45 * 4.5 * 84	10.3	65.1	271.6	73	152.4
42 * 4.5 * 95	8.7	65.1	282.6	73	152.4
42 * 4.5 * 84	8.7	65.1	271.6	73	152.4
36 * 4.0 * 89	7.1	55.6	246.9	63	131.8
36 * 4.0 * 72	7.1	55.6	229.9	63	131.8
30 * 3.5 * 76	7.1	49.2	214.3	55	112.7
30 * 3.5 * 60	7.1	49.2	198.3	55	112.7
27 * 3.0 * 70	7.1	44.5	196.9	51	103
27 * 3.0 * 48	7.1	44.5	174.9	51	103
24 * 3.0 * 63.5	7.1	39.7	174.6	46	90.4
24 * 3.0 * 48	7.1	39.7	159.1	46	90.4
22 * 2.5 * 63.5	7.1	39.7	174.6	46	90.4
22 * 2.5 * 44	7.1	39.7	155.1	46	90.4
20 * 2.5 * 57	6.4	34.9	157.2	41	81
20 * 2.5 * 40	6.4	34.9	140.2	41	81
18 * 2.5 * 51	5.6	30.2	139.7	38	71.5
18 * 2.5 * 36	5.6	30.2	124.7	38	71.5
16 * 2.0 * 44.5	5.6	26.2	125.4	35	65
16 * 2.0 * 32	5.6	26.2	112.9	35	65
14 * 2.0 * 44.5	5.6	24.6	115.9	33	58
14 * 2.0 * 28	5.6	24.6	99.4	33	58
12 * 1.75 * 38	4	23	106.4	30	54
12 * 1.75 * 24	4	23	92.4	30	54
10 * 1.5 * 35	4	19.8	96	27	46
10 * 1.5 * 20	4	19.8	81	27	46
8 * 1.25 * 31.7	4	16.7	88.1	25	43
8 * 1.25 * 16	4	16.7	72.4	25	43
7 * 1.0 * 28.5	4	15.1	75.4	22	36.5
7 * 1.0 * 14	4	15.1	60.9	22	36.5
6 * 1.0 * 25.4	4	13.5	64.3	19	30
6 * 1.0 * 12	4	13.5	50.9	19	30

Stainless Steel Lag Eye Bolt Thread Pitch

Nominal Size	Thread Pitch
Nominal Size	(Millimeter)
M48	5.00
M42	4.50
M36	4.00
M30	3.50
M24	3.00
M20	2.50
M16	2.00
M12	1.75
M10	1.50
M8	1.25
M6	1.00
M5	0.80
M4	0.70
M3	0.50

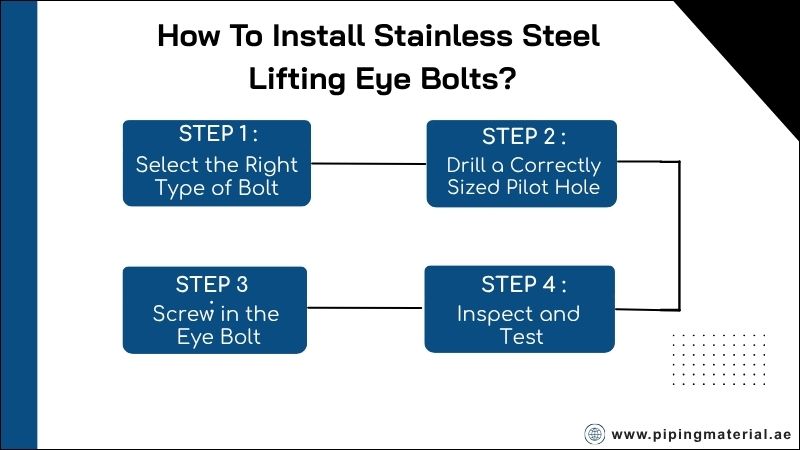

How To Install Stainless Steel Lifting Eye Bolts?

Stainless Steel Shoulder Eye Bolts Torque Specs

Check Stainless Steel Eye Bolts Suppliers in UAE, Provides Best Quality Eye Bolts With Superior Torque Values

Thread	Tightening Torque in (Nm)	Weight
M24	230	0.92
M20	135	0.5
M16	70	0.3
M14	54	0.2
M12	28	0.14
M10	16	0.08
M8	8	0.06

Find our Ready Stock in Following Locations

Country	Cities
Belgium	Meeuwen-Gruitrode
Belgium	Seraing
Netherlands	Rotterdam
Belgium	Ghent
Belgium	Antwerp
Netherlands	Amsterdam
Belgium	Brussels
Netherlands	The Hague
Belgium	Leuven
Netherlands	Eindhoven
Belgium	Westerlo
Netherlands	Haarlem

Buy stainless steel shoulder eye bolt at the lowest price in Dubai, get connected with trusted and genuine SS lag screw eye suppliers in GCC countries

Different Types of Stainless Steel Eye Bolts

View Stainless Steel Eye Bolts Suppliers in UAE, Offers Many Types of Eye Bolts That Are Frequently Used

Stainless Steel Eye Bolt

Stainless Steel Eye Hooks

316 SS Lifting Eye Bolt

Heavy Duty Stainless Steel Marine Eye Bolts

304 SS Eye Bolt

Stainless Steel Shoulder Eye Bolt

SS Lag Screw Eye

Stainless Steel Lag Eye Bolt

SS Swivel Eye Bolt

316 Stainless Steel Eye Bolt

Stainless Steel Machinery Shoulder Lifting Eye Bolts

SS Eye Bolt

Working Load Limit of Stainless Shoulder Eye Bolt

Stainless Eye Bolt Sizes	Working Load Limit
(Inches)	(lbs.)
7/8	10,600
5/16	1,200
5/8	5,200
3/8	1,550
3/4	7,200
1/4	650
1/2	2,600
2-1/2	65,000
2	42,000
1-3/4	34,000
1-1/8	15,000
1-1/4	21,000
1-1/2	24,000
1	13,300

Locate Our Resellers and Stockists in Your Vicinity

Region	City	Country
Africa	Lagos	Nigeria
Middle East	Dubai	United Arab Emirates
MENA	Casablanca	Morocco
Middle East	Doha	Qatar
Africa	Cape Town	South Africa
Middle East	Dammam	Saudi Arabia
Middle East	Jeddah	Saudi Arabia
Middle East	Abu Dhabi	United Arab Emirates
MENA	Cairo	Egypt
Africa	Johannesburg	South Africa
Middle East	Riyadh	Saudi Arabia
Africa	Abuja	Nigeria
Middle East	Kuwait City	Kuwait

View stainless steel lag eye bolt and M6 swivel eye bolt stock standard sizes, specifications and price in Middle East and South Korea

304 Stainless Steel Eye Bolts Angle Chart

Check Stainless Steel Eye Bolts Suppliers in UAE, Gives Accurate Angle Chart for Eye Bolts

Sizes in (Inches)	0° Lbs.	45° Lbs.
1/2	2,400	600
1/4	500	125
3/4	5,000	1,250
3/8	1,300	325
5/8	4,000	1,000
5/16	900	225
7/8	7,000	1,750
7/16	1,800	450
9/16	3,000	800
1	9,000	2,250
1 1/2	21,000	5,250
1 1/4	15,000	3,750
1 1/8	12,000	3,000
1 3/4	28,000	7,000
2	38,000	9,500
2 1/2	56,000	14,000

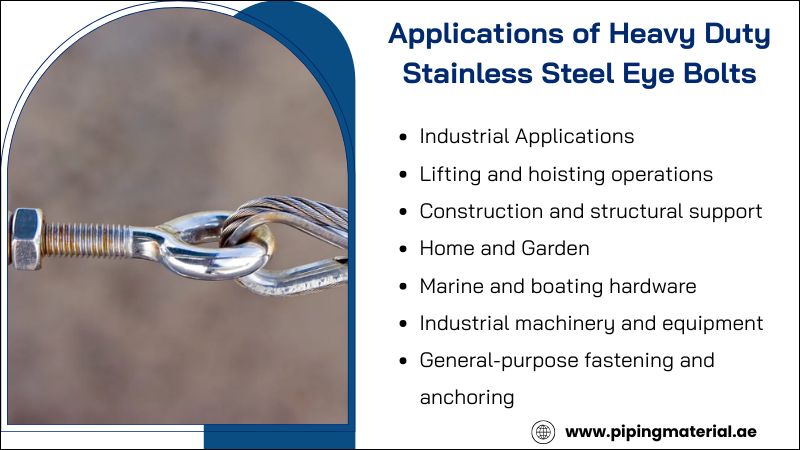

Applications of Heavy Duty Stainless Steel Eye Bolts

Explore Nearby Locations for the Quickest Delivery Options

Africa	Morocco, Kenya, South Africa, Tunisia, Nigeria, Egypt, Algeria
MENA	Israel, Tunisia, Libya, Palestine, Algeria, Morocco, Egypt
Middle East countries	UAE, Saudi, Bahrain, Lebanon, Qatar, Iran, Syria, Kuwait, Iraq, Jordan, Yemen

Stainless Steel Eye Bolt Capacity

Shank Diameter	Weight Capacity
(Inches)	(lbs)
1/2	2,500
1/4	600
3/4	5,200
3/8	1,300
5/8	4,500
5/16	900
7/8	7,200
1	10,000
1-1/2	22,000
2	35,000

Stainless Steel Lifting Eye Bolts Weight Capacity

Shank Diameter	Working Load Limit
Shank Diameter	60° Sling Angle (lbs)	45° Sling Angle (lbs)	Less than 45° (lbs)	Linepull (lbs)
1-1/4	13600	6300	5250	21000
1-1/2	15600	7200	6000	24000
1	8645	3990	3325	13300
7/8	6890	3180	2650	10600
5/16	780	360	300	1200
5/8	3380	1560	1300	5200
3/8	1000	465	380	1550
3/4	4680	2160	1800	7200
1/4	420	195	160	650
1/2	1690	780	650	2600

316 stainless steel eye bolt and machinery shoulder lifting eye bolts according to JIS, GB, BS, UNE, DIN, ASTM, SAE, AISI international standard

Why Choose Stainless Steel Eye Bolts?

Resistance to Corrosion
Strength and Endurance
Low Upkeep
Aesthetic Pleasure
bbbbbbbbbbb

Stainless Steel Eye Bolts Chemical Composition

Grades	Mn	C	Cr	Mo	Si	N	S	Ni	P
304	2.0 max	0.08 max	18.0-20.0	–	0.75 max	0.10	0.030	8.0-10.5	0.045
304L	2.0 max	0.030 max	18.0-20.0	–	0.75 max	0.10	0.030	8.0-12.0	0.045
304H	2.0 max	0.04-0.10	18.0-20.0	–	0.75 max	–	0.030	8.0-10.5	0.045
310	2 max	0.015 max	24.00-26.00	0.10	0.15 max	54.7 min	0.015 max	19.00-21.00	0.020 max
310S	2 max	0.08 max	24.00-26.00	0.75	1.0 max	53.095 min	0.030 max	19.00-21.00	0.045 max
316	2.0 max	0.08 max	16.00-18.00	2.00-3.00	1.0 max	67.845 min	0.030 max	11.00-14.00	0.045 max
316L	2.0 max	0.035 max	16.00-18.00	2.00-3.00	1.0 max	68.89 min	0.030 max	10.00-14.00	0.045 max
316H	0.10 max	0.10 max	16.00-18.00	2.00-3.00	0.75 max	–	0.030 max	10.00-14.00	0.045 max
SS 317	2.0 max	0.08 max	18.00-20.00	3.00-4.00	1.0 max	57.845	0.030 max	11.00-15.00	0.045 max
SS 317L	2.0 max	0.035 max	18.00-20.00	3.00-4.00	1.0 max	57.89 min	0.030 max	11.00-15.00	0.045 max
SS 321	2.0 max	0.08 max	17.00-19.00	–	1.0 max	9.00-12.00	0.030 max	5(C+N) -0.70 max	0.045 max
SS 321H	2.0 max	0.04-0.10	17.00-19.00	–	1.0 max	0.10 max	0.030 max	9.00-12.00	0.045 max
SS 347	2.0 max	0.08 max	17.00-20.00	–	1.0 max	–	0.030 max	9.00-13.00	0.045 max
SS 347H	2.0 max	0.04-0.10	17.00-19.00	–	1.0 max	–	0.030 max	9.0-13.0	0.045 max
SS 409	1.00 max	0.08 max	10.5-11.75	–	1.00 max	–	0.030 max	0.5	0.045 max
SS 410S	1.00 max	0.080 max	10.5-12.5	–	1.00 max	–	0.030 max	–	0.040 max
SS 904L	2.00 max	0.020 max	19.00-23.00	4.00-5.00 max	1.00 max	–	0.030 max	23.00-28.00	0.040 max

Stainless Steel Eye Bolts Chemical Composition

What is the Maximum Temperature of an SS Eye Bolt?

Grade	Maximum Temperature
Ss Eyebolt	-20oC to +200oC

Stainless Steel Eye Bolts Mechanical Properties

Grade	Melting Point	Elongation	Density	Yield Strength (0.2%Offset)	Tensile Strength
304/304H/304L	1400 °C (2550 °F)	35 %	8.0 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa-515
310/310S	1402 °C (2555 °F)	40 %	7.9 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa – 515
316/316L/316H	1400 °C (2550 °F)	35 %	8.0 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa – 515
317/ 317L	1400 °C (2550 °F)	35 %	7.9 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa – 515
321/ 321H	1457 °C (2650 °F)	40 %	8.0 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa – 515
347/ 347H	1454 °C (2650 °F)	35 %	8.0 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa – 515
410S	1532°C (2790°F)	25 %	7.80 g/cm3	Psi-30000, MPa – 205	Psi-75000, MPa-515
904L	1350 °C (2460 °F)	35 %	7.95 g/cm3	Psi-32000, MPa – 220	Psi-71000, MPa – 490

Stainless Steel Eye Bolts Mechanical Properties

Stainless Steel Ring Eye Bolts Equivalent Grades

STANDARD	WERKSTOFF	AFNOR	UNS	BS	EN	JIS	GOST
SS 304	1.4301	Z7CN18-09	S30400	304S31	X5CrNi18-10	SUS 304	08X18H10
SS 304L	1.4306/1.4307	Z3CN18-10	S30403	3304S11	X2CrNi18-9/X2CrNi19-11	SUS304L	03X18H11
SS 304H	1.4301	–	S30409	–	–	–	–
SS 310	1.4841	–	S31000	310S24	X15CrNi25-20	SUS 310	20Ch25N20S2
SS 310S	1.4845	–	S31008	310S16	X8CrNi25-21	SUS310S	20Ch23N18
SS 316	1.4401/1.4436	Z7CND17-11-02	S31600	316S31/316S33	X5CrNiMo17-12-2/X3CrNiMo17-13-3	SUS 316
SS 316L	1.4404/1.4435	Z3CND17-11-02 /Z3CND18-14-03	S31603	316S11/316S13	X2CrNiMo17-12-2/X2CrNiMo18-14-3	SUS 316L	03Ch17N14M3/03Ch17N14M2
SS 316H	–	–	S31609	316S51	–	–	–
SS 317	1.4449	–	S31700	–	X5CrNiMo1713	SUS 317	–
SS 317L	1.4438	–	S31703	–	X2CrNiMo18-15-4	SUS317L	–
SS 321	1.4541	–	S32100	–	X6CrNiTi18-10	SUS 321	–
SS 321H	1.4878	–	S32109	–	X12CrNiTi18-9	SUS321H	–
SS 347	1.4550	–	S34700	–	X6CrNiNb18-10	SUS 347	–
SS 347H	1.4961	–	S34709	–	X6CrNiNb18-12	SUS 347H	–
SS 409	1.4512	–	S40900	–	X2CrTi12	SUS409	–
SS 410S	1.4516	–	S41008	–	X6CrNiTi12	SUS410S	–
SS 904L	1.4539	Z2 NCDU 25-20	N08904	904S13	X1NiCrMoCu25-20-5	SUS	STS 317J5L
