Stainless Steel Flange Bolts Facts and Figures
| Size in Ready Stock : | M5 To M27 |
|---|---|
| Length : | 3 to 200mm |
| Custom Sizes Available in : | Up to M100 |
| Thread Type : | UNF, BSW, UNC, BSF |
| Head Angle : | 360 Degrees |
| Main Feature : | Sealability |
| Also Called : | Flange Head Screws |
| Temperature range : | -60C to +50°C |
| Head Type : | Truss, Oval, Hex, Flat, Pan |
| International Standard: | ASME B18 2.1, DIN 6921, ISO 4162 |
| Manufacturing Process : | Hot and Cold ForgiPlain and Zincng |
| Finishes : | Zinc and Yellow Chromate |
| Condition : | Cold Drawn & Threading |
| Pitch : | Fine Threads, Coarse Threads |
| Environments : | Acids and Chloride Rich |
| Testing : | PMI Test & Proof Load Test |
| Usage : | Automotive |
| Advantages : | Load Distribution |
| Load Capacity : | Heavy Loads and High Pressure |
| Purpose : | Connect Flanges and Pipes |
| Raw Material Origin : | Korean, European, Indian, German, UK, Janpanese |
| Delivery Time |
|
| MTC | EN 10204/3.1B |
| RFQ: | support@pipingmaterial.ae |
SS flanged button head screws suppliers in UAE
Stainless Steel Flange Bolts Specifications
Size Range: M5 To M27 or Custom Sizes
Manufacturing Method: Cold Forging, Hot Forging, CNC Machine
Application: Industrial Machinery, Aerospace and Marine Applicationsn
Threads Pitch : Fine and Coarse
Head Types: Socket Head and Hex-Head
Machines: CNC Lath, Thread Rolling, Making Machines
Head Drive : Six-Lobe, Slotted, Phillips, Phillips/Slot
Finish: Plain, Black Oxide and Zinc Plated
Threads Types : UNC, UNF, BSW, BSF, METRIC
Testing : PMI Test, Proof Load Test, Corrosion Test
Get Quote Directly from Stainless Steel Flange Bolts Suppliers in UAE
100% Tested SS Flanged Button Head Screws with MTC EN 10204 3.1/3.2
Available Stock of SS Flange Bolts
- Size : M6*25
- Usage : Engineering Machinery
- Thread : Metric Thread
- Surface finish : Zinc Plaetd
- Length : 5mm-100mm
- Certificate : ISO9001-2008
- Quality Control :- 100% quality insepected
- Head Style : Hex Head with Flange
- Size : M2-M100
- Usage : Engineering Machinery
- Quality : High-Quality
- Application : Excavator Spare Parts
- Finish : Plain
- Thread Type : UNF
- Length : 4-200mm
- Surface Treatment: Plain.Passivation
Buy 316 stainless steel flange bolts and nuts at low prices from verified suppliers in the Middle East. Also, check 304 toilet and hex head flange bolts torque chart, sizes, and dimension
Stainless Steel Flange Bolts Torque Chart
Stainless Steel Flange Head Bolts Size Chart in MM
| Sizes in (Inches) | Sizes in (Millimeter) | No of Bolts | Bolt Size UNC | RF Stud Length | ISO Stud Size | Machine Bolt Length |
|---|---|---|---|---|---|---|
| 1/2 | 15 | 4 | 1/2 | 55 | M14 | 50 |
| 1 | 25 | 4 | 1/2 | 65 | M14 | 55 |
| 1 1/2 | 40 | 4 | 1/2 | 70 | M14 | 65 |
| 1 1/4 | 32 | 4 | 1/2 | 70 | M14 | 55 |
| 2 | 50 | 4 | 5/8 | 85 | M16 | 70 |
| 2 1/2 | 65 | 4 | 5/8 | 90 | M16 | 75 |
| 3/4 | 20 | 4 | 1/2 | 65 | M14 | 50 |
| 3 | 80 | 4 | 5/8 | 90 | M16 | 75 |
| 3 1/2 | 90 | 8 | 5/8 | 90 | M16 | 75 |
| 4 | 100 | 8 | 5/8 | 90 | M16 | 75 |
| 5 | 125 | 8 | 3/4 | 95 | M20 | 85 |
| 6 | 150 | 8 | 3/4 | 100 | M20 | 85 |
| 8 | 200 | 8 | 3/4 | 110 | M20 | 90 |
| 10 | 250 | 12 | 7/8 | 115 | M24 | 100 |
| 12 | 300 | 12 | 7/8 | 120 | M24 | 100 |
| 14 | 350 | 12 | 1 | 135 | M27 | 115 |
| 16 | 400 | 16 | 1 | 135 | M27 | 115 |
| 18 | 450 | 16 | 1 1/8 | 145 | M30 | 125 |
| 20 | 500 | 20 | 1 1/8 | 160 | M30 | 140 |
| 24 | 600 | 20 | 1 1/4 | 170 | M33 | 150 |
Stainless Steel Flange Bolts Dimension
Call Now for the Clients List Based in Below Locations
| Africa | South Africa, Kenya, Nigeria, Egypt, Tunisia, Morocco, Algeria |
|---|---|
| Middle East countries | Lebanon, Qatar, Iran, Syria, Kuwait, UAE, Saudi, Bahrain, Iraq, Jordan, Yemen |
| MENA | Libya, Palestine, Morocco, Egypt, Israel, Tunisia, Algeria |

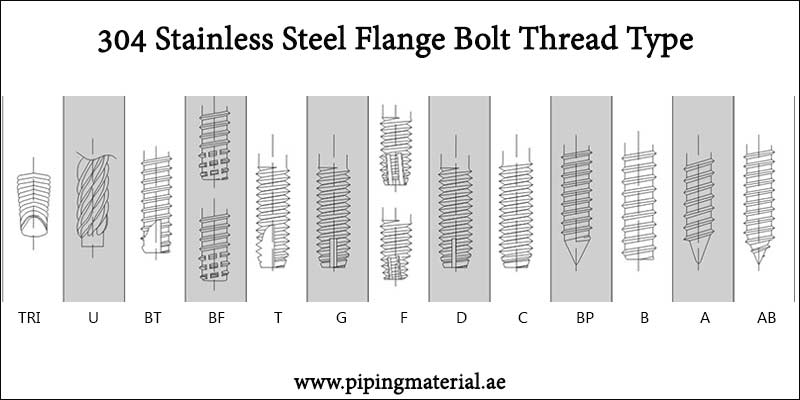

304 Stainless Steel Flange Bolt Thread Type
Request pricing directly from SS flange bolts manufacturers for the lowest price and assured high quality ofstainless metric flange bolts in Dubai
Explore Nearby Locations for the Quickest Delivery Options
| Region | City | Country |
|---|---|---|
| MENA | Casablanca | Morocco |
| Middle East | Doha | Qatar |
| Africa | Cape Town | South Africa |
| Middle East | Jeddah | Saudi Arabia |
| Africa | Lagos | Nigeria |
| Middle East | Dubai | United Arab Emirates |
| Africa | Johannesburg | South Africa |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Dammam | Saudi Arabia |
| Africa | Abuja | Nigeria |
| Middle East | Kuwait City | Kuwait |
| Middle East | Abu Dhabi | United Arab Emirates |
| MENA | Cairo | Egypt |
Types of Stainless Steel Flange Bolts
View Stainless Steel Flange Bolts Suppliers in UAE, Offers Many Types of Bolts That Are Frequently Used

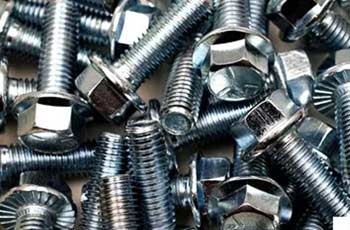

SS Flanged Hexagon Bolts

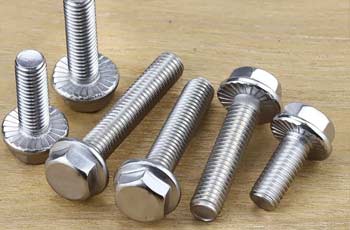

Stainless Steel Metric Flange Bolts

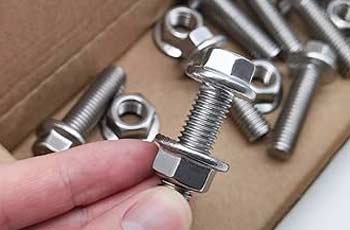

Stainless Steel Exhaust Flange Bolts
Stainless Steel Hex Flange Bolts

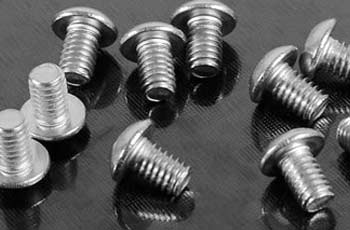

316 Stainless Steel Button Head Flange Bolt

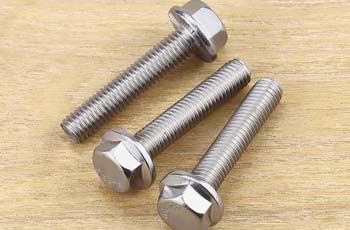

Stainless Steel Serrated Flange Bolts

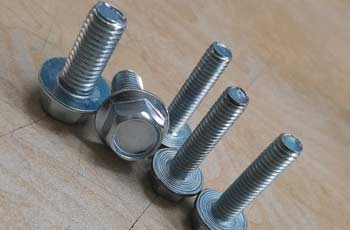

SS Automotive Flange Bolts

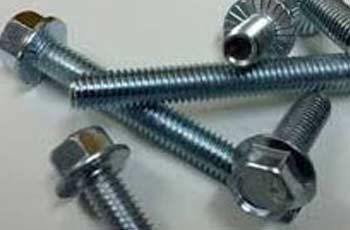

Stainless Steel Large Flange Bolts

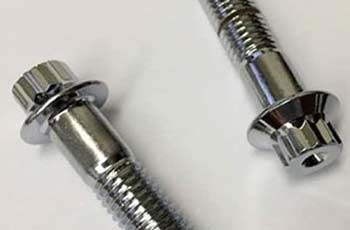

Stainless Steel Slotted Head Flange Bolts
Check M6 M8 SS exhaust flange bolts and stainless 12 point bolts as per ASME B18.3/ B18.6.3

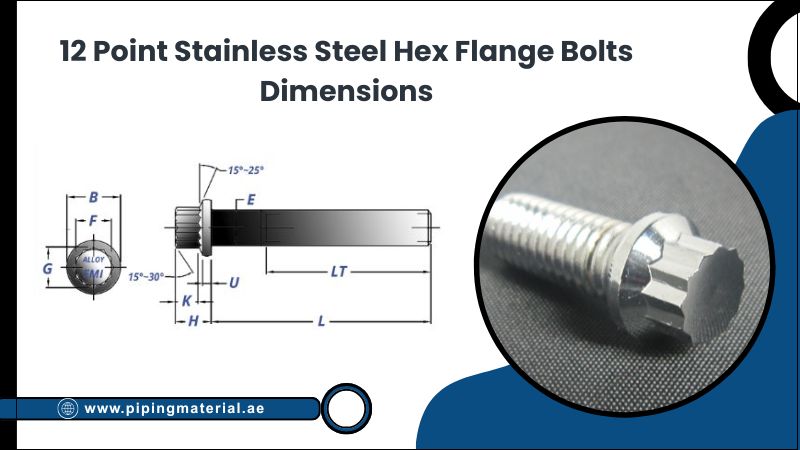

12 Point Stainless Steel Hex Flange Bolts Dimensions
| Nominal Sizes | Dimensions of 12 Point Flange Bolt As per (ANSI B1.1 UNF, UNC) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Body Diameter – Equal to Size – (E) | Diameter of Flange (B) | Head Height (H) | Width Across Flats (F) | Wrench Height (K) | Width Across Corners (G) | Flange Thickness (U) | Length of Thread (LT) | ||||
| Max | Min | Max | Min | Max | Min | Max | Min | Min | Min | Min | |
| 1/2 | 0.5000 | 0.4919 | 0.750 | 0.735 | 0.500 | 0.493 | 0.502 | 0.29 | 0.562 | 0.129 | 1.500 |
| 1/4 | 0.2500 | 0.2435 | 0.375 | 0.365 | 0.260 | 0.244 | 0.252 | 0.15 | 0.278 | 0.058 | 1.000 |
| 3/4 | 0.7500 | 0.7406 | 1.125 | 1.107 | 0.750 | 0.743 | 0.752 | 0.44 | 0.847 | 0.200 | 2.000 |
| 3/8 | 0.3750 | 0.3678 | 0.562 | 0.550 | 0.375 | 0.368 | 0.377 | 0.21 | 0.420 | 0.095 | 1.250 |
| 5/8 | 0.6250 | 0.6163 | 0.938 | 0.921 | 0.625 | 0.618 | 0.627 | 0.36 | 0.705 | 0.166 | 1.750 |
| 5/16 | 0.3125 | 0.3053 | 0.469 | 0.457 | 0.312 | 0.306 | 0.315 | 0.18 | 0.348 | 0.074 | 1.125 |
| 7/8 | 0.8750 | 0.8647 | 1.312 | 1.293 | 0.875 | 0.866 | 0.875 | 0.51 | N/A | 0.234 | 2.250 |
| 7/16 | 0.4375 | 0.4294 | 0.656 | 0.642 | 0.438 | 0.429 | 0.438 | 0.26 | 0.489 | 0.109 | 1.375 |
| 1 | 1.0000 | 0.9886 | 1.500 | 1.479 | 1.000 | 0.991 | 1.000 | 0.60 | N/A | 0.268 | 2.500 |
| 1 1/2 | 1.5000 | 1.4820 | 2.250 | 2.224 | 1.500 | 1.489 | 1.502 | 0.87 | N/A | 0.433 | 3.250 |
| 1 1/8 | 1.1250 | 1.1090 | 1.688 | 1.665 | 1.125 | 1.115 | 1.125 | 0.66 | N/A | 0.310 | 2.750 |
What are the Benefits of Using SS Flange Bolts?
Stainless Steel Serrated Flange Bolts Weight Chart
| Sizes | Weight in kg per (1000 Piece) |
|---|---|
| M16 | 83.82 |
| M14 | 66.13 |
| M12 | 44.35 |
| M10 | 24.04 |
| M8 | 13.76 |
| M6 | 6.94 |
| M5 | 3.22 |
Applications of 304 Toilet and Hex Head Flange Bolts
Find Stainless Steel Flange Bolts Suppliers in UAE, Provides a Various Applications for Flange Bolts
Check Out Your Nearby Locations For Fastest Deliveries
| Country | Cities |
|---|---|
| Belgium | Ghent |
| Netherlands | Haarlem |
| Belgium | Leuven |
| Belgium | Meeuwen-Gruitrode |
| Netherlands | The Hague |
| Belgium | Seraing |
| Netherlands | Rotterdam |
| Belgium | Antwerp |
| Netherlands | Amsterdam |
| Belgium | Brussels |
| Netherlands | Eindhoven |
| Belgium | Westerlo |
Buy stainless steel serrated flange bolts from PED approved suppliers at the best price in United Arab Emirates
316 Stainless Steel Flange Bolts and Nuts Temperature
| Operating Temp | One Hot Tightening, Cold Tightening Temp | Secondary Cold-tightening, Hot-tightening Temp |
|---|---|---|
| -70~-29 | Operating Temperature | – |
| <-70 | -70 | Operating temperature |
| 250~350 | Operating Temperature | – |
| >350 | 350 | Operating temperature |
SS Flange Bolts Fastening Methods

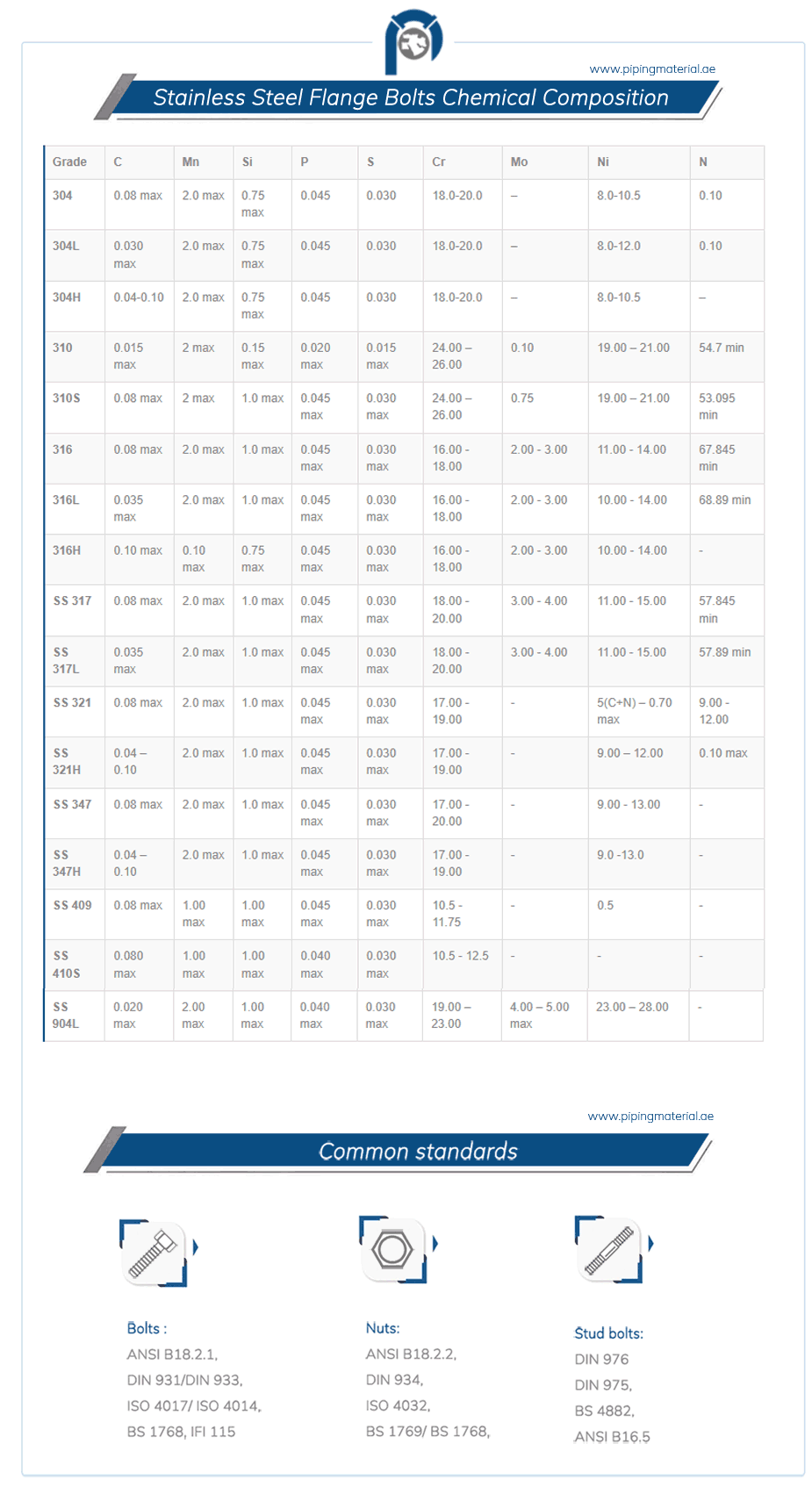

Stainless Steel Flange Bolts Chemical Composition
| Grades | Si | Mo | Mn | S | N | C | P | Cr | Ni |
|---|---|---|---|---|---|---|---|---|---|
| 304 | 0.75 max | – | 2.0 max | 0.030 | 0.10 | 0.08 max | 0.045 | 18.0-20.0 | 8.0-10.5 |
| 304L | 0.75 max | – | 2.0 max | 0.030 | 0.10 | 0.030 max | 0.045 | 18.0-20.0 | 8.0-12.0 |
| 304H | 0.75 max | – | 2.0 max | 0.030 | – | 0.04-0.10 | 0.045 | 18.0-20.0 | 8.0-10.5 |
| 310 | 0.15 max | 0.10 | 2 max | 0.015 max | 54.7 min | 0.015 max | 0.020 max | 24.00-26.00 | 19.00-21.00 |
| 310S | 1.0 max | 0.75 | 2 max | 0.030 max | 53.095 min | 0.08 max | 0.045 max | 24.00-26.00 | 19.00-21.00 |
| 316 | 1.0 max | 2.00-3.00 | 2.0 max | 0.030 max | 67.845 min | 0.08 max | 0.045 max | 16.00-18.00 | 11.00-14.00 |
| 316L | 1.0 max | 2.00-3.00 | 2.0 max | 0.030 max | 68.89 min | 0.035 max | 0.045 max | 16.00-18.00 | 10.00-14.00 |
| 316H | 0.75 max | 2.00-3.00 | 0.10 max | 0.030 max | – | 0.10 max | 0.045 max | 16.00-18.00 | 10.00-14.00 |
| SS 317 | 1.0 max | 3.00-4.00 | 2.0 max | 0.030 max | 57.845 | 0.08 max | 0.045 max | 18.00-20.00 | 11.00-15.00 |
| SS 317L | 1.0 max | 3.00-4.00 | 2.0 max | 0.030 max | 57.89 min | 0.035 max | 0.045 max | 18.00-20.00 | 11.00-15.00 |
| SS 321 | 1.0 max | – | 2.0 max | 0.030 max | 9.00-12.00 | 0.08 max | 0.045 max | 17.00-19.00 | 5(C+N) -0.70 max |
| SS 321H | 1.0 max | – | 2.0 max | 0.030 max | 0.10 max | 0.04-0.10 | 0.045 max | 17.00-19.00 | 9.00-12.00 |
| SS 347 | 1.0 max | – | 2.0 max | 0.030 max | – | 0.08 max | 0.045 max | 17.00-20.00 | 9.00-13.00 |
| SS 347H | 1.0 max | – | 2.0 max | 0.030 max | – | 0.04-0.10 | 0.045 max | 17.00-19.00 | 9.0-13.0 |
| SS 409 | 1.00 max | – | 1.00 max | 0.030 max | – | 0.08 max | 0.045 max | 10.5-11.75 | 0.5 |
| SS 410S | 1.00 max | – | 1.00 max | 0.030 max | – | 0.080 max | 0.040 max | 10.5-12.5 | – |
| SS 904L | 1.00 max | 4.00-5.00 max | 2.00 max | 0.030 max | – | 0.020 max | 0.040 max | 19.00-23.00 | 23.00-28.00 |

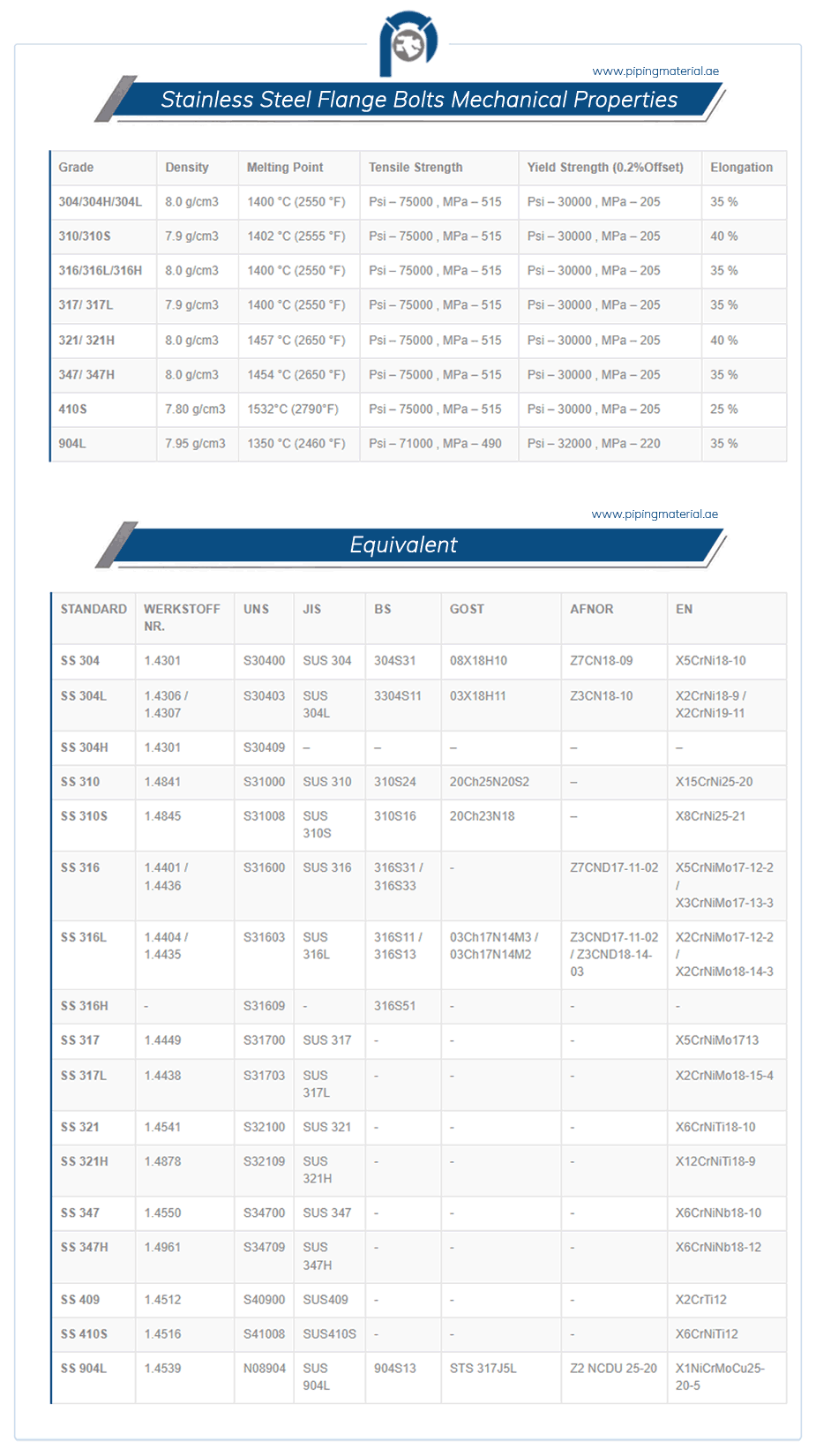

Stainless Steel Flange Bolts Mechanical Properties
Find Stainless Steel Flange Bolts Suppliers in UAE, Provides Best Quality Bolts With Superior Mechanical Qualities
| Grade | Tensile Strength | Melting Point | Elongation | Density | Yield Strength (0.2%Offset) |
|---|---|---|---|---|---|
| 304/304H/304L | Psi-75000, MPa-515 | 1400 °C (2550 °F) | 35 % | 8.0 g/cm3 | Psi-30000, MPa – 205 |
| 310/310S | Psi-75000, MPa – 515 | 1402 °C (2555 °F) | 40 % | 7.9 g/cm3 | Psi-30000, MPa – 205 |
| 316/316L/316H | Psi-75000, MPa – 515 | 1400 °C (2550 °F) | 35 % | 8.0 g/cm3 | Psi-30000, MPa – 205 |
| 317/ 317L | Psi-75000, MPa – 515 | 1400 °C (2550 °F) | 35 % | 7.9 g/cm3 | Psi-30000, MPa – 205 |
| 321/ 321H | Psi-75000, MPa – 515 | 1457 °C (2650 °F) | 40 % | 8.0 g/cm3 | Psi-30000, MPa – 205 |
| 347/ 347H | Psi-75000, MPa – 515 | 1454 °C (2650 °F) | 35 % | 8.0 g/cm3 | Psi-30000, MPa – 205 |
| 410S | Psi-75000, MPa-515 | 1532°C (2790°F) | 25 % | 7.80 g/cm3 | Psi-30000, MPa – 205 |
| 904L | Psi-71000, MPa – 490 | 1350 °C (2460 °F) | 35 % | 7.95 g/cm3 | Psi-32000, MPa – 220 |
SS Flanged Button Head Screws Equivalent Grades
| STANDARD | WERKSTOFF | EN | AFNOR | UNS | BS | JIS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | X5CrNi18-10 | Z7CN18-09 | S30400 | 304S31 | SUS 304 | 08X18H10 |
| SS 304L | 1.4306/1.4307 | X2CrNi18-9/X2CrNi19-11 | Z3CN18-10 | S30403 | 3304S11 | SUS304L | 03X18H11 |
| SS 304H | 1.4301 | – | – | S30409 | – | – | – |
| SS 310 | 1.4841 | X15CrNi25-20 | – | S31000 | 310S24 | SUS 310 | 20Ch25N20S2 |
| SS 310S | 1.4845 | X8CrNi25-21 | – | S31008 | 310S16 | SUS310S | 20Ch23N18 |
| SS 316 | 1.4401/1.4436 | X5CrNiMo17-12-2/X3CrNiMo17-13-3 | Z7CND17-11-02 | S31600 | 316S31/316S33 | SUS 316 | |
| SS 316L | 1.4404/1.4435 | X2CrNiMo17-12-2/X2CrNiMo18-14-3 | Z3CND17-11-02 /Z3CND18-14-03 | S31603 | 316S11/316S13 | SUS 316L | 03Ch17N14M3/03Ch17N14M2 |
| SS 316H | – | – | – | S31609 | 316S51 | – | – |
| SS 317 | 1.4449 | X5CrNiMo1713 | – | S31700 | – | SUS 317 | – |
| SS 317L | 1.4438 | X2CrNiMo18-15-4 | – | S31703 | – | SUS317L | – |
| SS 321 | 1.4541 | X6CrNiTi18-10 | – | S32100 | – | SUS 321 | – |
| SS 321H | 1.4878 | X12CrNiTi18-9 | – | S32109 | – | SUS321H | – |
| SS 347 | 1.4550 | X6CrNiNb18-10 | – | S34700 | – | SUS 347 | – |
| SS 347H | 1.4961 | X6CrNiNb18-12 | – | S34709 | – | SUS 347H | – |
| SS 409 | 1.4512 | X2CrTi12 | – | S40900 | – | SUS409 | – |
| SS 410S | 1.4516 | X6CrNiTi12 | – | S41008 | – | SUS410S | – |
| SS 904L | 1.4539 | X1NiCrMoCu25-20-5 | Z2 NCDU 25-20 | N08904 | 904S13 | SUS | STS 317J5L |
Why Choose Stainless Steel Hex Flange Bolts?
Our Dealers and Distributors Are Present in the Locations Mentioned Below
| Al Jubail | Ajman | Saudi Arabia | Abu Dhabi |
|---|---|---|---|
| Fujairah | Doha | Sharjah | Umm Al Quwain |
| Riyadh | Ras Al Khaimah | Muscat | Dubai |
Please Find Authorised Dealers and Distributors of Stainless Steel Flange Bolts in UAE
- Golden Metal Trading LLC :- Deira, Dubai
- Husaini Brothers LLC :- Al Quoz, Dubai
- Pressbolt Middle East :- Abu Dhabi, UAE
- Torque Bolts Trading LLC :- Sharjah, UAE
