Stainless Steel Heat Exchanger Tubes Overview
| Size in Ready Stock | 6.53mm – 127 mm |
|---|---|
| Grades | 304/304L/304H, 316/316L, 321/321H, 317/317L, 347/347H, 309S, 310 |
| Brands in Stock | Tubacex, Rath Gibson, Special Metals, Haynes, Sanyo Special Steel, Nippon Steel & Sumitomo Metal, Alleima |
| Raw Material Origin | Korean, European,Japanese, Indian, American |
| Material Type | Stainless Steel |
| International Standards | ASME SA249, EN 10217-7, ASME SA213, EN 10216-5, AD2000 W2 |
| Surface Treatment | Oil-dip, Varnish, Passivation, Phosphating |
| Approval | ADNOC, KOC, ORPIC, PETRONAS, QAFCO, SABIC |
| Types | Straight Tubes, U-Bend Tubes, Finned Tubes, Corrugated Tubes |
| End | Plain end, Bevelled end |
| Test Certificates |
|
| MTC | EN 10204 3.1 |
| Dealers and Distributors of Special Metals Heat Exchangers in UAE |
|
| Delivery Condition | Bright Annealed, Annealed and Pickled, Cold Drawn, Polished, MF |
| Processing Service | Cutting, Bending, Decoiling, Welding, Punching, Moulding |
| Inner Packing | Caps on two ends of every pipe |
Who we are?
Explore Middle East FZE, incorporated in the UAE in 2016, draws on its management’s 26 years of experience to ensure Pipingmaterial.ae remains the most reliable and information-rich B2B platform for the steel and piping sector.
- Complete Online Guide
- One Stop Platform
- Industry Expert Team
- All In One Platform
- Buyer Seller Connect
- Trusted B2B Platform
Obtain Only Audited Suppliers of SS Shell and Tube Heat Exchanger Operating in UAE. Compare Here Stainless Steel vs Copper Heat Exchanger Tubes
Stainless Steel Heat Exchanger Tubes Specification
SS Heat Exchanger Tubes: 6.53mm – 127 mm
Seamless Stainless Steel Boiler Tubes: 0.5mm to 5 mm (Wall Thickness)
Method: Cold Formed, Hot Formed, Precision Rolled
End: Plain, Bevelled, Threaded, Grooved
Suitable Temperatures: 800 – 900°F
Process: Redrawn, ERW, Seamless, Welded
Stock MTR: Chemical, Mechanical, PMI, Destructive and Non Destructive Test Report
Services: Threading, Beveling, Polishing
Get Quote Directly from Stainless Steel Heat Exchanger Tubes Suppliers in UAE with Valuable Data Sheet
Applications: Power Generation, HVAC & Refrigeration, Food, Beverage & Dairy
Finned Stainless Steel Heat Exchanger Tubes Flow Arrangements
- Counter-flow
- Parallel flow
- Cross-flow
- Thermal efficiency
- Energy savings
Call Now for the Clients List Based in Below Locations
| Africa | Nigeria, South Africa, Kenya, Morocco, Egypt, Tunisia, Algeria |
|---|---|
| Middle East Countries | UAE, Saudi, Qatar, Kuwait, Bahrain, Oman, Iraq, Iran, Jordan, Lebanon, Syria, Yemen |
| MENA | Egypt, Morocco, Algeria, Tunisia, Libya, Israel, Palestine |
Pick the Top 10 Verified Stockists of Stainless Coil Heat Exchanger in Middle East Countries, Check Heat Exchanger Stainless Steel Types
Top Selling Stainless Boiler Tubes Types in UAE
Check ADNOC Approved Stainless steel heat exchanger tubes Suppliers in UAE offering distinct types

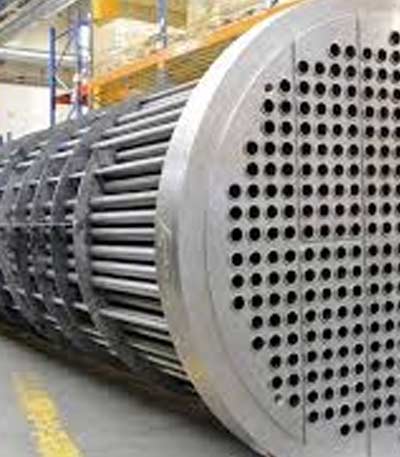

Stainless Steel Shell and Tube Heat Exchanger
Finned Stainless Steel Heat Exchanger Tubes

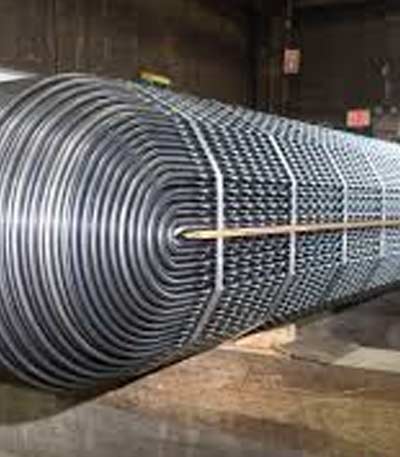

Stainless Steel U Tube Heat Exchanger
Stainless Steel Tube Coil Heat Exchanger
Stainless Steel Air-Cooled Heat Exchangers
Stainless Steel Straight Tube Heat Exchangers
What are the types of stainless-steel coil heat exchangers?
- Heating coils and stainless-steel tube shell heat exchanger.
- Heat exchanger tubes made of welded stainless steel
- Spiral heat exchanger made of SS 316 welds.
- Heat exchanger tubes and a shell made of stainless steel
- Heat exchanger made of stainless steel 304 tubes
- Heat exchanger cooling coil tube made of stainless steel
- Continuous stainless steel tube heat exchanger SUS 304L coil
- Coiled heat exchanger pipe made of AISI 316L
- Cold produced, continuous, tp316l stainless Exchanger pipe to ASTM A213
- Heat exchanger chilling tube made of stainless steel
Other ASTM Products of Heat Exchanger Tubes
Typical Performance and Dimensions of Stainless Steel Heat Exchangers
| Heat Dissipated (kW) | Water Flow (l/min) | Oil Flow (l/min) | Dim. A (mm) | Dim. B (mm) | Dim. C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 9 | 120 | 120 | 460 | 266 | 89 | 11 |
| 15 | 85 | 110 | 734 | 540 | 89 | 15 |
| 22 | 75 | 90 | 1114 | 920 | 89 | 20 |
| 22 | 140 | 180 | 764 | 520 | 114 | 21 |
| 35 | 140 | 170 | 1144 | 900 | 114 | 27 |
| 48 | 120 | 150 | 1652 | 1408 | 114 | 38 |
| 52 | 320 | 240 | 764 | 510 | 141 | 30 |
| 82 | 250 | 210 | 1134 | 890 | 141 | 45 |
| 133 | 220 | 180 | 1652 | 1398 | 141 | 62 |
| 66 | 460 | 480 | 784 | 490 | 168 | 44 |
| 100 | 360 | 390 | 1164 | 870 | 168 | 60 |
| 144 | 310 | 330 | 1672 | 1378 | 168 | 78 |
| 196 | 280 | 300 | 2180 | 1886 | 168 | 104 |
| 140 | 740 | 580 | 834 | 470 | 219 | 79 |
| 224 | 650 | 550 | 1214 | 850 | 219 | 101 |
| 354 | 520 | 500 | 1722 | 1358 | 219 | 133 |
| 536 | 480 | 460 | 2230 | 1866 | 219 | 164 |
| 223 | 1100 | 960 | 844 | 430 | 273 | 114 |
| 358 | 1000 | 920 | 1224 | 810 | 273 | 148 |
| 624 | 900 | 740 | 1732 | 1318 | 273 | 198 |
| 871 | 790 | 750 | 2240 | 1826 | 273 | 244 |
Material Inspection Facility in Following Locations
| Umm Al Quwain | Sharjah | Doha | Fujairah |
|---|---|---|---|
| Dubai | Muscat | Ras Al Khaimah | Riyadh |
| Abu Dhabi | Saudi Arabia | Ajman | Al Jubail |
Get Importers of SS Heat Exchanger Tube in Dubai who offers it in a Variety of Widths and Thicknesses, and View How Many Tubes can be Plugged into the Heat Exchanger
Stainless Steel U Tube Heat Exchanger Tolerance Chart
| Standard | Outer Diameter Sizes in Inch | Tolerances Chart | |||
|---|---|---|---|---|---|
| – | Outer Diameter | Wall Thickness | – | ||
| Plus | Minus | Plus | Minus | ||
| ASME-SA-213 | 1.000 to 1.500 | .006" | .005" | 20% | 0% |
| ASTM-A-213 | Under 1.000 | .004" | .004" | 20% | 0% |
| Heat Exchanger Tube | 2.000 to 2.499 | .010" | .010" | 22% | 0% |
| Cold Finished Seamless | 1.501 to 1.999 | .008" | .008" | 22% | 0% |
| Minimum Wall | 2.500 to 2.999 | .012" | .012" | 22% | 0% |
| 4.001 to 5.000 | .015" | .025" | 22% | 0% | |
| 3.000 to 4.000 | .015" | .015" | 22% | 0% | |
SS Heat Exchanger Tubes Parameters
| Main performance parameters | Structure | shell and tube type | |
|---|---|---|---|
| Area of Heat Transfer | 125 square meter | ||
| Pitch | mm | 456 | |
| Technical Parameters | Design Pressure | MPa | shell:0.6 tube:1.6 |
| Design temperature | °C | shell:250 tube:210 | |
| Working temperature | °C | shell:230/210 tube:170/190 | |
| Dimension | Dia. | mm | Φ662 |
| Length | mm | 7040 | |
| Weight | kg | 2165 |
Can SS heat exchanger tubes be supplied in custom OD and wall thickness?
Yes, On pipingmaterial.ae you can find verified suppliers provide SS heat exchanger tubes in custom ODs and wall thicknesses; additionally, they offer tailored solutions for projects across the UAE.
Stainless Heat Exchanger Tubes Dimensional Tolerances
| Standard | Sizes | Tolerances Chart | |||
|---|---|---|---|---|---|
| O.D. | Wall Thickness | ||||
| PLUS (+) | MINUS (-) | PLUS (+) | MINUS (-) | ||
| ASTM-A-213 | Under 1.000 | .004" | .004" | 20% | 0% |
| ASME-SA-213 | 1.000 to 1.500 | .006" | .005" | 20% | 0% |
| Minimum Wall | 2.500 to 2.999 | .012" | .012" | 22% | 0% |
| 3.000 to 4.000 | .015" | .015" | 22% | 0% | |
| 4.001 to 5.000 | .015" | .025" | 22% | 0% | |
| Cold Finished Seamless | 1.501 to 1.999 | .008" | .008" | 22% | 0% |
| Heat Exchanger Tube | 2.000 to 2.499 | .010" | .010" | 22% | 0% |
SS Heat Exchanger Tubing Weight Chart
| Outside | Diameter | [mm] | 5 .80 | 12.70 | 15.88 | 19.05 | 22.23 | 25.40 | 31.75 | 38.10 | 63.50 | 76.20 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [inch] | 2 | 2 | .5 | 1/2 | .625 | 5/8 | .75 | 3/4 | .875 | 7/8 | 1 | 1 | 1.25 | 1 1/4 | 1.5 | 1 1/2 | 2.5 | 2 1/2 | 3 | 3 | ||
| Min. wall thickness | (inch) BWG | [mm] | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft | Kilogram / meter | lb/ft |
| (.035) 20 | .89 | – | – | .283 | .190 | .360 | .242 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| (.049) 18 | 1.24 | – | – | .381 | .256 | .488 | .328 | .595 | .400 | .702 | .472 | .808 | .543 | 1.022 | .686 | 1.236 | .830 | – | – | – | – | |
| (.065) 16 | 1.65 | 2.192 | 1.472 | .487 | .327 | .630 | .423 | .771 | .518 | .913 | .614 | 1.056 | .709 | 1.340 | .900 | 1.624 | 1.090 | 2.761 | 1.854 | – | – | |
| (.083) 14 | 2.11 | 2.775 | 1.863 | .594 | .399 | .776 | .521 | .957 | .643 | 1.141 | .767 | 1.321 | .887 | 1.684 | 1.131 | 2.048 | 1.375 | 3.502 | 2.351 | 4.229 | 2.840 | |
| (.095) 13 | 2.41 | 3.148 | 2.114 | .657 | .441 | .865 | .581 | 1.072 | .720 | 1.285 | .864 | 1.487 | .998 | 1.902 | 1.277 | 2.317 | 1.556 | 3.978 | 2.671 | 4.808 | 3.228 | |
| (.109) 12 | 2.77 | 3.588 | 2.409 | .725 | .487 | .964 | .647 | 1.202 | .807 | 1.448 | .973 | 1.680 | 1.128 | 2.157 | 1.448 | 2.634 | 1.769 | 4.542 | 3.050 | 5.497 | 3.691 | |
| (.120) 11 | 3.05 | 3.925 | 2.636 | .773 | .519 | 1.036 | .696 | 1.299 | .872 | 1.571 | 1.056 | 1.824 | 1.225 | 2.349 | 1.577 | 2.875 | 1.930 | 4.976 | 3.341 | 6.027 | 4.047 | |
| (.134) 10 | 3.40 | 4.340 | 2.914 | .826 | .555 | 1.120 | .752 | 1.412 | .948 | 1.722 | 1.158 | 1.998 | 1.342 | 2.583 | 1.734 | 3.169 | 2.128 | 5.512 | 3.701 | 6.683 | 4.487 | |
| (.148) 9 | 3.76 | 4.759 | 3.196 | .873 | .586 | 1.198 | .804 | 1.521 | 1.021 | – | – | 2.169 | 1.456 | 2.816 | 1.891 | 3.464 | 2.326 | 6.055 | 4.066 | 7.350 | 4.935 | |
| (.165) 8 | 4.19 | 5.250 | 3.525 | – | – | – | – | – | – | – | – | 2.363 | 1.587 | 3.085 | 2.071 | 3.807 | 2.556 | 6.693 | 4.494 | 8.137 | 5.464 | |
| (.180) 7 | 4.57 | 5.674 | 3.810 | – | – | – | – | – | – | – | – | 2.526 | 1.696 | 3.313 | 2.225 | 4.100 | 2.753 | 7.249 | 4.867 | 8.823 | 5.924 | |
| (.203) 6 | 5.16 | 6.316 | 4.241 | – | – | – | – | – | – | – | – | – | – | 3.650 | 2.451 | 4.538 | 3.047 | 8.094 | 5.435 | 9.871 | 6.628 | |
| (.220) 5 | 5.59 | 6.771 | 4.547 | – | – | – | – | – | – | – | – | – | – | 3.882 | 2.607 | 4.845 | 3.253 | 8.696 | 5.839 | 1 .622 | 7.132 | |
Applications of Stainless Steel Heat Exchanger Tubes
- Industrial uses
- Energy efficiency
- Process cooling
- Heat recovery
- Temperature control
- Chemical & Petrochemical Processing
- HVAC & Refrigeration
Explore Nearby Locations for the Quickest Delivery Options
| Country | Cities |
|---|---|
| Netherlands | Eindhoven |
| Belgium | Brussels |
| Belgium | Seraing |
| Netherlands | Haarlem |
| Belgium | Meeuwen-Gruitrode |
| Belgium | Westerlo |
| Netherlands | Rotterdam |
| Belgium | Leuven |
| Netherlands | Amsterdam |
| Belgium | Ghent |
| Netherlands | The Hague |
| Belgium | Antwerp |
Find The Most Experienced Traders of Plate Heat Exchanger Stainless Steel in the GCC Countries, Who Offer a Wide Selection. Know why it’s so popular?
SS Air-Cooled Heat Exchangers Brands
Tubacex: Ternitz, Austria
Haynes International, Inc.: Kokomo, IN, USA
Rath Gibson: Janesville, WI, USA
Alleima (Sandvik): Scranton, PA, USA
BRISMET (Synalloy): Bristol, TN, USA
Sanyo Special Steel.: Himeji, JAPAN
Special Metals Corporation (SMC): New Hartford, New York, United States
Nippon Steel & Sumitomo Metal Corporation: Tokyo, Japan
Rivit: Caltrano, Italy
Allegheny Technologies Incorporated (ATI): Dallas, Texas, USA
Technical Sheet of Heat Exchanger Stainless Steel Tube
| Heat Exchanger Type | Heat Transfer Area (m²) | Max Operating Pressure (bar) | Max Operating Temperature (°C) | Heat Transfer Coefficient (W/m²K) |
|---|---|---|---|---|
| Plate Heat Exchangers (PHE) | 1 – 500 | 6 – 30 | 180 – 220 | 200 – 5000 |
| Air-Cooled Heat Exchangers | 50 – 2000 | 1 – 20 | 50 – 150 | 20 – 150 |
| Shell and Tube Heat Exchangers | 10 – 1000+ | 10 – 100 | 150 – 600 | 100 – 1000 |
| Double Pipe Heat Exchangers | 1 – 100 | 5 – 20 | 100 – 200 | 50 – 600 |
Do pipingmaterial.ae suppliers provide SS heat exchanger tubes with MTC?
Yes, verified suppliers on pipingmaterial.ae provide SS heat exchanger tubes with MTCs; additionally, they can supply across Dubai, Abu Dhabi, Ajman, and Ras Al Khaimah.
Storage Sites of Partner Suppliers
Dependable Stainless steel heat exchanger tubes Supplier in UAE with a focus on performance, safety, and innovation.
| Region | City | Country |
|---|---|---|
| Middle East | Dubai | United Arab Emirates |
| Africa | Lagos | Nigeria |
| Middle East | Abu Dhabi | United Arab Emirates |
| Middle East | Dammam | Saudi Arabia |
| MENA | Cairo | Egypt |
| Middle East | Riyadh | Saudi Arabia |
| Middle East | Jeddah | Saudi Arabia |
| Africa | Johannesburg | South Africa |
| Middle East | Doha | Qatar |
| Middle East | Kuwait City | Kuwait |
| MENA | Casablanca | Morocco |
| Africa | Cape Town | South Africa |
| Africa | Abuja | Nigeria |
SS Heat Exchanger Tubes 100% Certified Testing & Documentation
- EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- 100% Radiography Test Report
- Raw Materials Certificate
- Third Party Inspection Report
- Fumigation Certificates
- Heat Treatment Charts
- HS Code Commercial Invoice
- Form A for Generalized System of Preferences (GSP)
- Manufacturer Test Certificate
- Moisture testing
- Surface roughness measurement
- Laboratory Test Certificate from Govt. Approved Lab
- DFARS compliant
Contact with Truthful Distributors to Purchase Heat Exchanger Coil Stainless Steel for 10% to 25% less. Also, Find out if a Stainless Heat Exchanger Tube Better Option
SS Shell And Tube Heat Exchanger Equivalent Grades Chart
| AISI ASTM Type | UNS No. | BS | EU | W.No. | DIN | Swedish SS | Japanese JIS |
|---|---|---|---|---|---|---|---|
| 304 | S30400 | 304S15 | 58E | 1.4301 | X 5 CrNi 18 9 | 2332 | SUS 304 |
| 304L | S30403 | 304S12 | – | 1.4306 | X 2 CrNi 18 9 | 2352 | SUS 304L |
| 316 | S31600 | 316S16 | 58H, 58J | 1.4401 | X 5 CrNiMo 18 10 | 2347 | SUS 316 |
| 316L | S31603 | 316S12 | – | 1.4404 | X 2 CrNiMo 18 10 | 2348 | SUS 316L |
Stainless Steel Heat Exchanger Tubes Chemical Composition
| Stainless Steel Grades | UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | – |
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | – |
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 |
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Stainless Coil Heat Exchanger Mechanical Properties
| Material | Heat Treatment | Temperature Min. °F(°C) | Tensile Strength Ksi (MPa), Min. | Yield Strength Ksi (MPa), Min. | Elongation %, Min |
|---|---|---|---|---|---|
| TP304 | Solution | 1900 (1040) | 75 (515) | 30 (205) | 35 |
| TP304L | Solution | 1900 (1040) | 70 (485) | 25 (170) | 35 |
| TP316 | Solution | 1900 (1040) | 75 (515) | 30 (205) | 35 |
| TP316L | Solution | 1900 (1040) | 70 (485) | 25 (170) | 35 |
Benefits of Stainless Steel Heat Exchanger Tubes
Get SABIC Approved Stainless steel heat exchanger tubes Suppliers in UAE offering numerous benefits
- Corrosion Resistance
- High Thermal Conductivity
- Strength and Durability
- Hygiene and Cleanliness
- Low Maintenance Costs
- Versatility
Other Tubes Products
- Stainless Steel Heat Exchanger Tubes
- Alloy Steel Boiler Tube
- Duplex Heat Exchanger Tubes
- Stainless Steel Fin Tube
- Finned Tube
- Boiler Bank Tubes
Other Products
Table of Content
